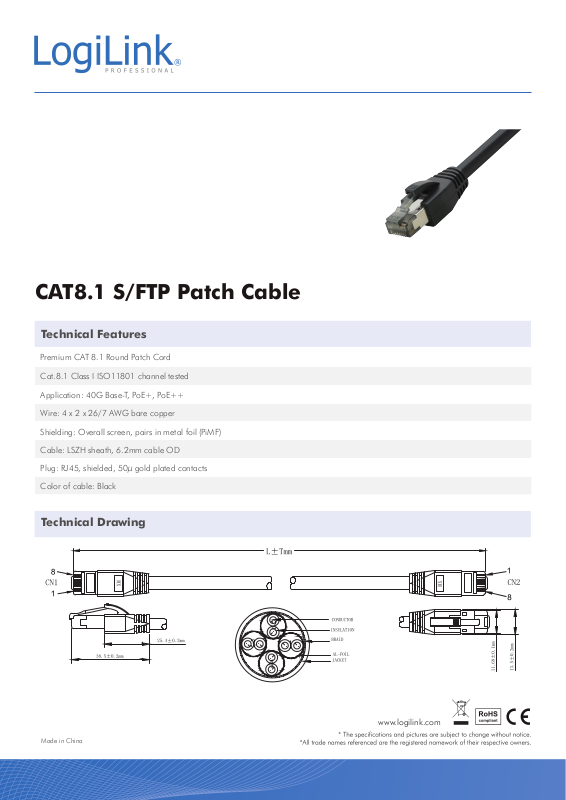

CAT8.1 S/FTP Patch Cable
Technical Features
Premium CAT 8.1 Round Patch Cord
Cat.8.1 Class I ISO11801 channel tested
Application: 40G Base-T, PoE+, PoE++
Wire: 4 x 2 x 26/7 AWG bare copper
Shielding: Overall screen, pairs in metal foil (PiMF)
Cable: LSZH sheath, 6.2mm cable OD
Plug: RJ45, shielded, 50µ gold plated contacts
Color of cable: Black
Technical Drawing
Made in China
www.logilink.com
Art-No. Cable Length EAN Code
CQ8023S 0.5m 4052792052077
CQ8033S 1m 4052792052084
CQ8043S 1.5m 4052792052091
CQ8053S 2m 4052792052107
CQ8063S 3m 4052792052114
CQ8073S 5m 4052792052121
CQ8093S 10m 4052792052138
CQ8103S 15m 4052792052152
Package Content
CAT8.1 S/FTP Patch Cable x 1
Packaging Information
Art-No. Packing Dimension Packing Weight Carton Dimension Carton Q‘ty Carton Weight
CQ8023S 180 x 130 x 15mm 0.0340kg 400 x 300 x 300mm 200pcs 7.6kg
CQ8033S 180 x 180 x 11mm 0.0544kg 400 x 300 x 300mm 140pcs 8.4kg
CQ8043S 185 x 185 x 16mm 0.0745kg 400 x 300 x 300mm 100pcs 8.1kg
CQ8053S 185 x 185 x 16mm 0.0930kg 400 x 300 x 300mm 80pcs 8.4kg
CQ8063S 185 x 185 x 20mm 0.1320kg 400 x 300 x 300mm 60pcs 8.6kg
CQ8073S 185 x 185 x 23mm 0.2104kg 400 x 300 x 300mm 40pcs 9.1kg
CQ8093S 190 x 190 x 40mm 0.3954kg 400 x 300 x 300mm 25pcs 11.2kg
CQ8103S 220 x 220 x 45mm 0.6010kg 400 x 300 x 300mm 18pcs 11.3kg
Made in China
www.logilink.com
