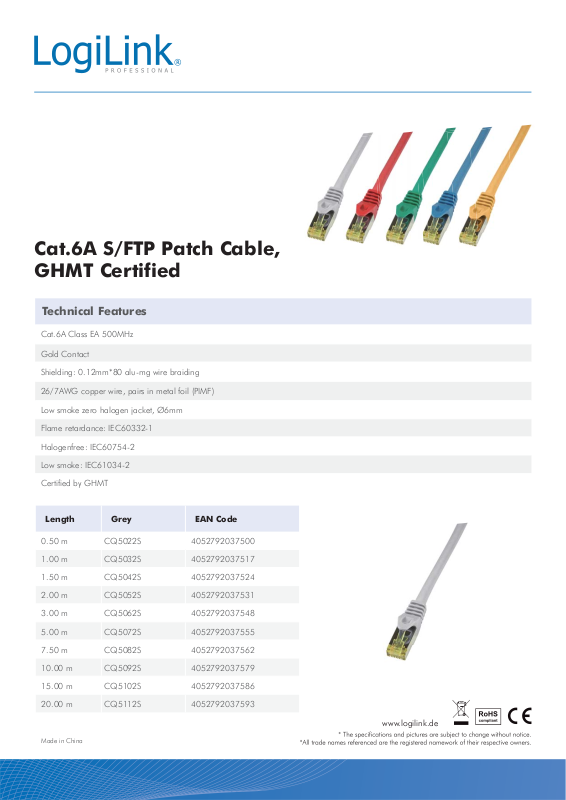

Cat.6A S/FTP Patch Cable,
GHMT Certified
Technical Features
Cat.6A Class EA 500MHz
Gold Contact
Shielding: 0.12mm*80 alu-mg wire braiding
26/7AWG copper wire, pairs in metal foil (PIMF)
Low smoke zero halogen jacket, Ø6mm
Flame retardance: IEC60332-1
Halogenfree: IEC60754-2
Low smoke: IEC61034-2
Certified by GHMT
Length Grey EAN Code
0.50 m CQ5022S 4052792037500
1.00 m CQ5032S 4052792037517
1.50 m CQ5042S 4052792037524
2.00 m CQ5052S 4052792037531
3.00 m CQ5062S 4052792037548
5.00 m CQ5072S 4052792037555
7.50 m CQ5082S 4052792037562
10.00 m CQ5092S 4052792037579
15.00 m CQ5102S 4052792037586
20.00 m CQ5112S 4052792037593
Made in China
www.logilink.de
Length Red EAN Code Green EAN Code
0.50 m CQ5024S 4052792037616 CQ5025S 4052792037722
1.00 m CQ5034S 4052792037623 CQ5035S 4052792037739
1.50 m CQ5044S 4052792037630 CQ5045S 4052792037746
2.00 m CQ5054S 4052792037647 CQ5055S 4052792037753
3.00 m CQ5064S 4052792037654 CQ5065S 4052792037760
5.00 m CQ5074S 4052792037661 CQ5075S 4052792037777
7.50 m CQ5084S 4052792037678 CQ5085S 4052792037784
10.00 m CQ5094S 4052792037685 CQ5095S 4052792037791
15.00 m CQ5104S 4052792037692 CQ5105S 4052792037807
20.00 m CQ5114S 4052792037708 CQ5115S 4052792037814
Length Blue EAN Code
0.50 m CQ5026S 4052792037838
1.00 m CQ5036S 4052792037845
1.50 m CQ5046S 4052792037852
2.00 m CQ5056S 4052792037869
3.00 m CQ5066S 4052792037876
5.00 m CQ5076S 4052792037883
7.50 m CQ5086S 4052792037890
10.00 m CQ5096S 4052792037906
15.00 m CQ5106S 4052792037913
20.00 m CQ5116S 4052792037920
Made in China
www.logilink.de
Length Yellow EAN Code
0.50 m CQ5027S 4052792037944
1.00 m CQ5037S 4052792037951
1.50 m CQ5047S 4052792037968
2.00 m CQ5057S 4052792037975
3.00 m CQ5067S 4052792037982
5.00 m CQ5077S 4052792037999
7.50 m CQ5087S 4052792038002
10.00 m CQ5097S 4052792038019
15.00 m CQ5107S 4052792038026
20.00 m CQ5117S 4052792038033
Package Contents
CAT6A S/FTP Patch Cable, GHMT Certified x 1
Packaging Informations
Packing Dimension
Packing Weight
Carton Dimension
Carton Q‘ty
Carton Weight
150 x 130 x 50mm (0.5m)/160 x 140 x 50mm (1-2m)/180 x 160 x 50mm (3-5m)/200 x 200 x 50mm (7.510m)/200 x 200 x 100mm (15m)/240 x 200 x 100mm (20m)
0.03kg (0.5m)/0.04kg (1m)/0.06kg (1.5m)/0.07kg (2m)/0.11kg (3m)/0.19kg (5m)/0.26kg (7.5m)/0.34kg
(10m)/0.51kg (15m)/0.66kg (20m)
400 x 300 x 300mm
160pcs (0.5m)/120pcs (1m)/100pcs (1.5m)/80pcs (2m)/60pcs (3m)/50pcs (5m)/30pcs (7.5m)/25pcs (10m)/
20pcs (15m)/15pcs (20m)
7.54kg (0.5m)/8.2kg (1m)/8.7kg (1.5m)/8.72kg (2m)/8.44kg (3m)/10.62kg (5m)/9.25kg (7.5m)/9.5kg
(10m)/10.9kg (15m)/11kg (20m)
Made in China
www.logilink.de
