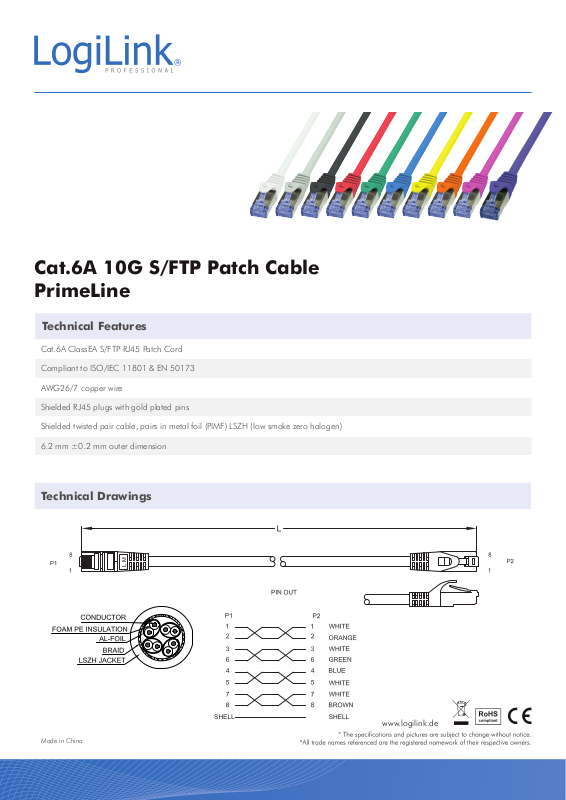

Cat.6A 10G S/FTP Patch Cable
PrimeLine
Technical Features
Cat.6A ClassEA S/FTP RJ45 Patch Cord
Compliant to ISO/IEC 11801 & EN 50173
AWG26/7 copper wire
Shielded RJ45 plugs with gold plated pins
Shielded twisted pair cable, pairs in metal foil (PIMF) LSZH (low smoke zero halogen)
6.2 mm ±0.2 mm outer dimension
Technical Drawings
Made in China
www.logilink.de
Length White EAN Code
0.25 m CQ3011S 4052792020045
0.50 m CQ3021S 4052792020052
1.00 m CQ3031S 4052792020069
1.50 m CQ3041S 4052792020076
2.00 m CQ3051S 4052792020083
3.00 m CQ3061S 4052792020090
5.00 m CQ3071S 4052792020106
7.50 m CQ3081S 4052792020113
10.00 m CQ3091S 4052792020120
15.00 m CQ3101S 4052792020137
20.00 m CQ3111S 4052792020144
30.00 m CQ3121S 4052792020151
50.00 m CQ3141S 4052792020168
Length Grey EAN Code Black EAN Code
0.25 m CQ3012S 4052792020175 CQ3013S 4052792020267
0.50 m CQ3022S 4052792020182 CQ3023S 4052792020274
1.00 m CQ3032S 4052792020199 CQ3033S 4052792020281
1.50 m CQ3042S 4052792020205 CQ3043S 4052792020298
2.00 m CQ3052S 4052792020212 CQ3053S 4052792020304
3.00 m CQ3062S 4052792020229 CQ3063S 4052792020311
5.00 m CQ3072S 4052792020236 CQ3073S 4052792020328
7.50 m CQ3082S 4052792020243 CQ3083S 4052792020335
10.00 m CQ3092S 4052792020250 CQ3093S 4052792020342
15.00 m CQ3102S 4052792029369 CQ3103S 4052792040579
20.00 m CQ3112S 4052792029376 CQ3113S 4052792040586
30.00 m CQ3122S 4052792029383 CQ3123S 4052792040593
50.00 m CQ3142S 4052792029390 CQ3143S 4052792040609
www.logilink.de
Made in China
Length Red EAN Code
0.25 m CQ3014S 4052792020359
0.50 m CQ3024S 4052792020366
1.00 m CQ3034S 4052792020373
1.50 m CQ3044S 4052792020380
2.00 m CQ3054S 4052792020397
3.00 m CQ3064S 4052792020403
5.00 m CQ3074S 4052792020410
7.50 m CQ3084S 4052792020427
10.00 m CQ3094S 4052792020434
Length Green EAN Code Blue EAN Code
0.25 m CQ3015S 4052792020441 CQ3016S 4052792020533
0.50 m CQ3025S 4052792020458 CQ3026S 4052792020540
1.00 m CQ3035S 4052792020465 CQ3036S 4052792020557
1.50 m CQ3045S 4052792020472 CQ3046S 4052792020564
2.00 m CQ3055S 4052792020489 CQ3056S 4052792020571
3.00 m CQ3065S 4052792020496 CQ3066S 4052792020588
5.00 m CQ3075S 4052792020502 CQ3076S 4052792020595
7.50 m CQ3085S 4052792020519 CQ3086S 4052792020601
10.00 m CQ3095S 4052792020526 CQ3096S 4052792020618
www.logilink.de
Made in China
Length Yellow EAN Code Violet EAN Code
0.25 m CQ3017S 4052792020625 CQ301VS 4052792043235
0.50 m CQ3027S 4052792020632 CQ302VS 4052792043242
1.00 m CQ3037S 4052792020649 CQ303VS 4052792043259
1.50 m CQ3047S 4052792020656 CQ304VS 4052792043266
2.00 m CQ3057S 4052792020663 CQ305VS 4052792043273
3.00 m CQ3067S 4052792020670 CQ306VS 4052792043280
5.00 m
CQ3077S
4052792020687 CQ307VS 4052792043297
7.50 m CQ3087S 4052792020694 CQ308VS 4052792043303
10.00 m CQ3097S 4052792020700 CQ309VS 4052792043310
Length Orange EAN Code Pink EAN Code
0.25 m CQ3018S 4052792020717 CQ3019S 4052792020809
0.50 m CQ3028S 4052792020724 CQ3029S 4052792020816
1.00 m CQ3038S 4052792020731 CQ3039S 4052792020823
1.50 m CQ3048S 4052792020748 CQ3049S 4052792020830
2.00 m CQ3058S 4052792020755 CQ3059S 4052792020847
3.00 m CQ3068S 4052792020762 CQ3069S 4052792020854
5.00 m
CQ3078S
4052792020779
CQ3079S
4052792020861
7.50 m CQ3088S 4052792020786 CQ3089S 4052792020878
10.00 m CQ3098S 4052792020793 CQ3099S 4052792020885
www.logilink.de
Made in China
Package Contents
Cat.6A S/FTP Patch Cable x 1
Packaging Informations (CQ3xx1S white/CQ3xx2S grey)
Packing Dimension
Packing Weight
Carton Dimension
Carton Q‘ty
Carton Weight
120 x 160mm (0.25-0.5m)/140 x 180mm (1-1.5m)/160 x 200mm (2-3m)/180 x 230mm (5-7.5m)/200 x
240mm (10-15m)/220 x 260mm (20-30m)/300 x 330mm (50m)
0.02kg (0.25m)/0.03kg (0.5m)/0.05kg (1m)/0.06kg (1.5m)/0.08kg (2m)/0.11kg (3m)/0.18kg (5m)/0.28kg
(7.5m)/0.35kg (10m)/0.52kg (15m)/0.68kg (20m)/1.05kg (30m)/1.75kg (50m)
360 x 360 x 300mm (7.5m)/400 x 300 x 200mm (20m)/400 x 300 x 220mm (0.25m,15m)/400 x 300 x
230mm (30m)/400 x 300 x 300mm (50m)/450 x 300 x 230mm (1.5m)/450 x 300 x 250mm (1m,2m,3m)/
450 x 300 x 270mm (5m,10m)/450 x 300 x 290mm (0.5m)
260pcs (0.25m)/300pcs (0.5m)/180pcs (1m)/120pcs (1.5m)/100pcs (2m)//80pcs (3m)/50pcs (5m)/40pcs
(7.5m)/30pcs (10m)/15pcs (15m)/10pcs (20m)/8pcs (30-50m)
5.7kg (0.25m)/9.2 (0.5m)/8.6kg (1m)/7.8kg (1.5m)/8kg (2m)/9.3kg (3m)/9.1kg (5m)/10.5kg (7.5m)/10.7kg
(10m)/7.7kg (15m)/7.3kg (20m)/8.5kg (30m)/13kg (50m)
Packaging Informations (CQ3xx3S black)
120 x 160mm (0.25-0.5m)/140 x 180mm (1-1.5m)/160 x 200mm (2-3m)/180 x 230mm (5-7.5m)/
Packing Dimension
Packing Weight
200 x 240mm (10m)/200 x 240 x 100mm (15m)/220 x 260 x100mm (20m)/260 x 300 x 100mm (30m)/
300 x 330 x 100mm (50m)
0.02kg (0.25m)/0.03kg (0.5m)/0.05kg (1m)/0.06kg (1.5m)/0.08kg (2m)/0.11kg (3m)/0.18kg (5m)/0.28kg
(7.5m)/0.35kg (10m)/0.52kg (15m)/0.68kg (20m)/1.05kg (30m)/1.75kg (50m)
Carton Dimension
Carton Q‘ty
Carton Weight
Made in China
360 x 360 x 300mm (7.5m)/400 x 300 x 200mm (20m)/400 x 300 x 220mm (0.25m,15m)/400 x 300 x
230mm (30m)/400 x 300 x 300mm (50m)/450 x 300 x 230mm (1.5m)/450 x 300 x 250mm (1m,2m,3m)/
450 x 300 x 270mm (5m,10m)/450 x 300 x 290mm (0.5m)
260pcs (0.25m)/300pcs (0.5m)/180pcs (1m)/120pcs (1.5m)/100pcs (2m)//80pcs (3m)/50pcs (5m)/40pcs
(7.5m)/30pcs (10m)/15pcs (15m)/10pcs (20m)/8pcs (30-50m)
5.7kg (0.25m)/9.2 (0.5m)/8.6kg (1m)/7.8kg (1.5m)/8kg (2m)/9.3kg (3m)/9.1kg (5m)/10.5kg (7.5m)/10.7kg
(10m)/7.7kg (15m)/7.3kg (20m)/8.5kg (30m)/13kg (50m)
www.logilink.de
Packaging Informations (CQ3xx4S red/CQ3xx5S green/CQ3xx6S blue)
Packing Dimension
Packing Weight
Carton Dimension
Carton Q‘ty
Carton Weight
120 x 160mm (0.25-0.5m)/140 x 180mm (1-1.5m)/160 x 200mm (2-3m)/180 x 230mm (5-7.5m)/200 x
240mm (10m)
0.02kg (0.25m)/0.03kg (0.5m)/0.05kg (1m)/0.06kg (1.5m)/0.08kg (2m)/0.11kg (3m)/0.18kg (5m)/0.28kg
(7.5m)/0.35kg (10m)
360 x 360 x 300mm (7.5m)/400 x 300 x 220mm (0.25m)/450 x 300 x 230mm (1.5m)/450 x 300 x 250mm
(1m,2m,3m)/450 x 300 x 270mm (5m,10m)/450 x 300 x 290mm (0.5m)
260pcs (0.25m)/300pcs (0.5m)/180pcs (1m)/120pcs (1.5m)/100pcs (2m)//80pcs (3m)/50pcs (5m)/40pcs
(7.5m)/30pcs (10m)
5.7kg (0.25m)/9.2 (0.5m)/8.6kg (1m)/7.8kg (1.5m)/8kg (2m)/9.3kg (3m)/9.1kg (5m)/10.5kg (7.5m)/10.7kg
(10m)
Packaging Informations (CQ3xx7S yellow/CQ3xx8S orange/CQ3xx9S Pink)
Packing Dimension
Packing Weight
Carton Dimension
120 x 160mm (0.25-0.5m)/140 x 180mm (1-1.5m)/160 x 200mm (2-3m)/180 x 230mm (5-7.5m)/200 x
240mm (10m)
0.02kg (0.25m)/0.03kg (0.5m)/0.05kg (1m)/0.06kg (1.5m)/0.08kg (2m)/0.11kg (3m)/0.18kg (5m)/0.28kg
(7.5m)/0.35kg (10m)
360 x 360 x 300mm (7.5m)/400 x 300 x 220mm (0.25m)/450 x 300 x 230mm (1.5m)/450 x 300 x 250mm
(1m,2m,3m)/450 x 300 x 270mm (5m,10m)/450 x 300 x 290mm (0.5m)
Carton Q‘ty
Carton Weight
260pcs (0.25m)/300pcs (0.5m)/180pcs (1m)/120pcs (1.5m)/100pcs (2m)//80pcs (3m)/50pcs (5m)/40pcs
(7.5m)/30pcs (10m)
5.7kg (0.25m)/9.2 (0.5m)/8.6kg (1m)/7.8kg (1.5m)/8kg (2m)/9.3kg (3m)/9.1kg (5m)/10.5kg (7.5m)/10.7kg
(10m)
Packaging Informations (CQ3xxVS violet)
Packing Dimension
Packing Weight
Carton Dimension
Carton Q‘ty
Carton Weight
120 x 160 x 50mm (0.25-0.5m)/140 x 180 x 50mm (1-1.5m)/160 x 200 x 50mm (2-3m)/
180 x 230 x 50mm (5-7.5m)/200 x 240 x 50mm (10m)
0.02kg (0.25m)/0.03kg (0.5m)/0.05kg (1m)/0.06kg (1.5m)/0.08kg (2m)/0.11kg (3m)/0.18kg (5m)/0.28kg
(7.5m)/0.35kg (10m)
360 x 360 x 300mm (7.5m)/400 x 300 x 220mm (0.25m)/450 x 300 x 230mm (1.5m)/450 x 300 x 250mm
(1m,2m,3m)/450 x 300 x 270mm (5m,10m)/450 x 300 x 290mm (0.5m)
260pcs (0.25m)/300pcs (0.5m)/180pcs (1m)/120pcs (1.5m)/100pcs (2m)//80pcs (3m)/50pcs (5m)/40pcs
(7.5m)/30pcs (10m)
5.7kg (0.25m)/9.2 (0.5m)/8.6kg (1m)/7.8kg (1.5m)/8kg (2m)/9.3kg (3m)/9.1kg (5m)/10.5kg (7.5m)/10.7kg
(10m)
Made in China
www.logilink.de
