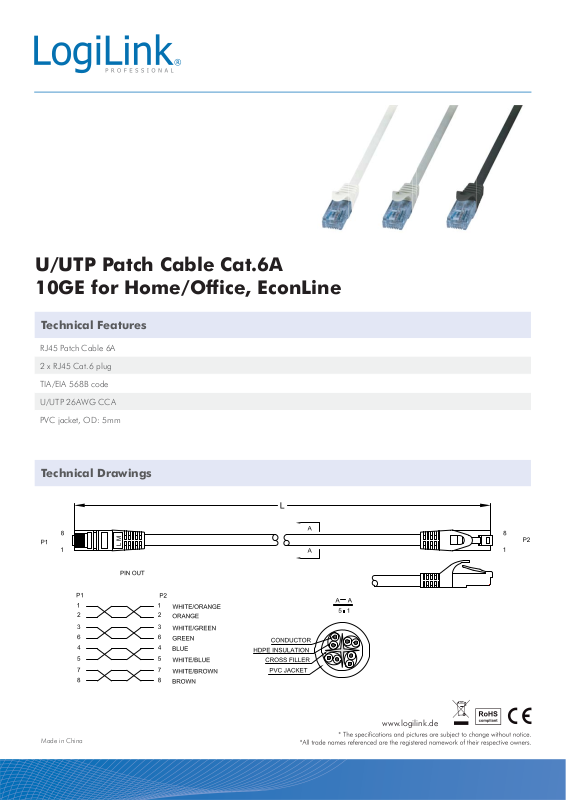

U/UTP Patch Cable Cat.6A
10GE for Home/Office, EconLine
Technical Features
RJ45 Patch Cable 6A
2 x RJ45 Cat.6 plug
TIA/EIA 568B code
U/UTP 26AWG CCA
PVC jacket, OD: 5mm
Technical Drawings
Made in China
www.logilink.de
Length White EAN Code
0.25 m CP3011U 4052792044607
0.50 m CP3021U 4052792044614
1.00 m CP3031U 4052792044621
1.50 m CP3041U 4052792044638
2.00 m CP3051U 4052792044645
3.00 m CP3061U 4052792044652
5.00 m CP3071U 4052792044669
7.50 m CP3081U 4052792044676
10.00 m CP3091U 4052792044683
Length Grey EAN Code Black EAN Code
0.25 m CP3012U 4052792044034 CP3013U 4052792044164
0.50 m CP3022U 4052792044041 CP3023U 4052792044171
1.00 m CP3032U 4052792044058 CP3033U 4052792044188
1.50 m CP3042U 4052792044065 CP3043U 4052792044195
2.00 m CP3052U 4052792044072 CP3053U 4052792044201
3.00 m CP3062U 4052792044089 CP3063U 4052792044218
5.00 m CP3072U 4052792044096 CP3073U 4052792044225
7.50 m CP3082U 4052792044102 CP3083U 4052792044232
10.00 m CP3092U 4052792044119 CP3093U 4052792044249
www.logilink.de
Made in China
Package Contents
U/UTP Patch Cable Cat.6A x 1
Packaging Informations
Packing Dimension
Packing Weight
Carton Dimension
Carton Q‘ty
Carton Weight
140 x 6mm (0.25m)/Ø105 x 10mm (0.5m)/Ø130 x 15mm (1-2m)/Ø130 x 25mm (3m)/Ø140 x 30mm (5m)/
Ø140 x 35mm (7.5m)/Ø160 x 35mm (10m)
0.0131kg (0.25m)/0.0217kg (0.5m)/0.0349kg (1m)/0.0481kg (1.5m)/0.0612kg (2m)/0.0876kg
(3m)/0.1403kg (5m)/0.2062kg (7.5m)/0.272kg (10m)
400 x 300 x 380mm (0.25m)/400 x 300 x 280mm (0.5m)/400 x 300 x 340mm (1m)/400 x 300 x 500mm
(1.5m)/400 x 300 x 480mm (2m)/400 x 300 x 380mm (3m)/400 x 300 x 400mm (5-10m)
350pcs (0.25m)/250pcs (0.5m)/200pcs (1-1.5m)/150pcs (2m)/100pcs (3m)/60pcs (5m)/50pcs (7.5m)/
40pcs (10m)
3.925kg (0.25m)/4.765kg (0.5m)/6.32kg (1m)/8.96kg (1.5m)/8.52kg (2m)/8.1kg (3m)/7.758kg (5m)/
9.65kg (7.5m)/10.22kg (10m)
Made in China
www.logilink.de
