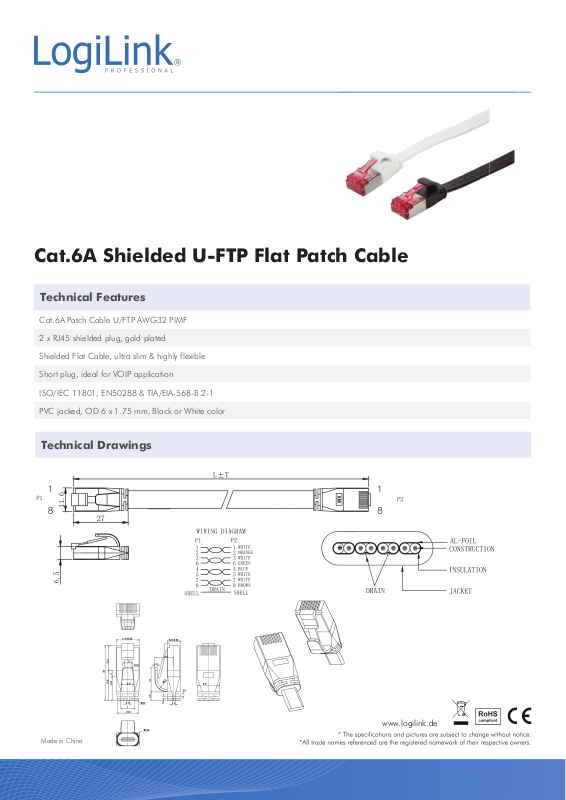

Cat.6A Shielded U-FTP Flat Patch Cable
Technical Features
Cat.6A Patch Cable U/FTP AWG32 PIMF
2 x RJ45 shielded plug, gold plated
Shielded Flat Cable, ultra slim & highly flexible
Short plug, ideal for VOIP application
ISO/IEC 11801, EN50288 & TIA/EIA-568-B.2-1
PVC jacked, OD 6 x 1.75 mm, Black or White color
Technical Drawings
Made in China
www.logilink.de
Length Color White EAN Code Color Black EAN Code
0.25 m CF2011S 4052792039061 CF2013S 4052792039160
0.50 m CF2021S 4052792039078 CF2023S 4052792039177
1.00 m CF2031S 4052792039085 CF2033S 4052792039184
2.00 m CF2051S 4052792039092 CF2053S 4052792039191
3.00 m CF2061S 4052792039108 CF2063S 4052792039207
5.00 m CF2071S 4052792039115 CF2073S 4052792039214
7.50 m CF2081S 4052792039122 CF2083S 4052792039221
10.00 m CF2091S 4052792039139 CF2093S 4052792039238
15.00 m CF2101S 4052792039146 CF2103S 4052792039245
20.00 m CF2111S 4052792039153 CF2113S 4052792039252
Package Contents
Cat.6A Shielded U-FTP Patch Cable x 1
Packaging Information
Art-No. Packing Dimension Packing Weight Carton Dimension Carton Q‘ty Carton Weight
CF2011S / CF2013S
CF2021S / CF2023S
CF2031S / CF2033S
CF2051S / CF2053S
CF2061S / CF2063S
CF2071S / CF2073S
CF2081S / CF2083S
CF2091S / CF2093S
CF2101S / CF2103S
CF2111S / CF2113S
140 x 120 x 10mm 0.02kg 450 x 300 x 250mm 320pcs 5.60kg
140 x 120 x 10mm 0.02kg 450 x 300 x 250mm 280pcs 5.70kg
140 x 120 x 10mm 0.03kg 450 x 300 x 250mm 250pcs 7.50kg
140 x 120 x 10mm 0.04kg 450 x 300 x 250mm 180pcs 8.60kg
160 x 140 x 10mm 0.06kg 450 x 300 x 250mm 160pcs 10.60kg
180 x 150 x 10mm 0.09kg 450 x 300 x 250mm 120pcs 12.50kg
200 x 180 x 10mm 0.13kg 450 x 300 x 250mm 90pcs 13.60kg
220 x 220 x 10mm 0.17kg 450 x 300 x 250mm 80pcs 15.50kg
220 x 220 x 10mm 0.26kg 450 x 300 x 250mm 60pcs 17.40kg
220 x 220 x 10mm 0.34kg 450 x 300 x 250mm 50pcs 19.60kg
www.logilink.de
Made in China
