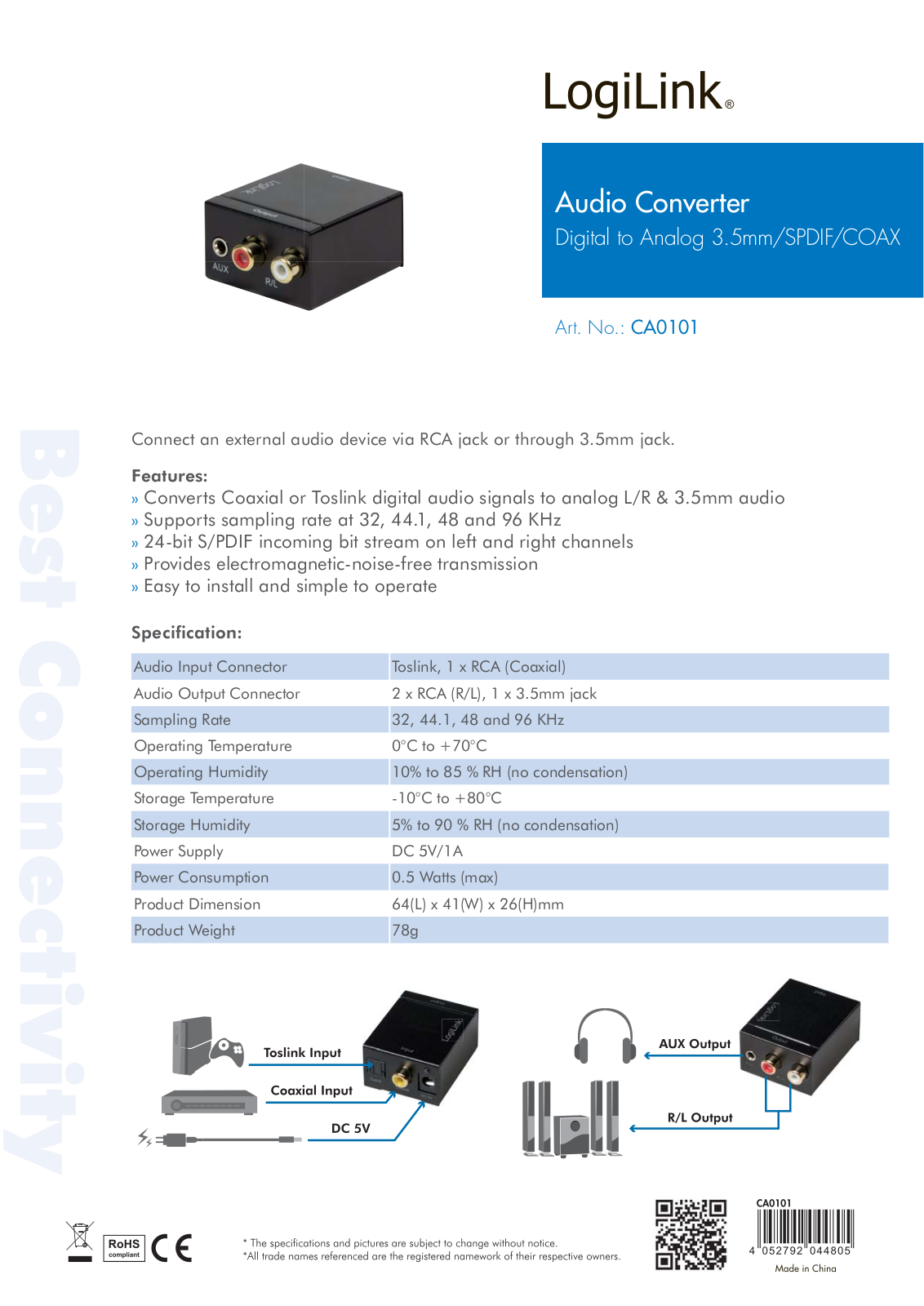

Audio Converter
Digital to Analog 3.5mm/SPDIF/COAX
Art. No.: CA0101
Best Connectivity
Connect an external audio device via RCA jack or through 3.5mm jack.
Features:
Converts Coaxial or Toslink digital audio signals to analog L/R & 3.5mm audio
»
» Supports sampling rate at 32, 44.1, 48 and 96 KHz
» 24-bit S/PDIF incoming bit stream on left and right channels
» Provides electromagnetic-noise-free transmission
» Easy to install and simple to operate
Specification:
Audio Input Connector Toslink, 1 x RCA (Coaxial)
Audio Output Connector 2 x RCA (R/L), 1 x 3.5mm jack
Sampling Rate 32, 44.1, 48 and 96 KHz
Operating Temperature 0°C to +70°C
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10°C to +80°C
Storage Humidity 5% to 90 % RH (no condensation)
Power Supply DC 5V/1A
Power Consumption 0.5 Watts (max)
Product Dimension 64(L) x 41(W) x 26(H)mm
Product Weight 78g

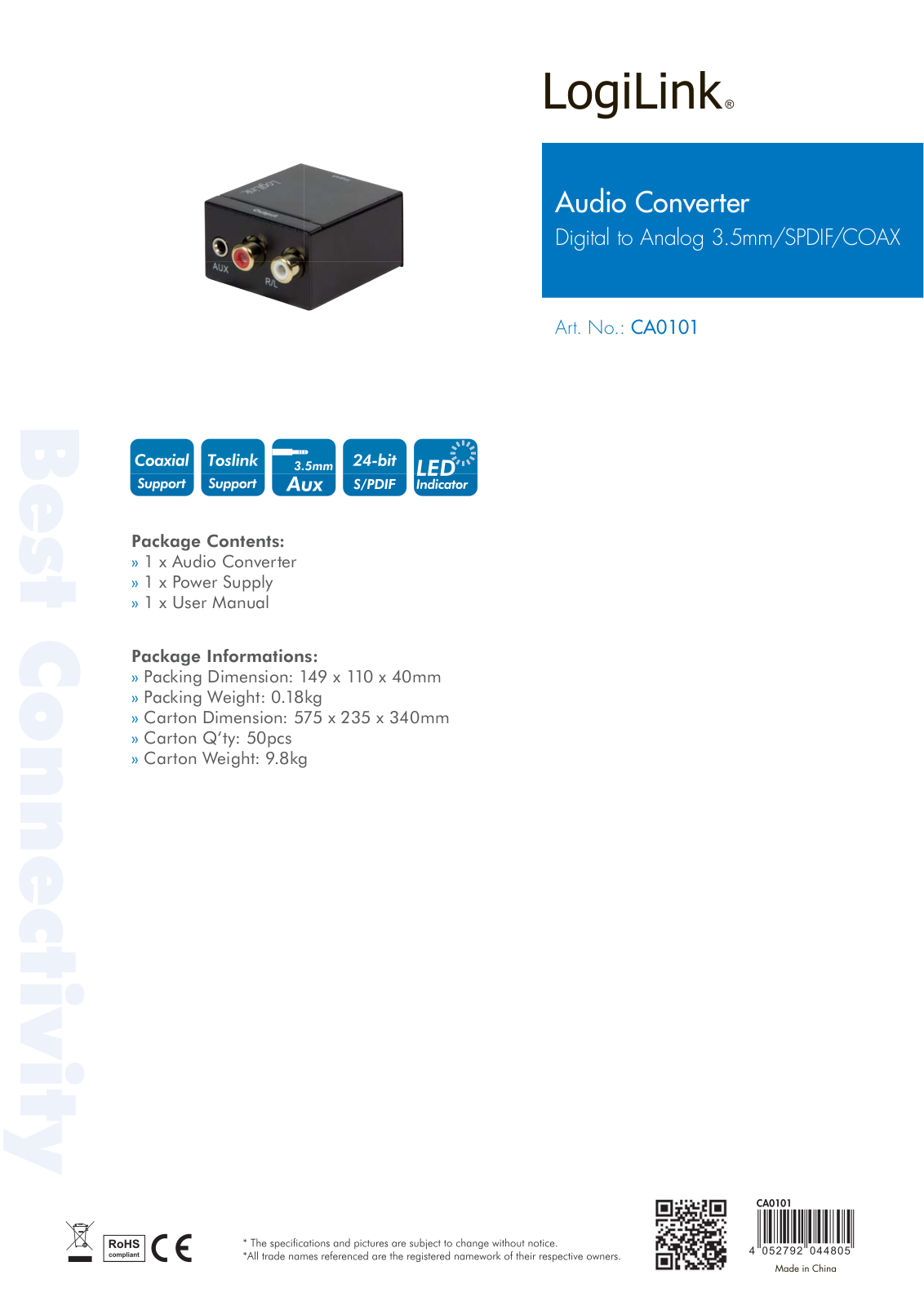

Audio Converter
Digital to Analog 3.5mm/SPDIF/COAX
Art. No.: CA0101
Best Connectivity
Package Contents:
» 1 x Audio Converter
» 1 x Power Supply
» 1 x User Manual
Package Informations:
» Packing Dimension: 149 x 110 x 40mm
» Packing Weight: 0.18kg
» Carton Dimension: 575 x 235 x 340mm
» Carton Q‘ty: 50pcs
» Carton Weight: 9.8kg
