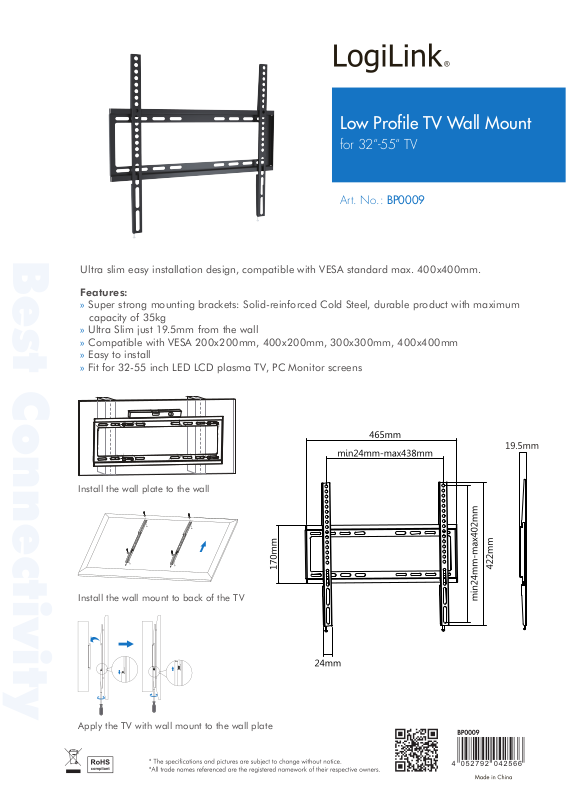

Low Profile TV Wall Mount
for 32“-55“ TV
Art. No.: BP0009
Best Connectivity
Ultra slim easy installation design, compatible with VESA standard max. 400x400mm.
Features:
» Super strong mounting brackets: Solid-reinforced Cold Steel, durable product with maximum
capacity of 35kg
» Ultra Slim just 19.5mm from the wall
» Compatible with VESA 200x200mm, 400x200mm, 300x300mm, 400x400mm
» Easy to install
» Fit for 32-55 inch LED LCD plasma TV, PC Monitor screens
Install the wall plate to the wall
Install the wall mount to back of the TV
Apply the TV with wall mount to the wall plate
Low Profile TV Wall Mount
for 32“-55“ TV
Art. No.: BP0009
Best Connectivity
Specification:
Screen Size
Rated Load 35kg/77lbs
VESA
Distance to the wall 19.5mm
Product Size 465 x 422 x 19.5mm
Package Contents:
» 1 x TV Wall Mount
» 1 x Screw Package
» 1 x User Manual
Package Informations:
» Packing Dimension: 470 x 175 x 20mm
» Packing Weight: 1.03kg
» Carton Dimension: 490 x 260 x 195mm
» Carton Q‘ty: 12pcs
» Carton Weight: 13.1kg
32"-55"
200x200, 400x200, 300x300, 400x400
This pro duct is designed to be installed on wo od stud walls, solid concret e walls or brick walls.
Make sur e that the s uppor ting sur face wi ll safely suppor t the combined wei ght of the equipmen t and all at tached hardware a nd components.
This pro duct is in tened for indoor use only. Usin g this product outdoors could lead to product failure an d personal injur y.
