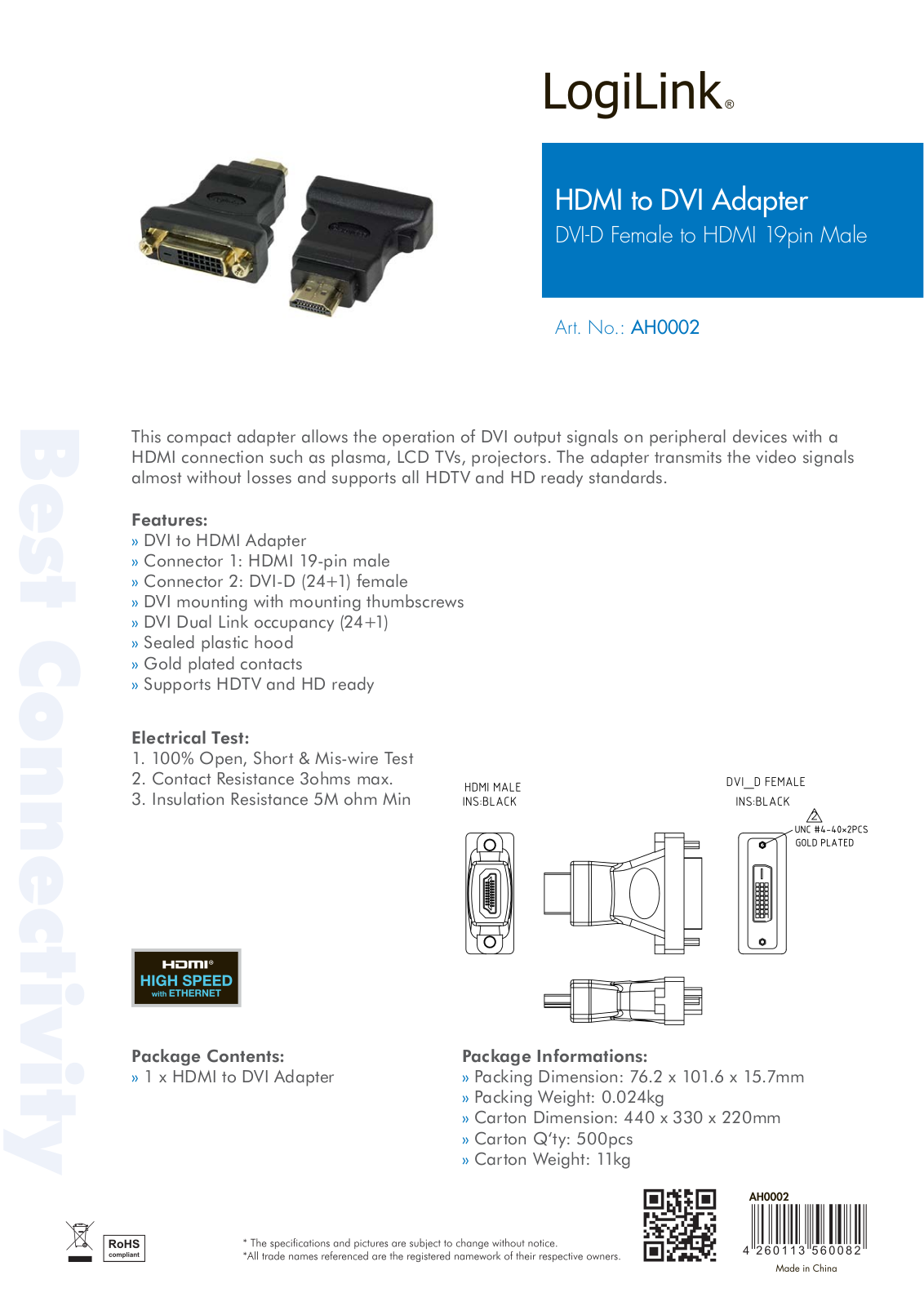

LogiLink AH0002 User Manual

HDMI to DVI Adapter
DVI-D Female to HDMI 19pin Male
Art. No.: AH0002
Best Connectivity
This compact adapter allows the operation of DVI output signals on peripheral devices with a HDMI connection such as plasma, LCD TVs, projectors. The adapter transmits the video signals almost without losses and supports all HDTV and HD ready standards.
Features:
» DVI to HDMI Adapter » Connector 1: HDMI 19-pin male » Connector 2: DVI-D (24+1) female » DVI mounting with mounting thumbscrews » DVI Dual Link occupancy (24+1) » Sealed plastic hood » Gold plated contacts » Supports HDTV and HD ready
Electrical Test:
1. 100% Open, Short & Mis-wire Test
2. Contact Resistance 3ohms max.
3. Insulation Resistance 5M ohm Min
Package Contents:
» 1 x HDMI to DVI Adapter
Package Informations:
» Packing Dimension: 76.2 x 101.6 x 15.7mm » Packing Weight: 0.024kg » Carton Dimension: 440 x 330 x 220mm » Carton Q‘ty: 500pcs » Carton Weight: 11kg
