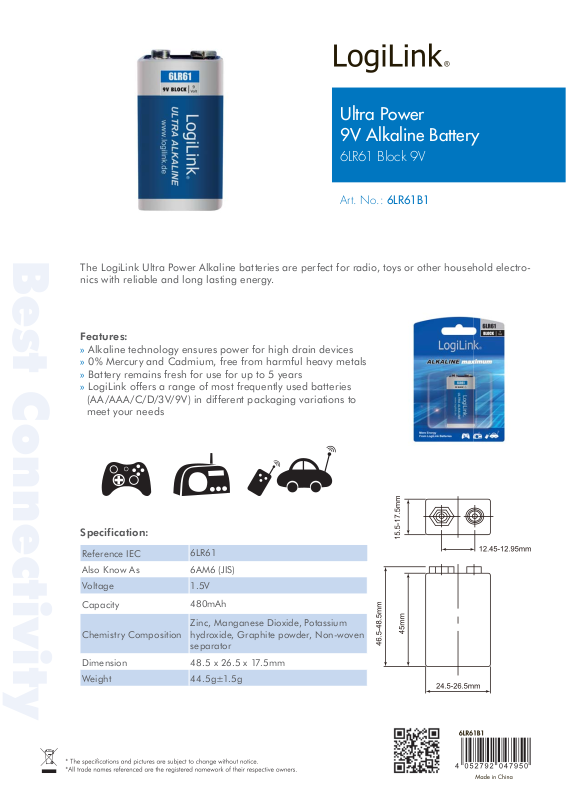

LOGILINK 6LR61B1 Datasheet

Ultra Power 9V Alkaline Battery
6LR61 Block 9V
Art. No.: 6LR61B1
Best Connectivity
Features:
» Alkaline technology ensures power for high drain devices » 0% Mercury and Cadmium, free from harmful heavy metals » Battery remains fresh for use for up to 5 years » LogiLink offers a range of most frequently used batteries
(AA/AAA/C/D/3V/9V) in different packaging variations to meet your needs
Specification:
Reference IEC
Also Know As
Voltage 1.5V
Capacity
Chemistry Composition
Dimension 48.5 x 26.5 x 17.5mm
Weight 44.5g±1.5g
6LR61
6AM6 (JIS)
480mAh
Zinc, Manganese Dioxide, Potassium hydroxide, Graphite powder, Non-woven separator
Ultra Power 9V Alkaline Battery
6LR61 Block 9V
Art. No.: 6LR61B1
Best Connectivity
Discharge Curve:
Test Condition: Load Resistor 180Ω, 24h/d, 20°C±2°C and 60±15%RH
Package Contents:
» 1 x 9V Battery
Package Informations:
» Packing Dimension: 185 x 117 x 20 mm » Packing Weight: 0.05kg » Carton Dimension: 384 x 314 x 198mm » Carton Q‘ty: 144pcs » Carton Weight: 8.2kg
Warning
*Not Rechargeable. *Do not put in fire. *Do not open. *Please remove empty batteries. *Insert batteries in correct way (+/-).
*Delivery Capacity is dependent on the applied load, operating temperature and cut-off voltage. Please refer to the charts and discharge data shown for examples of the energy/service life that the battery will provide for various load conditions.
