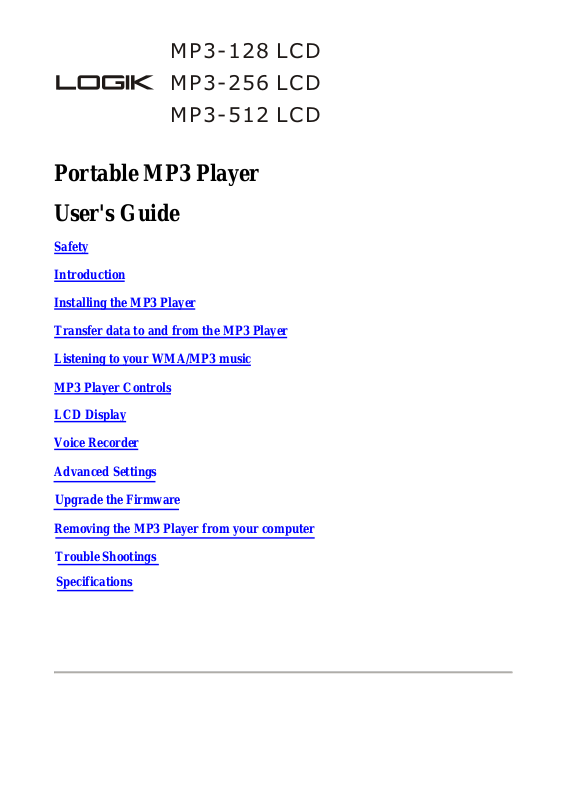

Logik MP3-128 LCD, MP3-256 LCD, MP3-512 LCD User Manual

MP3-128 LCD

MP3-256 LCD

MP3-512 LCD

Portable MP3 Player
User's Guide

Safety
Introduction
Installing the MP3 Player
Transfer data to and from the MP3 Player
Listening to your WMA/MP3 music
MP3 Player Controls
LCD Display
Voice Recorder
Advanced Settings

Upgrade the Firmware

Removing the MP3 Player from your computer

Trouble Shootings
Specifications

Safety

Listening to loud sounds for prolonged periods may permanently damage your hearing. Before
putting on the headphones, place them around your neck and turn the volume down. Then put
the headphones on and slowly increase the volume until you find a comfortable listening level.

Introducing the MP3 Player

The MP3 Player incorporates a portable WMA/MP3 Player, Voice Recorder and USB 2.0 Mass
Storage Device.

MP3 Player Features:

• WMA/MP3 player.

• Synchronous lyric display with WMA/MP3 music.

• Voice recorder.

• USB mass storage device.

• Integrated USB connector.

• Backlit display.

• Superb audio quality.

• No cable required.

• Requires 1 AAA / LR03 battery (supplied).

System support:

• Supports Windows Me/2000/XP.

Note for Windows Me/2000/XP users: Installation of the MP3 Player drivers is required
only if you wish to upgrade the firmware of the player.

Note for Windows 2000 users: Windows Service Pack 3 must be installed before installing
MP3 Player drivers.

• Supports Windows 98 SE after installation of drivers (see below).

• Supports Mac OS X (version 10.2.6 or above) without driver.

Note:

• To minimize static electricity, avoid operating the player in an extremely dry environment.

• Under the environment with electrostatic discharge, the product may malfunction and

requirement user to reset the product.

Installing the MP3 Player

Installation of drivers for computers using Windows Me/2000/XP is not necessary.

Note for Windows Me/2000/XP users: Installation of the MP3 Player drivers is required only if you
wish to upgrade the firmware of the player.

Note for Windows 2000 users: Windows Service Pack 3 must be installed before installing MP3
Player drivers.

Windows 98 SE users will need to install the MP3 Player on their system:

Insert the CD-ROM and the menu will appear.

1. Click the Setup Driver Button to begin the installation.

2. Follow the screen instructions to complete the installation

Or

1. Click the View Manual Button to browse the manual.

2. In the manual, click on the link below to open the folder containing the MP3 Player

installation program.

3. Click on the Setup icon to begin the installation.

4. Follow the screen instructions to complete the installation.

Transfer data to and from the MP3 Player.

1. Make sure that the MP3 Player is turned off.

2. Remove the USB port cover & disconnect the

earphone.

3. Plug the MP3 Player into the USB port of your

computer. The built-in LCD displays "READY",
indicating that the MP3 Player is in USB mode. The
MP3 Player is then automatically recognized (in 'My
Computer') as a removable media device.

4. Transfer files to or from the internal Flash RAM using

Windows explorer.

5. Unplug the MP3 Player from your computer,

WMA/MP3 files can now be listened to and all data
stored can be transferred to another computer.

Listen to WMA/MP3 music files with the MP3 Player

1. Follow the instructions for the transfer of data to and fro m the MP3 Player to copy

WMA/MP3 music files to the MP3 Player.

2. Install 1 AAA/LR03 battery into the battery compartment.

3. Connect the supplied earphones to the earphone socket.

4. Press the Play button.

5. Use the MP3 Player controls to adjust playback and volume level to listen to your

WMA/MP3 music.

Note: Installing the battery:

1. Push and slide out the battery compartment door

2. Install the battery.

Lyric display function

The MP3 Player supports lyric files in LRC format.

1. Prepare a MP3 or WMA music, for example, happymusic.mp3;

2. Download a lyric file from internet. The lyric file must have an extension file name LRC.

For example, happymusic-2004.lrc.

3. Rename the lyric file. For example, happymusic.lrc. It is to make sure the lyric filename is

same as the corrosponding music filename.

4. Copy the lyric file & music file to the MP3 player.

5. Disconnect the MP3 player.

6. Use Skip buttons to select the music file, for example, abc.mp3. Press Play button to play.

7. The LRC icon would appears, and the lyric would display Synchronously on LCD while the

music is being playback.

The MP3 player supports LRC format only.

If the lyric does not synchronize with the music, please download one better lyric file from internet
and try again.

Make sure the MP3 music and LRC file is located in same directory and the filename is same. If not,
the MP3 player can not recognize the lyric file.
