Logik L90CHDX13 User Manual

Instruction Manual
60cm/90cm Stainless Steel Chimney Hood
L60CHDX13 / L90CHDX13
L60CHDX13
L90CHDX13
Contents
Safety Warnings ............................................................................................................................ 4
Unpacking ..................................................................................................................................... 9
Product Overview ....................................................................................................................... 10
Modes of Operation ................................................................................................................... 11
Air Extraction ........................................................................................................................................................... 11
Air Recirculation ..................................................................................................................................................... 11
Operation .................................................................................................................................... 11
To Select the Fan Motor Speed ......................................................................................................................... 11
Hob Lighting .......................................................................................................................................................... 11
Cleaning and Maintenance ........................................................................................................ 12
Grease Filters ...........................................................................................................................................................12
Cleaning the Grease Filters by Hand ..............................................................................................................13
Cleaning the Grease Filters in the Dishwasher ...........................................................................................13
Carbon Filter Usage ..............................................................................................................................................14
Replacing Carbon Filters ..................................................................................................................................... 14
Changing the Lamps ............................................................................................................................................ 14
Hints and Tips ............................................................................................................................. 15
If Cooker Hood Does Not Operate ..................................................................................................................15

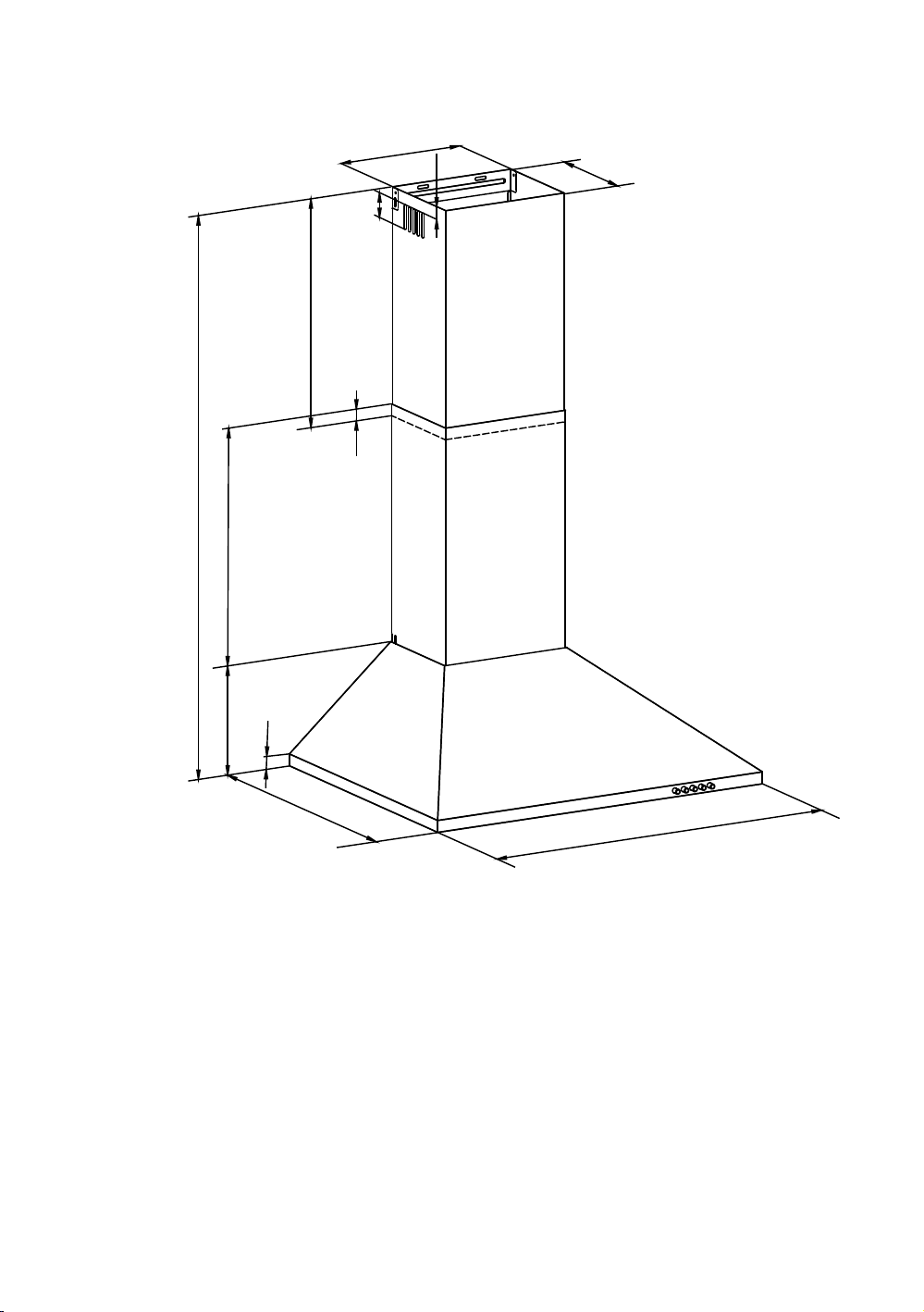

Technical Specications ............................................................................................................. 16
Installation .................................................................................................................................. 17

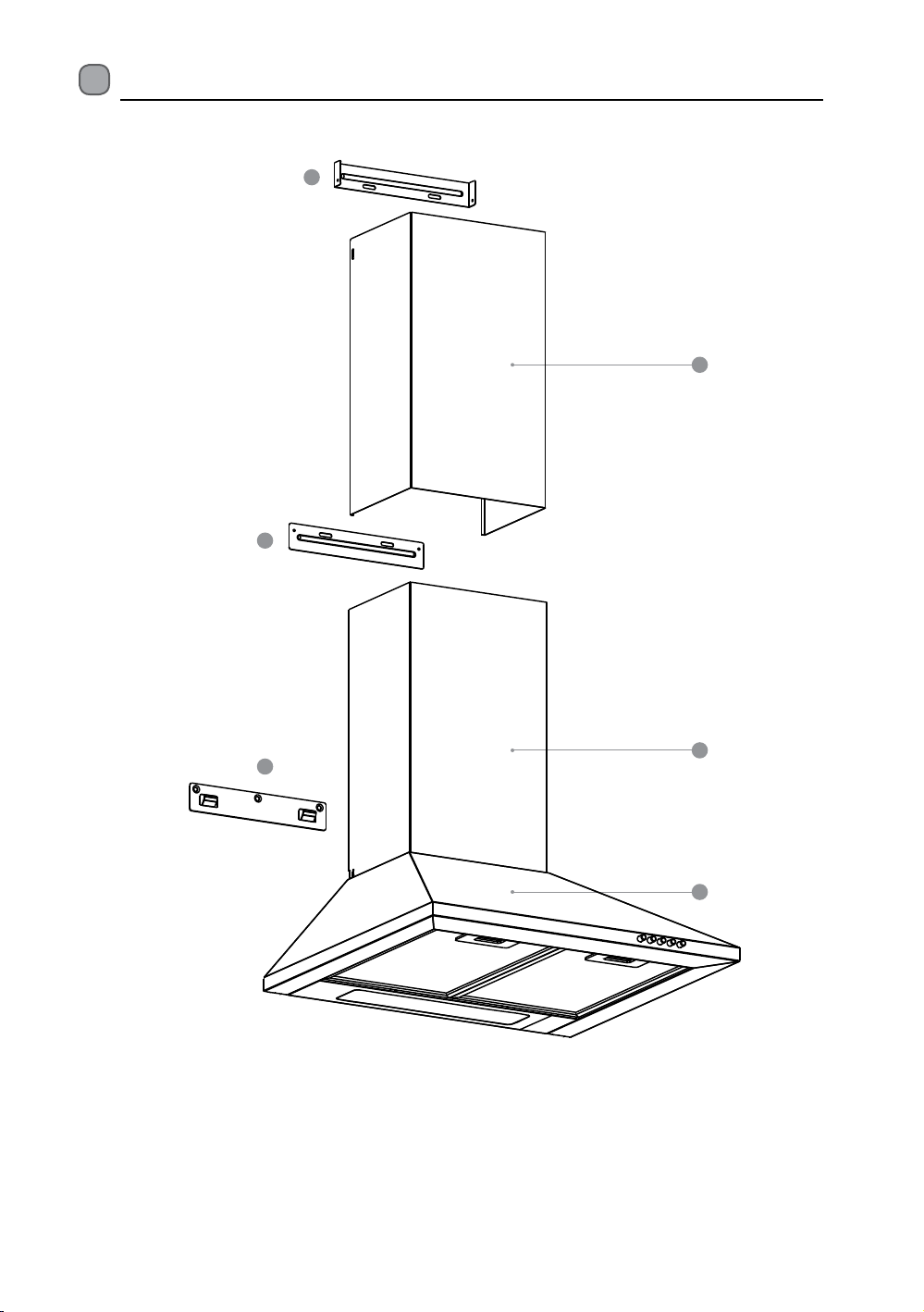

Product Overview .................................................................................................................................................. 17
Safety Distance Between Hob and Cooker Hood ...................................................................................... 18
Connection for Air Extraction ...........................................................................................................................19
Mounting the Cooker Hood ..............................................................................................................................20
Safety Warnings
• This appliance complies with all relevant local and national safety requirements. Inappropriate use can, however, lead to personal injury and damage to property.
• To avoid the risk of accidents and damage to the appliance, please read these instructions carefully before using it for the rst time. They contain important information on the safety, installation, use and maintenance of the appliance.
• Keep these instructions in a safe place and ensure that all users are familiar with the contents. Pass them on to any future owner of the appliance.
Correct Application
• This appliance is not designed for commercial use. It is intended for use in domestic households.
• It must only be used as a domestic appliance to extract vapours and remove odours from cooking.
• Any other usage is not supported by the manufacturer and could be dangerous. The manufacturer cannot be held liable for damage resulting from incorrect or improper use or operation of the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Accessible parts may become hot when used with cooking appliances.
• If the supplied mains cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.
Safety with children
• This appliance is only intended for use by adults who have read these instructions.
• This appliance is not a toy! To avoid the risk of injury, keep children well away and do not allow them to play with it or to use the controls. They will not understand the potential dangers posed by it. They should be supervised whenever you are working in the kitchen.
• Older children may use the cooker hood only when its operation has been clearly explained to them and they are able to use it safely, recognising the dangers of misuse.
Correct Use
• Never use an open ame beneath the cooker hood. To avoid the danger of re, do not ambé or grill over an open ame under the cooker hood. When switched on, the cooker hood could draw ames into the lter. Fat particles drawn into the cooker hood present a re hazard.
• When using the cooker hood over a gas hob, ensure that any burners in use are always covered by a pan. Switch the cooking zone o when a pan is removed, even for a short time.
• Regulate the ame so that it does not burn up the sides of the pan.
• Do not allow the pans to overheat excessively (e.g. when using a wok).
• The cooker hood can become damaged when exposed to excessive heat.
• Always switch the cooker hood on when a cooking zone is in use, otherwise condensation may collect in the hood, which could cause corrosion.
• When cooking with oil or fat, chip pans and deep fat fryers etc, do not leave the pans unattended. Never leave an open grill unattended when grilling. Overheated oil and fat can ignite and could set the cooker hood on re.
• Do not use the cooker hood without the lters in place. This way you will avoid the risk of grease and dirt getting into the appliance and hindering its smooth operation.
• The lters should be regularly cleaned or changed as appropriate. Saturated lters are a re hazard. See "Cleaning and Maintenance".
• The cooker hood can get very hot during cooking due to heat rising from the hob. Do not touch the housing or the grease lters until the cooker hood has cooled down.
• Do not use a steam-cleaner to clean this appliance. Steam could reach the electrical components and cause a short circuit.
Technical safety
• Before installation, check the cooker hood for visible signs of damage. Under no circumstances should you use a damaged appliance. It could be dangerous.
• Before connecting the appliance to the mains supply, make sure that the voltage and frequency details given on the data plate correspond with the on-site electricity supply, otherwise the appliance could be damaged. Consult a qualied electrician if in any doubt.
• The electrical safety of this appliance can only be guaranteed when continuity is complete between the appliance and an eective earthing system complies with the current local and national safety regulations. It is most important that this basic safety requirement is present and tested regularly, and where there is any doubt, the household wiring system should be inspected by a qualied electrician. The manufacturer cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).
• For safety reasons, this appliance may only be used when it has been fully installed.
• Only open the housing as described in the instructions. Under no circumstances should any other parts of the housing be opened. Tampering with electrical connections or components and mechanical parts is highly dangerous to the user, and can cause operational faults.
• Installation, maintenance and repairs may only be carried out by an authorised person in accordance with the current national and local safety regulations. Repairs and other work by unqualied persons could be dangerous. The manufacturer cannot be held liable for unauthorised work.
• Faulty components must only be replaced by genuine original parts.
• During installation, maintenance and repair work, the appliance must be disconnected from the mains electricity supply. It is only completely isolated from the electricity supply when:
a) it is switched o at the isolator, or
b) the mains fuse is disconnected, or
c) it is switched o at the wall socket and the plug withdrawn, or
d) the fuse of the fused spur connection unit is withdrawn.
• Do not connect the appliance to the mains electricity supply by a multi-socket unit or an extension lead. These do not guarantee the required safety of the appliance (e.g. danger of overheating). This appliance may only be used in mobile installations if a risk assessment of the installation has been carried out by a suitably qualied engineer.
• In areas which may be subject to infestation by cockroaches or other vermin, pay particular attention to keeping the appliance and its surroundings in a clean condition at all times.
Using at the same time as other heating appliances that depend on the air from the same room.
WARNING:
Danger of toxic fumes.
• Great care should be taken when using the cooker hood at the same time and in the same room or area of the house as another heating appliance which depends on the air in the room. Such appliances include gas, oil, wood or coal-red boilers and heaters, continuous ow or other water heaters, gas hobs, cookers or ovens which draw air in from the room and duct exhaust gases out through a chimney or extraction ducting.
• When used in extraction mode, the appliance draws air in from the room in which it is installed and from neighbouring rooms.
• If there is insucient air, an underpressure will occur. The heating appliance may be starved of oxygen, impairing combustion.
• Harmful gases could be drawn out of the chimney or extraction ducting back into the room, with potentially fatal consequences.
• In order to ensure safe operation, and to prevent gases given o by the heating appliances from being drawn back into the room when the cooker hood and the heater are in operation simultaneously, an underpressure of 0.04 mbar (4 pa) is the maximum permissible in the room.
• Ventilation can be maintained by air inlets which must not be blocked, in windows, doors and outside wall vents, or by other technical measures, such as ensuring that the cooker hood can only be switched on when the heating appliance is switched o or vice versa. A ventilation brick alone is not generally sucient to ensure safe ventilation.
The overall ventilation condition of the dwelling must be taken into account. If in any doubt, the advice of a competent builder or, for gas, a qualified gas fitter (Gas Safe registered in the UK) must be sought.
• If the only way of ensuring adequate ventilation is via an open window, a window contact switch should be tted to ensure that the cooker hood can only operate when the window is opened suciently. A window contact switch kit is available from good builders' merchants. Take care when ventilating the room through an open window that ventilation is not impaired by a closed blind or curtain. If the hood is being operated in recirculation mode, the above restrictions do not apply.
If in any doubt , the advice of a qualified builder, gas fitter (Gas Safe registered in the UK)
or electrician must be sought.
Correct Installation
• Refer to the cooker or hob manufacturer's instructions as to whether a cooker hood may be operated above the cooker/hob.
• The minimum safe distances between the top of the cooker or hob and the bottom of the cooker hood given in the Installation section of this booklet must be maintained, unless the hob/cooker manufacturer states that a greater safe distance is required.
• If more than one appliance is tted beneath the cooker hood, and they have dierent minimum safe distances to the cooker hood, select the greater distance.
• Safety regulations prohibit the tting of a cooker hood over solid fuel stoves.
• All ducting, pipework and ttings must be of non-ammable material. These can be obtained from builders' merchants.
• The appliance must not be connected to a chimney or vent ue which is in use. Neither should it be connected to ducting which ventilates rooms with replaces.
• If exhaust air is to be extracted into a chimney or ventilation duct no longer used for other purposes, seek professional advice.
Accessories
• Only use genuine original spare parts and accessories with this appliance.
The manufacturer cannot be held liable for damage caused by non-compliance with these
Warning and Safety instructions.
Thank you for purchasing your new Logik Cooker Hood.
We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers.
Read all the safety instructions carefully before use and keep this instruction manual for future reference.
Unpacking
Remove all items from the packaging Retain the packaging. If you dispose of it, please do so according to local regulations. The following items are included:
Main Unit
Internal Chimney
X 1
Plastic Wall Plug X 9
Outlet Flap X 2
External Chimney
X 1
4 x 8mm Screws X 6Ф8 x 40mm
Hanging Plate
(for mounting product on the wall)
External Chimney Connection Plate
(for xing external chimney on the wall)
Internal Chimney Connection Plate
(for xing internal chimney on the wall)
Adapter X 1
(for reducing outlet diameter from 150-120mm)
4 x 30mm Screws
X 2
If items are missing, or damaged please contact Partmaster (UK only).
Tel: 0844 800 3456 for assistance.
4 x 40mm Screws
X 7
Drill Template Instruction Manual
8
Instruction
Manual
Product Overview
1
2
3
4
Control Panel
1. Recirculation Vents
2. Internal Chimney
3. External Chimney
1
5
6
4. Control Panel
5. Aluminium Filter
6. Illumination
2 3
1. OFF button
2. Motor speed buttons
3. Lamp button
10
Modes of Operation
The cooker hood works with
Air Extraction
The air is drawn in and cleaned by the grease filters and directed outside.
The flap is closed when the cooker hood is switched off.
When the cooker hood is switched on, the non-return flap opens for the cooking vapours to be ducted away.
Ensure there is adequate ventilation in the room when the cooker hood is used at the same time as other appliances burning gas or other fuels.
Air Recirculation
The air is drawn in and cleaned first by the grease filters and then by a carbon filter. The cleaned air is then recirculated back into the kitchen through the recirculation vents in the top of the cooker hood chimney.
• Carbon filters are available as an optional extra, see rear page for ordering details.
• Before using the cooker hood in recirculation mode, ensure that the carbon filters are in place. See “Cleaning and Maintenance”
Operation
To Select the Fan Motor Speed
1. The unit has 3 motor speeds “ ” “ ” “
2. For short periods of cooking food with intensive vapours and a strong aroma, e.g. when seraring meat; you may wish to select the highest setting “
3. To turn the motor fan off; press the “0” button
• Do not flambe under the cooker hood.
• Accessible parts may become hot when used with cooking appliances.
Hob Lighting
The hob lighting can be switched on and off independently of the fan by pressing the LAMP button.
11
Cleaning and Maintenance
• Before any cleaning or maintenance work is carried out, disconnect the cooker hood from the mains power supply. Ensure that: – it is switched off at the isolator, or – it is switched off at the wall socket and the plug is withdrawn, or – the fuse from the fused spur connection unit is withdrawn, or – the mains fuse is disconnected.
• The surfaces and controls are susceptible to scratches and abrasions. Please observe the following cleaning instructions.
• All external surfaces and controls can be cleaned using a little washing-up liquid applied with a damp soft sponge or cloth.
Only use a damp cloth as water could get into the unit and cause damage.
• Wipe dry using a soft cloth.
Do not use:
• Cleaning agents containing soda, acids, chlorides or solvents.
• Abrasive cleaning agents, e.g. powder cleaners or cream cleaners and abrasive sponges, as well as pot scourers or sponges which have been used previously with abrasive cleaning agents as these will damage the surface material.
Grease Filters
The re-usable metal grease filters in the appliance remove solid particles (grease, dust, etc.) from the kitchen vapours, preventing soiling of the cooker hood.
The grease filters should be cleaned regularly (at least every 3-4 weeks) to avoid a build-up of grease.
Dirty filters are a fire hazard.
1. To take out the grease filter, press the plastic catch.
2. Pull the aluminium filter downwards.
To avoid damaging the filters or the hob below, make sure you hold the filters securely at all times when handling them.
12
Cleaning the Grease Filters by Hand
• Clean the filters with a soft nylon brush in a mild solution of hot water and a little washing-up liquid.
Do not use:
• Cleaning agents containing descaling agents.
• Powder cleaners, cream cleaners or abrasive all-purpose cleaners.
• Oven cleaners.
Cleaning the Grease Filters in the Dishwasher
• Place the filters as upright as possible in the lower basket, with the short sides upright. Wash using a 65°C programme, ensuring the spray arm is not obstructed.
• Use a mild dishwasher detergent.
Depending on the cleaning agent used, cleaning the filters in a dishwasher can cause permanent discolouration to the surface. However, this will not affect the functioning of the filters in any way.
• After cleaning, leave the filters to dry on an absorbent surface before replacing them.
• When removing the filters for cleaning, also clean off any residues of oil or fat from the now accessible housing to prevent the risk of these catching fire.
When putting the grease filters back in position, ensure that the locking clips are facing down towards the hob.
13
Carbon Filter Usage
Your product is compatible with one type of carbon filter (carbon filters are not provided).
• Before installing or replacing the carbon filters, you should switch off and disconnect the electricity supply.
• The carbon filters should never be washed.
• The grease filters should be installed on the product even when carbon filterss are not being used. Do not use your product without the grease filters.

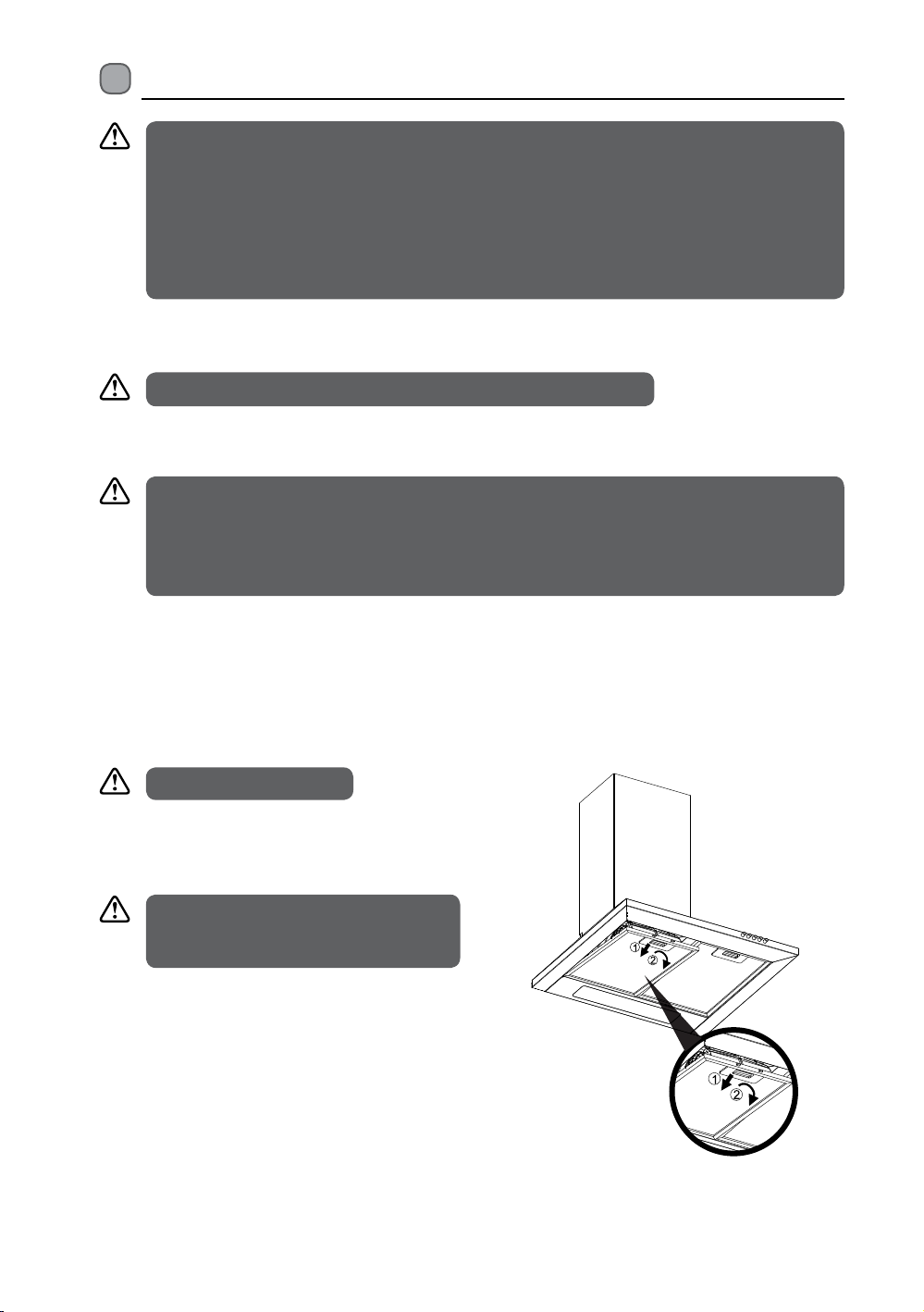

Replacing Carbon Filters
• It is necessary to install 2 carbon filters in your product.
• Open all the grease filters, see page 7 for details.
• To attach the carbon filters, place them on the connection channels on the motor and turn the left hand filter anticlockwise and the right hand filter clockwise.
• In order to remove the carbon filters, turn the left hand filter clockwise and the right hand filter anticlockwise.
• Replace the carbon filters when they no longer absorb kitchen odours effectively. They should, however, be replaced at least every 3 months to prevent a risk of fire.
• Used carbon filters can be disposed of with the normal household waste.
• Replace all the grease filters to the main unit.
Changing the Lamps
1. Disconnect the electricity supply.
2. Remove the aluminium grease filter.
3. Two candle lamps are located under the lamp cover.
4. Replace with a 40W 240V (E14) candle lamp.
14
Hints and Tips
Problem Solution
Cooker hood does not operate
Lamp does not light
Air suction of cooker hood is weak
• Check Electric connection.
(The supply voltage should be 220-240 V. The cooker hood must be connected to an earthed socket)
• Check motor speed selector.
(Motor speed selector should be in position 1, 2 or 3)
• Check Electric connection.
(The supply voltage should be 220-240 V. The cooker hood must be connected to an earthed socket)
• Check lamp switch.
(Lamp switch should be in the on position)
• Check light bulbs.
• Check aluminium filters.
(Aluminium grease filters should be washed once a month under normal conditions)
• Check air outlet chimney. (Air outlet chimney should be open)
• Check carbon filters. (If the unit operates with carbon filters, they should be replaced quarterly)
If Cooker Hood Does Not Operate
Before Contacting Service:
Be sure that the mains plug is connected to the mains socket and the fuse in the installation is in good condition. Check your cooker hood according to the above table. If the problem continues, contact your retailer or an authorised service agent.
15
Technical Specications
Model no. L60CHDX13/L90CHDX13
3
Extraction Rate (m
Voltage (V) 220 – 240 ~
Frequency (Hz) 50
Total Power (W) 145
Lamp 2 × 40 W
Features and specifications are subject to change without notice.
/h) 310
16
Installation
Product Overview
4
1
5
6
1. Internal Chimney
2. External Chimney
3. Main Hood Unit
4. Internal Chimney Connection Plate
5. External Chimney Connection Plate
6. Hanging Plate
2
3
17
575-995
395
400400
20
55
222
40
173
18
180
20
475
600/900
All dimensions shown are in mm.
Safety Distance Between Hob and Cooker Hood
When planning the installation height of your cooker hood, the minimum safe distance between the top of a cooker or hob and the bottom of the cooker hood should be at least 650mm, unless a greater distance is specified by the manufacturer of your cooking appliance.
• When deciding on the safe distance between the hob and cooker hood, please note that a distance greater than 650mm above electric cookers/hobs may be preferable to give more working space under the hood.
• Account should also be taken of the height of the person who will be using the hood most often. The person should have sufficient space to work comfortably at the hob, and also be able to reach the hood controls with ease.
• Please be aware that if positioned too high, extraction will be inefficient.
• If you want the top of the cooker hood telescopic extension piece to be mounted flush with the ceiling, make sure there is adequate space below the appliance for safe operation.
19
Connection for Air Extraction
To avoid the danger of toxic fumes, please observe the Safety Warnings.
This is especially crucial when using the cooker hood at the same time as another heating appliance which relies on air from the same room.
The cooker hood should be installed according to the local and national building regulations. Seek approval from the building inspector where necessary.
Only use smooth pipes or flexible hoses made from non-flammable materials for the extraction ducting.
To achieve the greatest possible air extraction with the lowest noise level, please note the following:
• To ensure efficient air extraction, the diameter of the exhaust ducting should not be less than 120mm.
• If flat ducting is being used, the cross-sectional area must not be smaller than the cross sectional area of the exhaust connection.
• All ducting, pipework and fittings must be made of non-flammable materials.
• The exhaust ducting should be as short and straight as possible.
• Only use wide radius bends.
• The exhaust ducting should not be kinked or compressed.
• Ensure that all connections are strong and airtight.
• Where ducting is horizontal, it must be laid to slope away at least 1 cm per metre. This is to ensure that condensation cannot drain back into the cooker hood
• If the exhaust air is to be ducted into the open air, the installation of a telescopic wall vent or roof vent is recommended.
20
If the exhaust ducting is to run through rooms, ceiling space etc. where there may be great variations in temperature between the different areas, the problem of condensation will need to be addressed. The exhaust ducting will need to be suitably insulated.
Mounting the Cooker Hood
• We recommend professional tradespersons are consulted prior to the fitting of this appliance.
• Each installation is different and these instructions should be used as a guide only. If in doubt consult professional tradespersons.
• Air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
1. We recommend that for air extraction installations, a professional tradesperson is consulted prior to any work being undertaken. A 150mm or 120mm hole will need to be provided for the aluminium flexible hose (not supplied) to duct the extracted air to the outside. For recirculation operation, a competent layman can follow the instructions below. If you are in any doubt, we recommend you consult a professional tradesperson.
2. Ensure there is an available switched mains socket adjacent to the hood to power the appliance. If this is not available, do not use extension leads. We recommend you consult a qualified electrician prior to commencing any work.
3. The unit itself is with 150mm air outlet. Firstly; you need to install 2 pieces of Outlet Flap onto the air outlet. The 2 pieces of Outlet Flap are completely same. Take out one piece; make sure that the side with protruding points is the upper side. Then; insert one end into the relative hole on air outlet which located on the top of unit. Bend it a little and insert another end into the hole on the other end of air outlet. Do the same of another Outlet Flap. If your kitchen is with 120mm hole; you need to mount Adaptor onto air outlet before connecting the aluminium flexible hose.
4. You can either use the drill template to mark the position of the fixing screws or position the hood on the wall and mark the position "A", "B", "C", "D" and "E"as shown.
200
A
F G
148
D
5. Screw the External Chimney to the External Chimney Connection Plate by screwing 2 pcs of the 4 x 8mm screws through the mounting holes at the top of External Chimney. Screw the Internal Chimney to the Internal Chimney Connection Plate by using the screwing 2 pcs of 4 x 8mm screws through the mounting holes at the top of Internal Chimney.
Before drilling any holes, ensure there is no pipe work or wires buried in the wall.
C B
E
300
21
6. Assembling Hanging Plate Holes Drill (A, B, C, D, E) holes on marked points by using a Ф8mm drill bit. Push 5 pcs of plastic wall plugs into the drilled holes (A, B, C, D, E). Put the hanging plate on the holes A, B, C. Using the supplied 4 x 40mm screws; screw the hanging plate into the A, B, C holes.
7. Mounting the Hood to Wall Hang the hood on the two hooks (F, G) on Hanging Plate. Using the supplied 4 x 30mm screws, screw the Hood into Ф8mm wall plugs (D, E) fixed in the wall. Ensure the hood is level and then fully tighten all the screws.
8. Mounting the Chimneys to Wall Place the External Chimney over the Internal Chimney and over the hood motor enclosure. Adjust the height you want for the Internal Chimney. Mark the positions "H" "I" "J" "K" as shown. Drill (H, I, J, K) holes on marked points by using a Ф8 mm drill bit. Push 4 pcs of plastic wall plugs into the drilled holes (H, I, J, K). Screw the External Chimney into Ф8 mm wall plugs (H.I) fixed in the wall. Screw the Internal Chimney into Ф8 mm wall plugs (J, K) fixed in the wall.
8mm
8mm
8mm
8mm
9. For H,I,J,K holes; use 4X40mm screws. Screw the internal chimney to the casing with 2 of the supplied 4 x 8mm screw.
10. Ensure all protective coverings have been removed from the metal surfaces prior to use.
11. Follow the operation instructions in this manual for safe operation of this appliance.
8mm
22
For general information about this appliance
www.knowhow.com/knowledgebank or call 0844 5611234.
www.partmaster.co.uk or call 0844 800 3456 (UK customers only). Calls charged at National Rate.
The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.
For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.
and handy hints and tips, please visit
Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit
DSG Retail Ltd. (co. no. 504877)
Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK
IB-L60_90CHDX13-140206V4
Loading...
