SERVICE MANUAL
11Series
Front Load Washing Machine
1
SERVICE MANUAL
Front Load Washing Machine
Model Indicated: L
812WM12
L
614WMS12
…
…
WARNING
©2010 Front Load Haier Washing Machine All rights reserved. Unauthorized copying and distribution is a violation of law
SERVICE MANUAL
11Series
Front Load Washing Machine
２
Contents
Chapter 1 General Information ___________________________________________ ４
1-1. General Guidelines ________________________________________________ ４
1-2. Caution and Warning symbols _________________________________________ ４
1-3. Function indication symbols ___________________________________________ ４
Chapter 2 Product Feature _______________________________________________ ５
2-1. Features ______________________________________________________ ５
2-2. Specification ____________________________________________________ ６
Chapter 3 Matters needing attention _______________________________________ ８
3-1. Before switching the appliance on for the first time ___________________________ ８
3-2. During Daily use of the appliance ________________________________________ 8
Chapter 4 Operational Guidance _________________________________________ １０
Chapter 5 Program Introduction _________________________________________ １２
Chapter 6 Washing Mathods ___________________________________________ １３
6-1. Loading _____________________________________________________ １３
6-2. Adding detergent _______________________________________________ １３
6-3. Selecting washing program _________________________________________ １３
Chapter 7 Appearance brief introduction ___________________________________ １４
SERVICE MANUAL
11Series
Front Load Washing Machine
３
7-1. Name of parts _________________________________________________ １４
7-2. Net dimension _________________________________________________ １５
Chapter 8 Disassembly and Installation ___________________________________ １６
8-1. Remove packing materials _________________________________________ １６
8-2. Dismantle packing bolts ___________________________________________ １６
8-3. Adjusting the washing machine _______________________________________ １６
8-4. Joining the Inlet Hose to the Washing Machine _____________________________ １７
8-5. Drainage Hose _________________________________________________ １７
8-6. Connecting to the Power Supply ______________________________________ １７
Chapter 9 Wiring circuit and Self check ____________________________________ １８
9-1. Wiring circuit __________________________________________________ １８
9-2. Self check ___________________________________________________ １８
Chapter 10 Error Display and troubleshooting _______________________________ ２０
10-1. Error Display _________________________________________________ ２０
10-2. Examination & Troubleshooting ______________________________________ ２５
10-2-1. Display nothing ______________________________________________ ２５
10-2-2. No water inletting ____________________________________________ ２５
10-2-3. No draining ________________________________________________ ２６
10-2-4. Abnormal noise and vibration _____________________________________ ２６
SERVICE MANUAL
11Series
Front Load Washing Machine
４
10-2-5. Water leaking _______________________________________________ ２７
Chapter 11 Maintenance ______________________________________________ ２８
Chapter 1 General Information 1-1. General Guidelines
When servicing,observe the original lead dress.If a short circuit is found, replace all parts which are overheated or damaged by the short circuit.After servicing ,see to it that all the protective devices such as insulation barriers ,insulation papers shields are properly installed .Confirm that the screws,parts and wiring which were removed in order to service are put in the original positions, or whether there are the portions which are deteriorated around the service places serviced or not. And be sure safety of that.
1-2. Caution and Warning symbols
(You will see them in “Matters needing attention” )
Any instructions in this service manual with this “Warning “sign must be followed strictly.
To prevent damage to the washing machine, any instructions in this manual with this “Stop
“sign must be followed strictly.
1-3. Function indication symbols
(You will see them in the specification table)
Signify the washing machine has this function.
Signify the washing machine doesn’t have this function.
SERVICE MANUAL
11Series
Front Load Washing Machine
５
Chapter 2 Product Feature 2-1. Features
(1). 320mm diameter porthole, door may be open at a 175 degrees.
Facilitate view of wash process, facilitate unloading and easy to use with large port.
(2). Class AAA energy-saving
Scientific design for tub can reduce the use of water heavy during washing, consequently upgrade the energy efficiency class to A A A,also use scientific washing
(3). Multi-gear speed controller
According to different costuming,you can select corresponding spin speed,from 0 to 1400 rpm.
(4). Unique gasket design featuring no residual water hidden inside.
By the unique gasket,washing machine can left no residual water hidden between outer drum and front board.
(5). Delay time adjustive.
According to different costuming,you can select delay time,from 0.5h to 24h.
SERVICE MANUAL
11Series
Front Load Washing Machine
2-2. Specification
washing machines
L614WMS12
1.
Product identification
Description of appliance Washing machine Washing machine
T
ype of appliance(FS = standing, BI = built-in) FS FS
Supplier own brand
Supplier bar code Europe
EAN Supplied by Supplied by
Commercial Brand / Model
NAE edoc rab laicremmoC
2.
Key-Features Energy efficiency class A+++ A+ Washing performance class A A Spin efficiency class B B
3131°n smargorP
68gK yticapaC
Spin speed
(
max.
)
rpm 1200 1400
Noise level sound pressure level
dB(A) 74 74
88.0 9.0 hWk elcric hsaw rep noitpmusnoc ygrenE
94 95 l elcyc hsaw rep noitpmusnoc retaW
671 00401raeY/hWK * noitpmusnoc ygrene esaB
8349 481 l * noitpmusnoc retaW esaB
Residual dampness
(spin result)
% 53% 53%
Adjustable thermostat (
water temp. adjust
from - to) °C
90 -
90 - Drum capacity dry laundry / water kg / l 8/65 6/49 Auto water level adjust
(depending on volume of filled in laundry)
AWL
l l
781 781 nim ).xam( emit gnihsaW
Washing temperatures
(program-controlled)
°C 0/20/40/50/ 60 /90 0/20/40/50/ 60 /90
Certification's (CE)
CE CE Approvals (VDE/GS / TÜV/GS / IMQ/SAA) SAA SAA * per average 200 wash cycles
(EN50242) T= COLD
3.
Basics data
Unit dimensions (H x W x D) mm 850*595*650 850*595*510
56 27 gk thgiew teN
zH05/~V042-V022 zH05/~V042-V022zH/V ycneuqerf/egatloV
01/0002 01/0002A / W )ytisnetni( esuf niam / rewop tupnI
Work top / removable l/l l/l Control M = electromechanical, E = electronic, F = fuzzy
E E
Drum S = stainless steel / Z = zinc coated
S S
T
ub P = Polyprop./ S = stainless steel
P P
Door:
aesthetic (R = round, Y = big eye, Q = square)
R R
23 23 mc retemaiD
Outer door frame S= stainless steel / M = metal / P = plastic
P P
Inner door G= glass / P= plastic
G G
3 3 °n stnemtrapmoc tnegreteD Removable compartment for liquid detergent - ­Delay timer
(from - to)
42-5.0 42-5.0 h Self cleaning suds pump - ­Water inlet hose cold water / hot water
/ /
Water drain hose / -support
/ /
4 4 °n teef elbatsujdA
4.
Safety systems
Auto door lock
ADL
L812WM12
5017416386784
5017416386807
SERVICE MANUAL
11Series
Front Load Washing Machine
７
Motor overheating protection
MOP
　● 　●
No heating without water
NHW
　● 　●
Auto water cool-down
(before drain 90°C boiled water)
AWC
　● 　●
Water overflow protection
WRP
　● 　●
Acqua Stop kit
- -
Child protection
　● 　●
5.
Programs
1) Strong action /cotton cycles (90°C/60°C/50°C /40°C/20°C/※)
n°
●/● ●/●
2) Normal action / synthetics (90°C/60°C/50°C /40°C/20°C/※)
n°
●/● ●/●
3) Delicate action / wool or cashmere cycles (60°C/40°C/20°C/※)
n°
-/●　 -/●
4) Delicates silk (40°C/30°C/※)
n° - -
5) Express 15’ (30°C/※，15min)
n°
　● 　●
6) Sport
n°
　● 　●
7) Hand wash
n° - -
8) Underwear
● ●
9) Jeans
- -
10) Quick Wash
● 　●
11) Special programs
n°
2 2
Single Rinse n°
　● 　●
Spin n°
　● ● Single Drain - ­Drum Clean
● ● Optional function keys (additional program settings) Power
　● 　● Start / Pause
　● 　● Delay Extra Rinse
　● 　●
Rinse Hold (or Soak)
--
Eco Time
--
Spin Select
-
T
emperature Select
　● 　● Intense
　● 　●
Cold wash
● ● Super Wash
--
Pre-wash
● ● Easy ironing
--
6.
Packing dimensions & loadability
Packing dimensions (H x W x D) mm 895*650*690 895*650*550 Gross weight kg 75 68 40' Container load pcs 162 162
7.
Logistic / recicling information RS Packing weight kg 3 3
Packing materials / Recycling symbols
Carton (weight) gr Shrink package Shrink package Polistyren (weight) gr 2000 2000 Polyetylene foil (weight) gr 500 500 Other packing materials (weight) gr Wood (weight) kg
500 500
8.
Service RS
User instruction (languages) English English Max. failure rate (12 Months after sales to end customer) %
9.
Delivery Time of First Batch
Available Available
SERVICE MANUAL
11Series
Front Load Washing Machine
８
Chapter 3 Matters needing attention 3-1. BEFORE SWITCHING THE APPLIANCE ON FOR THE FIRST TIME
DO ...
... Make sure that the transport bolt are removed. ... Use a separate earthed socket for the power supply. ... Make sure that the plug is accessible. ... Hold the plug and not the electric cable when unplugging the power supply. ... Make sure that the fuses in the power circuit are rated for 15A. ... Keep away from heat sources and direct sun light to prevent plastic and rubber components from aging. ... Make sure that the power cord is not caught under or in the appliance and avoid damage to the power cable. ... Check that hose joints and connections are firm and no water can leak. If joints are loose or there is leakage, turn off the water supply and refix. Do not use the washing machine until the hoses are properly fixed.
DO NOT ...
... Touch or use the appliance when barefoot or with wet or damp hands or feet. ... Use flammable detergent or dry cleaning agent. ... Use any flammable sprays in close vicinity to the appliance. ... Remove or insert the plug in the presence of flammable gas. ... Allow children or infirm persons to play with the appliance or packing materials. ... Install the appliance outdoors in a damp place, or in an area which may be prone to water leaks such as under or near a sink unit. In the event of a water leak allow the machine to dry naturally. ... Place the washing machine directly on a carpet, or close to a wall or furniture.
SERVICE MANUAL
11Series
Front Load Washing Machine
９
3-2. DURING DAILY USE OF THE APPLIANCE
DO ...
... Pull up zips and fix loose threads to prevent the items from being entangled. If necessary, put small items into a net bag or pillow.
... Turn off the machine after each wash program and switch it off at the mains to save electricity and for safety. Wipe clean the lower part of the porthole.
... Keep the door slightly open when the washing machine is not in use to prevent formation of odours. ... Let the power cord be replaced by the manufacturer, his service agent or other accordingly qualified persons, in
case it is damaged. ... Ensure that the appliance is not used by persons with reduced physical, sensory or mental capabilities, lack of
experience and knowledge without supervision or instruction by a person responsible for their safety. ... Supervise children to ensure that they do not play with the appliance.
DO NOT ...
... Touch the washer door during the washing process - it gets hot! ...Place heavy objects or sources of heat or damp on top of the appliance. ... Hot wash foam rubber or sponge-like materials. ... Open the detergent distribution drawer during the wash cycle. ... Force the washer door open. The door is fitted with a self-lock device and will open shortly after the washing
procedure is ended. ... Open the washer door if the water level is visibly over the porthole. ... Cover the washing machine with plastic cover so that inside dampness cannot be kept in.
SERVICE MANUAL
11Series
Front Load Washing Machine
１０
Chapter 4 Operational Guidance
A
Program knob B Power Switch
C
Start/Pause button D Intense and Extra Rinse button
E
Washing temperature button F Display
G
Detergent distribution drawer
OPERATIONAL FUNCTIONS
A
¬ Program
knob
_By turning the knob clockwise/counterclockwise, the required program can be selected. There are 13 programs available. After a program is selected, the corresponding light will go on.
B ¬ Power
Switch
_ Press this button to switch on the washing machine. Press it again to switch it off.
C ¬
Start/Pause Button
_ When the washing machine is connected to the power socket and a program is selected, lightly touch this button to start operation. During a wash cycle, touch it lightly ,operation will stop and the digits on the screen start blinking. Touch it again to resume operation. To cancel a wash program during a wash cycle, touch this button, when the digits on the screen start blinking, press the Power switch, the program will be cancelled.
D ¬ Intense
and Extra Rinse button
_ Press the button repeatedly, the "Intense" or the "Extra Rinse" or "Intense" and the "Extra Rinse" function is selected alternately.The "Intense " light or the "Extra Rinse" light or "Intense" and "Extra Rinse" light is activated.If the laundry is heavily soiled, select the "Intense"function before starting the program. the washing time increases.When select the "Extra Rinse"function,the washing machine will perform one additional rinse.The corresponding light turns off and the display disappears when the "Intense" and "Extra rinse" ends.
E ¬ Washing
temperature button
_ Touch this button lightly, the washing temperature will be displayed on the indicator. Select a temperature according to the type of laundry.Note: If "- -°C " is displayed on the indicator, it means cold wash.
SERVICE MANUAL
11Series
Front Load Washing Machine
１１
F
¬Display
_Information as remaining wash time and error messages will be shown here. Note: After power is switched on, the display will go on and the remaining wash time decreases. As the water pressure and temperature may differ, the remaining time maybe adjusted accordingly. When the laundry is not balanced during spinning, the time may be automatically prolonged. These are normal phenomena.
G ¬ Detergent
distribution drawer
_Open the drawer, three compartments can be seen: Compartment 1: Prewash detergent Compartment 2: Detergent for programs 1 to 10. Compartment 3: Softener, conditioning agent, perfume, etc.
SERVICE MANUAL
11Series
Front Load Washing Machine
１２
Chapter 5 Program Introduction
SERVICE MANUAL
11Series
Front Load Washing Machine
１３
Chapter 6 Washing Mathods
6-1. LOADING THE MACHINE
Open the washer door, put in the laundry piece by piece. Close the door tightly.
¬ When first using the washing machine, let it run unloaded for one program to prevent the laundry from being tainted by oil or dirty water from the washing machine. Before washing you should run the machine without laundry, but with detergent, with 60°C program.
¬ Do not overload the washing machine.
6-2. ADDING DETERGENT
Slide out the detergent drawer and put the required detergent and softening agent into the corresponding compartments. Push back the drawer gently. (Refer to the instructions on the drawer)
Caution : ¬ For prewashing program, detergent should be added to both compartments 1 and 2. For other programs, do not add detergent to compartment 1. ¬ Use liquid detergent according to the instructions on its package. Do not use liquid detergent if
the prewash mode is selected.
¬ Do not overuse softener; otherwise, it will damage the artificial fibers.
6-3. SELECTING PROGRAM
To get the best washing results, an appropriate washing program should be selected according to the laundry type. Please turn the program knob to select the right program.
SERVICE MANUAL
11Series
Front Load Washing Machine
１４
Chapter 7 Appearance brief introduction
7-1.
Name of parts
SERVICE MANUAL
11Series
Front Load Washing Machine
１５
7-2.
Net dimension
height:850mm / width:595mm / depth:650mm (For the model HW80-1411, H80-1211,HW80-1011)
height:850mm / width:595mm / depth:510mm (For the model HW60-1411, H60-1211,HW60-1011)
SERVICE MANUAL
11Series
Front Load Washing Machine
１６

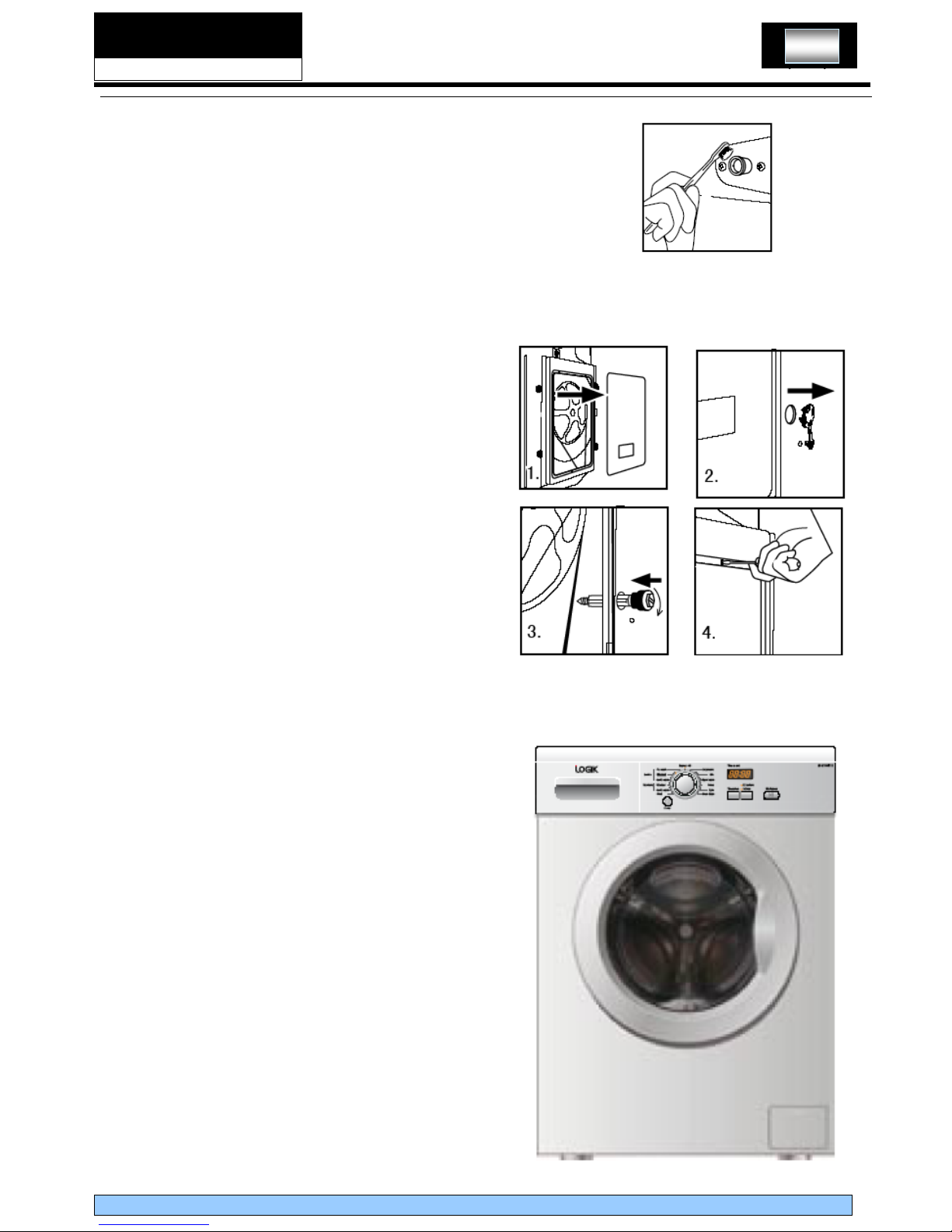

Chapter 8 Disassembly and Installation
8-1.
Preparing The machine
Remove all the packing materials to prevent unsteadiness, including the polystyrene base. Upon opening the package, water drops may be seen on the plastic bag and the porthole. This is normal phenomenon resulting from water tests in the factory.
8-2.
Dismantle the Transportation bolts
The transportation bolts are designed for clamping anti-vibration components inside of the washing machine during the transportation process.
1.Remove the back cover.
2.Remove the four bolts on the rear side and take out the synthetic stabilisers from within the machine.
3.Replace the back cover.
4.Fill the holes left by the bolts with blanking plugs.
Note:
When you replace the back cover,the convexity must face to outside, and you have to insert the back cover from the two gaps as shown in fig.5.
2.Keep the transportation bolts and synthetic stabilisers in a safe place for later use.
8-3.
Adjusting the washing machine
There are adjustable feet under the bottom of the washing machine. Before use, they should be adjusted so that the machine is level. This will minimise vibrations and thus noise during use. It will also reduce wear and tear. We recommend using a spirit level to level the appliance.The floor should be as stable and flat as possible.
SERVICE MANUAL
11Series
Front Load Washing Machine
１７
8-4.
Inlet Hose
1. Connect the nut on the inlet hose to the connector on the water valve.
2. Apply inlet hose to a water tap with cold, fresh water.
Note: Use the hose-set supplied with the appliance.
Old hose-sets should not be reused.
8-5.
Drain hose
1. Use the drain hose bracket to keep the end of the drain hose retained and prevent the outflow of water. Don't extend the length of the drain hose; if an extended hose is required, please consult a serviceman.
2. The height of the drainage outlet must be 80-100 cm. Fix the drain hose to the clip at the back of the washing machine to prevent it from dropping off.
Note: The drain hose should not be submerged in water and should be securely fixed and leak-free. If the drain hose is placed on the ground or if the pipe is at a height of less than 80cm, the washing machine will continuously drain while being filled (self-siphoning).
8-6.
Connecting to the power supply
Before connecting to the power supply, check: ¬ The socket is adequate for the maximum power of the washing machine (For safety, fuses in the power circuit should be rated for no less than 15A). ¬ The voltage should meet the requirement. ¬ The power outlet should be capable of accepting the washing machine plug.
¬ Connect the machine to an earthed socket outlet.
SERVICE MANUAL
11Series
Front Load Washing Machine
１８
Chapter 9 Wiring circuit and Self check
9-1. Wiring circuit
9-2. Self check
1. How to start
Press the "Intense" and "Extra Rinse” button at the same time, then plug on the machine, "88:88" and will be displayed by turn.Then prese the “Start/Pause”button, the model of the machine will be displayed. Then Press “Start/Pause” button, the machine will start a self test program. the following will be performed.
2. Test item
1) When the door switch is closed for three seconds, 88:88 will be displayed. Otherwise "Err1" will be displayed
2) when the main wash valve allows water to let in for 5 seconds, when the prewash valve allows water to let in for 5 seconds, when the intenerate valve allows water to let in ,come into the first water level, If the water was the first water level, the intenerate valve allows water to let in for 5S. If the water can not reach the level in 2 minutes, "Err5" will be displayed. If the water exceeds the overflow level,"Err8" will also be displayed.
3) When the washing machine heats water for 10 seconds, 66:66 will be displayed.
SERVICE MANUAL
11Series
Front Load Washing Machine
4) When the washing machine drains for 2 minutes, if no water left, 55:55 will be displayed. Otherwise "Err2" will be displayed.
5) When the inner drum runs for ten seconds with the speed of 1400rpm at this time and for ten seconds with the speeds of 800rpm 44:44 will be displayed.
When the self check program is completed, "End" will be displayed.
Model selection
When the display board (on the control panel) is replaced technician need to select the correct model according with the model name on the washing machine.
1. Press the”Temp”button and the "Intense" and "Extra Rinse” button, then plug on the machine at the same time, keep the two buttons pressed for 4 seconds. Then “****" will be displayed on the screen.”****” is the preset model.
2. Run the program button to choose correct speed. “1460/1260/1060 or1480/1280/1080 or
1470/1270/1070......“ will be displayed by turn. Then press “Temp ”button to choose correct load. Choose “1460/
1260/1060 or1480/1280/1080 or
1470/1270/1070 then press the “Start/Pause” button to save.
4. If you want to change the model again after storage, you can cut off the NTC and do the cycle adjustment.
3.
For the model“L812WM12、L614WMS12”，Please choose“1280、1460”。
SERVICE MANUAL
11Series
Front Load Washing Machine
２０
Chapter 10 Error Display and troubleshooting
10-1.
Error Display
Error message:Door is not properly shut 20s after program is started.
Troubleshooting:
Error message: Drainage error, water not emptied within 6 min.
Troubleshooting:
Pushing the door to Check Whether Door is
properly shut or not?
Y
Shut the door properly
Door lock is broken and
need replacing, then
make sure wire is
connected properly.
N
Check the voltage between JK1-2 and CN3-1 of PCB, is it between AC 220-240V?
Check if drain pump acts by touching pump
p
osition
Y
Check if drain pump or drain pipe is jammed, And open the filter and clean
N
Cut off the power and choose spin program to start ,then check the import voltage of drain pump, is it between AC 220-240 V?
Replace drain pump
N
Cut off power and pull out water levelpressure switch wire connection. Set spin program to start. Check the export voltage to drain pump, is it between AC 220-240V?
Cut off the power and then turn on again. Check
the voltage between brown wire and blue wire
of door lock, is it between AC 220-240V?
Y Y
Replace PCB
Connect the wire properly
Check if the wire connecting door lock and PCB is loose
N
Y
Check if water is emptied?
Y
Cut off power and water level pressure switch wire connection, measure the resistance of 11 and14 pin, is it infinite? If not, it is water level pressure switch failure and replaces it. If it is, then repair and check PCB and wire as followed.
N
Y
The wire between PCB and drain pump is not connected properly. Replace the wire.
N
N
N
SERVICE MANUAL
11Series
Front Load Washing Machine
２１
Error message:Temperature sensor is not properly connected or damaged.
Troubleshooting:
Error message:The heater may be broken (display at the end of a program).
Troubleshooting:
N
Replace PCB
NTC exist open circuit. Replace it
Y
Cut off power, check the resistance of two pins of heater element by multimeter, is it between 32-35Ω?
Heater element must be broken, please replace it
Y
Check if NTC is connected properly
Cut off power and measure the resistance of
temperature sensor by multimeter, is it
between 5-14kΩ ?
Y
N
Connect NTC well
N
N
N
Replace PCB
Check the CN3-3 white wire and CN2-3 black wire of NTC, are they connected well?
Connect all wires well
Disconnect the white wire and black wire from PCB, and measure if the resistance between white wire and black wire of PCB, is it infinite?
Y
Y
Replace wire
Check if overload laundry. Reduce the laundry
Y
CN3-3 CN2-3
SERVICE MANUAL
11Series
Front Load Washing Machine
２２
Error message: The required water level is not reached within 6 min.
Troubleshooting:
N
Check if inlet valve is jammed
Clean inlet valve
N
Draw out the dispenser and check if water is enterin
g
Observe if the height of drain pipe not reach 80 cm. If water level pressure switch and the hose is leaking gas
N
Turn on power, and set pre-wash mode, then start. Check the import voltage of electromagnetic valve by multimeter is it between AC 220
-
240V?
Electromagnetic valve must be broken, please replace it.
N
Check if tap is closed or water pressure is too low (usual between0.2 -1 MPa)
Open the tap or wait for normal water pressure to
use
The wire connected PCB and inlet valve is not properly. Please reconnect it or replace it.
The control wire may be broken, Otherwise the PCB must be broken; Please replace the broken.
Check if water is leaking from washer bottom. Inlet pipe. drain pipe or other pipe connection
Y
Replace PCB
Check if export voltage between CN3-5 and JK1-2 from PCB to electromagnetic valve, is it between AC 220-240V?
N
N
Connect it well.
Y
SERVICE MANUAL
11Series
Front Load Washing Machine
２３
Error message. Motor overheat protection or is damaged.
Troubleshooting:
Error message. Water level exceeds protection value.
Troubleshooting:
N
Y
Reconnect well
Y
Measure if the resistance of motor binding by multimeter, is it as followed? 5 -10[1.78±8%Ω (at 20°C)]
;
8 -9[1.90±8%Ω (at 20°C)]
;
Check if water switch hose and air collector
are jammed
Clean water switch hose and air
collector
Replace water pressure switch
Y
Put the motor in normal temperature about
ten minutes, and then test again. If the resistance is natural, it is caused by overheated protection. Then check and deal with overload, abnormal voltage. If not, please replace motor
Replace inlet valve
Repair wires
Pull out the wire connection of motor and printed computer board. Then check if circuit is o
p
en by multimeter
Cut off power,and check if motor wires are conneted well?
N
Pull out water switch inserts and turn on power, then set wash mode. while water is entering at the position of 3/4 glass window, check the resistance between 11 and 16, is it 0 ? Check the resistance between 11and 14 ,is it infinite?
N
N
Y
Y
N
Without power ,connect inlet pipe to inlet valve, then open the tap and observe if water is entering in dispenser
SERVICE MANUAL
11Series
Front Load Washing Machine
２４
Without starting but electrifying, measure the import voltage of inlet valve, is it between AC 220-240V?
Replace PCB
Y
SERVICE MANUAL
11Series
Front Load Washing Machine
２５
10-2. Examination & Troubleshooting 10-2-1. Display nothing
Troubleshooting:
10-2-2. No water inletting
Troubleshooting:
Measure the power supply ,is it exists 220V-240V AC voltage？
Y
Repair power supply
N
Press the power switch
Check if power plug exists 220V-240V AC voltage at the import pin between CN4-3 and JK1-2
N
Is the tap shut off or the water pressure too
low?
Y
Open tap or wait for normal water pressure
N
Check if water is leaking from washer connection, especially between inlet pipe and tap. to make sure of no bends.
Reconnect inlet pipe.
N
Check if filter of electromagnetic valve is
j
ammed
Clean filter
Is power switch on?
Y
Y
N
Insert the plug well and test
N
Press power switch and check the voltage between two pins of power switch. Is there 220
-
240V AC voltage?
N
Make sure power supply cable assembly is connected well and then replace power switch.
Cut off power and check if plugs are connected well by pulling the plug of PCB.
Y
Y
Y
Replace PCB
Y
Is there open circuit between electromagnetic
valve and PCB?
Y
Replace electromagnetic valve
Reconnect the wire
Replace PCB
Choose pre-wash program and start，Check if
there is 220-240V at import pin of
electromagnetic valve
N
N
Y
CN4-3
JK1-2
SERVICE MANUAL
11Series
Front Load Washing Machine
２６
10-2-3. No draining
Troubleshooting:
10-2-4. Abnormal noise and vibration Troubleshooting:
Is the pack screws dismantled?
Turn filter anticlockwise，open and check if
filter is jammed
Clean and tighten filter clockwise.
Y
Dismantle the screws
Clean
N
Is the height of drain pipe too high?
N
A
djust the height of drainpipe to
80-100 cm
Arrange hose and clean
A
djust adjustable feet
Is washer in balance?
Y
Turn on power and set spin program, then
start，check if there is different noise from
motor
Replace drain pump
Replace the wire .
N
Replace PCB
Is belt loose or worn?
Remove belt and turn belt pulley by hand,
and then check if there is different noise
Replace it
Dismantle triangle and check the bearing. If it is broken, replace it.
Replace motor
Check if hose-connecting cylinder to pump is
bent or jammed
N
Cut off and check if the connection between
drain pump and PCB is open
N
N
Is there foreign material in the washer ?
N
N
Y
Y
N
Y
Y
Turn on and select spin program to start,
Measure export voltage of PCB to the drain
pump, is it 220-240V?
Turn on power and choose spin program to
start. Measure if import voltage of drain pump
is 220-240V
Y
Y
Y
Y
SERVICE MANUAL
11Series
Front Load Washing Machine
２７
N
10-2-5. Water leaking Troubleshooting:
Y
Is cushion of sight window broken?
Is drain pipe broken？
Readjust it
Replace drainpipe
Reassemble or repair
Is water leaking from outer cylinder?
Remove clothes
Check if water is leaking from the inlet pipe
or the tap
N
Check if there is foreign material nipped
between cushion of sight window and sight
Check if all tubes and tie-in is leaking water, including the connecting of tube and valve, dispenser, tube and dispenser, outer cylinder-cushion of sight window-hose and outer cylinder, drain pump and gas valve
Replace outer cylinder
N
Y
Y
SERVICE MANUAL
11Series
Front Load Washing Machine
２８
Chapter 11 Maintenance
AFTER WASHING
Turn off the water supply and pull out electricity plug after each wash. Open the washer door to prevent formation of moisture and odours. If the washing machine is left idle for a long period, drain the water in the machine and replace the drain hose.
CLEANING THE DETERGENT DRAWER
Clean the detergent distribution drawer regularly. Swing out the drawer, flush it clean with water and then replace it.
CLEANING THE MACHINE
Unplug the machine during cleaning and maintenance. Use a soft cloth dampened with soap liquid to clean the machine case and rubber components. Do not use organic chemicals or corrosive solvents.
CLEANING THE FILTER
Clean the filter once a month:
1. Open the bottom cover.
2.Remove the filter by turning counterclockwise.
3.Flush the filter clean with running water.
4.Replace the filter by turning clockwise and remount the cover.
Caution:
1.The filter must be in place, or it may lead to leakage.
2.Place a container under the drain pump filter, to collect
any excess water that may come out of the drain pump
when the filter is removed.
SERVICE MANUAL
11Series
Front Load Washing Machine
２９
WATER INLET VALVE AND INLET VALVE FILTER
To prevent blockage to the water supply by ingress of foreign substances, clean the water inlet valve and inlet valve filter regularly.
MOVING THE MACHINE
If the machine is to be moved to a distant location, replace the transportation bolts removed before installation to prevent damage as shown below.
1.Remove the back cover.
2.Remove the blanking plugs.
3.Insert the synthetic stabilisers and the transportation bolts. Tighten the bolts with a spanner.
4.Replace the back cover.
LONG PERIODS OF DISUSE
If the washing machine is left idle for a long period, pull out the electrical plug and turn off the water supply. Open the washer door to prevent formation of moisture and odours. Let the door open while not used.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
