new logik english manual front cPage 1 8. 8. 2008 10:01:22
GB
L15LID628E
L19LI628E
L19LID628E
L19LID628WE
L22LI628E
L22LID628E
L22LID628WE
blank.pdf 3. 6. 2008 13:38:07
new logik style english manual wPage 1 5. 6. 2008 10:08:44
Warnings
Thank you for purchasing this television. For your safety, please take time to read these
instructions carefully in order to familiarise yourself with the operation of the appliance and
the important safety information. We strongly recommend that this product is installed by
a competent person. If in doubt, refer to the retailer or the manufacturer helpline.
Caution
This television contains no user serviceable parts. Please refer to the manufacturer or authorised
repair agent in the event of malfunction. Do not remove the back cover from the television.
Warning
To reduce the risk of fire, electric shock or damage to the television, do not expose it to dust, rain or
moisture, or place any objects filled with liquids on or near the television.
Do not place the television in a confined space, ensure that nothing can obstruct the ventilation
openings at the rear of the television.
Do not place naked flames on or near the television.
Dispose of this television and any components including batteries in an environmentally friendly
manner. If in doubt, please contact your local authority for details of recycling.
Your LCD TV should be cleaned using a dry or slightly damp cloth. You should not use an alcohol
based cleaner
Safety
For your safety, this appliance is fitted with a fused moulded 3 pin mains plug. Should the fuse need
to be replaced, ensure that any replacement is of the same amperage and approved with
the BSI mark. ( )
Never try and replace the mains plug unless you have adequate qualifications and are legally
authorised to do so. In the event that a replacement Mains cable is required, contact
the manufacturer for a suitable replacement.
Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications
Never use the television if it is damaged in any way.
Always place the television on a flat level surface avoiding anywhere which may be subject to strong
vibration. Ensure the television is not placed on top of the power cable as the weight of the television
may damage the cable and cause a safety hazard.
Never place mobile phones, speakers or any other device which may cause magnetic or radio
interference with the television. If interference is apparent, move the device causing the interference
away from the television.
new logik style english manual wPage 1 5. 6. 2008 10:07:36
Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting
Screen Burn
A characteristic of Plasma and LCD TV Panels is that displaying the same image for along
time may cause apermanent after - image to remain on the screen. This is called screen
burn. Most pictures shown on your TV will be constantly moving and fill the screen.
Warnings
Examples of images that you need to watch out for are as follows
(this is not an all-inclusive list):
TV Channel Logos: e.g. Shopping channel logos and pricing displays-especially
if they are bright and stationary. Moving or low-contrast graphics are less likely
to cause ageing of the screen.
Picture-in-Picture and Multi Picture-in-Picture: Do not view for long periods of time
using the Picture-in-Picture or Multi Picture-in-Picture functions.
Time Displays
Teletext: Do not view a stationary page for long periods of time.
TV/DVD Menus: e.g. Listings of DVD disk content.
Pause Mode: Do not leave the TV in pause mode for long periods of time,
e.g. When watching DVDs or videos.
Note: To prevent screen burn if viewing any of the above for long periods of time,
reduce contrast and brightness when viewing. Once burn-in occurs it will never
disappear completely.
Specifications
new logik style english manual cPage 1 5. 6. 2008 10:05:14
Chapter 1 Introducing the LCD TV
Getting Started
Contents
Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications
4 - 5
Chapter 2 Installing the LCD TV
Remote Control Buttons
TV Buttons & Source Menu
Inputs & Connections
Chapter 3 Using The Features
Video Menu
Audio Menu
TV Menu
Setup Menu
Parental Menu

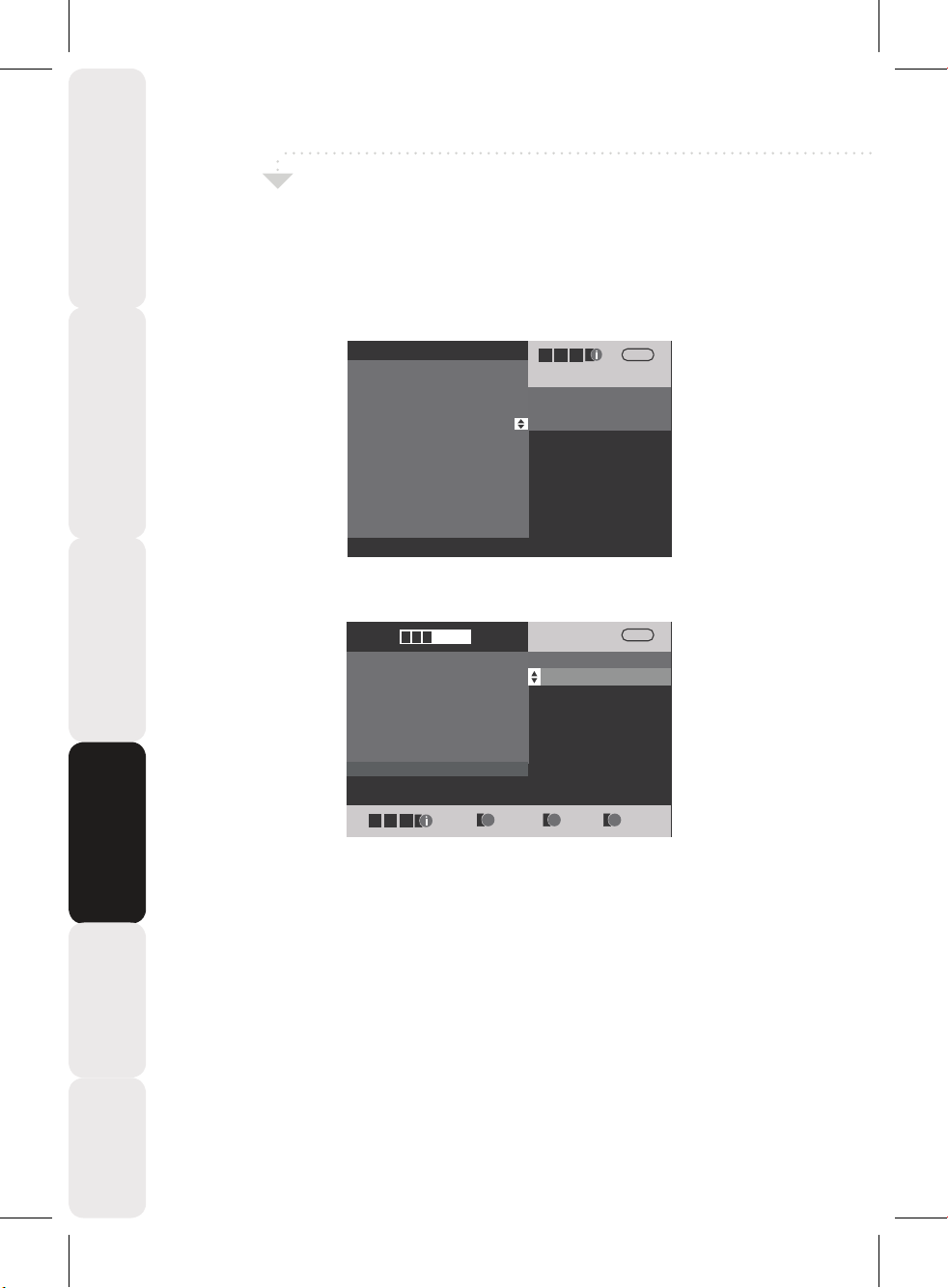

Electronic Program Guide & Digital Text

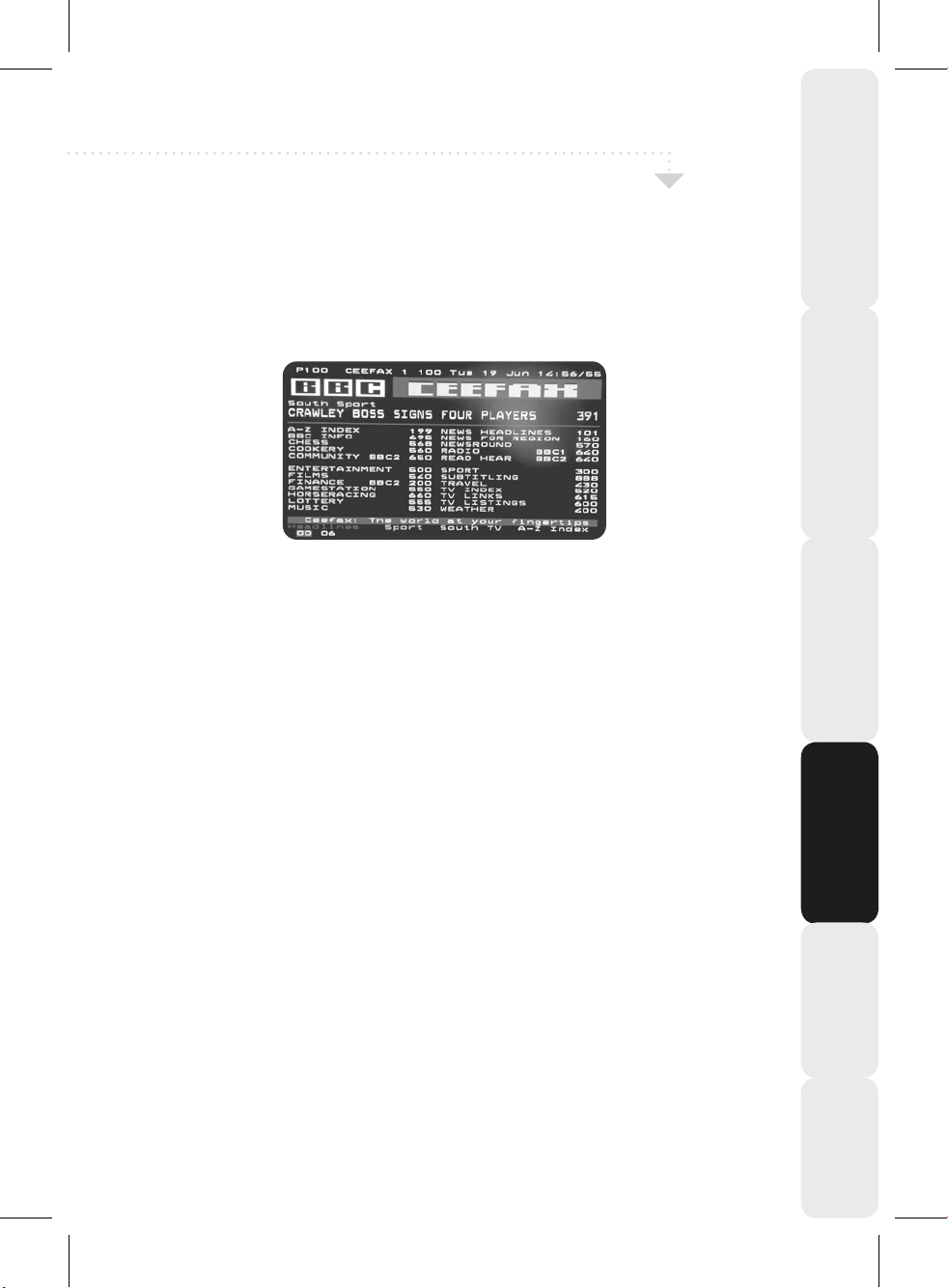

Analogue TV Text
Connecting to a PC
VGA (PC) Menu
DVD Menu

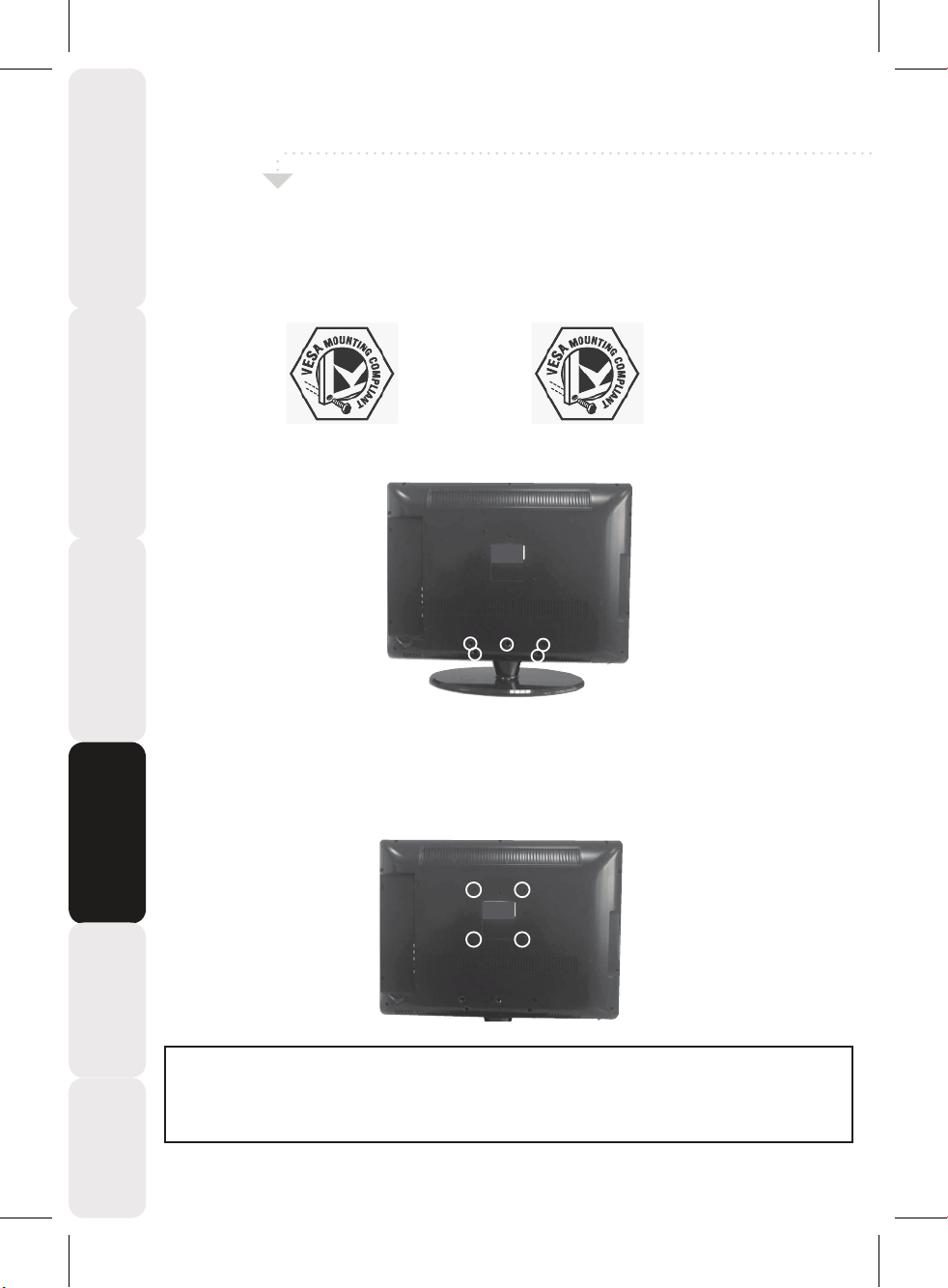

Wall Mounting
Using with Sky Digital
Troubleshooting
Frequently Asked Questuions
Specifications
Technical Specification
Index
6 - 7
8
9
10 - 13
14 - 15
16 - 18
19 - 23
24
25 - 26
27
28 - 29
30 - 31
32 - 41
42
43 - 44
45
46
47
new logik style english manual bPage 1 4. 7. 2008 10:28:40
Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting
Specifications
new logik style english manual 3Page 1 21. 8. 2008 8:42:01
What is included in the box
Accessories
Included with this TV are the following accessories:
1x - User Guide Book 1x - Remote control
Part No.: EMU/MAN/0001 Part No.: EMU/RMC/0002 with DVD
EMU/RMC/0003 without DVD
1x - RF lead 2x - AAA batteries
Part No.: RMU/CAB/0026 Part No.: RMU/BAT/0001
Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications
1x - Quick Start Guide 1x - TV
Part No.: EMU/QSG/0001
If you experience any problems with this Television, Please contact the helpline
Customer Support/Technical Helpline
Sky Media UK LTD
Telephone: 0870 242 6292 | Email: service@skymediauk.co.uk
3
new logik style english manual 4Page 1 4. 7. 2008 8:46:59
Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting
Getting Started - Initial Set Up
IMPORTANT - AFTER TUNING DO NOT PRESS ANY BUTTONS FOR 20 SECONDS SO THE
TUNING IN TV
IMPORTANT — Please ensure the TV has reached room temperature before connecting the
power for the first time
1) Connect the mains lead to your electrical outlet and switch on the TV using the switch next to where
the power cable goes into the TV
2) Connect the RF Cable supplied to the ‘RF IN’ on the rear of the TV and connect the other end of
the cable to your TV Aerial outlet
3) Install batteries in the remote control and press the [POWER] button to turn on the TV.
CHANNEL INFORMATION CAN BE STORED.
The ‘Initial Set up’ menu should now appear.
4) Press [OK] on the remote control.
5) Select the required language then press [OK]
Specifications
4
Initial setup
Welcome to the set up wizard
Press "OK" on the remote control to set up
your TV for the first time.
Initial setup
Please select your language:
Back Select Next Exit Exit
Welcome
Language
English
Espanol
French
German
Italian
Danish
Swedish
new logik style english manual 5Page 1 4. 7. 2008 10:59:25
Getting Started - Initial Set Up
6) Select country then press [OK]
Initial setup
Please select your country:
Back Select Next Exit Exit
Country
Czech Republic
Germany
Denmark
Spain
Finland
France
United Kingdom
7) Press [OK] and tuning will take place.
Initial setup
Connect your Aerial to the input labelled 'RF
In' on the rear of the TV.
If the TV does not find some or all of the
channels,connect a signal booster in
between the TV aerial and the TV.
Press 'OK' to continue.
0%
Back Select Next Exit Exit
Channel Scan
Scan
Skip Scan
8) After tuning a screen will appear to confirm tuning is complete.
Press [OK] and you can now watch TV.
Important - Due to signal strength variations across the EU for Digital TV,
please note that not all of the channels/services may be available in your
region. Over the coming months as coverage increases, more services
and channels may become available. In the event of poor reception in either
Analogue TV or Digital TV (DVB) it may be necessary to install a signal
‘booster’ to enhance reception. For Digital/Freeview TV (DVB) you may
need to upgrade your aerial to a High Gain Digital version.
Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications
Ideal set up for optimum picture
5
new logik style english manual 6Page 1 22. 7. 2008 12:59:43
Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting
Remote Control Buttons
1
2
3
4
5
6
7
FAV +/-
DVD mode: Press to eject disc
TV mode: Press to increase channel on favorite list
SUBTITLE
DVD mode: Press to play or pause DVD
TV mode: Press to activate subtitles
EPG
DVD mode: Press to stop DVD
TV mode: Press to open EPG
DVD mode: Press to play a DVD program in fast forward mode.
DVD mode: Press to play a DVD program in fast rewind mode.
DVD mode: Press to advance forward to the next chapter.
DVD mode: Press to replay the current program from the previous
chapter.
1
Power
Switches on LCD TV when in Standby mode or vice versa
2 – These buttons only work when on an analogue TV channel (Channels 901 upwards)
TXT
Opens Teletext mode
MIX
Changes the background so you can see the channel you are watching underneath the text information
SIZE
Alters the size of the text
INDEX
Requests the index page
HOLD
Press hold on or off for current page display.
REVEAL
To reveal or hide the hidden words
SUBCODE
Sub coded page access. To switch the dialogue at the bottom of the screen
CANCEL
Cancels the action
3
NUMBER BUTTONS
Press the number buttons to select the channel and wait 2 seconds for the channel to change. Also work as alphabet
buttons as required.
Specifications
TIMER
Displays the current time
Return to the previous channel viewed
6
new logik style english manual 7Page 1 24/07/2008 10:34:43
Remote Control Buttons
4
P
Lets you change the picture mode presets between User -> Cinema -> Sport -> Vivid -> Hi-Bright -> Standard
S
Switch between the different present sound options Off -> Rock -> POP -> Live -> Dance -> Techno -> Classic -> Soft
VOL +/Press to increase/decrease the sound level
CH +/Press to increase/decrease the channel
Sleep
Activates the sleep mode, continue to press until required time is selected
Display
Press to display the source and channel information
5
MENU
Press to open the OSD Menu
MUTE
Press to mute the sound and press again to restore
NAVIGATION BUTTONS ( , , , , OK)
Allows you to navigate the on screen menus and adjust the system settings to your preferences
SOURCE
Press to bring up the source menu
EXIT
Press to exit the OSD Menu
6
FREEZE
Press and the picture will be frozen and pushing this key again the picture will return.
ZOOM/STRETCH
Press to change the picture format of the screen
I/II
Press to switch the modes of sound processing
FAV
Press to display favorite menu.
7 – Buttons that relate to DVD features are only for use on TV with a built-in DVD player
DVD-M / Add/Erase
DVD mode: Press to enter the disc menu
TV mode: Add or erase program from favorite list
RED / SETUP
TV mode: For opening Digital Teletext and operating digital and analogue Teletext
DVD mode: Press to opening DVD OSD menu
GREEN / REPEAT
TV mode: For operating digital and analogue Teletext
DVD mode: Press to set a chapter so that it repeats
YELLOW / SUB-T
TV mode: For operating digital and analogue Teletext
DVD mode: Press to select caption when playing DVD or SVCD that has multiple captions.
BLUE / AUDIO
TV mode: For operating digital and analogue Teletext
DVD mode: During DVD or SVCD playback, press it repeatedly to select audio language.
Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications
7
new logik style english manual 8Page 1 4. 7. 2008 11:03:24
new logik style english manual 9Page 1 22. 7. 2008 13:04:42
Inputs & Connections
REAR CONNECTIONS
RF In AUDIO L/R In Component PCAudio SCART VGA (PC) HDMI
Use to connect to TV
Aerial to receive
analogue TV or
Digital/Freeview
TV stations
Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications
RF In AUDIO L/R In Component PC Audio SCART VGA (PC) HDMI
A B C D E F G
A
B
C
D
E
F
G
RF In
AUDIO L/R In
Component
PC Audio
SCART
VGA (PC)
HDMI
RF input
Audio input
Component (YPbPr) input
PC Audio input
SCART input
VGA (PC) input
HDMI input
9
new logik style english manual 1Page 1 4. 7. 2008 9:03:28
Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting
TV Menu Operation
VIDEO MENU
This is menu lets you alter all the aspects that relate to the picture settings to enhance the viewing
experience
Selecting Picture Mode
Lets you change the picture mode presets between User -> Cinema -> Sport -> Vivid -> Hi-Bright
-> Standard
1) Press [MENU] to enter menu
2) Press [>] to enter Video Menu
3) Picture Mode should be highlighted
4) Press [>] to change between the different options
5) Press [EXIT] to exit
Video
Video
Audio
TV
Setup
Parental
Picture Mode
Brightness
Contrast
Colour
Sharpness
DNR
Color Balance
OK
User
50
50
50
Medium
Select
OK
4
MENU
EXIT
Exit
Back
Specifications
10
Adjusting Brightness
Increase or decrease the brightness of the picture
1) Press [MENU] to enter menu
2) Press [>] to enter Video Menu
3) Press [\/] to highlight Brightness
4) Press [>] to increase the brightness or [<] to decrease the brightness.
Video
Video
Audio
TV
Setup
Parental
Picture Mode
Brightness
Contrast
Colour
Sharpness
DNR
Color Balance
OK
User
50
50
50
Medium
Select
OK
4
MENU
EXIT
Exit
Back
5) Press [EXIT] to exit
new logik style english manual 1Page 1 4. 7. 2008 9:04:53
TV Menu Operation
Adjusting Contrast
Adjust the balance between black & white and vivid.
1) Press [MENU] to enter menu
2) Press [>] to enter Video Menu
3) Press [\/] to highlight Contrast
4) Press [>] to make the picture more vivid or [<] to make the picture more black & white.
Video
Video
Audio
TV
Setup
Parental
Picture Mode
Brightness
Contrast
Colour
Sharpness
DNR
Color Balance
OK
User
50
50
50
Medium
Select
OK
4
MENU
EXIT
Exit
Back
5) Press [EXIT] to exit
Adjusting Colour
Increase or decrease the Red, Green & Blue which make up the picture.
1) Press [MENU] to enter menu
2) Press [>] to enter Video Menu
3) Press [\/] to highlight Colour
4) Press [>] to increase the colour or [<] to decrease the colour.
Video
Audio
TV
Setup
Parental
Picture Mode
Brightness
Contrast
Colour
Sharpness
DNR
Color Balance
User
Medium
50
50
50
4
Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications
5) Press [EXIT] to exit
Video
Select
MENU
EXIT
Exit
Back
OK
OK
11
new logik style english manual 1Page 1 13. 8. 2008 12:57:51
Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting
TV Menu Operation
VIDEO MENU
Adjusting Sharpness
Increase or decrease the sharpness of the picture. If you have a poor signal strength you should
reduce the sharpness to get a better picture.
1) Press [MENU] to enter menu
2) Press [>] to enter Video Menu
3) Press [\/] to highlight Sharpness
4) Press [>] to increase the sharpness or [<] to decrease the sharpness.
5) Press [EXIT] to exit
Dynamic Noise Reduction
Reduces the interference in the picture. Medium -> Strong -> Auto -> Off -> Low
Video
Video
Audio
TV
Setup
Parental
Picture Mode
Brightness
Contrast
Colour
Sharpness
DNR
Color Balance
OK
User
Medium
Select
OK
50
50
50
4
MENU
EXIT
Exit
Back
1) Press [MENU] to enter menu
2) Press [>] to enter Video Menu
3) Press [\/] to highlight DNR
4) Press [>] to switch between the different options.
5) Press [EXIT] to exit
Specifications
12
Video
Video
Audio
TV
Setup
Parental
Picture Mode
Brightness
Contrast
Colour
Sharpness
DNR
Color Balance
OK
User
Medium
Select
OK
50
50
50
4
MENU
EXIT
Exit
Back
new logik style english manual 1Page 1 4. 7. 2008 9:25:24
TV Menu Operation
Adjusting Colour Balance
Select between the different present colour balance options or adjust manually. User -> Cool
-> Standard -> Warm
1) Press [MENU] to enter menu
2) Press [>] to enter Video Menu
3) Press [\/] to highlight Colour Balance
Video
Video
Audio
TV
Setup
Parental
Picture Mode
Brightness
Contrast
Colour
Sharpness
DNR
Color Balance
User
50
50
50
Medium
OK
Select
OK
4
MENU
EXIT
Exit
Back
4) Press [>] to enter menu
Color Balance
Video
Audio
TV
p
Setu
Parenta
Color Temperatur
Red
Green
e
Blu
l
e
User
0
0
0
MENU
T
EXI
ect
el
S
k
ac
B
it
Ex
5) Press [>] to switch between the different presets or move down and adjust the red, green
and blue manually.
6) Press [EXIT] to exit
Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications
13
new logik style english manual 1Page 1 4. 7. 2008 9:27:25
Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting
TV Menu Operation
AUDIO MENU
This menu lets you alter all the aspects that relate to the audio settings to enhance the viewing
experience
Adjusting Balance
To switch the sound between the left and right speakers
1) Press [MENU] to enter menu
2) Press [\/] to highlight Audio Menu
3) Press [>] to enter Audio Menu
4) Balance should be highlighted
5) Press [>] to move to the right and [<] to move to the left
6) Press [EXIT] to exit
Audio
Video
Audio
TV
Setup
Parental
Balance
Bass
Treble
Sound Surround
Equalizer
OK
0
50
50
On
Off
Select
MENU
EXIT
Exit
Back
OK
Specifications
14
Adjusting Bass
To increase or decrease the low frequency part of the sound.
1) Press [MENU] to enter menu
2) Press [\/] to highlight Audio Menu
3) Press [>] to enter Audio Menu
4) Press [\/] to highlight Bass
5) Press [>] to increase the bass and [<] to decrease the bass
Video
Balance
Bass
Audio
Audio
TV
Setup
Parental
Treble
Sound Surround
Equalizer
OK
On
Off
OK
EXIT
Exit
Select
6) Press [EXIT] to exit
MENU
0
50
50
Back
new logik style english manual 1Page 1 4. 7. 2008 9:28:26
TV Menu Operation
Adjusting Treble
To increase or decrease the high frequency part of the sound.
1) Press [MENU] to enter menu
2) Press [\/] to highlight Audio Menu
3) Press [>] to enter Audio Menu
4) Press [\/] to highlight Treble
5) Press [>] to increase the treble and [<] to decrease the treble
Audio
Video
Audio
TV
Setup
Parental
Balance
Bass
Treble
Sound Surround
Equalizer
OK
OK
Select
0
50
50
On
Off
MENU
EXIT
Exit
Back
6) Press [EXIT] to exit
Surround Sound
This provides virtual surround sound so the sound appears to be coming from around you.
1) Press [MENU] to enter menu
2) Press [\/] to highlight Audio Menu
3) Press [>] to enter Audio Menu
4) Press [\/] to highlight Surround Sound
5) Press [>] to switch on or off
Video
Audio
TV
Setup
Parental
Balance
Bass
Treble
Sound Surround
Equalizer
0
50
50
On
Off
Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications
Audio
OK
OK
Select
MENU
EXIT
Exit
Back
6) Press [EXIT] to exit
Adjusting Equalizer
Switch between the different present sound options Off -> Rock -> POP -> Live -> Dance -> Techno
-> Classic -> Soft
1) Press [MENU] to enter menu
2) Press [\/] to highlight Audio Menu
3) Press [>] to enter Audio Menu
4) Press [\/] to highlight Equalizer
5) Press [>] to switch between the different preset options
Audio
Video
Audio
TV
Setup
Parental
Balance
Bass
Treble
Sound Surround
Equalizer
OK
OK
Select
0
50
50
On
Off
MENU
EXIT
Exit
Back
6) Press [EXIT] to exit
15
new logik style english manual 1Page 1 4. 7. 2008 13:29:16
Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting
TV Menu Operation
TV MENU
Adjusting Country
If you are moving the TV to another country you will need to change the region. The TV’s default
is United Kingdom
1) Press [MENU] to enter menu
2) Press [\/] to highlight TV
3) Press [>] to enter TV Menu
4) Country should be highlighted
5) Press [>] to change the country
6) Press [EXIT] to exit
Adjusting Audio Language
To change the audio language. As default the TV is set to english
Video
Setup
Parental
TV
Audio
TV
Country
Audio Language
Channels
Auto Scan
Update Scan
Analogue Manual Scan
CI
OK
OK
Select
Germany
English
MENU
EXIT
Exit
Back
Specifications
16
1) Press [MENU] to enter menu
2) Press [\/] to highlight TV
3) Press [>] to enter TV Menu
4) Press [\/] to highlight Audio Language
5) Press [>] to change the language
Video
Audio
TV
Setup
Parental
TV
6) Press [EXIT] to exit
Country
Audio Language
Channels
Auto Scan
Update Scan
Analogue Manual Scan
CI
OK
OK
Select
Germany
English
MENU
EXIT
Exit
Back
new logik style english manual 1Page 1 4. 7. 2008 13:27:14

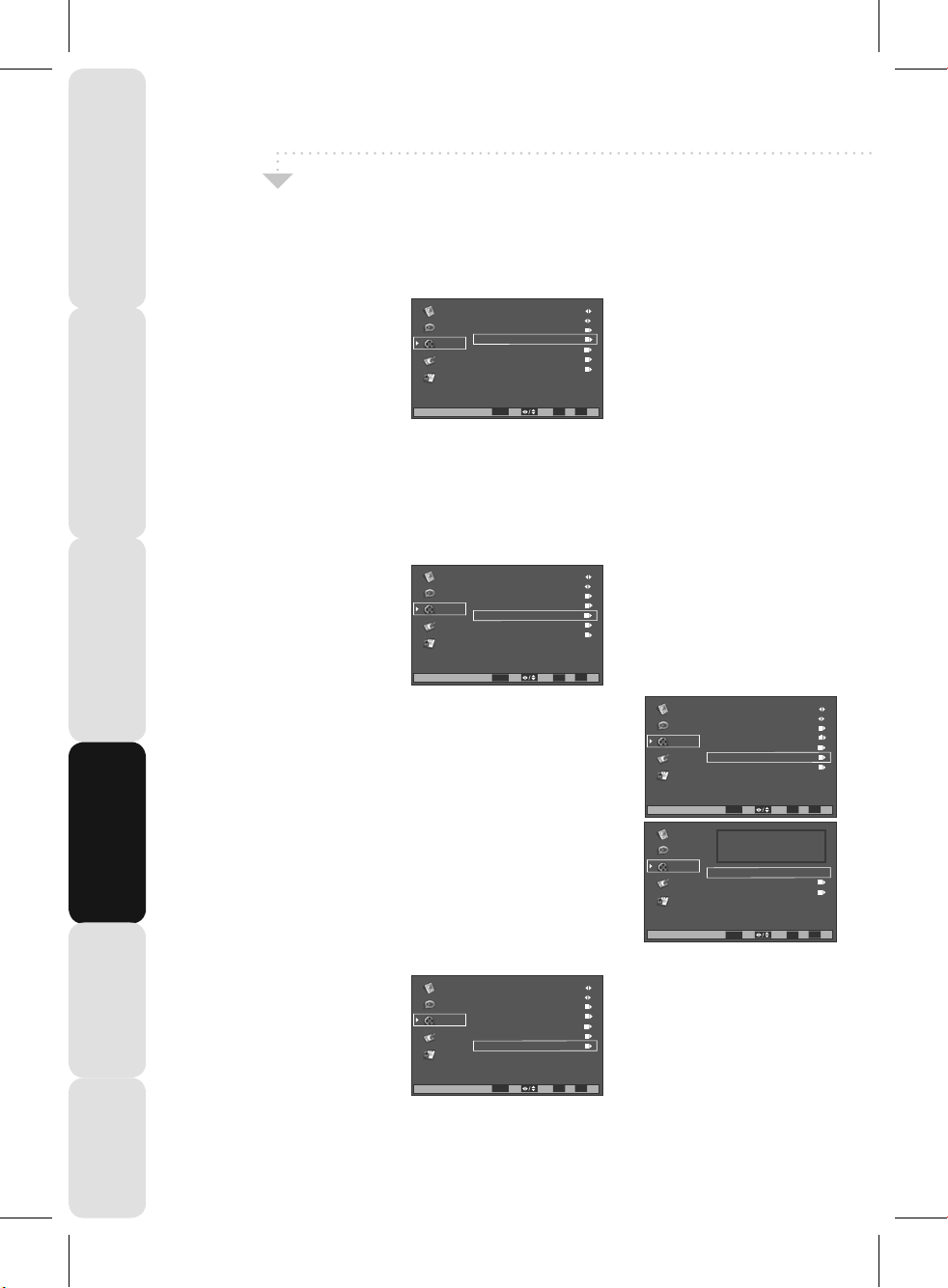

TV Menu Operation
Adjusting Channels
This lets you re-tune in the channels.
1) Press [MENU] to enter menu
2) Press [\/] to highlight TV
3) Press [>] to enter TV Menu
4) Press [\/] to highlight Channels
Video
Country
Audio Language
Audio
Channels
Auto Scan
TV
Update Scan
Setup
Analogue Manual Scan
CI
Parental
OK
TV
OK
Press [>] to enter channel menu
Video
Channel Skip
Colour System
Audio
Sound System
Channel Edit
TV
Analogue Channel Fine Tune
Setup
Parental
OK
TV
OK
6) Press [EXIT] to exit
Channel Skip
a) Press [>] to enter channel skip
b) Press [\/] or [/\] to select the channel you wish to skip
c) Press [OK] to select
d) Press [EXIT] to exit
Select
Select
Germany
English
NTSC
B/G
Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications
MENU
EXIT
Exit
Back
MENU
EXIT
Exit
Back
Colour System
a) Press [<] or [>] to adjust
b) Press [EXIT] to exit
Sound System
a) Press [<] or [>] to adjust
b) Press [EXIT] to exit
Channel Edit (Only available when on analogue TV – channel 900 upwards)
a) Press [>] to enter Channel Edit
b) You can now move the location of channels by pressing the RED button moving to location
you require and press [OK]
c) Press [EXIT] to exit
Analogue Channel Fine Tune (Only available when on analogue TV – channel 900 upwards)
a) Press [>] to enter Analogue Channel Fine Tune
b) Press [OK] to adjust
c) Press [EXIT] to exit
17
new logik style english manual 1Page 1 4. 7. 2008 13:44:44
Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting
TV MENU
Auto Scan
Scan for all channels based on the current settings
1) Press [MENU] to enter menu
2) Press [\/] to highlight TV
3) Press [>] to enter TV Menu
4) Press [\/] to highlight Auto Scan
5) Press [>] to start the search
6) After tuning the channel edit screen will appear, press [EXIT] to exit.
Update Scan
Every so often new digital channels are launched or signal strength improves. You can search for these
as follows.
1) Press [MENU] to enter menu
2) Press [\/] to highlight TV
3) Press [>] to enter TV Menu
4) Press [\/] to highlight Update Scan
5) Press [>] to start the search
6) Press [EXIT] to exit
Analogue Manual Scan
This scan is used to manual scan for a channel based
on the current settings
1) Press [MENU] to enter menu
2) Press [\/] to highlight TV
3) Press [>] to enter TV menu
4) Press [>] to highlight Analogue Manual Scan
5) Press [>] to enter menu
6) Move to scan up or scan down by pressing [\/]
7) Press [>] to start scan.
Common Interface Slot
This lets you adjust the CI slot settings
1) Press [MENU] to enter menu
2) Press [\/] to highlight TV
3) Press [>] to enter TV Menu
4) Press [\/] to highlight CI
5) Press [>] to Enter CI
TV Menu Operation
Video
Audio
TV
Setup
Parental
TV
Video
Audio
TV
Setup
Parental
TV
Video
Audio
TV
Setup
Parental
Country
AudioLanguage
Channels
AutoScan
UpdateScan
Analogue Manual Scan
CI
OK
OK
Country
AudioLanguage
Channels
AutoScan
UpdateScan
Analogue Manual Scan
CI
OK
OK
Country
AudioLanguage
Channels
AutoScan
UpdateScan
Analogue Manual Scan
CI
Select
Select
Germany
English
Germany
English
Germany
English
MENU
EXIT
Exit
Back
MENU
EXIT
Exit
Back
Video
Country
AudioLanguage
Audio
Channels
AutoScan
TV
UpdateScan
Setup
Analogue Manual Scan
CI
Parental
TV
Video
Audio
TV
Start Frequency (MHz) 47.00
Setup
Scan Up
Scan Down
Parental
TV
OK
OK
Search for analogue channels
OK
OK
Select
Select
Germany
English
MENU
EXIT
Exit
Back
MENU
EXIT
Exit
Back
Specifications
6) Press [EXIT] to exit
18
Select
MENU
EXIT
Exit
Back
OK
TV
OK
new logik style english manual 1Page 1 4. 7. 2008 9:37:31
TV Menu Operation
SETUP MENU

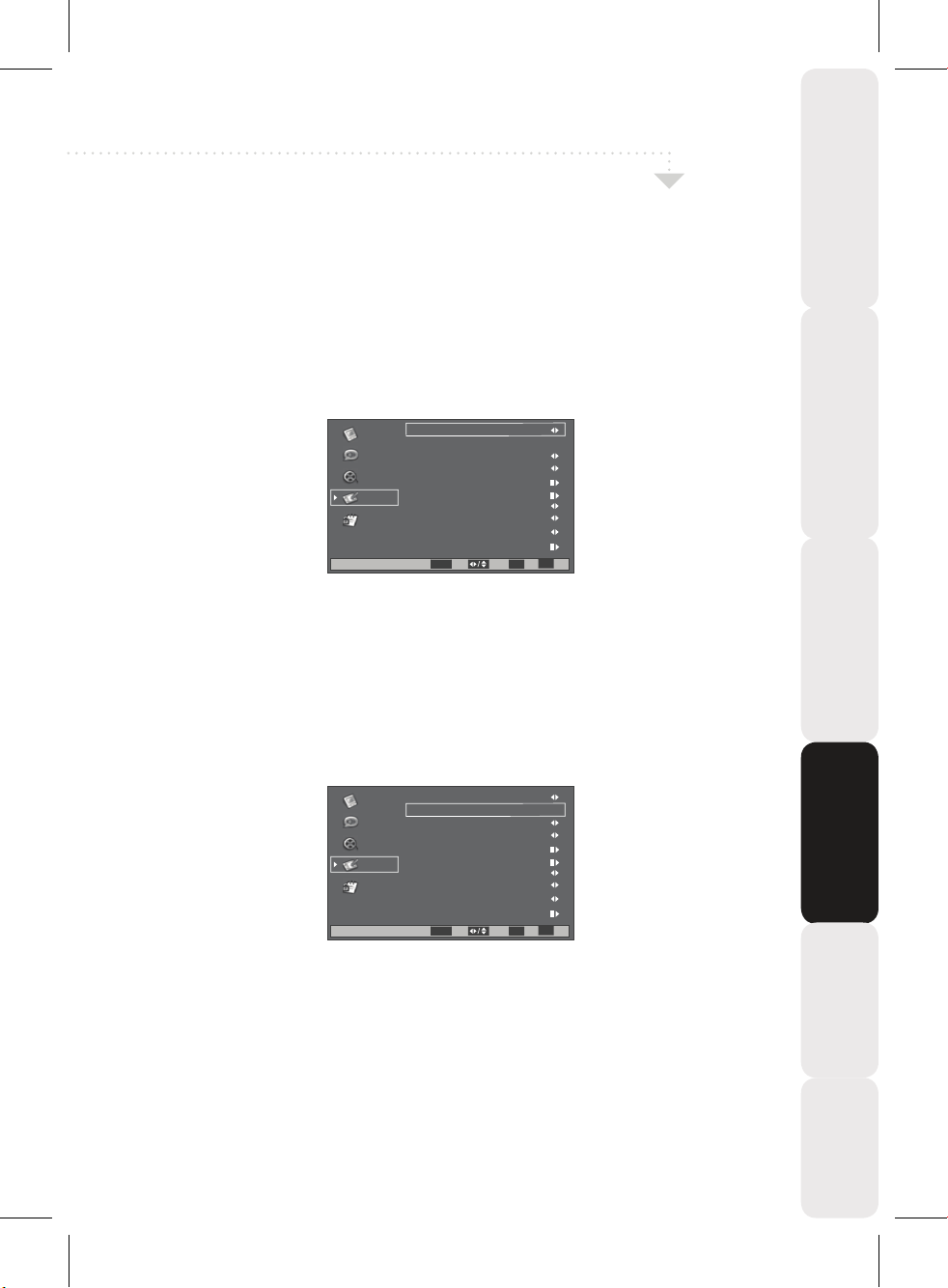

On Screen Display Language
You may wish to change the language of the OSD. The TV's default is English.
1) Press [MENU] to enter menu
2) Press [\/] to highlight Setup
3) Press [>] to enter Setup Menu
4) Country should be highlighted
5) Press [>] to change the country
OSD Language
Video
Screen Mode
Audio
OSD Transparency
Time Setup
TV
Subtitle
Digital Teletext Language
Setup
Decoding Page Language
Parental
Blue Mute
Reset Default
Setup
OK
6) Press [EXIT] to exit
Screen mode
Lets you adjust the picture format of the screen from 4:3, Full
1) Press [MENU] to enter menu
2) Press [\/] to highlight Setup
3) Press [>] to enter Setup Menu
4) Press [\/] to highlight Screen Mode
5) Press [>] to change
OSD Language
Video
Screen Mode
Audio
OSD Transparency
Time Setup
TV
Subtitle
Digital Teletext Language
Setup
Decoding Page Language
Parental
Blue Mute
Reset Default
Setup
OK
English
Normal
Middle
English
WEST EUR
On
MENU
EXIT
Exit
Select
OK
Select
OK
English
Normal
Middle
English
WEST EUR
On
EXIT
Exit
MENU
Back
Back
Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications
6) Press [EXIT] to exit
19
new logik style english manual 1Page 1 4. 7. 2008 9:38:26
Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting

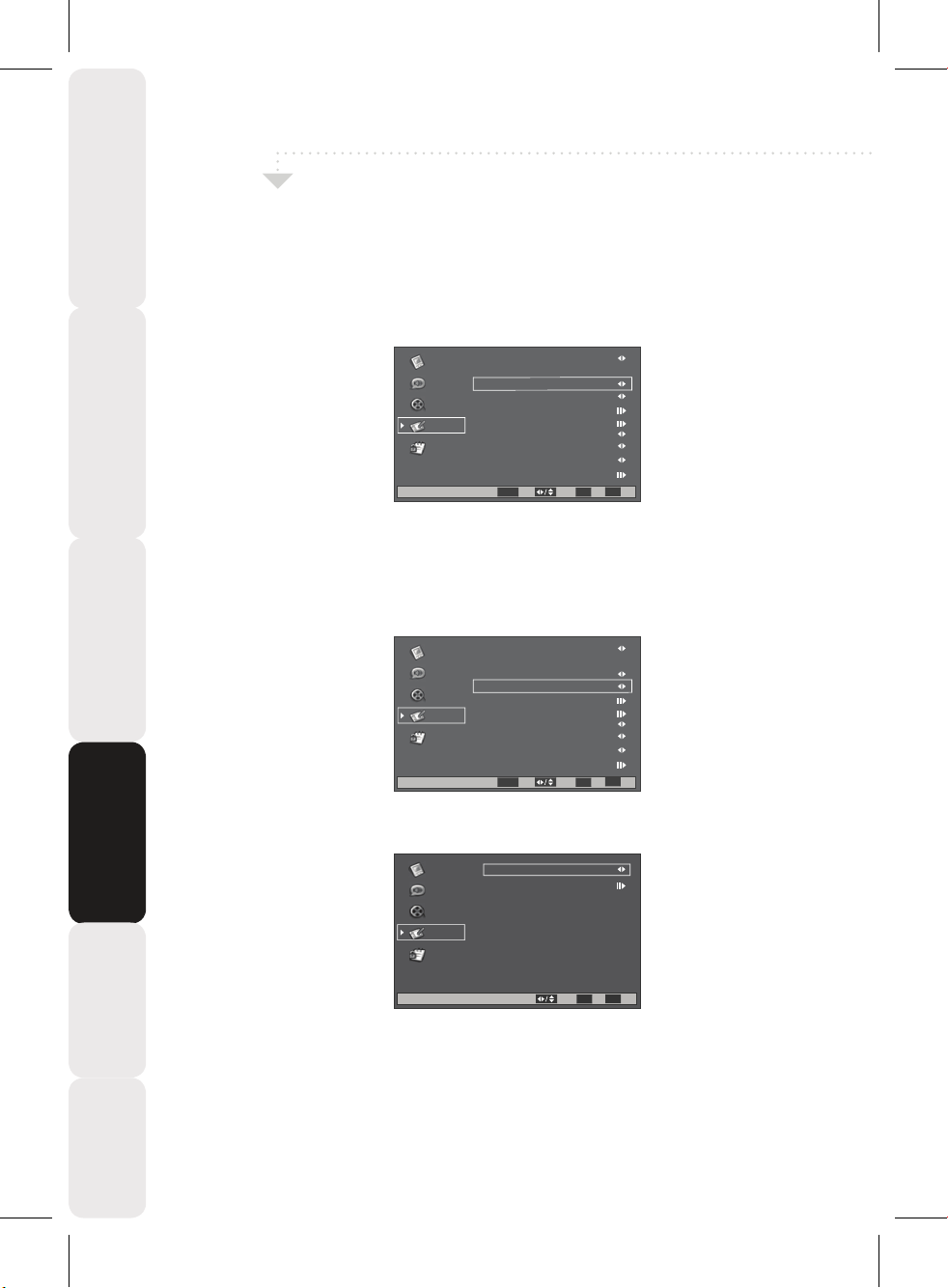

On Screen Display Transparency
This is the transparency of the On Screen menu Low -> Middle -> High.
1) Press [MENU] to enter menu
2) Press [\/] to highlight Setup
3) Press [>] to enter Setup Menu
4) Press [\/] to highlight OSD Transparency
5) Press [>] to change
6) Press [EXIT] to exit
Time Setup
You may wish to set the Time
1) Press [MENU] to enter menu
2) Press [\/] to highlight Setup
3) Press [>] to enter Setup Menu
4) Press [\/] to highlight Time Set up
5) Press [>] to enter menu
Time can now be set automatically or manually. If you wish to set manually see the next page.
TV Menu Operation
Video
Audio
TV
Setup
Parental
Setup
Video
Audio
TV
Setup
Parental
Setup
Video
Audio
TV
Setup
Parental
OSD Language
Screen Mode
OSD Transparency
Time Setup
Subtitle
Digital Teletext Language
Decoding Page Language
Blue Mute
Reset Default
OK
OK
OSD Language
Screen Mode
OSD Transparency
Time Setup
Subtitle
Digital Teletext Language
Decoding Page Language
Blue Mute
Reset Default
OK
OK
Time Zone
Time
English
Normal
Middle
English
WEST EUR
On
EXIT
Select
English
Normal
Middle
English
WEST EUR
On
EXIT
Select
As Broadcaster
MENU
Exit
Back
MENU
Exit
Back
Specifications
20
Time Setup
Select
MENU
EXIT
Back
Exit
new logik style english manual 2Page 1 4. 7. 2008 9:39:09
TV Menu Operation
SETUP MENU

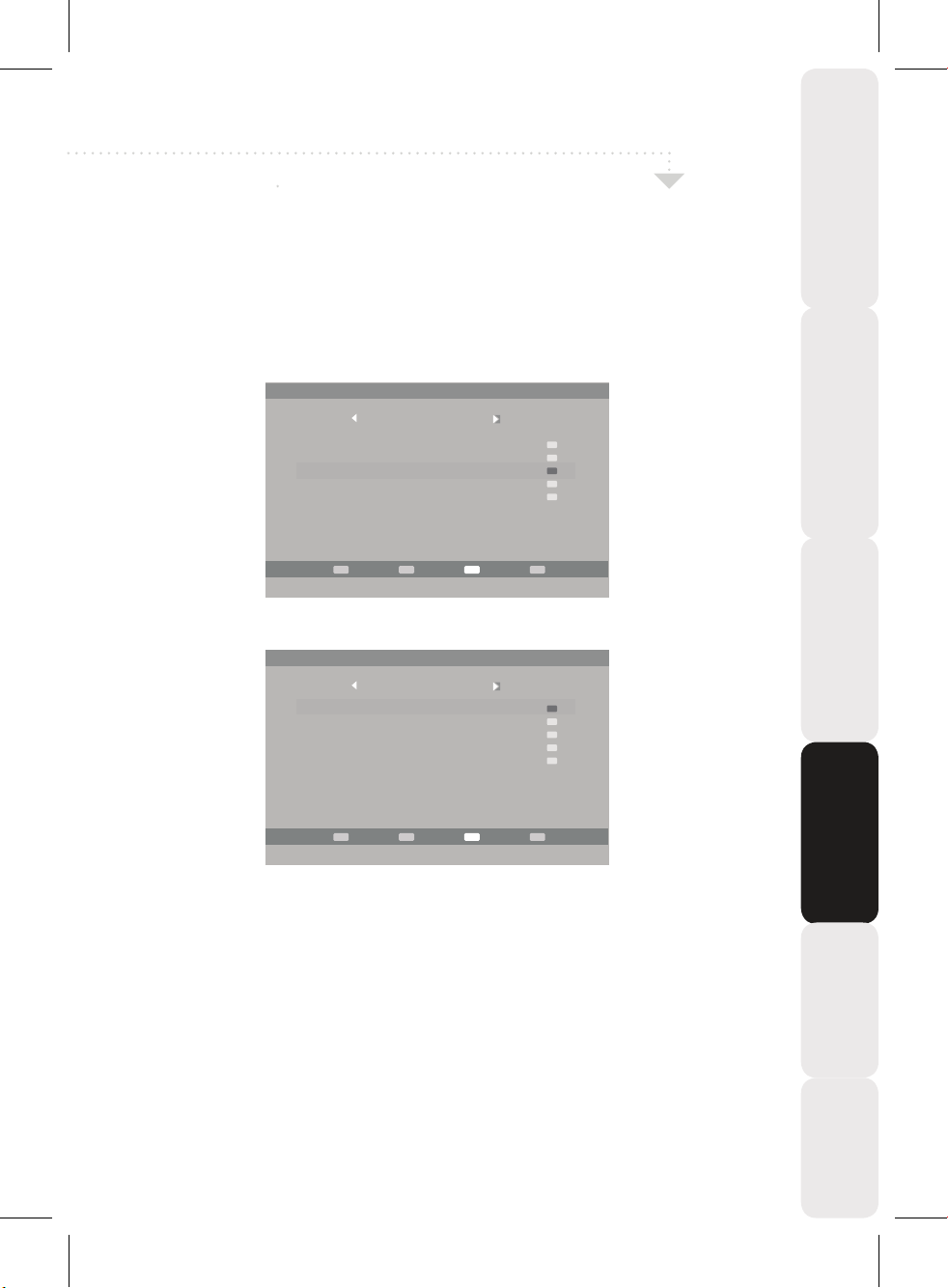

6) Press [\/] to highlight Time
7) Press [>] to enter Time menu
Video
Setup
Parental
Time Setu p
8) The time can now be adjusted manually by moving the time or date and altering it.
9) Press [EXIT] to exit
Choosing Subtitles
You may wish to have the subtitles switch on
1) Press [MENU] to enter menu
2) Press [\/] to highlight Setup
3) Press [>] to enter Setup Menu
4) Press [\/] to highlight Subtitle
Video
Setup
Parental
Setup
5) Press [>] to enter menu
Video
Setup
Parental
Audio
TV
Audio
TV
Audio
TV
Auto Synchronization
Date
Time
Timer
Power on Timer
Power off Timer
OSD Language
Screen Mode
OSD Transparency
Time Setup
Subtitle
Digital Teletext Language
Decoding Page Language
Blue Mute
Reset Default
OK
Analog Subtitle Off
Digital Subtitle Language English
Subtitle Type Normal
2000/01/01
16:49:23
00:00:00
00:00:00
EXIT
Select
English
Normal
Middle
English
WEST EUR
On
EXIT
Select
OK
On
Off
MENU
Back
Exit
MENU
Exit
Back
Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications
Analogue Subtitle
a) Press [<] or [>] to adjust
b) Press [EXIT] to exit
Digital Subtitle Language
a) Press [<] or [>] to adjust
b) Press [EXIT] to exit
Subtitle Type
a) Press [<] or [>] to adjust
b) Press [EXIT] to exit
6) Press [EXIT] to exit
Subtitle
Select
EXIT
MENU
Back
Exit
21
new logik style english manual 2Page 1 4. 7. 2008 9:41:04
Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting
SETUP MENU

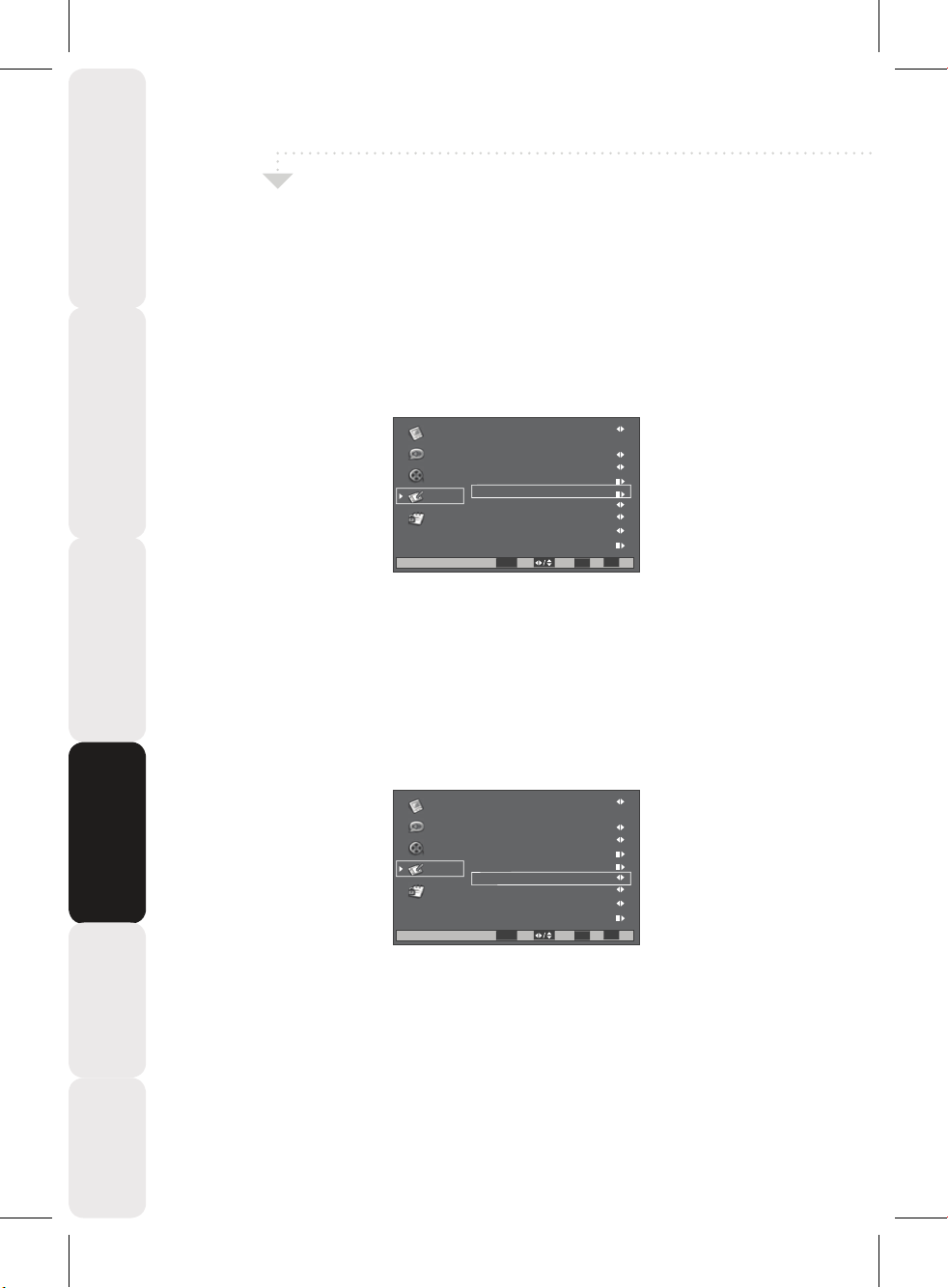

Digital Teletext Language
Choose the language that you would like for digital Teletext (available via the red button)
1) Press [MENU] to enter menu
2) Press [\/] to highlight Setup
3) Press [>] to enter Setup Menu
4) Press [\/] to highlight Digital Teletext Language
5) Press [>] to change the language
6) Press [EXIT] to exit
Decoding Page Language
If you are moving the TV to another country you will need to change this setting.
The TV’s default is WEST EUR
1) Press [MENU] to enter menu
2) Press [\/] to highlight Setup
3) Press [>] to enter Setup Menu
4) Press [\/] to highlight Decoding Page Language
5) Press [>] to change
TV Menu Operation
Video
Audio
TV
Setup
Parental
Setup
Video
Audio
TV
Setup
Parental
Setup
OSD Language
Screen Mode
OSD Transparency
Time Setup
Subtitle
Digital Teletext Language
Decoding Page Language
Blue Mute
Reset Default
OK
OK
OSD Language
Screen Mode
OSD Transparency
Time Setup
Subtitle
Digital Teletext Language
Decoding Page Language
Blue Mute
Reset Default
OK
OK
Select
Select
English
Normal
Middle
English
WEST EUR
On
EXIT
Exit
English
Normal
Middle
English
WEST EUR
On
EXIT
Exit
MENU
MENU
Back
Back
Specifications
22
6) Press [EXIT] twice to exit
new logik style english manual 2Page 1 4. 7. 2008 9:41:50
TV Menu Operation
SETUP MENU
Blue Mute
Changes the background when there is no input, between clear and a blue background
1) Press [MENU] to enter menu
2) Press [\/] to highlight Setup
3) Press [>] to enter Setup Menu
4) Press [\/] to highlight Blue Mute
5) Press [>] to switch the blue on or off
OSD Language
Video
Screen Mode
Audio
OSD Transparency
Time Setup
TV
Subtitle
Digital Teletext Language
Setup
Decoding Page Language
Parental
Blue Mute
Reset Default
Setup
OK
6) Press [EXIT] to exit
Reset
You may wish to reset the menus to factory settings e.g. if you have forgotten
a changed password
1) Press [MENU] to enter menu
2) Press [\/] to highlight Setup
3) Press [>] to enter Setup Menu
4) Press [\/] to highlight Reset
5) Press [>] to reset
OSD Language
Video
Screen Mode
Audio
OSD Transparency
Time Setup
TV
Subtitle
Digital Teletext Language
Setup
Decoding Page Language
Parental
Blue Mute
Reset Default
Setup
OK
6) Press [>] to highlight yes
7) Press [OK].
English
Normal
Middle
English
WEST EUR
On
MENU
EXIT
Exit
Select
OK
Select
OK
English
Normal
Middle
English
WEST EUR
On
EXIT
Exit
MENU
Back
Back
Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications
The TV will now reset.
23
new logik style english manual 2Page 1 4. 7. 2008 9:42:33
Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting
TV Menu Operation
PARENTAL MENU
Password
You may wish to add a password so that you can lock channels. Once added if forgotten it can
only be reset by switching the TV back to factory settings. Default password is set as 0000.
1) Press [MENU] to enter menu
2) Press [\/] to highlight Parental
3) Press [>] to enter Parental Menu
4) Password should be highlighted
5) Enter the password, you can then block channels, inputs, programs as well as setting
a new password.
6) Press [EXIT] to exit
Parental
Video
Audio
TV
Setup
Parental
Password
Select
MENU
EXIT
Exit
Back
OK
Enter
Specifications
24
new logik style english manual 2Page 1 4. 7. 2008 9:44:11
Electronic Program Guide & Digital Teletext
Electronic Program Guide (EPG)
The Electronic Program Guide (EPG) is available in Digital TV mode. It is a TV guide and provides
information about forthcoming programmes (where supported by the broadcasted channel).
You can view the start and end time of all programs and on all channels.
It is very simple to operate.
1) Press [EPG]. The following will appear
Thursday,10-April-20083:47:04 PM
90 5 1 BB C ON E 2
Today
3:35 PM Small Talk Diaries
Today
3:50 PM Eliot Kid
4:00 PM Thumb Wrestling Federation
Today
Today
4:05 PM Stake Out
Today
4:35 PM Beat the Boss
4:00 PM -4:05 PM Thu,10-Apr
CBBC Childrens puppet animation entertainment featuring two rival thumb wrestling
[s]
teams.
Next day
Type filter
2) Press [>] or [<] to select channel you wish to see information about
Thursday,10-April-20083:47:04 PM
90 5 1 BB C ON E 2
Today
3:35 PM Small Talk Diaries
Today
3:50 PM Eliot Kid
4:00 PM Thumb Wrestling Federation
Today
Today
4:05 PM Stake Out
Today
4:35 PM Beat the Boss
3:35 PM -3:50 PM Thu,10-Apr
CBBC Pollinators: Plants once made a deal with insects:Well provide shelter,nectar
and pollen if you ll carry our seeds about so that we can reproduce.mostly it works
that way...
[s]
Next day
Type filter
Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications
3) Press [\/] or [/\] to move through the programs for the day highlighted
4) Press [EPG] to exit Electronic Program Guide (EPG).
25
new logik style english manual 2Page 1 4. 7. 2008 9:45:39
Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting
Electronic Program Guide & Digital Teletext
Digital TV Teletext
With Digital TV (Freeview) there is also digital teletext available on some channels.
Simply follow the on screen commands. Here is an example of the BBC digital teletext
service.
1) To start digital teletext press RED button.
2) To select the information you require you can scroll using [\/] or [/\] and press [OK]
alternatively you can key the page number for example [3][0][0] followed by [OK]
C
BB
SPORT
BBC ONE
To exit,press TEXT
For fullscreen TV,press0
C
B
HOME SHORTCUTS BACK INDEX
C
BBB
Tuesday 18Dec
Press SELECTfor
Live Cricket
Eng v SL
Radio 2 Concert
News Multiscreen
Sport
Weather
BBCi INDEX
Did BeeMovie leave you
buzzing?BBC Movies-540
Toexit,press TEXT
11: 15 18 D ec
Sport
Sport inVideo
Main Headlines
Football
Cricket
Rugby Union
Rugby League
Tennis
Golf
more...
100
300
1001
300
400
199
Specifications
26
You can then navigate using the colour buttons (Red, Green, Yellow, Blue),
the [\/] [/\] buttons and numbers.
new logik style english manual 2Page 1 4. 7. 2008 9:46:28
Analogue TV Teletext
Teletext is a service offered by some broadcasters.
Teletext Operation
1) Press [TXT], after a few seconds teletext page 100 should appear.
Here is an example of BBC1
2) You can now navigate to the page you require in a number of ways:
a) Press the page you require using the number buttons i.e. page 02, by pressing [3][0][2]
b) Press the colour buttons, these will take you to page indicated on screen for each colour
3) To exit Teletext press [TXT] at any time
Other buttons
[SIZE] this increases or decreases the size of the text on screen
[INDEX] some pages are more than one page long this button displays the number of pages
[REVEAL] if there is an answer or something hidden this will display it
[SUBCODE] displays the sub page if it exists
[MIX] display TV picture behind the text
[HOLD] this stops the pages changing when there are multi pages
Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications
27
new logik style english manual 2Page 1 4. 7. 2008 9:48:53
Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting
IMPORTANT— Before connecting to a PC you must ensure that the settings of the
PCs output are correct for the new LCD Monitor.
You need to do the following with your old monitor connected
1) Switch on your PC
2) When finished booting up, right click your mouse anywhere on the screen,
the below will appear
3) left click your mouse on Properties, this screen will appear
Connecting to a PC - Windows XP
Specifications
28
new logik style english manual 2Page 1 4. 7. 2008 9:51:16
Connecting to a PC - Windows
4) Left mouse click on Settings, this screen will appear. Check the screen resolution is set to
a level that can be displayed by your television (refer to the technical specification for details).
You can adjust the resolution by moving the slider on screen.
5) Left mouse click on Advance, this screen will appear, click on tab called ‘Monitor’
Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications
6) Left click on the drop down for Screen refresh rate and select 60 Hertz.
7) Finally click Apply, then click Yes and the settings will be saved.
8) Turn off your PC.
9) Connect up your LCD TV to your PC and switch on.
10) Switch on your PC, Windows will automatically Install the LCD TV.
For Windows Vista operating system the process is very similar to the above.
If you require additional support please contact the helpline.
29
new logik style english manual 2Page 1 4. 7. 2008 9:52:09
Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting
PC Menu Operation (VGA)
VGA MENU
Automatic Configuration of Screen
Lets you automatically configure the television to be used as a computer monitor
to be used as a computer monitor
1) Press [MENU] to enter menu
2) Press [\/] to select VGA Menu
3) Press [>] to enter VGA Menu
4) Auto Adjust will be highlighted
5) Press [>] to start automatic adjustment
6) Press [EXIT] to exit
Horizontal Position
Changes the horizontal position of the picture
1) Press [MENU] to enter menu
2) Press [\/] to select VGA Menu
3) Press [>] to enter VGA Menu
4) Press [\/] to highlight H Position
5) Press [>] or [<] to adjust
VGA
Video
Audio
VGA
Setup
Parental
Video
Audio
VGA
Setup
Parental
Auto Adjust
H.Position
V.Position
Phase
Clock
Auto Adjust
H.Position
V.Position
Phase
Clock
61
52
18
145
OK
OK
Select
MENU
EXIT
Exit
Back
61
52
18
145
Specifications
30
6) Press [EXIT] to exit
VGA
OK
OK
Select
MENU
EXIT
Exit
Back
new logik style english manual 3Page 1 4. 7. 2008 9:53:07
PC Menu Operation (VGA)
Vertical Position
Changes the vertical position of the picture
1) Press [MENU] to enter menu
2) Press [\/] to select VGA Menu
3) Press [>] to enter VGA Menu
4) Press [\/] to highlight V Position
5) Press [>] or [<] to adjust
Video
Auto Adjust
H.Position
Audio
V.Position
Phase
VGA
Clock
Setup
Parental
OK
OK
EXIT
Exit
VGA
6) Press [EXIT] to exit
Phase
To adjust delay time of phase in order to reduce the noise of picture
1) Press [MENU] to enter menu
2) Press [\/] to select VGA Menu
3) Press [>] to enter VGA Menu
4) Press [\/] to highlight Phase
5) Press [>] or [<] to adjust
Video
Auto Adjust
H.Position
Audio
V.Position
Phase
VGA
Clock
Setup
Parental
Select
MENU
Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications
61
52
18
145
Back
61
52
18
145
OK
VGA
OK
6) Press [EXIT] to exit
Clock
Alter this in order to reduce the noise within the picture
1) Press [MENU] to enter menu
2) Press [\/] to select VGA Menu
3) Press [>] to enter VGA Menu
4) Press [\/] to highlight Clock
5) Press [>] or [<] to adjust
Video
Auto Adjust
H.Position
Audio
V.Position
Phase
VGA
Clock
Setup
Parental
OK
VGA
OK
6) Press [EXIT] to exit
Select
Select
MENU
EXIT
Exit
Back
61
52
18
145
MENU
EXIT
Exit
Back
31
new logik style english manual 3Page 1 22. 7. 2008 13:09:04
Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting
DVD Menu Operation (DVD Models Only)
DVD BASIC PLAY
1) Press [SOURCE]
2) Select DVD
3) Press [OK]
4) Insert disc the correct way round (see image on the side of TV)
On screen will appear READING, once the disc has been accepted it will start to play. If it does not
please refer to the frequently asked questions at the rear of the manual.
Within DVD Mode there is an additional menu. This can be operated in the following way.
SYSTEM SET UP
Adjusting TV System
Lets you adjust between NTSC, PAL, AUTO (Pal is default for the UK)
1) Press [SETUP] to enter menu
2) System Setup will be displayed
3) Press [\/] to select TV System
4) Press [>] to enter TV System
5) Press [\/] to change between NTSC, PAL, AUTO
6) Press [OK] to confirm
SOURCE MENU
TV/FREEVIEW
DVD
HDMI
SCART
COMPONENT
PC/VGA
7) Press [SETUP] to exit
Specifications
32
SYSTEM SETUP
TV SYSTEM
VIDEO
TV TYPE
PASSWORD
RATING
DEFAULT
new logik style english manual 3Page 1 4. 7. 2008 10:04:54

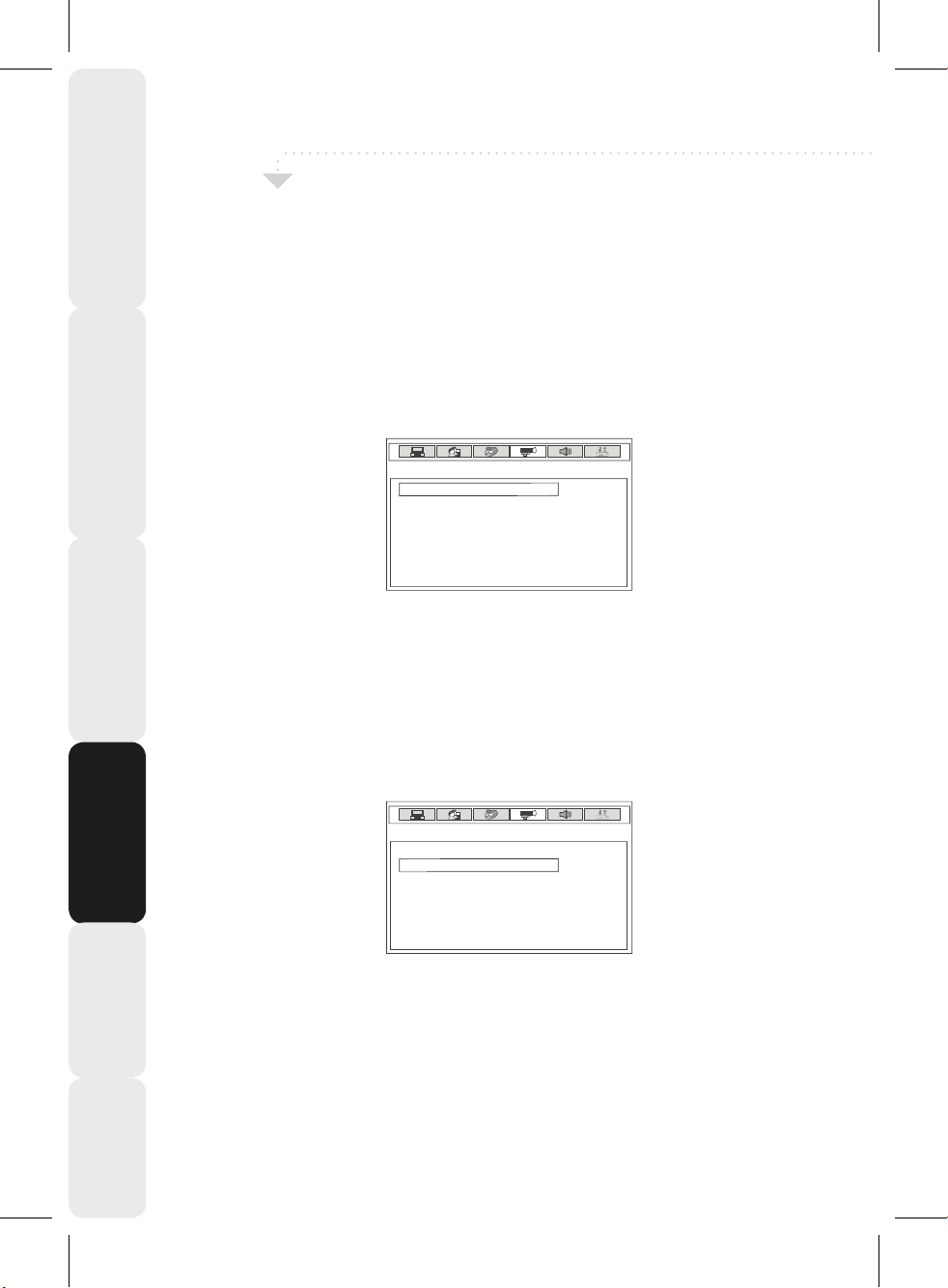

DVD Menu Operation (DVD Models Only)
Adjusting Video
Lets you adjust the video format.
1) Press [SETUP] to enter menu
2) System Setup will be displayed
3) Press [\/] to select Video
4) Press [>] to enter Video
5) Press [\/] to change
6) Press [OK] to confirm
SYSTEM SETUP
TV SYSTEM
VIDEO
TV TYPE
PASSWORD
RATING
DEFAULT
7) Press [SETUP] to exit
Picture Format
Lets you adjust
1) Press [SETUP] to enter menu
2) System Setup will be displayed
3) Press [\/] to select TV Type
4) Press [>] to enter TV Type
5) Press [\/] to change between 4:3 PS, 4:3 LB & 16:9
6) Press [OK] to confirm
Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications
7) Press [SETUP] to exit
SYSTEM SETUP
TV SYSTEM
VIDEO
TV TYPE
PASSWORD
RATING
DEFAULT
33
new logik style english manual 3Page 1 4. 7. 2008 11:04:27
Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting
DVD Menu Operation (DVD Models Only)
Password
You may wish to add a password so that you can lock DVDs of a certain rating. Once added if
forgotten it can only be reset by switching the TV back to factory settings. Default password is set
as 0000 back to factory settings (see reset to default section).
1) Press [SETUP] to enter menu
2) System Setup will be displayed
3) Press [\/] to select Password
4) Press [>] to enter Password
5) Enter the current password followed by the new one
6) Press [SETUP] to exit
DVD Ratings
You may wish lock DVD of a certain rating for example if you have small children.
1) Press [SETUP] to enter menu
2) System Setup will be displayed
3) Press [\/] to select Rating
4) Press [>] to enter Rating
5) Select the rating level you would like
6) Press [OK] to confirm
SYSTEM SETUP
TV SYSTEM
VIDEO
TV TYPE
PASSWORD
RATING
DEFAULT
7) Press [SETUP] to exit
Reset to default
You may wish to reset the menus to factory settings e.g. if you have forgotten a changed password
1) Press [SETUP] to enter menu
2) System Setup will be displayed
3) Press [\/] to select Reset
4) Press [>] to enter Reset
5) Press [OK]
Specifications
6) Press [SETUP] to exit
34
SYSTEM SETUP
TV SYSTEM
VIDEO
TV TYPE
PASSWORD
RATING
DEFAULT
SYSTEM SETUP
TV SYSTEM
VIDEO
TV TYPE
PASSWORD
RATING
DEFAULT
new logik style english manual 3Page 1 4. 7. 2008 10:07:45
DVD Menu Operation (DVD Models Only)
LANGUAGE SETUP
On Screen Display Language
Lets you change the language of the On Screen Menu.
1) Press [SETUP] to enter menu
2) Press [>] to select Language Setup
3) Press [\/] to select OSD Language
4) Press [>] to enter OSD Language
5) Press [\/] to select language
6) Press [OK] to confirm
LANGUAGE SETUP
OSD LANGUAGE
AUDIO LANG
SUBTITLE LANG
MENU LANG
7) Press [SETUP] to exit
Audio Language
Lets you change the audio language (If available on the DVD you are watching)
1) Press [SETUP] to enter menu
2) Press [>] to select Language Setup
3) Press [\/] to select Audio Language
4) Press [>] to enter Audio Language
5) Press [\/] to select language
6) Press [OK] to confirm
Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications
7) Press [SETUP] to exit
LANGUAGE SETUP
OSD LANGUAGE
AUDIO LANG
SUBTITLE LANG
MENU LANG
35
new logik style english manual 3Page 1 4. 7. 2008 10:08:33
Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting
DVD Menu Operation (DVD Models Only)
Subtitle Language
Lets you change the subtitle language (If available on the DVD you are watching)
1) Press [SETUP] to enter menu
2) Press [>] to select Language Setup
3) Press [\/] to select Subtitle Language
4) Press [>] to enter Subtitle Language
5) Press [\/] to select language
6) Press [OK] to confirm
7) Press [SETUP] to exit
Disc Menu Language
Lets you change the disc menu language (If available on the DVD you are watching)
1) Press [SETUP] to enter menu
2) Press [>] to select Language Setup
3) Press [\/] to select Menu Language
4) Press [>] to enter Menu Language
5) Press [\/] or [/\] to select language
6) Press [OK] to confirm
LANGUAGE SETUP
OSD LANGUAGE
AUDIO LANG
SUBTITLE LANG
MENU LANG
Specifications
36
7) Press [SETUP] to exit
LANGUAGE SETUP
OSD LANGUAGE
AUDIO LANG
SUBTITLE LANG
MENU LANG
new logik style english manual 3Page 1 4. 7. 2008 10:09:50
DVD Menu Operation (DVD Models Only)
AUDIO SETUP
Key
Lets you adjust the key of the sound
1) Press [SETUP] to enter menu
2) Press [>] to select Audio Setup
3) Press [\/] to select Key
4) Press [>] to enter Key
5) Press [\/] or [/\] to select
6) Press [OK] to confirm
AUDIO SETUP
KEY
7) Press [SETUP] to exit
Changing Regions
This TV/DVD player is pre-set to play Region 2 DVDs. In the event you wish to use the TV/DVD
in another country that uses different region discs, please visit www.skymediauk.co.uk. Select
‘product support’, ‘DVD region code information’
Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications
37
new logik style english manual 3Page 1 4. 7. 2008 10:10:45
Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting
DVD Menu Operation (DVD Models Only)
VIDEO SETUP
Brightness
Increase or decrease the brightness of the picture
1) Press [SETUP] to enter menu
2) Press [>] to select Video Setup
3) Press [\/] to select Brightness
4) Press [>] to enter Brightness
5) Press [<] or [>] to select required level
6) Press [OK] to confirm
7) Press [SETUP] to exit
Contrast
Increase or decrease the contrast of the picture
VIDEO SETUP
BRIGHTNESS
CONTRAST
HUE
SATURATION
SHARPNESS
Specifications
38
1) Press [SETUP] to enter menu
2) Press [>] to select Video Setup
3) Press [\/] to select Contrast
4) Press [>] to enter Contrast
5) Press [<] or [>] to select required level
6) Press [OK] to confirm
VIDEO SETUP
BRIGHTNESS
CONTRAST
HUE
SATURATION
SHARPNESS
7) Press [SETUP] to exit
new logik style english manual 3Page 1 4. 7. 2008 10:12:21
DVD Menu Operation (DVD Models Only)
Hue
1) Press [SETUP] to enter menu
2) Press [>] to select Video Setup
3) Press [\/] to select Hue
4) Press [>] to enter Hue
5) Press [<] or [>] to select required level
6) Press [OK] to confirm
VIDEO SETUP
BRIGHTNESS
CONTRAST
HUE
SATURATION
SHARPNESS
7) Press [SETUP] to exit
Saturation
Alter the Red, Green & Blue which make up the picture
1) Press [SETUP] to enter menu
2) Press [>] to select Video Setup
3) Press [\/] to select Saturation
4) Press [>] to enter Saturation
5) Press [<] or [>] to select required level
6) Press [OK] to confirm
VIDEO SETUP
BRIGHTNESS
CONTRAST
HUE
SATURATION
SHARPNESS
Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications
7) Press [SETUP] to exit
Sharpness
Increase or decrease the sharpness of the picture. If you have a poor signal strength you should reduce
the sharpness to get a better picture.
1) Press [SETUP] to enter menu
2) Press [>] to select Video Setup
3) Press [\/] to select Sharpness
4) Press [>] to enter Sharpness
5) Press [<] or [>] to select required level
6) Press [OK] to confirm
VIDEO SETUP
BRIGHTNESS
CONTRAST
HUE
SATURATION
SHARPNESS
7) Press [SETUP] to exit
39
new logik style english manual 3Page 1 4. 7. 2008 10:15:09
Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting
DVD Menu Operation (DVD Models Only)
SPEAKER SETUP
Downmix
Choose between Left/Right, Stereo and USS
1) Press [SETUP] to enter menu
2) Press [>] to select Speaker Setup
3) Press [\/] to select Downmix
4) Press [>] to enter Downmix
5) Press [\/] or [/\] to select
6) Press [OK] to confirm
7) Press [SETUP] to exit
Front Speakers
Select whether you wish to use the either small or large front speakers, thus altering the sound
1) Press [SETUP] to enter menu
2) Press [>] to select Speaker Setup
3) Press [\/] to select Front
4) Press [>] to enter Front
5) Press [\/] or [/\] to select
6) Press [OK] to confirm
SPEAKER SETUP
DOWNMIX
FRO NT SPEAKERS
7) Press [SETUP] to exit
Specifications
40
SPEAKER SETUP
DOWNMIX
FRO NT SPEAKERS
new logik style english manual 4Page 1 4. 7. 2008 10:15:54
DVD Menu Operation (DVD Models Only)
DIGITAL SETUP
Dynamic Range
This is the difference between the quietest and loudest sounds. This setting works only
with DVD discs recorded in Dolby digital.
FULL: Set this to listen with the range recorded on the disc.
4/8: Set this to listen with a range equivalent to a normal television.
2/8: Set this to listen with a smaller difference
1) Press [SETUP] to enter menu
2) Press [>] to select Digital Setup
3) Press [\/] to select Dynamic Range
4) Press [>] to enter Dynamic Range
5) Press [\/] or [/\] to select
6) Press [OK] to confirm
DIGITALSETUP
DYNAMIC RANGE
DUAL MONO
7) Press [SETUP] to exit
Adjusting the Sound
Lets you change the sound between Stereo, Mono Left, Mono Right and Mixed Mono.
1) Press [SETUP] to enter menu
2) Press [>] to select Digital Setup
3) Press [\/] to select Dual Mono
4) Press [>] to enter Dual Mono
5) Press [\/] or [/\] to select
6) Press [OK] to confirm
Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications
7) Press [SETUP] to exit
DIGITALSETUP
DYNAMIC RANGE
DUAL MONO
41
new logik style english manual 4Page 1 4. 7. 2008 10:17:29
Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting
Wall Mounting
IMPORTANT— BEFORE DRILLING ANY HOLES IN THE WALL ENSURE
YOU ARE NOT DRILLING WHERE THERE COULD BE ANY ELECTRIC
WIRES, WATER OR GAS PIPES
15” MODELS REQUIRES A VESA 75 WALL MOUNT. 19” & 22” VESA 100 WALL MOUNT.
To remove the stand
1) Remove the five screws highlighted below
75
100
Specifications
42
2) The stand will now come off
Wall Mounting the TV.
1) Remove the four screws highlighted below.
2) The wall mount can now be easily attached to the mounting holes on the rear of the TV.
These holes are indicated in the picture below
Important – Ensure the length of screws included with your wall
mount that secure the Wall Mount to the TV do not exceed 10 mm.
Using longer screws could cause irreparable damage to the TV
new logik style english manual 4Page 1 4. 7. 2008 13:46:11
Using with Sky Digital
You may wish to use your TV with Sky Digital.
There are a number of connection options, the best being connecting via SCART cable.
Connecting via SCART
1) Connect the SCART cable from the Sky Digital Box to SCART of the TV
2) Press [SOURCE]
3) Press [\/] or [/\] to select SCART
4) Press [OK]
The channel your Sky Digital box is displaying will now be shown on the TV.
You may wish to share your Sky Digital signal around the home by using an RF connection.
If this TV is to be connected in this way, please follow the below.
Connecting via RF
Ensure the Sky signal is switched on, before you start the below.
1) Connect the RF cable from the RF output socket of the sky/cable box to the ‘RF IN’ of the TV.
2) Press [MENU] to enter menu
3) Press [\/] to select TV Menu
4) Press [>] to enter Menu
Video
Audio
TV
Setup
Parental
TV
Country
Audio Language
Channels
Auto Scan
Update Scan
CI
OK
Germany
English
MENU
EXIT
Exit
Select
OK
Back
5) Press [\/] to highlight Channel
6) Press [>] to enter Channel menu
7) Press [>] to highlight Analogue Fine Tuning
8) Select the channel you wish to use using [\/]
9) Press [OK]
10) Press [>] or [<] to adjust the frequency. When you stop the channel will be saved.
Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications
Manually tune until you locate the Sky channel. If it stops press [>] again and the search
will continue. (Often, the frequency required is 847.25 mhz, depending on which model
of Sky Set top box)
Once tuned in it will go back to TV
43
new logik style english manual 4Page 1 4. 7. 2008 11:07:17
Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting
USING WITH SKY DIGITAL REMOTE CONTROLS (BSKYB) OR UNIVERSAL REMOTE
CONTROL
You may wish to use your Sky Digital or a universal remote control to operate some of the functions
of this TV. For this you require a ‘code’ that needs to be programmed into your Sky Digital
or universal remote control.
For codes for universal remote controls, please visit our website where you will find the very latest
information and codes.
For codes for Sky/Sky+Sky HD, please note that at the point of manufacture, BSkyB have not
launched the code required for this model of TV. They are due to launch a new remote control which
should include the necessary code to operate the functions of the TV during 2009 (called revision 9).
The launch date was not known at the time of printing this manual.
Please check our website for updates, alternatively, see below some other options of remote
controls that are available.
Using a Sky or Universal Remote Control
The One for All remote controls shown above will operate all of the functions of the Sky box in
the same way the original remote control will, in addition, they will also operate the functions of
this model of TV. The One for All versions are available to purchase from the helpline/website.
The original Sky remote controls are shown for comparison purposes
If you require any further information, you can contact us:
Specifications
www.skymediauk.co.uk
email - service@skymediauk.co.uk
Tel - 0870 242 6292
44
REPLACE BOTH YOUR SKY & TV REMOTE WITH
A ONE FOR ALL SKY & TV 2 IN 1 REMOTE CONTROL
new logik style english manual 4Page 1 22. 7. 2008 13:19:14
Frequently Asked Questions
Question:
I have tuned in Digital TV but
I am not receiving any or all of the
channels and/or the channels I receive
are breaking up
The sound quality is high pitched?
I have inserted a disc but it is not playing
Solution:
1) Check you are in an area that can
receive Freeview. Visit
www.freeview.co.uk or call
08701 111 270.
2) Check you have a suitable aerial.
Many indoor aerials will say they are
digital ready, but you will not get
a good signal
3) Consider purchasing a signal booster,
it is much cheaper than a digital aerial
and cures 70% of poor signal problems.
4) Failing the above for now use the
analogue TV, until the signal becomes
stronger in your area.
For best performance we recommend using an
outdoor hi-gain digital aerial. If you are receiving
some digital stations first, try to connect a signal
booster in between the TV and TV aerial socket
Go into the sound settings menu as
shown earlier in the manual and increase
the level of the bass and decrease
the treble
1) Ensure you have put the disc as shown
on the diagram next to the DVD loading slot.
2) Ensure the disc is clean and is not
scratched
3) Some copied discs will not play.
Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications
The subtitles are switched on
when I am watching a DVD
I have connected the TV to my VCR via
SCART but it is not recording
Each time you press [Subtitles] button
you switch between the different languages.
Off is one of the options. If you still have
subtitle on, access through the DVD disc
menu and switch off
In addition to connecting via SCART, you
should connect the aerial cable from the
wall socket to VCR and another aerial
cable from the VCR to the TV
45
new logik style english manual 4Page 1 8. 8. 2008 10:01:54
Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting
Technical Specification
Panel
Input Signal
Speaker Output
DVD player
Power
Dimensions
Weight
Panel
Input Signal
Speaker Output
DVD player
Power
Dimensions
Weight
L19LI628E (19/13A)L15LID628E (156/13A)
Size (Inches) 15.6" 19"
Resolution
Contrast Ratio
Brightness cd/m
PC RGB Yes Yes
RF
Video
HDMI
Watts (RMS) 2 x 1.5 2 x 1.5
Voltage
Inc Stand TBC 472W x 398H x 180D
Exc Stand TBC 472W x 353H x 75D
Net (Kgs) 5,5 6,1
Gross (Kgs) 6,5 7,5
Size (Inches) 19" 22" 22"
Resolution
Contrast Ratio
Brightness cd/m
PC RGB Yes Yes Yes
RF
Video
Audio
HDMI
Watts (RMS) 2 x 1.5 2 x 1.5 2 x 1.5
Voltage
Inc Stand 472W x 398H x 180D 537W x 439H x 180D 537W x 439H x 180D
Exc Stand 472W x 353H x 75D 537W x 394H x 80D 537W x 394H x 80D
Net (Kgs) 6,5 6,9 7,3
Gross (Kgs) 7,9 8,3 8,8
2
2
1366x768 1440x900
500:1 800:1
250 300
75 ohm Antenna / PAL-SECAM
1 x SCART, 1 x Component (YPbPr - 1080i)
1 x 3.5mm jack for PC, 1 x pair RCA for YPbPrAudio
1 (up to 1080i)
Yes -
100-240v 47-63Hz 1.5A
L22LI628E (22/13A)
1440x900 1680x1050 1680x1050
800:1 700:1 700:1
300 300 300
75 ohm Antenna / PAL-SECAM
1 x SCART, 1 x Component (YPbPr - 1080i)
1 x 3.5mm jack for PC, 1 x pair RCA for YPbPr
1 (up to 1080i)
seY-seY
100-240v 47-63Hz 1.5A
)A31/22(E826DIL22L)A31/91(8E26DIL91L
)A31/22(WE826DIL22L)A31/91(WE826DIL91L
Specifications
46
new logik style english manual 4Page 1 24/07/2008 10:35:35
Index
Analogue TV teletext 27
Audio Language 16
Audio Language - DVD 35
Balance 14
Bass 14
Blue Mute 23
Brightness - DVD mode 38
Brightness - TV Mode 10
Channels 17
Colour 11
Colour Balance 13
Common Inferface Slot 9
Connecting to a PC 28 - 29
Contrast - DVD mode 38
Contrast - TV Mode 11
Country 16
Decoding Page Language 22
Digital Teletext Language 22
Digital TV teletext 26
Disc Menu Language 36
DVD basic play 32
DVD Menu Operation
(DVD Models Only) 37
DVD Ratings 34
Dynamic Noise Reduction 12
Dynamic Range 41
Electronic Program Guide 25
Equalizer 15
Frequently Asked Questions 45
Hue - DVD mode 39
Index 47
Inputs and Connections 9
On Screen Display Language - TV 19
On Screen Display Language - DVD 35
Parental Menu 24
Password - DVD mode 34
Password Settings 24
PC Menu Settings 30 - 31
Picture Format - DVD mode 33
Picture Mode 10
Remote control buttons
and their functions 6 - 7
Removing the stand 42
Reset 23
Reset to Default - DVD mode 33
Saturation - DVD mode 39
Screen Mode 19
Sharpness - DVD mode 39
Sharpness - TV Mode 12
Source 8
Subtitle Language 36
Subtitles 21
Surround Sound 15
Technical Specifications 46
Time Setup 20
Treble 15
Tuning in TV 4 - 5
TV buttons and their functions 8
TV System 32
Using with Sky Digital 43 - 44
Wall mounting the TV 42
What is included in the box 3
Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications
47
blank.pdf 3. 6. 2008 13:38:07
blank.pdf 3. 6. 2008 13:38:07
blank.pdf 3. 6. 2008 13:38:07
blank.pdf 3. 6. 2008 13:38:07
logik last page uk ver.pdf 13. 5. 2008 14:47:35
This symbol on the product or in the instructions means that your electrical and electronic equipment
should be disposed at the end of its life separately from your household waste. There are separate
collection systems for recycling in the EU.
For more information, please contact the local authority or your retailer where you purchased the product.
Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories.
With over 1 million spares and accessories available we can deliver direct to your door the
very next day.
Visit www.partmaster.co.uk
or call
0870 6001 338
(UK customers only)
Calls charged at National Rate.
If you require a replacement for any of the items listed below, please quote their corresponding part
numbers.
rebmuNtraPtraPtnemecalpeR
1000/NAM/UMEkooBediuGresU
2000/CMR/UME)DVDhtiw(lortnocetomeR
Remote control (without DVD) EMU/RMC/0003
FR
6200/BAC/UMRdael
1000/TAB/UMRseirettabAAA
1000/GSQ/UMEediuGtratSkciuQ
Loading...
