LogicMark CS40917 User Manual

Manufacturer’s Disclaimers and Limited Warranty
COMMUNICATION AND RESPONSE LIMITATIONS: Purchaser acknowledges that signals which are transmitted over telephone lines, or other modes of communication pass through communication networks wholly beyond the control of the Manufacturer and are not maintained by the Manufacturer, and, therefore, the Manufacturer shall not be responsible for any equipment or communication failure which prevents transmission signals from reaching your contact list including emergency 911 operators or damages arising therefrom.
the a central station of your choice and the Manufacturer is not and shall not be responsible for ambulance, police or other emergency response time or that any response will be provided by the central monitoring station.
TESTING AND SERVICE OF THIS EQUIPMENT: The equipment, once installed, are in the exclusive possession and control of the Purchaser, and it is Purchaser’s sole responsibility to test the operation of equipment and request warranty service if the equipment is under warranty.
PURCHASER’S EXCLUSIVE REMEDY: Purchaser’s exclusive remedy for the Manufacturer’s default hereunder is to require the Manufacturer to repair or replace, at the Manufacturer’s option, any equipment or part of the personal emergency alert system which is non-operational during the Manufacturer’s warranty period.
LIMITATION OF LIABILITY: This equipment is not designed or guaranteed to prevent any loss or injury. This Limited Warranty and Disclaimer of Liability constitutes the terms of sale and use of the equipment, and if there should arise any liability on the part of the Manufacturer as a result of any cause whatsoever, regardless of whether or not such loss, damage, or personal injury was caused by or contributed to by the Manufacturer’s negligence to any degree or failure to perform any obligation or strict products liability, such liability will be limited to an amount paid by the Purchaser to the Manufacturer for the product, or to the sum of $350.00, whichever is greater.

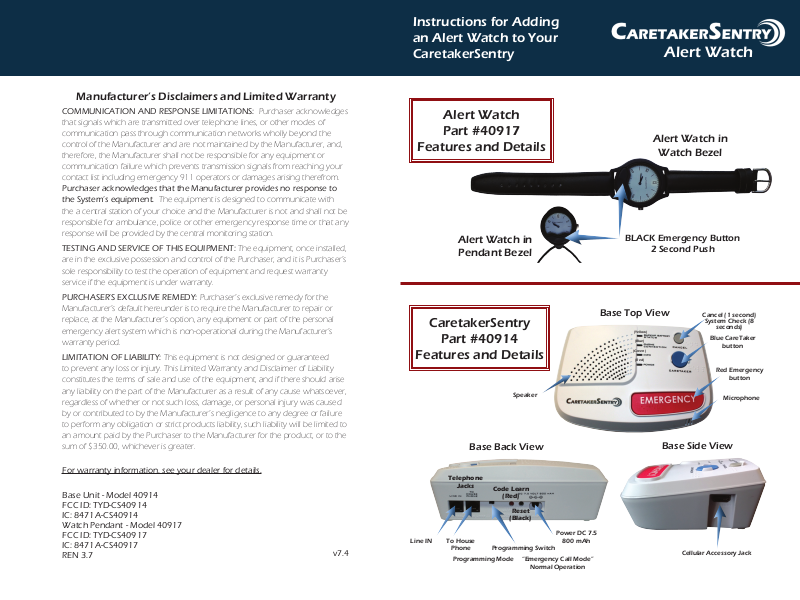

Instructions for Adding an Alert Watch to Your CaretakerSentry
Alert Watch
Part #40917
Features and Details
Alert Watch in Pendant Bezel
CaretakerSentry
Part #40914
Features and Details
Speaker
Base Back View
Alert Watch
Alert Watch in
Watch Bezel
BLACK Emergency Button
2 Second Push
Base Top View
(Yellow)
(Blue)
(Green)
(Red)
Base Side View
Cancel (1 second)
System Check (8
seconds)
Blue CareTaker
button
Red Emergency
button
Microphone
For warranty information, see your dealer for details.
Base Unit - Model 40914 FCC ID: TYD-CS40914 IC: 8471A-CS40914 Watch Pendant - Model 40917 FCC ID: TYD-CS40917 IC: 8471A-CS40917 REN 3.7
v7.4
Telephone
Jacks
Line IN To House
Phone
Programming Mode “Emergency Call Mode”
Code Learn
(Red)
Reset
(Black)
Programming Switch
Normal Operation
Power DC 7.5
800 mAh
Cellular Accessory Jack
Step-by-Step Installation Guide
1
3
Confirm Accessories in Kit
Alert Watch in Bezel with
Standard 18mm watchband
Lanyard and Pendant Bezel
Breakaway
Feature
Test the Unit
Performing a System Test
a. PUSH and HOLD the CANCEL button for 8-10 seconds to
enter “System Check”
b. Push the BLACK EMERGENCY button for 2 seconds on
Pendant. (The RED LED on the pendant under the “12”
should turn ON for 1 second.)
c. Listen for the voice prompt from base unit:
i. “All Systems are OK – Battery is OK” is heard if the system
is correctly installed.
ii. If any other voice prompt is heard, the unit will describe
the problem.
d. Push and release the CANCEL button for 1 second to exit
Test Mode. (The unit will automatically exit in 3 minutes.)
e. We recommend that you perform this System Test
weekly.
Place call to Emergency Operator:
a. Push the BLACK EMERGENCY button for 2 seconds on the Watch
Pendant. (The RED LED under the “12” should turn ON for 1 second.)
b. You should hear a dial tone, dialing, and then communication tones
between the CaretakerSentry and central station. Several seconds later
the operator should answer the call. c. Talk normally to the base unit – just like into a speaker phone. d. At the end of the conversation, the CaretakerSentry should automatically
hang-up – if not, push the CANCEL button for 1 second.
2
On the Base Unit
a. PUSH and RELEASE the RED Code Learn button on back of base unit. You will hear a voice prompt, “Pendant Learning.”
Teach the Pendant to the System
Red Code Learn button
On the Pendant
a. PUSH the BLACK Emergency button until you hear, “Pendant Learning” from the base. Then, release the button on the pendant.
i. If you hear, “Base and Pendant out of Range,” STOP - wait
30 seconds and begin step 2 again. b. When pendant learning has been successful, you will hear, “Pendant Code Learned,” and then it will announce the call setting that the base is set to Programming Mode or Emergency Call Mode.
BLACK Emergency button
*NOTES:
Erasing all previously learned pendants – hold down the (Red) Code Learn button for 8
seconds. You will hear the confirmation of “Erasing All Pendants, All Pendants Erased” from the base unit. Now you can re-teach pendants starting at Step #2.
Lost Pendants – If a pendant has been lost, follow the note for “Erasing all previously learned pendants” and then re-teach all of the pendants starting at Step #2.
Teaching additional pendants - does not erase previously learned pendants.
Exiting Learning Mode - Base will automatically exit the pendant learning mode after
successfully learning the pendant or after the base announces “Pendant Learning Failed”.
Up to 9 Watch pendants can be taught to each base.
4
The Alert Watch uses batteries CR2032 for the transmitter and SR626SW for the timepiece.
The Alert Watch can worn both as a wristwatch and as a pendant. Simply grip the edge of the bezel and watchband and GENTLY press down on the timepiece. Then simply align the crown with the slot on the pendant bezel and snap it into place.
As with any timepiece, we recommend that both the batteries and bezels be replaced by a watch repair professional.
Press
Grip Grip
Press
NOTE: This watch uses a standard size 18mm band for easy replacement and personalization
Batteries and Bezels
Align crown and snap into place
Step-by-Step Installation Guide
FCC Part 15.19 Warning Statement
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
FCC Part 15.21 Warning Statement
NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
FCC Part 15.105 Warning Statement
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.
RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
