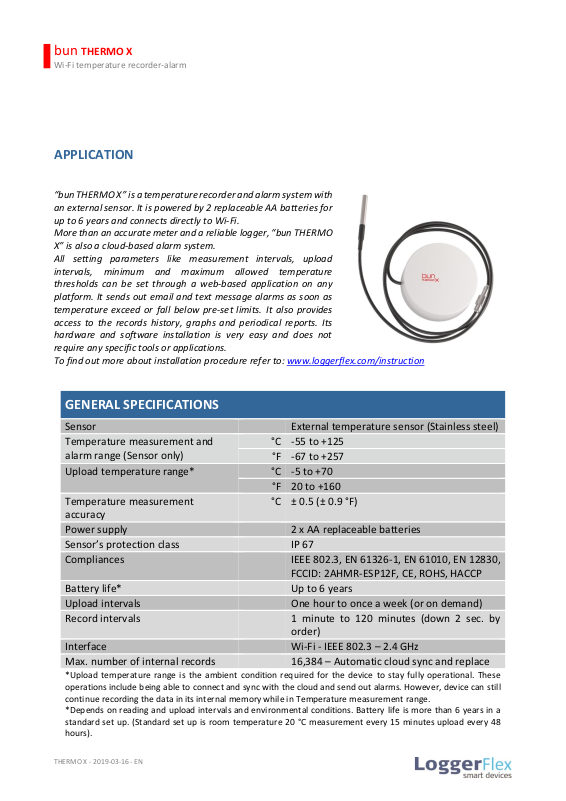

Page 1
THERMO X - 2019-03-16 - EN
bun THERMO X
Wi-Fi temperature recorder-alarm
APPLICATION
“bun THERMO X” is a temperature recorder and alarm system with
an external sensor. It is powered by 2 replaceable AA batteries for
up to 6 years and connects directly to Wi-Fi.
More than an accurate meter and a reliable logger, “bun THERMO
X” is also a cloud-based alarm system.
All setting parameters like measurement intervals, upload
intervals, minimum and maximum allowed temperature
thresholds can be set through a web-based application on any
platform. It sends out email and text message alarms as soon as
temperature exceed or fall below pre-set limits. It also provides
access to the records history, graphs and periodical reports. Its
hardware and software installation is very easy and does not
require any specific tools or applications.
To find out more about installation procedure refer to: www.loggerflex.com/instruction
MBIENT CONDITIONS
GENERAL SPECIFICATIONS
Sensor
External temperature sensor (Stainless steel)
Temperature measurement and
alarm range (Sensor only)
°C
-55 to +125
°F
-67 to +257
Upload temperature range*
°C
-5 to +70
°F
20 to +160
Temperature measurement
accuracy
°C
± 0.5 (± 0.9 °F)
Power supply
2 x AA replaceable batteries
Sensor’s protection class
IP 67
Compliances
IEEE 802.3, EN 61326-1, EN 61010, EN 12830,
FCCID: 2AHMR-ESP12F, CE, ROHS, HACCP
Battery life*
Up to 6 years
Upload intervals
One hour to once a week (or on demand)
Record intervals
1 minute to 120 minutes (down 2 sec. by
order)
Interface
Wi-Fi - IEEE 802.3 – 2.4 GHz
Max. number of internal records
16,384 – Automatic cloud sync and replace
*Upload temperature range is the ambient condition required for the device to stay fully operational. These
operations include being able to connect and sync with the cloud and send out alarms. However, device can still
continue recording the data in its internal memory while in Temperature measurement range.
*Depends on reading and upload intervals and environmental conditions. Battery life is more than 6 years in a
standard set up. (Standard set up is room temperature 20 °C measurement every 15 minutes upload every 48
hours).
Page 2
THERMO X - 2019-03-16 - EN
Made in Canada
AMBIENT CONDITIONS
Storage temperature
°C
-25 to +75
DIMENSIONS
Diameter (max.)
L
mm
80.0
Height (max.)
H
mm
34.5
KEY FEATURES
Loggerflex smart devices Ltd.
2A, 3304, Cambie St.
Vancouver, BC
V5Z 2W5
Canada
[email protected]
www.loggerflex.com
Tel.: (604) 210 22 42
Toll free: +1 888 365 88 80
