HYGRO X - 2019-05-27 - EN

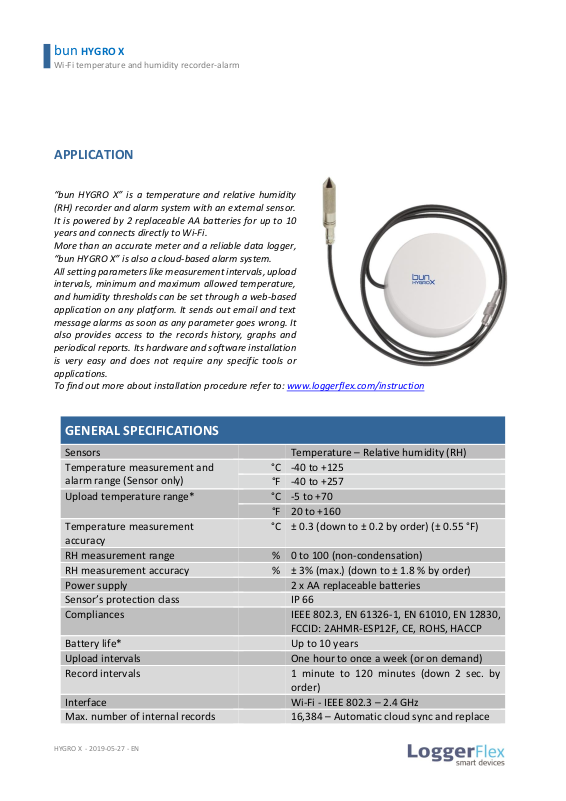

bun HYGRO X
Wi-Fi temperature and humidity recorder-alarm
APPLICATION
“bun HYGRO X” is a temperature and relative humidity
(RH) recorder and alarm system with an external sensor.
It is powered by 2 replaceable AA batteries for up to 10
years and connects directly to Wi-Fi.
More than an accurate meter and a reliable data logger,
“bun HYGRO X” is also a cloud-based alarm system.
All setting parameters like measurement intervals, upload
intervals, minimum and maximum allowed temperature,
and humidity thresholds can be set through a web-based
application on any platform. It sends out email and text
message alarms as soon as any parameter goes wrong. It
also provides access to the records history, graphs and
periodical reports. Its hardware and software installation
is very easy and does not require any specific tools or
applications.
To find out more about installation procedure refer to: www.loggerflex.com/instruction
MBIENT CONDITIONS
GENERAL SPECIFICATIONS
Sensors
Temperature – Relative humidity (RH)
Temperature measurement and
alarm range (Sensor only)
°C
-40 to +125
°F
-40 to +257
Upload temperature range*
°C
-5 to +70
°F
20 to +160
Temperature measurement
accuracy
°C
± 0.3 (down to ± 0.2 by order) (± 0.55 °F)
RH measurement range
%
0 to 100 (non-condensation)
RH measurement accuracy
%
± 3% (max.) (down to ± 1.8 % by order)
Power supply
2 x AA replaceable batteries
Sensor’s protection class
IP 66
Compliances
IEEE 802.3, EN 61326-1, EN 61010, EN 12830,
FCCID: 2AHMR-ESP12F, CE, ROHS, HACCP
Battery life*
Up to 10 years
Upload intervals
One hour to once a week (or on demand)
Record intervals
1 minute to 120 minutes (down 2 sec. by
order)
Interface
Wi-Fi - IEEE 802.3 – 2.4 GHz
Max. number of internal records
16,384 – Automatic cloud sync and replace
Page 2
HYGRO X - 2019-05-27 - EN
Made in Canada
*Upload temperature range is the ambient condition required for the device to stay fully operational. These
operations include being able to connect and sync with the cloud and send out alarms. However, device can still
continue recording the data in its internal memory while in Temperature measurement range.
*Depends on reading and upload intervals and environmental conditions. Battery life is more than 10 years in a
standard set up. (Standard set up is room temperature 20 °C measurement every 15 minutes upload every 48
hours).
AMBIENT CONDITIONS
Storage temperature
°C
-25 to +75
DIMENSIONS
Diameter (max.)
L
mm
80.0
Height (max.)
H
mm
34.5
Maximum and typical inaccuracy
-40 -20 0 20 40 60 80 100 120
-40 -4 32 68 104 140 176 212 248
0010 20 30 40 50 60 70 80 90 100
± 0.0
± 0.5
± 0.9
± 1.0
± 1.8
± 1.5
± 2.7
± 2.0
± 3.6
± 2
± 4
± 6
± 8
± 10
Maximum
Typical
Maximum
Typical
Relative humidity (%RH)
Temperature (°C)
Temperature (°F)
Loggerflex smart devices Ltd.
2A, 3304, Cambie St.
Vancouver, BC
V5Z 2W5
Canada
[email protected]
www.loggerflex.com
Tel.: (604) 210 22 42
Toll free: +1 888 365 88 80
