TM
TeleDoorBell
Don't open your door to the unknown
“X”&“S” Series
A202CR & A204CR
Audio / Video
(Day/Night Camera)
Installation & Programming
6A-7500 Martin Grove Rd. Woodbridge, ON. Canada L4L 8S9 Toll Free: 1.888.790.5900 E-mail: info@logenex.com
Audio
TeleDoorBell
Audio (Stainless Steel)
Table of Contents
Important Notes and Safety Instructions ........................................... Pg 1
“X” Series Specifications .............. ............................................................. Pg 2
“S” Series Specifications............................................................................. Pg 3
Features and Parts Listing.......................................................................... Pg 4
Controller Anatomy .................................................................................. Pg 5
“X” Series Door Station Wiring.................................................................... Pg 6
“S” Series Door Station Wiring.................................................................... Pg 7
Controller Wiring Diagram .................................................................... Pg 8
TBG-1 Installation Diagram........................................................................ Pg 9
DSL Installation Diagram ..........................................................................Pg 10
KSU/PBX Installation Diagram.... ............................................................ Pg 11
M203HIFI Installation Diagram... ............................................................. Pg 12
“X” Series Programming Guide ....................................................... Pg 13-16
“HI-FI” Series User/Programming Guide ..................................................Pg 17
TroubleShooting Guide....................................................................... Pg 18-19
Warranty Information.......................................................................... Pg 20-21
COMPATIBILITY ISSUES
1) Certain cordless phones may not ring or ring properly when Door Station Speaker Button is pressed. Phone will still be operational
and all functions are still active and accessible.
2) An average of (6) six phones limit will apply for having connected phones ring. Exceeding this limit may result in some phone(s) not
ringing. (Results and phone limitations may vary depending on types of phones and the loads (LN#) they present to the overall
system).
NOTE:
The Load Number (LN) assigned to each terminal device denotes the percentage of the total load to be
connected to a telephone loop which is used by the device to prevent overloading.
3) Remote Call Answer may not be compatible with various types of add-on phone features such as Ident-A-Call, Call Display Long
Distance ringing or any other feature(s) which will change or produce a different ringing pattern of an incoming call.
4) System may not be compatible with various voice-mails including cell phones when enabling the Door Station Call Forwarding
feature.p (Results and features may vary with your local service provider / supplier).
5) If a Logenex DSL 3-Port High-Speed Filter (LX-DSL3F) is installed and the user places a phone caller ON-HOLD using the
command to communicate to a Visitor at the Door Station, a low level cross-talk may be heard by the user when communicating to
the Visitor at Door Station.
6) Some Phone Service Providers, phone features and/or command functions may not be compatible with the product(s)
TeleDoorBell .
*4
Safety instructions and Guildlines
A factory default on the unit must be performed prior to initial
use. SEE PAGE 16
NOTICE
PLEASE VERIFY THAT YOUR TELEPHONE SYSTEM COMPLIES WITH A TYPICAL 95
VOLTS RMS @ 20 Hz RING. IF INSTALLED WITHOUT VERIFICATION
MAY CAUSE DAMAGE TO T. IF YOUR TELEPHONE SYSTEM
TELEPHONE EQUIPMEN
DOES NOT MEET THE ABOVE REQUIREMENTS PLEASE CONTACT LOGENEX
INNOVATIONS INC. FOR FURTHER INFORMATION.
SAFETY INSTRUCTIONS
When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of
fire, electric shock and injury to persons, including the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use
a damp cloth for cleaning.
4. Do not use or expose this product to direct water contact: ie: near a bathtub, wash bowl, kitchen sink, laundry
tub, in a wet basement, or near a swimming pool.
5. Dropping this product may result in serious damage to the product.
6. This product should never be operated near or over a radiator or heat register. This product should not be
placed in a built-in installation unless proper ventilation is provided.
7. This product should be operated only from the type of power source indicated on the marking label. If you
are not sure of power supply to your home, consult your dealer or local Power Company.
8. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by
persons walking on it.
9. Do not overload wall outlets and extension cords as this can result in risk of fire or electric shock.
10. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the
product.
11. To reduce the risk of electric shock, do not dissemble this product, but take it to qualified service technician
when some service or repair is required. Opening or removing covers may expose you to dangerous
voltages or other risks. Incorrect re-assembly can cause electric shock when the appliance is subsequently
used.
12. Unplug this product from the wall outlet and refer servicing to a qualified service personnel under the
following conditions:
* When the power supply cord or plug is damaged or frayed.
* If liquid has been spilled into the product.
* If the control unit has been exposed to rain or water.
* If the product does not operate normally by following the instructions. Adjust only those controls that
are covered by the operating instructions because improper adjustment of other controls may result in
damage and will require extensive work by a qualified technician to restore to normal operation.
* If the product has been dropped or the housing has been damaged.
* If the product exhibits a distinct change in performance.
, THIS PRODUCT
13. Avoid using a telephone (other than cordless type) during an electrical storm. There may be a remote risk of
electric shock from lightning.
14. Do not use the telephone to report a gas leak near the source of the leak.
15. This device may cause harmful interference.
16. This device may be susceptible to any interference including interference that may cause undesired
operation.
Complies with Part 68, FCC Rules FCC REG NO. 5ERCAN-31264-OT-N REN: 0.5B
Page 1
Page 2
(n/a in stainless steel)
VC = Day/Night camera with ir
(Satin Nickel)
X = Standard Unit
(n/a in stainless steel)
VC = Day/Night camera with ir
(Satin Nickel)
X = Standard Unit
-
CR
20
A
Model Number Identification (KIT)
4 = 4 Door
2 = 2 Door
-
AD 102
Model Number Identification
(INDIVIDUAL DOORSTATION)
VC = Day/Night camera with ir
VC = Day/Night camera with ir
F = Flush Mount
Stainless Steel)
S
-
AD 102
(INDIVIDUAL DOORSTATION)
F = Flush Mount
Stainless Steel)
S = (Surface Mount
S = (Surface Mount
S
S
-
CR
20
A
Model Number Identification (KIT)
Model Number Identification
4 = 4 Door
2 = 2 Door
Page 3
Features and Parts Listings
D.O.C. NOTICE:
The Canadian Department of Communications label identifies certified equipment. The certification means that the equipment
meets certain telecommunications network protective, operational and safety requirements. The Department does not guarantee
the equipment will operate to the user’s satisfaction.
Before installing this equipment, user should ensure that it is permissible to connect to the facilities of the local
telecommunications company. The equipment must also be installed using an acceptable method of connection. User should
ensure that the telephone lines and metallic water pipe system (if present) are electrically grounded.
Features and Instructions Overview
The TeleDoorBell is a telephone based doorbell system that provides the system user with the capability of communicating with a
door speaker from any installed telephone set, including cordless. Unmatched in convenience, this unique new product provides
the following features:
* System will work as a replacement or in parallel with any standard doorbell. (see page 7)
* Provides high-quality audio conversation capability with any connected Door Station Speaker.
* Unique telephone ringing when Door Station Speaker button pressed. (see page 8)
* Allows user to activate a Door Station Speaker by entering a unique touch-tone code from any telephone. (see page 13)
* Will provide call restriction at the discretion of the owner. (see page 8)
* Relays available for doorbell chime activation or any other devices (24Volts 1Amp max rating).
* Door Station Speaker has LED illuminated Button.
* The system gives a user two minutes to access the Door Station Speaker once the speaker button has been pressed.
* Door Station Speaker Call Waiting function which allows the user to switch between a Visitor and an existing Phone Caller.
The user can press on a touch-tone telephone to put the telephone call on hold and connect to the Door Station
Speaker. Pressing again will return the User back to existing Caller. Note: this can only be used once the Door Station
Speaker button is pressed. A second option for switching from Caller to Visitor is by hanging up on the existing telephone
call and then picking up the handset (within the allowed 2 minutes) at which point you will be automatically connected to the
Door Station Speaker.
(Beyond the two minute window you will have to manually activate the Door Station Speaker ( (Door Station Speaker
#1) ... (Door Station Speaker #4)
(Note: Speaker must be connected to a the port which you are trying to communicate with.)
* Relay closure activated by DTMF digit (Normally Open Dry Contact Operation):
seconds.
#51
* Will activate the relay which is connected to the door station which initiated communication.
*#4
Each RELAY can be triggered for either LATCHING MODE or TIMER MODE (01 - 98 seconds). Default setting is
Timer Relays
#11 #21 #31 #41
(Relay #1), (Relay #2), (Relay #3 when applicable), (Relay #4 when applicable),
Latching Relays
#19 #29 #39 #49
(Relay #1), (Relay #2), (Relay #3 when applicable), (Relay #4 when applicable),
To De-activate latched relays
#10 #20 #30 #40
(Relay #1), (Relay #2), (Relay #3 when applicable), (Relay #4 when applicable),
*4
*4
*#1
6
* Call Restriction blocking (up 10 programmable phone number restrictions) [30 digits maximum / phone number].
* "Door Station Caller ID Display" feature is available when ENABLED and to be used with Call Display Phones only. An
identification information is transmitted by the controller to the display phone when the Door Station Speaker Button is
pressed. Display will show (DOOR 1 ... DOOR 4) which ever speaker port was pressed
* 4-Digit passcode protection for programming system.
* Unit contains E Memory Technology for retaining stored memory data in the event of a temporary power failure.
Parts list
The TeleDoorBell “X Series” system is shipped from the factory with the following components:
* TeleDoorBell “X Series” control unit
* One (1) Door Station Speaker
* CSA/UL approved class 2 power supply, input 120VAC, 60Hz, output 16VAC 250 mA.
* One (1) RJ31X/CA 38A Jack.
* Two (2) modular RJ-11 Male open-ended patch cord. Used to splice and connect Door Station Speaker and Relay, and
built in door chime relay.
* RJ-45 8 pin male to male modular patch cord 36" long.
* Two (2) #8 screws 1" for mounting Door Station Speaker
* Two (2) plastic anchors for mounting Door Station Speaker
* One (1) #6 wood screw 2" for mounting Controller
* Dimensions: Controller (17cmX17cmX4cm) Door-speaker (17cmX11cmX3.3cm)
2
Page 4
Controller Anatomy
A202CR & A204CR
Fig 1

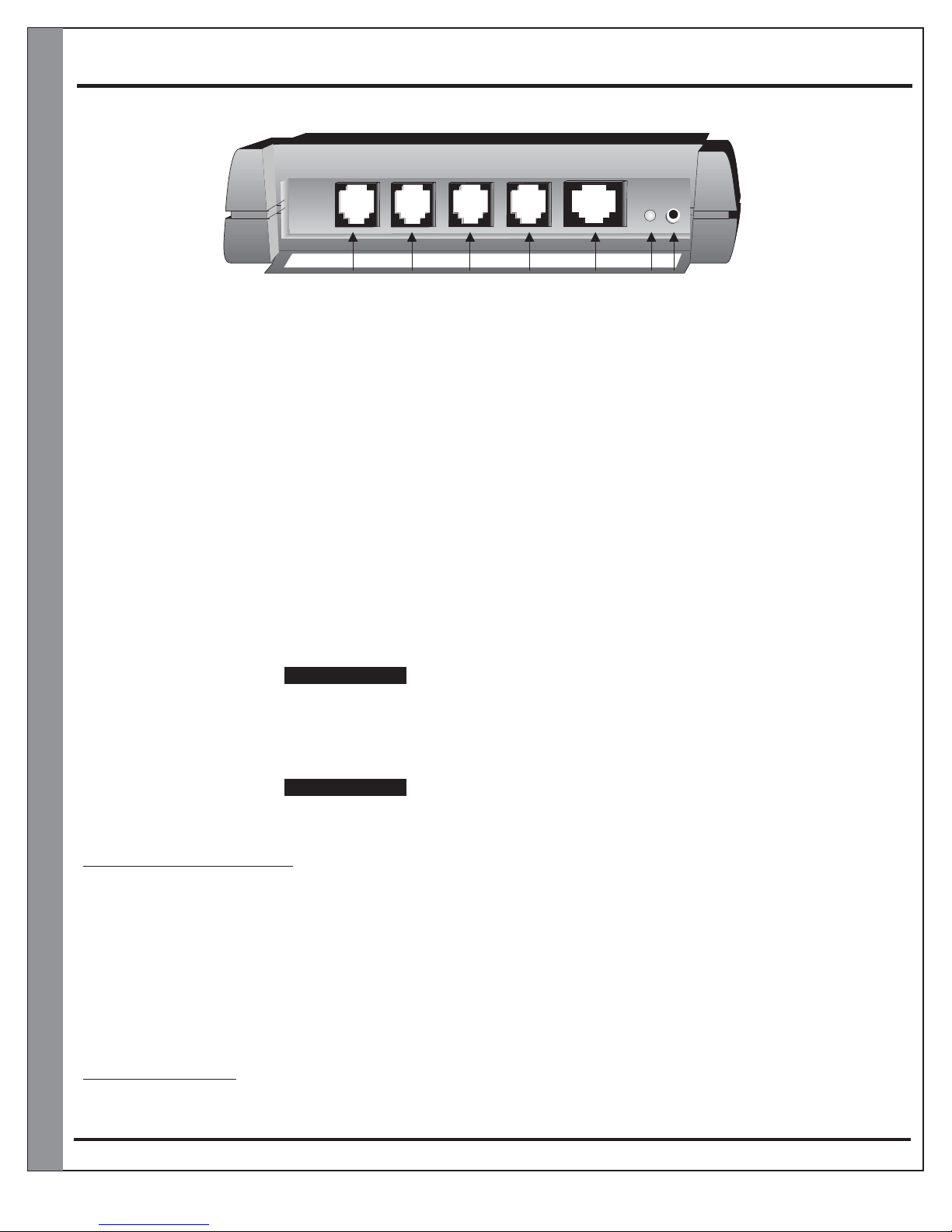

Spk/Rly#1Spk/Rly#2Spk/Rly#3Spk/Rly#4 Tele Line In & Out
[1] Power Supply Jack
This jack is the connecting point for AC power supply to the unit. The supply is typically 16 VAC at a minimum of 250
mA
.
[2] Power Status LED
When "FLASHING" this LED indicates the presence of power to the unit and that the controller is operating properly.
When LED is "OFF" it indicates the absence of power to the unit. When the LED is “ON” (not flashing) this indicates that
the unit is locked up and will need to be reset by unplugging the power for 60 seconds and then powering back up.
NOTE: When unit is first powered up the LED will remain solid for 5 seconds and will begin to flash slowly
when ready. When the TeleDoorBell is in use the LED will flash rapidly for the duration of connectivity.
[3] Telephone Line In & Out Jack
This jack provides connection to the incoming telephone line on the inner pair and connection to telephone(s) on the
outer pair.
[4] Speaker / Relay Port #1
This port jack enables a connection to a for communication while also providing (1) dry contact
relay for automated control capability.
(RELAY #1)
Door Station Speaker
Power Plug
2654 37
1
[5] Speaker / Relay Port #2
This port jack enables a connection to a for communication while also providing (1) dry
contact relay for automated control capability.
[6] Speaker / Relay Port #3
(RELAY #2)
Model A204 ONLY
This port jack enables a connection to a for communications while also providing (1) dry contact
relay for automated control capability.
(RELAY #3)
“Door Station Speaker”
Door Station Speaker
**This RELAY is PRESET [DISABLED] to use RELAY#3 for the DOORBELL function, you must [ENABLE] the
DOORBELL Function in the programming. This Relay can be changed back to the standard control capability.
Doorbell function is applicable for both A202 & A204 models
[7] Speaker / Relay Port #4
This port jack enables a connection to a for communications while also providing (1) relay dry
contact point for automated control capability.
(RELAY #4)
Model A204 ONLY
“Door Station Speaker”
(see page9)
Installation Instructions
To complete the installation the installer must supply/install the following:
* RJ31X CA38A . (This is recommended in the event that the controller needs to be disconnected. This will
provide a bypass capability whereby the telephone line continues to work if the unit needs to be removed
from the telephone line. Note: If installation is done at a location that has an existing alarm jack (RJ31X CA38A)
then ensure that the alarm is installed before the TeleDoorBell RJ31X CA38A jack. Otherwise, the alarm system
and/or (supplied)
TeleDoorBell
and/or
and/or
may not have disconnect priority.
Installation of the system requires that the installer install a 2-conductor wire 22 AWG (Max Length 1000’), from the
location of the door speaker unit to the location of the system control unit or a CAT-5 wire (Max Length 250’) if you are
installing a system with Video/Audio features.
the 2 conductor required for the video signal.
NOTE: To achieve 1000 ft range with video, you must use COAX Cable in-place of
It is recommended that the system control unit be installed near the point-of-
entry of the customer's main telephone line.
IMPORTANT NOTICE:
For added protection we strongly recommend you use surge protectors on both your power supply and on the C/O line (phone
line) to protect against lightning and other energy surges. This precaution may be extremely important in rural areas.
Page 5
“X” Audio & Video Installation
Installation

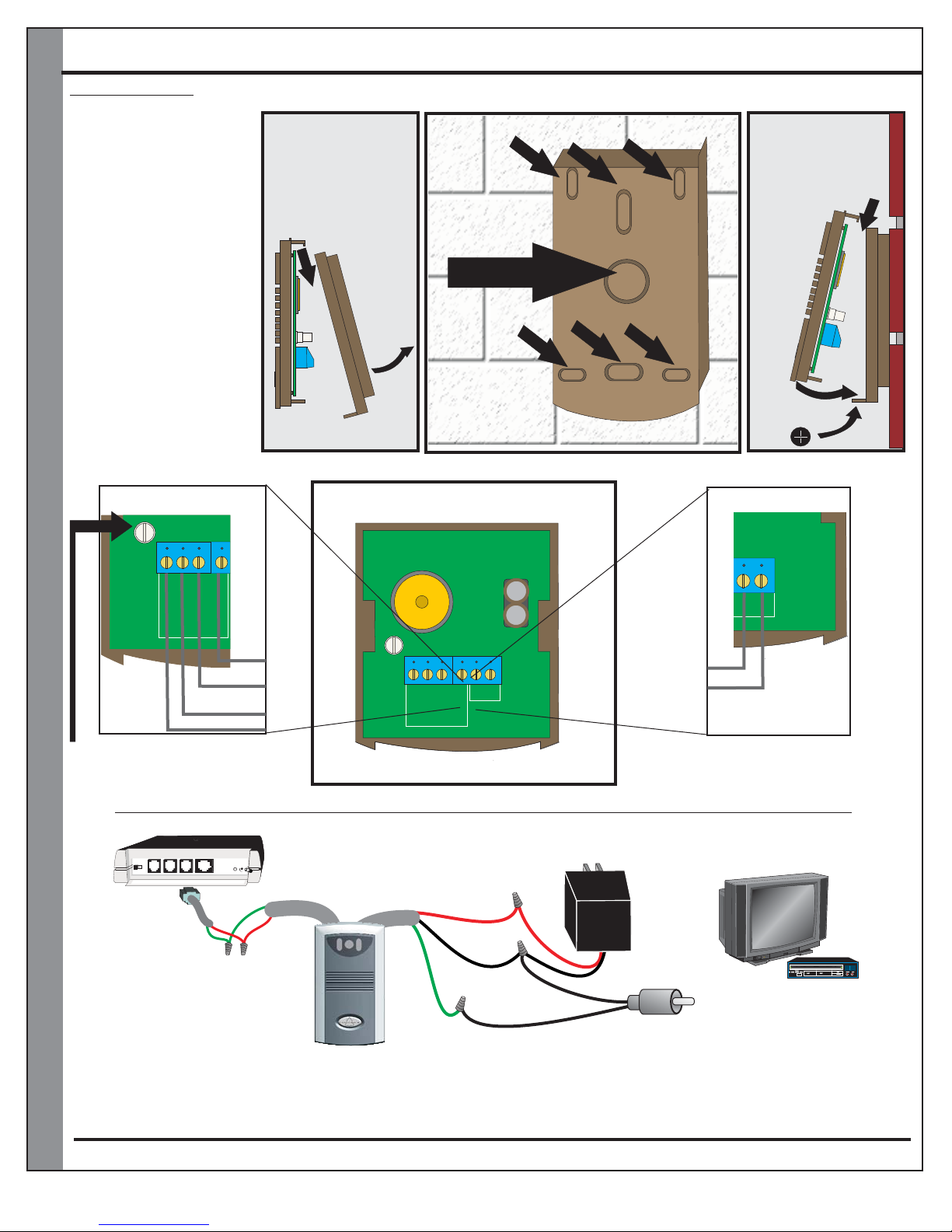

1) Separate back housing from
front housing. Step 1 Remove
set screw Step 2: swing bottom
of housing out. Step 3: pull back
housing out from top hinge. See
Fig-2
2) Knock out wiring hole. Feed
wire through opening
See Fig-3
Note: We recommend that you
use silicon sealer to protect the
wiring around the hole
3) Mount back box using desired
mounting hole knock outs and
secure firmly.
See Fig-3
4) Connect the two wires to the
wiring post on the inside of Door
Speaker. See Fig 4 and Fig 4.1
(Video Model: See Fig 4.2 for
video connection)
5) Mount front housing of Door
Speaker on the secured back
box. Secure front housing using
bottom set screw. See Fig-2.1
Steps 1, 2 & 3
LEFT Side of Speaker
Video
MIN
VOLUME
MAX
Fig 4.2
Fig 2 (Side View)
Pre
Mounting
Box
Install
2
Fig 4
Inside of Door Speaker
Video and Audio terminals
1
Fig 3
Mounting Holes
Wiring Hole
Mounting Holes
Fig 2.1 (Side View)
Post
Mounting
Back Box
Install
Set Screw
RIGHT Side of Speaker
Fig 4.1
Audio
1
2
3
COMMON GND-
+12V
Volume Control may need to be
adjusted to accommodate for
different acoustic environments.
Ring On/Off Relay Contacts Door Spkr 2 Door Spkr 1 Tele Line In & Out
RJ11 Modular Wire
(Supplied with controller)
+AUDIO
+VIDEO
VIDEO
12Volt -
Common Ground
12Volt +
Power Plug
To Speaker JackTeleDoorBell
Audio
Out
Video
Out
MIN
VOLUME
MAX
+12V
VIDEO
+VIDEO
COMMON GND-
VIDEO
Video +
+AUDIO
IN+
IN-
AUDIO
12VDC +
Common
(GROUND)
12V DC
Output
Video -
RCA Patch Cord
(supplied with Speaker)
IN-
IN+
Audio
Green
Red
Red = Audio Input +
Green = Audio Input -
VIDEO NOTE: Wire recommended for
most applications under 100 ft is CAT-5.
RG-6 Wire for video signal should be used
for longer distances.
Video
Power
Supply
(supplied with
doorstation)
12VDC -
To Video input or Cable Modulator, DVR,
Monitor, or Television
Wire can vary from standard quad, CAT-5 and/or RG6 for the Video Signal. Speaker distance from controller is a factor and
should be considered.
Page 6

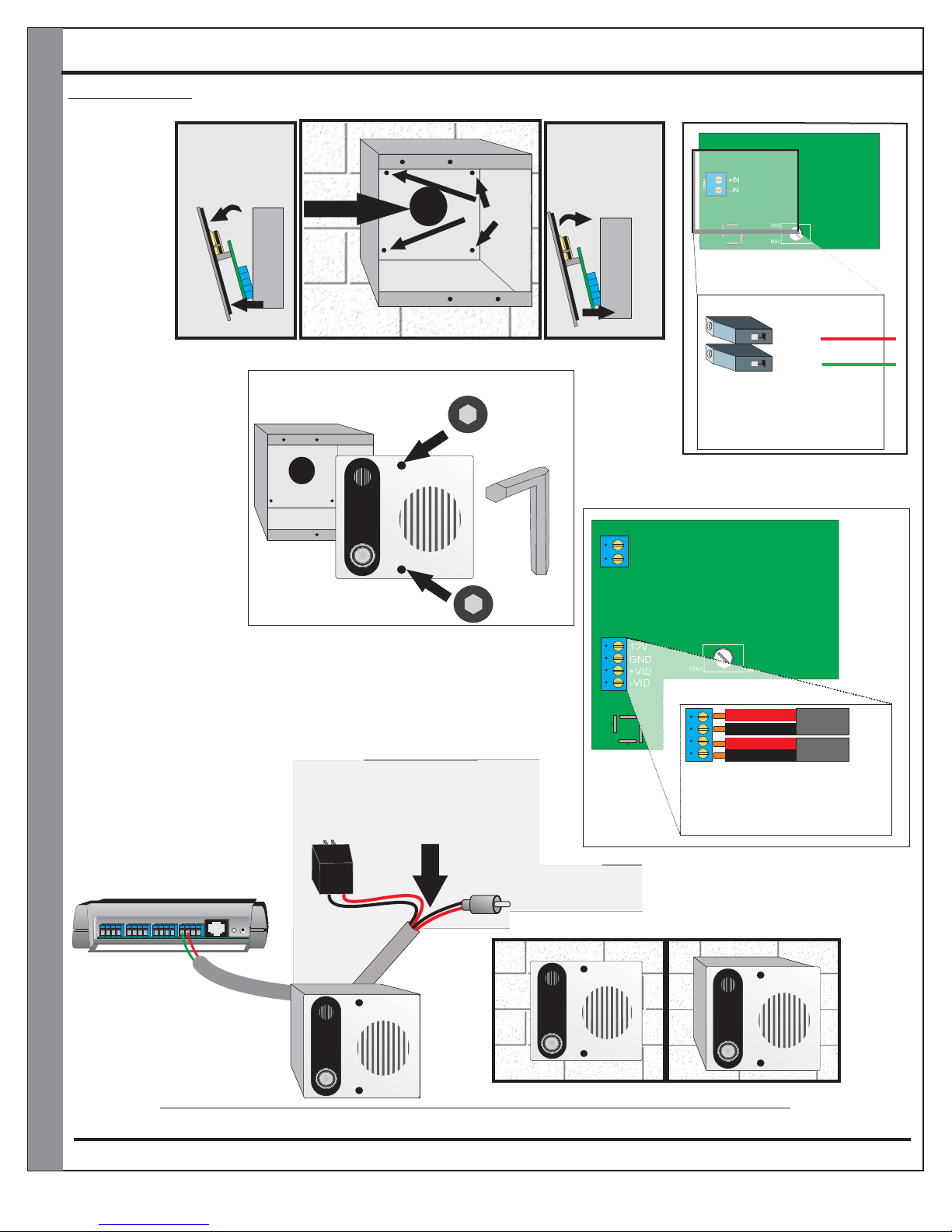

Installation
1) Separate back
housing from
front housing.
Step 1: swing
top of housing
out. Step 2: pull
unit out of back
See Fig-2
box.
2) Mount back
box either
surface or
flush mount.
Run wire
though wiring
hole located in
the middle of
the back box.
Secure firmly.
See Fig-3
Note: We recommend that
you use silicone sealer to
protect the wiring around the
hole
3) Connect the two wires to
the wiring post on the inside
of Door Speaker.
4) Mount the unit back into the
back box.
5) Secure stainless steel front
face plate with the two(2) hex
set screw using the hex key.
See Fig-5
VIDEO MODEL SETUP
See Fig-6
6)Connect 12 volt incoming
power from 12 volt
transformer
into the terminals label +12V
and GND.
7) Connect the video output to
your wires via the terminals
labeled +VID and -VID.
Fig 2 (Side view)
Step
Fig 2 (Side View)
See Fig-4
(supplied in kit)
1
Fig 5
“S” Series Audio & Video Installation
Fig 3
Wiring Hole
TeleDoorBell
Mounting Holes
NOTICE
This Video setup is applicable
for video models only.
-SVC and SFVC
Fig 2.1 (Side view)
Step
4
Fig 6
(applicable to -SVC and -SFVC model only)
+IN
COMM
-IN
12V
POWER
GND
+VID
VIDEO
-VID
Fig 4
Audio Connection
+IN
COMM
-IN
VOLUME
MIN
MAX
IN +
IN -
NOTICE
Volume Control may need to be
adjusted to accommodate for
different acoustic environments.
Video Connection
MIN
MAX
VOLUME
NOTICE
Volume Control may need to be
adjusted to accommodate for
different acoustic environments.
Green
Red
12 Volt +
12 Volt -
Video +
Video -
TeleDoorBell “X Series”
Spk/Rly#1Spk/Rly#2
Spk/Rly#3
Spk/Rly#4
To Speaker TerminalTeleDoorBell
Tele Line In & Out
Power Plug
TeleDoorBell
12VDC
Output
To Video input or Cable Modulator, DVR,
Monitor, or Television
Flush Mount Surface Mount
TeleDoorBell
TeleDoorBell
Page 7

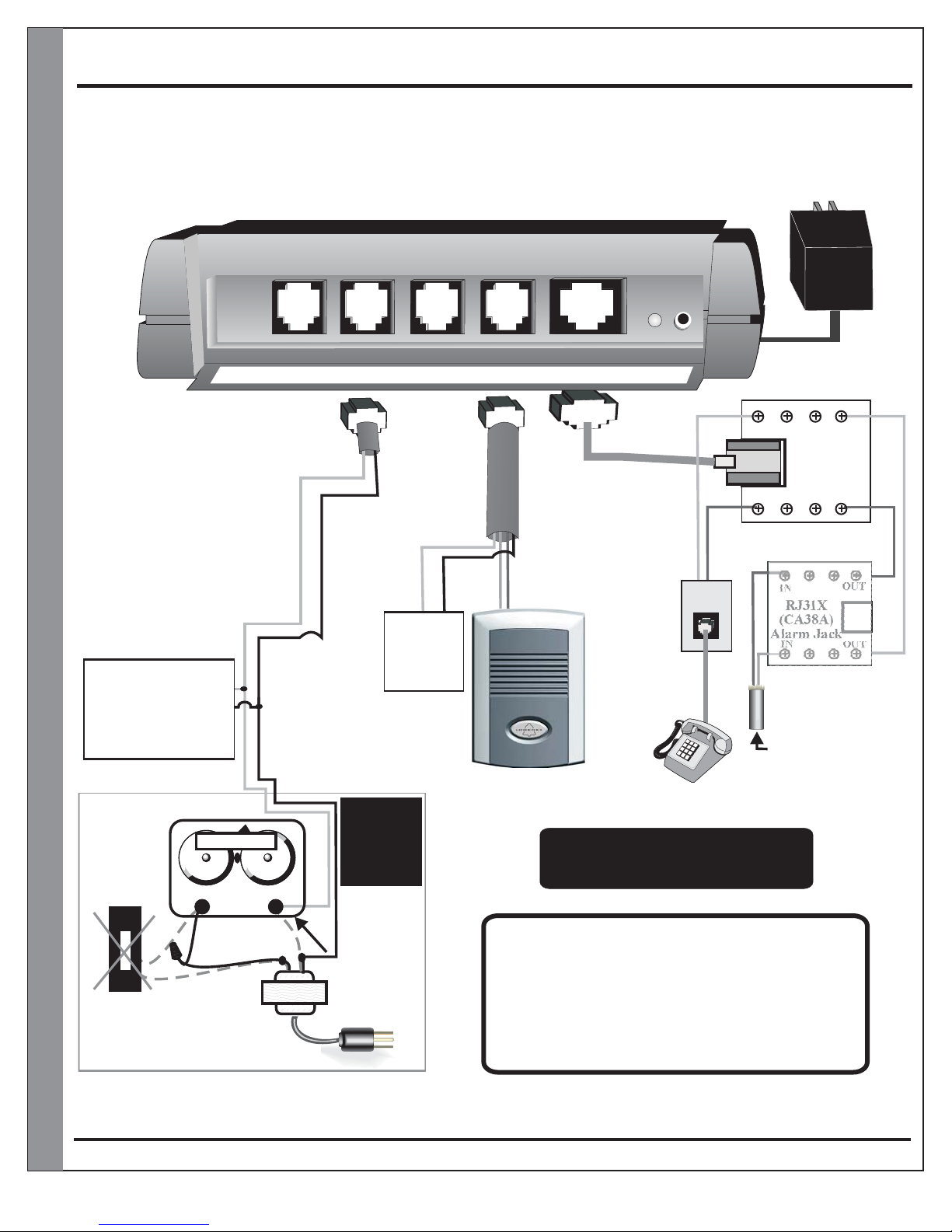

Controller Wiring Diagram
Relay #3
connection
#31
(to activate or will automatically
activates if configured as the
DoorBell function)
TeleDoorBell
A202CR & A204CR
Black
Yellow
Yellow
Relay #1
connection
#11
(to activate)
Spk/Rly#1Spk/Rly#2Spk/Rly#3Spk/Rly#4 Tele Line In & Out
Black
Green
Red
Power Plug
TM
Grey
To
Phone
OUT
Brown
Figure 5
16V AC
Output
IN
RJ31X
(CA38A)
Data Jack
OUT
IN
RJ31X
(CA38A)
Alarm Jack
IN
LINE from phone provider,
VOIP Modem or Cable Modem
IN
Green
OUT
OUT
Alarm jack
connection
only if alarm
monitored
Red
Doorbell rewiring section
Door Bell
TransformerFront Door
Disconnect
switch and connect
wires together
Existing
doorbell switch
(to be removed)
Existing
doorbell
Transformer
Page 8
Applicable
for both
A202 &
A204
Models
Wire is reconnected
to the TeleDoorBell
120V AC
Already connected
(1) Door station Included with
any kit purchase
RELAY SPECIFICATIONS:
Normally Open Relays are rated for up to:
(1 Amps at 12-24 AC or DC Volts).
NOTICE
See Page 6 & 7 for
Door Station Connectivity.
16V AC
Output
Existing Power Supply
supplied with TeleDoorBell

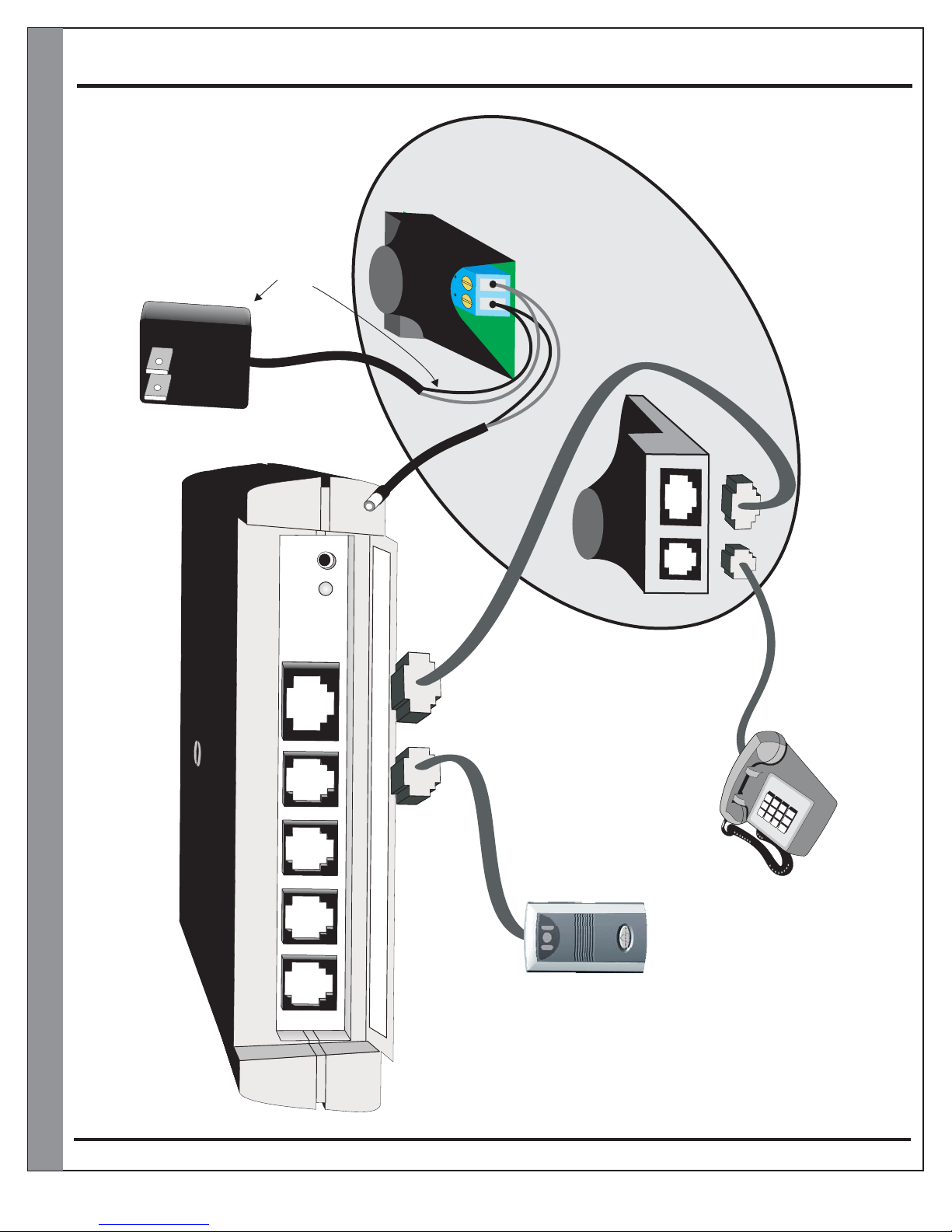

TBG-1 Installation Diagram
Controller / speaker kit.
Splice the power cables
and split them between
the Controller & TBG-1
View
Reverse
16V AC
TBG-1
View
Front & Rear
A202CR & A204CR
Spk/Rly#4 Spk/Rly#3 Spk/Rly#2 Spk/Rly#1 Tele Line In & Out Power Plug
RJ11 Modular Wire
(Supplied with unit)
Front View
RJ11 RJ45
To telephone
or KSU/PBX phone system
Page 9

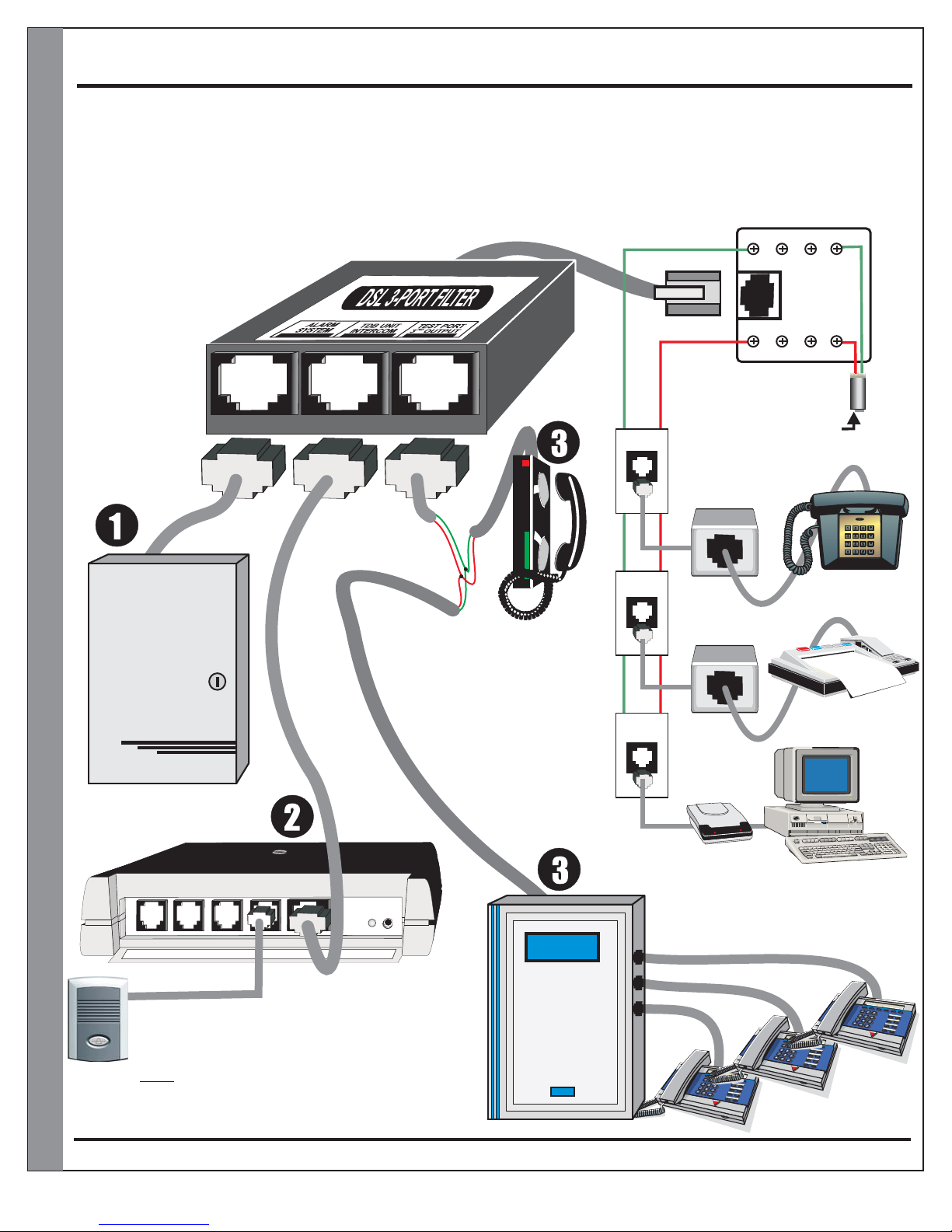

DSL Installation Diagram
LX-DSL3F 3-PORT FILTER Installation Diagram
RJ45 RJ45 RJ45
Red
This (TEST / 3rd Output) PORT
Green
Red
Green
can be used for:
Grey
OUT
RJ31X
(CA38A)
Data Jack
OUT
Brown
LINE from phone provider,
VOIP Modem or Cable Modem
Standard
DSL Filter
Standard
DSL Filter
Green
IN
IN
Red
Alarm Panel
Note: This (DSL 3-PORT FILTER) may cause a
LEVEL AUDIO CROSS-TALK
the caller to partially hear the low level conversation
between the home owner and the visitor at the door station
ONLY
ON-HOLD command.
(see also Terms & Conditions on the back for complete Warranty and Issues to avoid)
Page 10
1) Test phone (for isolating
and troubleshooting problems)
A202CR & A204CR
to occur. This may result in
when the caller is placed on hold using the
2) For a KSU phone system
configuration
3) To all the premise phones
which do not require high
speed internet connection
which will eliminate the
need to have DSL filters
at every phone jack
PHONE
SYSTEM
STRUCTURAL
LOW-
*4
OR
PANEL
KSU
High-Speed
Internet Modem
(supplied by internet provider)

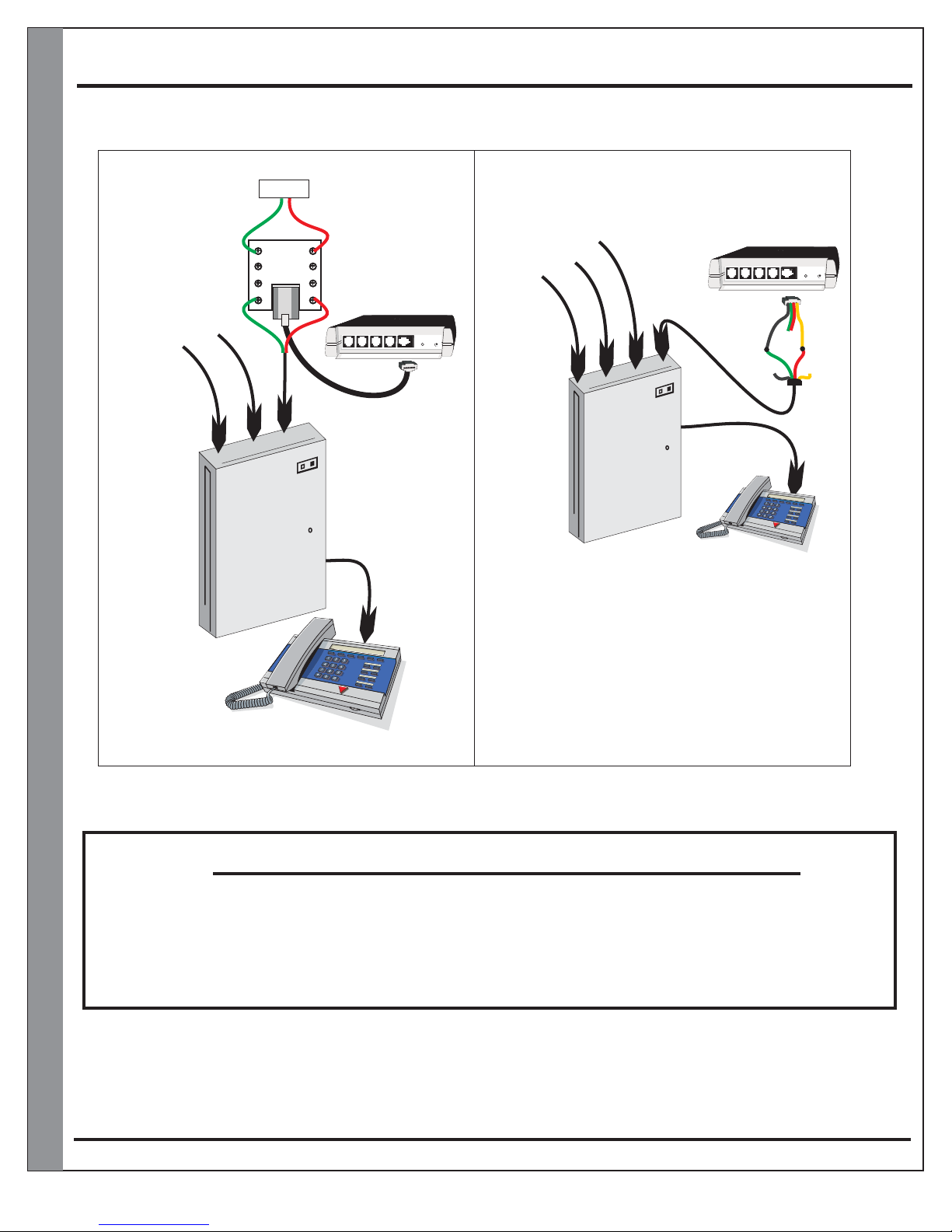

KSU/PBX Installation Diagram
Using one of the existing lines
Line 3
RJ31X
(CA38A)
Data Jack
Ring
Red
Brown
Spk/Rly#4 Spk/Relay#3 Spk/Relay#2 Spk/Relay#1 Tele Line In & Out
Line 1
Eg:
3-Line
system
Green
Grey
Line 2
Tip
(Not supplied)
IN IN
OUT OUT
KSU
Phone System
A202CR & A204CR
Power Plug
Using the and an
TeleDoorBell
availble C/O port
Line 2
Line 1
Eg:
3-Line
system
Line 3
Line 4
TeleDoorBell
KSU
Phone System
A202CR & A204CR
Spk/Rly#4 Spk/Relay#3 Spk/Relay#2 Spk/Relay#1 Tele Line In & Out
Black
Green
Power Plug
Yellow
Red
Line1 / Line2 / Line 3 / Line4 TeleDoorBell
* Note: In this installation the will
function properly with the exception of being able
to monitor the door speaker. The speaker will
only be active when the button is pressed. To be
able to monitor your door speaker any time you
will require a TBG-1 accessory module. (Page 9)
Phone System must be programmed for extensions to ring.
Consult your KSU/PBX phone system manual for instructions
TeleDoorBell
Line1 / Line2 / Line 3 with TeleDoorBell
NOTICE
PLEASE VERIFY THAT YOUR TELEPHONE SYSTEM COMPLIES WITH A TYPICAL 95
VOLTS RMS @ 20 Hz RING. IF INSTALLED WITHOUT VERIFICATION
MAY CAUSE DAMAGE TO T. IF YOUR TELEPHONE SYSTEM
TELEPHONE EQUIPMEN
DOES NOT MEET THE ABOVE REQUIREMENTS PLEASE CONTACT LOGENEX
INNOVATIONS INC. FOR FURTHER INFORMATION.
, THIS PRODUCT
Page 11
*#0

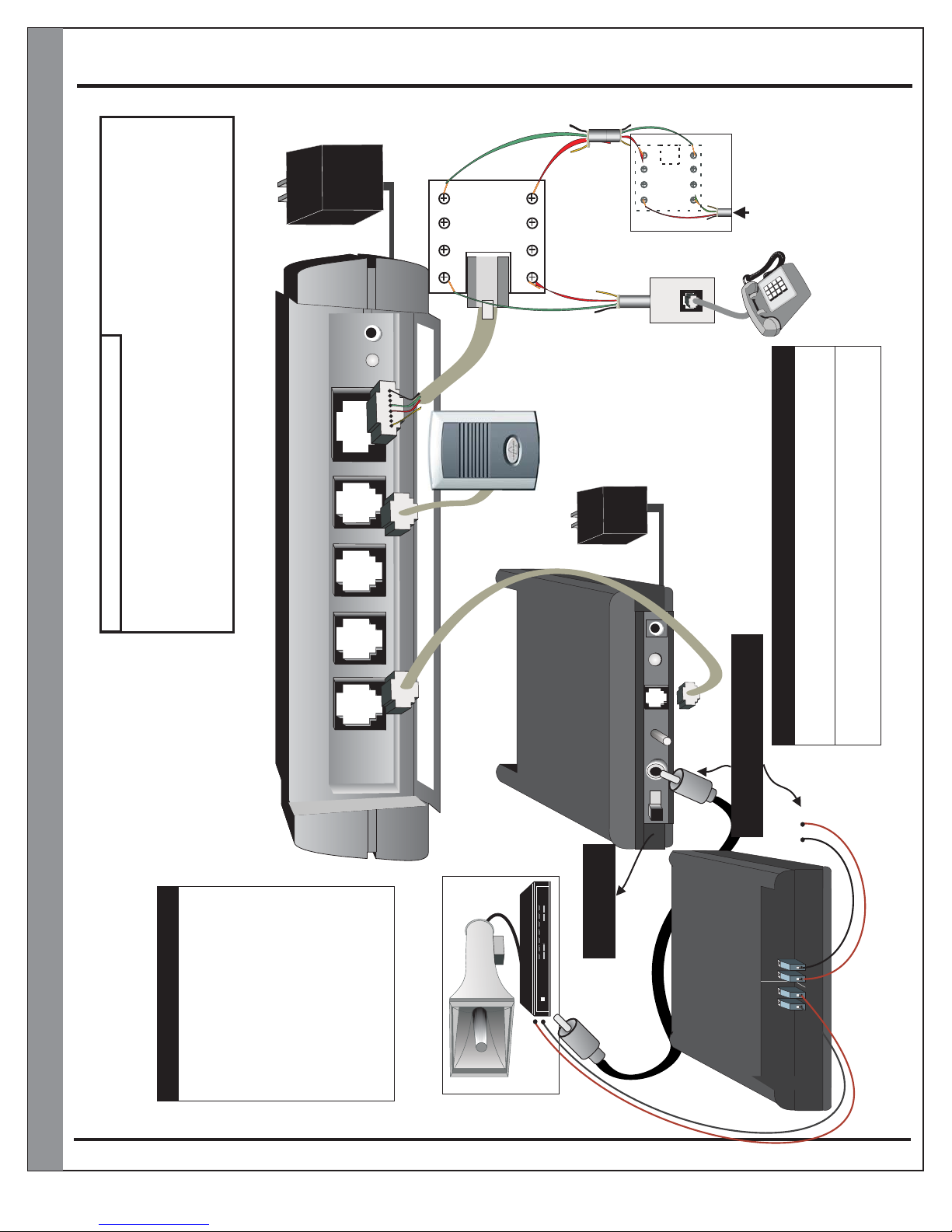

M203HIFI Installation Diagram
OUT
OUT
monitored
connection
Alarm jack
16V AC
Output
Green
IN
RJ31X
(CA38A)
Data Jack
IN
Red
IN
RJ31X
(CA38A)
Alarm Jack
only if alarm
IN
LINE from phone provider,
VOIP Modem or Cable Modem
1111
**3
**3
1) Pick up phone handset and enter programming
2) Enter programming password (default is )
Muting Function ON / OFF
3) Enter to toggle muting on/ off
(factory default)
2 Beeps = Muting on
3 Beeps = Muting off
A203HIFI
RJ45 Modular Wire
OUT
Grey
Power Plug
Tele Line In & Out
Spk/Rly#1
Spk/Rly#2
(Supplied with TeleDoorBell)
Spk/Rly#3
Hi-Fi Outputs
RJ11 Modular Wire
OUT
Brown
Door speaker
Front View
(Supplied with PG-100)
To
Jacks
Phone
(Included with TeleDoorBell)
16V AC
Output
POWER
ON
Power
IN
Audio
Volume
Control
OUT
M203HIFI
Audio
Hi-Fi Feature Operations
On a door station call the TeleDoorBell will mute for 1 minute. If the call is
answered, the system will remain muted for the duration of the call. The
TeleDoorBell will un-mute once communication has ended.
On an incoming call the TeleDoorBell will mute on the first ring. If the call
remains unanswered after the third ring the TeleDoorBell will initiate a
Ring-Over-Page feature for the remainder of the ring cycle.
*#9
Paging Operation
- Press
- Pick up hand set
Page 12
activate muting and
- TeleDoorBell will
(Not Included)
Amplifier and speaker
send page announcment
tones.
paging system
C.C. / 12V
12Volt/
Contact Closure
Muting Connection Output
- Switch to left for Contact Closure.
- Switch to right for 12Volt trigger.
To PAGING IN of amplifier system
+
-
Muting Trigger.
Optional Audio Out on the back and front
Rear View
M203HIFI
*** ONLY USE ONE OUTPUT ONLY ***
Audio Out
Connection
+ -
- +
Muting
Connection
12 Volt Trigger
+ -
Audio Out
or
Contact Closure
Programming Guide
Pick up phone handset and listen for dial tone.
PRESS to go into programming mode
**
MUST BE ENTERED WITHIN 5 SECONDS OF GOING OFFHOOK
*#0 (Listen for (2) Beeps)
ENTER passcode 1111
NOTE: When Entering any programming functions, you have up to 30 seconds idle time before the system
will hang up at which point any programming started will not be saved
(Listen for (2) Beeps)
(Default Passcode)
Ring Pattern Configuration **0
This feature allows you to change the ringing pattern when a Door Station Speaker is pressed.
DISTINCT RING is ideal if you want to distinguish between an incoming phone call and someone at
the Door Station Speaker. A distinct and different ring pattern will be produced for each Door Station.
1) PRESS
2) Listen for .
2
( ) BEEPS =
(3) BEEPS
NOTE B: y continuing to Press the Command, the system will toggle between the (6-RING DISTINCT RING pattern)./
**0
BEEPS
The same (6 RING) pattern for all Speaker Door Station Ports
DISTINCT RINGING PATTERN (a different pattern for every Speaker Port)
=
**0
(FACTORY DEFAULT)
Call Restriction Phone Number Programming **1
This feature allows you to prohibit or block phone numbers from being dialed.
The user has the ability to block specific phone numbers and/or numbers that begin with a particular
sequence (eg: or ).
1) PRESS
2) Listen for .
3) SELECT a Memory BIN Number ( )
4)
) Enter the Phone Number to restrict 1
5
) PRESS to SAVE
6
Note: Call restriction requires 3 digits minimum. To restrict 1+ long distance number you will have to enter
To block any other one digit number you simply enter plus the one digit starting number. For a 2 digit number
restriction you will enter plus the 2 digits you wish to restrict.
To DELETE a Call Restriction Programmed Number from a Memory Bin you must performs STEPS 1,2,3,4 and 6 (eliminating
STEP 5). This will remove the restricted number. (3) BEEPS will confirm deleted memory bin. Repeat STEPS 1-6 to re-enable
a number restriction.
1976 011
**1
(2) BEEPS
Listen for .(1) BEEP
#
*__
09
to
__
..... 30 (up to 30 Digits) * see note below
(2) BEEPS will be heard for acceptance of programming.
**_
**
1
Door Station Caller ID Configuration **2
This feature allows you to activate the Door Station caller ID display function. When the Door Station
Speaker is pressed, a Caller ID transmission is made to any connected CALL DISPLAY style
phones. (eg: DOOR 1 .... DOOR 4).
1) PRESS
2) Listen for .
2
( ) BEEPS =
Continued
on Page-14
(3) BEEPS
NOTE B
**2
BEEPS
Door Station Caller ID is ENABLED [ON]
Door Station Caller ID is DISABLED [OFF]
=
**2
(FACTORY DEFAULT)
Note: This setting is recommended if Call Display Phones are not used
/: y continuing to Press the Command, the system will toggle between Door Station Call Display (ON OFF)
Page 13
Programming Guide
Continued
Programming System Features [continued]
Multi-Relay Trigger Configuration **3
This feature allows multiple (2) relays to be triggered upon a door button press.
1) PRESS
2) Listen for one (1) .
3) Enter Door Station number.
Listen for one (1) .
4)
5) Enter relays to be trigger upon button press. (i.e. 12 will fire relays 1 and 2 upon button press. Note:
6) Listen for two (2) for acceptance of programming.
Doorbell Relay #3 Configuration **4
This feature allows the user to program Relay #3 to activate the Doorbell Chime when the Door
Station Speaker is pressed. (see page 7)
1) PRESS
2) Listen for .
(2) BEEPS
(3) BEEPS
**3
BEEP
BEEP
The system requires a 2 digit entry. If only one relay is required enter a 0 for the
second digit)
BEEPS
**4
BEEPS
Enables RELAY#3 for Doorbell Function activation of a Doorbell Chime or other notification device.
=
Disables RELAY#3 from activating as a Doorbell Function
=
(FACTORY DEFAULT)
Continued
on Page-15
NOTE B /: y continuing to Press the Command, the system will toggle between (ON OFF)
**4
Remote Dial-up Answer Configuration **5
This feature allows you to activate the Remote Dial-up Answering feature. This feature allows the
user to call in to the unit from most outside phone lines (certain conditions may apply) to program or
activate any of the TeleDoorBell’s functions.
Note: An Answering Machine (if installed or subscribed though TelCo) should be configured to answer on 4 or more rings and an "ALARM
SYSTEM" (if present) must be configured to answer on "ANSWERING MACHINE OVERRIDE [1+1]" MODE
1) PRESS
2)
Listen for
(2) BEEPS
(3) BEEPS
NOTE: By continuing to Press the Command, the system will toggle Answering (ON OFF)./
**5
BEEPS.
=
3+1 RINGING (this means you call in for 3 rings, hang-up wait for 10-15 Seconds (for the unit to ENABLE itself)
and then call back. The unit at this point will answer on the first ring).
=
[OFF] Unit will not answer
(FACTORY DEFAULT)
**5
Page 14
Programming Guide
Continued
Programming System Features [continued]
Programming the Door Station Call Forwarding Phone# **6
This feature allows you to activate the Door Station Call Forwarding feature. When the Door Station
Speaker Button is pressed and the call is not answered from one of the premise phone(s) within a
specific time limit, the TeleDoorBell will then pick-up the phone line and dial the pre-programmed call
forwarding number and if answered, allows the user to communicate to the Door Station Speaker
remotely and perform all the functions as though they were within the premises.
1) PRESS
2) Listen for
3) Enter the Phone Number you wish to Call Forward to. 1
Note: ENTER for inserting a PAUSE (6 Second Delay) anywhere in the dialing sequence.
4) PRESS to SAVE
NOTE: To DISABLE the Call Forwarding feature see USER GUIDE Door Station Call Forwarding Functions Page 13.
To Change a Door Station Call Forwarding Number ... Repeat STEPS 1-4.
Relay Timing Configuration
This feature allows you to program the relay’s activation timing. Relay timing setting can be from 0.5
seconds to 49 seconds, latching or for closure upon door station button press.
**6
(1) BEEP.
*
#
(up to 30 Digits)
(2) BEEPS will be heard for acceptance of programming.
..... 30
__
**8
Continued
on Page-16
1) PRESS **8
2) Select RELAY you wish to program: PRESS
* A202 models Relays #1 and #2 are programmable.
* A204 models Relays #1, #2, #3 and #4 are programmable.
3) Enter RELAY 2-Digit Timing Setting:
01 98- = in Seconds, [FACTORY DEFAULT SETTING = 6]
4) Listen for
NOTE: In a power failure situation, any programmed LATCHED Relay(s) in the LATCHED [ON] position will be reset to UN-
LATCHED State [OFF]. This is to prevent any devices from inadvertently being activated for an indefinite period of time.
Call Forward Hang-Up Time
This feature allows the call forwarding hang up time to be shortened from the factory default of
twenty (20) minutes for specialized applications.
1) PRESS
2) Listen for
3) Enter - seconds. Note: Entering will set the hang up time to the factory default of
twenty (20) minutes.
4) Listen for
(2) BEEPS for acceptance of programming.
**9
**9
(1) BEEP.
01 98 99
(2) BEEPS for acceptance of programming.
1234OR OR OR .
Page 15
Programming Guide
Continued
Changing the 4-Digit PASSCODE
This feature allows the user to change their 4-Digit PASSCODE. (FACTORY DEFAULT )1111
1) PRESS
2) (1) BEEP.
3) ENTER NEW (4 DIGIT) CODE
4) Listen for
Programming System Features [continued]
*10
*10
Listen for
____
(If a new 4 Digit code is not entered within 10 seconds then the previous programmed code will remain)
( for acceptance of programming.2) Beeps
RESETTING THE UNIT TO FACTORY DEFAULT SETTINGS
This function allows the you to restore all programming back to factory default. All programming and settings
will be deleted. PASSCODE not required to perform this programming function. This command should be
used only for critical situations where the system might require a reset. This command will erase all settings,
including phone numbers in memory.
1) Pick-up Phone Handset (listen for dial tone) and ENTER *#0
2)
Listen for (2) Beeps
3) ENTER
4) Listen for
0#0
(2) Beeps for acceptance of programming.
(Unit will be defaulted back to Factory Settings including the PASSCODE)
5) WAIT FOR DIAL TONE
6) HANG-UP
(to be heard in the phone handset)
Page 16
HI-FI Series User/Programming Guide
Hi-Fi Feature Operations
On a door station call the will mute for 1 minute. If the call is
answered, the system will remain muted for the duration of the call. The
TeleDoorBell
On an incoming call the will mute on the first ring. If the call
remains unanswered after the third ring the will initiate a
Ring-Over-Page feature for the remainder of the ring cycle.
will un-mute once communication has ended.
TeleDoorBell
TeleDoorBell
TeleDoorBell
Paging Operations
- Pick up hand set
- Press
- will activate muting and send page announcement tones.TeleDoorBell
*#9
Muting Function ON / OFF
1) Pick up phone handset and enter programming
2) Enter programming password (default is )
3) Enter to toggle muting on/ off
**3
**3
*#0
1111
2 Beeps = Muting on
3 Beeps = Muting off
(factory default)
**The above features are only available with HI-FI Series Units.
Page 17
TroubleShooting
Please check these items before calling for support.
Problem
Problem
Controller does not power up.
Controller powers up but red LED does not flash,
it is solid.
Controller powers up, red LED is flashing, but the
door station does not power up, the phones do
not ring, and there is no communication.
My phones ring but they do not communicate
with the outside doorstation.
Solution
Solution
1)Check your AC voltage and power adapter,
confirm LED light is flashing.
2)Check power connection into the unit.
1)The unit may have locked up, unplug the power
adapter and reconnect after 10 seconds.
2)Check for a short between the red and green
wire going to door station.
1)The red and green wire to the door station is
either reversed, has a short, or has a break in
connection. (verify this by plugging the door
station in another available speaker relay port).
1)The line you are connected on may have high
speed DSL internet on it. This will create
interference. A properly installed LX-DSL3F high
speed filter is required.
My phones do not ring, but when I answer the
phone I have communication to the door station.
I have a dial tone feedback at the speaker when
door speaker button is pressed.
When pressing ... for monitoring any
of the connected door station speaker(s) you get
an operator recording (e.g. "this is an invalid
number") and you have no communication to the
speaker.
*#1 *#4
Page 18
1)The ringer may be disabled. Please refer to
User Guide to enable the ringer.
2)There may be too many phones which
the unit is trying to ring. unplug a few phones to
verify.
1)Reverse the in and out on the RJ31X/CA38A
data jack.
1)You have the unit in parallel with the phones on
the C/O line.
2)The phone may not be touch tone compatible.
3)The controller may be wired on the wrong
phone line.
TroubleShooting
Please check these items before calling for support.
Problem
Problem
Problem
Communication is very low when talking to the
door station.
My phones ring as soon as the wires are plugged
into the door station.
My phones ring pattern is the same as an
incoming call and I cannot tell the difference
between the two.
Door stations #3 and #4 do not ring when I push
the door station button.
Solution
Solution
Solution
1)The line you are connected on may have high
speed DSL internet on it. This will create
interference. A properly installed LX-DSL3F high
speed filter is required.
1)The red and green wire to the door station is
either reversed, has a short, or has a break in
connection. (verify this by plugging the door
station in another available speaker relay port).
1)The unit is set on 6 standard ring pattern.
Please refer the ring pattern setting.
2)Your phones/phone systems do not recognize
TeleDoorBell
1) The may not be an A204 model.
TeleDoorBell
Please refer to model label on controller and or
barcode on unit box.
’s distinctive ring pattern.
(PAGE 13)
I cannot make outgoing long distance phone
calls.
My TeleDoorBell is not cal forwarding to the
assigned number.
There is no video feed coming out of door station.
Video feed does not modulate or picture quality is
poor on assigned channel.
1)Call restriction may be enabled. Please refer
the programming section to clear memory bins.
(PAGE 13)
2)A factory reset may be required. Please refer to
programming section.
1)Try reprogramming the call forwarding number.
2) Try Adding a pause or pauses ( ) before the
call forwarding number.
3)Call forwarding may not be enabled. Please
refer to the call forwarding section in the
User Guide.
1)Check for proper DC voltage power to the door
station.
2)You may be broadcasting on a channel with
signal already present. An appropriate filter
may be required.
(PAGE16)
*
Page 19
Page 1 of 2
Warranty / Terms & Conditions
Limited Warranty
Logenex Innovations Inc. warrants the original purchaser that for a period of one (1) year from the date of purchase, the product shall be free of defects in
materials and workmanship under normal use.
including without limitation, any implied warranty of merchantability and fitness for a particular purpose, are expressly excluded.
period, Logenex . shall, at its option, repair or replace any defective product upon return of the product to its factory, at no charge for labor
and materials (shipping, customs and/or brokerage fees are not included in the warranty). Any replacement and/or repaired parts are warranted for the
remainder of the original warranty or sixty (60) days, whichever is longer. The original owner must promptly notify Logenex in writing that
there is a defect in material or workmanship, such written notice to be received in all events prior to expiration of the warranty period.
Innovations Inc does not install or connect the products and because the products may be used in conjunction with products not manufactured by
Logenex Innovations Inc., Logenex Innovations Inc. cannot guarantee the performance o Logenex Innovations Inc.
obligation and liability under this warranty is expressly limited to repairing or replacing at Logenex Innovations Inc.'s option any product not meeting the
specifications. In no event shall the Logenex Innovations Inc. be liable to the buyer or any other person for any loss or damages whether direct or indirect
or consequential or incidental, including without limitation, any damages for lost profits, stolen goods or claims by any other party, caused by defective
goods or otherwise arising from the improper, incorrect or otherwise faulty installation or use of the merchandise sold.
No Dealer and no person other than an officer of Logenex Innovations Inc. may extend or modify this warranty, and no modification or extension of this
warranty shall be effective unless in writing signed by the authorized officer of Logenex Innovations Inc..
Innovations Inc
.
Except as specifically stated herein, all express or implied warranties whatsoever, statutory or otherwise,
During the warranty
Innovations Inc
Because Logenex
of ur manufactured product(s).
()
International Warranty
The warranty for international customers is the same as for any customer within Canada and the United States, with the exception that Logenex
Innovations Inc. shall not be responsible for any shipping fees, customs fees, taxes, or VAT that may be due.
Warranty Procedure
To obtain service under this warranty, please return the item(s) in question to the point of purchase first for all your warranty and technical support issues.
If unable to obtain warranty service, USER / DEALER must then:
(1) USERS must provide written notice of the malfunction to an authorized Logenex Innovations Inc. Dealer within the warranty period and no later than
15 days after the date of the malfunction, whichever occurs first. If the USER is unable to identify an authorized Logenex Innovations Inc. Dealer, USER
must provide written notice of the malfunction, including proof of the date of purchase of the equipment and the serial number of the malfunctioning
Product, to Logenex Innovations Inc. at its corporate offices at 27 Armthorpe Rd Unit 3, Brampton, Ontario, L6T 5M4. Upon receipt of such notice and
determination by Logenex Innovations Inc. that User is eligible for Warranty service, Logenex Innovations Inc. will provide the USER with the necessary
instructions to process the warranty service.
(2) DEALERS must provide written notice of the malfunction to Logenex Innovations Inc. no later than the expiration of the warranty period or 15 days
after the date the Dealer becomes aware of the malfunction, whichever comes first. For purposes of this Warranty, the Issuance by Logenex Innovations
Inc. of a Return Material Authorization (RMA) number by telephone to an authorized Dealer shall be deemed to be written notice from the dealer with
respect to the material returned under that RMA number.
Logenex Innovations Inc. will not accept any shipment whatsoever for which prior authorization has not been obtained.
All authorized distributors and dealers must have a warranty program.
Conditions to Void Warranty
This warranty applies only to defects in parts and workmanship relating to normal use. It does not cover:
- damage incurred in shipping or handling;
- damage caused by disaster such as fire, flood, wind, earthquake or lightning;
- damage due to causes beyond the control of Logenex Innovations Inc. such as excessive voltage, mechanical shock or water damage;
- damage or in-operation of the product(s) as a result of changes made by any other Service Providers (ie: Phone, Electricity, Security, Internet
companies)
- damage caused by unauthorized attachment, alterations, modifications or foreign objects;
- damage caused by peripherals (unless such peripherals were supplied by Logenex Innovations Inc.);
- defects caused by failure to provide a suitable installation environment for the products;
- damage caused by use of the products for purposes other that those for which it was designed;
- damage from improper maintenance;
- damage arising out of any other abuse, mishandling or improper application of the product(s).
Logenex Innovations Inc.'s liability for failure to repair the product under this warranty after a reasonable number of attempts will be limed to a
replacement of the product, as the exclusive remedy for breach of warranty. Under no circumstances shall Logenex Innovations Inc. be liable for any
special, incidental, or consequential damages based upon breach of warranty, breach of contract, negligence, strict liability, or any other legal theory.
Such damages include, but are not limited to, loss of profits, loss of the product or any associated equipment, cost of capital, cost of substitute or
replacement equipment, facilities or services, down time, purchaser's time, the claims of third parties, including customers, and injury to property.
Disclaimer of Warranties
This warranty contains the entire warranty and shall be in lieu of any and all other warranties, whether expressed or implied (including all implied
warranties of merchantability or fitness for a particular purpose) and of all other obligations or liabilities on the par of Logenex Innovations Inc. Logenex
Innovations Inc. neither assumes nor authorizes any other person purporting to act on its behalf to modify or to change this warranty, nor to assure for it
any other warranty or liability concerning this product. This disclaimer of warranties and limited warranty are governed by the laws of the province of
Ontario, Canada.
Warranty / Terms & Conditions Continued on next page...
Page 20
Page 2 of 2
Warranty / Terms & Conditions
Warranty / Terms & Conditions Continued ...
WARNING: Logenex Innovations Inc recommends that the entire system be completely tested on a regular basis. However, despite frequent testing,
and due to, but not limited to, criminal tampering, telephone provider breakdowns, interference or poor signal or electrical disruption, it is possible for this
product to fail to perform as expected.
Out of Warranty Repairs
Logenex Innovations Inc. will at its option repair or replace out-of-warranty products which are returned to its factory according to the following
conditions. Customers are required to contact their local installation dealer first for proper inspection and diagnostics before returning goods to Logenex
Innovations Inc. and must also obtain an authorization Return Number (RMA). Logenex Innovations Inc. will not accept any shipment whatsoever
without prior authorization and Return Number (RMA). Products which Logenex Innovations Inc. determines to be repairable will be repaired and
returned. A set fee which Logenex Innovations Inc. has predetermined and which may be revised from time to time, will be charged for each unit
repaired. Products which Logenex Innovations Inc. determines not to be repairable will be replaced by the nearest equivalent product available at that
time. The current market price of the replacement product will be charged for each replacement unit. Customer would also have the option to contact
their local dealer for product pricing and installation rates (if required).
Notification To Telephone Company
Upon request, customer shall notify telephone company of particular line to which the connection will be made, and provide the FCC registration number
and the ringer equivalence of the protective circuit.
Telephone Connection Requirements
Except for telephone company provided ringers, all connections to the telephone network shall be made through standard plugs and telephone
company provided jacks, or equivalent, in such a manner as to allow for easy, immediate disconnection of terminal equipment.
Incident of Harm
Should terminal equipment/protective circuitry cause harm to telephone network, telephone company shall, where practicable, notify customer that
temporary disconnection of service may be required; however, where prior notice is not practicable, the telephone company may temporarily discontinue
service if action is deemed reasonable in circumstances.
Changes in Telephone Company Equipment, Service and/or Facilities
The telephone company may make changes in its communication facilities, equipment operations or procedures, where such actions are reasonable,
required and proper in its business. Should any such changes render customer's terminal equipment incompatible with the telephone company facilities
or any products installed, Logenex Innovations Inc. will not held responsible for any failures or problems which may occur as a result of such changes,
failures and/or interruptions of the service.
Attachment Limitation Notice
Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company.
The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above
conditions may not prevent degradation of service in some situations. Users should ensure for their own protection that the electrical ground connections
of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly
important in rural areas.
electrical inspection authority, or electrician, as appropriate.
The Load Number (LN) assigned to each terminal device denotes the percentage of the total load to be connected to a telephone loop which is used by
the device to prevent overloading. The termination on a loop may consist of any combination of devices subject only to the requirement that the total of
the Load Numbers of all of the devices does not exceed 100. (Confirm Load Number (LN) with your local Phone Service Provider)
Industry Canada certification is only applicable to installation of devices which include transformers approved by the Canadian Standards Association (CSA).
CAUTION: Users should not attempt to make such connections themselves, but should contact the appropriate
The sole obligation of Logenex Innovations Inc. under this warranty is, at the sole option of Logenex Innovations Inc., the
repair or replacement, with new or refurbished parts, of the defective or missing parts that are causing the malfunction and
which are determined to be defective be Logenex Innovations Inc., and the return shipment of such parts to the DEALER /
USER / DISTRIBUTOR. DEALER / USER / DISTRIBUTOR shall be responsible to pay for shipment of the defective part to
Logenex Innovations Inc. and for all expenses connected with their removal and reinstallation. In lieu of repair or replacement,
Logenex Innovations Inc. may, at its sole option and in full satisfaction of its warranty obligations hereunder, refund the price
charged by Logenex Innovations Inc. to its DEALER / USER / DISTRIBUTOR for such parts as are determined by Logenex to
be defective and which are returned to Logenex Innovations Inc. through an authorized dealer within the warranty period and
no later than 15 days after such malfunction, whichever occurs first.
Page 21
Woodbridge, ON. Canada L4L 8S9
Phone: 905-790-8823 Toll Free: 1-888-790-5900
Manufacturing Plant:
6A-7500 Martin Grove Rd.
E mail: info@ ogenex.com- l
www.logenex.com
May 2008
Loading...
