Logan Graphic Products F200-2 User Manual

Instruction Manual

PICTURE FRAMING

Precision

SANDER Elite

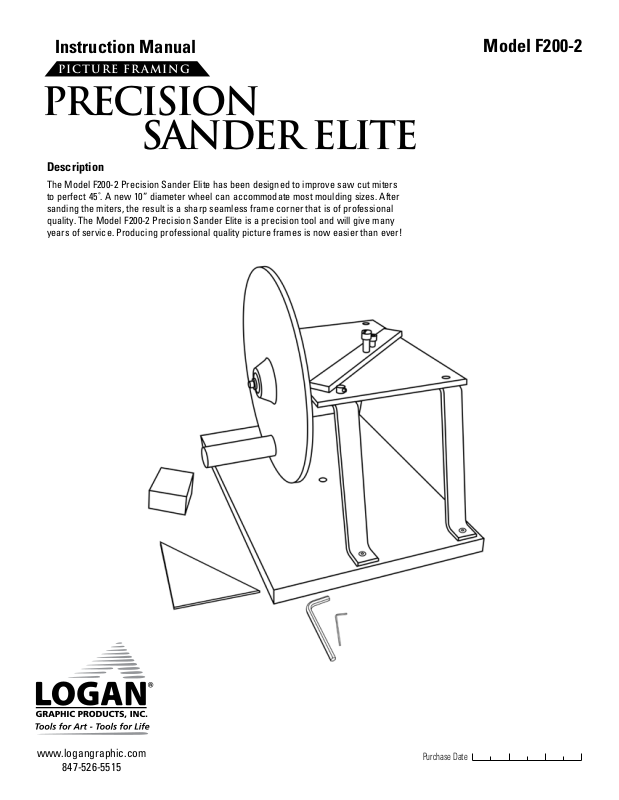

Description

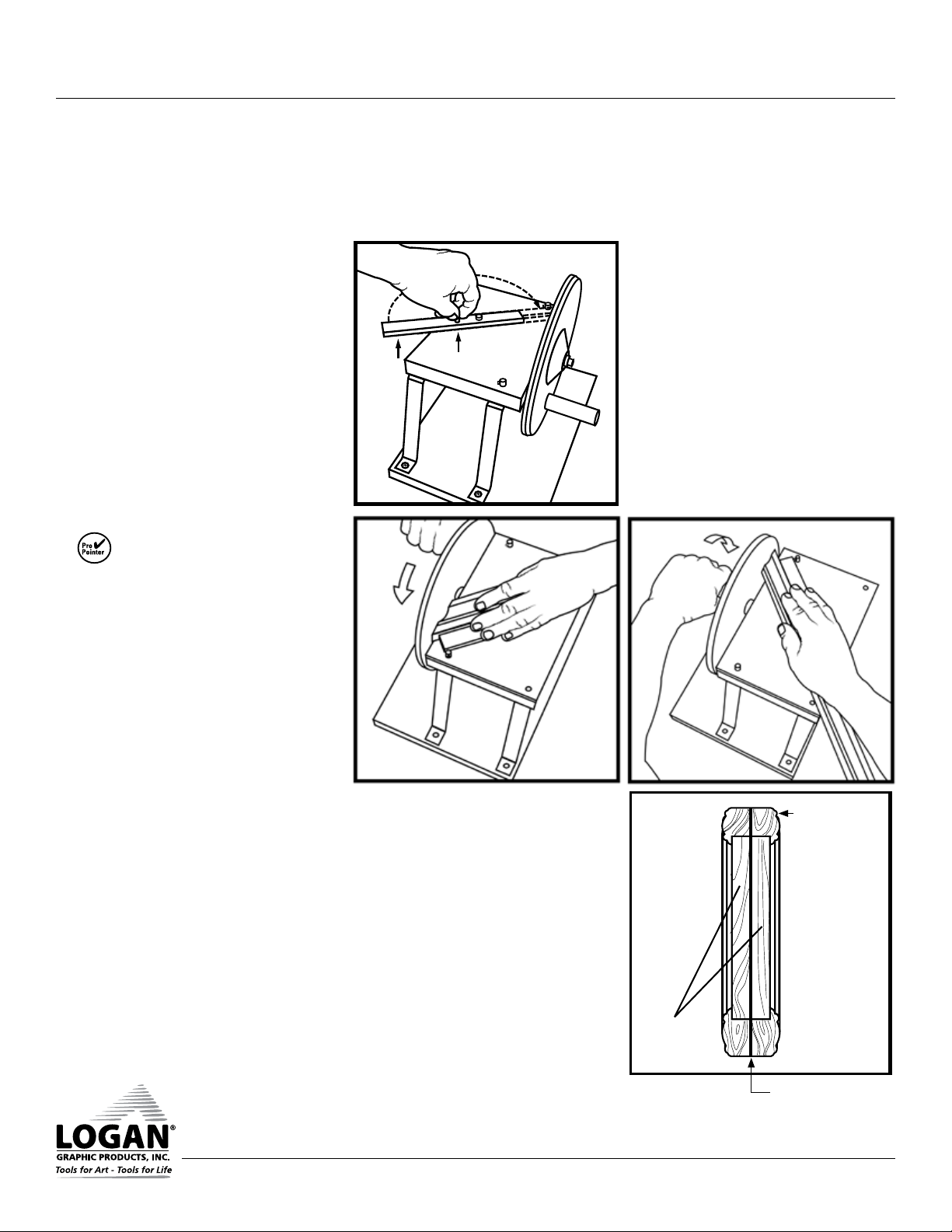

The Model F200-2 Precision Sander Elite has been designed to improve saw cut miters
to perfect 45˚. A new 10” diameter wheel can accommodate most moulding sizes. After
sanding the miters, the result is a sharp seamless frame corner that is of professional
quality. The Model F200-2 Precision Sander Elite is a precision tool and will give many
years of service. Producing professional quality picture frames is now easier than ever!

Model F200-2

www.logangraphic.com

847-526-5515

Purchase Date

Instruction Manual

Identification

Precision SANDER ELITE

Model F200-2

A. Wheel - 10 lb. wheel which rotates in either direction for sanding.

B. Handle - Handle to rotate wheel.

C. Alignment Bar - Fence stop that the frame lines up against for sanding.

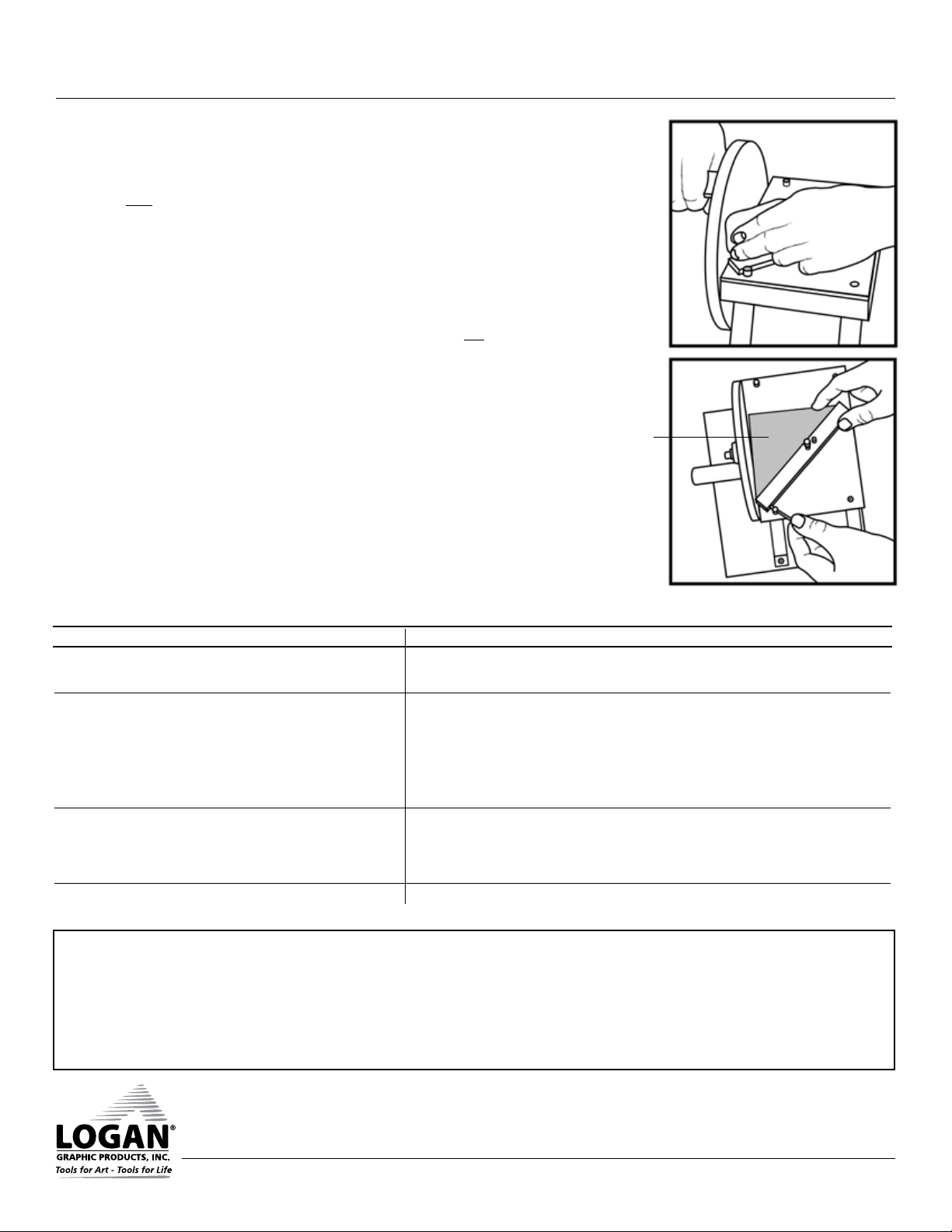

D. Micro-stops - Alignment bar adjustments for perfect 45˚ angles.

E. Cleaning Bar - Used to loosen built-up saw dust on sanding wheel.

F. 45˚ Triangle - Used to adjust micro-stops to 45˚.

G. Wheel Wrench

H. Micro Stop Wrench

Assembly

1. Remove sanding wheel from base board using wrench supplied.

SAVE WRENCH & SCREW (Fig. 1).

2. Discard washers and nut.

3. Attach sanding wheel to top plate using screw and wrench from

step 1 (Fig. 2).

A

C

D

B

E

F

G

Fig. 1

H

Fig. 2
