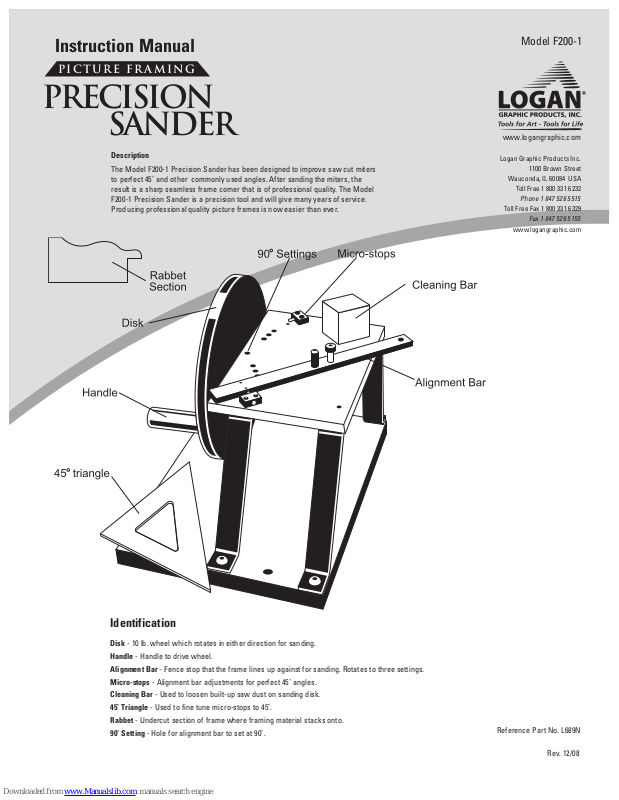

Instruction Manual
PICTURE FRAMING
Precision
Model F200-1
SANDER
Description
The Model F200-1 Precision Sander has been designed to improve saw cut miters
to perfect 45˚ and other commonly used angles. After sanding the miters, the
result is a sharp seamless frame corner that is of professional quality. The Model
F200-1 Precision Sander is a precision tool and will give many years of service.
Producing professional quality picture frames is now easier than ever.
www.logangraphic.com
ogan Graphic Products Inc.
L
1100 Brown Street
Wauconda, IL 60084 USA
oll Free 1 800 331 6232
T
hone 1 847 526 5515
P
Toll Free Fax 1 800 331 6329
Fax 1 847 526 5155
ww.logangraphic.com
w

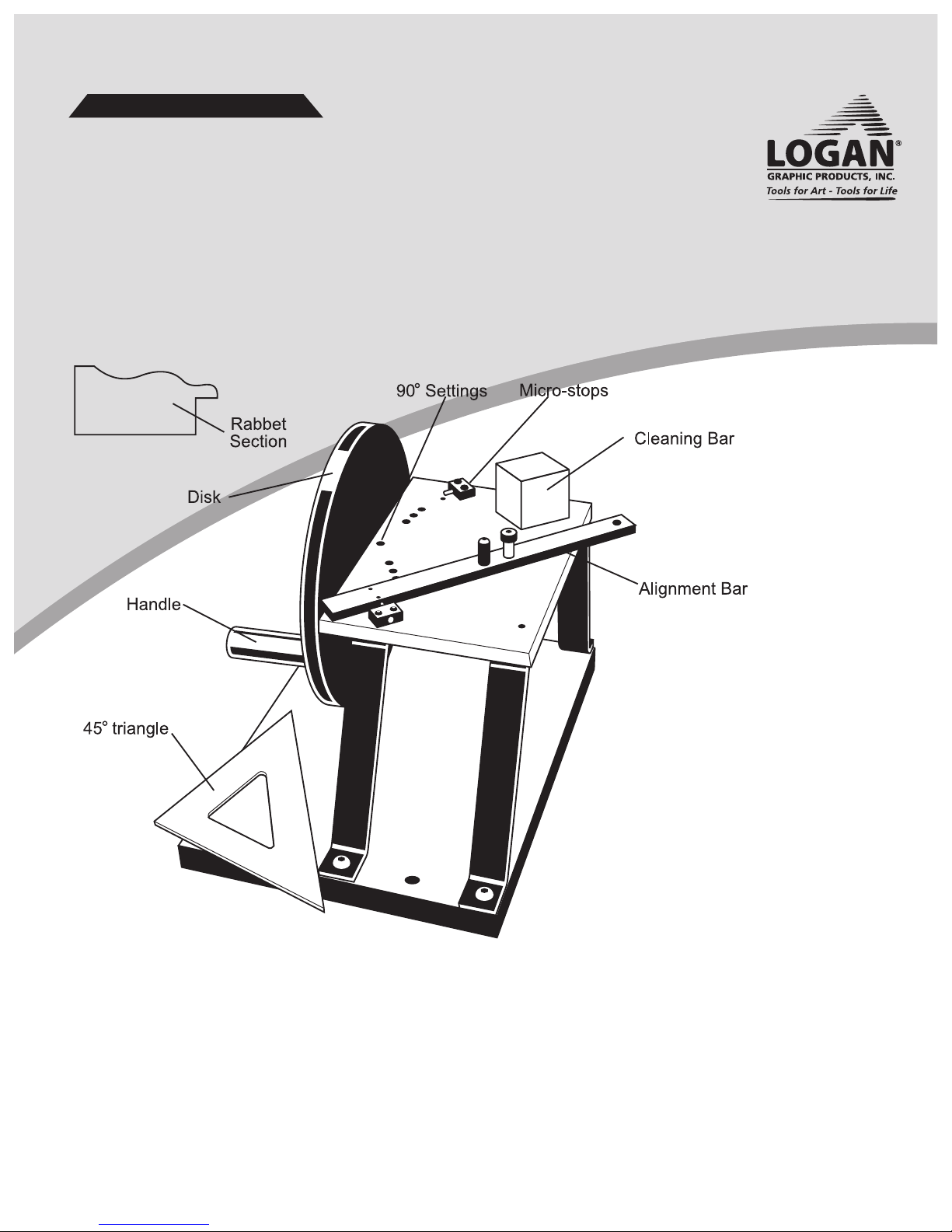

Identification
Disk - 10 lb. wheel which rotates in either direction for sanding.
Handle - Handle to drive wheel.
Alignment Bar - Fence stop that the frame lines up against for sanding. Rotates to three settings.
Micro-stops - Alignment bar adjustments for perfect 45˚ angles.
Cleaning Bar - Used to loosen built-up saw dust on sanding disk.
45˚ Triangle - Used to fine tune micro-stops to 45˚.
Rabbet - Undercut section of frame where framing material stacks onto.
90˚ Setting - Hole for alignment bar to set at 90˚.
Reference Part No. L689N
Rev. 12/08
Instruction Manual
Precision SANDER
Model F200-1

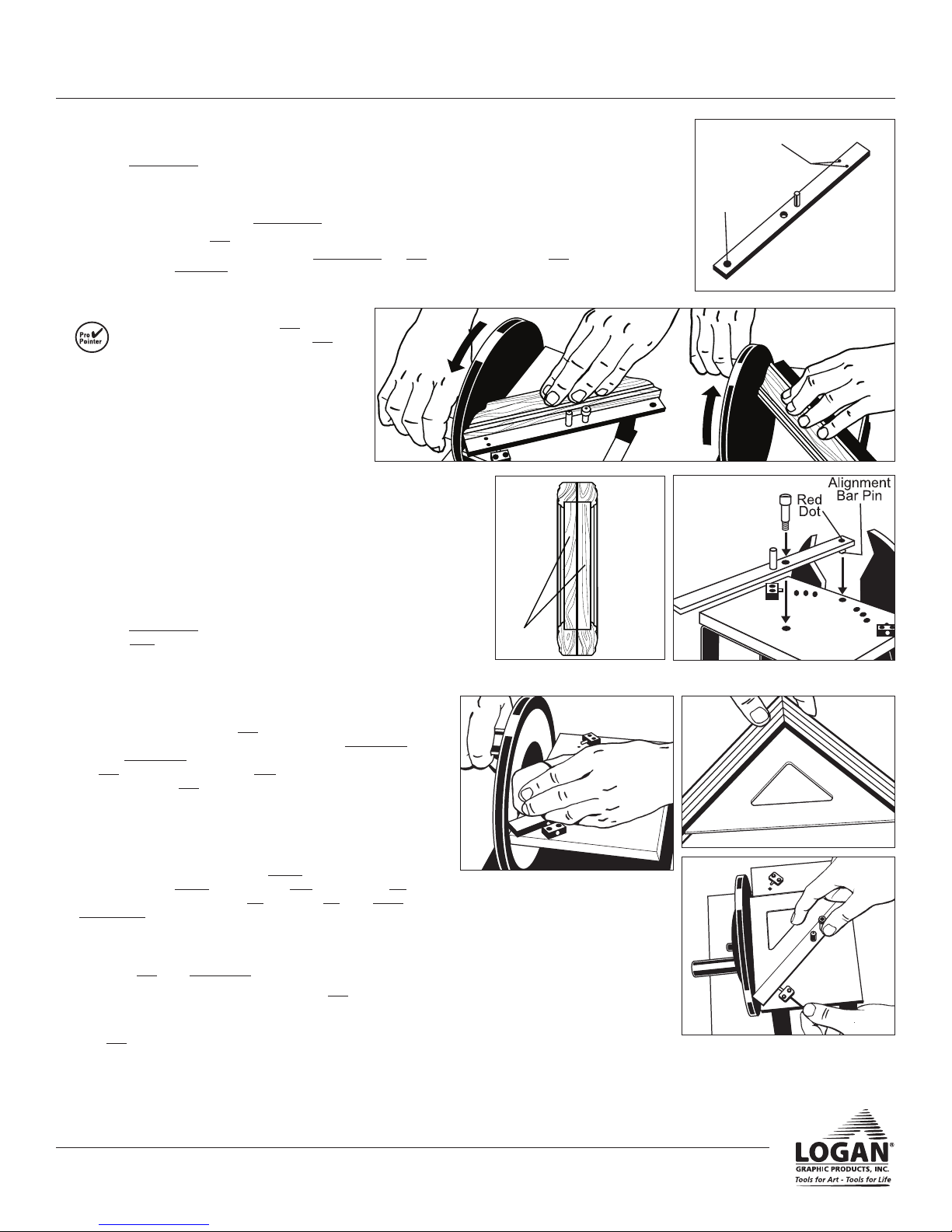

Operation
A. Position
1. Rotate alignment bar
2. For 45˚ settings line up green dots. For 90˚ setting line up red dot.
B. Sanding
1. Place back of moulding against alignment bar
2. Slide moulding against disk.
3. With one hand hold moulding firmly against alignment bar and disk. With other hand rotate disk in the direction of
the moulding or downward onto the top of the moulding (Fig. 2).
4. Rotate disk 4-6 times.
• Adjust the pressure against the disk while
rotating. Start with light pressure until disk is
spinning, then increase the pressure for easier
sanding.
5. Check sanded surface of moulding to see if surface
is smooth (Fig. 3).
6. Repeat until smooth.
C. Check Lengths It is important both sides of
moulding are same length for square frame and seamless
corners.
1. Lay two moulding pieces side-by-side so miters are
facing up.
2. Align the two lower edges.
3. Check to see if the upper edges are even in length
(Fig. 3).
4. If not, sand longer piece until it’s even with short
piece.
D. 90˚ Setting
1. Rotate alignment bar
hole in plate (Fig. 4).
to desired angle (Fig. 1).
with finish side up (Fig. 2).
so red pin in bar fits into red
Fig. 3 Fig. 4
Moulding
Pieces
Fig. 1
Red Dot
Green Dots
Alignment
Bar
Fig. 2
Cleaning
After repeated use the sanding disk will become filled with dust. To
remove the dust use a firm non-metallic brush or the cleaning bar.
Hold the cleaning bar at 45 degrees and move down the length of
the disk
while rotating (Fig. 5). Use light pressure. NOTE: Surface of
sandpaper may not look clean but it is. The dust sticks to the backing material not the raised abrasive grit.
Adjustment
To check 45˚ accuracy, hold the two sanded corners together
upside down and check 90˚ using the square
square, set the 45˚ square flat against the disk and up against bar
(Fig. 7). Look for gaps against the bar. Adjust the bar using adjustment wrench until gap disappears. Test 90˚ again.
provided (Fig. 6). If not
Changing Disk Paper
1. Remove disk using disk wrench.
2. Remove worn sandpaper and clean surface of disk
debris using a razor blade or mineral spirits.
3. Peel off adhesive backing and apply sandpaper
to disk carefully. Press thoroughly to remove any bubbles.
of any glue or
1
Fig. 5 Fig. 6
Fig. 7
Logan Graphic Products Inc., 1100 Brown Street, Wauconda, IL 60084 Toll Free 1 800 331 6232 www.logangraphic.com
Instruction Manual
Precision SANDER

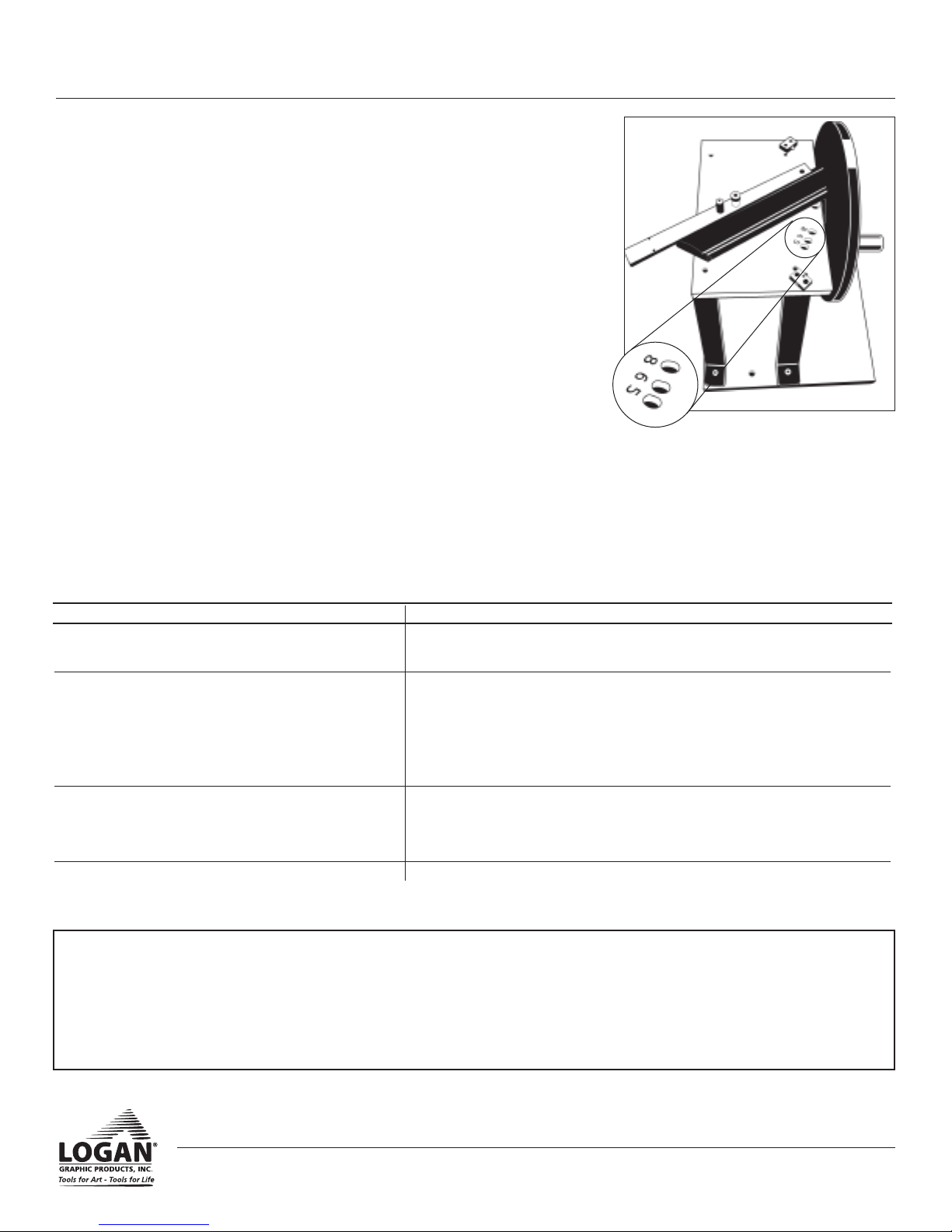

Sanding Frames with more than 4 Sides
The extra holes labeled "5", "6" & "8" on the Precision Sander refer to the quantity of frame sides they are
intended for.
For example, the hole numbered 8 means that you are making an octagonal or 8-sided frame. You would
need 8 pieces of moulding, each cut to the exact same length, and then sanded at the "8" mark (67°
angle).
The same applies for the 6 sided frame (6 pieces of moulding cut to the same length) and sanded at the
"6" mark (60°) and also the 5 sided frame (5 pieces of moulding at the same length) at 54°.
The operation of sanding remains the same for these as it is for the standard 4 sided frame.
Before attempting to make a multi-sided frame you should consider the following:
Note: You will also need an appropriate ‘strap clamp’ to hold all the pieces together while they are
being glued and V-Nailed.
1. How would you cut moulding to the correct angle to create a multi-sided frame?
The Logan Pro-Saw (Model F100-2) has positive stops built-in to the Angle Pivot to simplify the cutting of
multi-sided frames.
For detailed instructions on cutting moulding for frames with more than 4 sides, see separate Logan
Pro-Saw (Model F100-2) operational instructions, available at
http://www.logangraphic.com/manuals/english/F100-2.pdf
2. How would you V-Nail the frame together?
The Logan Studio Joiner (Model F300-1) can be used to join multi-sided frames by removing the beam,
placing the strapped frame in between the posts, and replacing the beam.
Note: Care should be taken when choosing ornate or unusual shaped mouldings to create multi-sided
frames. It may be difficult to stabilize the point of entry for the V-Nail.
For detailed instructions on joining frames with more than 4 sides, see separate Logan Studio Joiner
(Model F300-1) operational instructions, available at
http://www.logangraphic.com/manuals/english/F300-1.pdf
Model F200-1
Trouble Shooting
Problem Solution
Moulding splinters. Reverse sanding direction.
Apply less pressure to surface being sanded.
Not producing 45 degree angle. Refer to instructions for making adjustments using micro-adjustment blocks. Only small incre-
Rough surface after sanding. Clean sanding disk with supplied cleaning bar.
Gaps appear in moulding joints. Sand surface until a fine line of dust appears across the top of the moulding.
mental adjustments are required.
Remove any debris between moulding and fence.
Remove any debris between fence and micro-adjustment stop(s).
Make sure center bolt on sanding wheel is tight.
Replace sand paper disk.
Apply less pressure to surface being sanded.
Warranty
Logan Graphic Products, Inc. (“Logan”) warrants the Precision Sander - Model F200-1, to be free from defects in parts and workmanship for a period of one year
from the date of original purchase. Logan warrants that it will either repair or replace, at its’ sole discretion, any necessary replacement parts found to be defective.
Should the product need to be returned to Logan for repair or replacement parts, authorization for any return must come from Logan in writing. Costs of returning the
product to Logan, including insurances, shall be borne by the purchaser. Logan shall not be liable for any damages or losses, incidental or consequential, direct or
indirect, arising from the use of this product. This warranty extends only to the original purchaser and is not assignable or transferable. This warrantyisinlieuofall
other warranties, expressed or implied.
