LOFTNESS Kwik-Pik 480, Kwik-Pik 600, Kwik-Pik 720, Kwik-Pik 840 User Manual

(Originating w/Serial Number 08-119 thru 08-662)

N14816_I

LOFTNESS SPECIALIZED EQUIPMENT, INC.

WARRANTY POLICY

The warranty policy begins upon delivery of the unit to the original customer.

All Loftness products have a one (1) year warranty policy.

If any Loftness product is used as a rental unit, the warranty period extends for only 30 days from the delivery date to the
original customer.

Loftness Specialized Equipment, hereinafter referred to as LOFTNESS, a manufacturer of quality machinery since 1956, warrants new
LOFTNESS machinery and/or attachments at the time of delivery to the original purchaser, to be free from defects in material and
workmanship when properly set up and operated in accordance with the recommendations set forth in the LOFTNESS Operator’s
Manual.

LOFTNESS’ liability for any defect with respect to accepted goods shall be limited to repairing the goods at an authorized dealer or
other LOFTNESS designated location, or replacing them as LOFTNESS shall elect. The above shall be in accordance with
LOFTNESS warranty adjustment policies. This warranty shall not apply to any machine or attachment which shall have been repaired
or altered outside the LOFTNESS factory or authorized LOFTNESS dealership or in any way so as in LOFTNESS’ judgment, to
affect its stability or reliability, nor which has been subject to misuse, negligence or accident, nor to any machine or attachment which
shall not have been operated in accordance with LOFTNESS’ printed instructions or beyond the company recommended machine
rated capacity.

WARRANTY REQUIREMENTS

Warranty registration form must be filled out and returned to Loftness Specialized Equipment to validate all future warranty
claims.

LIMITATIONS OF WARRANTY

All Products – LOFTNESS products are designed to provide years of dependable service when proper use and maintenance is adhered
to. The potential for misuse in many applications exists, therefore a limited warranty is provided as follows:

All Shredders, Axes, Cutters & Mowers – Rotor Balance: Critical rotor balance can be affected by conditions beyond LOFTNESS’
control, such as the operation of a shredder beyond the Company’s rated capacity, improper knife replacement, missing knives, striking
foreign objects, lack of lubrication, etc. Any failure resulting from running in as “out-of-balance” condition, such as, but not limited to
bearing and or drive-line failure, metal fatigue, cracks, etc. will be considered abuse and will not be covered under warranty.
LOFTNESS may elect to have an area representative evaluate the condition of the machine before warranty is considered.

To receive a warranty claim, a return authorization from LOFTNESS must be obtained. The failed part may then be returned in an
untampered status. This warranty does not include freight or delivery charges incurred when returning machinery for servicing. Dealer
mileage, service calls and pick-up/delivery charges are the customer’s responsibility.

EXCLUSIONS OF WARRANTY

Except as otherwise expressly stated herein, LOFTNESS makes no representation or warranty of any kind, expressed or implied, and
makes no warranty of merchantability in respect to its machinery and/or attachments and makes no warranty that its machinery
and/or attachments are fit for any particular purpose. LOFTNESS shall not be liable for incidental or consequential damages for any
breach of warranty, including but not limited to inconvenience, rental or replacement equipment, loss of profits or other commercial
loss. Upon purchase the buyer assumes all liability, all personal injury and property damage resulting from the handling, possession or
use of the goods by the buyer.

No agent, employee, or representative of LOFTNESS has any authority to bind LOFTNESS to any affirmation, representation or
warranty concerning its machinery and/or attachments except as specifically set forth h

erein.

April 2009

650 South Main Street

Hector, MN 55342 USA

loftness.com 320-848-6266

US & Canada 800-828-7624

International: 320-848-6266 Fax: [phone] Parts Fax: [phone] E-mail: [email protected] Web Address: www.loftness.com

TM

WARRANTY REGISTRATION

Dealer No.:

Dealer Name:

Shipping Address:

Mailing Address:

City:

Invoice No.:

Model No.: Serial No.:

P

FOLLOWING INFORMATION MUST BE FILLED IN COMPLETELY FOR WARRANTY:

Part No.:

State: Zip:

L
E

Customer:

A

Last Name:

First

S
E

Mailing Address:

P

City:

R

I

County:

N
T

Phone: Month Day Year

Dealer Phone:

Middle Initial

State: Zip:

Warranty (Delivered) Date

DEALER

The machine was properly set up, adjusted and inspected
before delivery. The following items were explained to the
purchaser.

* How to operate machine properly as shown in the owner’s
manual.

* The importance of safety precaution, safety equipment
and preventative maintenance.

* Loftness Warranty for this machine.

x

Dealer’s Signature

Date

PURCHASER

I have received and reviewed the operator’s manual for the
above machine and understand the proper and safe operation
as well as the applicable warranty outlined therein.

A customer’s manual is included with each machine.

The unit was delivered to me in satisfactory condition.

x

Purchaser’s Signature

Date

Customer Copy

650 South Main Street

Hector, MN 55342 USA

loftness.com 320-848-6266

US & Canada 800-828-7624

International: 320-848-6266 Fax: [phone] Parts Fax: [phone] E-mail: [email protected] Web Address: www.loftness.com

TM

WARRANTY REGISTRATION

Dealer No.:

Dealer Name:

Shipping Address:

Mailing Address:

City:

Invoice No.:

Model No.: Serial No.:

P

FOLLOWING INFORMATION MUST BE FILLED IN COMPLETELY FOR WARRANTY:

Part No.:

State: Zip:

L
E

Customer:

A

Last Name:

First

S
E

Mailing Address:

P

City:

R

I

County:

N
T

Phone: Month Day Year

Dealer Phone:

Middle Initial

State: Zip:

Warranty (Delivered) Date

DEALER

The machine was properly set up, adjusted and inspected
before delivery. The following items were explained to the
purchaser.

* How to operate machine properly as shown in the owner’s
manual.

* The importance of safety precaution, safety equipment
and preventative maintenance.

* Loftness Warranty for this machine.

x

Dealer’s Signature

Date

PURCHASER

I have received and reviewed the operator’s manual for the
above machine and understand the proper and safe operation
as well as the applicable warranty outlined therein.

A customer’s manual is included with each machine.

The unit was delivered to me in satisfactory condition.

x

Purchaser’s Signature

Date

Loftness Copy

Owner’s Manual (Kwik-Pik)

Kwik-Pik

Skid-steer Mounted Rockpicker

Table of Contents

Section 1 - Safety Page

Safety Instructions ......................................................................................................................................................... 1-1

Safety Instructions for Operation ................................................................................................................................ 1-2

Section 2 - Operating

Equipment Set-up .......................................................................................................................................................... 2-1

Operating Instructions .................................................................................................................................................. 2-2

Section 3 – Maintenance

Maintenance .................................................................................................................................................................... 3-1

Storage ............................................................................................................................................................................. 3-1

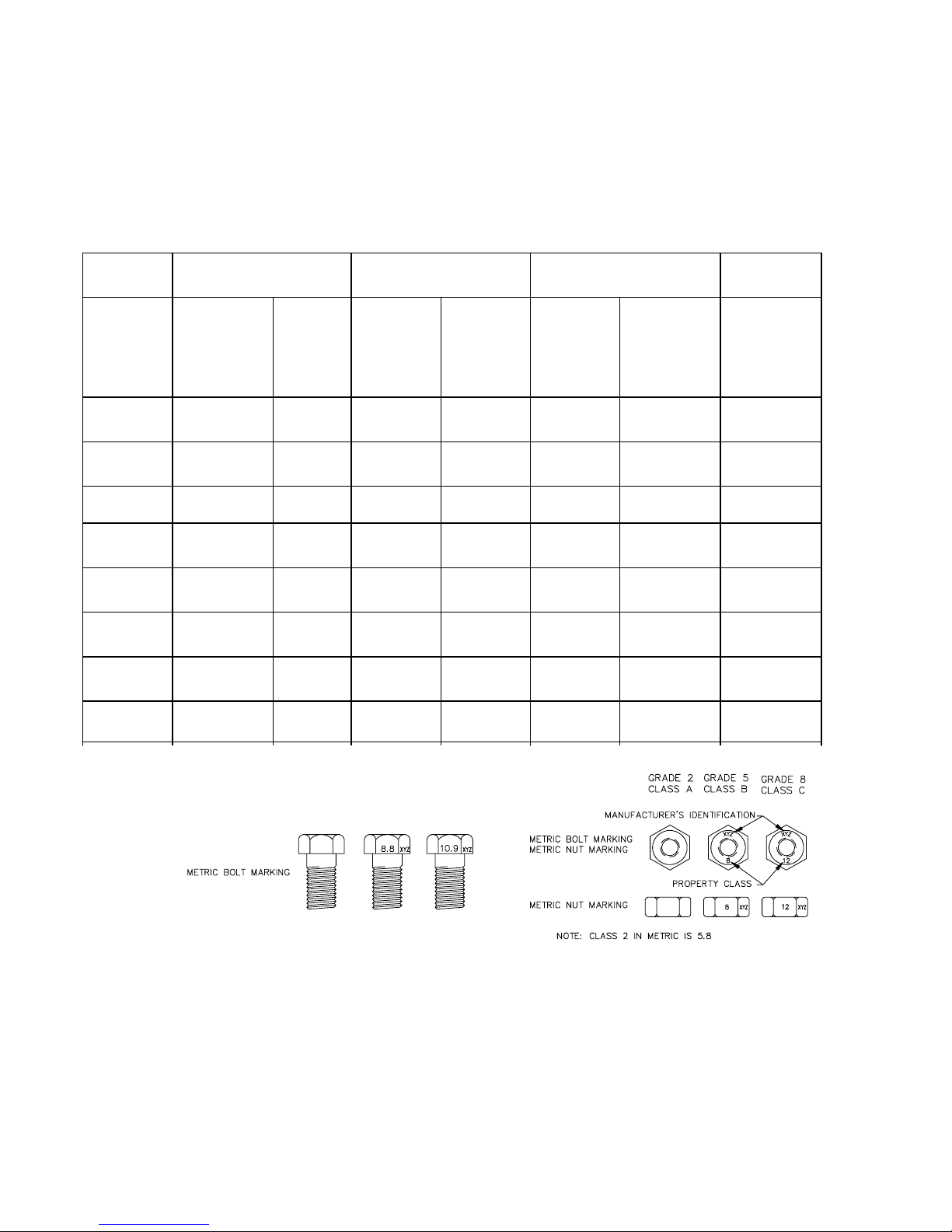

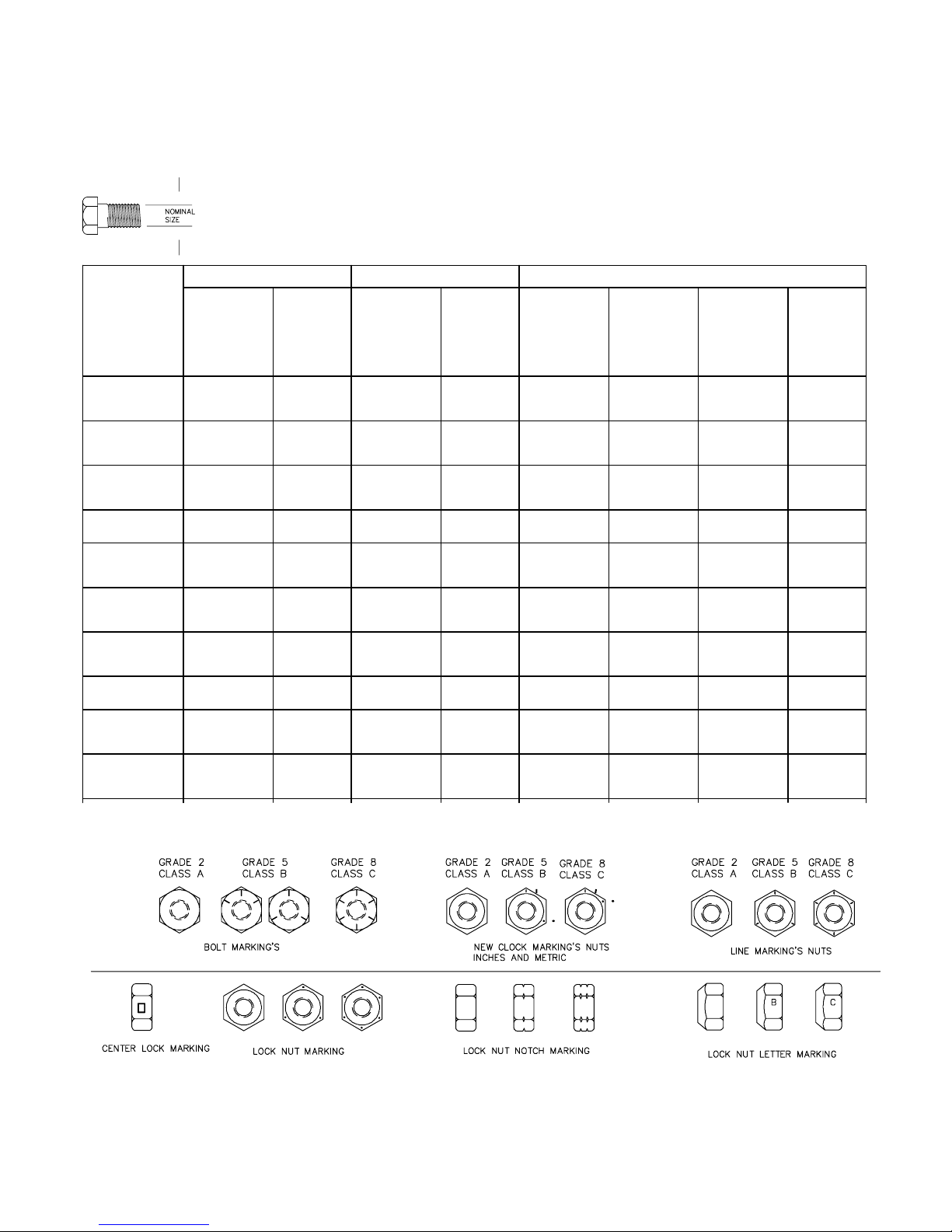

Bolt Torque Chart .......................................................................................................................................................... 3-2

Section 4 – Service Parts

Ordering Service Parts .................................................................................................................................................. 4-1

Return Policy .................................................................................................................................................................. 4-1

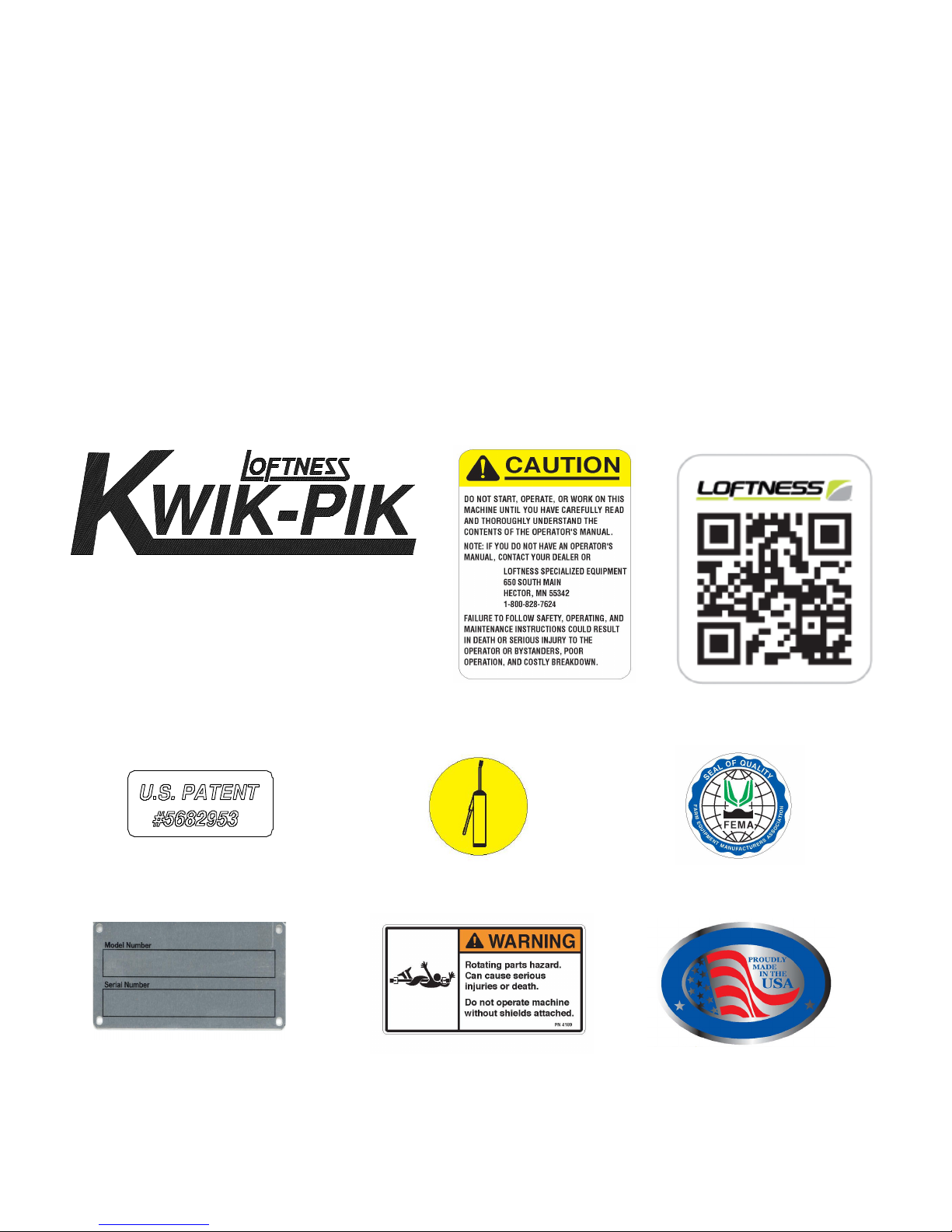

Decal List ........................................................................................................................................................................ 4-2

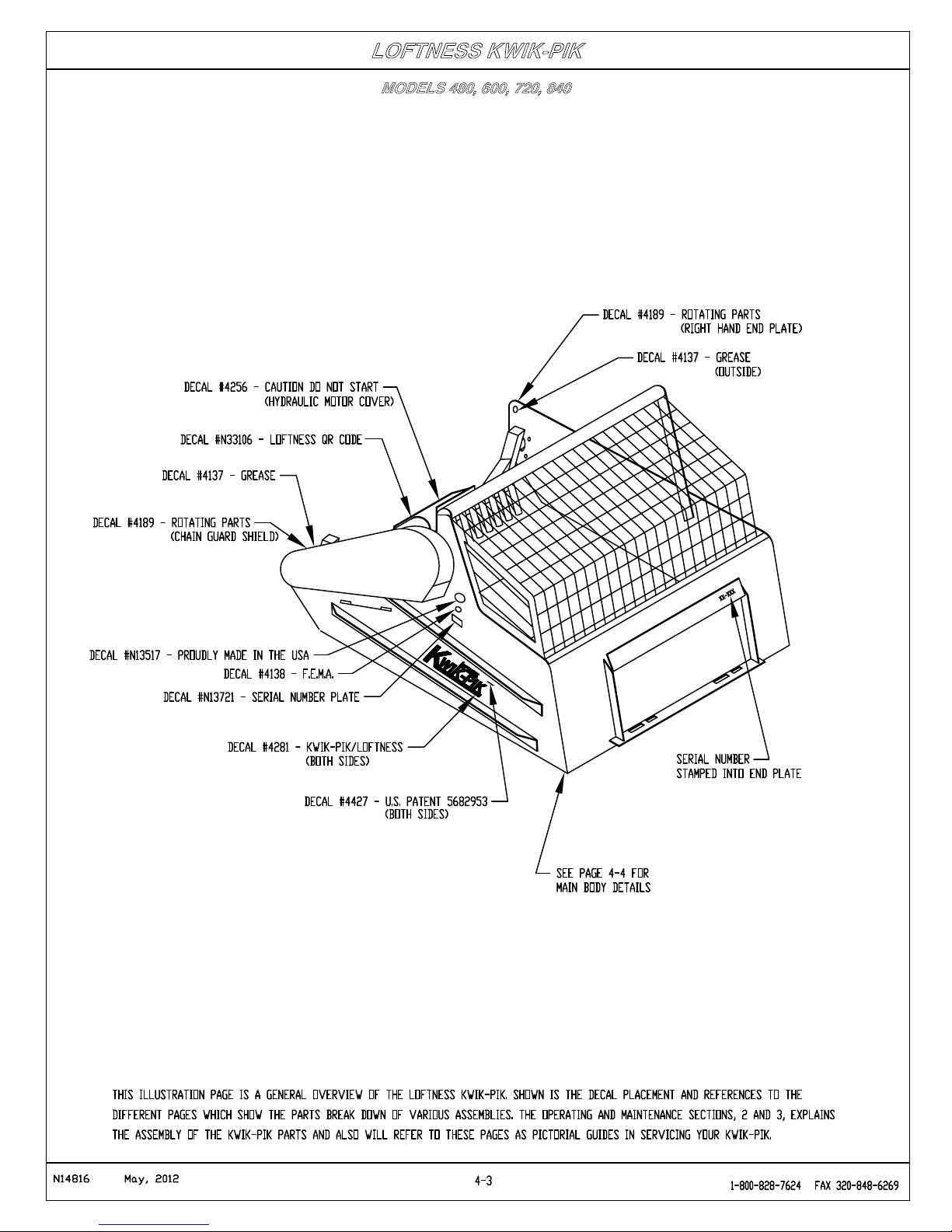

Decal Locations .............................................................................................................................................................. 4-3

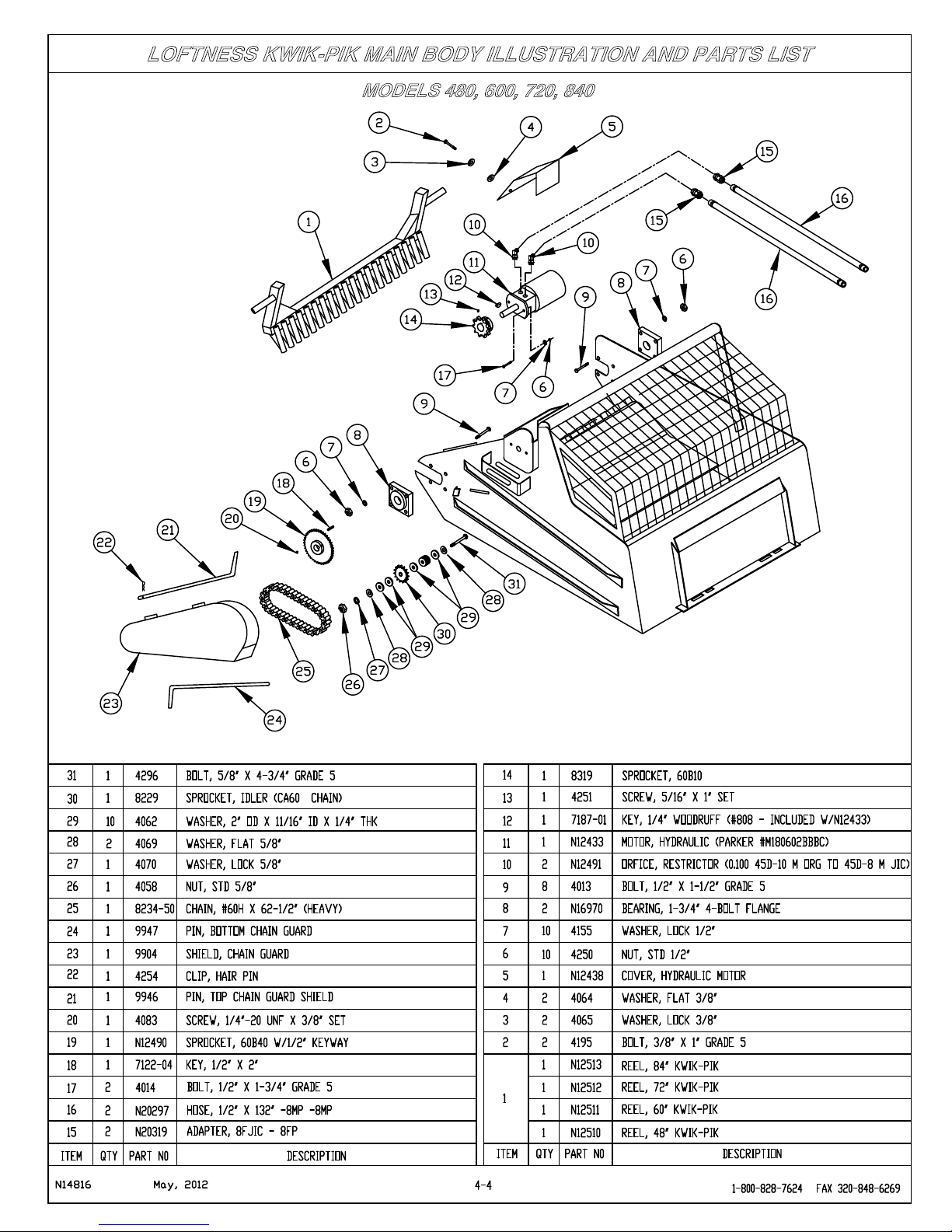

Parts Lists and Drawings .............................................................................................................................................. 4-4

N14816 May, 2011

Specialized
Equipment, Inc.

650 So. Main St. - PO Box 337 - Hector, MN 55342

Business Phone: [phone] * Fax: [phone] * Toll Free: 1-800-828-7624

Dear Customer:

Thank you for your decision to purchase a Kwik-Pik loader mounted rock picker from Loftness Specialized
Equipment, Inc. It has been designed to provide years of profitable and dependable service. To ensure maximum
performance of your Kwik-Pik, it is mandatory that you thoroughly study the owner’s manual and follow its
recommendations. Proper operation and maintenance are essential to maintain and maximize the life of the
machine and to prevent damage or injury.

It is the owner’s responsibility to:

 Operate and maintain this loader mounted rock picker in a safe manner and in accordance with all
applicable local, state, and federal codes, regulations and/or laws, and in compliance

with on-product labeling and these instructions.

 Make sure that all personnel have read this owner’s manual and thoroughly understand
safe and correct operating, installation, and maintenance procedures.

 Provide impact-resistant shielding on the power unit to protect the operator from the
possible dangers of flying debris.

 Make sure the loader mounted rock picker is set-up correctly before being placed in service. It should
be serviced at regular intervals thereafter, in accordance with procedures outlined in this manual.

 Fulfill all warranty obligations so as not to void the warranties. The warranty section at the
beginning of this manual outlines the warranty policy of Loftness Specialized Equipment, Inc.

Loftness Specialized Equipment, Inc. reserves the right to make product improvements to the equipment at any
time.

We welcome you to the satisfied family of Loftness equipment owners.

Gloria Nelson, President
Steve Nelson, Vice-President
Dave Nelson, Vice-President

May, 2011

Section

1

Safety

WARNING

Because of the potential safety hazard to eyes from
hydraulic leaks and/or flying debris, “USE OF

PROTECTIVE EYEWEAR IS ABSOLUTELY
MANDATORY” for operator and others in the work

area.

Due to the possible danger of flying debris, it is

“ABSOLUTELY MANDATORY that IMPACT­RESISTANT SHIELDING” be provided on the

power unit to protect the operator. The owner is
responsible for providing the operator protection
devices on the power unit.

Owner’s Manual (Kwik-Pik)

Safety Instructions

Safety First

Accidents can be prevented by recognizing the
causes or hazards before an accident occurs, and
doing something about them. Read this manual and
your EMI skid-loader safety manual carefully and
become familiar with the controls and proper use of
the machine. Know how to stop the unit by
disengagement of the controls. Be sure the operator
knows how to exercise the “Mandatory Shut-down
Procedure” (section 1, page 1-2).

Regardless of the care used in the design and
construction of this equipment, there are some areas
that cannot be safeguarded without interfering with
accessibility and efficient operation.

TAKE NOTE! THIS SAFETY ALERT
SYMBOL FOUND THROUGHOUT THIS
MANUAL IS USED TO CALL YOUR
ATTENTION TO INSTRUCTIONS
INVOLVING YOUR PERSONAL SAFETY
AND THE SAFETY OF OTHERS. FAILURE
TO FOLLOW THESE INSTRUCTIONS CAN
RESULT IN INJURY OR DEATH.

THIS SYMBOL MEANS

*ATTENTION

*BECOME ALERT

*YOUR SAFETY IS INVOLVED

These safety alert symbols shown, are intended to
identify and provide information that must be
heeded for proper safe operation of the equipment
and to prevent damage or deterioration of the
equipment. In this manual and on labels used on
this Kwik-Pik the words “Danger”, “Warning”, and
”Caution” are used to indicate the following:

DANGER: (white lettering on red
background) Indicates am imminently hazardous
situation that, if not avoided, will result in death or
serious injury. This signal word is to be limited to
the most extreme situations typically for machine
components which, for functional purposes,
cannot be guarded

WARNING: (black lettering on orange
background) Indicates a potentially hazardous
situation that, if not avoided, could result in death
or serious injury, and includes hazards that are
exposed when guards are removed. It may also be
used to alert against unsafe practices.

CAUTION: (black lettering on yellow
background) Indicates a potentially hazardous
situation that, if not avoided, may result in minor
or moderate injury. It may also be used to alert
against unsafe practices.

The following safety information is a general
overview of precautions that should be adhered to:

1. Read this manual carefully. Become
thoroughly familiar with the controls and
proper use of the machine. Insure that
all operators know how to stop the unit
by disengagement of the controls using
the “Mandatory Shut-Down Procedure”
(section 1, page 1-2).

2. Remember, it is the owner’s
responsibility for communicating all
information on the safe use and proper
maintenance of this machine.

3. Never allow children to operate
equipment equipment. Allow adults to
operate the equipment only after
receiving the proper instructions. Keep
the area of operation clear of all
unauthorized persons.

N14816 1 - 1 January, 2005

Owner’s Manual (Kwik-Pik)

Safety Instructions Continued

Safety First Continued:

4. Never attempt to make any adjustments
while the engine is running or the key is
in the “ON” position of the power
source. Before leaving the operator’s
position, disengage power to the Kwik­Pik and remove ignition key.

5. Disengage hydraulic control valve and
place power source controls in neutral or
park before starting engine.

Safety Instructions for Operation and
Maintenance

The following safety warnings are used here and on
the Kwik-Pik. Become familiar with them before
operating this machine.

Mandatory Shut-Down Procedure:

• Stop hydraulic driven reel at its lowest point of
travel.

• Lower Kwik-Pik to rest on the ground.

• Engage parking brake.

• Stop engine and remove ignition key.

• Release pressure in all hydraulic circuits.

Remember:

The careful operator is the best operator. Most
accidents are caused by human error. Certain
precautions must be observed to prevent the
possibility of injury or damage.

The following Hazard Warnings are used here or
on the Kwik-Pik. Become very familiar with them
before operating this machine. Failure to obey
warnings can cause injury or death.

Warning:

• Do not start, operate or work on this machine
until you have carefully read and thoroughly
understand the contents of this manual, the
operator’s manual for your loader, and the EMI
Skid-Loader Safety Manual provided with the
Kwik-Pik.

• Failure to follow safety, operating and
maintenance instructions could result in death or
serious injury to the operator or bystanders,
poor operation, and costly breakdown.

• Become familiar with and know how to use all

the safety devices and controls on the Kwik-Pik
before attempting to operate the unit. Know
how to stop the unit before starting it (see
“Mandatory Shut-Down Procedure).

• Before working under any hydraulically

controlled implement, be certain it is securely
blocked.

• When high pressure fluid escapes it can be

almost invisible, yet have enough pressure to
penetrate the skin and enter the blood stream.

Never attempt to use hands to search for a
suspected oil leak. If injured by escaping fluid,

consult a doctor at once! Serious reaction or
infection can occur if proper medical treatment
is not obtained immediately.

• To prevent serious personal injury from
escaping high pressure fluid, never attempt to
inspect, service or disassemble any part of the
hydraulic system until all pressure has been
relieved from the system.

• Keep children, spectators and other workers off
and away from the machine while it is operating
or engine is running. Do not carry passengers.

• Because of the potential safety hazard to eyes
from hydraulic leaks and/or flying debris, use of

N14816 1 - January, 2005

2

Owner’s Manual (Kwik-Pik)

Safety Instructions for Operation and
Maintenance Continued:

protective eyewear is absolutely mandatory

for operator and others in the work area.

• Before inspecting, cleaning, lubricating, adjusting
or servicing any part of the Kwik-Pik, always
exercise the “Mandatory Shut-Down
Procedure. After service has been performed,
be sure to restore all guards, shields and covers
to their original position.

• Always use an approved rollbar and seatbelt for
safe operation. Overturning a loader without
using these protective devices can result in
injury or death.

• Do not wear loose or baggy clothing around
moving machinery.

Be especially carefully not to touch loader or any

•

attachment parts which might be hot from
operation. Allow such parts to cool before
attempting to maintain, adjust or service.

• Operating Kwik-Pik reel at more that 35 RPM

can cause injury or death and result in
component damage to machine (see initial set­up in section 2, page 2-1).

• Use the hand holds and step plates when getting

on and off the loader to prevent falls. Keep
steps and platform clean from mud and debris.

• The operator must not use drugs or alcoholic

drinks which impair their alertness or
coordination while working. An operator who is
taking prescription drugs must get medical
clearance to verify that he can safely operate a
machine.

Warning:

• Read and observe all warning decals on machine
before attempting to operate the Kwik-Pik. Do
not attempt to operate this machine unless all
factory installed safety devices and decals are in
place. Keep safety decals clean from dirt and
grime. If they become damaged, or it the unit is
repainted, replace the decals.

• Never operate the Kwik-Pik without guards,
shields, plates, or other safety precaution devices
in place. Shields are for your protection, keep
them in place.

• Entanglement from rotating components can

result in personal injury or death, keep hands
and feet away. Do not step on or climb over
the unit while the machine is in operation or
engine is running. Do not carry passengers.

Never operate the Kwik-Pik without good light

•

and visibility.

Warning:

•

Before using the Kwik-Pik on a new job site,
check the rules and regulations at the location.
The rules may include an employer’s work safety
requirements. Regulations my identify a hazard
such as buried cables.

• Never dump over a post or any obstruction that

could enter the operator’s cab if the loader
accidentally tips forward, causing serious injury
or death.

• Locking-wedge pins must extend through the

holes in attachment mounting plate. Levers must
be fully down in the locked over-center position.
Failure to secure wedge pins can allow
attachment to come off, causing serious injury
of death.

• Make sure all the controls (levers, pedals and

switches), are in the neutral position before
staring the loader engine.

N14816 1 - January, 2005

3

Owner’s Manual (Kwik-Pik)

Safety Instructions for Operation and
Maintenance Continued:

• Operate the Kwik-Pik only from the operator’s

seat.

• Keep your feet on the pedals (floor plates), seat

belt fastened snuggly and seat bar lowered (if
equipped), when operating the Kwik-Pik.

• Never operate the Kwik-Pik in a lifted position.

Work only on the surface that the loader is
standing on.

• Do not try to load a difficult rock by forcing or

beating the reel on the rock. Misuse of this kind
could throw rock or debris through the air,
becoming a serious safety hazard for the
operator and others in the area, or cause costly
damage to components on the machine.

• The Kwik-Pik reel should sweep the rock into

the bucket easily, if a rock is too heavy or
becomes wedged between reel and tines, try one
of the following techniques to dislodge it:

1. Reposition tines under the rock further,
then reactivate the reel.

2. Using the reel to hold the rock, tilt the
bucket lift cylinders back to improve
angle, release pressure on the reel
momentarily, then reactivate reel to
sweep the rock into bucket.

3. Roll the rock on the ground with tines to
try a different position.

Warning:

• Do not exceed rated capacity for your model of

loader. Refer to your loader’s operator manual
for safe lift capacities. Load, unload and turn on
flat level ground. Failure to obey warnings can
cause the machine to tip or roll over and cause
injury of death.

• When considering safe lift limits, remember to

combine the additional weight of your Kwik-Pik
plus the weight of the payload you intend to
carry.

• This chart is intended to be used as an example

only. All weights are estimates as actual weights
of different types of rocks and other materials
will vary greatly.

Kwik-Pik Model 480 Model 600

Capacity 1/2 cu. yd. 5/8 cu. yd
Added Wt. 400#(est) 500#(est)
Rocks Wt. 1400#(est) 1750#(est)
Operating 1800#(est) 2250#(est)

Kwik-Pik Model 720 Model 840

Capacity 3/4 cu. yd. 1 cu. yd
Added Wt. 600#(est) 700#(est)
Rocks Wt. 2100#(est) 2450#(est)
Operating 2700#(est) 3000#(est)

Note:

Capacity is size of bucket

Added Wt. is additional weight of Kwik-Pik
over standard bucket.

Rocks Wt. is estimated weight of full load of
rocks.

Operating is operating load capacity
required.

• Use of rear counter weights is recommended for
better traction and stability.

• To maintain stability and visibility, carry the
Kwik-Pik as low as possible at all times. If you
must lift higher to dump, be certain that the
combined weight of the Kwik-Pik plus the load
within it does not exceed manufacturer’s lifting
capacity for your loader.

N14816 1 - January, 2005

4

Owner’s Manual (Kwik-Pik)

Safety Instructions for Operation and
Maintenance Continued:

• When it is apparent that you cannot lift the
entire load safely, dump part of the material
onto the ground, then safely transport the rest
of the load to the desired location, return to pick
up the remainder of the load and dump it at the
previously designated location. Learn the limits
of your machine and only fill the hopper to the
point that you can handle it safely.

• Do not modify equipment or add attachments
that are not approved by the manufacturer.

Danger:

• Hydraulic system can contain stored energy or
pressure when and if the reel becomes jammed
or stuck. This energy could be released when
working on the machine, causing serious injury
or death. If you need to manually remove an
obstruction from the machine, be sure to use the
“Mandatory Shut-Down Procedure” (section 1,
page 1-2) and release all pressure from the
hydraulic lines before attempting to work on the
machine.

N14816 1 - January, 2005

5

Section

2

Operating

WARNING

Because of the potential safety hazard to eyes from
hydraulic leaks and/or flying debris, “USE OF

PROTECTIVE EYEWEAR IS ABSOLUTELY
MANDATORY” for operator and others in the work

area.

Due to the possible danger of flying debris, it is

“ABSOLUTELY MANDATORY that IMPACT­RESISTANT SHIELDING” be provided on the

power unit to protect the operator. The owner is
responsible for providing the operator protection
devices on the power unit.

Owner’s Manual (Kwik-Pik)

General Specifications

The following information is an overview of the
Kwik-Piks general specifications:

• Fits most skid-loaders with bi-directional
auxiliary hydraulics.

• Single hydraulic functions requires 3-6 GPM at
2000 PSI.

• Bi-directional orbital motor reverses reel
operation.

• 3/16” Side plates, 1/4” back plate, and grated
bucket floor.

• All tines 1” high carbon steel.

• Chain is #60.

• 1-3/4” Bearings on reel.

Models 480 600 720 840

Width 48” 60” 72” 84”
Opening 24” 24” 24” 24”
Rock Sizes 2”-24” 2-24” 2”-24” 2”-24”
Cap. (cu yds) 1/2 5/8 3/4 1
Weight (lbs) 830 . 1005 1140 . 1425

Set-up and Operating Instructions

Equipment Set-up:

To attach the Kwik-Pik to the loader using a
“Universal Mounting Plate”, proceed as follows:

1. Pull the attachment locking levers all the way up.

2. Tilt the loader mounting plate ahead, drive
forward with the loader, and hook the top edge
of he mounting plate under the flange on the
Kwik-Pik mount. Care should be taken so as not
to damage the locking levers on the loader
mounting plate.

3. Tilt the loader mounting plate back until you
feel the weight of the Kwik-Pik transfer to the
loader tires, however, do not lift the attachment
off the ground. Stop the engine.

Warning:

• Before you leave the operator’s seat, lower the
lift arms, and put the attachment on the ground.
Stop engine and remove ignition key. Engage
the parking brake.

4. Push the locking levers down into the locked
over-center position.

Warning:

• Locking wedge pins must extend through the
holes in the attachment mounting plate. Levers
must be fully down in the locked and over
center position. Failure to secure wedge pins can
allow attachment to come off and cause injury
or death.

5. Connect hydraulic quick couplers from the
Kwik-Pik to the auxiliary hydraulic outlets on
the loader. (A bi-directional auxiliary hydraulic
outlet providing a minimum of 3-6 GPM at
2000 PSI is required).

Note:

It is the owner’s responsibility to provide two hoses
(3,000 lb. hydraulic hose with 1/2” male NPTF
fittings) of proper length for use on the loader.
Hoses should be carefully routed across, and
fastened to the protective screen to avoid getting
pinched by moving parts. Be sure to provide enough
extra hose length to provide maximum range of
motion without damage to hoses. Route hoses down
the back of the Kwik-Pik to a point even with the
main bucket hinge and back up to the couplers on
the loader boom.

Reverse procedure to unhook from the Kwik-Pik.

N14816 2 - 1 January, 2005

Owner’s Manual (Kwik-Pik)

Set-up and Operating Instructions Continued

Operating:

The Loftness Kwik-Pik is an effective, reliable
machine used for the removal of rocks. Before
operating this machine, become familiar with and
study all the hazard warnings and safety precautions
listed in this book.

Once the Kwik-Pik is attached to your loader, test
run the reel to check for hydraulic leaks and reel
speed.

Check the reel speed by operating reel forward with
engine running at full throttle and carefully counting
the RPM (revolutions per minute). If the reel turns
at more than 35 RPM’s with your loader, DO NOT
USE the Kwik-Pik. Contact your Loftness dealer
immediately. You will be provided with smaller
orifices to correct the operating speed of the reel.
Allowing reel to turn at more than 35 RPM would
void the warranty.

The hydraulic driven reel is intended for intermittent
use only. “Do Not Operate it Continuously”.
During normal operation, you’ll want to carry the
reel in its highest position for best visibility when
approaching rocks. Then, only operate reel one
revolution at a time as the front tines of the Kwik­Pik are positioned under individual rocks.
Continuous operation of reel would create
unnecessary heat in the hydraulic system, causing
premature component failure.

The Kwik-Pik was carefully designed to give you as
much strength and durability as possible while
remaining light enough for safe, efficient operation.
Its intended purpose is to pick up and haul away
loose rock or debris measuring from 2” to 24” in
diameter. Any use other that that for which it was
intended (digging or ramming trying to dislodge
large, partially buried objects) will void the warranty.

Caution:

• To avoid damage to the Kwik-Pik, make sure
the chain is properly tensioned and hydraulic
motor bolts are retorqued after one (1) hour of
operation and every twenty-five (25) hours
thereafter. Chain should have one inch of
deflection (Do Not over tighten chain).

Warning:

• Do not try to load a difficult rock by forcing or
beating the reel on the rock. Misuse of this kind
could throw rock or debris through the air,
becoming a serious safety hazard for the
operator and others in the area, or cause costly
damage to components on the machine.

• Do not exceed rated capacity for your model of
loader. Refer to your loader’s operators manual
for safe lift capacities. Load, unload and turn on
flat level ground, failure to obey warnings can
cause the machine to tip or roll over and cause
injury or death.

Danger:

• Hydraulic systems can contain stored energy or
pressure when and if the reel becomes jammed
or stuck. If you need to manually remove an
obstruction from the machine, be sure to use the
“Mandatory Shut-Down Procedure” (section
1, page 1-2) and release all pressure from the
hydraulic lines before attempting to work on the
machine. This energy if not released, could be
released when working on the machine, causing
serious injury or death.

Remember, when considering safe limits, be sure to
combine the additional weight of your Kwik-Pik
plus the weight of the payload you intend to carry.

N14816 2 - 2 January, 2005

Section

3

Maintenance

Owner’s Manual (Kwik-Pik)

Maintenance

The operation and component life of this machine
are very dependent on regular maintenance and
proper lubrication. The frequency of lubrication
recommended is based on normal conditions.
Severe or unusual conditions may determine actual
service requirements.

All service routines are understood to be owner­operator responsibilities.

Warning:

• Do not work on this machine until you have
carefully read and thoroughly under stand the
contents of this manual, the operator’s manual
of your loader, and the EMI Safety Manual
provided with the Kwik-Pik.

• Before inspecting, cleaning, lubricating, adjusting
or servicing any part of the Kwik-Pik, always
exercise the “Mandatory Shut-Down
Procedure” (section 1, page 1-2).

• Before working under any hydraulically
controlled implement, be certain it is securely
blocked.

• Be especially careful not to touch loader or any
attachment parts which might be hot from
operating. Allow such parts to cool before
attempting to maintain, adjust or service.

• Always wear safety goggles or glasses when
working on hydraulic system to avoid eye injury.

• When high pressure fluid escapes, it can be
almost invisible, yet have enough pressure to
penetrate the skin and enter the blood stream.
To prevent this, never attempt to inspect,
service, or disassemble any part of the hydraulic
system until all pressure has been relieved. If
injury should occur, consult a doctor at once.
Serious reaction or infection can occur if proper
medical attention is not obtained immediately.

• Hydraulic systems can contain stored energy or
pressure when and if the reel becomes jammed
or stuck. This energy could be released when
working on the machine. If you need to
manually remove an obstruction from the
machine, be sure to use the “Mandatory Shut-
Down Procedure” (section 1, page 1-2),
release all pressure from the hydraulic lines, then
proceed to work on the machine.

Inspect and service after one (1) hour of operation
all bolts, set screws on bearings, sprockets and
motor mount. Also, check sprockets for alignment
and the chain for proper tension (1” of deflection).

Regular maintenance should then be scheduled for
every twenty five (25) hours of operation thereafter
to insure the sprocket and chain maintains proper
alignment, tension and is kept well lubricated.
Bearings are greased, all bolts and set screws tight.

Warning:

• Replace and keep all guards, shields and decals
in place.

Storage:

Storage at the end of the rock picking season or
between each use, requires an inspection of the
Kwik-Pik for repairs and general upkeep to insure it
will be ready for future use. Below is a list of
considerations for long term storage:

• The reel must be stopped and stored in the
lowest position. If the reel is left in any raised
position, it could suddenly swing down without
warning causing serious injury or death.

• Clean any excess dirt from main frame, tines,
and inside of hydraulic motor mounting box.

• Keep the drain holes in bottom of box clean and
free from of debris.

• Oil chain and lubricate grease fittings, paint all
worn parts to prevent rusting.

N14816 3 - January, 2005

1

Owner’s Manual (Kwik-Pik)

Torque Charts

Minimum Hardware Tightening Torques

In Foot Pounds (Newton-Metres) for Normal Assembly Applications

Inches Hardware and Lock Nuts

SAE Gr. 2 SAE Grade 5 SAE Grade 8 Lock Nuts
Nominal Unplated Plated Unplated Plated Unplated Plated Grade Grade
Size or W/ZnCr or W/ZnCr or W/ZnCr W/Gr.5 W/Gr.8
Plated Plated Plated Bolt Bolt
Silver Gold Silver Gold Silver Gold

1/4 55* (6.2) 72* (8.1) 86* (9.7) 112* (13) 121* (14) 157* (18) 61* (6..9) 86* (9.8)

5/16 115* (13) 149* (17) 178* (20) 229* (26) 250* (28) 324* (37) 125* (14) 176* (20)

3/8 17 (23) 22 (30) 26 (35) 34 (46) 37 (50) 48 (65) 19 (26) 26 (35)

7/16 27 (37) 35 (47) 42 (57) 54 (73) 59 (80) 77 (104) 30 (41) 42 (57)

1/2 42 (57) 54 (73) 64 (87) 83 (113) 91 (123) 117 (159) 45 (61) 64 (88)

9/16 60 (81) 77 (104) 92 (125) 120 (163) 130 (176) 169 (229) 65 (88) 92 (125)

5/8 83 (112) 107 (145) 128 (174) 165 (224) 180 (244) 233 (316) 90 (122) 127 (172)

3/4 146 (198) 189 (256) 226 (306) 293 (397) 319 (432) 413 (560) 160 (217) 226 (306)

7/8 142 (193) 183 (248) 365 (495) 473 (641) 515 (698) 667 (904) 258 (350) 364 (494)

1 213 (289) 275 (373) 547 (742) 708 (960) 773 (1048) 1000 (1356) 386 (523) 545 (739)

N14816 3 - January, 2005

2

Owner’s Manual (Kwik-Pik)

Torque Charts

Minimum Hardware Tightening Torque

Inch Pounds for Normal Assembly Applications

Metric Hardware and Lock Nuts

Class 5.8 Class 8.8 Class 10.9 Lock Nuts

Nominal Unplated Plated Unplated Plated Unplated Plated Class 8
Size or W/ZnCr or W/ZnCr or W/ZnCr W/CL.8.8
Plated Plated Plated Bolt
Silver Gold Silver Gold Silver Gold

M4 15* (107) 19* (2.2) 23* (2.6) 30* (3.4) 33* (3.7) 42* (4.8) 16* (1.8)

M6 51* (5.8) 67* (7.6) 79* (8.9) 102* (12) 115* (13) 150* (17) 56* (6.3)

M8 124* (14) 159* (18) 195* (22) 248* (28) 274* (31) 354* (40) 133* (15)

M10 21 (28) 27 (36) 32 (43) 41 (56) 45 (61) 58 (79) 22 (30)

M12 36 (49) 46 (63) 55 (750 72 (97) 79 (107) 102 (138) 39 (53)

M16 89 (121) 117 (158) 137 (186) 177 (240) 196 (266) 254 (344) 97 (131)

M20 175 (237) 226 (307) 277 (375) 358 (485) 383 (519) 495 (671) 195 (265)

M24 303 (411) 392 [phone]) 619 (839) 662 (897) 855 (1160) 338 (458)

N14816 3 - January, 2005

3

Section

4

Service Parts

Owner’s Manual (Kwik-Pik)

Service Parts

Ordering Service Parts:

To assist our customer service department in providing you with the correct replacement parts promptly and
accurately, follow the ordering instructions as listed below.

1. Order replacement parts by providing the following information:

A) Kwik-Pik serial number - Refer to serial number plate, which also includes the model number,
located on left hand side end plate, centered. Or if the plate is

missing, check the top flange of the mounting plate, right side
(serial number is stamped into the flange). Refer to page
4-3 for all decal locations and additional service information.

B) Part description - Illustration drawings are provided to assist in identifying the parts by
description and part numbers. Use this information to insure that
correct service parts are ordered and sent to you.

C) Quantities - Order the exact number of parts required, do not order by “sets”.

D) Shipping instructions - Give company/customer name, shipping point or will call and mailing
addresses notification if different than shipping point. State whether
freight, express, parcel or other handling is desired. Confirm telephone
orders in writing.

2. Inspection of parts when received is important. Damages or shortages should be brought to the attention of
the carrier at the time the parts are accepted. Shipper’s responsibilities cease upon delivery of shipment, in
good order, to the customer.

Return Policy:

Return of parts for either warranty or incorrect parts received, must have a “Return of Materials Authorization”
(RMA) number. Call Loftness Specialized Equipment, Inc. service department for this return number. To receive
this number, you will need your “Sales Order, Invoice and Part Numbers” with quantities of parts to be
returned. Credit information and shipping instructions will be given to you when you have received your “RMA”
number. Be sure to place this number on the outside of the shipping package and on any documents placed
inside.

Illustrated Parts Listings:

Illustrated parts drawings are included in this section, starting with page 4-3 that will assist you in identifying your
Kwik-Pik and the parts available for service. These pages include part numbers, descriptions and quantities
required for the various sizes of Kwik-Pik. Include this information on your purchase orders to insure correct
receiving of replacement parts.

N14816 4 - May, 2012

1

Owner’s Manual (Kwik-Pik)

Service Parts

Safety and Operational Decals:

The following decals are placed in strategic positions on the unit to provide the operator with a continual
reminder of the safe operating practices. If they become damaged or lost, replace them immediately. .

Replacement of Decals:

Surfaces must be free from dirt, dust, grease and other foreign material before applying the new decal. Refer to
illustration drawing on page 4-3 for placement of below listed decals.

4137 Grease – (2) required 4427 U.S. Patent 5682953 – (2) required
4138 F.E.M.A. – (1) required N13721 Model & Serial Number Tag – (1) required
4189 Warning – Rotating Parts – (2) required N13517 Proudly Made In The USA – (1) required
4256 Caution – Do Not Start – (1) required N33106 Loftness QR Code – (1) required
4281 Kwik-Pik – Black – (2) required N12934 Decal Kit

4281 4256 N33106

4427 4137 4138

N13721 4189 N13517

N14816 4 - May, 2012

2

www.loftness.com

Loftness Specialized Equipment, Inc.
650 So. Main Street • PO Box 337 • Hector, MN 55342
Te l: 3 20 . 8 48 . 62 66 • Fa x : 3 2 0. 84 8. 62 6 9 • Tol l Fr e e: 1 .8 0 0. 82 8. 76 24

Printed in USA
© Loftness 2008
