Page 1
■
Calida 5784 ZP
■
Planus 4663 Z
■
Planus 4670 ZW
■
Planus 4672 ZP
■
Planus 4872 Z
Operating Instructions.
TV.
233–29374.020 · Printed in Germany
Television HomeMultiMedia DVD/Video Audio Telekommunikation
1
Page 2
Contents
Remote control – TV functions 3
Control panels 4
Rear connections 5
Welcome 6
Thank you
TV equipment
Setup and cleaning
For your own safety 7 – 8
Initial installation 9

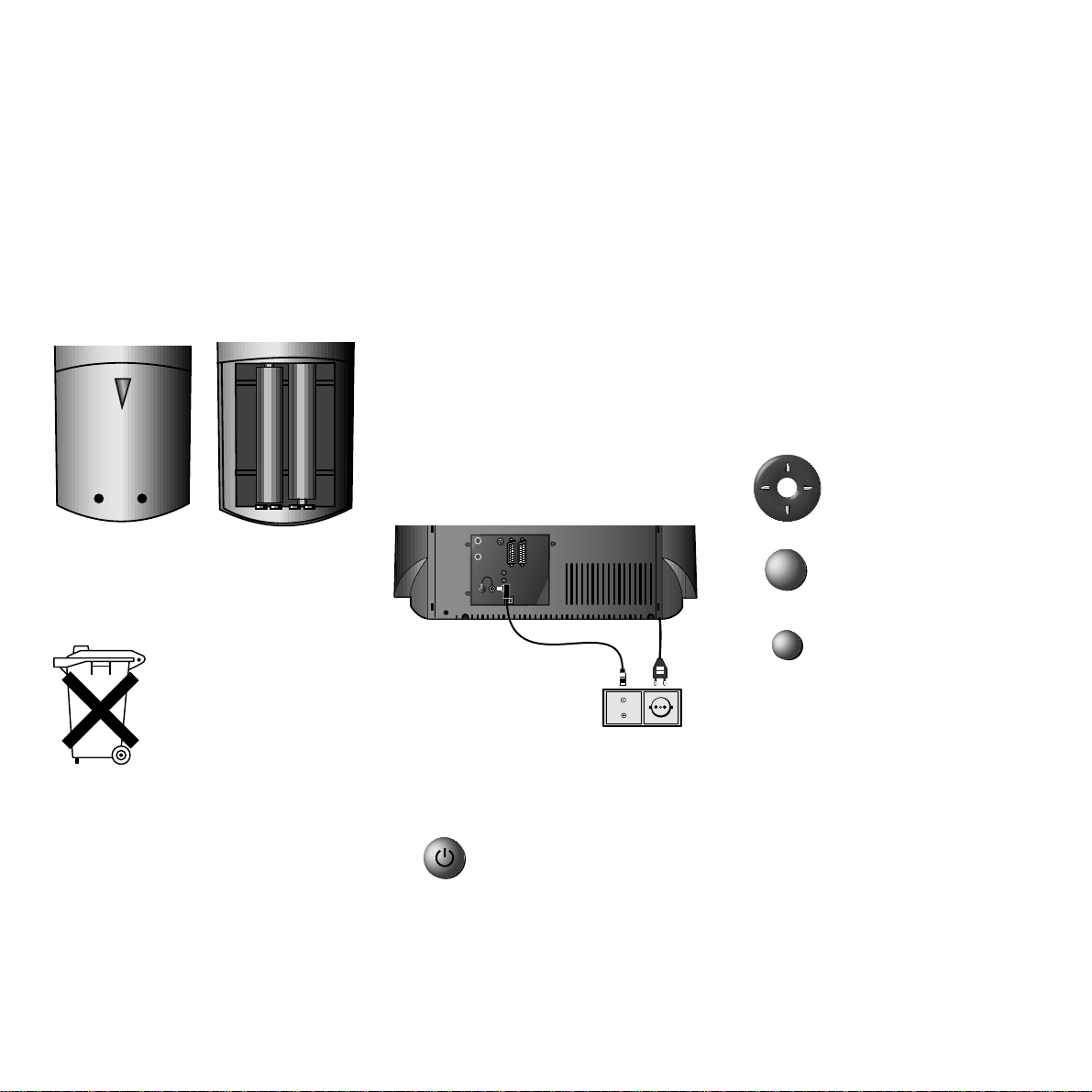

Batteries – remote control
Connection
Switching on
Initial installation
Daily handling 10
Switching on/off 10
Changing channels 10

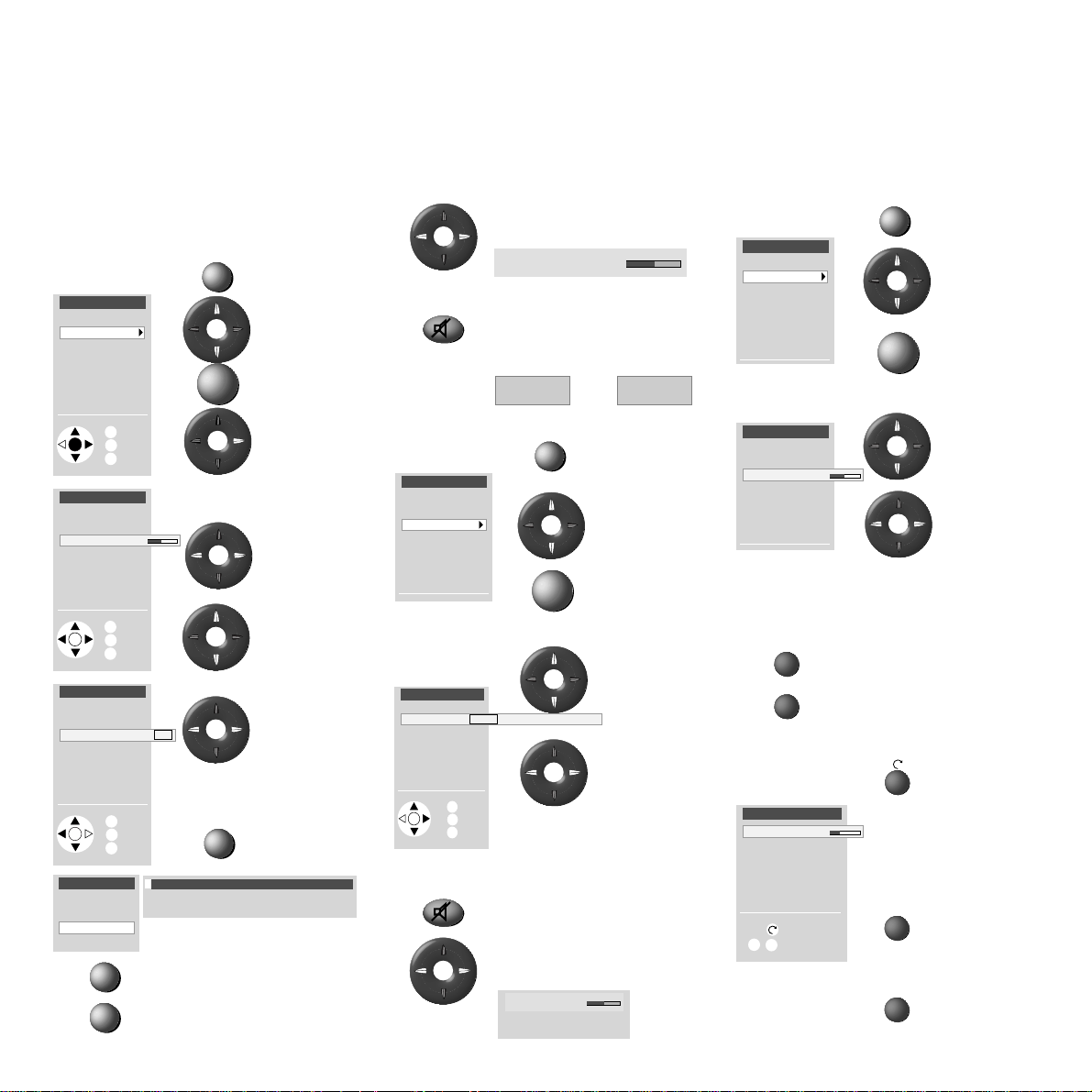

General menu operation 11
Adjusting the sound 11
Adjusting the picture 11
Operation on the set 11
Modes of operation 12 – 17
TV mode 12
Picture in picture 13
EPG mode 14 –15
Teletext mode 16
Video mode 17

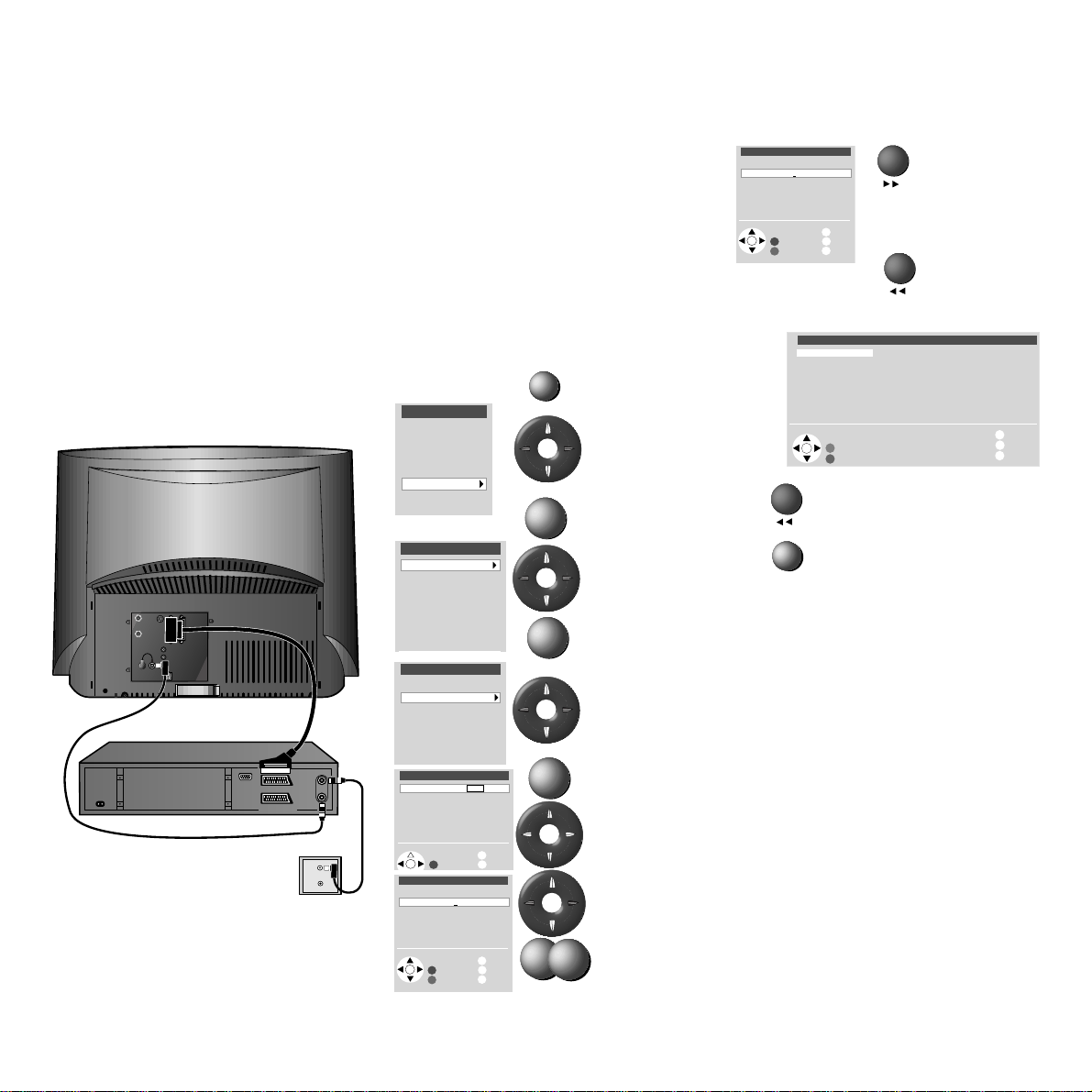

Operating additional equipment 18 – 20
Logging in and connecting
AV equipment 18
Video playback 19
Loewe video recorders and direct
operation of Loewe DVD players 20
What to do if … 21 – 22
Technical data 23
Mechanical data
Electrical data
Accessories
Service addresses 24
2
Page 3

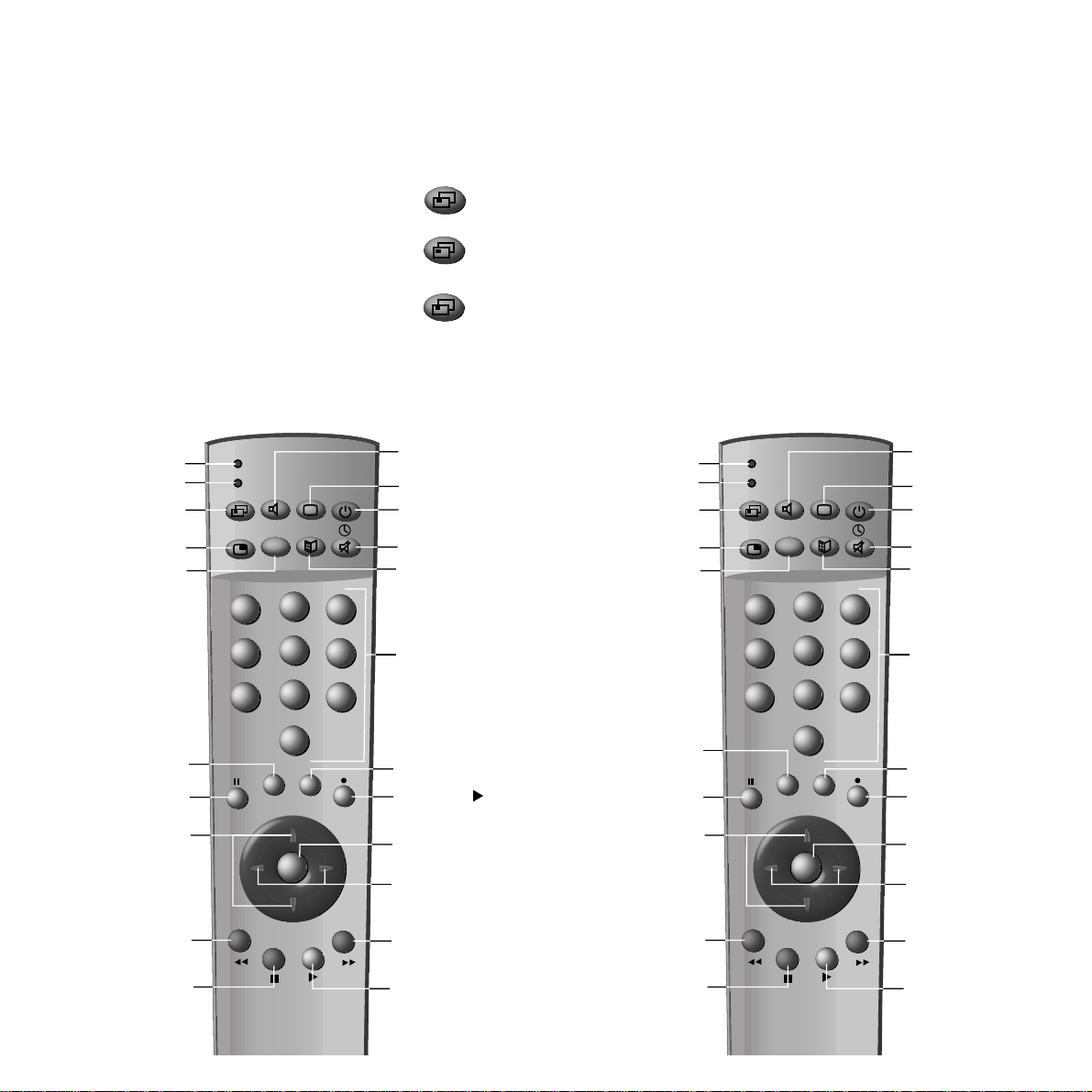

Remote control – TV functions
Indicator: Operate VCR
Indicator: operate DVD
Direct operation
select for VCR/DVD/TV
✳
PIP operation on/off
Video operation with
video operating line
on/off
Call up menu
/in the menu: back
Teletext mode on/off
Select programme up/down
/in the menu: select up/down
Radio mode on/off
Picture menu
Switch on/off
– in standby mode
Sound off/on (Mute)
EPG operation on/off
Select programme directly
/in the menu: numeric input
SV
LP
=
V
Control 150
000
2
5
8
3
6
9
VTR
DVD
1
4
7
0
Blend in programme, time, title of the broadcast
M
E
T
OK
OK
i
/in the menu: blend out menu
Call up main information
/in the menu: switch info texts on/off
Call programme overview
/in the menu: confirm
Set volume – / +
/in the menu: select or adjust
left/right
Personal teletext pages
on/off
Set picture format
on/off
✳
only in sets with
Picture In Picture function
Programme info on/off
Last programme
You can assign other functions to these keys
for TV operation. Assign these functions in the
TV menu under – Settings – Function Keys.
33
Page 4
Control panels
Operating panel open
➜
Calida 5784 ZP
Planus 4872 Z
Headphones socket
Operating panel open
➜
LR
AUDIO
Audio inputOn/Off button
S-Video/video input
AVS
To display menu
On/Off key Operating indicator
Headphones socket
+
—
Channel up/down
/in a menu: adjust
Standby indicator
AVS VIDEO IN
S-Video input
Operating indicator
To display menu
Video input
Standby indicator
Channel up/down
/in a menu: adjust
+
—
LR
AUDIO
Audio input
Planus
4
On/Off button
Operating indicator
Standby indicator
To display menu
Open control panel,
+
—
Channel up/down
/in a menu: adjust
press
➜
S-Video input
Headphones socket
AVS V IN
Video input
LR
AUDIO
Audio input
Page 5
Rear connections
✳
Antenna socket 2nd satellite tuner
✳
✳
depending on equipment and
type of set or retrofittable
Antenna socket 1st satellite tuner
✳
Antenna plug of PIP tuner
/Antenna socket for antenna
or cable system
✳
Antenna socket
for picture-in-picture
(PIP)
SAT
SAT A/D
VHF/UHF
Service
socket/
Connection
Certos
SERVICE
R
AUDIO OUT
L
Sockets for video
recorder, DVD,
decoder etc.
(Euro-AV)
AV2/RGB
AV1
Audio output sockets
5
Page 6
Welcome
Thank you,
for choosing a Loewe product.
We are very happy to have you as a customer.
Loewe combines high quality in technology,
design and user friendliness. This applies
equally for TV, video and accessories.
Neither the technology nor the design are an
end in themselves but serve to give our
customers pure watching and listening
enjoyment.
We have not allowed ourselves to be led astray
by short-lived fashion trends in the design. You
have, after all, purchased a high-quality piece
of equipment which you don’t want to get tired
of looking at tomorrow or the day after .
About the set
We have designed the TV set in such a way
that it is easy to operate with menus. If
you need information about how to
operate it, just display the info texts with
the i button, you will soon get a grasp of
the relationships.
You will find the answers to many
technical questions in the index of your TV
set. If it’s a matter of operating the TV, you
can access a function directly from the
index. This saves you from having to read
through detailed operating instructions
and is the reason why this operating
manual you are reading only explains the
most important operating steps.
TV equipment
This operating manual describes the maximum
equipment.
Functions marked by ✳ are not available in all
TV sets.
The illustrated menu contents may vary
depending on the TV equipment.
You can find out what equipment your TV has
in the main information – Technical spec. of TV
set.
Setup and cleaning
Please note that the feet of the TV set could
leave marks on soft wood furniture (e.g. deal,
pine, fir etc.) due to the weight and moving the
set about.
The plastic material of the feet contains
softeners which could in some cases etch the
surfaces of furniture.
In such cases you should place a firm underlay
about the same size as the base of the TV set
underneath it.
Please also read and observe the safety
instructions on the following pages.
Make sure no bright light or sunlight falls on
the screen and impairs the picture by
reflections.
Clean the TV set only with a damp, soft, clean
cloth (never use aggressive or abrasive cleaning
agents).
Disposal
Packing and box
You have chosen a very high-quality, long-
lasting piece of technical equipment. In
compliance with national regulations, we have
paid a fee to authorized disposal companies
who will collect the packing from the dealers.
Nevertheless we recommend that you keep the
original box and packing material so that the
TV set has optimum protection if you have to
transport it.
The TV set
Please consult your dealer for environmentally
friendly disposal of the TV set.
With the remote control, you can operate three
Loewe units, this TV, a Loewe video recorder
and a Loewe DVD player.
6
Page 7
For your own safety
For your own safety and in order to avoid
unnecessarily damaging your TV set, please
read and observe the following safety
instructions:
• This TV set is designed exclusively for
receiving and reproducing audio and visual
(AV) signals .
• It is designed for the home or office and
may not be used in rooms with high
humidity (e.g. bathroom, sauna) or a high
concentration of dust (e.g. workshops). If
the TV set is occasionally used outdoors,
you should make sure that is protected from
water (rain, splashing, dew). High moisture
and dust concentrations produce creep
currents in the set which can lead to danger
of electric shock or fire.
The manufacturer’s warranty is only valid
for use of the TV set in the specified
permissible environment.
• This set may only be connected to a power
supply with the voltage and frequency
specified on the rating plate using the
enclosed power cable. The wrong voltages
can damage the set.
• If the set is moved from a cold environment
to a warm room, condensation forms on all
parts of the set. Moisture produces creep
currents in the set which can cause a fire. In
this case, you should leave the set for a
reasonable time to acclimatize (when the
condensation on the screen has evaporated)
before switching it on.
• Like every piece of electronic equipment,
your TV needs air for cooling. Obstructing
the air supply to the set can cause fires. The
air vents on the back of the TV set must
always be kept free. Do not leave
newspapers or cloths lying on the TV set.
The air supply is also impaired when the TV
set is placed on a blanket or a thick pile
carpet.
10 cm
5 cm
If the TV set is placed in a cabinet or on a
shelf, at least 5 cm clearance at the sides
and at least 10 cm at the top must be left to
allow air to circulate.
Stand the TV set in a place where it is not
exposed to direct sunlight or additional
heating from radiators.
• Magnetic fields influence the picture quality
of the TV set. Do not place loudspeakers or
other magnetic sources immediately next to
the TV set.
5 cm
• Avoid dropping metal objects, needles,
paper clips, liquids, wax or similar into the
air vents at the back of the set. This causes
short circuiting of the set and could start a
fire. If anything should get inside the set,
switch it off immediately, pull out the plug
and call the after-sales service to check it.
Do not place vases filled with water, lighted
candles etc. on the top of the TV set.
7
Page 8
For your own safety
• You should never attempt to remove the
rear panel of the TV yourself. The set
operates with high voltages which could be
fatal. Leave repairs and servicing of your TV
set to authorized TV technicians.
• Due to the picture tube, TV sets have their
center of gravity fairly near to the front. The
TV set therefore has a tendency to tip
forward relatively easily which could cause
injury to persons.
Only stand the TV set on a level, firm base.
The set must stand on all feet. The TV
should not overhang particularly when it is
placed in a cabinet or on a shelf.
If the TV is placed on a stand, makes sure
this is larger than the surface area of the
base of the TV.
When using turntables and drawer shelves,
make sure they have a sufficient load
capacity.
We recommend you to use only original
parts, e.g. Loewe racks and stands.
If the TV set is placed on a console with
castors, move the console carefully because
the console and the TV could tip over.
Consoles with castors may considerably
reduce the stability of the sets placed on
them so only use consoles specially
designed and approved for the TV.
Never allow children to handle the TV set
unsupervised.
• Do not place the TV anywhere where it may
be exposed to vibrations because this can
lead to overloading of materials.
• Do not leave the TV on unsupervised.
• Pull out the antenna and mains plugs
during a thunderstorm. Surge voltages from
lighting strikes can damage the set both
through the antenna system and the mains.
You should also pull out the antenna and
mains plugs during long periods of absence.
• The mains plug of the TV must be easily
accessible so that it can be disconnected
from the mains quickly at any time.
• Lay the power cable so that it cannot be
damaged. The power cable may not be
kinked or laid over sharp edges, and may
not be walked over or exposed to chemicals;
the latter applies for the entire TV set. A
power cable with defective insulation can
lead to electric shocks and is a fire risk.
• When you pull out the mains plug, do not
tug the cable but hold the housing of the
plug. The cables in the mains plug could be
damaged and cause a short circuit the next
time it is plugged in.
Do not allow children to play close to the TV
set, they could knock, push or pull it from
the stand and injure someone.
8
Page 9
Initial installation
Batteries – Remote
control
To insert or change the batteries, press the
point marked by an embossed arrow. Push the
cover of the battery compartment down and
remove it. Insert the batteries of the alkaline
manganese type LR 03 (AAA) with the correct
polarity (+/–).
+
+
Then push the cover back on.
Note on disposal of batteries:
The original batteries do not
contain any pollutants such as
cadmium, lead and mercury.
Used batteries do not belong in
the domestic waste. They must
be taken to the appropriate
collection points according to the
national laws. Ask your dealer.
Connection
Mains
Connect the TV set to a 230V/50–60 Hertz
outlet.
Antennae
Connect your antenna or cable system to the
VHF/UHF antenna socket.
If your TV is equipped with a picture-in-picture
tuner (PIP), plug the antenna plug protruding
from above the PIP antenna socket into the
antenna socket for the VHF/UHF tuner. Plug the
antenna plug of your antenna or cable system
into the socket of the PIP tuner.
If your TV set is equipped with one or two
satellite tuners, connect the SAT antennae to
the SAT sockets (see figure on page 5).
SAT
SERVICE
SAT A/D
AV2/RGB
AV1
R
AUDIO OUT
L
VHF/UHF
SUBWOOFER
STAND
Switching on
You will find the ON/Off button of the TV
behind the control panel cover. Open the
control panel flap.
Press the On/Off button so that
it snaps in.
Initial installation
Automatic programming of the TV set is started
the first time you switch it on. Follow the
menus.
First you have to select the menu language for
your set. Then you specify which antenna you
have connected to your TV and in what country
you are using it. Then you start the station
search. The TV searches for, stores and sorts all
the stations which your antenna system
receives. You then see a list of the stored
stations in which you can mark your favorites.
Then you log in your video recorders and
connect them as shown in the wiring diagram.
Select the settings with the
arrows on the ring ...
... confirm the settings with
OK
i
You can repeat initial installation at any time,
e.g. after moving house. Call the index in the
main information (i button). Then select the
item ”Repeat initial installation”. Then start
”Initial installation” with OK.
OK. You then move on to the
next menu ...
... press this button if you want
information about the settings.
9
Page 10

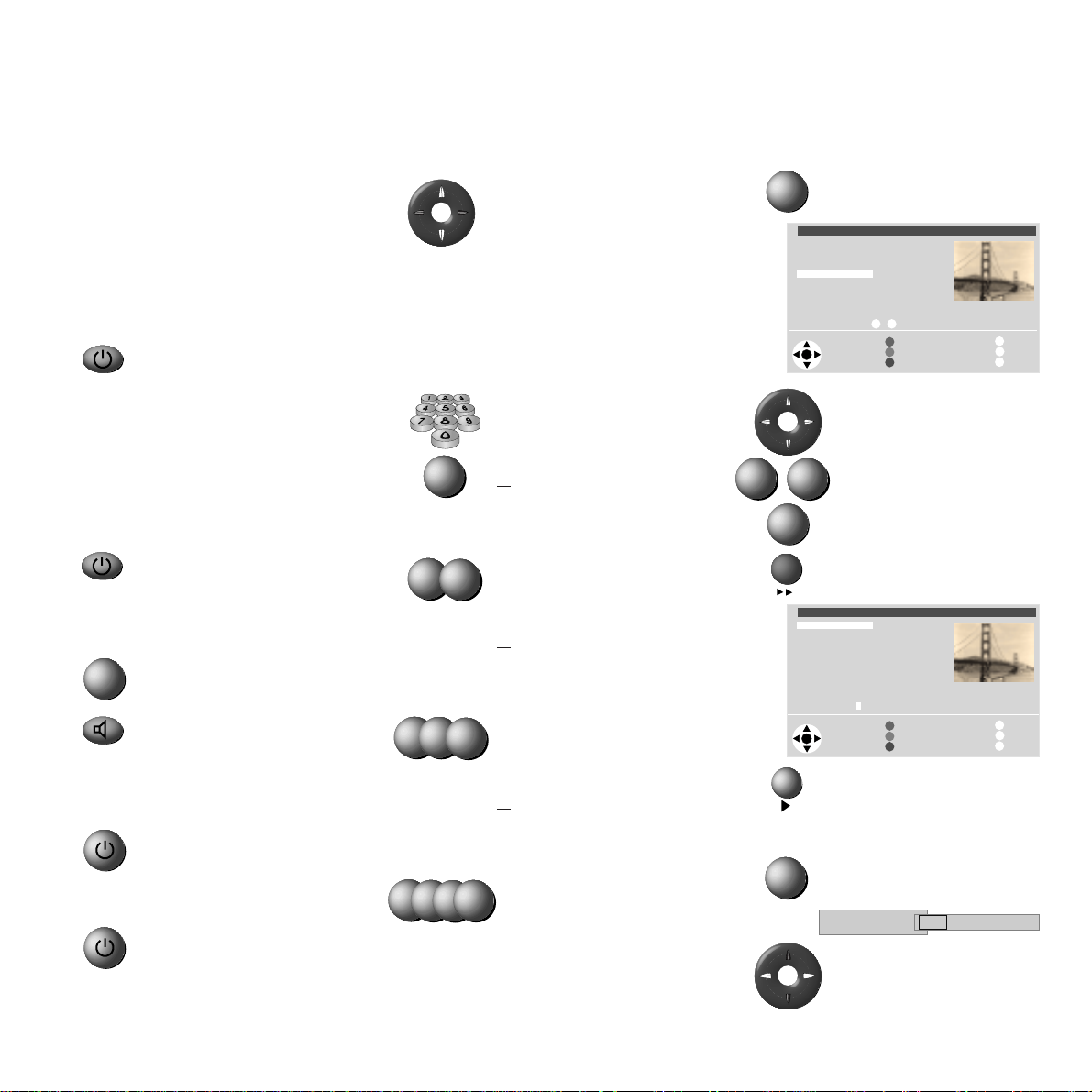

Daily handling
Switching on/off
Your TV set is equipped with an eco-standby
power supply unit. The power consumption drops
to low power in standby mode. If you want to
save even more energy, switch the set off with
the On/Off switch. However, please note that
EPG data are then lost and timer recordings
programmed on the TV set will not be carried
out.
If the TV is switched on, you can
switch it off with the blue On/
Off button on the remote
control. The red standby LED on
the set lights up. If the green
LED also lights, a timer
recording is programmed, EPG
data is being acquired or radio
mode without screen display is
active.
From standby it is best to switch
back on with the blue On/Off
button or with a numeric key
(station 0-9). The green
operating LED then lights up.
When you switch on the TV with
OK
You will find the On/Off button of the TV behind
the control panel cover.
OK, you see the station table
and can choose a station.
Switch on in the radio mode.
None of the indicators lights up
when you switch off the TV set
with the On/Off button on the
set.
Switch on the TV set with the
On/Off button on the set when it
is switched off.
Changing channels
Channels up/down (only favorite
stations if these are shown in the
station table).
With the numeric keys on the remote control
The set has a dynamic memory with 220/with DVB
1470 memory slots. If up to 9 stations are stored,
you only need to enter one number, up to 99 two
numbers, up to 999 three numbers and above 999
four numbers (please look in the station table to
find out how many stations have been stored).
1-digit stations
Keep the button 0 – 9 pressed for
one second, the channel then
changes immediately.
7
long
2
short long
1
2
short short long
1
278
all short
Depending on how many stations have been stored,
you can place one or more zeros in front of the
number and select for example station 7 = 07 or
007 or 0007.
or press the button 0 – 9 briefly,
the channel then changes after 2
seconds (immediately when up to
9 stations are stored).
2-digit stations
Keep the second numeric key
7
pressed for one second, the
channel then changes immediately.
or press both numeric keys briefly,
the channel then changes after 2
seconds (immediately when up to
99 stations are stored).
3-digit stations
Keep the third numeric key pressed
7
for one second, the channel then
changes immediately.
or press the three numeric keys
briefly, the channel then changes
after 2 seconds (immediately when
up to 999 stations are stored).
4-digit stations
Press the four numeric keys briefly,
the channel then changes
immediately.
About the station table
OK
Call the station table with OK
Station table: TV
AVS
AV2
AV1
0 VCR
1 ARD
2 ZDF
3 SAT.1
4 RTL
5 VOX
6 NDR
OK
Select and
proceed with OK
6 S–RTL
7 N–TV
8 DSF
9 TM3
10 PRO7
11 RTL 2
12 WDR 3
13 BR 3
14 HR
15 MDR 3
0 9
... Select program:
Change programs
Favorite programs
Sort alphabetically
i
Info
Menu
M
End
E
Mark the station (the marked
station is shown in the PIP
✳
)
or
0
9
...
OK
Mark with numeric keys
Call the marked station
Sort alphabetically/numerically
(blue button)
Station table: TV
ARD
BR-ALPHA
BR3
CNN INT.
DSF
EUROSPRT
Select and
proceed with OK
OK
HOT
HR
KIKA
MDR 3
N–TV
N24
N3
✳ABCDEFGHIJKLMNOPQRSTUVWXYZ
Change programs
Favorite programs
Sort numerically
Info
i
Menu
M
End
E
Display favorite stations only
(yellow button)
Call Audio/Video programs – AV selection
for playing AV equipment (see
0
also page 19).
AV Selection
VCR AV1 AV2 AVS
Select AV socket or VCR for
VCR station.
10
Page 11
Daily handling
General menu operation
With the TV and picture menus, we show you how
to navigate within the menus. Which buttons you
can use for operation is shown at the bottom of
the appropriate menu.
Launch the TV
M
TV menu
Standard settings
Sound
Connections
Settings
i
Info
OK
Back
M
End
E
Contrast
Picture adjustment
Colour 32
Brightness
Sharpness
Tint
other ...
i
Info
OK
Back
M
End
E
other ...
Picture format
DNC off on
AMD
i
Info
OK
Back
M
End
E
other ...
Picture format
DNC
AMD
i
With DNC you can eliminate or reduce picture
interference, e.g. due to poor reception.
M
E
OK
Grey menu items cannot be
selected
DNC (Digital Noise Control)
Back to the previous menu level
Hide all menus
menu
a topic
(white field)
Launch the menu
with OK
or
>
Set
(setting value
and bar)
Mark other
menu items
Select
(frame)
Show/hide
i
control bar
Adjusting the sound
Adjusting the volume
Adjust the volume
Volume 36
Mute
Sound off;
Sound on: press button again
or adjust volume
Sound off
Call sound menu
M
TV menu
Standard settings
Sound
Connections
Settings
OK
Select sound settings
Sound
Sound via
Listening mode Stereo Panorama Dolby Virtual
Sound adjust
Headphone volume
Loudspeaker sound
Headphone sound
other ...
i
Info
OK
Back
M
End
E
Set teletext volume
Sound off
Set volume
Volume 36
Sound
Call TV menu
Mark ”Sound”
Call sound
functions
Mark sound
function
Set/
select
Sound on
Adjusting the picture
Call the Picture menu
Call the TV
menu
Mark
”Picture”
TV menu
Standard settings
Sound
Connections
Settings
M
Call picture
OK
functions
Call picture settings
Contrast
Picture adjustment
Colour 32
Brightness
Sharpness
Tint
other ...
Mark picture
function
Set/
select
Operation on the TV set
Changing channels on the TV set
+
Channel up
–
Volume, contrast and color
Direct control on TV
Volume 16
Contrast
Colour
Station –/+
Service
–
+
Mark
Change
Channel down
+
–
Press the
function
button until
the desired
function is
marked
More volume,
contrast or
color
Less volume,
contrast or
color
11
Page 12
Modes of operation
TV mode
In initial installation and daily operation, the TV
set is in TV mode. This is also the case when none
of the other modes of operation such as EPG,
Teletext, PIP, Video or Radio is selected.
Every one of these modes of operation has a
menu which you can call with the M-button and
with some color button assignments.
Function of the color buttons in TV mode
You can assign the functions of the four color
buttons yourself. The following functions are set
at the factory:
red: list or call personal teletext
pages
green: call picture format setting
yellow: call last viewed station
blue: call station info
You can assign other functions to the buttons in
the TV menu ”Settings” – ”Function keys”.
Status display
E
Station table
OK
Show/hide status
Clock 20:15
1 ARD Stereo
Show/hide table
Station table: TV
AVS
AV2
AV1
0 VCR
1 ARD
2 ZDF
3 SAT.1
4 RTL
5 VOX
6 NDR
Select and
proceed with OK
OK
6 S–RTL
7 N–TV
8 DSF
9 TM3
10 PRO7
11 RTL 2
12 WDR 3
13 BR 3
14 HR
15 MDR 3
0 9
... Select program:
Change programs
Favorite programs
Sort alphabetically
i
Info
Menu
M
End
E
Main information
Call main information
i
Main information
Autom. channel search
Connections
Operating information
Explanation of the remote control
Index
Technical spec. of TV set
Select control level
Select and call up
OK
with OK
i
M
E
Info
Back
End
The explanation of the remote control shows
the function of every button in different modes
of operation of the TV set and the remote control.
The index answers many questions regarding all
aspects of the TV. If it is a question about the
operation, you have direct access to the operating function from the index.
Loewe TV sets are supplied in different models
with different equipment. You can find out what
equipment your TV has under the menu item
”Technical spec. of the TV set”.
When you have made all the settings and connections, you can switch over to ”Simplified
control” using ”Select Mode”. Then the ”Set-
tings” and ”Connections” can no longer be
launched in all modes of operation menus.
Switch ”Simplified control” back off when you
want to make settings.

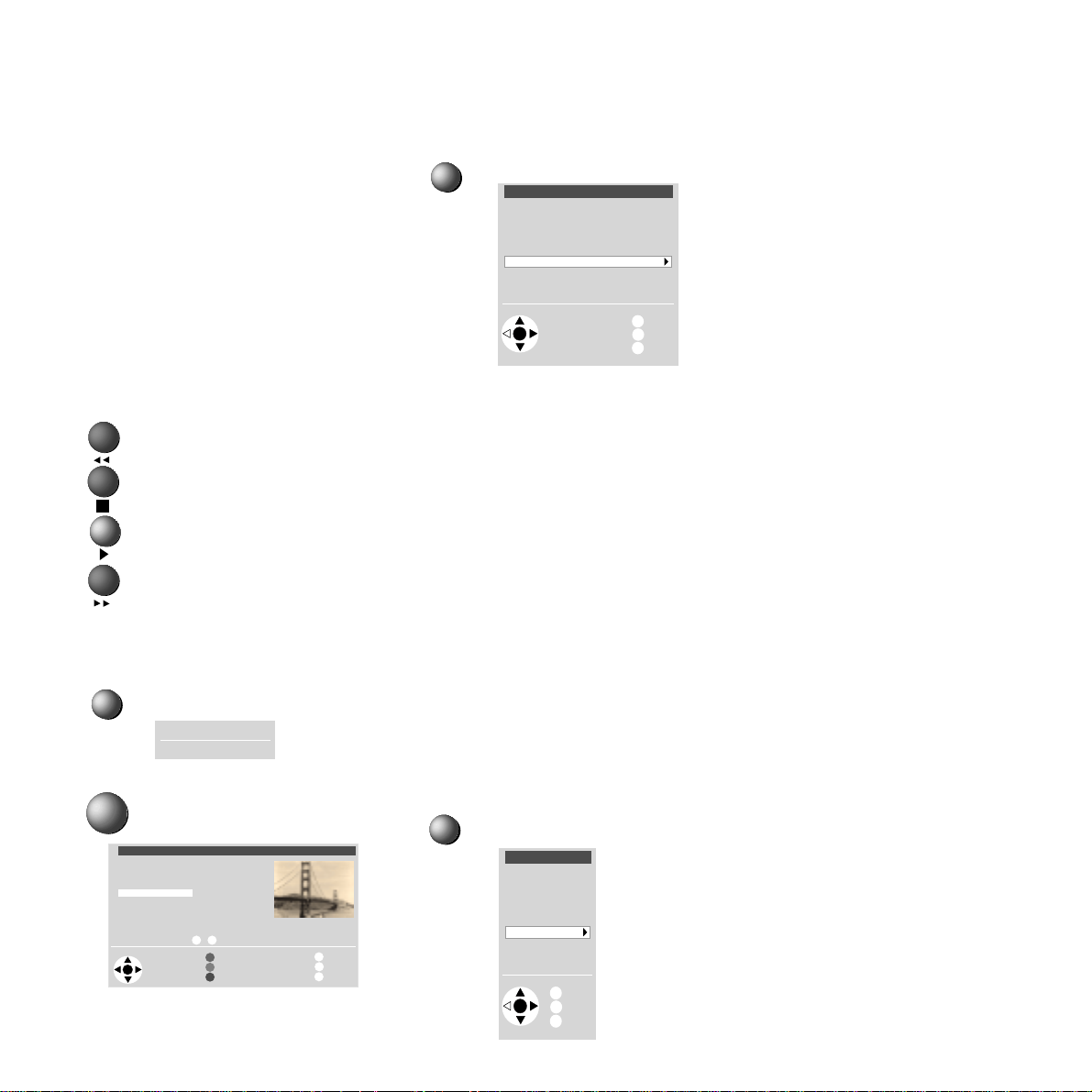

TV menu
M
Call the TV menu
TV menu
Standard settings
Sound
Connections
Settings
i
Info
OK
Back
M
End
E
Standard settings
You can save the setting for picture and sound
you have made in this menu and call them again
later.
Connections
You will find information about this in the
chapter ”Logging in and connecting AV
equipment” on page 18.
Some settings in the TV menu:
Child lock
Use the child lock if you want to prevent your
children watching after a certain time, once or
daily, all or certain programs.
On-screen displays
You can set the duration and position of the
displays and define the content of the status
display.
Timer functions
You can have your TV switch on and off at
specific times or have yourself reminded by a
signal tone.
Time and date
When you receive teletext, the TV records the
right date and time settings. The time serves as
information for timer recordings, timer functions
and EPG. If you do not receive teletext you
should set the date and time and not switch the
TV off with the mains button as the settings will
then be lost.
Language
If ”your” menu language is not set, you have to
select the ”Language” menu in a language you
cannot understand:
Press the M-button (TV menu), mark the last
menu item (settings), press the OK-button and
mark the last menu item (Language) under
”other ...”. and press the OK button.
Now select the right language and confirm with
OK.
12
Page 13
Modes of operation

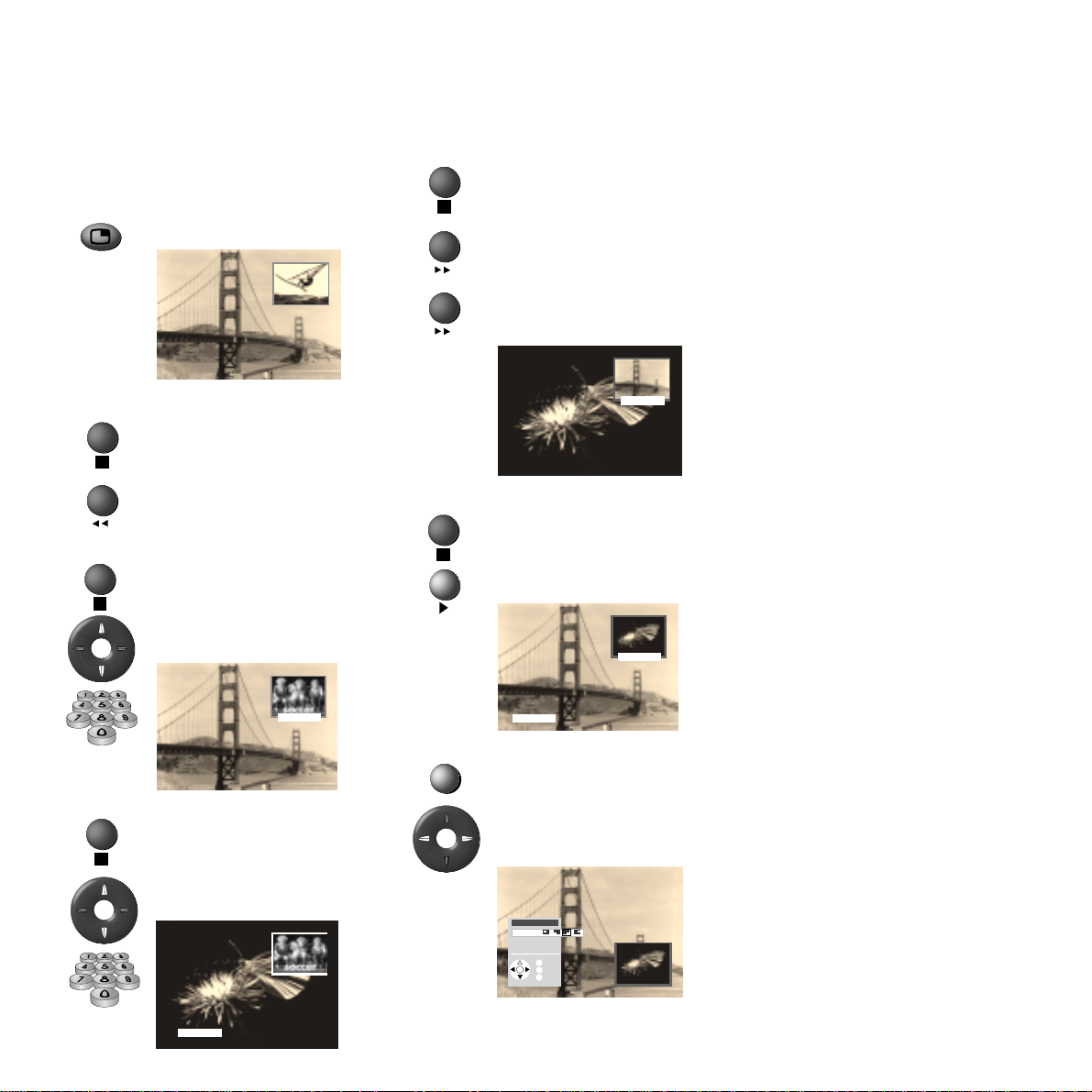

Picture in Picture (PIP)
✳
You can display a small picture inside the TV
picture.
Show/hide PIP picture
PIP picture as still frame
The frame around the PIP picture
must be green. If it is not, press
the green button.
Press the red button to freeze
the PIP picture.
Press again – moving picture.
Changing the station of the PIP picture
The frame around the PIP picture
must be green. If not, press the
green button.
Then select the station as
normal.
Station scan
The frame around the PIP picture
must be green. If it is not, press
the green button.
Start the station scan with the
blue button. The PIP frame turns
blue.
Stop the station scan with the
blue button. The PIP frame turns
green again.
1 ARD
Changing PIP picture/TV picture
The frame around the PIP picture
must be green. If it is not, press
the green button.
Change the pictures with the
yellow button.
2 ZDF
3 WDR3
Changing the station of the TV picture
The frame around the PIP picture
must be white. If it is not, press
the green button.
Then select the station as
normal.
2 ZDF
1 ARD

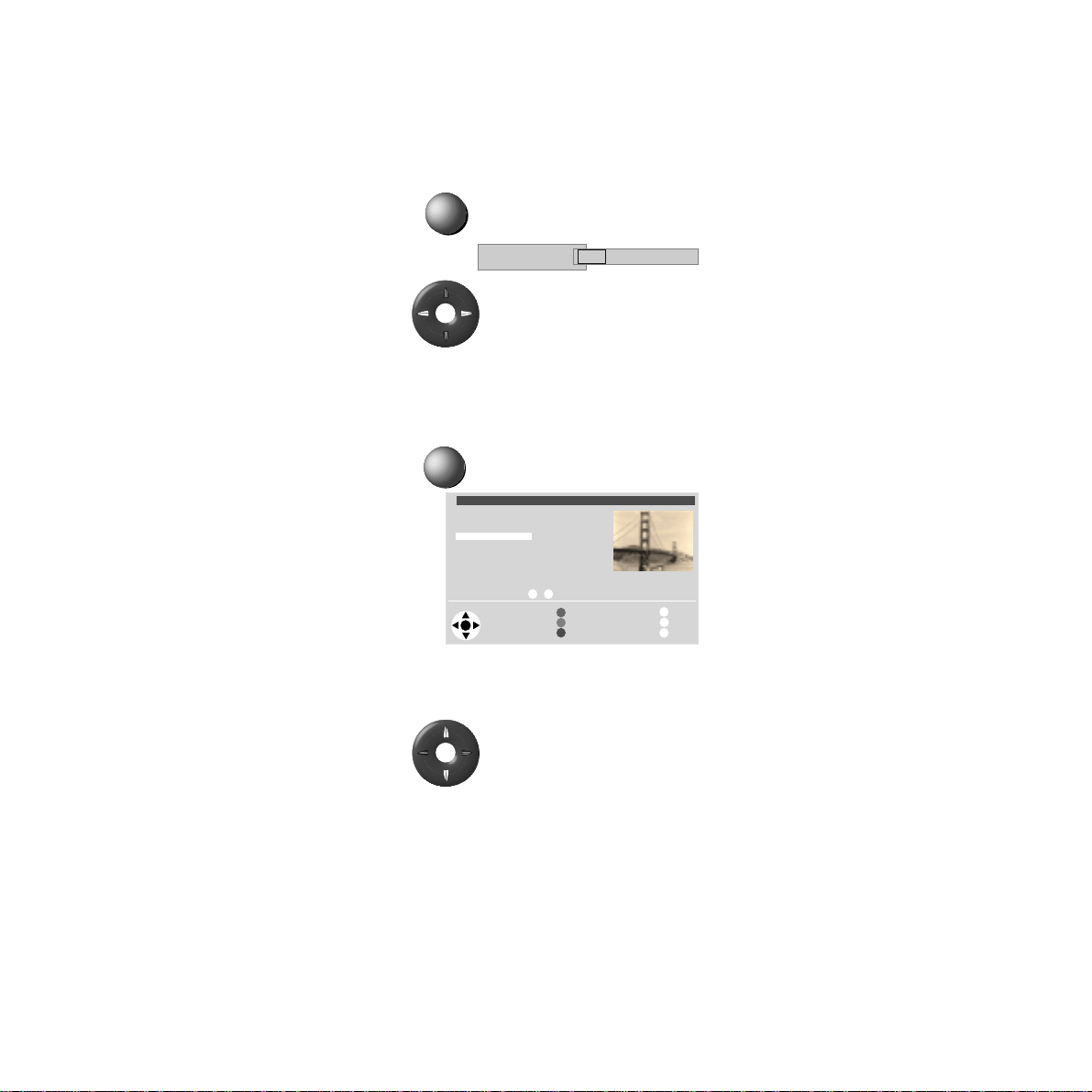

Position of the PIP picture
M
Call the PIP menu with the M-
button.
Select the symbols for the
position.
PIP menu
Position
i
Info
OK
Back
M
End
E
13
Page 14
Modes of operation
EPG mode
EPG is the electronic program guide for TV
programs. With this system, you can easily find
the stations that interest you (sorted according to
time, day, topics and programs). You can
memorize stations and station recordings.
A wizard is activated the first time you use EPG
(not with DVB) which guides you through the
necessary settings. Then run the data acquisition
(see page 15).
Using the EPG
Switch EPG on/off
EPG Fri 03.08./20:08
Fri 03.08. now soon 21:00 22:00 23:00 00:00 01:00 02:00 ...
19:15 VOX Zurück in die Vergangenheit
19:30 ZDF WISO
19:30 BR3 Immer weiter, immer höher und dann?
19:40 SAT1 echt wahr!
19:40 RTL Gute Zeiten, schlechte Zeiten –20:15
19:50 MDR Mach dich ran
20:00 ARD Tagesschau
20:00 HR3 Tagesschau
20:00 NDR Tagesschau
20:00 WDR Tagesschau
Select and
memorize
OK
with OK
The first line is framed initially in green.
The green frame stands for time and date, with
the green button you switch between time and
day or, if the frame has a different color, back to
the green frame. With the arrow buttons < >
you select: now, later, the time or day for starting
stations. The list of stations below is updated
accordingly. With the buttons g h you mark a
station you want to watch (now running),
memorize or record.
EPG Fri 03.08./20:08
person. topics all - ... Hobby Sport Child Knowledge Music ...
12:00 NDR WunschBox -13:00
14:03 ARD WunschBox
20:45 MDR Das deutsche Schlagermagazin
21:00 NDR Bi uns to Hus
01:25 NDR Bi uns to Hus
12:00 NDR WunschBox
14:03 ARD WunschBox
Select
and view
OK
with OK
The frame turns yellow when you press the yellow button. The yellow frame means you can
select topics. With the arrow buttons < > you
choose between personal topics, all topics and
the individual main topics such as Film, News,
Show, Music etc. The list of stations below is
updated accordingly. With the g h buttons, you
14
Record
Day (Fri 3.8./now)
Topics (all topics)
Programs (all)
Record
Day (Sat 3.8./12:00)
Topics (music)
Programs (all)
mark a station you want to watch (currently
running), memorize or record.
EPG Fri 03.08./20:08
Favorite programs all ARD - Selection
14:03 ARD WunschBox -15:00
20:45 MDR Das deutsche Schlagermagazin
14:03 ARD WunschBox
Calling detailed information
If detailed information about the selected station
is available, you will see the T-button displayed
additionally. You can call the detailed
information with this button.
Other functions in the EPG menu:
Select and
memorize
OK
with OK
Record
Time (Sat 4.8./14:03)
Topics (Music)
Programs (fav.)
i
Info
Menu
M
End
E
The frame turns blue when you press the blue
button. The blue frame signifies station selec-
tion. Use the arrow buttons < > to choose
between your favourite stations, all stations or
the station just set. You can select another individual station by moving to Select with >, marking a station in the list and storing it with OK.
The respective current settings you last made in
the colour-framed first line are shown in addition
i
Info
Detai
T
Menu
M
End
E
to the operating notes for the green, yellow and
blue buttons.
Direct input of time
You can also enter the time directly with the
numeric keys of the keypad. After entering the
first digit, the time is displayed first next to the
symbol of the green button by asterisks and is
then replaced by the entered numbers, e.g. 2100.
If the entered time has already passed, its entry is
used for the following day.
Watch a station or watch a memorized
List of memorized stations
You will find the stations you have memorized in
a list, also DVB radio stations.
Switch on TV at memo
You can have the TV switched on automatically
from standby at the time of the memorized
station. If you are not in at the time, a safety
prompt makes sure the TV switches off again
after 5 minutes.
Indicate/start memorized station
If the TV is already on when the memorized
station starts you can have the start of the
station indicated or the TV switched over
immediately.
Short info lines
Short infos are broadcast for many programs. Set
how many lines this information should have or
switch the short info lines off.
EPG entry
If you want to start EPG operation, you can
retain your last settings for topic and program
selection or start with all topics and all
programs.
station or memorize a station
You memorize the station marked with the g h
buttons by pressing the OK-button. The symbol +
is placed in front of the title of the station. The TV
switches over to this station when it starts.
Programming a VCR recording
i
Info
Menu
M
End
E
You prepare the station marked with the g h
buttons for recording by pressing the red button.
Page 15
Modes of operation
EPG settings
If you want to change the provider or want to
have other programs evaluated, you can do this
in the EPG menu.
Provider search
EPG on/off
M
Call EPG menu
EPG-Menü
EPG menu
Übersicht der vorgemerkten Sendungen
List of memorized stations
Anbieter-/Programmauswahl
Select provider/program
Vorzugsprogramme
Favorite programs
Persönliche Themenauswahl
Select personal topics
Bei Vormerkung TV einschalten ja
Switch on TV when marked yes
Vorgemerkete Sendung erst melden
Memorized stations first report
weitere ...
other ...
OK
OK
Info
Info
i
i
Zurück
Back
M
M
Ende
End
E
E
Mark ”Provider/Select station”
OK
Call
Select provider
3SAT
PRO7
RTL2
TV 5
TRT 1
Select provider
OK
and confirm
with OK
Provider search
Change provider list
Program selection
Info
i
Back
M
End
E
Start provider search (green
button). This may take some
time.
Mark the provider
OK
Save the provider
This is followed by a station search and a list of
TV stations is displayed which transmit data.
Move on to the provider selection with the OKbutton. If the stations offered are what you
want, move on to the station selection with the
blue button.
Selecting stations for EPG
Select the stations here for which information is
to be collected.
Program selection: 3SAT
0 VCR
1+ARD E
2+ZDF E
3+SAT.1 E
4+RTL E
5 VOX
6+S–RTL E
7+N–TV
8 DSF
Select programs
OK
and mark
with OK
9+S–RTL E
10+MDR 3
11 DSF
12 TM3
13+PRO7 E
14+RTL 2 E
15+WDR 3 E
16+BR 3 E
17+HR 3 E
+ Mark
Mark all
Mark only
18 KIKA
19 PHOENIX E
20 EUROSPRT
21 KABEL 1
22 MTV
23 CNN INT.
24 HOT
25 TV 5
26 VIVA
i
Info
Back
M
End
E
Stations marked by + are favorite stations. The
provider supplies information for stations
marked by E (terrestrial, cable and analog
satellites) and D (digital), these are already
marked (blue letters).
OK
Mark the station/Remove the
marking
red: Only mark favorite stations
green: Mark all stations
yellow: Only mark this station
M
Back to the EPG menu
Switching data acquisition on/off
Mark ”Data acquisition” in the
EPG menu under ”other”
Select data acquisition off/on
EPG menu
other ...
Data acquisition off on
Short info lines none
EPG entry last setting
Info
OK
i
Back
M
End
E
If, for example, you cannot receive any EPG
providers and no DVB is installed in the TV set,
you should switch off the data acquisition.
Performing data acquisition
The data must be collected first after these
settings or every time the TV is switched off. To
do this, select the program which you have
defined as a provider and leave it switched on
for about one hour or switch the TV set to
standby mode. The green LED lights up in
addition to the red LED after about two minutes.
Data acquisition takes about one hour, in sets
with a DVB module a little longer. The data are
automatically collected between 2 and 5 in the
morning when the TV is switched off to standby.
Defining personal topics
You will find the programs that interest you
faster when you define your personal topics.
Mark ”Select personal topics” in the EPG menu
and put together your list of personal topics.
Select personal topics
Film
News
Show
Hobby
Sport
Child
Knowledge
Music
Culture
and mark with OK
OK
General music
Jazz
Rock/Pop
Classical
Folk/Easy listening
Musicals/Opera
Other
mark all
Mark only
InfoSelect topics
i
Back
M
End
E
Radio mode
You can switch the radio mode on and off with
the Lbutton. If at least one satellite tuner and
possibly a DVB module are installed in your TV
set, you will be able to receive radio stations. If
none of these additional modules is installed,
you can only select the audio inputs and play
back through these with the station table or the
g h buttons.
15
Page 16
Modes of operation
Teletext mode
Teletext transmits information such as News,
Weather, Sport, Program Previews and Subtitles.
T
Many stations use the TOP operating system,
some use FLOF. Your TV supports both these
systems. The pages are divided into general
topics and topics. After switching on the
teletext, up to 300 pages are stored for fast
access.
Selecting pages with the colored buttons
The colored bars (in TOP) or the colored writing
(in FLOF) show you which colored buttons to
use to scroll to general topics and topics.
Teletext on/off
1OO 1OO ARD-Text O1.O7.O1 1O:3O:42
ARD-Text Teletext im Ersten
Letzte Meldung: Libyscher Botschafter
in London schließt Entschädigung für
Lockerbie-Opfer nicht mehr aus
Fußball: Rolf Hüssmann soll neuer
Sportdirektor beim VfB Stuttgart
werden . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
1O.3O Ein Zwilling zu viel . . . . . . . 314
12.OO Tagesschau um zwölf
tagesschau. . . . 11O TV Guide. . 3OO/4OO
Wetter. . . . . . . . . 17O Kultur. . . . . . . . . 5OO
Sport. . . . . 2OO/6OO TXT-Quiz. . . . . . . 555
Lotto/Toto. . . . . 666 Wirtschaft. . . . . . 7OO
Index. . . . . . . . . . 1O1 Impressum. . . . . .1O7
– +
Page selection
Lotto/Toto. . . . . 666 Wirtschaft. . . . . . 7OO
Index. . . . . . . . . . 1O1 Impressum. . . . . .1O7
– +
Page selection
Inhalt tagesschau
Inhalt tagesschau
red: back to previously viewed
page (not with FLOF)
green: forward to next page
(not with FLOF)
yellow: to the next topic (only
in TOP and FLOF)
blue: to the next topic (only in
TOP and FLOF)
Other functions for selecting pages
Mark a specified page number
on the page (Page Catching)
werden . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
1O.3O Ein Zwilling zu viel . . . . . . . 314
12.OO Tagesschau um zwölf
tagesschau. . . . 11O TV Guide. . 3OO/4OO
Wetter. . . . . . . . . 17O Kultur. . . . . . . . . 5OO
Sport. . . . . 2OO/6OO TXT-Quiz. . . . . . . 555
Lotto/Toto. . . . . 666 Wirtschaft. . . . . . 7OO
Index. . . . . . . . . . 1O1 Impressum. . . . . .1O7
– +
Page selection OK view
OK
Call
Inhalt tagesschau
Scrolling in stored sub-pages. In
the bottom line you will see
which sub-pages you can
already call.
– +
i
Call contents page 100
1OO 1OO ARD-Text O1.O7.O1 1O:3O:42
Geld Optionen 2
1 2 3 4 5 6 7 8 9 1O
ARD-Text Teletext im Ersten
The TOP table is a general list of teletext. You can
only call the table on stations which use the TOP
operating system.
Call the TOP
Table of Pages (TOP)
Übersicht
tagesschau
Wetter
Sport 1
TV Guide
ARD heute
ARD morgen
FS-Sendungen
TV Guide 2
Kultur
Gesellschaft
weitere . . .
Select page and
press OK
OK
to view
Wetter
Vorhersage
Städte
Regional
Reisen
int. Städte
Biowetter
OK
Back
M
End
E
table
Mark a general
topic
Select the Topics
column
Mark
a topic
Display page
OK
Displaying teletext pages
0
Stop self-turning pages (HOLD)
zoom: top half– bottom half –
9
normal size
TV picture on/off (Split text)
1OO 1OO ARD-Text O1.O7.O1 1O:3O:42
ARD-Text Teletext im Ersten
Letzte Meldung: Libyscher Botschafter
in London schließt Entschädigung für
Lockerbie-Opfer nicht mehr aus
Fußball: Rolf Hüssmann soll neuer
Sportdirektor beim VfB Stuttgart
werden . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
1O.3O Ein Zwilling zu viel . . . . . . . 314
12.OO Tagesschau um zwölf
tagesschau. . . . 11O TV Guide. . 3OO/4OO
Wetter. . . . . . . . . 17O Kultur. . . . . . . . . 5OO
Sport. . . . . 2OO/6OO TXT-Quiz. . . . . . . 555
Lotto/Toto. . . . . 666 Wirtschaft. . . . . . 7OO
Index. . . . . . . . . . 1O1 Impressum. . . . . .1O7
Inhalt tagesschau
– +
Page selection
Teletext menu
M
Menu
News flash
Show
Station –/+
Sub-page
Recording
TOP table
Settings
OK
M
Display teletext menu
Here you will find functions
such as ”New message”,
”Reveal” hidden information,
switch to other stations (if
another tuner is available),
enter 4-digit sub-page number
directly and program video
i
Info
timer recordings via teletext.
Bck
End
E
In the settings you will find
menus to define the preview
pages, subtitle pages and
personal teletext pages.
Adjusting the volume
You can adjust the volume in teletext mode after
pressing the sound off/on button
t
.
1 0 7
Enter the page number directly
16
Page 17
Modes of operation

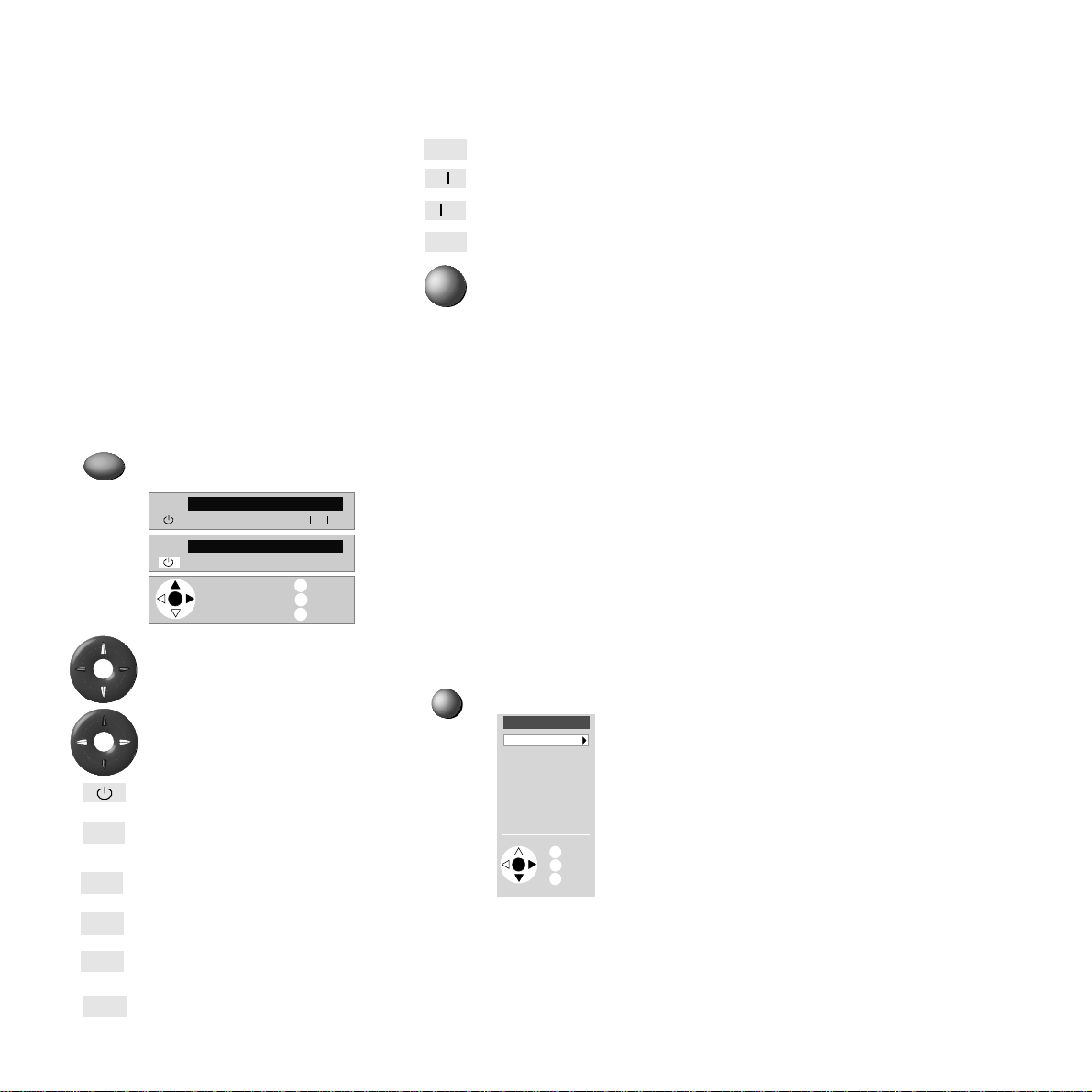

Video mode
You can operate Loewe video recorders and DVD
players with the video control bars even if they
are hidden. The VCR’s must be connected to the
Euro AV sockets (Scart) and logged in under the
”Connections” menu.
Digital Link must be switched on on the Loewe
video recorder. Only then can you use the
control bar. You also need Digital Link for timer
recordings of satellite programs controlled by
the TV set.
You can display up to two control bars but they
are only displayed by logged in VCR’s and DVD
players.
Show/hide video
=
V
AUX
▼
▼
■
control bar
AV2 STOP
▼
▼
■
AV1 STOP
▼
▼
■
OK
▼▼▼
▼▼▼
▼
❚❚
▼
❚❚
●
AUX
i
Info
Menu
M
End
E
Select the video control bar if
several VCR’s or a DVD player
and a VCR are connected.
Select function
Switch VCR/DVD on/off
Select video input (Euro-AV
socket) for the VCR
Rewind (only for VCR) or Scan in
rewind
Stop (STOP)
❚❚
Pause (PAUSE)
▼
Next chapter (only for DVD)
▼
●
OK
Previous chapter (only for DVD)
Record (only for VCR)
Perform selected function.
When you start a recording, the program you
have just selected is recorded. You cannot switch
over to another channel, it is locked. You can
only switch over when the recording has
finished.
Exceptions:
1. You have installed several tuners (not PIP
tuners) in the TV set, then you can watch
another channel with the second tuner.
2. You can also watch the signal via an AV
connection (e.g. DVD player or a second
VCR).
3. In a VCR with Digital Link Plus the VCR tuner
is used for the recording (not for satellite
programs).
Video menu
M
Show the Video menu
Video menu
Timer recording
Timer change
Delete timer
Connections
i
Info
OK
Back
M
End
E
The Video menu provides you with options for
timer programming by EPG, teletext or manually.
You can also change or delete timer data.
In the ”Connections” menu you can log other AV
equipment on or off and make a ”Digital Link
Plus data transfer. This serves to transfer the
transmitter data of the TV set (not satellite
stations) to the Digital Link Plus VCR.
Digital Link Plus VCRs have the possibility for
transferring the station data from the TV set to
the VCR via the Euro-AV cable (not for satellite
stations). Every time you change the station
memory of the TV, you are asked whether you
want to make a data transfer.
The receiver unit of the VCR is always used for
recording with a Digital Link Plus video recorder
(not satellite stations) and the tuner of the TV set
is available for watching TV.
Loewe VCRs also have Digital Link, a system for
controlling Loewe VCRs via the Euro-AV cable.
The TV tuner is used for recording here. If you
have installed your Loewe VCR in a concealed
place, you can operate the Loewe VCR with the
remote control. Operation with the control bar
also works with Digital Link.
Digital Link must be switched on on the
video recorder.
Only use fully wired Euro-AV cables, otherwise
Digital Link or Digital Link Plus will not work.
▼
Playback (PLAY)
Fast forward (only for VCR) or
▼
▼
Scan in fast forward
17
Page 18
Operating additional equipment
Logging in AV equipment
You have already logged in and connected all
the connected videos with the connection wizard in initial installation. If you now want to
connect additional or different equipment, you
have to launch the connection wizard in the TV
menu ”Connections”.
Connecting VCR equipment
In addition to the connection via the Euro-AV
socket, you also have to connect the antenna
(only for antenna or cable systems) through the
VCR to the TV set. The antenna signal is then
available both to the tuner in the VCR and the
TV tuner.
SAT
SERVICE
SAT A/D
AV2/RGB
AV1
R
AUDIO OUT
L
VHF/UHF
SUBWOOFER
STAND
RFin
AV1/TV
RFout
AV2/Dec

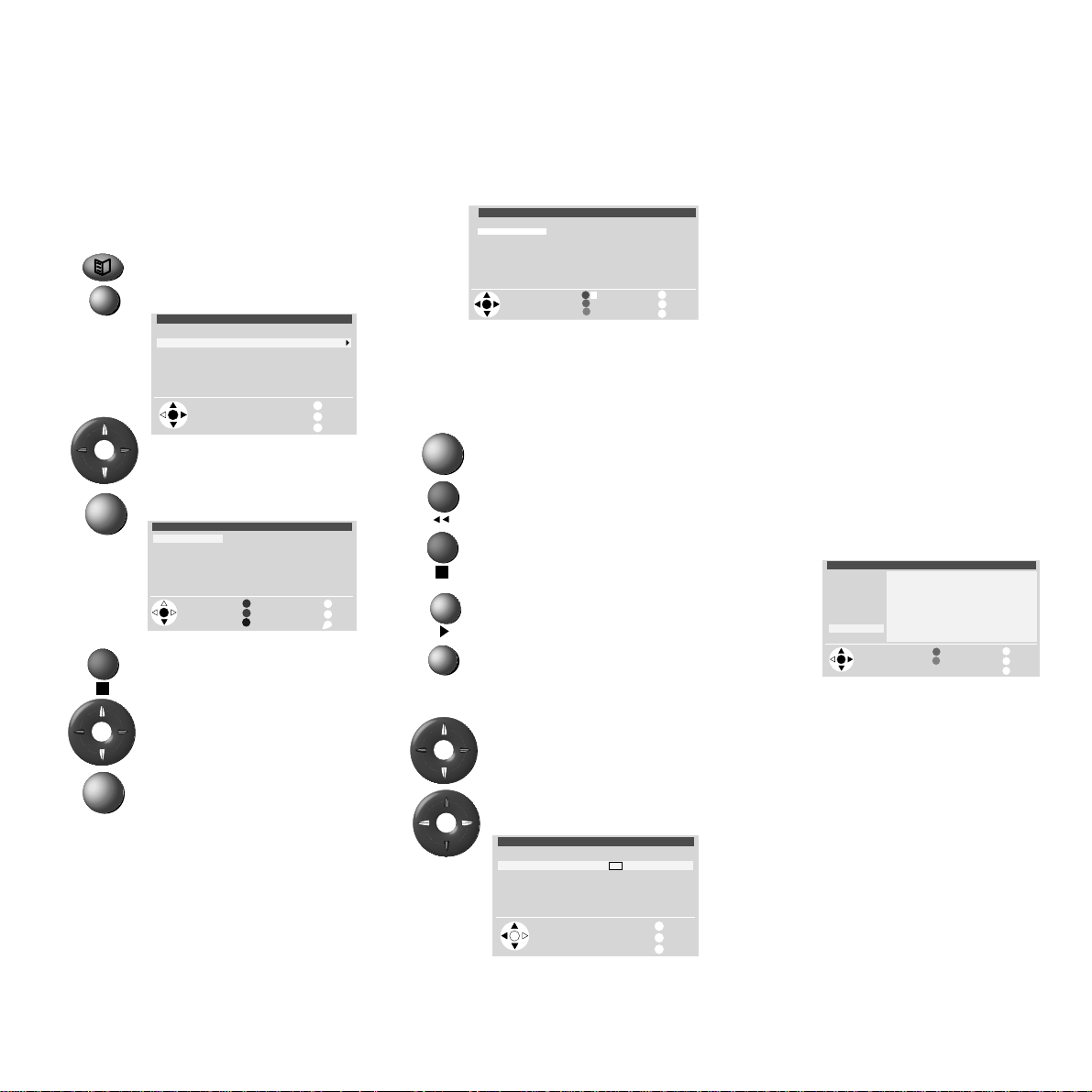

Search for and store the VCR station (if
there is no Euro AV cable)
Switch on the test station on the VCR or insert a
recorded tape and start playback.
Then call program 0 on the TV set (set ex-factory
to channel 36). Select the first menu item (VCR)
in the AV selection list.
To prevent ”normal” TV stations being found in
the search, pull out the antenna plug from the
antenna input of the VCR temporarily (the plug
attached to the cable to the antenna system).
0
Call the TV
menu
Mark
”Settings”
Call
Mark
”Stations”
Call
Mark ”Manual
setting”
Call
Mark ”Range”
and
Select ”UHF”
Mark
”Channel”
Enter channel
30
TV menu
Standard settings
Sound
Connections
Settings
Settings
Stations
AV settings
Child lock
On-screen displays
Timer functions
Time and date
other ...
Stations
Automatic search
Manual adjustment
Sort
Delete
Enter/change name
Preferred stations
Manual adjustment
Range VHF UHF Cable
Channel E36
Frequency 591.25 MHz
Name VCR
TV stand. B/G
Col. st. Autom.
Search
0-9:Entry
Search
Store
i
M
i
M
E
OK
Manual adjustment
Range UHF
Channel E30 (E21...E69)
Frequency 543.25 MHz
Name VCR
TV stand. B/G
Col. st. Autom.
OK
Info
Back
Info
Back
End
M
OK
OK
OK
3
Manual adjustment
Range UHF
Channel E37 (E21...E69)
Frequency 599.25 MHz
Name VCR
TV stand. B/G
Col. st. Autom.
0-9:Entry
OK
Search
Store
i
Info
Back
M
End
E
Search for
channel (blue
button)
When the station is
found:
Store (red
button)
A list of the stored stations is displayed
Store
0 VCR
1 ARD
2 ZDF
3 SAT.1
4 RTL
5 VOX
6 S–RTL
7 N–TV
8 DSF
OK
Insert station
Overwrite station
9 S–RTL
10 N–TV
11 DSF
12 TM3
13 PRO7
14 RTL 2
15 WDR 3
16 BR 3
17 HR 3
18 KIKA
19 PHOENIX
20 EUROSPRT
21 KABEL 1
22 MTV
23 CNN INT.
24 HOT
25 TV 5
26 VIVA
i
M
E
Info
Back
End
Overwrite program (program 0
marked)
E
Hide menus
Plug the antenna plug back into the VCR.
If you now get interference because a TV
station is transmitting on the same channel as
the VCR station, you have to change the
transmitting station on the VCR (see operating
instructions of the VCR) and search for the VCR
station on the TV again .
18
Page 19
Operating additional equipment
Video playback
In order to see the VCR picture on your TV and
hear its sound you have several possibilities:
1. You can use the Euro-AV sockets on the TV
set and on the VCR. This is the best option of
all – good picture and sound quality.
If you are playing back from a VCR with
Digital Link Plus, the VCR picture is shown on
the current station slot.
If you are playing back from a standard VCR,
DVD player or camcorder, select the AV
socket to which the video signal is connected
in the AV selection list or the station table.
Video recorders emit a switching voltage
during playback which the TV set can decode
(can be activated for every VCR in the
connection wizard). Then the VCR picture is
shown on the current station slot as in Digital
Link Plus VCR’s.
2. You use the antenna connection between the
VCR and the TV set. The sound is only
broadcast in mono. To do this, select the first
menu item, e.g. VCR, in the AV selection list.
Calling an AV program in the AV selection
list
0
Call AV selection list
AV Selection
VCR AV1 AV2 AVS
Select AV socket or VCR for VCR
transmitter.
Now you will see the playback from the
connected AV unit.
Calling an AV in the station table
OK
Call the station table
Station table: TV
AVS
AV2
AV1
0 VCR
1 ARD
2 ZDF
3 SAT.1
4 RTL
5 VOX
6 NDR
OK
Select and
proceed with OK
0 9
... Select program:
6 S–RTL
7 N–TV
8 DSF
9 TM3
10 PRO7
11 RTL 2
12 WDR 3
13 BR 3
14 HR
15 MDR 3
Change programs
Favorite programs
Sort alphabetically
i
Info
Menu
M
End
E
In the numeric sorting you will always find the
AV sockets at the top of the list without station
numbers.
Mark the AV socket
Now you will see the playback from the
connected AV unit.
19
Page 20
Operating additional equipment
Operating Loewe video recorders and
Loewe DVD players directly
You can switch over the remote control of the
TV set to operate Loewe video recorders and
Loewe DVD players. These devices can be
operated directly or, in the case of equipment
installed in a concealed place, by the TV set. In
this case the Digital Link function of the VCR
must be switched on.
Functions for Loewe video recorders
Indicator: control VCR
Indicator: control DVD
Direct operation
select for VCR/DVD/TV
ShowView timer
Long Play / Standard Play
SV
1
4
7
VTR
DVD
LP
V
Control 150
000
=
2
5
8
Select the device to be operated:
for VCR:
the VTR indicator on the
remote control lights up ...
press again, the DVD indicator
lights up ...
press again, none of the
indicators lights, the TV is then
activated.
The TV cannot be operated if VTR or DVD is
switched on. In this case switch back to TV or wait
20 seconds until the remote control automatically
switches back to TV mode (none of the indicators
lights).
Loewe VCRs VV3600H, VV8500H and VV5000M
cannot be controlled with this remote control.
Please use the original remote control or the
video bar.
Functions for Loewe DVD players
Select audio track
Counter/tape
remain/clock
Switch on/off
Timer on/off
Counter reset
3
6
Select program
directly
9
Indicator: VCR control
Indicator: DVD control
Select direct control
for DVD/TV/VCR
Select camera angle
Repeat chapter/title/
entire DVD/Repeat off
SV
1
4
7
VTR
DVD
LP
V
=
2
5
8
Control 150
000
3
6
9
Select language
Select subtitles
Power on/off
– Standby
Show/hide OSD menu
Select title/chapter
via menu
Number buttons
Call menu
>5 sec. set RF
converter channel
Pause/still picture
Select program
up/down
Rewind
Stop
>3 sec. eject
cassette
20
T
M
0
OK
OK
Leave menu
E
i
Recording (+ )
Call/store/confirm
Forward
Return/cancel
Fast forward
Start playback
Pause/Frame-by-frame (top)
Show/hide DVD
Pause or still
/Frame-by-frame
Menu control:
move selection up/down
Direct control:
Slow motion (bottom)
Previous chapter/title
/Fast reverse
STOP
0
M
E
T
OK
OK
i
Hide OSD menu strip
Slow motion
Enter menu selection
Menu control:
move selection left/right;
Direct control: Fast
forward/reverse
Next chapter/title
/Fast forward
Play
Page 21
What to do when ...
Problem
Various menu items cannot be called (shown in
gray) or the menus for the EPG and teletext
modes of operation cannot be called
Timer recording, Change timer and Clear timer
are not shown in the Video menu
”Connections” cannot be called in the Video
menu (shown in gray)
The ”Stations” item in the TV menu and the
”Automatic station search” item in the main
information cannot be called
Control of the Loewe VCR with the video
control bar and the timer does not work or
does not work properly
General problems with connecting external
devices through an AV input
Possible cause
”Simplified control” activated in main
information
No video recorder logged in
a) A timer recording is currently in progress
b) You are recording from the TV set with the
video bar
The child lock is activated. If these menus were
accessible, children could still set the programs.
a) The VCR’s Digital Link function is not activated
or not possible
b) Euro-AV cable not connected
c) Video recorder not logged in
a) The device is not logged in in the
”Connections” menu or is connected
differently to shown in the connection dia-
gram
b) The AV norm is set incorrectly
c) The AV signal is set incorrectly
Remedy
Deactivate ”Simplified control” in the main
information. Press the i-button, select ”Select
control level” and call with OK. Set the
”Simplified control” to ”no”.
Log in VCR in the TV menu – Connections.
a) Wait until the timer recording has ended or
clear the timer.
b) Wait until you stop recording.
Deactivate program-related child lock: Switch off
child lock or enter PIN in the TV menu - Settings.
a) Activate Digital Link in the VCR (see operating
instructions of the VCR)
b) Connect the Euro-AV cable
c) Log in the VCR
a) Compare the connection diagram with the
actual installation in the ”Main information”
under ”Connections” and connect as shown if
necessary.
b) Set the correct norm.
c) Set the correct AV signal.
If ”Automatic” is set for AV norm or AV signal,
this can lead to wrong detection in the case of
non-standardized signals. In this case the norm
and signal must be set according to the operating
instructions of the external device.
Picture shifted horizontally
The TV set is in the Southern hemisphere (e.g.
Australia, South Africa)
Set the horizontal position:
1. Call the main information with i
2. Call Index – Set picture – Horizontal
displacement
3. Set horizontal picture position.
21
Page 22
What to do when ...
Problem
Connection of a decoder does not work or does
not work properly
No sound through the TV loudspeakers
All menus appear in the wrong language
Possible cause
a) The signal is not decoded because the correct
decoder programs have not been selected in
the TV menu - Connections
b) The sound is missing in decoder mode
because the wrong decoder sound is
allocated in the TV menu - Connections
The item ”Sound from...” in the Sound menu
under ”Sound” is not set to ”TV”
The wrong menu language has been set
Remedy
a) Follow the instructions in the TV menu –
Connections again and select the
appropriate decoder programs.
b) Follow the instructions in the TV menu –
Connections again and select the right sound
source (decoder, TV or Autom.), see
instructions of the decoder.
Change the setting to ”TV”.
Set your menu language:
1. Switch off picture-in-picture (PIP)
switch off all on-screen displays, press the E
button
2. Call the TV menu, press the M button
3. Select the last menu item and press OK
4. Select the last menu item on the last page
and press the OK button
5. Now select the right language and
6. ... confirm with OK.
✳
and
Digital Link Plus does not work
Various characters are displayed incorrectly in
teletext
22
a) The VCR has not been logged in as a Digital
Link Plus device or has been connected to the
wrong socket
b) The Euro-AV cable is not fully wired (Pin 10
not wired)
c) Some video recorders can only take over the
stations from the TV in initial installation
d) All or some terrestrial or cable stations are
stored at station slots ≥ 99
The wrong character set is set in the teletext
menu
a) Log in the Digital Link Plus VCR under
”Connections” and connect according to the
diagram.
b) Change the Euro-AV cable
c) Reinstate the original state (ex-factory) of
the VCR (see operating instructions of the
VCR)
d) Sort the terrestrial and cable stations so that
they are between 1 and 99.
Set the right character set: Teletext menu –
Settings – Character set – Standard or the
appropriate character set.
Page 23
Technical data
Mechanical data
Calida 5784 ZP Article no. 61412
Dimensions (cm) 79x73x54 (WxHxD)
Weight (kg) 54
Picture tube Blackline S
Format 4:3
Screen class 84, visible 81 cm
Planus 1663 Z Article no. 59115
Dimensions (cm) 73.0x54.5x46.0 (WxHxD)
Weight (kg) 40
Picture tube Blackline S
Format 4:3
Screen class 63 cm, visible 59 cm
Planus 4670 ZW Article no. 61419
Dimensions (cm) 83.5x52.5x52.0 (WxHxD)
Weight (kg) 39
Picture tube Super Flatline
Format 16:9
Screen class 70, visible 65 cm
Planus 4672 ZP Article no. 61419
Dimensions (cm) 81.6x60.2x49.2 (WxHxD)
Weight (kg) 42.5
Picture tube Super Flatline
Format 4:3
Screen class 72, visible 68 cm
Planus 4872 Z Article no. 61416
Dimensions (cm) 69.4x63.8x50.7 (WxHxD)
Weight (kg) 41
Picture tube Super Flatline
Format 4:3
Screen class 72, visible 68 cm
Electrical data
Chassis name Media Plus (Q2500/B)
Image refresh frequency PAL/Secam 100 Hz
Full Digital 100 AMD
Power supply 220V up to 240V/50–60Hz
Power consumption in operation approx.145 Watt
Ambient temperature 5º – 40º Celsius
Tuner VHF/UHF/ cable
(Hyperband 8 MHz) 42 MHz – 860 MHz
Station memory
TV norms
Color norms
Sound norm
✳
✳
✳
✳
Audio rated output 2 x 15 Watt / 4 Ohm
Audio music output 2 x 20 Watt / 4 Ohm
Teletext HiText (Level 2.5)
Connections
Mini-DIN (Front) Video IN S-VHS / Hi 8
Cinch (Front)
✳
Video IN VHS / 8 mm
Cinch (Front) Audio IN L + R
Jack 6.3mm (Front) headphones 32–200 Ohm
IEC socket 75 Ohm antenna / cable
AV 1 Video IN/OUT S-VHS / Hi8
Video IN/OUT VHS / 8 mm
Audio IN/OUT L + R
AV 2 Video IN/OUT
Video IN/OUT VHS / 8 mm
Video IN RGB
Audio IN/OUT L + R
Cinch Audio OUT
Mini-DIN 8-pole Service and AHS
✳
depending on equipment and type of set
✳✳
OUT only in Digital Link Plus video recorders
✳
PAL 60/NTSC 120 Hz
✳
/DNC
Standby <2.5 Watt
Sat-Record-Mode <60 Watt
220/with DVB:1470
B/G, I, DK, L, L‘, M, N
PAL, SECAM,
NTSC, NTSC 4,43
FM, AM, Nicam
mono/stereo/2-sound
✳✳
S-VHS / Hi8
level adjustable/fixed
Accessories available
Racks
Ask your dealer, he will be able to offer you the
right rack from the Loewe range to suit your TV
set.
Single-/Twin-Sat-Tuner and Digital TV
module
Your TV set can be retrofitted with the
integrated satellite tuner 6 and the TV Digital
Module. This allows reception of analog and
digital satellite programs.
23
Page 24
Service addresses
Australia
International Dynamics Australasia Pty Ltd.
129 Palmer Street
AUS - Richmond, Victoria 3121
Tel. 03–94 29 08 22
Fax 03–94 29 08 33
Austria
Robert Bosch AG
Postfach 146
A–1011 Wien
Tel 01–79 72 24 500
Fax 01–79 72 24 599
Benelux
Loewe Opta Benelux NV/SA
Lt. Lippenslaan, 54B
B–2140 Antwerp
Tel. 0902–88 00 2
Fax 030–280 33 27
Loewe Opta Nederland B.V.
Ravenswade, 54A1
NL–3439 LD Nieuwegein (Utrecht)
Tel. 0900–280 33 27
Fax 030–803 327
CIS
Service Center Loewe
ul. Verkhnyaya Maslovka, d. 29
RUS–125083 Moscow
Tel. 095–212 50 43, 956 67 64
Fax 095–212 47 10
Cyprus
Pangratis Liveras & Son Ltd
P.O. Box 3426
Liveras Building
7 Ajax Street Saint Omologite
CY–Nicosia
Tel. 02–66 34 96
Fax 02–66 42 12, 66 79 36
A. Sedat & Sons Ltd
16-18-20 Muftu Ziyai St.
Lefkosa, Via Mersin 10
Turkey
Tel. 0392–22 73 750
Fax 0392–22 85 739
Czech Republic
TIPA Spol. sr.o.
Dolí námestí 9
CZ–74601 Opava
Tel. 0653–62 44 04
Fax 0653–62 31 47
Denmark
Semi-Tech Consumer
Electronics (Denmark) A/S
Hørskætten 3
DK–2630 Taastrup
Tel. 43 59 77 77
Fax 43 59 77 00
24
France
Sorep Import S.A.
Loewe Opta
11 rue de la Durance
F–67029 Strasbourg Cédex 1
Tel. 03–88 79 72 50
Fax 03–88 79 72 59
Germany
Loewe Opta GmbH
Kundendienst Zentrale
Indurstriestraße 11
D–96317 Kronach
Tel. 09261–990
Fax 09261–95411
Great Britain
Linn Products Limited
PO Box 8465
Prestwick
UK – KA 7 2YF
Tel. 01292–47 15 52
Fax 01292–47 15 54
Greece
SOUND HELLAS S.A.
Kleanthous Str. 10
GR–54642 Thessaloniki
Tel. 031–856 100
Fax 031–856 300
Hungary
Basys Magyarorszagi KFT
Epitok utja 2–4
H–2040 Budaörs
Tel. 023–415 637/121
Fax 023–415 182
Italy
General Trading SpA
Via Vittorio Emanuele, 33
I–50041 Calenzano (FI)
Tel. 055–88 11 71
Fax 055–88 11 74 0
Malta
Mirage Holdings Ltd
Flamingo Complex
Cannon Road
M–Qormi
Tel. 49 71 82
Fax 44 59 83
Norway
CableCom AS
Bekkevn, 9
N–3218 Sandefjord
Tel. 033–48 33 48
Fax 033–48 33 33
Poland
PPHU PAROS Sp. z o. o.
ul. Ustronie 1–3
PL–50-302 Wroclaw
Tel. 071–322 20 14, 322 20 17
Fax 071–322 10 61
Portugal
Videoacustica
Comercio e Representacoes de
Equipamentos Electronicos S.A.
Estrada Circunvalacao
Apartado 3127
P–1301-902 Lisboa Codex
Tel. 021–417 00 04
Fax 021–418 80 93
Slowenia
Jadran T rovsko Podjetje
Partizanska cesta 69
SL–6210 Sezana
Tel. 057–391 402, 391 406
Fax 057–391 400
Spain
Gaplasa S.A.
Conde de Torroja, 25
E–28022 Madrid
Tel. 91–748 29 60
Fax 91–329 16 75
Sweden
Elektronikservice i GBG AB
Fridkullagatan 23
S–41262 Göteborg
Tel. 031–81 14 86
Fax 031–812 77 70
Switzerland
Telion AG
Rütistrasse 26
CH-8952 Schlieren
Tel. 01–732 15 11
Fax 01–730 15 02
Turkey
ENKAY ELEKTRONYK SERVYS MÜDÜRLÜDÜ
Ambarlar Cad: No.: 3/C
Zeytynburnu/ Istanbul
Tel. 0212–582 36 69
Fax 0212–671 80 39
U.A.E.
Super Trading Establishment
P.O. Box 46409
Abu Dhabi - U.A.E.
Tel. 02–67 33 884
Fax 02–67 34 747
Printed in Germany
3/02.02/10,0
Subject to modification!
Page 25
✄
secret code and with it the
The code number 3001 cancels out a
safe place.
child lock. Please keep it in a
25
Loading...
