Aero Tec™ Installation Guide

Aero Tec™

Models 700 & 750

(115 vac)

340 Gateway Park Drive
North Syracuse, NY 13212
Phone: [phone]
Toll Free: 866-235-7468
Fax: [phone]
Email: [email protected]
www.dlmanufacturing.com

A Product of

AT9031 REV J 7/13/09

AeroTec™ Installation Guide

Mounting

Options

Fastener Type / Hardware

Quantity

Notes

Poured

Concrete Wall

1/2” x 2-3/4” Wedge Anchor

4

Fastenal Part # 52038

Concrete Block

1/2” x 2-3/4” hollow set drop in anchor and

1/2” washer.

4

Fastenal Part # 50399

Wood backed

by solid

material

1/2” x 3” Anchor and 1/2” washer. (Type of

anchor used will depend on type of solid

backing. See above methods)

4

6” Bollard

6” U-Bolt / 1/2” Nylock / 1/2” Flat Washer

2 / 4 / 4

Fastenal Part #’s 42058 /

1137018 / 1133012

Steel

Weld

8” Weld

Bead

1/4” Bead, Min 2” per side

Approved Installer-Supplied Hardware & Fasteners

Page 1 General Info / Table of Contents /Approved Hardware & Fasteners
Page 2 AeroTec™ Installation and Assembly

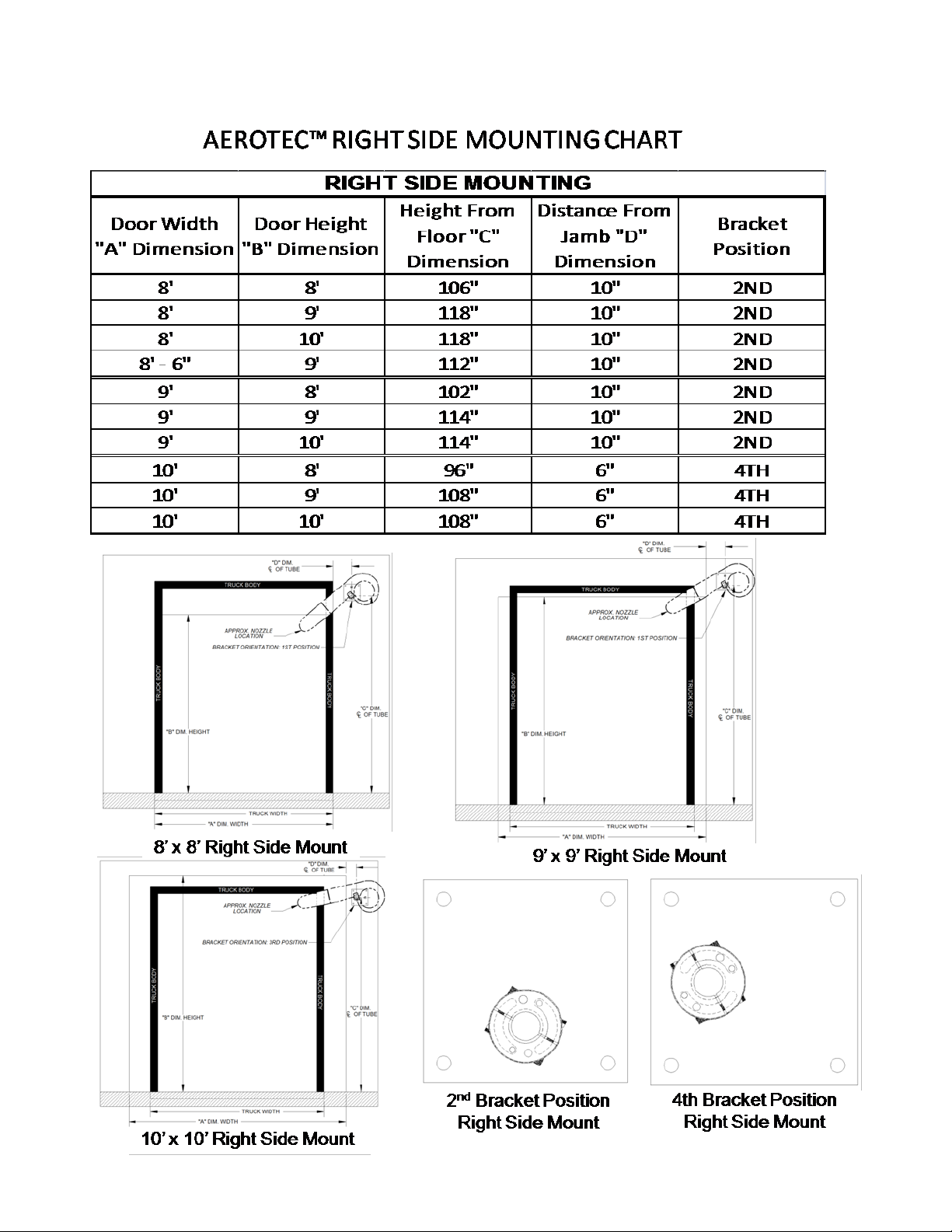

Page 3 AeroTec™ Right Side Mounting Chart

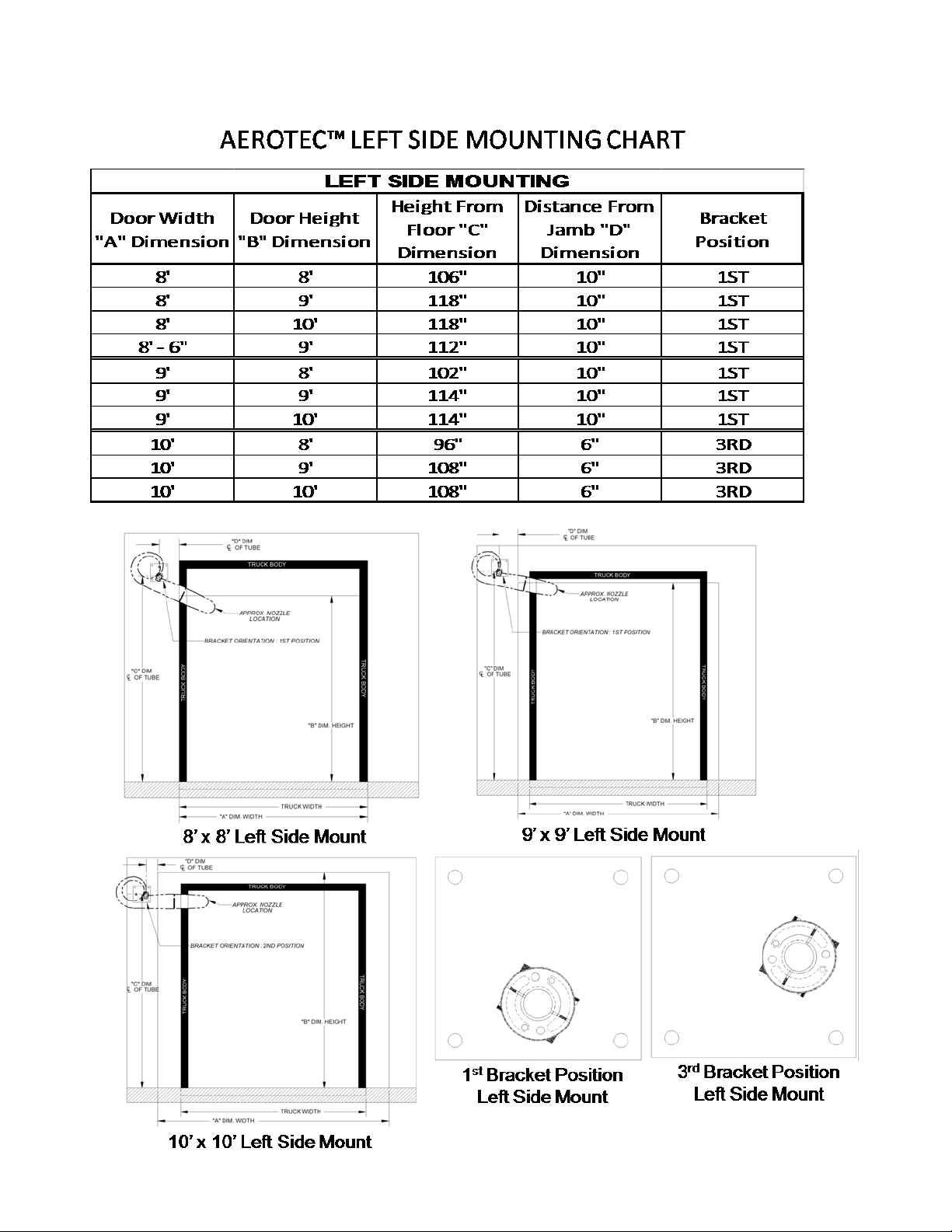

Page 4 AeroTec™ Left Side Mounting Chart
Page 5 AeroTec™ Parts List
Page 6 DL Manufacturing Terms/Conditions/Warranty

Table of Contents

Page 1

YEARLY MAINTENANCE

1. Check power cord for any damage.

2. Check mounting bolts for tightness.

3. Verify all finger guards are properly installed and not damaged.

4. Clean unit.

>WARNING!!!

Do not install or service AEROTEC™ with the power on.
Do not use in hazardous or corrosive environments.
Verify that AEROTEC™ is not distributing exhaust fumes from fork- lifts or

auxiliary equipment.

AT9031 REV J 7/13/09

AeroTec™ Installation Guide

Page 2

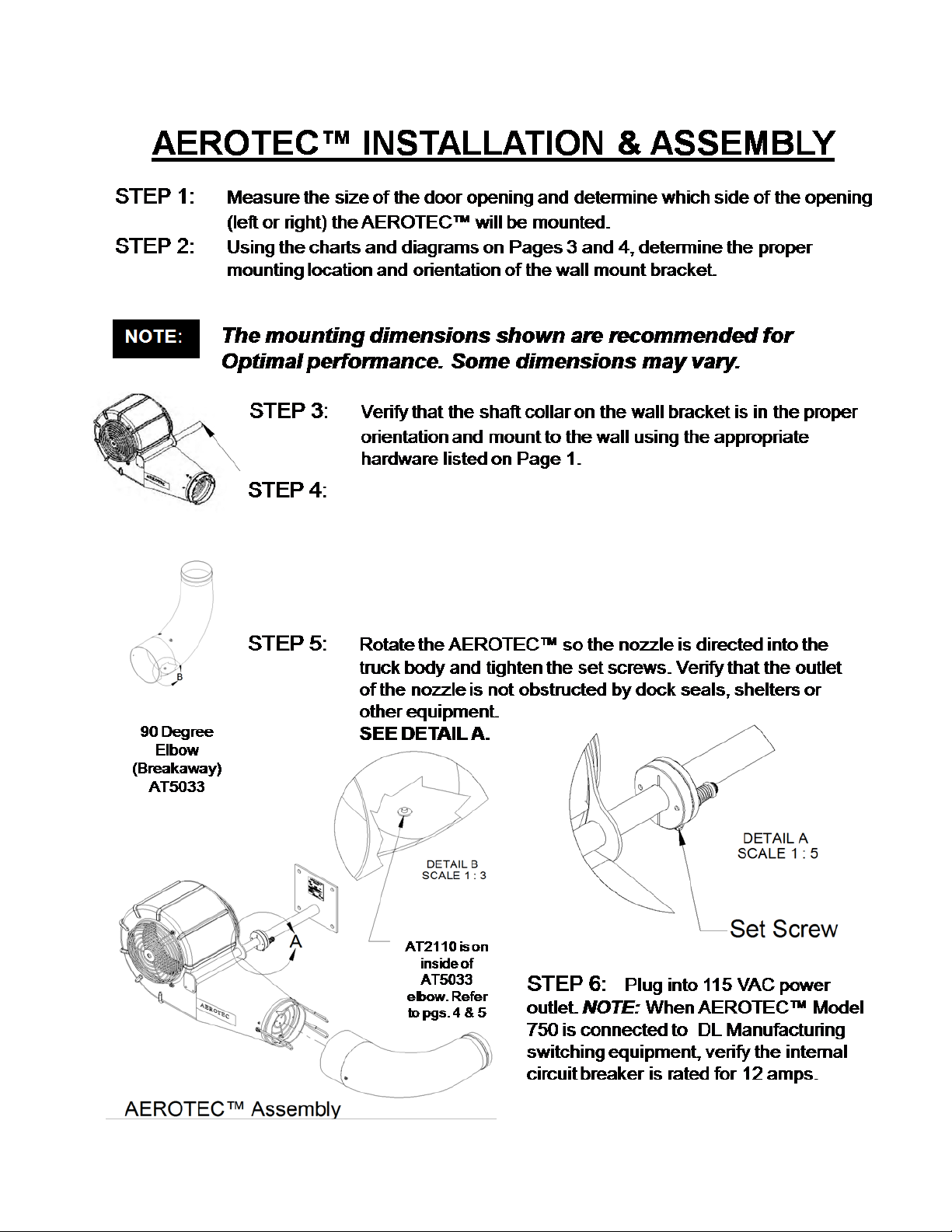

Slide the AEROTEC onto the wall bracket (verify that
the tube penetrates the wall mount by 3” or more and
there is no risk of falling) Install the breakaway elbow
with the shock cords. The end of the elbow should be
as close to the closed door as possible (2”-3” is
optimum).

AT9031 REV J 7/13/09

AeroTec™ Installation Guide

Page 3

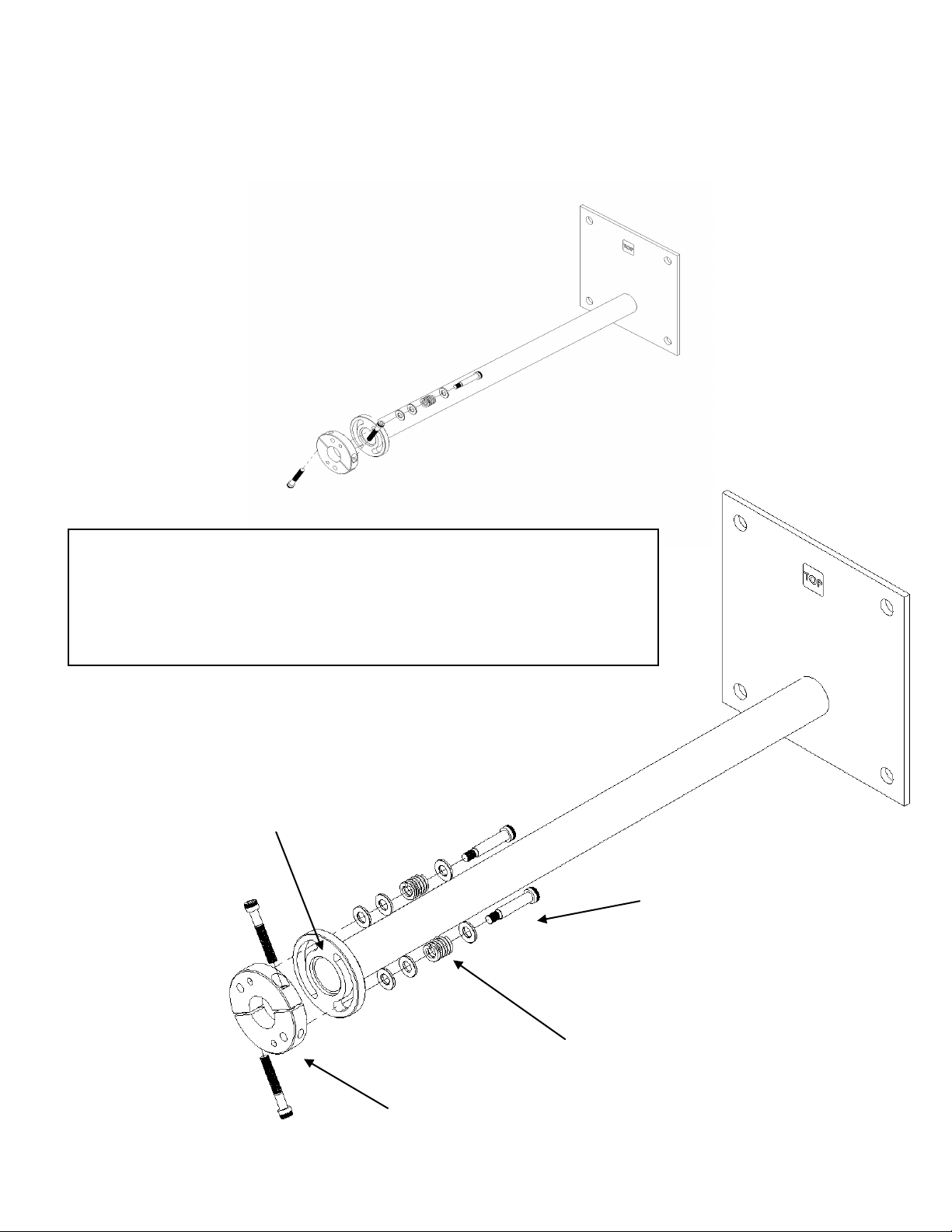

Wall Mount Shaft Collar Positioning

Factory Shipped Left Hand Wall Mount

NO ADJUSTMENT REQUIRED

Wall Mount Conversion to Right Hand Mount

1) Remove both shoulder Bolts and Springs using 3/16” allen
wrench

2) Rotate shaft collar counter clockwise to left hand side of web

3) Reinstall both shoulder Bolts and springs

Step 1
Shoulder Bolt

Step 2

Springs

Web

Step 3

Rotate shaft collar
counterclockwise

AT9031 REV J 7/13/09

AeroTec™ Installation Guide

Page 4

AT9031 REV J 7/13/09

AeroTec™ Installation Guide

Page 5

AT9031 REV J 7/13/09

AeroTec™ Installation Guide

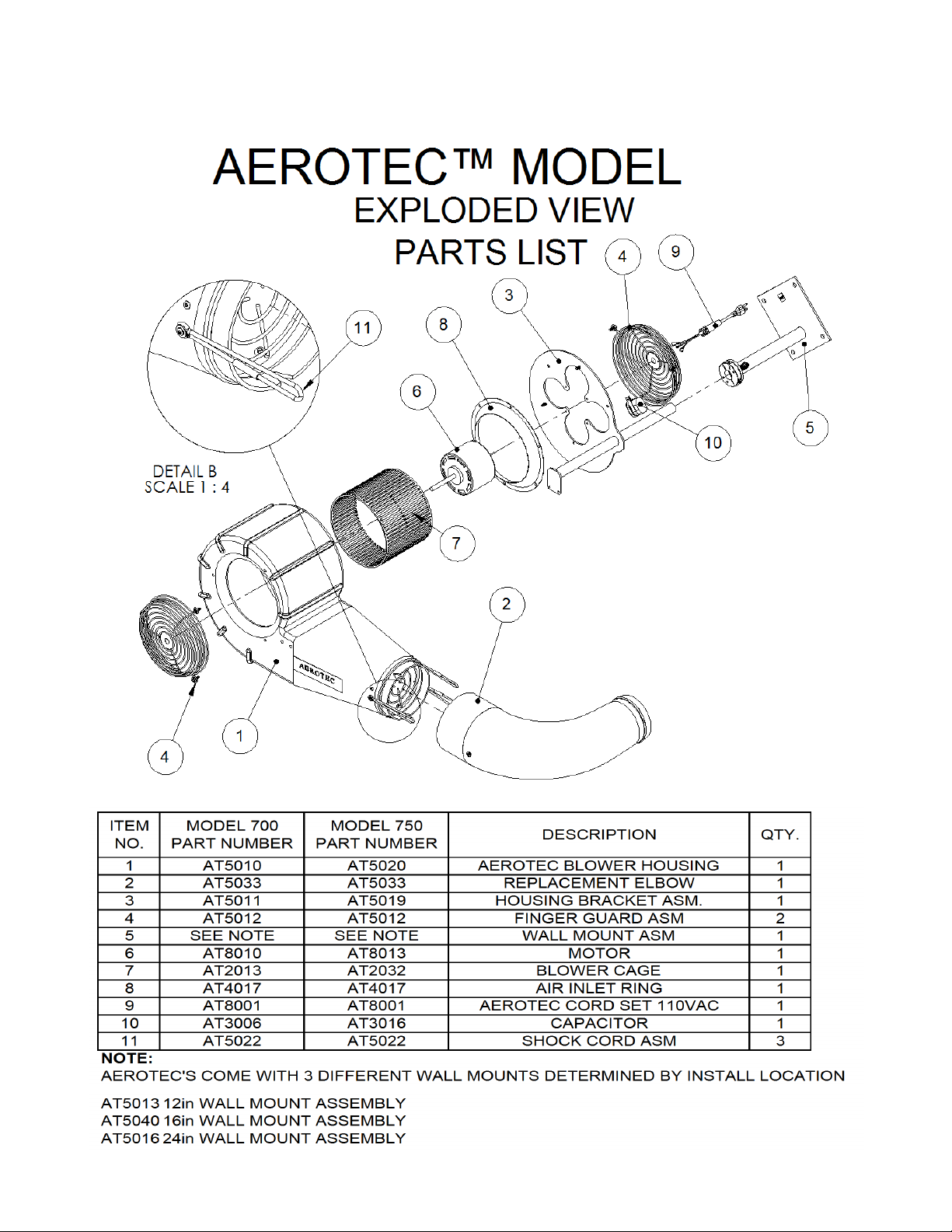

1 AT5010 AT5020 AEROTEC BLOWER HOUSING 1
2 AT5033 AT5033 REPLACEMENT ELBOW 1
3 AT5011 AT5019 HOUSING BRACKET ASM. 1
4 AT5012 AT5012 FINGER GUARD ASM. 2
5 AT5013 AT5016 WALL MOUNT ASM. 1
6 AT8010 AT8013 MOTOR 1
7 AT2013 AT2032 BLOWER CAGE 1
8 AT4017 AT4017 AIR INLET RING 1

9 AT8001 AT8001 AEROTEC CORD SET 110V 1
10 AT3006 AT3016 CAPACITOR 1
11 AT5022 AT5022 SHOCK CORD ASM. 3

ITEM

NO.

MODEL 700

PART NUMBER

MODEL 750

PART NUMBER

DESCRIPTION

QTY.

Page 6

700/750

AT9031 REV J 7/13/09

AeroTec™ Installation Guide

Page 7

Shipping Times

~ Orders for stock items received by 3:00pm EST will be processed for shipment the next day. Orders requesting
2nd Day Air or Overnight Air received by 1:00pm will be processed for same day shipment.

Shipments / Freight

~ All DL Manufacturing orders will ship directly from our facility in North Syracuse, NY.
~ All parts will be shipped via UPS Ground unless you authorize a different service. UPS shipments are prepaid

and the charges are added to your invoices.

~ For orders shipping by common carrier, the freight will be FOB, North Syracuse, NY. When “best way” is the

preferred shipping method on your order, DL Manufacturing will choose the carrier, unless otherwise stated, for the
orders shipping from this facility. No adjustments will be made after the order has shipped.

Returns

~ DL Manufacturing will issue a Returned Material Authorization (RMA) number for any product, parts and
accessories. Products should not be returned without an RMA number.

~ Replacement parts will be invoiced at the time of shipping. Invoices will be credited upon receipt and inspection
of Returned Material Authorization (RMA).

~ Freight for returns is paid for by the shipper unless otherwise specified by DL Manufacturing.
~ A restocking fee of 25% of net price or a minimum $20.00 is charged for returns.
~ All replacement parts are warranted for a period of 90 days from shipment.

DL Manufacturing

Terms / Conditions/ Warranty

Cancellation Fees

~ Cancellation charges may be incurred on orders cancelled with DL Manufacturing. Please contact DL
Manufacturing to discuss each situation.

Warranty Policy

~ All Products (excluding bulbs) manufactured by DL Manufacturing are warranted to be free from defects for a
period of 12 months from the date of shipment, excluding doors, which have a warranty period of 12 months from
date of installation or 18 months from shipment, whenever occurs first.
This warranty does not cover unreasonable/improper use or use beyond rated conditions, improper storage,
negligence or accident; damage because of incorporated use of equipment with Goods, after Customer has or
reasonably should have, knowledge of any defect; or improperly installed by any other Person that is unauthorized
by DL Manufacturing.
This warranty is subject to customer covenants to inform all subsequent buyers of the Goods of the limitation on
and exclusive of warranties provided for herein. Customer hereby indemnifies and agrees to hold DL

Manufacturing harmless from and against all losses, costs and expenses, including reasonable attorney’s fees

incurred by DL Manufacturing as a result of any third party claim relating to the purchase, sale or use of, or
otherwise relating to, the Goods covered by this Agreement.
In no event shall DL Manufacturing be required to repair, replace or reimburse Customer for more than the part or
material that is found to be defective and DL Manufacturing’s liability shall in such event be no greater than the
invoiced price of the item and shall not include labor, shipping or other costs incurred in connection with the
reshipment of defective Goods to DL Manufacturing or the reinstallation of such Goods after any repair or
replacement. The remedy set forth in this paragraph is expressly agreed to be the sole and exclusive remedy for
any breach of warranty. This warranty is exclusive and in lieu of all other warranties expressed or implied, including
but not limited to any warranty of merchantability or of fitness for a particular purpose.
Limitation of Liability - In no event as a result of breach of contract, warranty or negligence shall DL Manufacturing
be liable for special, or consequential damages including but not limited to loss of profits or revenues, loss of any
equipment, cost of capital, cost of substitute equipment, facilities or services, downtime costs or claims of
purchasers of the Customer for such damages. Additionally, DL Manufacturing will not be liable for any delay in
the performance of contracts and orders, or in the shipment and delivery of goods, or for any damage suffered by
the Customer by reason of delay, when such delay is, directly or indirectly, caused by force majeure, including war,
Government interference, strikes, embargoes, shortage of labor, fuel, fires, floods, or any other cause or cause
whether or not similar in nature to any of those herein before specified beyond DL Manufacturing’s control.

AT9031 REV J 7/13/09
