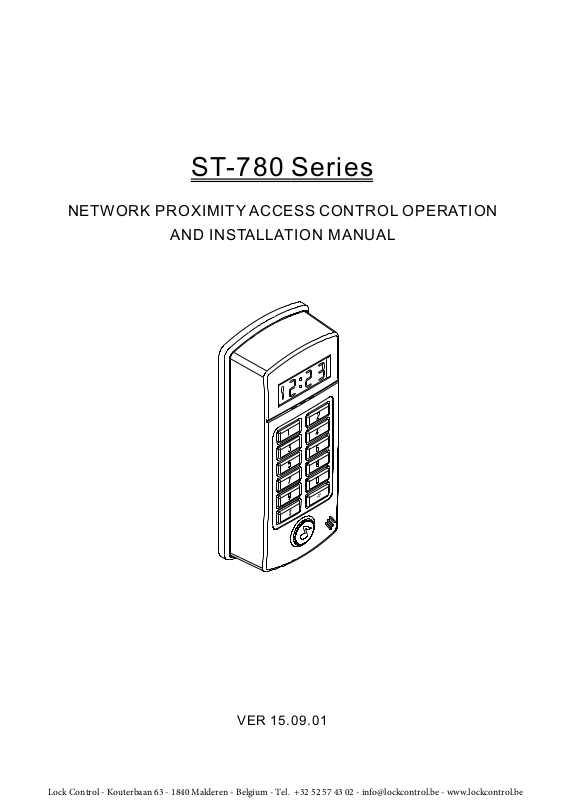

ST-780 Series

NETWORK PROXIMITY ACCESS CONTROL OPERATION

AND INSTALLATION MANUAL

VER 15.09.01

Lock

Control - Kouterbaan 63 - 1840 Malderen - Belgium - Tel. [phone] - [e-mail] - www.lockcontrol.be

CONTENTS

ATTENTIONS

1. Features introductions

2. Installation procedures

3. Reader front panel & types of proximity card

4. Operation instructions

Start reader

Proximity

Anti-duress

Setup mode

5. Quick setting

6. Setting modes & functions

(01) Add New Card

(02) Delete Card

(04) Shunt Time

(05) Door Open Mode

(08) Change System Password

(10) Reader ID Number

(13) Total Cards

(15) Set Time

(16) Set Date

(18) Main Reader Location

(28) Display Card Number Mode

(00) Instant Door Open

(80) Communication Mode

(81) Wiegand Mode

(82) Card Number Door Open Mode

(83) Access Control Mode

7. Installation instructions

(1) Reader connector

(2) Wiring additional electric lock and push button

(3) Wiring for additional reed switch door sensing

(4) Wiring on for anti-duress alarm

(5) Wiring for alarm

(6) Wiring for linking with computer

(7) Additional door bell wiring

(8) Wiring for external subreader

(9) Example: Door Open point with external RELAY

8. Installation of the unit

9.Attentions

10.Troubleshooting

1

2

3

4

5

5

5

5

5

5

6

6

6

7

7

8

8

9

9

10

11

11

11

12

12

13

13

14

14

14

15

16

16

16

17

17

17

18

19

19

Lock Control - Kouterbaan 63 - 1840 Malderen - Belgium - Tel. [phone] - [e-mail] - www.lockcontrol.be

ATTENTIONS

Electric lock

Diode

24AWG

+

500mA

DC 12V

Power supply

Wires

Electric Locks

+ External

Relay

AC 24V

1.Power Supply requirement: DC 12V 500mA or above.

2.Door opening or alarm connector output: Maximum load of 1A@12VDC.
Connect with external RELAY to control higher voltage or current .

3.Electric Lock: Fail-safe or Fail-secure type (Refer to p13).
Please note: In order to protect the proximity unit, please connect one Diode

between two power supply connectors of electric lock to absorb surge.

4.Please use 24AWG and above of double shieled twisted pair wire for communication

wires.

5.Avoid installing the unit at the following environment:

A. Machines with the same frequency as the proximity unit around the neighborhood.
B. In the area of a base station with radio or wireless transmission.
C. On metal wall (proximity distance will be shorten).

6.It is suggested to separate the power supply of electric lock and proximity unit in order

to stabilize the power supply.

7.It is IP54 waterproof and its surface is completely waterproof. Please apply waterproof

silicone on its base if it is mounted on rough surface to make sure its base is waterproof.

8.Do not place communication and power supply wires at the same route in order to

prevent interference which might cause abnormal communication.

9.Communication methods: Use of RS-485, TCP/IP, USB interfaces to connect

with computer.

Proximity distance
becomes short

DC 12V

Too close

Too close

Sharing the same
power supply

XX X

Card number in the back of the card

125KHz(EM)

1234567890

18838:00722

1234567890

Card number

Example of the card

The last 8-digit number of 1234567890 is 34567890.

13.56MHz(MIFARE)

Chip serial number
(non-serial)

X

Metal

Communication wire

X

Card number
(serial)

~
~

AC

1

Lock Control - Kouterbaan 63 - 1840 Malderen - Belgium - Tel. [phone] - [e-mail] - www.lockcontrol.be

1.Features introductions

Multiple waterproof design with built-in door bell button. It is suitable for both indoor

or outdoor use.

LED indicator to display time and card number. It displays setting modes when it is

used for standalone setting.

When connecting with computer, it can be used for data inquiry and function setting
simultaneously. (Door open/close, activate alarm system, etc). It can also operate
solely to manage access control.

Function setting can be done by computer or reader itself. (Single registration or
deletion, door open time, etc).

The historical data can reach up to 9,000 by single reader operation. When linking
with computer, its data input/output capacity is unlimited.

Main reader has 4,500 card registrations capability. Each card is able to do self-setting
for personal password and effective in/out time.

Main reader has 48 units of time zone. Each time zone unit also has 5 time ranges for
user to set.
Example: It can be set from"G" hour "H" minute to "I" hour "J" minute on Mondays,

Wednesdays, Saturdays in periodical of "A" year "B" month "C" day to

"D" year "E" month "F" day as effective in/out time range.
Equipped with hardware self-testing function.
Internal batteries will provide power supply when power cut occurred to prevent any

data from being erased and system time can operate as normal.

Main reader access control's range:

Card number - It must be registered before use.
Password - Personal password has to key in to open the door.
Time zone - Setting the effective year, month, day, time range, Monday-Sunday.
Special holidays- User could set any holidays as to prevent any unauthorized access.
Error control - Alarm will activate when"N" times of consecutive error password

entering occurred.

Main reader's sensing range:

Anti-tamper - When the reader is tampered , alarm will be activated.

Anti-duress - It will operate when password and duress code are entered to send help

signal to the nearest police station. It must be done manually to disable anti-duress
function.

Door open button sensing - Door will open immediately when the button is pushed.
Anti-theft - Alarm will be activated when sensing any abnormal operations.
Exceed door shut time - Alarm will be activated, when door is not closed exceeding

initial time setting control.

External sub-reader available to connect.

Frequency:125KHz or 13.56MHz
Proximity range: 1.5~7cm according to the types of card and frequency use.
Dimensions: 140L X 60W X 30H(mm)
Power supply : DC12V, Power consumption: 110mA (standby); 150mA (operation).

Operation temperature : Humidity:

0~70 , 85%Rh Max.

2

Lock Control - Kouterbaan 63 - 1840 Malderen - Belgium - Tel. [phone] - [e-mail] - www.lockcontrol.be

2.Installation procedures

Mount the unit (Page 17)

Wiring (Page 13~16)

Door open Relay output jump

(Page 13)

Power supply to the reader

Check if power

(RED)indicator is on.

Then, the screen will

show time

YES

Enter setting mode

R
BK
BR
O
Y
G
BL
P

Door Open Relay output as N.O.(default)

NO

If not, disconnect the
power supply immediately.

Enter system password ( 5678 ), then a beep sound
and yellow indicator light to enter into setting mode.
If there isn't any activation, this system will automatically
escape from the setting mode.

Communication

Door open RELAY

Wiegand input

Ensure the adapter's voltage

and polarity are correct.

12VDC
GND

Wiring

Reader number or change reader
number(Page 8)

NO

Operation with
computer online

YES

Press button to exit setting mode

Activate the software

(default account:USER,password:0000)

Add new user and reader

Default reader number is 001. Enter 10 and then 3-digit
reader number to change reader number(each reader
has its own reader number for software to recognise ).

Adding new cards(standalone)(Page 6)

Standalone
mode

Deleting cards
(standalone)
(Page 6)

Enter 02 and proximity card or enter card number.
One beep sound to complete deletion.
Press button to escape.

1.Default reader number is 1 and communication interface is
Com1 when entering into the software.

2.Reader n
are correct. Please check the wiring and its interface and
reader number when there is no response from the reader.

3.Clic
Information / Data.

4.Click Basic Information Setting ->Reader->Add New Reader.

umber 1 will respond when both interface and time

k Basic Information setting ->User->Add new user

Enter 01 and proximity card or enter
card number. One beep sound to
complete registration.
Press button to escape.

Completion
of setting

Send all settings to the reader

Send all data to the reader when all settings are
completed in order to operate.
Data which need to be sent are:1. Time 2. User's data

3. Time Zone 4. Parameter

Completion of setting

Pleas

e refer to the software manual for detailed operation.

3

Lock Control - Kouterbaan 63 - 1840 Malderen - Belgium - Tel. [phone] - [e-mail] - www.lockcontrol.be

3. Reader front panel & types of proximity card

12345678

(1) Front Panel Indicator Lights

POWER (Red) : Power indicator(On).

OK (Green) : Door open indicator.
STATUS (Yellow) : Enter system setting mode.

Operation error (Flashing).

Display Screen

(2) 10 entry (button), two function keys : " " & " ".

key:
A. Enter data confirmation button (ENTER)
B Card number will be displayed on the screen when

the card is proximity and # button is pressed.
(The function is available when "Display Card Number
Door Open Mode" function is set as ON;
please refer to P9 for setting Function 28).

key: clear or escape button (CLR/ESC)

(3) Model series

ST-780 :125KHz EM-Marin format

ST-780M :13.56MHz Mifare format

ST-780MF:13.56MHz Mifare SOCA format

ST-780MH:13.56MHz Mifare SOCA V.2 format

(4) Types of proximity card

SC-10

Thin card, thickness of 0.8 mm, ISO standard
card dimensions. It can be printed directly
from card printer. Read range :
EM 125KHz 5~ 7cm
Mifare 13.56MHz:3~5cm

LED Lights

Door Bell
Push Button

SC-20

Thick card, thickness of 1.78 mm, ISO standard
card dimensions. Read range :
EM 125KHz : 5 7cm

SC-30

Key tag, dimensions: 51L X 32W X 7.8H (mm).
Ultrasonic connection, waterproof,
shock- proof. Read range :
EM 125KHz 2~3.5cm
Mifare 13.56MHz:1.5~2.5cm

SC-50

Key tag, dimensions: 46L X 25W X 7H (mm).
Ultrasonic connection, waterproof,
shock- proof. Read range :
Mifare 13.56MHz:1.5~2.5cm

The above read range stated is for reference and it is varied according to
the different environment it is used.

4

Lock Control - Kouterbaan 63 - 1840 Malderen - Belgium - Tel. [phone] - [e-mail] - www.lockcontrol.be

4.Operation instructions

Start reader It begins self-testing function when power is on. Display current time

on the screen when it is completed.

Proximity : Sense the card near the unit. The following states are shown below.
A. Green

It

B. Continuous

Anti-duress When under duress, presses button before entering password

to activate alarm. (Default value of duress code is , it can be changed by user)
Example : Anti-duress code is 1, password is 1 2 3 4. In order to activate anti-duress

Note:This function is only available for Door Open Mode 3-proximity and password mode.

Setup mode:

light (OK) is on to display card number and open the door.

is a valid card.

beep sound (DENY). It shows invalid or unregistered card or inval

time

or under access control.

alarm, user should key in 1 2 3 4

User must enter into setting mode first before changing
any system functions.

..

User must enter system password for system
function selection. Default system password as 5 6 7 8 .
(Example: User can enter into the set up mode
by entering 5 6 7 8 ).

.

id

5.Quick setting

User must enter into the setup mode as the right diagram

shown

Add new card , enter 0 1 and then enter 0 0 0 0 0 0 0 1 or proximity card.

Delete card , enter 0 2 and then enter 0 0 0 0 0 0 0 1

Door open time , enter 0 4 and then enter the seconds 0 0 3

Change reader number , enter 1 0 and then enter the reader number 0 0 2

Door open mode , enter 0 5 and then enter the mode code 2

Time setting , enter 1 5 and then enter the time 1 3 0 0 1 5

for any settings to be set.

8-digit card number

8-digit card number

Seconds

Reader number

Door open mode

13:00:15

.

Date setting , enter 1 6 and then enter 0 0 0 1 0 1 6

2000/01/01 (6)

5

Lock Control - Kouterbaan 63 - 1840 Malderen - Belgium - Tel. [phone] - [e-mail] - www.lockcontrol.be

6.Setting modes & functions

Function(01) Add New Card

Either enter 8-digit card number or use proximity card to register, both can be accepted

but should be registered prior use.

Display

Display

1

Enter to clear.
It goes back to system function
selection when nothing is entered.

enter 8-digit card number

Function (02) Delete Card

Enter

# system password #

Enter 1 #

Proximity card or

and press # manually

Registration completed,
one beep sound.

Repeated registration,
continuous beep sound.

Deletion of user's card (such as loss of card or to prevent specific user to gain access)

can be achieved by entering 8-digit card number indicated on the proximity card.

Display

Display

2

Enter to clear.
It goes back to system function
selection when nothing is entered.

# system password #

enter 8-digit card number

and press # manually

Deletion completed,

one beep sound.

Enter

Enter 2 #

Proximity card or

Error.
Continuous beep sound.

6

Lock Control - Kouterbaan 63 - 1840 Malderen - Belgium - Tel. [phone] - [e-mail] - www.lockcontrol.be

Function (04) Shunt Time

Setting of relay's ON/OFF time in the proximity reader can be set from 0-255 seconds.

Set 000 as toggle function as the door is always open until the next proximity.

(default value as 003 )

Display

# system password #

Display

4

00

Enter # to go

back to system function selection.

Enter shunt time(0~255)

Function (05) Door Open Mode

Enter

Enter 4 #

Enter to clear.
It goes back to system function
selection when nothing is entered.

Reader has 2 types of identification modes. (default value as 2 )

Mode (2). Card proximity door open: The door opens, when the card is sensed.

Mode (3). Door open by proximity card and password: The door opens by entering

additional 4-digit password after sensing the registered card.

Display

Display

5

2

Enter # to go

back to system function selection.

Enter door open mode(2 or 3)

# system password #

Enter

Enter 5 #

Enter to goes back to
system function.

7

Lock

Control - Kouterbaan 63 - 1840 Malderen - Belgium - Tel. [phone] - [e-mail] - www.lockcontrol.be

Function (08) Change System Password

Default system password as 5 6 7 8 .
In order to enter into system setting mode for the first time, user must enter the default
system password 5 6 7 8 . User may change the system password after entering into
system setting mode.(4~6-digit password to set)

Display

Display

8

Nothing is entered

Enter

Back to system function selection.

Enter

# system password #

Enter 8 #

Enter new system password (4~6 digits)

Press # button after entering.

Setting completed,
one beep sound.

Error.
Continuous beep sound.

Function (10) Reader ID Number

Each reader has a reader ID number for computer identification and the number should not be

repeated. Setting range 1~255, default value as 001.

Display

Display

10 0

Nothing is entered

Enter

# system password #

Setting completed,
one beep sound.

Enter

Enter 10 #

Enter 1-255

and then # button.

Error.
Continuous beep sound.

Back to system function selection.

8

Lock Control - Kouterbaan 63 - 1840 Malderen - Belgium - Tel. [phone] - [e-mail] - www.lockcontrol.be

Function (13) Total Cards

Display total number of current registered cards.

Display

Enter

# system password #

Enter 13

Display

13 00

Display total number of
current registered cards.

Press any key to go

back to system function selection.

Function (15) Set Time

Example: 18 hour 00 minute 00 second => 18:00:00 (default value as 00:00:00)

Display

Enter # system password #

Enter 15

Change setting, enter #

Display

1

15.

Error. Continuous beep sound
and go back to hour entering.

Display

15.21.

Error. Continuous beep sound
and go back to minute entering.

Display

15.

15.

3

Display

00:00

Enter hour (00~23)

Confirm Enter #

Enter minute (00~59)

Confirm Enter #

Enter seconds (00~59)

Display current time

Escape. Enter

Back to system
function selection.

Escape. Enter to go back
to system function selection.

Escape. Enter to go back
to system function selection.

Error. Continuous beep sound
and go back to seconds entering.

Confirm Enter #

Escape. Enter to go back
to system function selection.

One beep sound to go back to system function selection.

9

Lock Control - Kouterbaan 63 - 1840 Malderen - Belgium - Tel. [phone] - [e-mail] - www.lockcontrol.be

Function (16) Set Date

Example 2012/04/30 Monday => 2012/04/30 (1) (default value as 2007/01/01 (1))

Display

Enter # system password #

Enter 16

2007.01.01 1

Display

1

16.

Error. Continuous beep sound
and go back to year entering.

Display

2

16.

Error. Continuous beep sound
and go back to month entering.

Y M D

W

Change setting,enter #

Enter year (00~99)

Confirm Enter #

Enter month(01~12)

Confirm Enter #

Display current date

Escape, enter

Back to system
function selection.

Escape. Enter to go back
to system function selection.

Escape. Enter to go back
to system function selection.

Display

3

16.

Error. Continuous beep sound
and go back to date entering.

Display

4

16.

Error. Continuous beep sound and
go back to day of the week entering.

Enter Day of the week (1~7)

One beep sound to go back to system function selection.

Enter date(01~31)

Confirm Enter #

Confirm Enter #

Escape. Enter to go back
to system function selection.

Escape. Enter to go back
to system function selection.

10

Lock Control - Kouterbaan 63 - 1840 Malderen - Belgium - Tel. [phone] - [e-mail] - www.lockcontrol.be

Function (18) Main Reader Location

To show the location of the reader: (0) Indoor, (1) Outdoor. (default value as 1 )

Display

Enter # system password #

Enter 18

Display

18

1

Enter main reader location code. (0 or 1)

Display location code

Enter # to confirm
Back to system function selection.

Function (28)

Display

Display

28 0

Enter # to confirm
Back to system function selection.

Enter to goes back to
system function.

Display Card Number Mode: (0)ON,(1)OFF. (default value as 0)

Card number is not displayed on the screen when it is set as OFF.

Enter # system password #

Enter 28

Display Card Number Mode

Enter Display Card Number Mode (0 or 1)

Enter to goes back to
system function.

Function (00) Instant Door Open

Authorized personnel could get into the setup mode to open the door for emergencies.

Display

Enter # system password #

Enter 00

Display

0

Enter # to confirm

Open door

Back to the display screen

Lock Control - Kouterbaan 63 - 1840 Malderen - Belgium - Tel. [phone] - [e-mail] - www.lockcontrol.be

Display System Door Open

Enter or any key to clear.
It goes back to system function selection
when nothing is entered.

11

Function (80) (1)N.8.1 , (2) N.8.2 .

Display

Display

80

Communication Mode

efault value as 2 .

D

Enter # system password #

2

Display Communication Modes Setting

Enter Communication mode(1 or 2)

Enter 80

Enter # to confirm
Back to system function selection.

Function (81) (0) , (1) .

Wiegand Mode Wiegand 26bit Wiegand 34bit

Enter to goes back to
system function.

Default value as 1 .

Display

Enter # system password #

Enter 81

Display

81

1

Display Wiegand Mode

Enter Wiegand mode(0 or 1)

Enter # to confirm
Back to system function selection.

12

Control - Kouterbaan 63 - 1840 Malderen - Belgium - Tel. [phone] - [e-mail] - www.lockcontrol.be

Lock

Enter to goes back to
system function.

Function (82)

Display

Display

Card Number Door Open Mode: (0)ON, (1)OFF.

(default value as 1 ) Enter registered card's 8-digit card

number to open door when the function is set as ON.

Enter # system password #

Enter 82

82

1

Display Card Number Door Open Mode

Enter Card Number Door Open Mode

Enter # to confirm
Back to system function selection.

Function (83)

Access Control Mode: All access for all card holders

including unregistered card when it is set as 0 . Only valid or

registered card to access when it is set as 1 .

(Default value as 1 )

Display

Enter # system password #

(0 or 1)

Enter to goes back to
system function.

Display

83

1

Enter Code of Access Control Mode

Enter # to confirm
Back to system function selection.

Lock Control -

Kouterbaan 63 - 1840 Malderen - Belgium - Tel. [phone] - [e-mail] - www.lockcontrol.be

Enter 83

Access Control Mode

(0 or 1)

Enter to goes back to
system function.

13

7.Installation instructions

(1) Reader connector

5-PIN

CONNECTOR

8-PIN

CONNECTOR

Purple
Blue
Green
Brown
Red

Purple
Blue
Green
Yellow
Orange
Brown
Black
Red

Anti-duress output terminal
Door Bell Button Output
Door sensing input
Alarm output
Push button door open point

Wiegand input (1)
Wiegand input (0)
Door open relay (N.O or N.C) terminal
Door open relay (Common) terminal
Signal (data-) receiver
Signal (data+) transmitter
Input power,negative GND
Input power,positive 12V

Note:
(1)Current for Door Open RELAY point is 1A/12VDC.

Please connect to a relay if a device with 24 VDC or current is exceeding.
(Please refer to p16 for wiring)

(2)The current for Anti-tamper switch is 0.1A/12VDC.

Back

Door Open
Output JUMPER

N.O Output

N.C Output

Anti-tamper
Switch

(2) Wiring additional electric lock and push button

As of different types of electric lock, the wiring methods are also different .

Overall, there are two types of wiring instructions as below:

A. N.O.Connector (please use jump to adjust)
Suitable for : Fail-secure electric lock or electric lock requires N.O. point to trigger.

Jump Adjustment JP10

5-PIN

Blu

P

Push button

G Br R

N.O Output

Rim lock

External

Internal

The current of rim lock is
larger than 1A (please refer to
External RELAY is used

p16)
and both points of A. EL of
the electric lock.

Blu

P

Diode's white

color terminal

Strike lock

8-PIN

YG

O

Bla

RBr

Door Open Relay as dry contact with maximum load of 1A@12VDC.

14

Lock Control - Kouterbaan 63 - 1840 Malderen - Belgium - Tel. [phone] - [e-mail] - www.lockcontrol.be

Example: Micro-computer Fail-safe electric lock (use of N.O point to trigger).

8-PIN

P

Push button

Blu

YG

O

Bla

RBr

Microcontroller lock

P
S

B. "N.C" Connector(Please use jump to adjust)

Suitable for: Fail-safe electric lock such as electromagnetic lock.

Jump Adjustment (Jp10)

N.C Output

8-PIN

Blu

P

Dead bolt lock

or Electro- Magnetic lock

Diode's white

color terminal

YG

O

Bla

RBr

(3) Wiring for additional reed switch door sensing

P

5-PIN

Blu

G Br R

Blu

P

8-PIN

YG

O

Bla

RBr

5-PIN

Blu

P

G Br R

Push button

N.O. type

reed switch

15

Lock Control - Kouterbaan 63 - 1840 Malderen - Belgium - Tel. [phone] - [e-mail] - www.lockcontrol.be

(4) Wiring for anti-duress alarm

5-PIN

Blu

P

G Br R

DC12V

(5) Wiring for alarm

5-PIN

Blu

P

G Br R

8-PIN

Blu

P

Diode's white color terminal

COIL

N.C

COM

N.O

Blu

P

YG

O

8-PIN

YG

O

Bla

RBr

Door bell

Bla

RBr

DC12V

(6) linking with computerWiring for

Device 1 Device 2

Blu

P

8-PIN

YG

O

Bla

Diode's white color terminal

COIL

8-PIN

RBr

Blu

P

YG

O

Bla

Door bell

Device N

8-PIN

RBr

Blu

P

YG

Bla

O

RBr

RS-485 interface transit connector

POWER TXD RXD

PC

RS-232

communication line

AP30 CONVERTER

RS-232 to RS-485

RS-232

DT

DT +

DT +

VCC

GND

DT

DC12V

16

Lock Control - Kouterbaan 63 - 1840 Malderen - Belgium - Tel. [phone] - [e-mail] - www.lockcontrol.be

(7) ()Additional door bell wiring External Relay is required

CNT+ CNT- N.C

COM.

N.O

P

5-PIN

Blu

G Br R

Blu

P

Diode's white color terminal

COIL

N.C

COM

N.O

8-PIN

YG

O

Bla

RBr

DC12V

Door bell

(8) Wiring for external subreader

Suggested maximum length between the reader and the subreader as 50m and

24 AWG twisted pair wire is used.

8-PIN

Blu

P

YG

O

Bla

RBr

Red

Black

Gray

Purple

Green

Y ellow

White

Blue

Orange

Subreader

(9) RELAYExample: Door Open point with external

Jump Adjustment JP10

P

N.O Output

CNT-

Precautions

Maximun load of the door open RELAY as DC 12V / 1A . Please connect an external RELAY for

high voltage or current to prevent any damage to the internal parts(optional of AP-51 is available).

Examples of the wiring in this manual are for reference. Please refer to the electric lock's

manual for the actual wiring.

If the loading of the door open RELAY is not being used by an electric lock but for lift,
automatic door, please make sure its voltage loading range. If user is unable to specify its range,
it is suggested to connect an external RELAY.

Please connect a Diode for the external RELAY to absorb surge (please make sure its direction).

Blu

8-PIN

YG

O

Bla

RBr

Diode's white color terminal

CNT+

External power

Load

(Voltage > DC12V or Current > 1A)

17

AP-51(Optional)

Lock Control - Kouterbaan 63 - 1840 Malderen - Belgium - Tel. [phone] - [e-mail] - www.lockcontrol.be

8. Installation of the unit

Please apply waterproof silicone between

the mounted wall and rubber cushion on

rough wall to prevent water leakage to the
wiring hole in the back.

Step1:

Use attached screwdriver
to unscrew the screws.

Step4:

Separate the panel base
from the unit.

Screw the panel base and
waterproof rubber cushion
tight on the wall.

Place the wires through the
waterproof rubber cushion and
panel base in order. Connect
the wires with the unit.

Push the remaining wires in
the case and place both panel
base and the unit back together.

Use attached screwdriver
to tighten the screws.

18

Lock Control - Kouterbaan 63 - 1840 Malderen - Belgium - Tel. [phone] - [e-mail] - www.lockcontrol.be

9.Attentions

(1) Confirm the power supply voltage and polarity before installation to prevent any wrong

connection that may cause damage to the reader.

(2) Use separate power supply to the electric lock and the proximity reader.

(3) Do not install the reader near any metal equiments or detector area to prevent

interference of read distance.

(4) Do not try to fix or modify the reader without authorized electrician.

The reader is guaranteed for one year.

10.Troubleshooting

(1) Reader has no reaction or door does not open with proximity card.

Solution:

(A) Please check if the red light is on. If not, please check the power supply to

turn the reader on.

(B) Please check if the proximity card is defected. User may use another proximity card

to test.

(C) Please check if personal password is entered incorrectly or the user is still in the

setup mode.

(D) Continuous proximity. Please remove the card from the reader and try again.

(E) Check if the yellow light is on and continuous beep sound occurred.

This indicates the user's proximity card is not registered yet.

(F) Please check if green light is on and door-opening sound can be heard at the

same time. If door is still not opened, please ensure that if the wiring or power supply

of electric lock is installed properly or broken.

(2) System password is entered but user cannot enter into various function selection of

the setting mode.

Solution:

(A) System password is entered incorrectly. Please check if the following step has been

entered correctly. # XXXX # .(XXXX represent system password),or press button

first and then enter the correct system password # 5678 # .

(B) Bad wiring arrangement may affect key enter data.

Please confirm that the power supply wire and the control wire have been arranged to

the space at the back of the LCD (this is the wiring arrangement area of this unit).

This is to prevent the wires pressing on the wiring on the PC board causing bad

contact, short circuit and interference.

19

Lock Control - Kouterbaan 63 - 1840 Malderen - Belgium - Tel. [phone] - [e-mail] - www.lockcontrol.be
