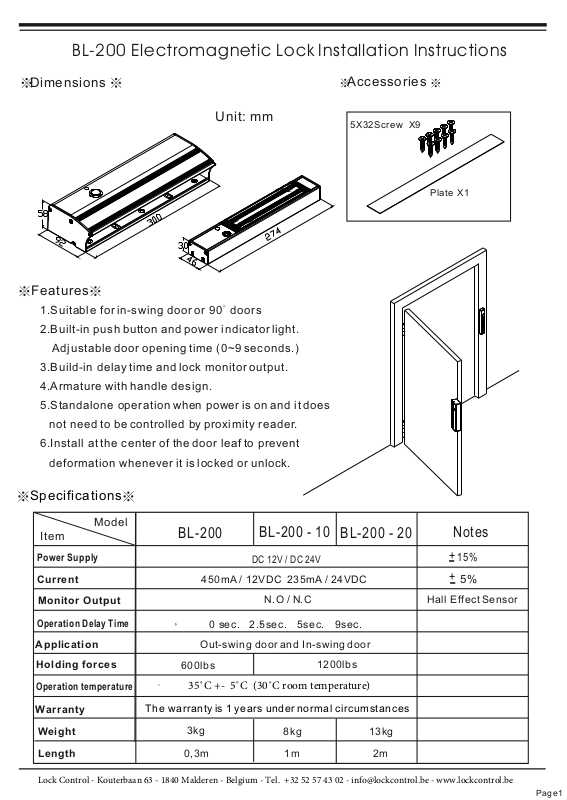

BL-200 Electromagnetic Lock Installation Instructions

Dimensions

Unit: mm

Features

1.Suitable for in-swing door or 90 doors

2.Built-in push button and power indicator light.

Adjustable door opening time (0~9 seconds.)

Accessories

5X32Screw X9

Plate X1

3.Build-in delay time and lock monitor output.

4.Armature with handle design.

5.Standalone operation when power is on and it does

not need to be controlled by proximity reader.

6.Install at the center of the door leaf to prevent

deformation whenever it is locked or unlock.

Specifications

Model

Item

Power Supply

Current

Monitor Output

Operation Delay Time

BL-200

450mA / 12VDC 235mA / 24VDC

0 sec. 2.5sec. 5sec. 9sec.

BL-200 - 10

DC 12V / DC 24V

N.O / N.C

BL-200 - 20

Notes

+

15%

-

+

5%

-

Hall Effect Sensor

Application

Holding forces

Operation temperature

Warranty

Weight

Length

Lock Control - Kouterbaan 63 - 1840 Malderen - Belgium - Tel. [phone] - [e-mail] - www.lockcontrol.be

The warranty is 1 years under normal circumstances

Out-swing door and In-swing door

600lbs

35˚C +- 5˚C (30˚C room temperature)

3kg

0,3m

8kg

1m

1200lbs

13kg

2m

Page1

0.0sec 2.5sec

5.0sec 9.0sec

ON

1

2

N.C

COM

N.O
P.S

V­V+

Control Panel

P.S

V -

Door open
switch

Wiring hole

Delay
time
switch

Voltage and Delay Time Adjusting

Adjusting Volatge

LED

Indicator
light

Voltage
adjusting
Jump

External door open
push button

Delay time Setting

Attention:

1.Door open buttons have both built-in and external inputs. Please use both V- and P.S.
Points for external door open button. Both built-in and external door open buttons are
able to be used at the same time. (Please refer to the diagram above) .

2.Door Lock status (N.O/N.C) as Relay output. Maximum load of 1A@24VAC.

3.Indicator light is green when the door is locked, or else the door did not close tight.

Installation

Step 1

Please stick the sticker on the desired mounting position (Please refer to Fig.1) and drill
holes according to the sticker's indicated positions. Remove the sticker after drilling a
hole for wiring.

Step

Remove both sides of the lock's covers A and pull out the B.(Please refer to Fig.2- Fig.4)
Use screws to screw the body lock tight on the appropriate position. Place all
covers back in order.

Screws

Alignment

Door
Frame

Lock Control -

sticker

Wiring
hole

Drilling
positions

Kouterbaan 63 - 1840 Malderen - Belgium - Tel. [phone] - [e-mail] - www.lockcontrol.be

Drilling
positions

Fig1

Screws

Fig2

A

B

Fig3

Wiring
hole

Fig4

Page 2

Step 3

Step 4

Remove the upper cover (C) of the handle and then the lower cover(C-1) by removing
two screws (A-1 B-1) to pull out plate(D).(Please refer to Fig5-Fig6)

Use two attached screws to screw the handle onto the appropriate position of the
installation holes when D is pulled out.(Please refer to Fig 7) Do not screw tight as to
adjust both handle and body lock positions well by closing the door for several times to
make sure both of them are matched. Screw the remaining three screws when they are

matched.

B

Screws

B-1

Screws

A

A-1

C

C-1

Fig5

D

Installing handle:

Adjusting to the
right and left.

Fig7

Fig8

Fig6

Step 5

Slide plate(P) in when positioning and adjusting screws are tighten.

Assemble the handle and its body's back in order.

P

Left opening door

Installation diagram

Lock Control - Kouterbaan 63 - 1840 Malderen - Belgium - Tel. [phone] - [e-mail] - www.lockcontrol.be

Page 3

P

Right opening door

Installation diagram

Optional plate

Optional BL-200P plate (thickness of 3.6mm) is available to achieve optimum height of

both door frame and door leaf when the unit is installed.

BL-200P

Door
Leaf

BL-200P

Door
Frame

Question & answer

Door is not locked light.

1. Check if the voltage is correct. 2.Check if the setting of voltage is correct. 3. Check if the
magnetic lock and armature are engaged lightly.

Indicator light is unable to show green light when door is closed.

1. Check if the armature is mounted to the correct position.

2. Check if the voltage is set correctly. Any dust or rust will affect the operation of the lock.

Maintenance of the magnetic lock.

1. Any dust or rust should be removed regularly.

2. Lubricant should be apply on the magnetic lock to avoid any rust depending on the environment
it is installed (such as at the seaside).

Lock Control - Kouterbaan 63 - 1840 Malderen - Belgium - Tel. [phone] - [e-mail] - www.lockcontrol.be
