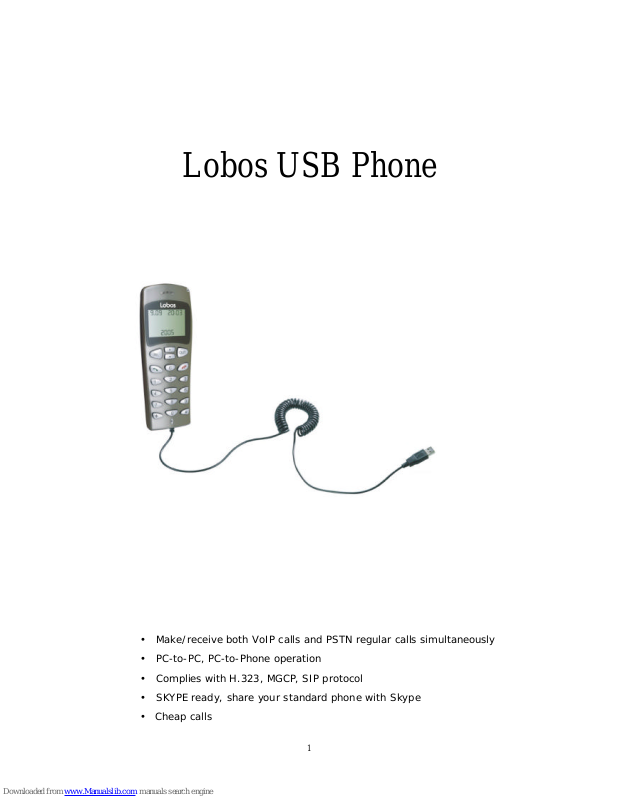

Lobos USB Phone
• Make/receive both VoIP calls and PSTN regular calls simultaneously
• PC-to-PC, PC-to-Phone operation
• Complies with H.323, MGCP, SIP protocol
• SKYPE ready, share your standard phone with Skype
• Cheap calls
2
CONTENTS
CHAPTER 1 Welcome to USB Phone
1.1 Summary 3
1.2 Features 3
1.3 System Requirements 3
1.4 Package Contents 3
CHAPTER 2 Use of USB Phone
2.1 Run Skype 4
2.2 Connect USB Phone to PC 5
2.3 Run SkyMe 5
2.4 Call another Skype user (PC to PC) 5
2.5 Call to regular phone (PC to Phone) 6
2.6 Answer a call 6
2.7 Adjust options (Volume and Ringer) 7
2.8 Function Keys 7
2.9 FAQ 7
The information in this document is subject to change without notice and does
not represent a commitment on the part of the developer. This document
contains materials protected by copyright. All rights are reserved. No part of this
manual may be reproduced or transmitted in any form, by any means or for
purpose without express written consent.
3
CHAPTER 1
Welcome to USB Phone
1.1 Summary
USB Phone is a most effective and easy mode of communication. User can
enjoy an Internet phone just as regular phone. It embraces the great
convenience and big savings.
1.2 Features
1. PC-to-PC and PC-to-phone operation
2. Driver built-in, plug and play
3. USB1.1 compatible, no need sound card
4. No external power required
5. Complies with H.323, MGCP, SIP protocol
6. Caller ID function of VoIP calls
7. 199 incoming call and 199 dialed number
8. With LCD and LED show
9. Echo cancellation, noise reduction
10. Full duplex communication
11. Application support: Netmeeting /Messenger, Mediaring, Net2phone,
Dialpad
12. Customized hand phone casing designs available
13. Key-in tone function
1.3 System Requirements
1. P? with 200 MHz CPU or better with USB interface
2. 64MB of RAM
3. 10MB or more hard disk space
4. Operating System: Windows 98/ME/2000/XP
5. Network: LAN, ADSL, ISDN, 33.6K modem or better
1.4 Package Contents
1. USB Phone x1
2. User Guide x1
3. Installation CD x1
4
CHAPTER 2
Use of USB Phone
2.1 Run Skype
Download Skype software and install it (www.skype.com), the version
must be 1.0.0.106 or higher.
Run Skype and log in with skype account.
You can create a Skype account as shown below:
After the software startup, the icon will appear to the system tray as
shown below:
That indicates the Skype has successfully connected to Internet. If it
hasn’t connected to Internet, the icon will be shown as , now you
have to check whether PC is connected to Internet successfully or not.
5
2.2 Connect USB Phone to PC
Connect USB Phone to PC , the LCD shows "VOIP- Phone".
2.3 Run SkyMe
Download SkyMe software and install it
Run SkyMe
Double-click the icon on the desktop, the Skype program will pop
up the window as shown below:
Select the first item “ Allow this program to use Skype”, click “OK” button.
Note: If you selected the wrong item, you can execute “File->Options->
Privacy-> Manage other programs’ access to Skype->Change->OK” to
open the window as above to make another selection.
After runing SkyMe, the icon will appear to the system tray as shown
below:
That indicates the device and Skype are connected successfully .
If the icon shown as , please run Skype first.
If the icon shown as , it means USB Phone connected incorrectly, please
reconnect USB Phone to PC.
2.4 Call another Skype user (PC to PC)
Add "skype" to Contacts
Assign Speed-Dial for it, example "11"
6
Input number and call out:
Press digital "1" and "1" on USB Phone, this number will be shown on Skype
window, then press SEND key on USB Phone to call out.
2.5 Call to regular phone (PC to Phone)
Press "00"+"country number"+"phone number", then press .
Example: call to China, beijing, press 00861012345678, then press SEND
key.
0086 10 12345678
------------- ---------- -------------------country code city code destination number
Note: If you want to use this function, you should buy SkypeOut Credit first.
2.6 Answer a call
When a call in, the USB-P1K is ringing, press to answer the call,
press to refuse the call.
7
2.7 Adjust options (Volume and Ringer)
Double-click the on the taskbar, then you can adjust the volume and
ringer.
2.8 Function keys
IN: Caller number review, delete and redial
You can press “IN” button to review the caller numbers with the time
and date. Press “IN” button repeatedly to review the caller numbers
from the latest memory to the oldest memory round by round. While
you are reviewing, you can double-click “C” button to delete this
number or press SEND key to call out.
OUT: Out number review, delete and redial
The usage is similar to “IN” button.
C: Delete phone number and input wrong number
(1) Double click to delete caller number or out number.
(2) Delete the input wrong number while you are dialing number.
? : UP
Review caller number or out number from oldest to latest.
? : DOWN
Review caller number or out number from latest to oldest.
2.9 FAQ
Problem 1
The voice is played from the PC’s sound card instead of the USB phone
when I make/answer a call?
Resolution
Open the Main window of Skype, click on “File->Options” , and go to the
table Hand/headsets, set Audio In, Audio Out and Ringing to the
USB Audio Device.
8
Problem 2
There is no voice comes out when play music?
Resolution
Please execute the “Control Panel->Sound and Video ( )->Audio”, set
Sound Playback and Sound Recording’s Preferred device to your
sound card, it shown as below:
Problem 3
Skype has been startup, but the icon of SkypeMate still shown as ?
Resolution
Maybe you selected the wrong item, you can execute “File->Options->
Privacy-> Manage other programs’ access to Skype->Change->OK” to
open the window as below, and make another selection.
