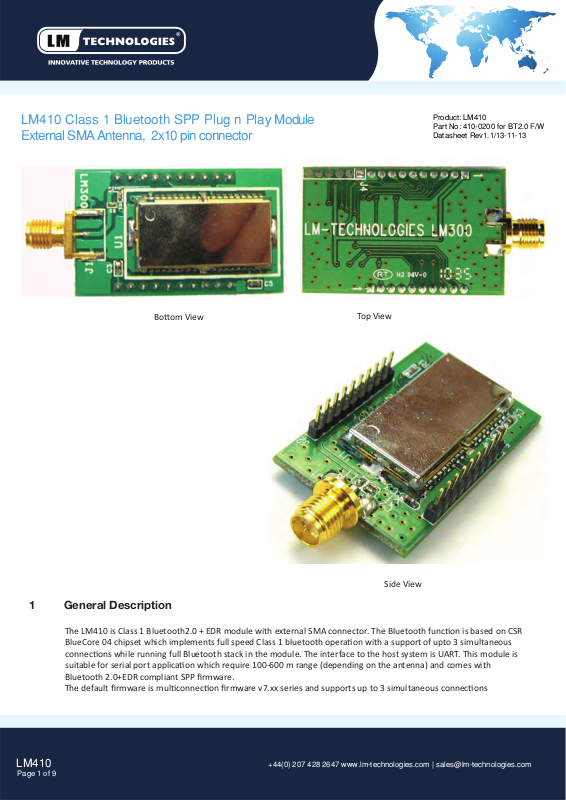

LM Technologies LM410 User Manual

LM410 Class 1 Bluetooth SPP Plug n Play Module
External SMA Antenna, 2x10 pin connector

Product: LM410
Part No: 410-0200 for BT2.0 F/W
Datasheet Rev1.1/13-11-13

Boom View

Top View

Side View

1 General Description

The LM410 is Class 1 Bluetooth2.0 + EDR module with external SMA connector. The Bluetooth funcon is based on CSR
BlueCore 04 chipset which implements full speed Class 1 bluetooth operaon with a support of upto 3 simultaneous
connecons while running full Bluetooth stack in the module. The interface to the host system is UART. This module is
suitable for serial port applicaon which require 100-600 m range (depending on the antenna) and comes with
Bluetooth 2.0+EDR compliant SPP firmware.
The default firmware is mulconnecon firmware v7.xx series and supports up to 3 simultaneous connecons

LM410

Page 1 of 9

[phone] www.lm-technologies.com | [e-mail]

2 Features

H/W Flow

Control

UART

SPI

PIO

VDD

SMA Connector

SMA

• Used in LM Technologies Ltd Bluetooth Ethernet access point (LM300)

• CSR BlueCore4 chipset

• Bluetooth 2.0 + EDR support

• Full bluetooth data rate upto 3 Mbps

• Supports 3 simultaneous SPP connecons while running complete bluetooth stack in the module

• External SMA antenna connector

• Hexadecimal Command set

• LM300 Manager Windows Applicaon for Module Configuraon

• Mulpoint SPP firmware support - 3 simultaneous SPP Connecons

• 3.0 to 3.6 V operaon

• CSR Bluecore 04 (BC04) chipset

• Support 802.11 Co-existence

• RoHS Compliant

• Small Outline: 44 x 26 x 14 mm (without S MA Connector), 55 x 26 x 14 mm (with SMA connector)

• Interoperability with laptops, PDAs, Phones etc

Application

• Serial Communicaons

• Serial Device Server

3 Packaging Options

Product: LM410
Part No: 410-0200 for BT2.0 F/W
Datasheet Rev1.1/13-11-13

Tray Packaging

Part No 400-0200

LM400 with BT2.0 + EDR mulpoint firmware v7.xx

4 Block Diagram

External

LM072

BC04

Class 1

Module

Host 20

pin

Header

LM410

Page 2 of 9 [phone] www.lm-technologies.com | [e-mail]

5 Electrical Characteristics

Parameter

Min

Max

Unit

Storage Temperature

-40

+85

°C

Supply Voltage (PVCC)

+3.0

+3.3

DCV

Supply Voltage(VDD)

+3.0

+3.6

DCV

General Electrical Specificaon

Carrier Frequency

2.402

2.480

GHz

Rx Sensivity

-

-88

-86

dBm

Absolute Maximum Rang

Supply Voltage (VDD) +2.7 +3.6 DCV

All other pins VSS-0.4 VDD + 0.4 DCV

Recommended Operang Condions

Parameter Min Max Unit

Storage Temperature -10 +70 °C

Product: LM410
Part No: 410-0200 for BT2.0 F/W
Datasheet Rev1.1/13-11-13

Supply Voltage (PVCC) +3.0 +3.6 DCV

Parameter Descripon Min Typical Max Unit

RF Output power Measured with 50Ω ant 15 16.5 18 dBm

Load Impedance No abnormal oscillaon 5:1

Input Low Voltage RESET, UART, GPIO, PCM -0.3 - 0.8 DCV

Input High Voltage RESET, UART, GPIO, PCM 0.7VDD - VDD+0.3 DCV

Output Low Voltage UART, GPIO, PCM - - 0.4 DCV

Output High Voltage UART, GPIO, PCM VDD-0.4 - - DCV

Average Current Consumpon Receive DM1 114 mA

LM410

Page 3 of 9

[phone] www.lm-technologies.com | [e-mail]

6 Pin Assignments

1

VDD

TXD

RXD

SPICSB

RSTL

PIO5

SPIMOSI

SPICLK

DTR

GND

Pin No

Pin name

Direcon

Descripon

Signal Level

Pin Definition for Header J2

Product: LM410
Part No: 410-0200 for BT2.0 F/W
Datasheet Rev1.1/13-11-13

32

4 5 6 7 8 9 10

1 VDD Input DC Input (3 ~ 3.3V) Power

2 TXD Output UART Data output TTL

3 RXD Input UART Data Input TTL

4 SPICSB Input SPI Chip Select TTL

5 RSTL Input Reset (Acve Low) TTL

6 PIO5 Input/output Programmable IO TTL

7 SPIMOSI Input SPI Master Output Slave Input TTL

8 SPICLK Input SPI Clock TTL

LM410

Page 4 of 9

9 DTR Output UART Data Terminal Ready TTL

10 GND Ground Ground

[phone] www.lm-technologies.com | [e-mail]

Pin Definition for Header J3

3

2145678

9

10

10

PIO8

Input/output

Programmable IO

TTL

PIO4 RTS PIO3 PIO2 PIO7 CTS SPIMISO PIO6 PIO9 PIO8

Pin No Pin name Direcon Descripon Signal Level

1 PIO4 Input/output Programmable IO TTL

2 RTS Output UART Request to Send TTL

3 PIO3 Input/output Programmable IO TTL

Product: LM410
Part No: 410-0200 for BT2.0 F/W
Datasheet Rev1.1/13-11-13

4 PIO2 Input/output Programmable IO TTL

5 PIO7 Input/output Programmable IO TTL

6 CTS Input UART Clear to Send TTL

7 SPIMISO Output SPI Master Input Slave Output TTL

8 PIO6 Input/output Programmable IO TTL

9 PIO9 Input/output Programmable IO TTL

7 Factory Settings

The factory sengs of the COM Port are as follows:

Baud Rate: 115200 bps
Data Bits: 8
Parity: None
Stop Bits: 1
Flow Control: Hardware

LM410

Page 5 of 9

[phone] www.lm-technologies.com | [e-mail]

8 Schematic

J2

4

2

1

UART_OUT

3V3

5

3

SPICSB

UART_IN

PIO5

RESET_L

P06

P05

8

6

7

SPICLK

UART_DTR

SPIMOSI

P120

P40

P41

10 way

9

10

J3

2

3

1

PIO4

P20

4

PIO7

PIO2

PIO3

UART_RTS

P21

P24

P22

P23

7

5

6

8

9

PIO9

PIO6

SPIMISO

UART_CTS

P26

P25

P27

FLMD0

Product: LM410

10 way

Part No: 410-0200 for BT2.0 F/W

10

Datasheet Rev1.1/13-11-13

PIO8

P140

J4

1

C

5

C

4

C

3

C

J1

H

SMA END MOUNT

1

L1

2N7

3V3

2

C0402C0402

C2

1P5

L0402

C1

1P5

C3

100N

C0603C0603

3V3

RFIO

37

+V_PA

2

3V3

17

4

2

3

SPICSB

SPIMISO

SPICLK

UART_DTR

SPIMOSI

33

32

34

31

35

PIO11

SPICLK

SPICSB

SPIMOSI

SPIMISO

6 way

6

5

RESET_L

R0603

R1

10K

3V3

UART_IN

UART_OUT

UART_RTS

UART_CTS

262728

22

30

UART_TX

UART_RX

UART_CTS

UART_RTS

20

16

21

LM072

RESET

USBDP

USBDN

PCM_SYNC

GND7

40

GND6

39

GND5

38

GND4

29

GND3

19

GND2

18

GND1

10

GND0

1

C0603

C4

100N

LM410

Page 6 of 9

PIO3

PIO4

PIO2

PIO0

PIO1

AIO1

3

AIO0

4

56789

PIO3

PIO2

11

PIO5

PIO4

C5

100N

U1

PIO9

PIO8

PIO6

131415

PIO7

PIO10

PIO7

PIO8

PCM_IN

PCM_OUT

PCM_CLK

36

232425

PIO9

PIO5

12

PIO6

[phone] www.lm-technologies.com | [e-mail]

9 Pinout from LM072 Module

Pin Number

Name

Type

Descripon

4

AIO 1

I/O

Programmable Input Output

8

PIO 3

I/O

Programmable Input Output

10

GND

Ground

Common Ground

12

PIO 6

I/O

Programmable Input Output

14

PIO 8

I/O

Programmable Input Output

15

PIO 9

I/O

Programmable Input Output

16

RESET

CMOS Input

Reset Input of Module, Acve Low

19

GND

Ground

Common Ground

20

USB_DP

I/O

USB Data Plus

23

PCM_IN

CMOS Input

Synchronous Data Input

24

PCM_OUT

CMOS Output

Synchronous Data Output

25

PCM_CLK

I/O

Synchronous Data Clock

27

UART_TX

CMOS Output

UART Data Output

29

GND

Ground

Common Ground

31

SPI_MOSI

CMOS Input

Serial Peripheral Interface Data Input

33

SPI_CLK

CMOS Input

Serial Peripheral Interface Clock

34

SPI_MISO

CMOS Output

Serial Peripheral Interface Data Output

37

RF_IO

Analogue

Antenna Interface

1 GND Ground Common Ground
2 PVCC Power Power Amp. Power supply (3.3V)

3 AIO 0 I/O Programmable Input Output

5 PIO 0 I/O Programmable Input Output
6 PIO 1 I/O Programmable Input Output
7 PIO 2 I/O Programmable Input Output

9 PIO 4 I/O Programmable Input Output

11 PIO 5 I/O Programmable Input Output

13 PIO 7 I/O Programmable Input Output

Product: LM410
Part No: 410-0200 for BT2.0 F/W
Datasheet Rev1.1/13-11-13

17 VCC Power Module input Supply, 3.3V DC
18 GND Ground Common Ground

21 USB_DN I/O USB Data Minus
22 PCM_SYNC I/O Synchronous Data Sync

26 UART_RX CMOS Input UART Data Input

28 UART_RTS CMOS Output UART Request to Send (Acve Low)

30 UART_CTS CMOS Input UART Clear to Send (Acve Low)

32 SPI_CSB CMOS Input Chip Select for Serial Peripheral Interface (Acve Low)

35 PIO 11 I/O Programmable Input Output
36 PIO 10 I/O Programmable Input Output

38 GND Ground Common Ground

LM410

Page 7 of 9

[phone] www.lm-technologies.com | [e-mail]
