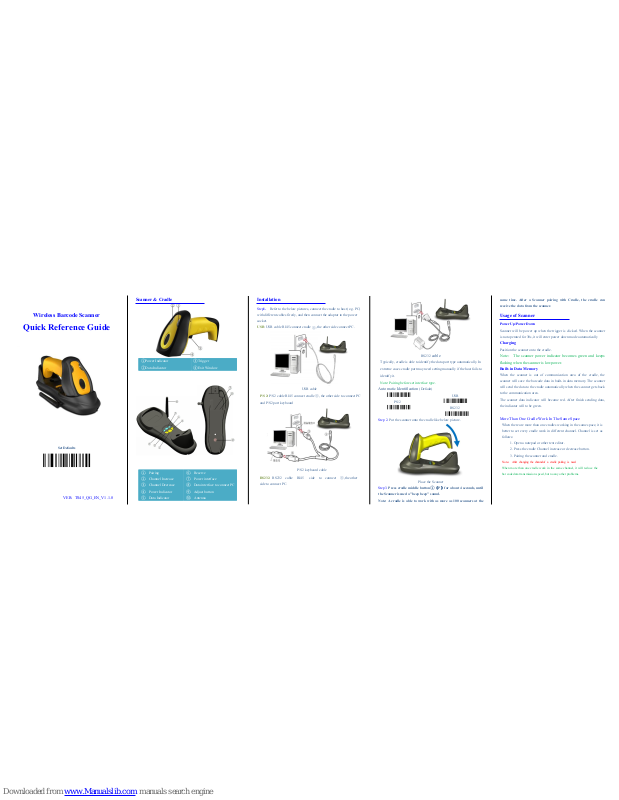

Wireless Barcode Scanner
Quick Reference Guide
Set Defaults
VER: TS45_QG_EN_V1.1.0
Scanner & Cradle
①Power Indicator
②Data Indicator
③Trigger
④Exit Window
①．
Pairing
②．
Channel Increase
③．
Channel Decrease
④．
Power Indicator
⑤．
Data Indicator
⑥．
Reserve
⑦．
Power interface
⑧．
Data interfaceto connect PC
⑨．
Adjust button
⑩．
Antenna
Installation
Step1. Refer tothe below pictures,connect the cradle tohost (e.g. PC)
with differentcables firstly, andthen connect the adaptorto the power
socket.
USB: USBcable RJ45 connectcradle⑧, theother side connectPC.
USB cable
P/S 2:P/S2 cable RJ45connect cradle⑧, theother side toconnect PC
and P/S2port keyboard
P/S2keyboard cable
RS232：RS232 cable RJ45 side to connect ⑧ ,the other
side toconnect PC.
RS232
cable
Typically, cradleis able toidentify the data porttype automatically. In
extreme casescradle port mayneed setting manually ifthe host failsto
identify it.
Note: Pairingbefore set interfacetype.
Automatic Identification
(Default)
USB
PS/2
RS232
Step 2.Put the scanneronto the cradle likebelow picture.
Place theScanner
Step3. Press cradlemiddle button①（P）for about 4seconds, until
the Scannerissued a"beep beep"sound.
Note: A cradle is able to work with as more as 100 scanners at the
same time. After a Scanner pairing with Cradle, the cradle can
receive thedata fromthe scanner.
Usage of Scanner
Power Up/PowerDown
Scanner will be powerup whenthe trigger is clicked. When the scanner
is notoperated for 30s,it will enter powerdown mode automatically
Charging
Position thescanner onto thecradle.
Note ： The scanner power indicator becomes green and keeps
flashing whenthe scanneris low power.
Built-in DataMem ory
When the scanner is out of communication area of the cradle, the
scanner will save the barcodedata inbuilt-in data memory. The scanner
will send thedata to the cradleautomatically when the scanner getsback
to thecommunication area.
The scanner data indicator will become red. After finish sending data,
the indicatorwill to begreen.
More Than One Cradle Work In The Same Space
When thereare more than onecradles working in the samespace, it is
better to set every cradlework in different channel. Channel is set as
follows:
1. Opena notepad orother text editor.
2. Pressthe cradle Channelincrease or decrease button.
3. Pairingthe scanner andcradle.
Note： After changing the channelof a cradle pairing is need.
When more than onecradle workin the samechannel, itwill reduce the
bar codedata transmissionspeed, but noany otherproblems.
Indicator & Button
Scanner Indicator
Status Left Light
Scan Success Bright Red1sec Bright Red1sec
Power on Green
Low Power Green flashing
Charging Red flashing
Finish charge Yellow
No data stored in
Scanner
Green
Data stored In
Scanner
Red
Data memoryfull Red Flashing
Cradle Indicator
Light Meaning
Right（Green）Flashing: identifyinginterface
On: interfaceif identified
Middle （Red） Flashing: Receivingbarcode data
On: Datais sending toPC
Left （Green) Reserve
Cradle Button
Button Position
（mark）
Function
Channel
Decrease
Right
Button (-)
Set channeldecrease
Channel
increase
Middle (P) Press for 4second to pair a
scanner witha cradle.
Channel
increase
Left
Button (+)
Set channelincrease
Common Settings
Set Defaults
Set Defaults
Information inquire
Fire Ware Version
Scanner SerialNo Check
Cradle SerialNo
Battery inquire
Channel &scannerID
Suffix QuickSetup
CR（default
）
LF
CR+LF
None
RF TransferMode
No-store Mode:The scanner transmitsevery scanned barcodeto cradle.
If transmitted
unsuccessfully
(e.g. beyondcommunication distance or
cradle doesnot connect PC),the barcode data willbe ignored andthe
issued a“beep beep beep”sound.
Auto-store Mode:The scanner startsstoring barcode datawhen it loses
its connectionto a cradle(e.g. a user holdingthe scanner walksout of
range).Data transmissionis triggered byreestablishing the connection
with cradle.(likewhen a userholding the scanner walksback into range)
Manual Transmission mode: Data transmission is triggered by
scanning”Start transferBar code data”
Auto-Store Mode(Default)
NO-Store Mode
Manual TransmissionMode
Start transferBar Code Data(for Manual TransmissionMode)
Clear theBarcode Data inScanner
Insert TheScanner IDbefore Barcode
Insert thescanner ID before barcode inorder to identify thebarcode is
scan by which scanner when there are more than one scanner
communicate withthe same cradle.
Insert IDbefore Barcode
Do not insert ID before Barcode
（
default
）
Code name transmission
Transmit
Do Not Transmit（Default）
Volumeof beeper
High（Default）
Middle
Low
Mute
Prefix
Transmit Prefix
Do notTransmit Prefix (Default)
Scan Prefix(0~16 Chars,2Digits/Char; 00~FF; 00*）
Suffix
Suffix（Default）
Do NotTransmit Suffix
Scan Suffix (0~22chars, 2 Digits/Char; 00~FF; 0D*)
Parameter bar code
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
Finish Setting
