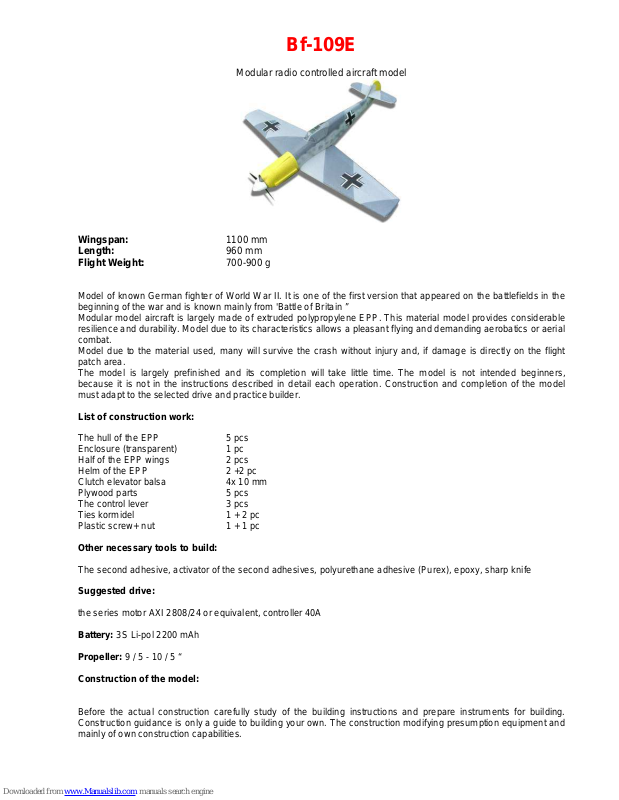

Bf-109E
Modular radio controlled aircraft model
Wingspan: 1100 mm
Length: 960 mm
Flight Weight: 700-900 g
Model of known German fighter of World War II. It is one of the first version that appeared on the battlefields in the
beginning of the war and is known mainly from 'Battle of Britain ”
Modular model aircraft is largely made of extruded polypropylene EPP. This material model provides considerable
resilience and durability. Model due to its characteristics allows a pleasant flying and demanding aerobatics or aerial
combat.
Model due to the material used, many will survive the crash without injury and, if damage is directly on the flight
patch area.
The model is largely prefinished and its completion will take little time. The model is not intended beginners,
because it is not in the instructions described in detail each operation. Construction and completion of the model
must adapt to the selected drive and practice builder.
List of construction work:
The hull of the EPP 5 pcs
Enclosure (transparent) 1 pc
Half of the EPP wings 2 pcs
Helm of the EPP 2 +2 pc
Clutch elevator balsa 4x 10 mm
Plywood parts 5 pcs
The control lever 3 pcs
Ties kormidel 1 + 2 pc
Plastic screw+ nut 1 + 1 pc
Other necessary tools to build:
The second adhesive, activator of the second adhesives, polyurethane adhesive (Purex), epoxy, sharp knife
Suggested drive:
the series motor AXI 2808/24 or equivalent, controller 40A
Battery: 3S Li-pol 2200 mAh
Propeller: 9 / 5 - 10 / 5 “
Construction of the model:
Before the actual construction carefully study of the building instructions and prepare instruments for building.
Construction guidance is only a guide to building your own. The construction modifying presumption equipment and
mainly of own construction capabilities.

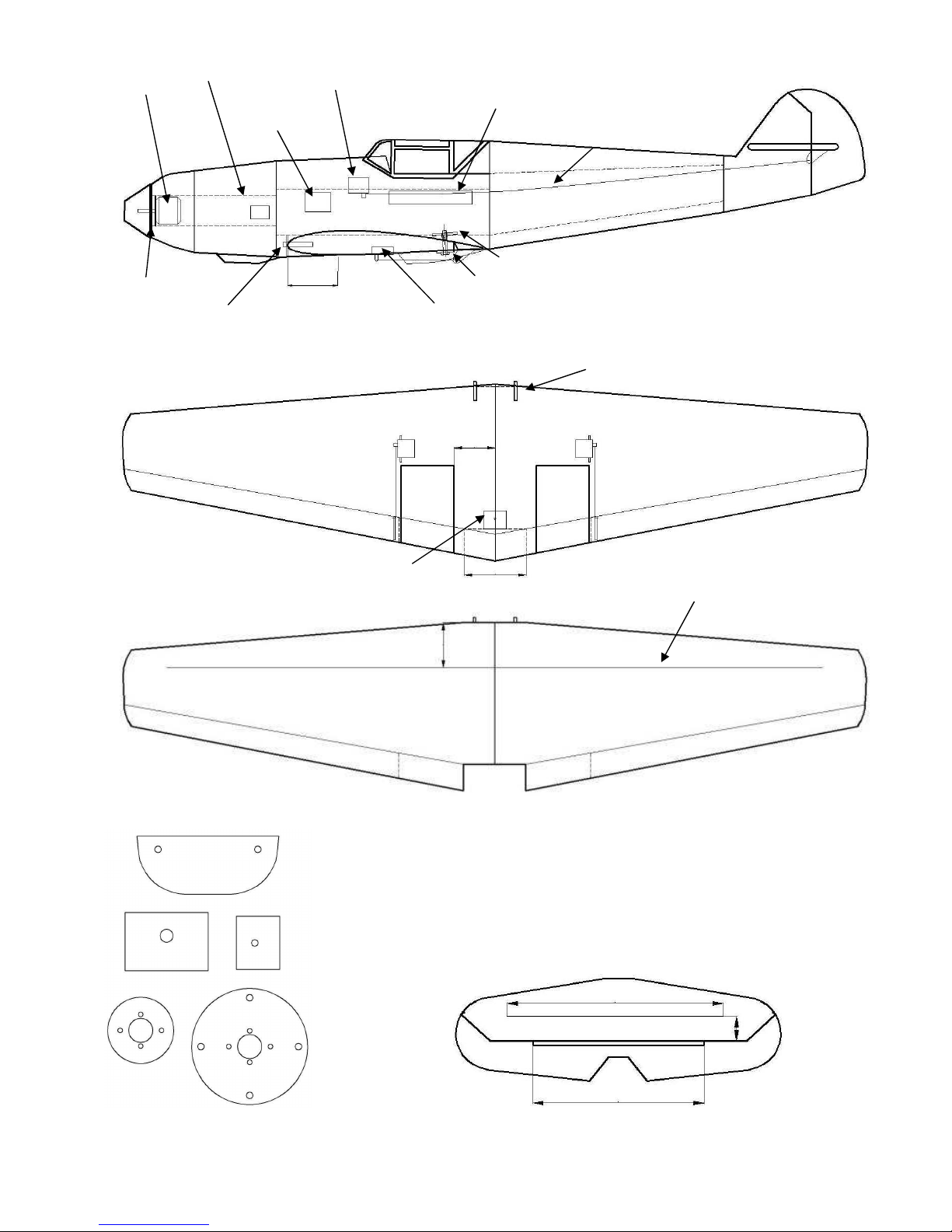

Page 2
brushless motor
AXI 2814/16
rod elevator
battery
elevator servo
servo wings
motor
bulkhead 1
receiver
controller
C.G. 66 mm
1
2
3
4
plywood
66 mm
carbon tape
2 x pin Ø 4 mm
2
3
4
1a
80 mm
240
25
180
60 mm
3
Underside of the wings
Top of the wing
Elevator
Page 3

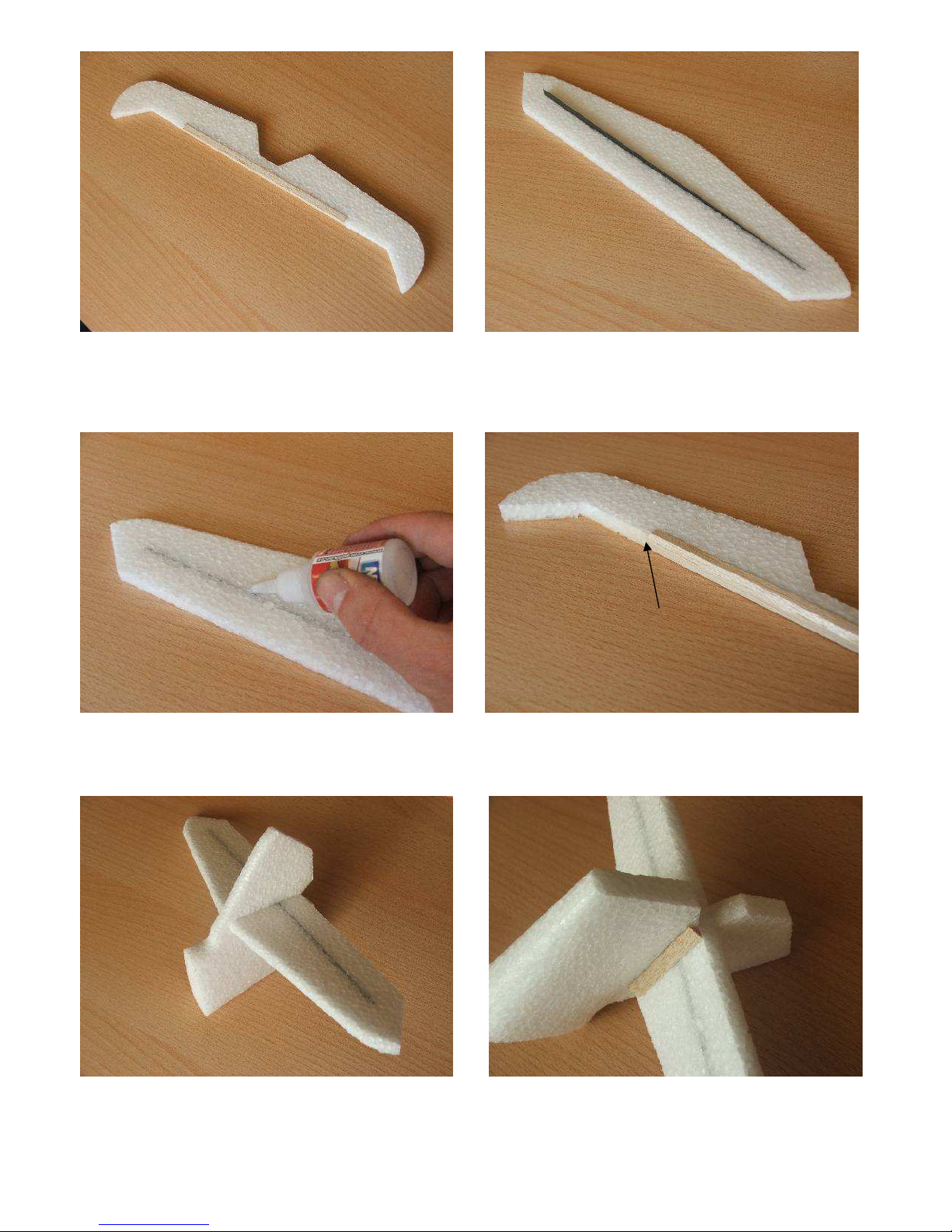

seříznout
Slice off the leading edge in the
"V"
Fixed part of elevator cut across
and add carbon tape 8x 0,3 mm.
On
the floating part of the elevator
stick reinforcements from balsa 8x4
mm
The reinforcements of carbon
paste by second glue
Fixed part of elevator stick in the
last part of the hull. Stick fixed
part of the direction.
Stick reinforcements from balzy
triangular cross section.
Page 4

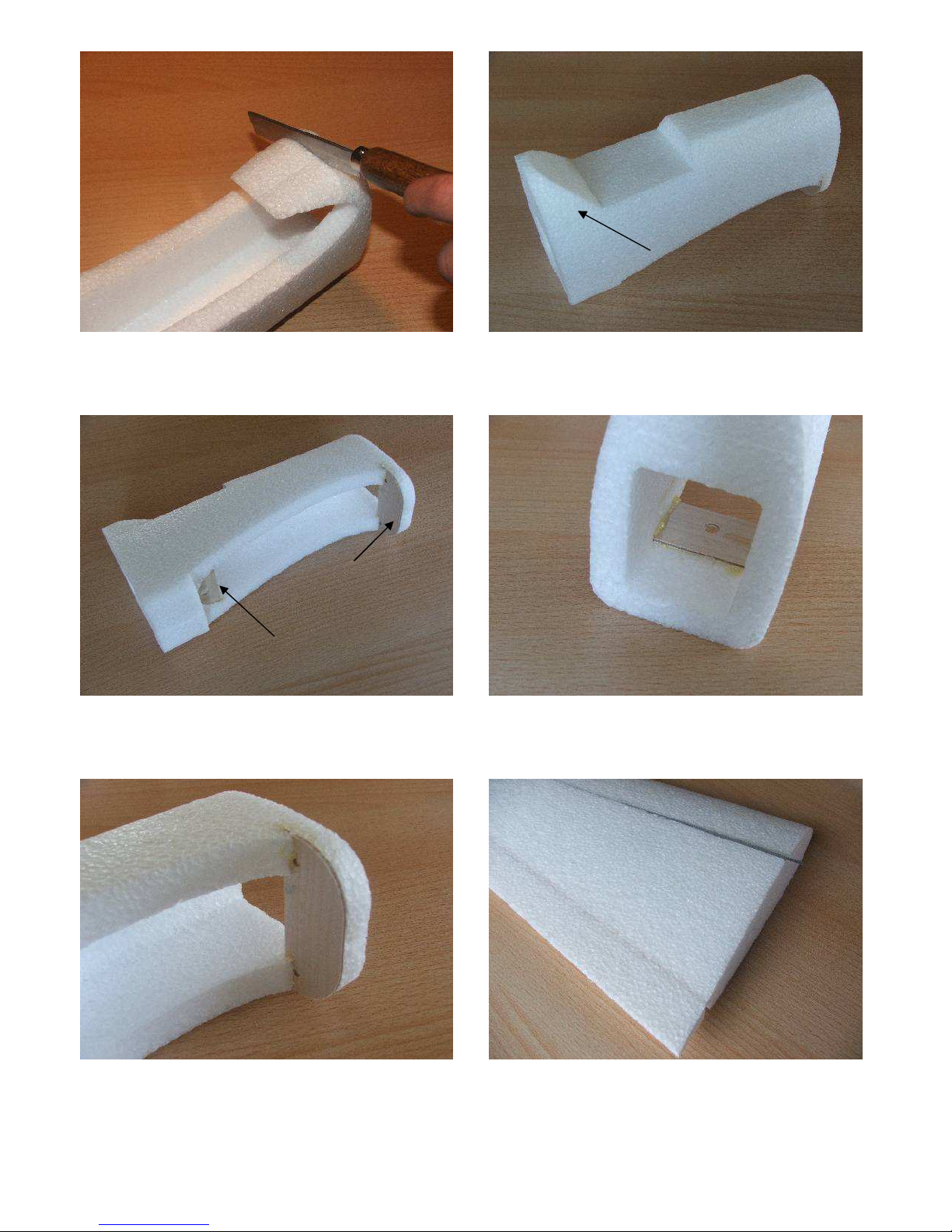

Cut off the buttom of the mddle part of fuselage.
Attach the Real part of the cab.
Stick plywood front and rear portion for mounting
wings.
For sealing the front portion of plywood make slit in
the hull.
A sharp knife cut a groove to insert a
carbon tape. Belt have to exceed in the
middle of the wings about 10 mm.
4
2
Page 5

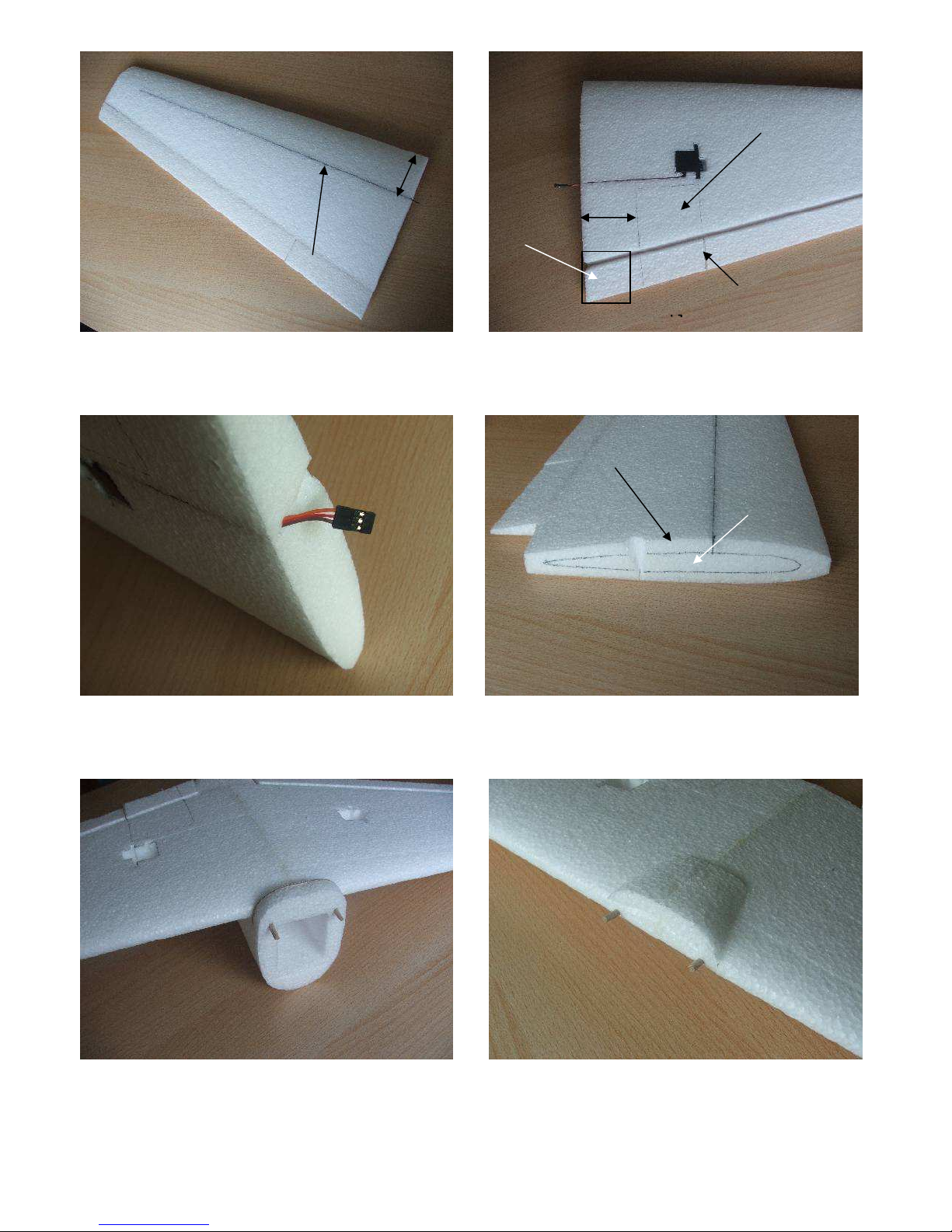

carbon tape
Instead of
sticking to the
cooler models
Polyurethane
glue
It cut across
60 mm
70 mm
Carbon tape seal sparse sekond glue.
Cut an
d hollow out a hole for the servo. Cablet servo
add to notch in the wing. Cut wings in the spot
labeled.
In the root of airfoil m
ake cut for
servo connector.
Second glue
Both halves of the wings glue together.
Center profile pste by polyurethane glue
stick, circuit pste by sekond glue.
The wing deployed to the middle part of
the hull and indicate holes for the pins
Glue up two wooden pegs. At the
middle bottom of the wings stick
cutting of part of the hull.
cut off this
part of
Page 6

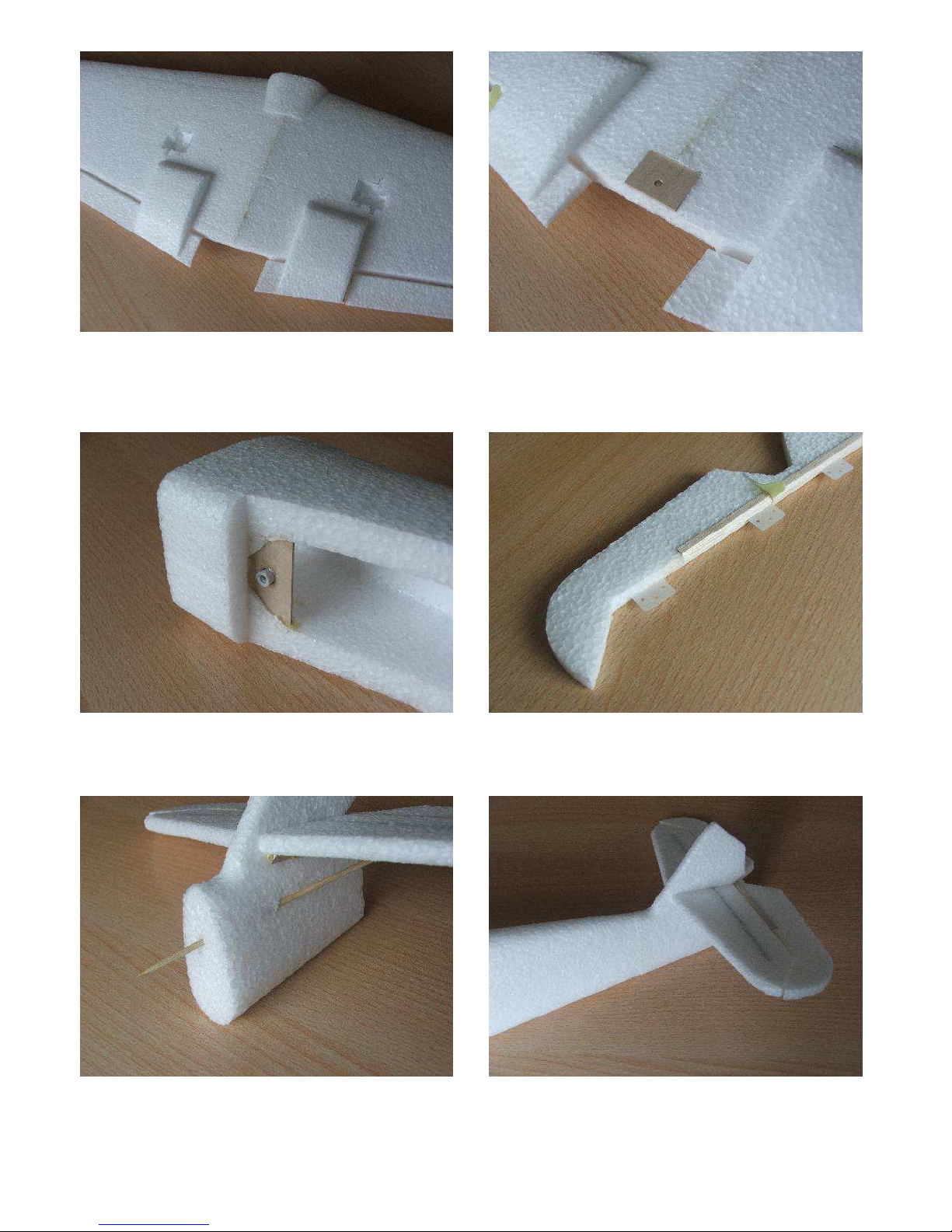

Bore a hole for the pull of elevator.
Stick models coolers
Cut down center of the wings and stick plate for
mounting bolt.
In the prepared hole paste and stick up plastic nut.
Cut out notches for the hinges. Cut out notch for the
kontrol lever and the lever stick up.
Glue the rear of the fuselage.
Page 7

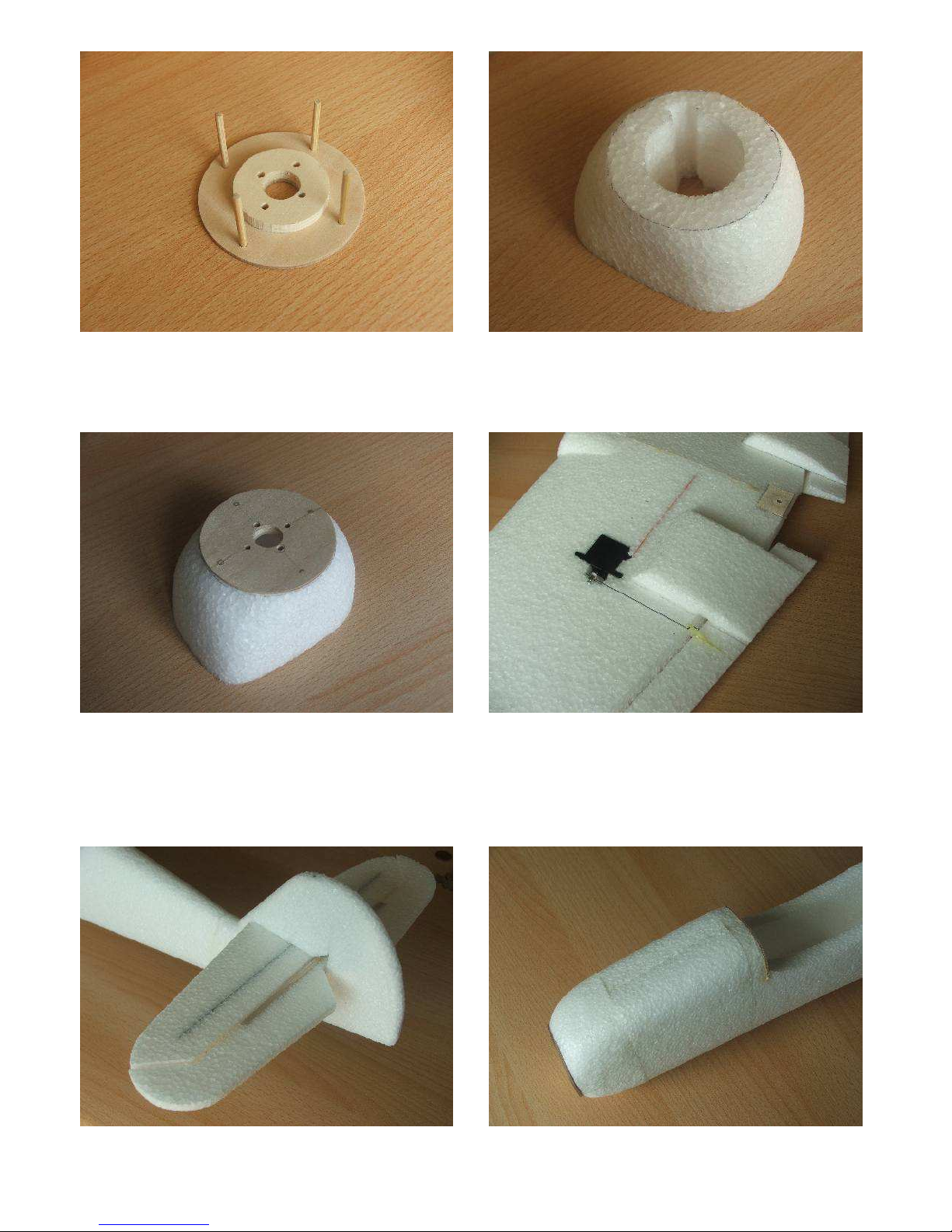

.On the front of hull stick on a motor wicket.
Compile and stick together a motor wicket.
Before stick a motor wicket cut groove for
the engine cables.
Cut out a notch and stick up control lever of wings.
Rod made of steel wire 0, 8 mm.
.Set together rudder, stick elevator hinges. Stick
direction.
Stick the front part of the hull.
Page 8

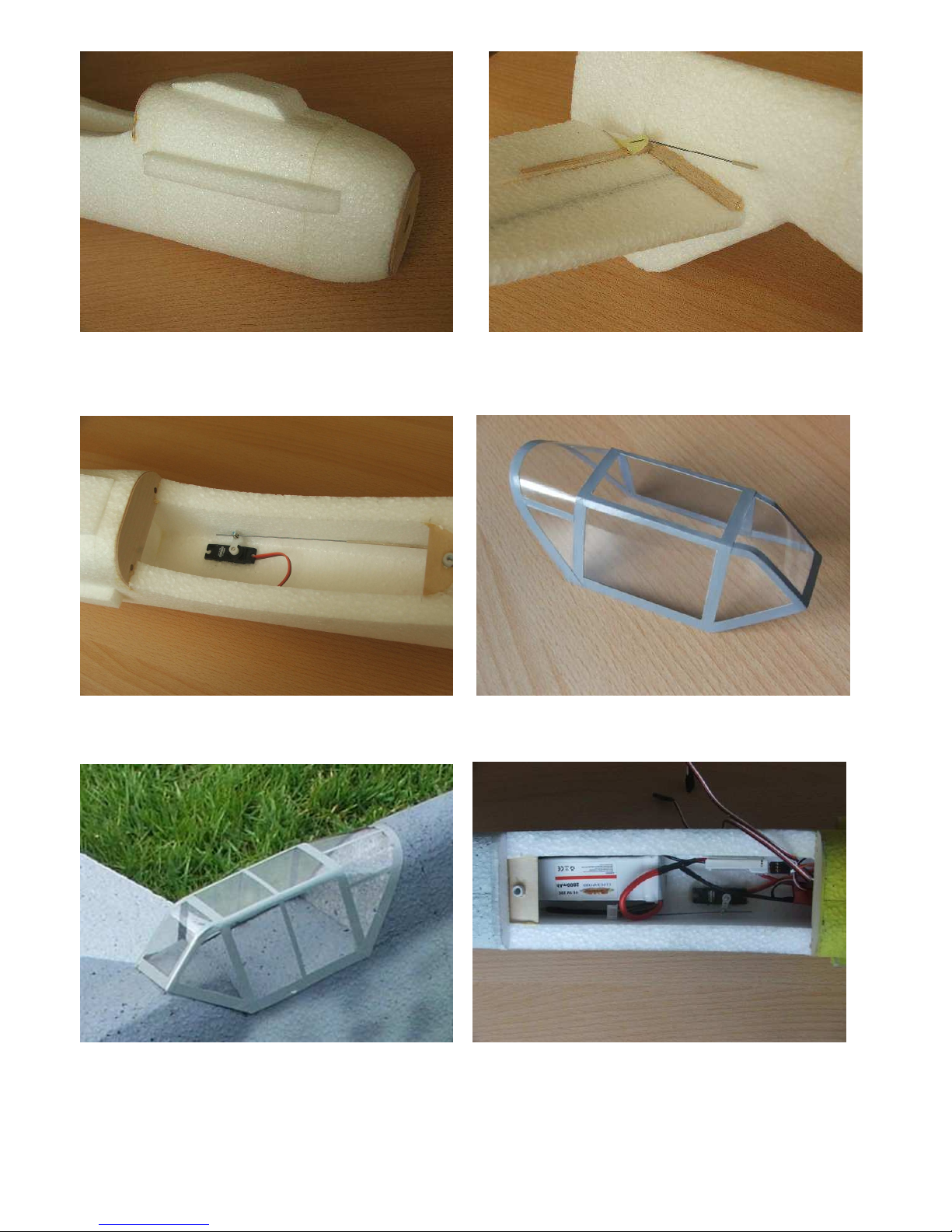

On the front part of the fuselage stick models of
exhaust pipes and heatsinks.
In the pre-prepared hole install
the rod elevator.
On the front part of the fuselage stick
models of exhaust pipes and heatsinks
Trim cab and stick surround.
After painted of model cab stick to the hull.
Equipment of the model dislocated so that it
became the center of gravity according references.
Page 9

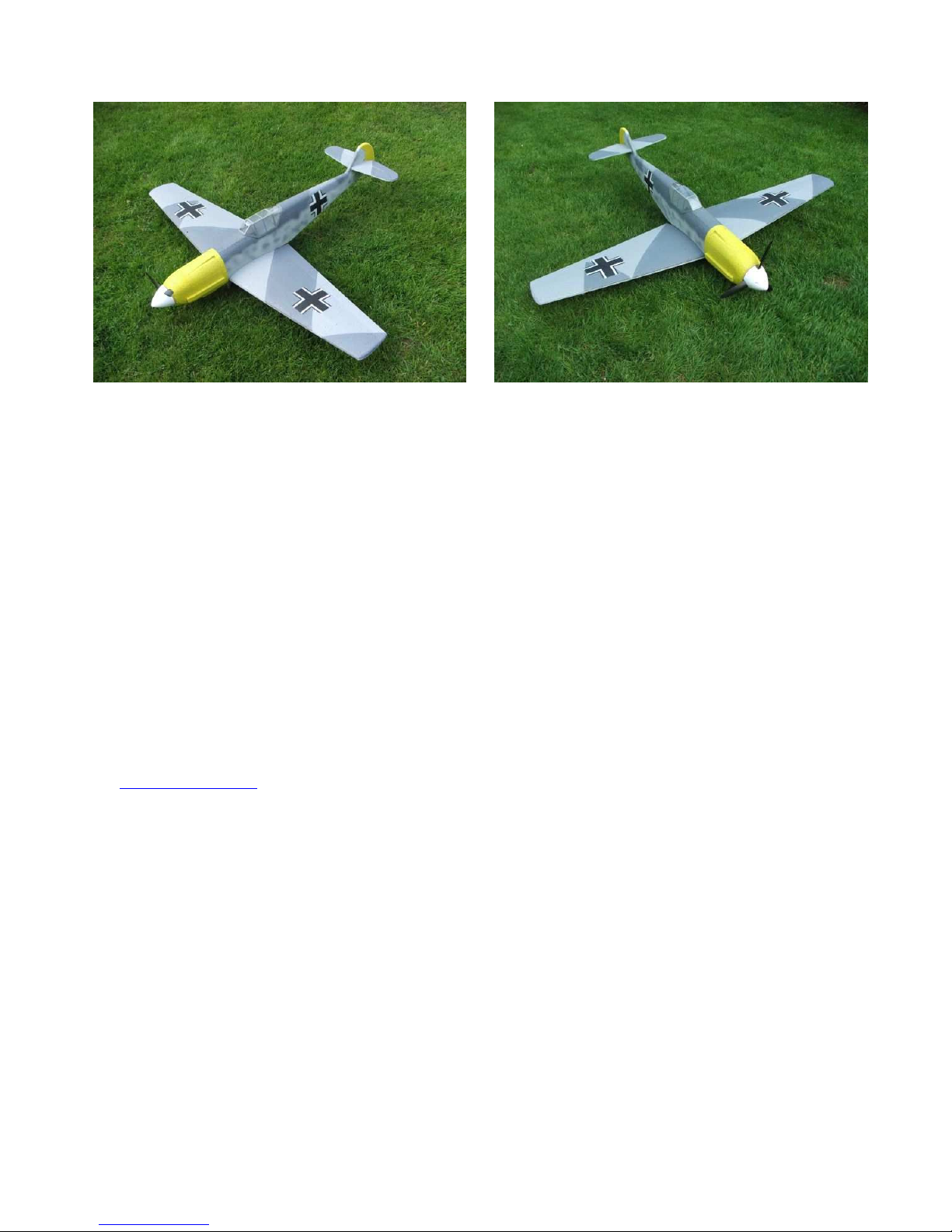

Model colorful by adulterate color acrylic paints. Color lay on by roller or brush.
Paintbrush apply rougher bristles to get the color to the pores.
Alternatively, you can lay on the color by spray gun.
Before the first flight, check the position of center of gravity, which modify by accumulators.
Scale kormidel set to start at about 20-30 ° in the wings and the elevator at 15-25 °
For the first flights we choose windless weather.
The model will start at full engine, sling slightly upwards. For the first flights, it is appropriate to ask the attendant
hour model.
Always fly in such a way as to not endanger their operations themselves or their surroundings.
Manufacturer wishes many happy moments when flying.
Libor Mašík
Kobeřice
Czech Republic
