L.L.Bean Bicycle, 16” Wheel Size Bike Final Assembly Instructions

QUESTIONS: Should you have any questions during the final assembly of your new bicycle, please call our product 4/4/11

specialists at 800-226-7552 any day between 8:00 a.m. and 10:00 p.m. Eastern. pg.1

Final Assembly Instructions – Bikes with 16” Wheel Size

Thank you for buying your new bicycle from L.L.Bean. Read these instructions carefully before beginning the final
assembly. Prior to shipping, our expert cycling technicians completely assembled and tuned your bicycle to ensure that
all components are functioning properly. However, for shipping purposes we have to partially disassemble your bicycle.
Although this bicycle has been factory pre-assembled, some loosening may have occurred during shipping and handling.

WARNING: BEFORE ALLOWING A CHILD TO RIDE THIS BICYCLE, read the enclosed Owner’s Manual
thoroughly. The Owner’s Manual includes important information on customizing the bike for an optimal fit.

Tools required for final assembly:

• Cutting-type pliers – for removal of packaging materials, including “zip-ties”

• 5mm & 6mm Allen wrenches – for tightening stem bolt

• 15mm wrench or adjustable wrench – for tightening pedals

• 13mm wrench or adjustable wrench – for tightening handlebar stem and seat binder bolt

• Two 10mm wrenches or two adjustable wrenches or one of each – for attaching front fender

BEFORE GETTING STARTED:

PLEASE REMOVE BICYCLE FROM BOX AND REMOVE PACKAGING MATERIAL. Recommended tool –

diagonal-cutting pliers, wire cutter, heavy-duty shears, or multi-tool wire cutter.

FYI - Your bicycle may appear different
from those in photos.

QUESTIONS: Should you have any questions during the final assembly of your new bicycle, please call our product 4/4/11

specialists at 800-226-7552 any day between 8:00 a.m. and 10:00 p.m. Eastern. pg.2

Assembly Instructions

1. FRONT WHEEL Required tools – 15mm wrench or adjustable wrench

Position the fork so that it is facing forward as in the picture below. Remove the outside 15mm nut and safety washer
from each side of the axle. Slide wheel axle into the slots at the bottom of the fork. Place a safety washer on each side of
the axle. The smaller end of the washer should be facing the fork. Ensure that the narrow portion of the safety washer is
seated fully into the rounded portion of the fork dropout. Carefully thread on a 15mm nut to each end and tighten with a
wrench.

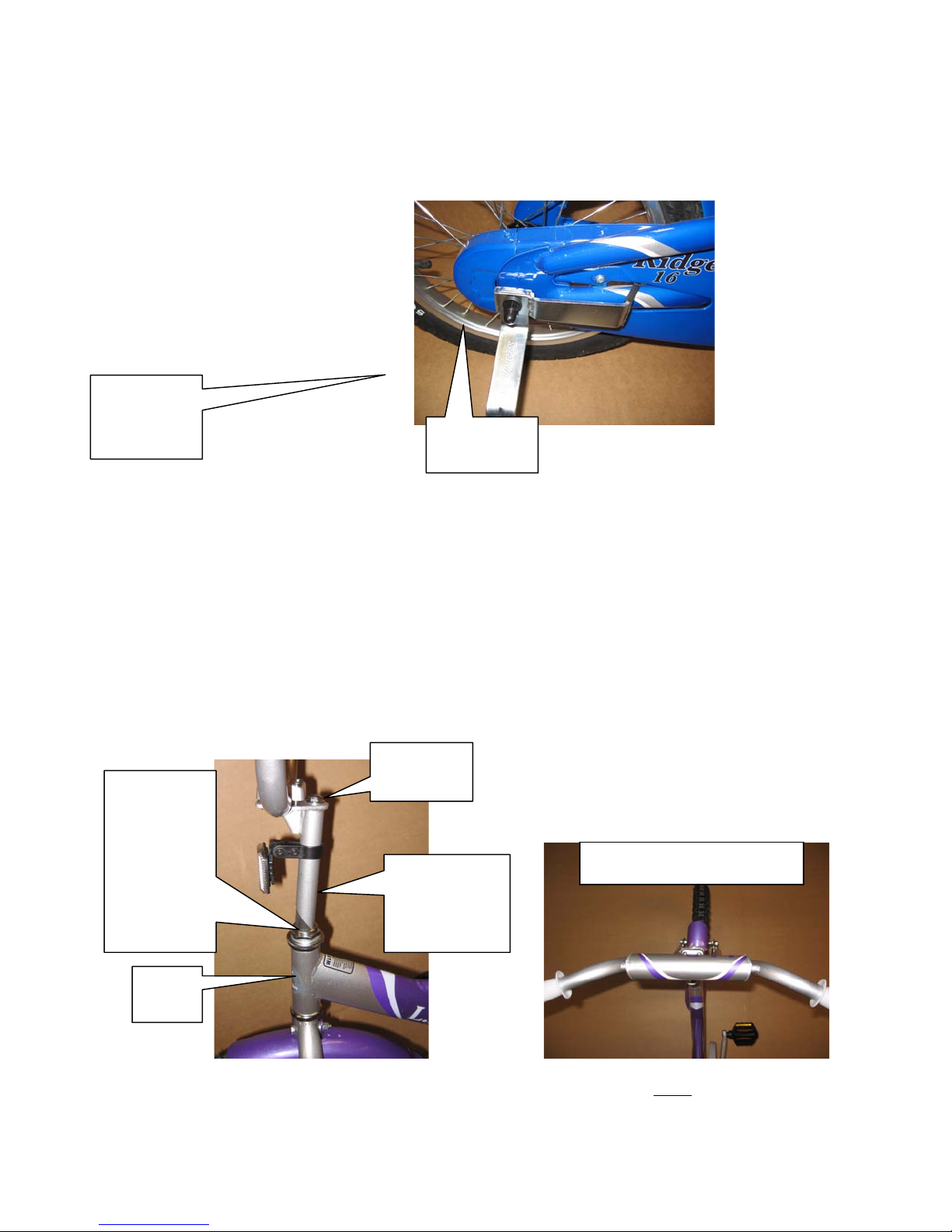

2. FRONT FENDER Required tools - two 10mm wrenches or two adjustable wrenches

Find the fender mounting bolt through the top of the fork. Remove the nut and washer. Attach the fender with the
mounting bolt through the fender bracket. Replace washer and carefully rethread the nut. Adjust fender so that it is not
rubbing on the tire as the wheel is turned. Tighten the bolt and nut.

Safety
washer
and 15mm
nut in
proper
position

Fork in
correct
forward
position

Correct washer
placement

Dropout
portion
of fork
