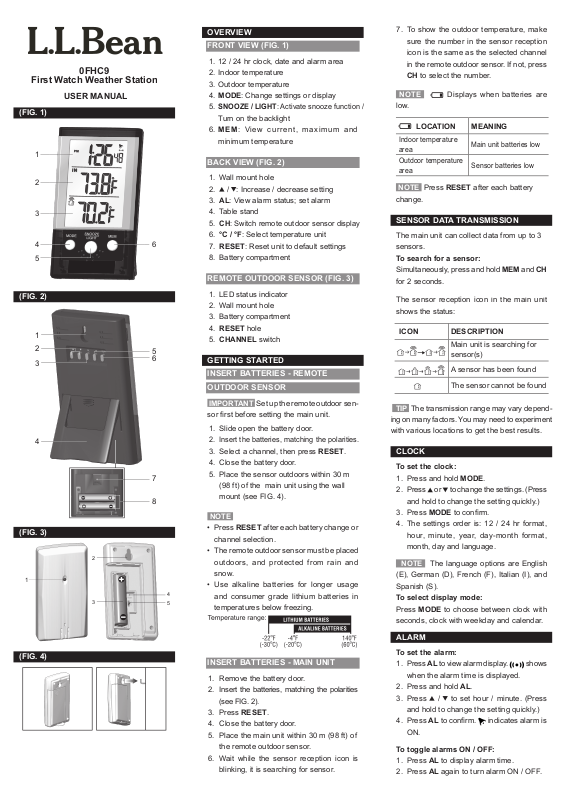

L.L. Bean 0FHC9 User Manual

0FHC9

(FIG. 1)

(FIG. 2)

(FIG. 3)

(FIG. 4)

OVERVIEW

FRONT VIEW (FIG. 1)

1. 12 / 24 hr clock, date and alarm area

2. Indoor temperature

3. Outdoor temperature

4. MODE: Change settings or display

SNOOZE / LIGHT: Activate snooze function /

Turn on the backlight

6. M E M : Vi e w curre n t , maximum an d

minimum temperature

BACK VIEW (FIG. 2)

1. Wall mount hole

2. / : Increase / decrease setting

3. AL: View alarm status; set alarm

4. Table stand

5. CH: Swi

7. RESET: Reset unit to default settings

8. Battery compartment

REMOTE OUTDOOR SENSOR (FIG. 3)

1. LED status indicator

2. Wall mount hole

3. Battery compartment

4. RESET hole

5. CHANNEL switch

GETTING STARTED

INSERT BATTERIES - REMOTE

OUTDOOR SENSOR

IMPORTANT Set up the remote outdoor sen-

sor ﬁ rst before setting the main unit.

1. Slide open the battery door.

2. Insert the batteries, matching the polarities.

3. Select a channel, then press RESET.

4. Close the battery door.

5. Place the sensor outdoors within 30 m

(98 ft) of the main unit using the wall

mount (see FIG. 4).

NOTE

• Press RESET after each battery change or

channel selection.

• The remote outdoor sensor must be placed

outdo or s, and protecte d from rain and

snow.

• Use alkaline batteries for longer usage

and consumer grade lithium batteries in

temperatures below freezing.

INSERT BATTERIES - MAIN UNIT

1. Remove the battery door.

2. Insert the batteries, matching the polarities

(see FIG. 2).

3. Press RESET.

4. Close the battery door.

5. Place the main unit within 30 m (98 ft) of

the remote outdoor sensor.

6. Wait while the sensor reception icon is

blinking, it is searching for sensor.

7. To show the outdoor temperature, make

sure the number in the sensor reception

icon is the same as the selected channel

in the remote outdoor sensor. If not, press

CH to select the number.

NOTE

Displays when batteries are

low.

LOCATION

MEANING

Indoor temperature area

Main unit batteries low

Outdoor temperature area

Sensor batteries low

NOTE Press RESET after each battery

change.

SENSOR DATA TRANSMISSION

The main unit can collect data from up to 3

sensors.

To search for a sensor:

Simultaneously, press and hold MEM and CH

for 2 seconds.

The sensor reception icon

in the main unit

ICON DESCRIPTION

Main unit is searching for sensor(s)

A sensor has been found

The sensor cannot be found

TIP The transmission range may vary depend-

ing on many factors. You may need to experiment

with various locations to get the best results.

CLOCK

To set the clock:

1. Press and hold MODE.

2. Press or to change the settings. (Press

and hold to change the setting quickly.)

3. Press MODE to conﬁ rm.

4. The settings order is: 12 / 24 hr format,

hour, minute, year, day-month format,

month, day and language.

NOTE

The language options are English

(E), German (D), French (F), Italian (I), and

Spanish (S).

To select display mode:

Press MODE to choose between clock with

seconds, clock with weekday and calendar.

ALARM

To set the alarm:

1. Press AL to view alarm display. shows

when the alarm time is displayed.

2. Press and hold AL.

3. Press / to set hour / minute. (Press

and hold to change the setting quickly.)

4. Press AL to conﬁ rm. indicates alarm is

ON.

To toggle alarms ON / OFF:

1. Press AL to display alarm time.

2. Press AL again to turn alarm ON / OFF.

4 6

5 6

To silence the alarm:

• Press SNOOZE / LIGHT to silence it for 8

minutes.

• Press AL to turn the alarm off and activate it

again after 24 hours.

TEMPERATURE

To toggle temperature unit:

Press °C / °F.

To view outdoor sensors readings:

Press CH

To auto-scan between sensors:

Press and hold CH to display each sensor’s

data for 3 seconds.

To end press CH or MEM.

To toggle between current, minimum and

maximum records for the selected outdoor

sensor and indoor (main unit) sensor:

Press MEM repeatedly.

To clear the records:

Press and hold MEM

BACKLIGHT

Press SNOOZE / LIGHT to turn the backlight

on for 8 seconds.

RESET

Press RESET to return to the default settings.

TROUBLESHOOTING

Problem Remedy

Outdoor

temperature

is not shown

• Press RESET on the remote

outdoor sensor and the main

unit.

• Check if the sensor reception

icon number in the main unit

is the same as the chan-

nel selected in the remote

outdo or sensor. If not the

sam e, press CH to select

the number.

• Che ck if the sen sor bat-

tery power is low. If low,

replace it.

Main unit

cannot locate

sensor auto-

matically

• Press and hold MEM and CH

for 2 seconds until a beep is

heard.

• Check if the sensor battery

power is low. If low, replace

it.

PRECAUTIONS

• Do not subject the unit to excessive force,

shock, dust, temperature or humidity.

• D

086L004854-033

ed without the permission of the

manufacturer.

• Do not dispose old batteries as unsorted

municipal waste. Collection of such waste

separately for special treatment is neces-

sary.

• Please note that some units are equipped with

a battery safety strip. Remove the strip from

the battery compartment before ﬁ rst use.

NOTE The technical speciﬁ cations for this

product and the contents of the user manual

are subject to change without notice.

SPECIFICATIONS

TYPE DESCRIPTION

MAIN UNIT

L x W x H 115 x 64 x 20 mm

(4.53 x 2.52 x 0.79 in)

Weight 100 g (3.53 oz)

without battery

Temperature range

-5°C to 50°C (23°F to 122°F)

Resolution 0.1°C (0.2°F)

Signal frequency 433 MHz

N132N)

L x W x H 96 x 50 x 22 mm

(3.8 x 2.0 x 0.9 in)

Weight 62 g (2.22 oz)

Transmission range

30 m (98 ft) unobstructed

No. of channels

Temperature range

-30°C to 60°C (-22°F to 140°F)

Batteries 1 x UM-3 (AA) 1.5 V

FCC STATEMENT

This device complies with Part 15 of the FCC

Rules. Operation is subject to the following

tw o con diti ons : (1) This devi ce may not

caus e harmful int erfer ence, and (2) This

device must accept any interference received,

including interference that may cause undesired

operation.

WARNING Changes or modifications not

expressly approved by the party responsible

for compliance could void the user’s authority

to operate the equipment.

NOTE This equipment has been tested and

found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the

FCC Rules. These limits are des ig ne d to

provide reasonable protection against harmful

interference in a residential installation.

This equipm en t generates, uses and can

radiate radio frequency energy and, if not

installed and used in accordance with the

instructions, may cause harmful interference

to radio communications. However, there is

no guarantee that interference will not occur

in a particular installation. If this equipment

does cause harmful interference to radio or

television reception, which can be determined

by turning the equipment off and on, the user is

encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equip-

ment and receiver.

• Connect the equipment into an outlet on a

circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced radio /

TV technician for help.

DECLARATION OF CONFORMITY

The following information is not to be used as

contact for support or sales. Please call our

customer service number (listed on our website

at, www.llbean.com or on the warranty card for

this product) for all inquiries instead.

We:

Name: L.L. Bean, Inc.

Address:

Freeport, Maine 04033-0001

Telephone No. USA and Canada:

800-441-5713

International:

207-552-3027

declare that the product

Produ

is in conformity with Part 15 of the FCC Rules.

Operation is subject to the following two con-

ditions: 1) This device may not cause harmful

interference. 2) This device must accept any

interference received, including interference

that may cause undesired operation.
