LXC31X0/LXC93X0 Generator controller user manual
Dongguan Tuancheng Automation Equipment Co.,LTD.
LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296 :www.lixise.com Page 1 of 28
LXC31X0/LXC39X0
Series Genset Controller
LXC31X0/LXC39X0 User Manual
Ver1.3 Date: 2015/03/19
Software version
Date
Versio
Note
2012-06-12
1.0
Original release.
2014-12-26
1.1
Flywheel teeth configuration items increase：(When
genset has no magnetic sensor,please set to 5 to
close magnetic sensor)
2015-02-09
1.2
Add LXC39X0 introduction
2015-03-19
1.3
Application picture updated
LXC31X0/LXC39X0 Series
LXC31X0/LXC93X0 Generator controller user manual
Dongguan Tuancheng Automation Equipment Co.,LTD.
LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296 :www.lixise.com Page 2 of 28
Clarification of notation used within this publication.
Symbol
Instruction
NOTE
Highlights an essential element of a procedure to ensure correctness.
CAUTION
Indicates a procedure or practice, which, if not strictly observed, could result in
damage or destruction of equipment.
WARNING
Indicates a procedure or practice, which could result in injury to personnel or
loss of life if not followed correctly.
LXC31X0/LXC93X0 Generator controller user manual
Dongguan Tuancheng Automation Equipment Co.,LTD.
LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296 :www.lixise.com Page 3 of 28
Contents
1. Summary
..................................................................................................................................................................
4
2. Performance and characteristics......................................................................................................................... 4
3. Specification............................................................................................................................................................ 5
4. Operation
.................................................................................................................................................................
6
4.1. Push buttons
................................................................................................................................................
6
4.2. Indicator light................................................................................................................................................7
4.3. Automatic start/stop operation.................................................................................................................. 8
4.3.1. Auto Start Sequence,
......................................................................................................................
8
4.3.2. Auto Stop Sequence,
......................................................................................................................
8
4.4. Manual start/stop operation.......................................................................................................................9
5. Protection.................................................................................................................................................................9
5.1. Warnings
......................................................................................................................................................
9
5.2. Shutdown alarm
........................................................................................................................................
10
6. Connections
..........................................................................................................................................................
11
7. Parameters setting...............................................................................................................................................13
7.1. Password Management........................................................................................................................... 13
7.2. Language................................................................................................................................................... 14
7.3. Mode Select
...............................................................................................................................................
14
7.4. Definition and range of parameters........................................................................................................14
7.5. Programmable input 1-4 table (Active when connect GND (B-))...................................................... 19
7.6. Programmable output 1-5........................................................................................................................20
7.7. Sensor select
.............................................................................................................................................
22
7.8. Conditions of crank disconnect...............................................................................................................22
7.9. Sensor select.............................................................................................................................................23
7.10. Sensor unit conversion table................................................................................................................ 24
8. Commissioning
.....................................................................................................................................................
24
9. Typical application................................................................................................................................................25
10. Installation
...........................................................................................................................................................
26
10.1. Fixing clips............................................................................................................................................... 26
10.2. Overall dimension and panel cutout.................................................................................................... 27
11. Fault finding
........................................................................................................................................................
28
12. Product packaging
.............................................................................................................................................
28
LXC31X0/LXC93X0 Generator controller user manual
Dongguan Tuancheng Automation Equipment Co.,LTD.
LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296 :www.lixise.com Page 4 of 28
1. Summary
LXC31X0 Series automation controller uses 32-bit ARM processor, the module is realized intelligent
generator control technology.There are used for genset automation and monitor control system of single
unit to achieve automatic start/stop, data measurement, alarm protection.It fit with LCD display, optional
languages interface (Chinese, English, Spanish and Russian), and it is reliable and easy to use.It’s
achieve a precision measuring,fixed value adjustment, time setting and set value adjusting and etc.All
parameters can be configured from front panel or through programmable USB interface via PC. It can
be widely use in all types of automatic genset control system with compact structure, advanced circuits,
simple connections and high reliability.
2. Performance and characteristics
LXC3XX0 indicates 2 series,totally 4 type modules
：
LXC3X10 indicates LXC3110，LXC3910
LXC3X20 indicates LXC3120，LXC3920
LXC39X0 indicates LXC3910，LXC3920
LXC31X0 indicates LXC3110，LXC3120
LXC3X10：ASM (Automatic Start Module),it controls generator to start/stop by remote signal;
LXC3120：AMF (Auto Mains Failure), updates based on LXC3110, moreover, has mains electric
quantity monitoring and mains/generator automatic transfer control function, especially for automatic
system composed by generator and mains.
LXC39X0：Based on LXC31X0,add RS232 interface and can be remotely monitored by LXI680
integrated with related PC software.
Its main features are as follows:
Display：132×64 LCD with emerald green backlight；
Language：Chinese, English, Spanish and Russian
；
Operating：good feeling button pushing, long button life；
Suitable for：3-phase 4-wire, 3-phase 3-wire, single phase 2-wire, and 2-phase 3-wire systems with
voltage 120/240V and frequency 50/60Hz.
Detection parameters:
Mains
Gens
Line Voltage
Uab，Ubc，Uca
Line Voltage
Uab，Ubc，Uca
Phase Voltage
Ua，Ub，Uc
Phase Voltage
Ua，Ub，Uc
Frequency
Hz
Frequency
Hz
Load
：
Current IA，IB，IC
Active Power (KW)
Reactive Power (KVar)
Apparent Power (KVA)
Power Factor (PF)
Accumulated Energy (kWh)
LXC31X0/LXC93X0 Generator controller user manual
Dongguan Tuancheng Automation Equipment Co.,LTD.
LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296 :www.lixise.com Page 5 of 28
Mains Monitor：With over voltage, under voltage, over frequency, under frequency, loss phase and
reverse phase function;
Gens Monitor：With over voltage, under voltage, over frequency, under frequency, loss phase and
reverse phase function;
Acquisition parameters
：
Temp. (WT) °C/ °F both be displayed
Oil pressure (OP) kPa/Psi/Bar all be displayed
Engine Speed (RP) RPM (Unit)
Battery Voltage (VB) V (unit)
Charger Voltage (VD) V (unit)
Hours counter (HC): Max. 999999 hours
Start times: Max.999999 times
Protection: Automatic start/stop of the genset, ATS(Auto Transfer Switch) control with perfect fault
indication and protection function;
Output Control：With ETS, idle control, pre-heat control, speed raise control and speed drop control,
All output ports are relay-out;
Parameter Settings：All the parameters can be adjusted using front panel of the controller or use the
computer through USB to connect directly to controller settings, all is not lost when power down
parameter system;
Sensor Detection：More kinds of curves of temperature, oil pressure, fuel level can be used directly
and users can define the sensor curves by themselves;
Multiple Crank Disconnect Conditions：Gens frequency,speed,oil pressure,D+;
Widely Power supply range: DC(8~35)V, suitable to different start battery voltage environment;
Mounting Assembly：Modular design, anti-flaming ABS plastic enclosure, plug gable connection
terminals and embedded installation way; compact structure with easy mounting.
3. Specification
Items
Contents
Working Voltage
DC8. 0V to 35. 0V, Continuous Power Supply.
Overall Consumption
<3W(Standby mode: ≤2W)
AC voltage Input:
3 Phase 4 Wire
2 Phase 3 Wire
Single phase 2 Wire
3 Phase 3 Wire
15V AC - 360 V AC (ph-N)
15V AC - 360 V AC (ph-N)
15V AC - 360 V AC (ph-N)
30V AC - 620 V AC (ph-ph)
Alternator Frequency
50 Hz /60Hz
Speed Sensor Voltage
1.0V to 24V (effective value)
Speed Sensor Frequency
10,000 Hz (max)
Start Relay Output
5A DC28V power supply
Programmable Relay Output 1
5A DC28V power supply
Programmable Relay Output 2
5A DC28V power supply
Programmable Relay Output 3
5A DC28V power supply
Programmable Relay Output 4
5A AC250V voltage-free output
LXC31X0/LXC93X0 Generator controller user manual
Dongguan Tuancheng Automation Equipment Co.,LTD.
LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296 :www.lixise.com Page 6 of 28
Programmable Relay Output 5
5A AC250V voltage-free output
Overall Dimensions
143mm x 115mm x41mm
Panel Cutout
110mm x 90mm
CT Secondary Current
5A (rated)
Working Condition
Temperature: (-25~70)ºC; Humidity: (20~93)%RH
Storage Condition
Temperature: (-25~70)ºC
Protection Level
IP55:When waterproof rubber seal installed between the controller
and panel fascia.
IP42:When waterproof rubber seal is not installed between the
controller and panel fascia.
Insulation Intensity
Object: input/output/power
Quote standard: IEC688-1992
Test way: AC1.5kV/1min leakage current:3mA
Weight
330g
4. Operation
4.1. Push buttons
Stop/ Reset
Stop running generator in Auto/Manual mode;
In case of alarm condition, pressing the button will reset alarm;
During stopping process, press this button again to stop generator
immediately;
In Standby mode, pressing and holding the button for 3 seconds will test
indicator lights (lamp test).
Start
Start genset in Manual/Test mode.
Manual
Pressing this key will set the module into manual mode.
Automatic
Pressing this key will set the module into auto mode.
Set/Confirm
Pressing this key will enter into Main Menu;
In setting parameter status, press this key will shift cursor or confirm
setting value.
Up/Increase
Scrolls the screen up;
Shift the cursor up or increase the set value in parameter setting menu.
Down/Decrease
Scrolls the screen down;
Shift the cursor down or decrease the set value in parameter setting menu.
LXC31X0/LXC93X0 Generator controller user manual
Dongguan Tuancheng Automation Equipment Co.,LTD.
LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296 :www.lixise.com Page 7 of 28
4.2. Indicator light
LXC3110/LXC3910 Panel Indicators
LXC3120/LXC3920 Panel Indicators
LXC31X0/LXC93X0 Generator controller user manual
Dongguan Tuancheng Automation Equipment Co.,LTD.
LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296 :www.lixise.com Page 8 of 28
4.3. Automatic start/stop operation
Auto mode is selected by pressing the button; a LED besides the button will illuminate to confirm the
operation.
4.3.1. Auto Start Sequence,
LXC3X20：When mains is abnormal (over/under voltage, loss of phase), enter into “Mains Abnormal
Delay” and LCD displays count down time. When the delay is over, “Start Delay” timer is initiated.
LXC3X10：When “Remote Start” is active, “Start Delay” timer is initiated.
“Start Delay” countdown will be displayed on LCD.
When start delay is over, preheat relay energizes (if configured), “preheat delay XXs” information will
be displayed on LCD.
After the above delay, the Fuel Relay is energized, and then one second later, the Start Relay is
engaged. The engine is cranked for a pre-set time. If the engine fails to fire during this cranking
attempt then the fuel relay and start relay are disengaged for the pre-set rest period; “crank rest time”
begins and wait for the next crank attempt.
Should this start sequence continue beyond the set number of attempts, the start sequence will be
terminated, the first line of LCD display will be highlighted with black and Fail to Start fault will be
displayed.
In case of successful crank attempt, the “Safety On” timer is activated, allowing Low Oil Pressure,
High Temperature, Under speed, Charge Alternator Failure and Aux. inputs (configured) to stabilize
without triggering the fault. As soon as this delay is over, “start idle” delay is initiated (if configured).
During “start idle” delay, under speed, under frequency, under voltage alarms are inhibited. When this
delay is over, “warming up” delay is initiated (if configured).
After the “warming up” delay, if generator status is normal, its indicator will be illuminated. If generator
voltage and frequency have reached on-load requirements, then the generator close relay will be
energized; genset will take load; generator power indicator will illuminate and generator will enter into
Normal Running status. if voltage or frequency is abnormal, the controller will initiate shutdown alarm
(alarm information will be displayed on LCD).
4.3.2. Auto Stop Sequence,
LXC3X20：During normal running process, if mains normal, enters into “Mains Normal Delay”. When
mains indicator illuminates, “Stop Delay” begins.
LXC3X10：When the “Remote Start” signal is removed, the stop delay is initiated.
Once this “stop delay” has expired, the Generator Breaker will open and the “Cooling Delay” is then
initiated. After “Transfer Delay”, the mains close relay will be energized; mains will take load;
generator power indicator will extinguish while mains power indicator will illuminate.
During “Stop Idle” Delay (if configured), idle relay is energized.
“ETS Solenoid Hold” begins, ETS relay is energized while fuel relay is de-energized.
"Fail to Stop Delay" begins, complete stop is detected automatically.
Generator is placed into its standby mode after its complete stop. Otherwise, fail to stop alarm is
initiated and the corresponding alarm information is displayed on LCD.
LXC31X0/LXC93X0 Generator controller user manual
Dongguan Tuancheng Automation Equipment Co.,LTD.
LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296 :www.lixise.com Page 9 of 28
4.4. Manual start/stop operation
LXC3X20：Manual mode is selected by pressing the button; a LED besides the button will
illuminate to confirm the operation.
Press key, select “Mode Select”, then choose “Test Mode”. Under the two modes,
press button to start the genset, it can automatically judge crank success and accelerate to high
speed running. If high temperature, low oil pressure, over speed and abnormal voltage occur during
genset running, controller can effectively protect genset to stop. Under Manual Mode, if mains normal,
load breaker won’t transfer; if mains abnormal, load breaker will transfer to generator. Under Test
Mode, after genset high speed normal running, no matter mains normal or not, load will be transferred
to generator.
LXC3X10：Manual mode is selected by pressing the button; a LED besides the button will
illuminate to confirm the operation; Then press button to start the generator, it can automatically
judge crank success and accelerate to high speed running. If high temperature, low oil pressure, over
speed and abnormal voltage occur during genset running, controller can effectively protect genset to
stop. After genset high speed normal running, controller will send Gen Closed signal.
Manual stop: pressing key can shut down the running genset.
5. Protection
5.1. Warnings
When controller detects the warning signal, only alarm and not lead to shutdown. The alarm information
will be displayed on LCD.
Warnings types are as follows:
No.
Items
Description
1
High
Temperature
When the controller detects that engine temperature has exceeded the pre-set
value while shutdown is prohibited, or detects that the Aux. input high temperature
while shutdown is prohibited, it will initiate a warning alarm and the corresponding
alarm information will be displayed on LCD.
2
Low Oil
Pressure
When the controller detects that the oil pressure has fallen below the pre-set
value while shutdown is prohibited, or detects that the Aux. input low oil pressure
while shutdown is prohibited, it will initiate a warning alarm and the corresponding
alarm information will be displayed on LCD.
3
Gen Over
Current
When the controller detects that the genset current has exceeded the pre-set
value and the over current delay has expired, it will initiate a warning alarm and
the corresponding alarm information will be displayed on LCD.
4
Fail To Stop
After “fail to stop” delay/ ETS delay, if gen-set does not stop completely, it will
initiate a warning alarm and the corresponding alarm information will be displayed
on LCD.
5
Low Fuel
Level
When the controller detects that the fuel level has fallen below the pre-set value
while shutdown is prohibited, or detects that the Aux. input low fuel level while
shutdown is prohibited, it will initiate a warning alarm and the corresponding alarm
information will be displayed on LCD.
6
Charge Alt
Failure
When the controller detects that charger voltage has fallen below the pre-set
value, it will initiate a warning alarm and the corresponding alarm information will
be displayed on LCD.
LXC31X0/LXC93X0 Generator controller user manual
Dongguan Tuancheng Automation Equipment Co.,LTD.
LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296 :www.lixise.com Page 10 of 28
7
Battery Under
Volt
When the controller detects that battery voltage has fallen below the pre-set
value, it will initiate a warning alarm and the corresponding alarm information will
be displayed on LCD.
8
Battery Over
Volt
When the controller detects that battery voltage has exceeded the pre-set value, it
will initiate a warning alarm and the corresponding alarm information will be
displayed on LCD.
9
Auxiliary Input
When the controller detects that the auxiliary input warning signals, it will initiate a
warning alarm and the corresponding alarm information will be displayed on LCD.
10
Loss Of
Speed
Signal
When the controller detects that the engine speed is 0 and the delay is 0,it will
initiate a warning alarm and the corresponding alarm information will be displayed
on LCD.
11
Low Coolant
Level
When the controller detects the low coolant level input is active, it will initiate a
warning alarm and the corresponding alarm information will be displayed on LCD.
12
Temp. Sensor
Open
When the controller detects that the temperature sensor is open circuit and the
action select “Warn”, it will initiate a warning alarm and the corresponding alarm
information will be displayed on LCD.
13
Oil Pressure
Sensor Open
When the controller detects that the oil pressure sensor is open circuit and the
action select “Warn”, it will initiate a warning alarm and the corresponding alarm
information will be displayed on LCD.
5.2. Shutdown alarm
When controller detects shutdown alarm, it will send signal to open breaker and stop the genset. The
alarm information will be displayed on LCD.
Shutdown alarm types are as follows：
No.
tems
Description
1
Digital
Input
When digital input port is set as shutdown, and the action is active, it will send a
shutdown signal.
2
High
Temperatu
re
When controller detects that the water/cylinder temperature has exceeded the
pre-set value, it will initiate a shutdown alarm and the corresponding alarm
information will be displayed on LCD.
3
Low Oil
Pressure
When the controller detects that the oil pressure has fallen below the pre-set value,
it will initiate a shutdown alarm and the corresponding alarm information will be
displayed on LCD.
4
Over
Speed
When the controller detects that the generator speed has exceeded the pre-set
value, it will initiate a shutdown alarm and the corresponding alarm information will
be displayed on LCD.
5
Under
Speed
When the controller detects that the generator speed has fallen below the pre-set
value, it will initiate a shutdown alarm and the corresponding alarm information will
be displayed on LCD.
6
Loss Of
Speed
Signal
When the controller detects that the engine speed is 0 and the delay is NOT 0, it will
initiate a shutdown alarm and the corresponding alarm information will be displayed
on LCD.
7
Gen Over
Voltage
When the controller detects that the genset voltage has exceeded the pre-set
value, it will initiate a shutdown alarm and the corresponding alarm information will
be displayed on LCD.
8
Gen Under
Voltage
When the controller detects that the genset voltage has fallen below the pre-set
value, it will initiate a shutdown alarm and the corresponding alarm information will
be displayed on LCD.
LXC31X0/LXC93X0 Generator controller user manual
Dongguan Tuancheng Automation Equipment Co.,LTD.
LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296 :www.lixise.com Page 11 of 28
9
Gen Over
Current
When the controller detects that the genset current has exceeded the pre-set value
and delay is not 0, it will initiate a shutdown alarm and the corresponding alarm
information will be displayed on LCD.
10
Fail To
Start
If the engine does not fire after the pre-set number of attempts, it will initiate a
shutdown alarm and the corresponding alarm information will be displayed on LCD.
11
Gen Over
Frequency
When the controller detects that the genset frequency has exceeded the pre-set
value, it will initiate a shutdown alarm and the corresponding alarm information will
be displayed on LCD.
12
Gen Under
Frequency
When the controller detects that the genset frequency has fallen below the pre-set
value, it will initiate a shutdown alarm and the corresponding alarm information will
be displayed on LCD.
13
Genset
Failed
When the controller detects that the genset frequency is 0, it will initiate a shutdown
alarm and the corresponding alarm information will be displayed on LCD.
14
Low Fuel
Level
When the controller detects that the fuel level has fallen below the pre-set value or
detects that the low fuel level input is active, it will initiate a shutdown alarm and the
corresponding alarm information will be displayed on LCD.
15
Low
Coolant
Level
When the controller detects the low coolant level input is active, it will initiate a
shutdown alarm and the corresponding alarm information will be displayed on LCD.
16
Temp.
Sensor
Open
When the controller detects that the temperature sensor is open circuit and the
action select “Shutdown”, it will initiate a shutdown alarm and the corresponding
alarm information will be displayed on LCD.
17
Oil
Pressure
Sensor
When the controller detects that the oil pressure sensor is open circuit and the
action select “Shutdown”, it will initiate a shutdown alarm and the corresponding
alarm information will be displayed on LCD.
6. Connections
Compared with LXC3X20, LXC3X10 has no Mains AC Voltage input terminals.
The rear panel of LXC3X10 and LXC3X20 is as below.
LXC31X0/LXC93X0 Generator controller user manual
Dongguan Tuancheng Automation Equipment Co.,LTD.
LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296 :www.lixise.com Page 12 of 28

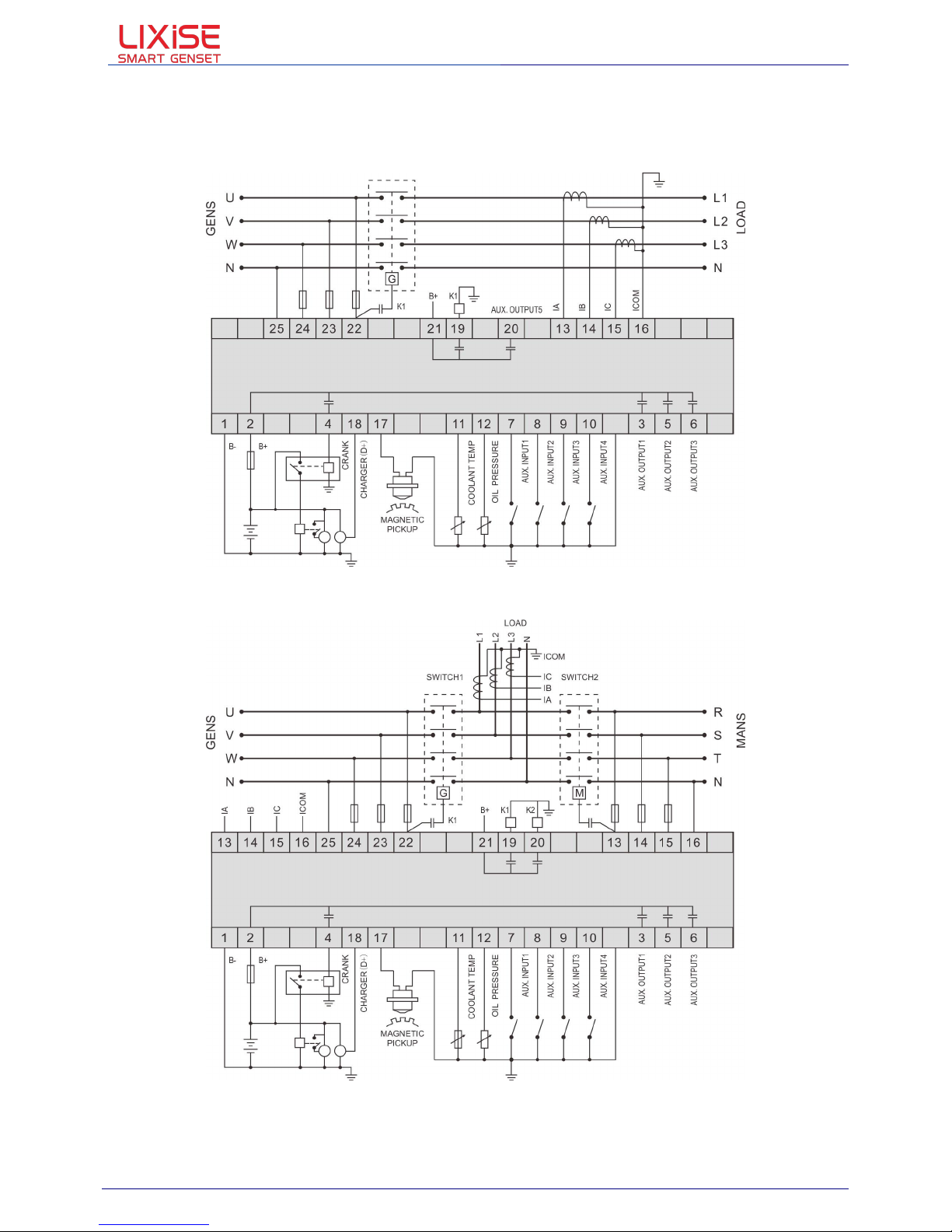

Description of terminal connections:
No.
Function
Cable
Size
Description
1B-1.5mm
2
DC power supply. Connected with negative of starter
battery.
2B+1.5mm
2
DC power supply. Connected with positive of starter
battery. If wire length is over 30m, better to double
wires in parallel. Max. 20A fuse is recommended.
3
Aux. Output 1
1.0mm
2
B+ is supplied by 2 point, rated 5A.
4
Crank
1.0mm
2
B+ is supplied by 2 point, rated 5A. Connect to starter
coil.
5
Aux. Output 2
1.0mm
2
B+ is supplied by 2 point, rated 5A.
6
Aux. Output 3
1.0mm
2
B+ is supplied by 2 point, rated 5A.
7
Aux. Input 1
1.0mm
2
Ground connected is active (B-) .
See Table 3
8
Aux. Input 2
1.0mm
2
9
Aux. Input 3
1.0mm
2
10
Aux. Input 4
1.0mm
2
11
Engine Temperature
Sensor
1.0mm
2
Connect to a
temperature/cylinder
resistance sensor.
See Table 4
12
Oil Press Sensor
1.0mm
2
Connect to a oil pressure
resistance sensor.
13
CT A Phase Sensing
1.5mm
2
Outside connected to secondary coil of current
transformer(rated 5A)
14
CT B Phase Sensing
1.5mm
2
15
CT C Phase Sensing
1.5mm
2
16
CT COM
1.5mm
2
See INSTALLATION in the manual.
17
Magnetic Pickup
0.5mm
2
Connect to speed sensor; Shielded wire is
recommended.
The other end of speed sensor connects to B-.
18
Charger D+
1.0mm
2
Connect to charging starter’s D+ terminal. If there is no
this terminal, then be hang up.
19
Aux. Output 4
1.0mm
2
The combination of terminal 19 and 21 is relay normally
open contact; rated 5A; Voltage free.
20
Aux. Output 5
1.0mm
2
The combination of terminal 20 and 21 is relay normally
open contact; rated 5A; Voltage free.
21
Aux. Output COM
1.5mm
2
Common terminal of auxiliary output 4 and 5.
22
Gen U Phase Sensing
1.0mm
2
Connected to U-phase of generator (2A fuse is
recommended)
LXC31X0/LXC93X0 Generator controller user manual
Dongguan Tuancheng Automation Equipment Co.,LTD.
LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296 :www.lixise.com Page 13 of 28
23
Gen V Phase Sensing
1.0mm
2
Connected to V-phase of generator (2A fuse is
recommended)
24
Gen W Phase Sensing
1.0mm
2
Connected to W-phase of generator (2A fuse is
recommended)
25
Gen N2 Input
1.0mm
2
Connected to N-wire of generator.
26
Mains R Phase Voltage
Sensing
1.0mm
2
Connected to R-phase of mains (2A fuse is
recommended) (LXC3X10 without)
27
Mains S Phase Voltage
Sensing
1.0mm
2
Connected to S-phase of mains (2A fuse is
recommended) (LXC3X10 without)
28
Mains T Phase Voltage
Sensing
1.0mm
2
Connected to T-phase of mains (2A fuse is
recommended) (LXC3X10 without)
29
Mains N1 Sensing
1.0mm
2
Connected to N-wire of mains (LXC3X10 without)
30
RS232 public grounded
pin
0.5mm
2
Recommended to use shielded cable, single-grounded
shield(LXC31X0 series:no this function)
31
RS232 RX
0.5mm
2
32
RS232 TX
0.5mm
2
USB
USB Interface
Controller directly through the USB line connected to the
computer for parametric programming.
7. Parameters setting
Start the controller, then press to enter into the parameters setting menu, see fig below:
7.1. Password Management
The controller has 2 different password:
Technician Password：Default password: 0000; No. 72 passwords can be changed.
Operator password
：
Default password: 1111; No. 73 passwords can be changed.
Password Privilege Description：
Technician Password：Has the authority to modify all parameters.
Operator password：You can view the parameters of the project, do not have permission to modify
parameters.
If there is need to set more parameters, please contact the factory.
NOTES:
1
For LXC3X10, there are no items from 1 to 5 in Table 1; there are no digital outputs about
mains .
1 Ser Parameters
2 Information
3 Language
4 Mode Select
LXC31X0/LXC93X0 Generator controller user manual
Dongguan Tuancheng Automation Equipment Co.,LTD.
LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296 :www.lixise.com Page 14 of 28
2
Please change the controller parameters when generator is in standby mode only (e. g. Crank
disconnect conditions selection, digital input, digital output, various delay), otherwise, shutdown
and other abnormal conditions may occurs.
3
Over voltage set value must be higher than under voltage set value,otherwise the controller will
not save the data.
4
Over speed set value must be higher than under speed set value,otherwise the controller will not
save the data.
5 Please set the generator frequency value as low as possible when cranking, in order to make the
starter be separated quickly as soon as possible.
6
Digital input 1~4 could not be set as same items; otherwise, there are abnormal functions.
7
The digital output 1~5 can be set as same items.
Information
This interface display controller related information is as follows:
If you forget the password you can provide the information to the controller manufacturers, manufacturers
will provide a one-time password, you can modify the password to enter configuration menu.
7.2. Language
Chinese, English, Spanish and Russian interface can be selected.
7.3. Mode Select
The controller can be set as Test Mode, Manual Mode, Auto Mode or Stop Mode.
7.4. Definition and range of parameters
The following parameters can be set in the controller.
No.
Items
Range
Default
Description
0
Mains Normal Delay
(0-3600)s
10
The time from mains abnormal to normal or from
normal to abnormal; suitable for ATS (automatic
transfer switch).
1
Mains Abnormal
Delay
(0-3600)s
5
2
Mains Under
Voltage
(30-620)V
184
When mains voltage has fallen below the set
value, Mains Under Voltage is active. When set
the value as 30V, the controller does not detect
under voltage signal. Back lash: 10V (delay of 1
second)
3
Mains Over
Voltage
(30-620)V
276
When mains voltage has exceed the set value,
Mains Over Voltage is active. When set the value
as 620V, the controller does not detect over
voltage signal. Back lash: 10V(delay of 1 second)
Genset Information
LXC3110 SW:4.0 HW:1.2
ID: 0123456789
Request Code
：
7890
Product Type ： LXC3110
Software Version： SW ：4.0
Hardware version
：
HW：1.2
Request Code
：
7890
LXC31X0/LXC93X0 Generator controller user manual
Dongguan Tuancheng Automation Equipment Co.,LTD.
LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296 :www.lixise.com Page 15 of 28
4
Mains Under
frequency
(0-75.0)Hz
45
When mains frequency has fallen below the set
value, Mains Under frequency is active. When set
the value as 0V, the controller does not detect
under frequency signal. Back lash: 2V (delay of 1
second)
5
Mains Over
frequency
(0-75.0)Hz
57
When mains frequency has exceed the set value,
Mains Over frequency is active. When set the
value as 75V, the controller does not detect over
frequency signal. Back lash: 2V(delay of 1 second)
6
Transfer Time
(0-99.9)s
1
Interval time from mains switch off to generator
switch on; or from generator switch off to mains
switch on.
7
Start Delay
(0-3600)s
1
Time from mains abnormal or remote start signal
is active to start genset.
8
Stop Delay
(0-3600)s
1
Time from mains normal or remote start signal is
deactivated to genset stop.
9
Start number
(1-10)
3
Maximum crank times of crank number. When
reach this number, controller will send start failure
signal.
10
Preheat Delay
(0-300)s
0
Power-on time of heater plug before starter is
powered up.
11
Cranking Time
(3-60)s
8
Power-on time of starter.
12
Crank Rest Time
(3-60)s
10
The waiting time before second power up when
engine start fail.
13
Safety On Delay
(1-60)s
10
Alarms for low oil pressure, high temperature,
under speed, under frequency / voltage, charge alt
failure are inactive.
14
Start Idle Time
(0-3600)s
0
Idle running time of genset when starting.
15
Warming Up Time
(0-3600)s
10
Warming time between genset switch on and high
speed running.
16
Cooling Time
(3-3600)s
10
Radiating time before genset stop, after it unloads.
17
Stop Idle
(0-3600)s
0
Idle running time when genset stop.
18
ETS Solenoid
Hold
(0-120)s
20
Stop electromagnet’s power on time when genset
is stopping.
19
Fail to Stop Delay
(0-120)s
0
Time between ending of genset idle delay and
stopped when “ETS time” is set as 0; Time
between ending of ETS hold delay and stopped
when “ETS time” is not 0.
20
Close Time
(0.1-100.0)s
5
Pulse width of mains/generator switch on.
21
Flywheel Teeth
(5-300)
118
Tooth number of the engine, for judging of starter
crank disconnect conditions and inspecting of
engine speed. See the installation instructions.
Tooth number of the engine, for judging of start
er crank disconnect conditions and inspecting of
engine speed. See the installation instructions.
(When genset has no magnetic sensor,please
set to 5 to close magnetic sensor)
22
Gen Abnormal
(0-20.0)s
10
The alarm delay of generator over voltage and
LXC31X0/LXC93X0 Generator controller user manual
Dongguan Tuancheng Automation Equipment Co.,LTD.
LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296 :www.lixise.com Page 16 of 28
Delay
under voltage.
23
Gen Over Voltage
(30-620)V
264
When generator voltage has exceed the set value
and the “Gen abnormal delay” has expired, Gen
Over Voltage is active. When set the value as
620V, the controller does not detect over voltage
signal.
24
Generator Under
Voltage
(30-620)V
196
When generator voltage has fallen below the set
value and the “Gen abnormal delay” has expired,
Gen Under Voltage is active. When set the value
as 30V, the controller does not detect under
voltage signal.
25
Under Speed
(0-6000)RPM
1200
When engine speed has fallen below the set value
for 10s, Under Speed is active. It will initiate a
shutdown alarm signal.
26
Over Speed
(0-6000)RPM
1710
When engine speed has exceed the set value for
2s, Over Speed is active. It will initiate a shutdown
alarm signal.
27
Under Frequency
(0-75.0)Hz
45
When generator frequency has fallen below the
set value but Not equal to 0 for 10s, Under
Frequency is active. It will initiate a shutdown
alarm signal.
28
Over Frequency
(0-75.0)Hz
57
When generator frequency has exceed the set
value for 2s, Over Frequency is active. It will
initiate a shutdown alarm signal.
29
High Temperature
(80-140)ºC
98
When the temperature value of the external
temperature sensor exceeds the set value, high
temperature signal is sent. Detecting only after
safety on delay is over. If the set value is 140, high
temperature signal will not be sent (this only
concerns external temperature sensor, not high
temperature signal via configuration. input port).
30
High Temperature
Action
(0-1)
0
0：Warning 1：Shutdown.
31
Low Oil Pressure
(0-400) KPa
103
When the external pressure sensor value falls
below this set value, low oil pressure signal is
sent. Detecting only after safety on delay is over. If
the set value is 0, low oil pressure signal will not
be sent (this only concerns pressure sensor and
does not concern low oil pressure warning signal
via configurable input port).
32
Low Oil Pressure
Action
(0-1)
0
0：Warning 1：Shutdown.
33
Loss of Speed
Signal
(0-20.0)s
5
If the set value is 0, only warning and not to
shutdown the generator.
34
Charge Alt Failure
（Warning）
(0-30)V
6
During generator is normal running, when
alternator D+(WL) voltage has fallen below the set
value and remains for 5s, It generates charging
failed warning.（Return value is 1V）
35
Battery Over Voltage
（Warning）
(12-40)V
33
When battery voltage has exceeds the set value
and remains for 20s, It will initiate a warning alarm
signal. Only warning and not to shutdown the
generator.
（Return value is 1V）
36
Battery Under
Voltage（Warning）
(4-30)V
8
When battery voltage has fallen below the set
value and remains for 20s, It will initiate a warning
LXC31X0/LXC93X0 Generator controller user manual
Dongguan Tuancheng Automation Equipment Co.,LTD.
LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296 :www.lixise.com Page 17 of 28
alarm signal. Only warning and not to the
generator.
（Return value is 1V）
37
Current Trans.
(5-6000)/5
500
The ratio of external CT .
38
Full Current Rating
(5-6000)A
500
Generator’s rated current, standard of load
current.
39
Over Current
Percentage
(50-130)%
120
When the load current has exceed the set value,
“over current” delay is initiated.
40
Over Current Delay
(0-3600)s
1296
When load current has exceed the set value and
the “over current” delay has expired, over current
is initiated. When the set value is 0, only warning
and not to shutdown the generator.
41
Gens on load
Frequency
(0-75.0)Hz
45
When the generator to load conditions (load
frequency / load / voltage / load speed), begin to
load transfer (Gens load action).
42
Gens on load Volt
(30-620)V
196
43
Gens on load Speed
(0-6000)RPM
1200
44
Digital Output 1
(0-74)
1
Factory default: Fuel Relay Output
45
Digital Output 2
(0-74)
13
Factory default: Energized To Stop
46
Digital Output 3
(0-74)
10
Factory default: Idle Control
47
Digital Output 4
(0-74)
14
Factory default: Close Generator
48
Digital Output 5
(0-74)
19
Factory default: Mains Closed
49
Digital Input 1
Type
(0-29)
3
Factory default: High Temperature Input
50
Digital Input 1 Active
(0-1)
0
Factory default: Close to active
51
Digital Input 1 Action
(0-2)
Never/Warning/Shutdown
52
Digital Input 1 Period
(0-3)
Never/From safety on/From Crank/Away.
53
Digital Input 1 Delay
(0-20.0)s
Delay output function.
54
Digital Input 2
Type
(0-29)
4
Factory default: Low Oil Pressure Warning Input.
55
Digital Input 2 Active
(0-1)
0
Factory default: Close to active.
56
Digital Input 2 Action
(0-2)
Never/Warning/Shutdown.
57
Digital Input 2 Period
(0-3)
Never/From safety on/From Crank/Away.
58
Digital Input 2Delay
(0-20.0)s
Delay output function.
59
Digital Input 3 Type
(0-29)
10
Factory default: Remote Start.
LXC31X0/LXC93X0 Generator controller user manual
Dongguan Tuancheng Automation Equipment Co.,LTD.
LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296 :www.lixise.com Page 18 of 28
60
Digital Input 3 Active
(0-1)
0
Factory default: Close to active.
61
Digital Input 3Action
(0-2)
Never/Warning/Shutdown.
62
Digital Input 3 Period
(0-3)
Never/From safety on/From Crank/Away.
63
Digital Input3 Delay
(0-20.0)s
Delay output function.
64
Digital Input 4
Type
(0-29)
0
Factory default:User Configured
65
Digital Input 4 Active
(0-1)
0
Factory default: Close to active
66
Digital Input 4 Action
(0-2)
1
Never/Warning/Shutdown.
67
Digital Input 4 Period
(0-3)
2
Never/From safety on/From Crank/Away.
68
Digital Input3 Delay
(0-20.0)s
2
Delay output function
69
Power On Mode
(0-2)
0
0：Stop Mode 1：Test Mode 2：Manual Mode 3：
Auto mode.
70
Module Address
(1-247)
1
Communication address of controller.
72
technician password
(0-9999)
1
The technician password authorization,Has the
authority to modify all parameters.
73
operator password
(0-9999)
2
The operator password can only observe the
configuration parameters, and cannot be modified.
74
Crank Disconnect
(0-8)
6
There are 3 conditions of disconnecting starter with
engine. Each condition can be used alone and
simultaneously to separating the start motor and
genset as soon as possible.
75
Disconnect
Engine Speed
(0-3000)RPM
360
When engine speed higher than the set value,
starter will be disconnected.
76
Disconnect
Generator Freq
(10.0-30.0)Hz
14
When generator frequency higher than the set
value, starter will be disconnected.
77
Disconnect Oil
Pressure
(0-400)KPa
200
When generator oil pressure higher than the set
value, starter will be disconnected.
78
D+
Disconnect
(3.0-32.0)V
8
When generator D+ higher than the set value,
starter will be disconnected.
79
Voltage Input
(0-3)
0
0: 3P4W; 1: 2P3W
2: 1P2W; 3: 3P3W Note 3
80
Poles
(2-16)
4
81
Temp. Sensor
Curve
(0-9)
1
VDO120ºC
82
Oil Pressure
Sensor Curve
(0-9)
1
VDO0-10BAR
83
Temperature
Sensor Open
(0-2)
1
0: Never (temperature sensor will show “+++”);
1:Warn; 2:Shutdown
84
Oil Pressure
Sensor Open
(0-2)
1
85
Configuration
Sensor Curve
(0-1)
0
Temperature and oil pressure sensor curve can be
defined.
86
Parameters
selection
Enter the parameter number, press confirm to
quickly jump to the parameter setting items.
LXC31X0/LXC93X0 Generator controller user manual
Dongguan Tuancheng Automation Equipment Co.,LTD.
LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296 :www.lixise.com Page 19 of 28
7.5. Programmable input 1-4 table (Active when connect GND (B-))
No
Type
Description
0
Users Configured
Including following functions:
------------------------------------------------------------------------------------------------------------
Warning: warn only, not shutdown.
Shutdown: alarm and shutdown immediately.
Trip and stop: alarm, generator unloads and shutdown after hi-speed
cooling.
Trip: alarm, generator unloads but not shutdown.
Indication: indicate only, not warning or shutdown.
------------------------------------------------------------------------------------------------------------
From safety on: detecting after safety on run delay.
From crank: detecting as soon as start.
Always: input is active all the time.
Never: input inactive
1
Alarm Mute
Can prohibit“Audible Alarm”output when input is active.
2
Reset Alarm
Can reset shutdown alarm and trip alarm when input is active.
3
Aux High Temp
Connected sensor digital input.
4
Aux Low OP
Connected sensor digital input.
5
Inhibit Alarm Stop
Prohibit any alarm and shutdown action.
6
Remote Start On Load
In Auto mode,when input active,genset can be started and with load
after genset is OK;when input inactive, genset will stop automatically.
7
Remote Start Not On
Load
In Auto mode, when input is active, genset can be started and without
load after genset is OK; when input is inactive, genset will stop
automatically.
8
Aux Manual Start
In Auto mode,when input active, genset will start automatically;when
input inactive,genset will stop automatically.
9
Simulation Mains OK
In Auto mode,mains are normal when input is active.
10
Simulation Mains Fail
In Auto mode, mains are abnormal when input is active.
11
Panel Lock
Generator related operations are banned, switch query interface can be used.
12
Inhibit Auto Stop
In Auto mode, during generator normal running, when input is active,
inhibit generator shutdown automatically.
13
Inhibit Auto Start
In Auto mode, inhibit generator start automatically when input is active.
14
Inhibit Gens Load
Prohibit genset switch on when input is active.
15
Inhibit Mains Load
Prohibit mains switch on when input is active.
16
Auto Mode Lock
When the input is active, the controller will operate in automatic mode,
you can not select the test mode and manual mode.
17
Auto Mode Invalid
When input is active,controller won’t work under Auto mode. AUTO
key and simulate auto key input does not work.
18
Idle Control Mode
Under voltage/frequency/speed protection is inactive.
19
Instrument Mode
All outputs are prohibited in this mode.
20
Generator Closed
Connect generator loading switch's Aux. Point.
21
Mains Closed
Connect mains loading switch’s Aux. Point.
22
Aux Raise Speed
This configuration is for the use of motor adjust the speed of the unit,
and raise speeding output with control motor.When this switch is
closed, raise speed output will turn off.
23
Aux Drop Speed
This configuration is for the use of motor adjust the speed of the unit,
and drop speeding output with control motor.When this switch is
closed, raise speed output will turn off.
LXC31X0/LXC93X0 Generator controller user manual
Dongguan Tuancheng Automation Equipment Co.,LTD.
LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296 :www.lixise.com Page 20 of 28
24
Simulate Stop key
An external button can be connected and pressed as simulate panel.
25
Simulate Manual key
26
Simulate Manual Test key
27
Simulate Auto key
28
Simulate Start key
29
Lamp Test
All LED indicators are illuminating when input is active.
7.6. Programmable output 1-5
No.
Type
Description
0
Not Used
1
Fuel Relay
Action before the starter motor, open the fuel system in advance.
Usually controls the governor's power and fuel solenoid valve.
2
Crank Relay
When starting the motor action, often connected to the starter relay.
3
Air Flap
Action in over speed alarm stop and emergence stop. It also can
close the air inflow the engine.
4
Audible Alarm
Action in warning,shutdown,trips.Can be connected outside
alarm.When programmable input port is active of“alarm mute”, can
prohibit its output.
5
Louver Control
Action in genset starting and disconnect when genset stopped
completely.
6
Fuel Pump Control
It is controlled by fuel pump of level sensor’s limited threshold.
7
Heater Control
It is controlled by heating of temperature sensor’s setting bound.
8
Excite Generator
Output in start period. If there is no gens frequency during hi-speed
running, output 2 seconds again.
9
Pre-Lubricate
Actions in period of pre-heating to safety run.
10
Idle Control
Used for engine which has idles.Pull in before starting and pull out
after into hi-speed warming; Pull in during stopping idle mode and
pull out after shutdown completed.
11
Raise Speed
Action in hi-speed warming run.
12
Drop Speed
Action in period of stop idle mode to time of wait for stopping completely.
13
ETS Control
Used for engines with ETS electromagnet. Pull in when stop idle is
over and pull out when set“ETS delay”is over.
14
Close Generator
Generator load conditions are ripe for action, control power closing
switch with load. It is a continuous output.
15
Close Generator Pulse
The same role,but is not a continuous output, but only the output
pulses of a preset time.This time set in the timer configuration.
16
Open Generator
Generator stop action, control power generation closing switch uninstall.
17
Open Generator Pulse
The same role,but is not a continuous output, but only the output
pulses of a preset time.This time set in the timer configuration.
18
Open Breaker
Gens whether or mains is opened, will be output. It is a common
sub-gate output.
19
Close Mains
Control switch of mains is load.
20
Close Mains Pulse
21
Open Mains
22
Open Mains Pulse
23
Generator OK
Action when gens are normal.
24
Generator Available
Action in period of gens normal to hi-speed cooling.
25
Crank Success
Pull in when detects a successful start signal.
26
Mains OK
Action when mains are normal.
LXC31X0/LXC93X0 Generator controller user manual
Dongguan Tuancheng Automation Equipment Co.,LTD.
LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296 :www.lixise.com Page 21 of 28
27
In Stop Mode
28
In Manual Mode
29
In Manual Test Mode
30
In Auto Mode
31
Generator On Load
32
Mains On Load
33
Common Alarm
Action in gens common warning,common shutdown, common trips alarm.
34
Common trip shutdown
The generators any kind of trip and downtime will produce such an
alarm action.
35
Common Shutdown
Generator any downtime will have such alarm action.
36
Common Trip Alarm
Generators will produce any kind of trip the alarm action.
37
Common Warn Alarm
Generators of any kind of public warning alarm is generated action.
38
Battery Hight Voltage
An action in battery’s over voltage warning alarm.
39
Battery Low Voltage
Action in battery’s low voltage warning alarm.
40
Charging failure
Action in charge alt fail warning alarm.
41
Emergency Stop
Action in emergency stop alarm.
42
Failed To Start
Action in failed start alarm.
43
Failed To Stop
Action in failed stop alarm.
44
Under Speed Warn
Action in under speed warning.
45
Under Speed Shutdown
Action in under speed shutdown.
46
Over Speed Warn
Action in over speed warning.
47
Over Speed Shutdown
Action in over speed shutdown alarm.
48
Gens Over Freq Warn
Action in gens over frequency warning.
49
Gens Over Freq Shutdown
Action in gens over frequency shutdown alarm.
50
Gens Over Volt Warn
Action in gens over voltage shutdown.
51
Gens Over Volt Shutdown
Action in gens low frequency warning.
52
Gens Under Freq Warn
Action in gens low frequency shutdown.
53
Gens Under Voltage Warn
Action in gens low voltage warning.
54
Gens Under Volt Shutdown
Action in gens low voltage shutdown.
55
Gens Under Volt Shutdown
Action in gens low voltage shutdown.
56
Gens Loss Of Phase
Action in gens loss phase.
57
Gens Reverse Phase
Action in gens reverse phase.
58
Over Current
Action in over current.
59
Mains Inactive
Action in mains Inactive .
60
Mains Over Freq
Action in mains over frequency.
61
Mains Over Voltage
Action in mains over Voltage.
62
Mains Under Freq
Action in mains under frequency.
63
Mains Under Volt
Action in mains under Voltage.
64
Mains Reverse Phase
When phase sequence of 3 phase input mistake.
65
Mains Loss Of Phase
Action in mains loss Of Phase.
66
High Temp Warn
Action in low temperature warning alarm.
67
High Temp Shutdown
Action in high temperature Shutdown alarm.
68
Low Oil Pressure Warn
Action in low oil pressure warning alarm.
69
Low Oil Pressure Shutdown
Action in low oil pressure shutdown.
70
OP Sensor Open
Action when oil pressure sensor are open circuit.
71-74
Aux Input 1-4Active
LXC31X0/LXC93X0 Generator controller user manual
Dongguan Tuancheng Automation Equipment Co.,LTD.
LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296 :www.lixise.com Page 22 of 28
7.7. Sensor select
Temperature Sensor
Oil Pressure Sensor
Description
0 Not used
0 Not used
Defined resistive range
is(0-6000)Ω
1 VDO 120℃
1 VDO 0-10BAR
2 CURTIS
2 CURTIS
3 VOLVO-EC
3 VOLVO-EC
4 DATCON
4 DATCON 10BAR
5 SGX
5 SGX
6 SGD
6 SGD
7 SGH
7 SGH
8 PT100
8 Custom Res Curve
9 Custom Res Curve
9 Reserved
NOTE:
Is there a difference if standard curve of sensor with the use of sensors,can be change by itself in the
custom curve,when the sensor selection is "no", the curve of sensor doesn't work.
If the corresponding sensors, only alarm switch, is the sensor must be set to "no", otherwise likely
stop alarm or warning.
7.8. Conditions of crank disconnect
NO.
Description
0
Generator Frequency
1
Magnetic pickup
2
Magnetic pickup +Generator Frequency
3
Oil pressure
4
Oil pressure+Generator Frequency
5
Oil pressure+Magnetic pickup
6
Oil pressure+Magnetic pickup +Generator Frequency
7
Charge D+
8
Oil pressure+Charge D+
There are 4 conditions to make starter disconnected with engine,that is,speed sensor, generator
frequency ,Charge D + and engine oil pressure. They all can be used separately. We recommend
that engine oil pressure should be using with speed sensor and generator frequency together, in
order to make the starter motor is separated with engine immediately and can check crank
disconnect exactly.
Speed sensor is the magnetic equipment which be installed in starter for detecting flywheel teeth.
When set as speed sensor, must ensure that the number of flywheel teeth is as same as setting,
otherwise,“over speed stop”or“under speed stop”may be caused.
If genset without speed sensor, please don’t select corresponding items, otherwise, “start fail”or“loss
speed signal”maybe caused.
If genset without oil pressure sensor, please don’t select corresponding items.
If not select generator in crank disconnect setting, controller will not collect and display the relative
power quantity (can be used in water pump set);if not select speed sensor in crank disconnect setting,
the rotating speed displayed in controller is calculated by generator frequency and number of poles.
LXC31X0/LXC93X0 Generator controller user manual
Dongguan Tuancheng Automation Equipment Co.,LTD.
LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296 :www.lixise.com Page 23 of 28
If the generator without magnetoelectric sensor and Oil pressure sensor,the“Charger D+”is optional
as a starter motor separation conditions.It is recommended to select“Oil Pressure+ Charger D+”for
safety.
7.9. Sensor select
When reselect sensors, the sensor curve will be transferred into the standard value.
When there is difference between standard sensor curves and the using sensor, user can adjust it in
“curve type ” via PC. After the adjustment is completed, the data will be saved to the "custom
resistance curve" option.Using a custom sensor when choosing the sensor options "Custom
resistance curve."
In the control panel, the same can customize the sensor curve, such as setting the project is "85.
Custom sensor curve."
The specific operation as follows:
1
Switch to【85 custom sensor curve】interface.
2
Press key to enter the sensor type selected, press to switch type.
3 Select Custom sensor curve type, pass button to enter the data setting interface.
4
After setting, press button to return to the previous menu.
If select sensor type as “None”, sensor curve is not working and LCD display “---” for the sensor
information.
If there is no oil pressure sensor, but there is low oil pressure alarm switch, user must set the oil
pressure sensor as “None”, otherwise, maybe low oil pressure shutdown occurs.
LXC31X0/LXC93X0 Generator controller user manual
Dongguan Tuancheng Automation Equipment Co.,LTD.
LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296 :www.lixise.com Page 24 of 28
7.10. Sensor unit conversion table
N/m2 pa
kgf/cm2
bar
p/in2.psi
1Pa
1
1.02x10－5
1x10－5
1.45x10－4
1kgf/cm2
9.8x104
1
0.98
14.2
1bar
1x105
1.02114.5
1psi
6.89x103
7.03x10－2
6.89x10－2
1
8. Commissioning
Please make the under procedures checking before commissioning.
Ensure all the connections are correct and wires diameter is suitable.
Ensure that the controller DC power has fuse, controller’s positive and negative connected to start
battery are correct.
Take proper action to prevent engine to crank success (e. g. Remove the connection wire of fuel
valve). If checking is OK, make the start battery power on; choose manual mode and controller will
executive routine.
Set controller under manual mode, press “start” button, genset will start. After the cranking times as
setting, controller will send signal of Start Failure; then press “stop” to reset controller. Recover the
action to prevent engine to crank success (e. g. Connect wire of fuel valve), press start button again,
genset will start. If everything goes well, genset will normal running after idle running (if idle run be
set). During this time, please watch for engine’s running situations and AC generator’s voltage and
frequency. If abnormal, stop genset and check all wires connection according to this manual.
Select the AUTO mode from controller’s panel, connect mains signal. After the mains normal delay,
controller will transfer ATS (if fitted) into mains load. After cooling time, controller will stop genset and
make it into “at rest” mode until there is mains abnormal situation.
When mains is abnormal again, genset will be started automatically and enter into normal running,
then controller send signal to making generator switch on, and control the ATS transfer into generator
load. If not like this, please check ATS’ wires connection according to this manual.
If there is any other question, please contact Tuancheng’s service.
CAUTION! Expand relay with high capacity in start and fuel output is recommend.
CAUTION! Expand relay must be used in mains/gen closed outputs.
CAUTION! Let its normally closed contact series connect between fuel relay output port and
electromagnetic valve when you connect emergency stop button on the controller. Emergency stop
alarm can be displayed if you configure one input port as “Auxiliary Shutdown” (one end connect to
normally open contact, the other end connect to ground).
LXC31X0/LXC93X0 Generator controller user manual
Dongguan Tuancheng Automation Equipment Co.,LTD.
LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296 :www.lixise.com Page 25 of 28
9. Typical application
LXC3X10 Typical wiring diagram
LXC3X20 Typical wiring diagram
LXC31X0/LXC93X0 Generator controller user manual
Dongguan Tuancheng Automation Equipment Co.,LTD.
LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296 :www.lixise.com Page 26 of 28
Single Phase 2 Wire( LXC3X20 )
2 Phase 3 Wire( LXC3X20 )
CAUTION! Expand relay with high capacity in start and fuel output is recommend.
CAUTION! Expand relay must be used in mains/gen closed outputs.
CAUTION! Let its normally closed contact series connect between fuel relay output port and
electromagnetic valve when you connect emergency stop button on the controller. Emergency stop alarm
can be displayed if you configure one input port as “Auxiliary Shutdown” (one end connect to normally
open contact, the other end connect to ground).
10. Installation
10.1. Fixing clips
Controller is panel built-in design; it is fixed by clips when installed.
LXC31X0/LXC93X0 Generator controller user manual
Dongguan Tuancheng Automation Equipment Co.,LTD.
LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296 :www.lixise.com Page 27 of 28
10.2. Overall dimension and panel cutout
Product size
：
Panel Cutout
：
Battery Voltage Input
LXC31X0/LXC39X0 series controller can suit for widely range of battery voltage DC(8~35)V.Negative
of battery must be connected with the engine shell. The diameter of wire which from power supply to
battery must be over 1.5mm. If floating charge configured, please firstly connect output wires of
charger to battery’s positive and negative directly, then, connect wires from battery’s positive and
negative to controller’s positive and negative input ports in order to prevent charge disturbing the
controller’s normal working.
Speed Sensor Input
Speed sensor is the magnetic equipment which be installed in starter and for detecting flywheel teeth.
Its connection wires to controller should apply for 2 cores shielding line. The shielding layer should
connect to No. 1 terminal in controller while another side is hanging in air. The else two signal wires
are connected to No.1 and No.17 terminals in controller. The output voltage of speed sensor should
be within AC(1~24)V (effective value) during the full speed. AC12V is recommended (in rated speed).
When install the speed sensor, let the sensor is spun to contacting flywheel first, then, port out 1/3 lap,
and lock the nuts of sensor at last.
Output And Expansion Relay
All outputs of controller are relay contact output type. If need to expand the relays, please add
freewheel diode to both ends of expand relay’s coils (when coils of relay has DC current) or, add
resistance-capacitance return circuit (when coils of relay has AC current), in order to prevent
disturbance to controller or others equipment.
AC Input
LXC31X0/LXC39X0 series controller must be connected to outside current transformer. And the
current transformer’s secondary side current must be 5A. At the same time, the phases of current
transformer and input voltage must correct. Otherwise, the collected current and active power maybe
not correct.
CAUTION！ICOM port must be connected to negative pole of battery.
WARNING! When there is load current, transformer’s secondary side prohibit open circuit.
LXC31X0/LXC93X0 Generator controller user manual
Dongguan Tuancheng Automation Equipment Co.,LTD.
LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296 :www.lixise.com Page 28 of 28
Withdraw Voltage Test
When controller had been installed in control panel, if need the high voltage test, please disconnect
controller’s all terminal connections, in order to prevent high voltage into controller and damage it.
11. Fault finding
Following in my controller process more common failure and troubleshooting, if there is a failure of the
other can not be solved, please contact my company.
Symptom
Possible Remedy
Controller no response with
power.
Check starting batteries;
Check controller connection wirings;
Check DC fuse.
Genset shutdown
Check the water/cylinder temperature is too high or not;
Check the genset AC voltage;
Check DC fuse.
Controller emergency stop
Check emergence stop button is correct or not;
Check whether the starting battery positive be connected with the
emergency stop input;
Check whether the circuit is open.
Low oil pressure alarm after crank
disconnect
Check the oil pressure sensor and its connections.
High water temp. alarm after
crank disconnect
Check the temperature sensor and its connections.
Shutdown Alarm During Running
Check related switch and its connections according to the
information on LCD;
Check auxiliary inputs.
Crank not disconnect
Check fuel circuit and its connections;
Check starting batteries;
Check speed sensor and its connections; Refer to engine manual.
Starter no response
Check starter connections;
Check starting batteries.
Genset running while ATS not
transfer
Check ATS;
Check the connections between ATS and controllers.
12. Product packaging
This product should be following sets:
(1) 1 piece of controller
；
(2) 2 pieces of fixed cards；
(3) 1 piece of Shockproof rubber ring
；
(4) 1 piece of product certificate；
(5) 1 piece of product mutual.
Dongguan Tuancheng Automation
Equipment Co.,LTD.
Tel:+86-769-23836636
Fax:+86-769-23166296
http://www.lixise.com
http://www.lixise.net
E-mail:sales@lixise.com
Add: Wentang Road, Chashang
industrial zone #18, Dongcheng,
Dongguan, Guangdong, China
Loading...
