MANUAL FOR
MODI BUGGY
Edition 7 – 2017-05-08
Modi Buggy Edition 7 p. 1
NOTE! THE MANUFACTURER IS SOLELY RESPONSIBLE ONLY FOR THE EQUIPMENT
PURCHASED FROM A DIRECT REPRESENTATIVE OF LIW CARE TECHNOLOGY, OR IN
SPECIALIZED MEDICAL SHOPS REPRESENTING LIW CARE TECHNOLOGY IN POLAND.
Modi Buggy Edition 7 p. 2
Table of content:
1. Introduction ...................................................................................................................................................................... 3
2. General safety standards .................................................................................................................................................. 4
3. Indications for product use .............................................................................................................................................. 5
4. Weight and dimensions .................................................................................................................................................... 6
5. Structure of the Modi Buggy............................................................................................................................................ 8
6. Detailed mounting description of Modi Buggy ............................................................................................................... 10
7. Moving the Modi Buggy.................................................................................................................................................. 11
8. Detailed structure and adjustment description of Modi Buggy ..................................................................................... 12
8.1 Unfolding the buggy’s frame ................................................................................................................................. 12
8.2 Folding the buggy’s frame ..................................................................................................................................... 13
8.3 Parking brake ........................................................................................................................................................ 14
8.4 Back plate angle adjustment ................................................................................................................................. 15
8.5 Push handle adjustment ....................................................................................................................................... 15
8.6 Seat angle adjustment .......................................................................................................................................... 16

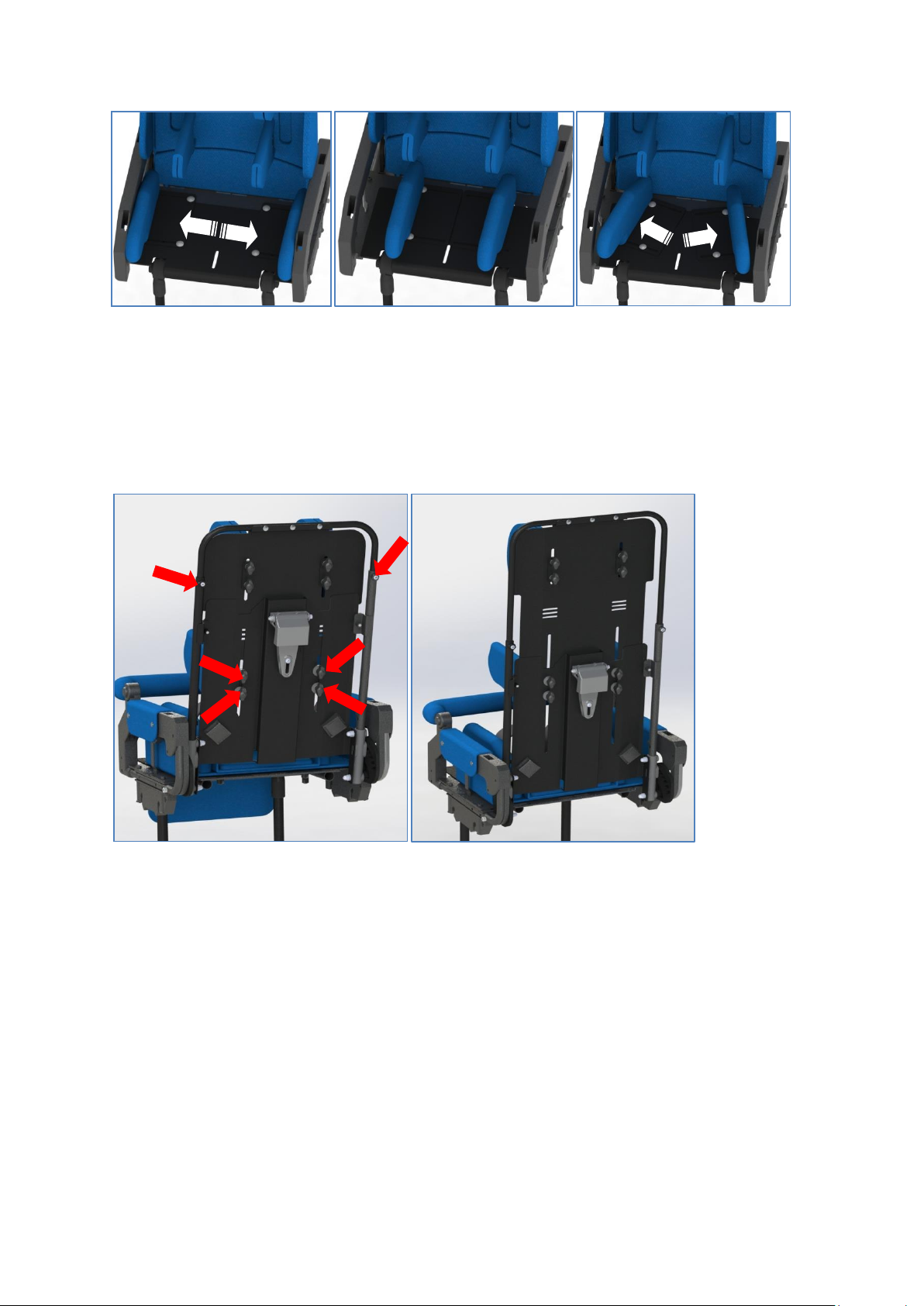

8.7 Seat depth and hip supports adjustment .............................................................................................................. 17
8.8 Height adjustment of the backrest ....................................................................................................................... 18
8.9 Loins support adjustment (for size MINI only) ...................................................................................................... 19

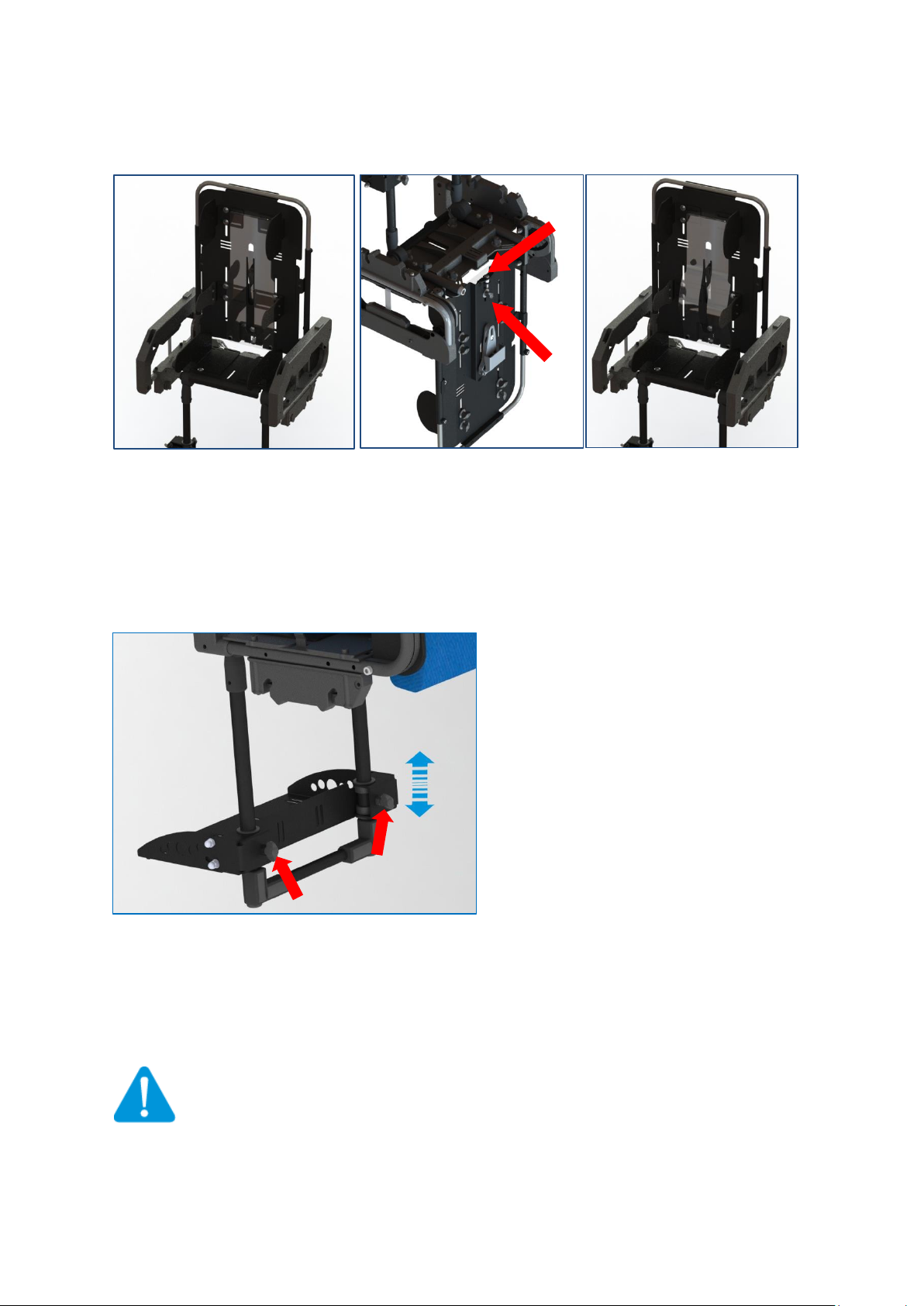

8.10 Footrest height adjustment .................................................................................................................................. 19
8.11 Side supports adjustment ..................................................................................................................................... 20
8.12 Head supports adjustment ................................................................................................................................... 21
8.13 Adjusting and removing the roll bar ..................................................................................................................... 22

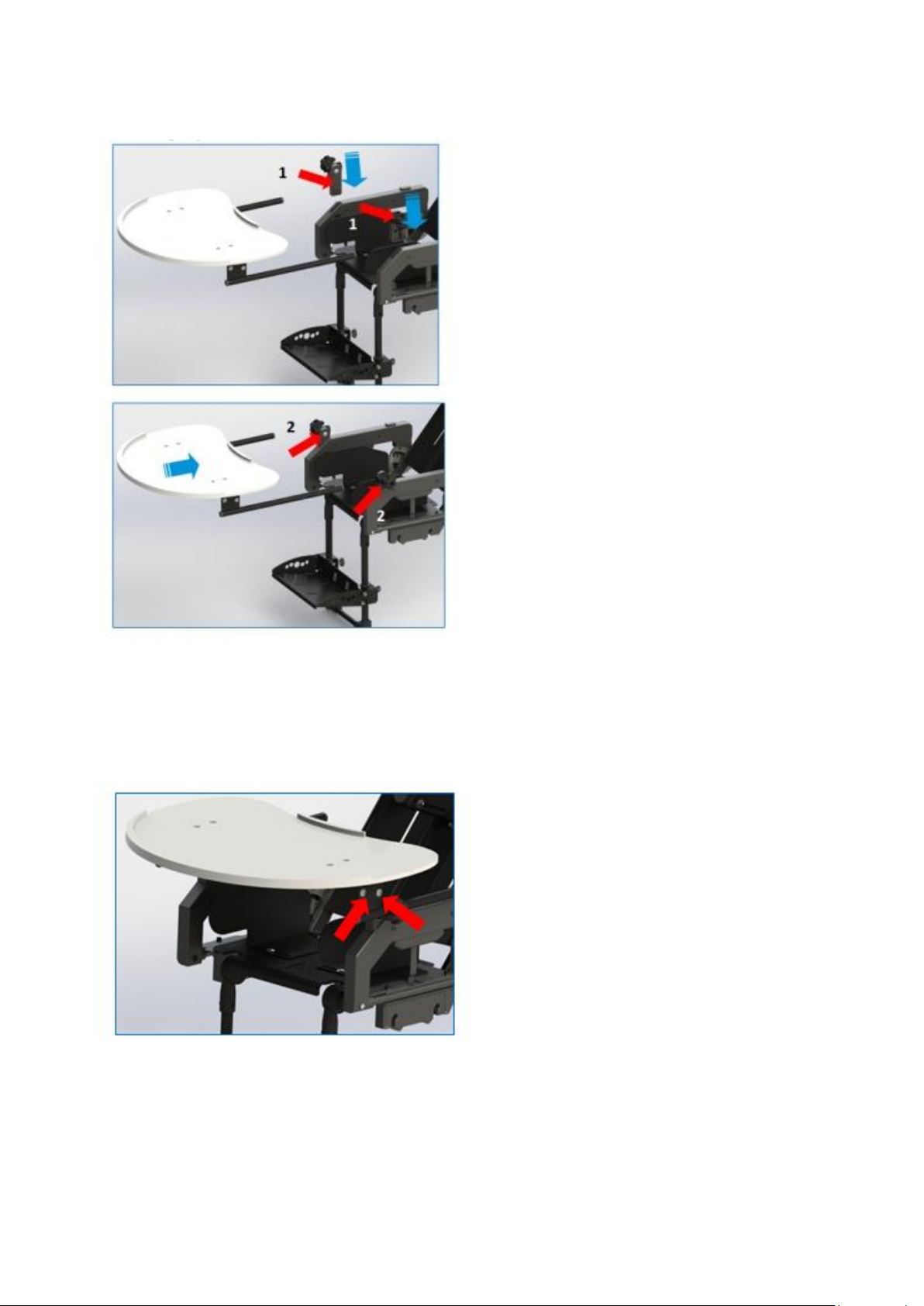

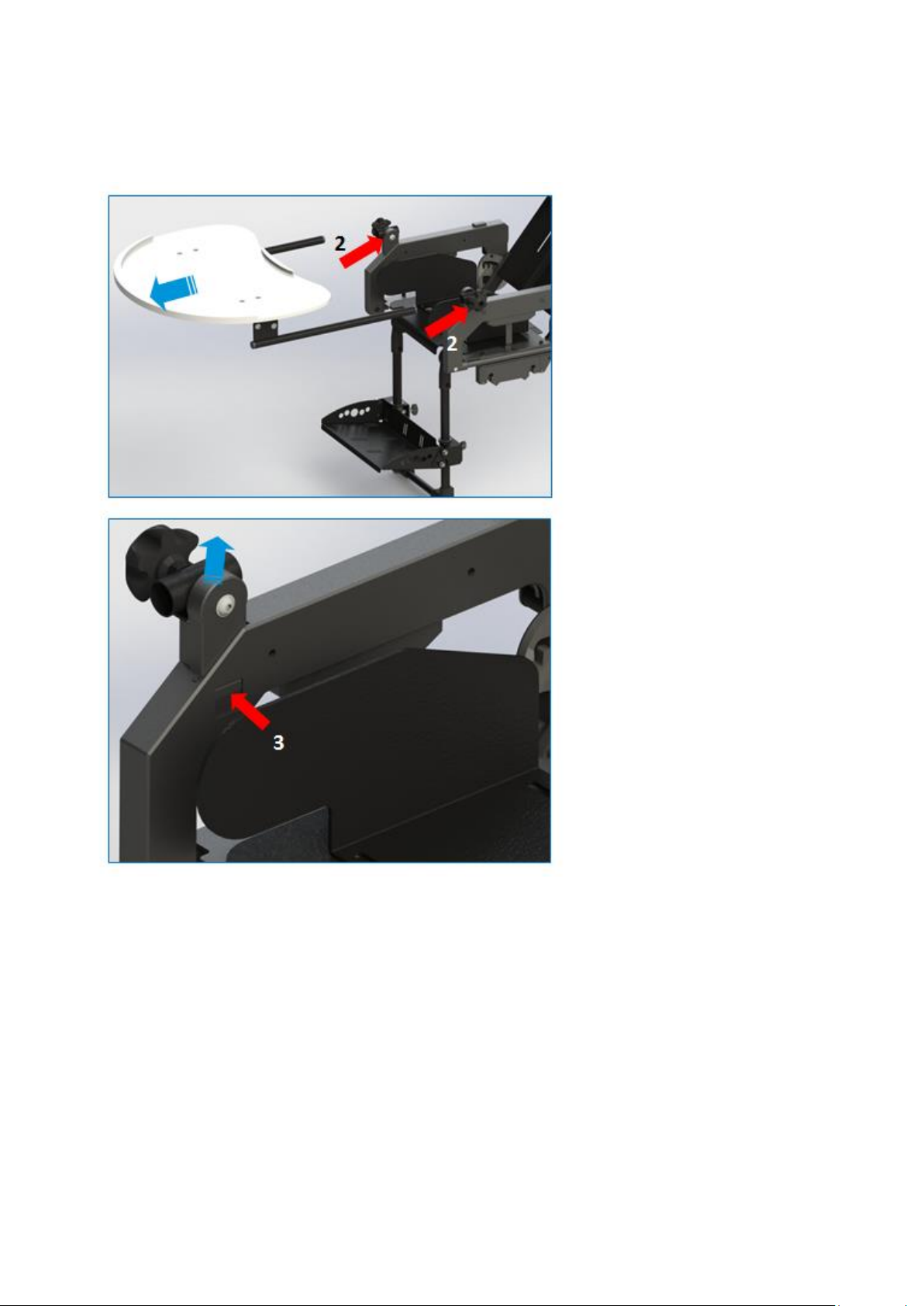

8.14 Regulation, mounting and dismantling the tray table .......................................................................................... 23
8.15 Mounting the rain cover ....................................................................................................................................... 25
8.16 Mounting the leg cover ......................................................................................................................................... 25
8.17 Mounting the umbrella ......................................................................................................................................... 26
8.18 Mounting and dismantling the canopy ................................................................................................................. 26

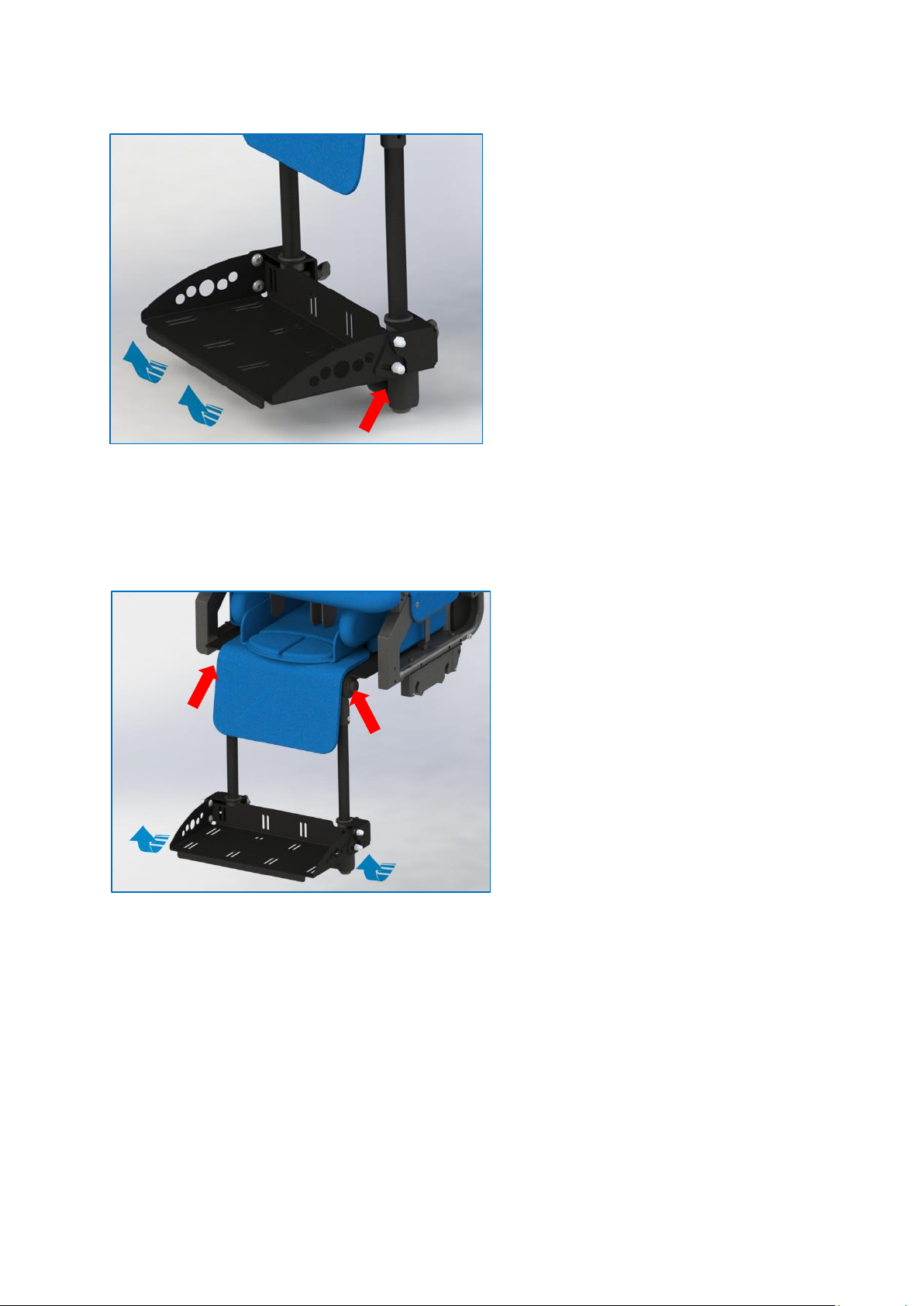

8.19 Footrest adjustment ............................................................................................................................................. 27
8.20 Footrest supporting legs adjustment .................................................................................................................... 27
8.21 Abduction belts installation .................................................................................................................................. 28
8.22 Vest attachment and adjustment ......................................................................................................................... 29
9. Maintenance and cleaning ............................................................................................................................................. 31
10. Warranty/Service ....................................................................................................................................................... 32
11. Identification plate..................................................................................................................................................... 32

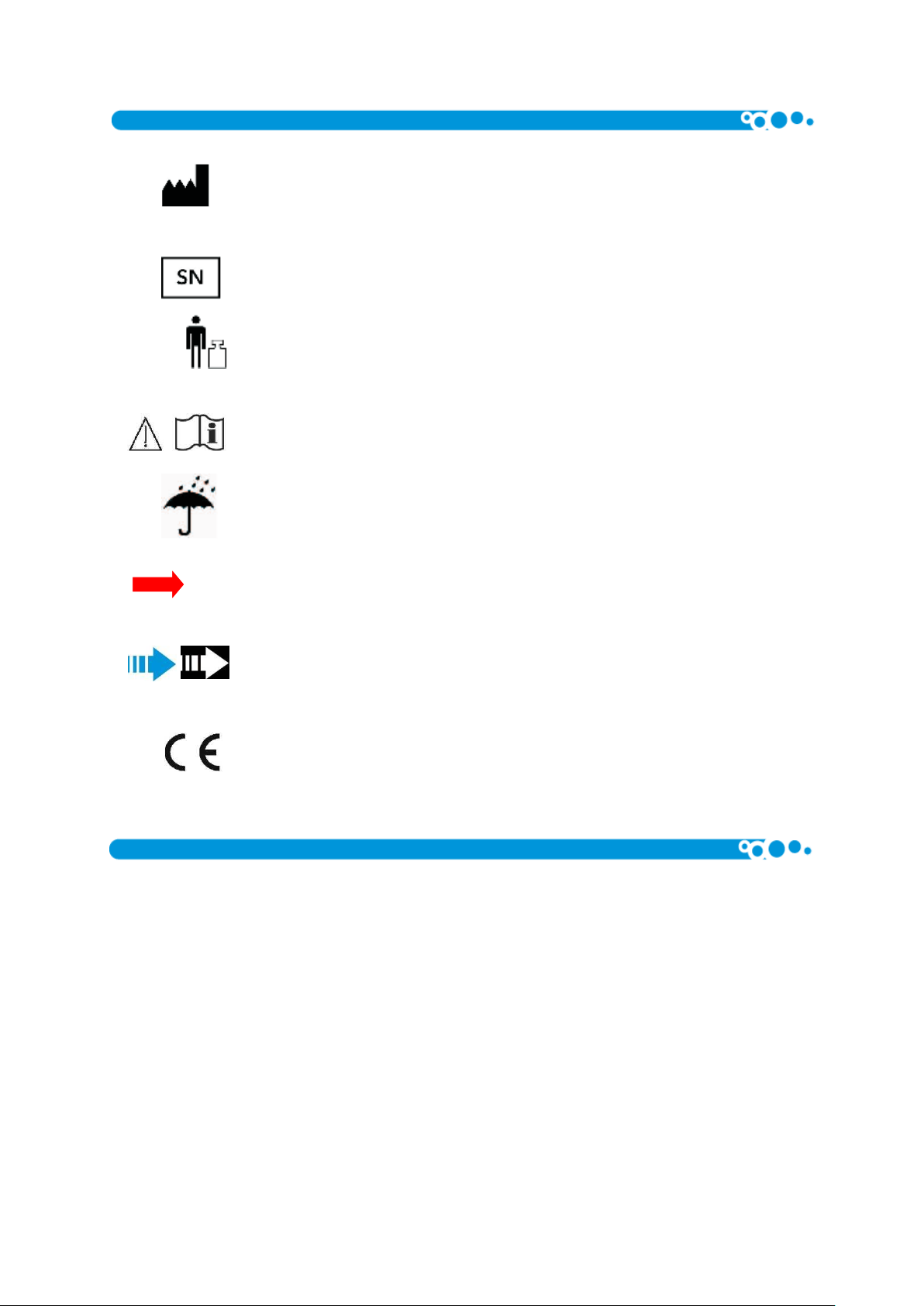

12. Symbols meaning ....................................................................................................................................................... 33
13. Compliance with the safety requirements for medical devices ................................................................................. 33
Modi Buggy Edition 7 p. 3
1. Introduction
Developed and created by LIW Care Technology, first-class Pediatric Pushchair Modi Buggy
(hereinafter referred to as the buggy), is designed to transport children who are not heavier than
30kgs). It is designed to facilitate the daily care of children who need transport, whose diseases
enable their self-sufficient movement as well as the correct sitting and standing. Buggy Modi medical
device is designed for children with paralysis and triplegia or tetra- plegia; with diplegia, hemiplegia
or hemiparesis. We did our best to make this Modi Buggy Pediatric Pushchair really easy to operate,
to provide stability, with the ability to adapt to the body shape.
We are aware of the fact that assuming sitting position by a disabled person is a very
important element of psychomotor development and the opportunity for comfortable and safe
movement in open space has a huge, positive impact on patients and their caregivers alike. That is
why, we have Modi Buggy, which was designed to be easy to use and to dismantle. The buggy may
be used both indoors and outdoors.
We pay special attention to high quality of our products, that is why we would like you to
read these user instructions thoroughly – this will ensure a safe use of this product, it will affect its
efficiency and it will allow you to fully exploit the advantages of this Modi Buggy.
Keep these instructions in a safe place, so that they are available if required. These
instructions are intended to be read by persons responsible for taking care of disabled children.
Modi Buggy Edition 7 p. 4
2. General safety standards
For LIW Care Technology Sp. z o. o., the most important thing is to protect the patients who
use our equipment. For ensuring the safety of Modi Buggy users, the following recommendations
should be adopted:
1. Please read the Instructions before the first use. In case any questions or doubts should arise,
please contact your dealer or the manufacturer. Contact details are available via our website:
www.liwcare.pl
2. Please make sure that all the information, tips and warnings contained in these chapters are
fully understood.
3. Never leave your child in the buggy unattended.
4. Improper use of the buggy may endanger human health and it may cause injuries.
5. While using and operating the buggy as well as during its setting and adjusting the
mechanisms, you should pay close attention to moving parts which create risk of trapping the
body in holes or between the elements. After every single adjustment, you must stabilize its
position by carefully tightening screws and ensure that all the components are correctly
positioned and locked.
6. If the child is in a buggy, make sure it is properly secured by belts and a vest.
7. The Modi Buggy can be used by one person at a time.
8. It is forbidden to transport the baby in the Modi Buggy while using the public and private
transport, ie. bus, tram, trolley bus, train.
9. It is forbidden to transport the baby in the Modi Buggy while driving a car – the seat of the
buggy is not a car seat. The child cannot stay in the seat while driving.
10. In the backseat there is a pocket with all the tools that are needed to carry out the
adjustments: allen wrench no. 4, flat wrench (10 mm).
11. It is forbidden to drive up and drive the buggy down stairs with both the child and without
the child.
Modi Buggy Edition 7 p. 5
In these instructions for LIW Care Technology Sp. z o. o. products, you will find information
marked with „NOTE!” symbol. It is used to the draw reader’s particular attention to the text. It looks
as follows:
NOTE! THE SYMBOL IS USED TO DRAW THE READER’S ATTENTION TO THE TEXT
WHICH IS MARKED WITH THIS SYMBOL. FAILURE TO COMPLY WITH THE
INSTRUCTIONS MAY ENDANGER THE HEALTH AND SAFETY OF THE USER OR IT MAY
DAMAGE THE PRODUCT.
3. Indications for product use
Modi Buggy medical device is designed for children suffering paralysis and triplegia or
tetraplegia; from diplegia, hemiplegia or hemiparesis.
It is recommended for children who have been diagnosed with:
• cerebral palsy (paralysis cerebralis infantium),
• muscular dystrophies,
• paralysis,
• spina bifida,
• myelomeningocele,
• spinal injury,
• traumatic brain injury,
• strokes,
• other diseases with paresis, paralysis, locomotory disabilities enabling their
self-sufficient movement.
Modi Buggy Edition 7 p. 6

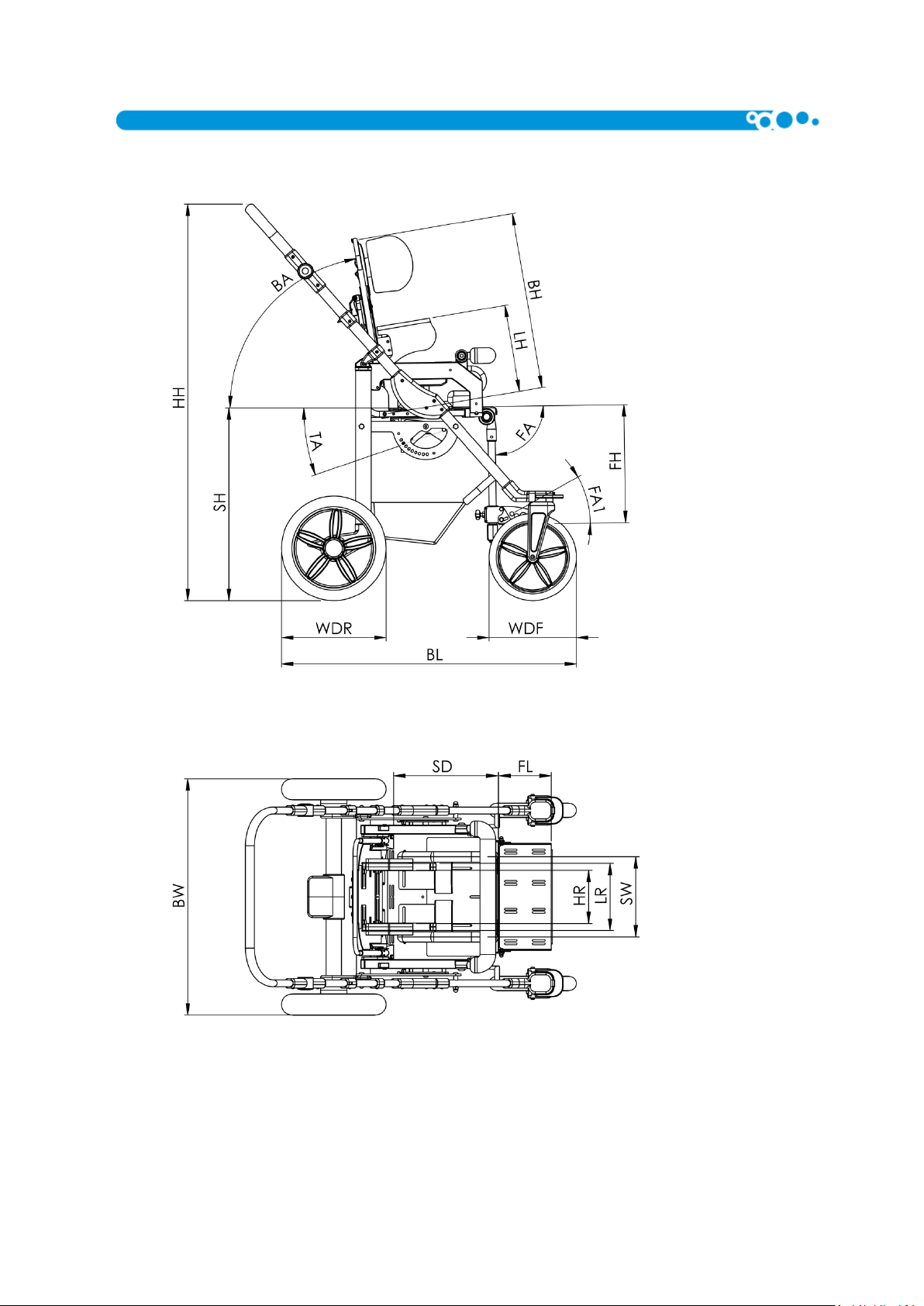

4. Weight and dimensions
Modi Buggy Edition 7 p. 7
No.
Dimension
Dimension
symbol
Dimension [cm]
Size: Mini
Size: Standard
1
Pelvic support spacing (seat width)
SW
15÷28
17÷30
2
Seat depth
SD
17÷28
27÷36
3
Turning angle
TA
-45⁰÷15⁰
-45⁰ ÷15⁰
4
Back height
BH
44,5÷60
50÷65
5
Back-support angle
BA
20⁰÷90⁰
20⁰ ÷90⁰
6
Side supports length
LH
14÷26
16÷30
7
Side supports spacing
LR
15÷27
15÷27
8
Head supports spacing
HR
15÷20
15÷20
9
Footrests height
FH
17÷36
17÷36
10
Footrest length
FL
15
15
11
Footrest angle adjustment
FA
0⁰÷90⁰
0⁰÷90⁰
12
Footrest assembly angle
FA1
0⁰÷20⁰
0⁰÷20⁰
13
Seat height
SH
59
59
14
Base length
BL
84
84
15
Base width
BW
68
68
16
Wheel diameter (front)
WDF
24
24
17
Wheel diameter (rear)
WDR
30
30
18
Handle height
HH
85÷117
85÷117
19
Maximum user’s weight
30 kg
30 kg
20
Maximum load (user’s weight + additional
load)
33kg
33 kg
21
Weight of the buggy
20kg
20 kg
Modi Buggy Edition 7 p. 8
5. Structure of the Modi Buggy

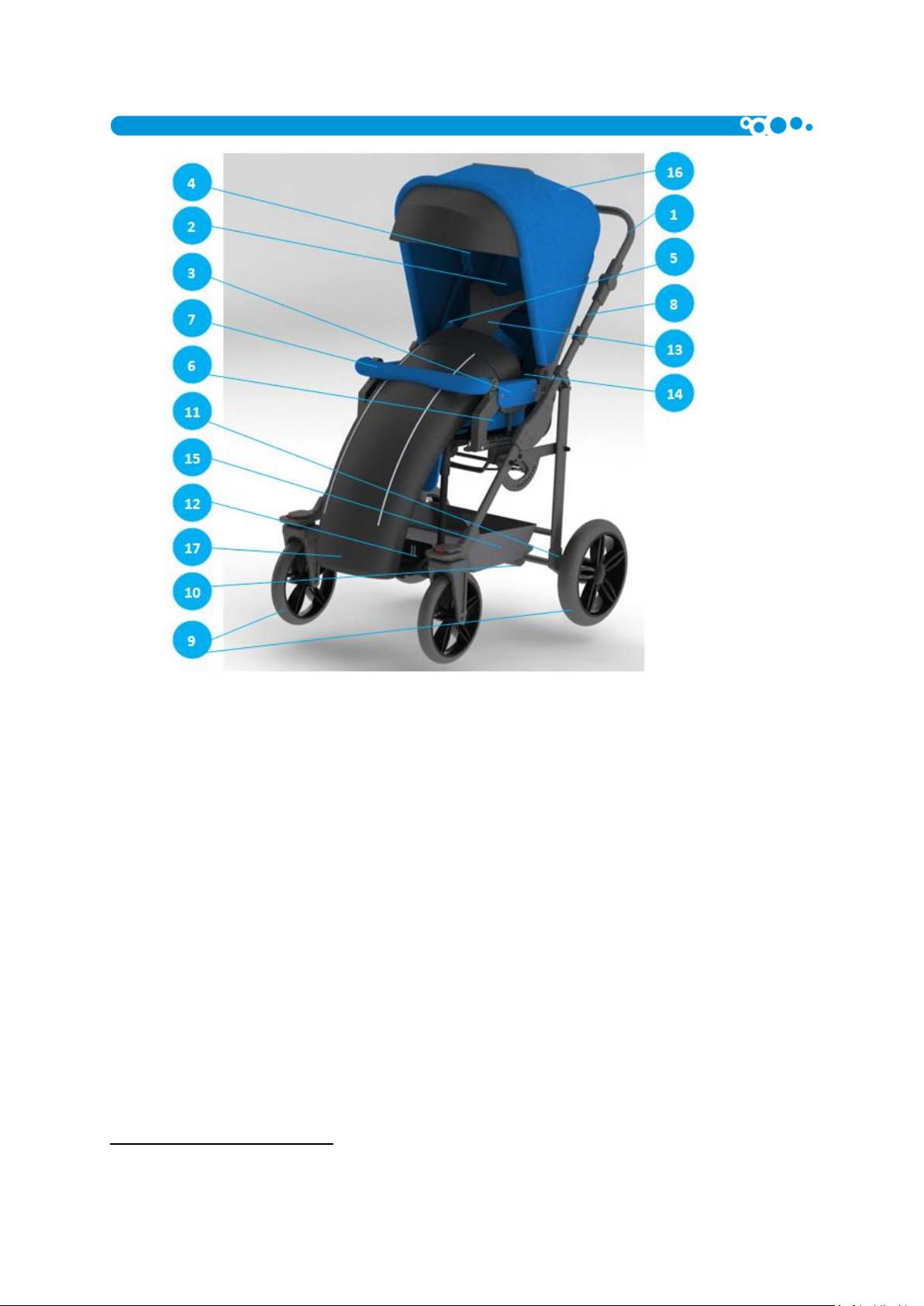

Fig. 1 Structure of the buggy
The wheelchair consists of1:
1. Push handle
2. Back plate
3. Seat
4. Head supports
5. Side supports
6. Hip supports
7. Roll bar
8. Frame
9. Front wheels, Rear wheels
10. Parking brake
11. Rear shock absorbers
1
The equipment of wheelchair is available depending on the Continent, Country.
Modi Buggy Edition 7 p. 9
12. Footrest
13. Vest
14. Pelvic belts
15. Basket
16. Canopy
17. Leg cover
18. Rain cover
19. Bag
20. Umbrella
21. Table
22. Loins support (for size MINI only)
Modi Buggy Edition 7 p. 10
6. Detailed mounting description of Modi Buggy
For safety reasons, your buggy is supplied in two parts: the frame of the buggy (8), and the
seat (3). To install the seat, you should:
STEP 1. Unfold the frame (8) (→ See 8.1, p. 12)
STEP 2. Attach the seat (3) to the frame (8) so that the mounting bars are in the seat holders, Fig. 2.
You need to push it until it snaps.

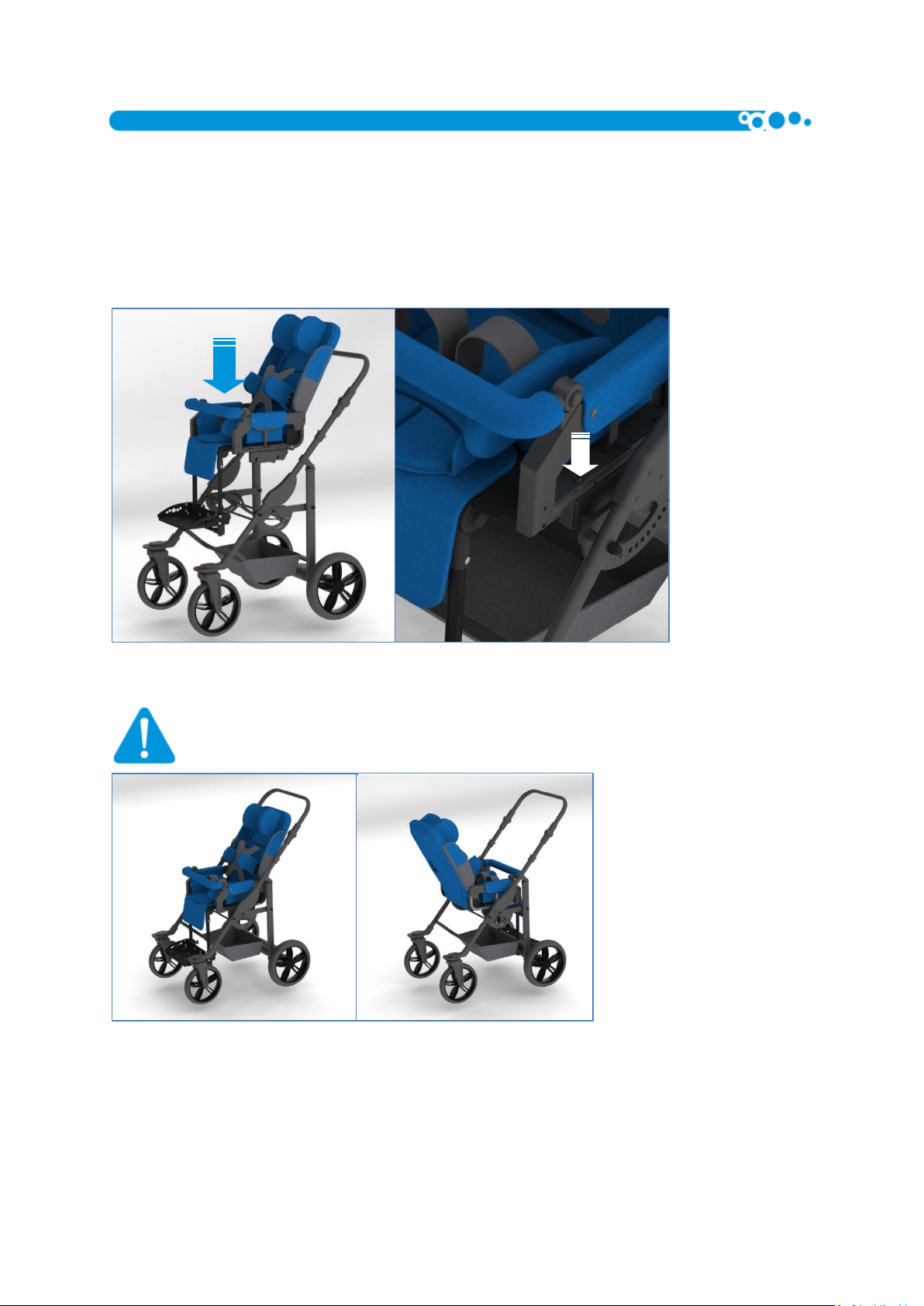

Fig. 2 Seat attachment
NOTE! YOU NEED TO WORK WITH THE SEAT UNTIL YOU HEAR A DEFINITE SNAP–
THE SOUND PROVES THE ATTACHMENT WAS DONE PROPERLY.
Fig. 3 The structure of the buggy allows you to attach the seat either facing or back to the direction
of travel
Modi Buggy Edition 7 p. 11
7. Moving the Modi Buggy
For safety reasons, the buggy must be moved with its parts, separately the seat and
separately the frame.

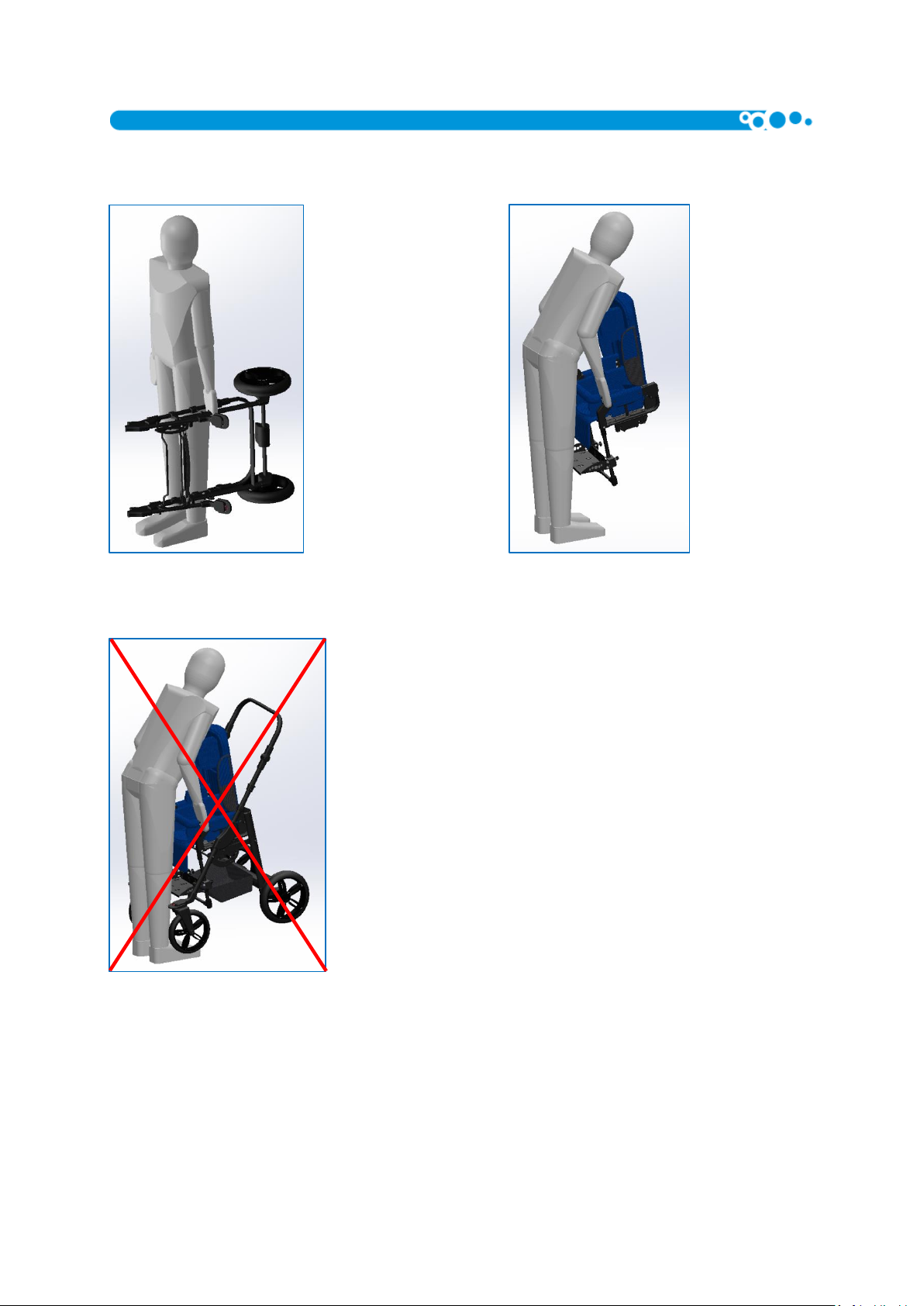

Fig. 4 Correct manner of moving the buggy
Fig. 5 Incorrect manner of moving the buggy
Modi Buggy Edition 7 p. 12
8. Detailed structure and adjustment description of Modi Buggy
NOTE! AFTER EVERY SINGLE ADJUSTMENT, YOU NEED TO MAKE SURE THAT ALL THE
COMPONENTS ARE CORRECTLY POSITIONED AND LOCKED.
8.1 Unfolding the buggy’s frame

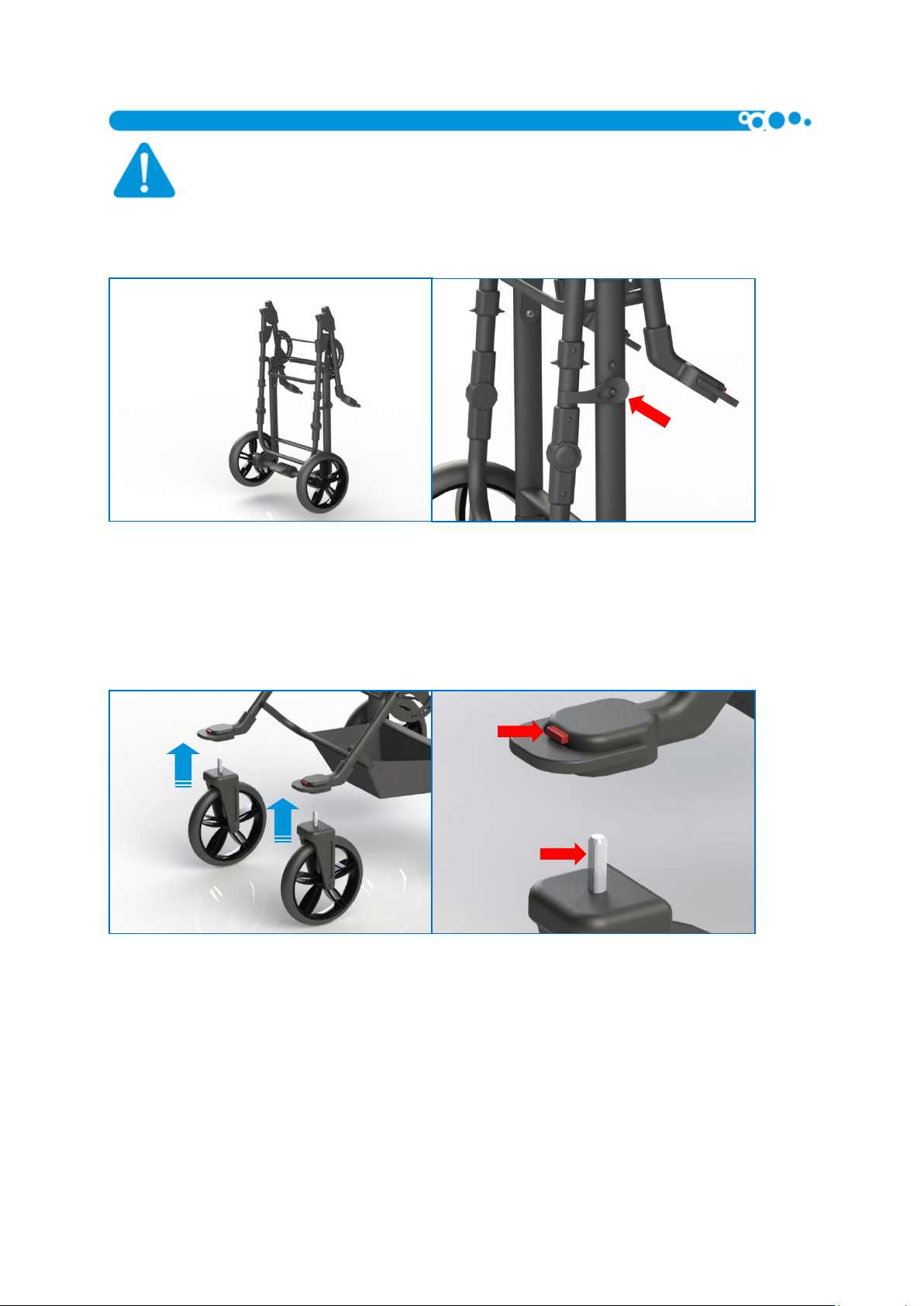

Fig. 6 Unfolding the buggy’s frame Fig. 7 Lock
You need to set the frame vertically Fig. 6, Fig. 7 unlock it and pull the handle forcefully, until you
hear a snap.
Fig. 8 Mounting front wheels Fig. 9 Front Wheel bolts
Lift the front part of the buggy, Fig. 8, and install the front wheels: make sure that the flat surfaces
of the bolts are directed towards the front of the buggy, Fig. 9. To remove the wheel, press the red
bolt release button.
Modi Buggy Edition 7 p. 13

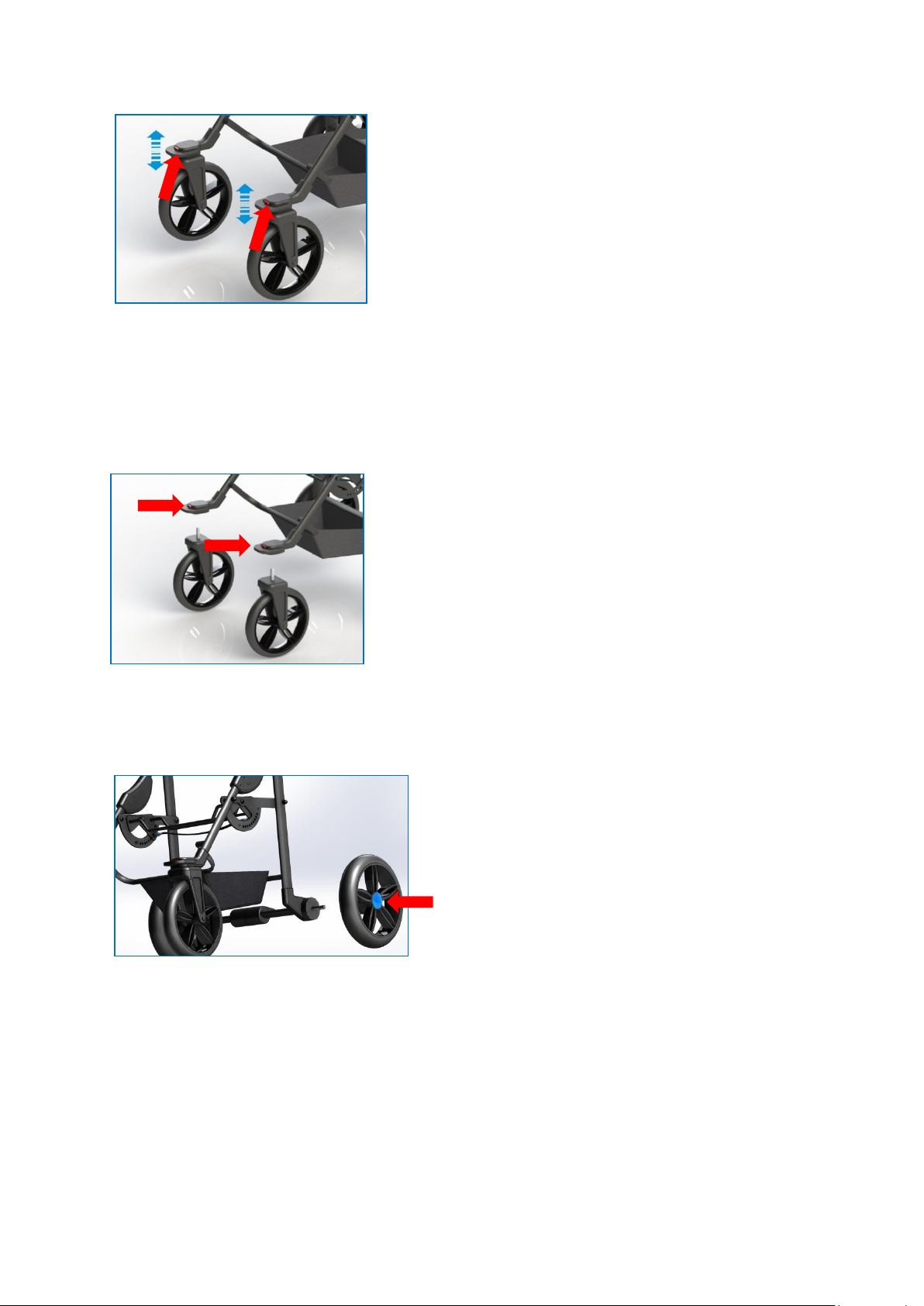

Fig. 10 Direction lock
You can see direction locks on the front wheels in the straight-ahead position. To use them, you
need to pull the lever and turn it down. By lifting the lever up, you can easily change direction, Fig.
10.
8.2 Folding the buggy’s frame
Fig. 11 Wheel dismounting
Raise the buggy and remove the front wheels, by pressing the red button at each wheel – Fig. 11.
Fig. 12 Removal and installation of rear wheels
Easy and safe removal and installation of wheels is possible due to application of a special
mechanism. To release a wheel press a pin located in a wheel hub with your thumb inwards and
remove the entire wheel from the axis. Follow the same steps with installation – press a pin and
place the wheel on the axis, Fig 12.
Modi Buggy Edition 7 p. 14

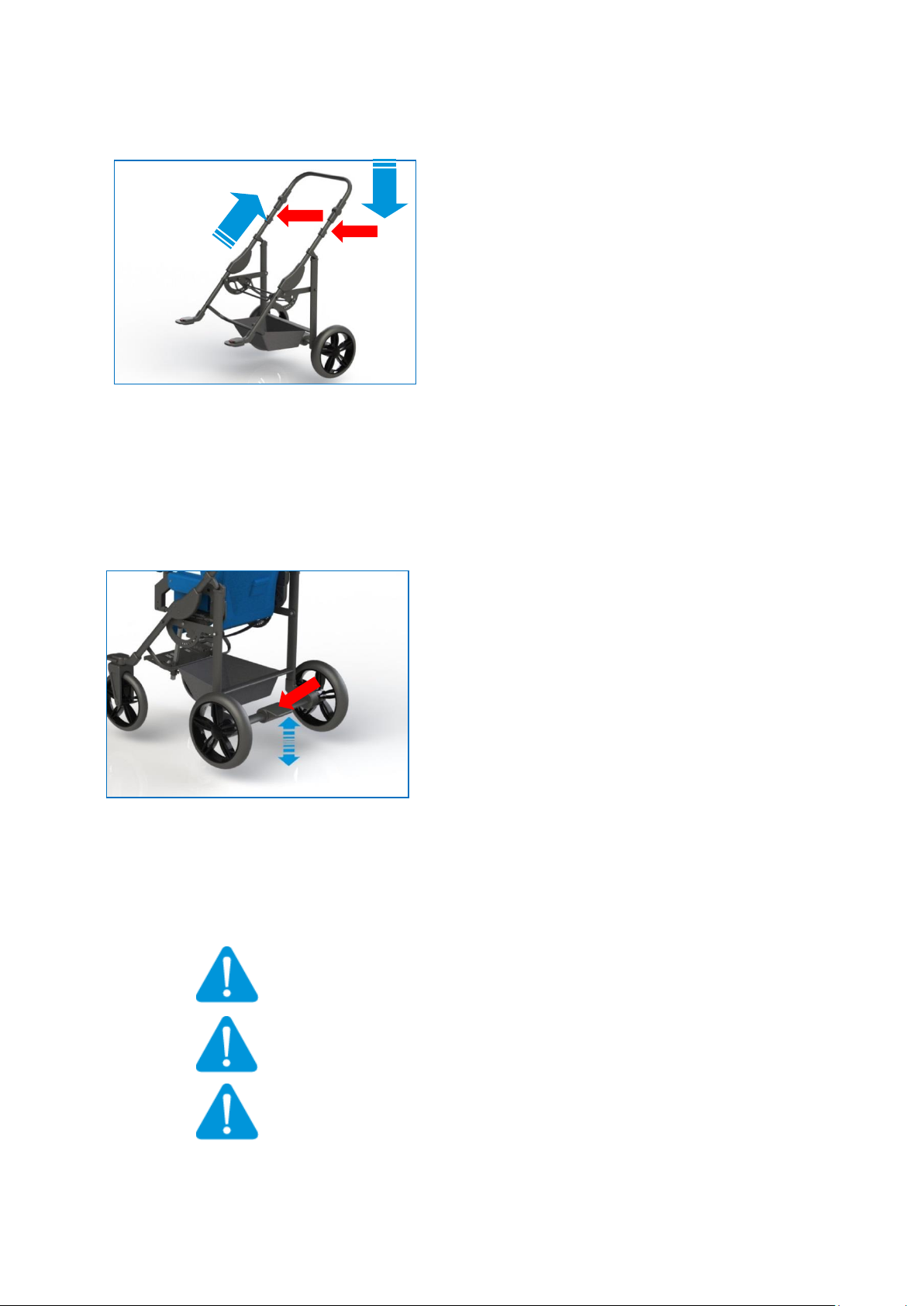

Fig. 13 Folding the frame
Pull the handholds on both sides, and then push the handle down and fold the frame until the lock
engages, Fig. 13.
8.3 Parking brake
Fig. 14 Parking brake
The rear wheels lock is activated with a lever on the cross-bar, right on the back of the frame. By
pressing it, you lock the rear wheels, by lifting it up, you release the break, Fig. 14.
NOTE! YOU SHOULD INSPECT THE BRAKE AT REGULAR INTERVALS AND
REMOVE POTENTIAL DIRT AND MUD.
NOTE! YOU SHOULD BE CAREFUL CROSSING THE THRESOLD.
NOTE! STABILITY OF THE STROLLER MAY BE AT RISK IN THE EVENT OF
UNEXPECTED PUSH, TILTING OR LEANING ON IT.
2
1
Modi Buggy Edition 7 p. 15

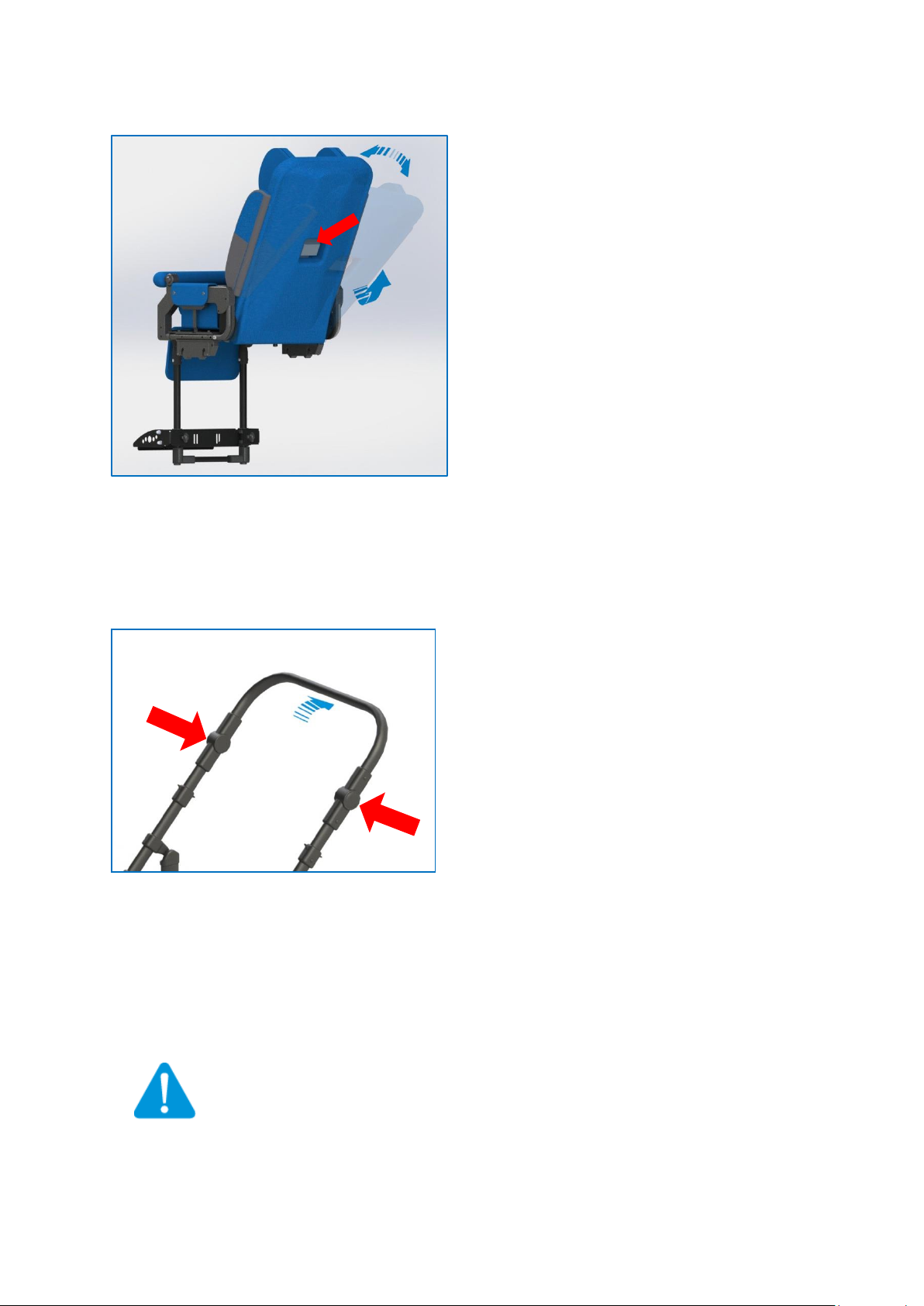

8.4 Back plate angle adjustment
Fig. 15 Back plate
Lift the lever on the back of the seat and move it to set the appropriate seat-back angle up to
20⁰÷90⁰ Fig. 15.
8.5 Push handle adjustment
Fig. 16 Push handle
Press the height control buttons simultaneously, set the bar to the desired height. Next, move it up
and down until button lock clicks (Fig. 16). You can adjust the height of the handle up to 85÷117 cm
above ground.
NOTE! PLEASE NOTE THAT EVERY SINGLE THING YOU PUT ON THE HANDLE
AFFECTS THE STABILITY OF THE BUGGY.
Modi Buggy Edition 7 p. 16
8.6 Seat angle adjustment

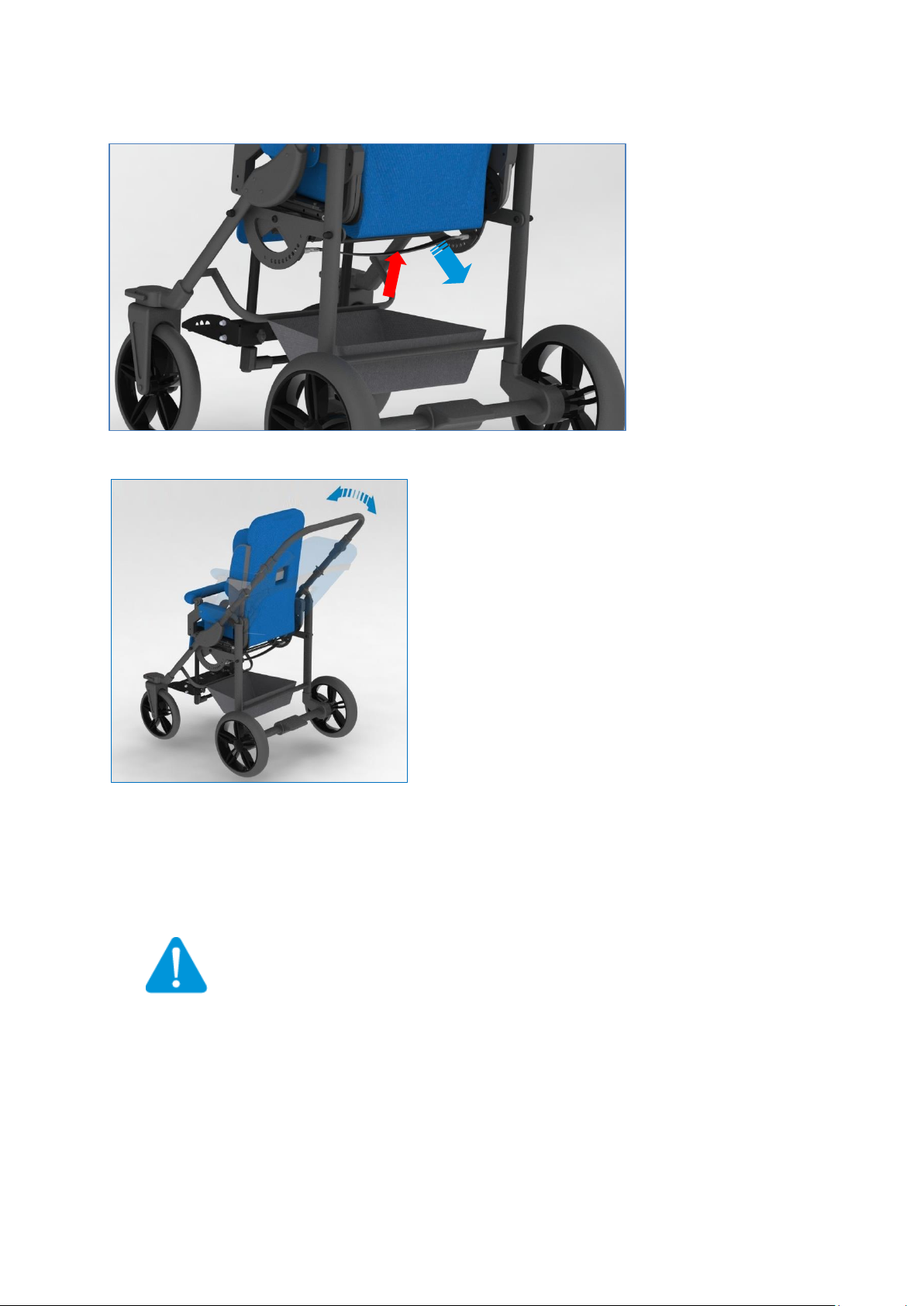

Fig. 17 Seat angle release
Fig. 18 Seat angle adjustment
Hold the seat, pull the control line for releasing the locking device, Fig 17, while positioning the seat
angle from 15⁰ in the driving direction to 45⁰ in the opposite direction Fig. 18.
NOTE! DUE TO A VERY HIGH DEGREE OF ADJUSTABILITY OF THE BUGGY, THERE
IS A POSSIBILITY TO SET A POSITION, WHERE THE HEAD IS PLACED BELOW THE
PELVIS.IT IS FORBIDDEN TO USE THAT POSITION, BECAUSE IT MAY LEAD TO
REGURGITATION OR CHOCKING.
Modi Buggy Edition 7 p. 17
8.7 Seat depth and hip supports adjustment

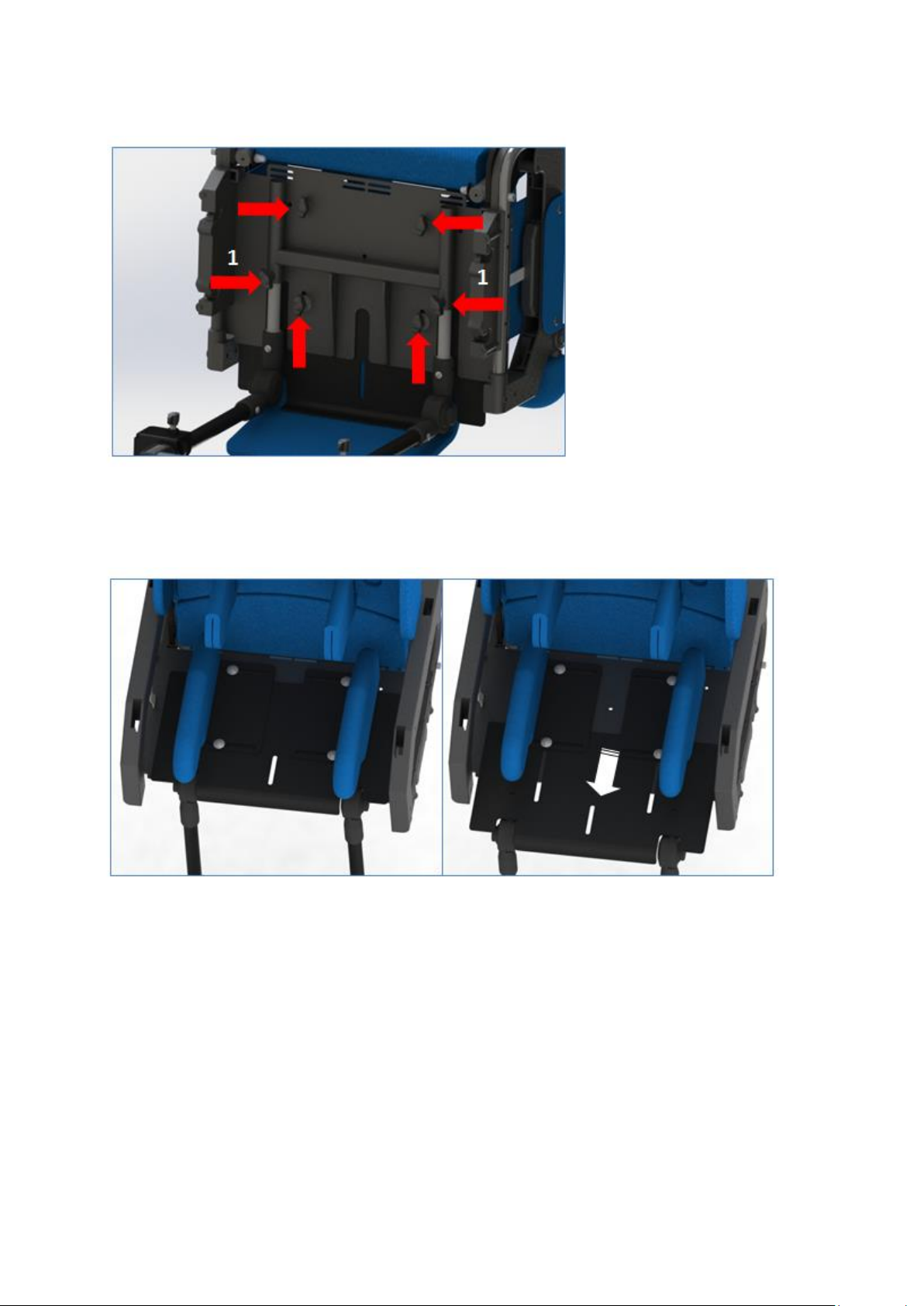

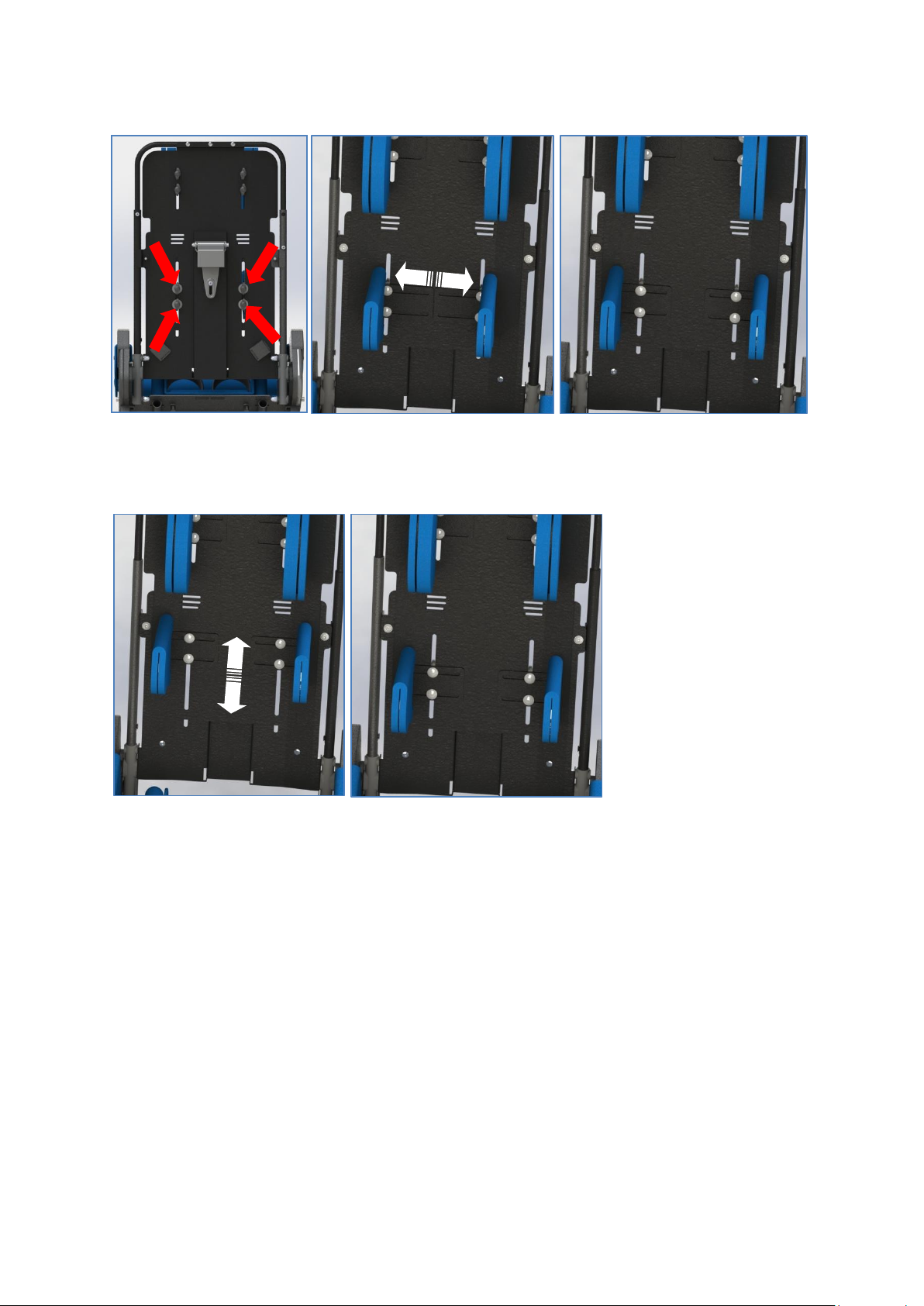

Fig. 19 Seat locking knobs
Loosen all locking knobs Fig. 19.
Fig. 20 Seat depth adjustment
Pull the seat base to a desired position, Fig. 20, and then tighten the knob (1) until there is
noticeable resistance. Fig. 19.
Modi Buggy Edition 7 p. 18
Fig. 21 Hip supports adjustment
Before re-locking the other knobs Fig. 19, slide apart/ slide hip supports. Their design allows an
inclination to ensure the right tight pulling angle Fig. 21.
8.8 Height adjustment of the backrest
Fig. 22 Backrest height adjustment
Unscrew the fixing screws (1) and the locking knobs Fig. 22 to set the desired height of the backrest
in the range of 50÷65 cm. Then tighten the screws (1) and locking knobs.
1
1
Modi Buggy Edition 7 p. 19
8.9 Loins support adjustment (for size MINI only)
Fig. 23 Loins support adjustment
In Modi Buggy size MINI, there’s an option of cambering the back support. To adjust loins
support, you should loosen the knob 2 (fig. 23) and next – using the allen key 4mm – tighten the bolt
1, until we obtain back support required for the patient. After adjustment, tighten the knob 2.
8.10 Footrest height adjustment
Fig. 24 Footrest height adjustment
Loosen the locking knobs Fig. 24, set the desired height of the footrest and tighten the locking knobs.
It is possible to set footrest height in the range: 17÷36 cm.
NOTE! THE FOOTREST ONLY SUPPORTS THE FEET, YOUR CHILD SHOULD NOT
STAND ON IT.
1
2
Modi Buggy Edition 7 p. 20
8.11 Side supports adjustment
Fig. 25 Width adjustment
Loosen the 4 knobs Fig. 25, move the supports up to: 15÷27 cm.
Fig. 26 Height adjustment
Pellotes height adjustment possible in the range of 16÷30 cm for standard size and 14÷26 cm for the
mini size (Fig. 26).
Modi Buggy Edition 7 p. 21

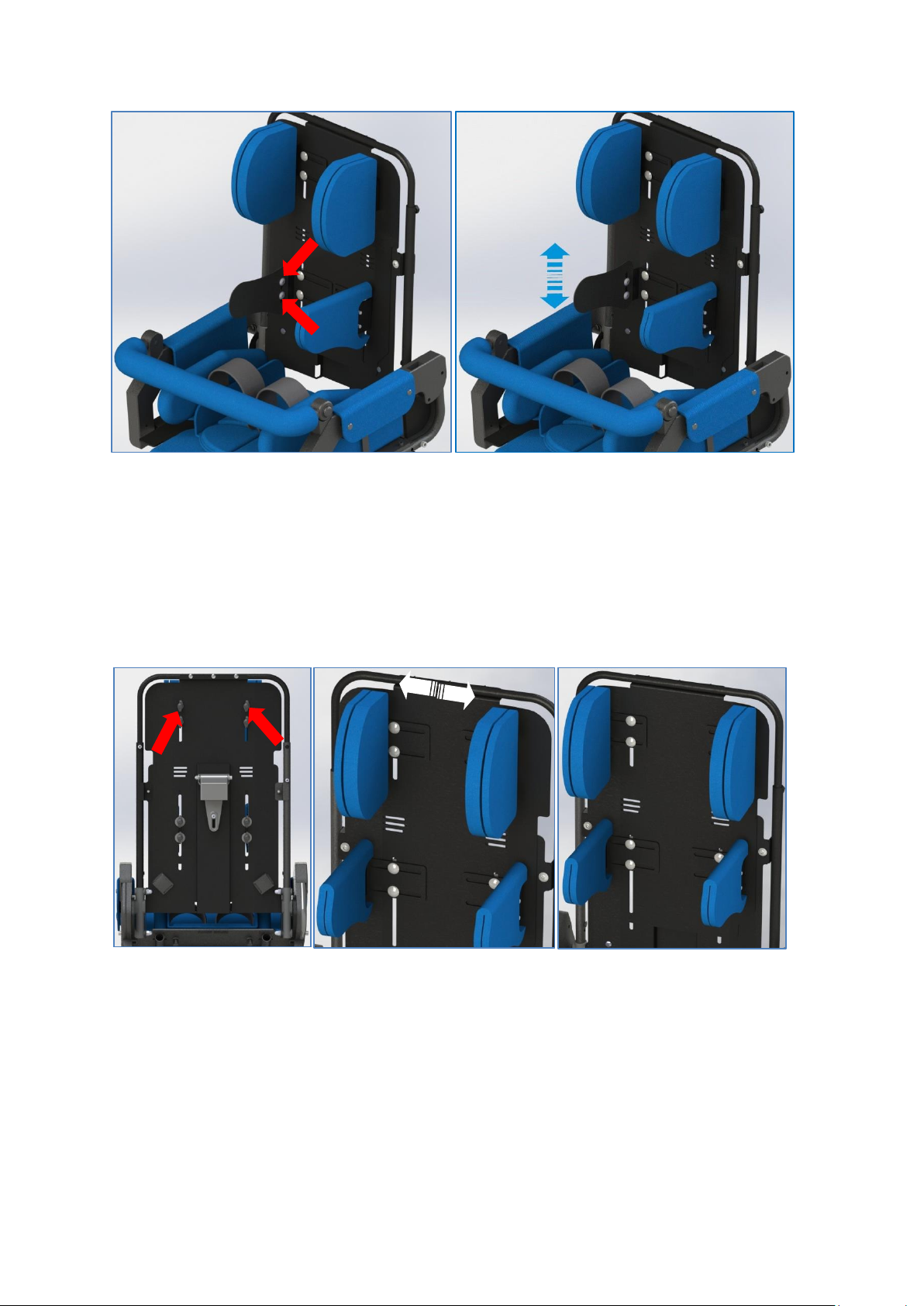

Fig. 27 Asymmetrical height adjustment
For asymmetrical height adjustment of your side supports you need to loosen the locking screws and
set the desired height of the supports. Fig. 27. Next tighten the locking screws. Maximum height
difference is 20 mm. Greater asymmetry can be achieved by changing the side supports’ height
loosening the locking knob Fig. 26.
8.12 Head supports adjustment
Fig. 28 Adjusting the width of the head supports
Loosen the locking knobs Fig. 28 and set the desired width of the head supports in the range of 15 to
20 cm and its height ± 2 cm Fig. 28. Then, tighten the locking knobs.
Modi Buggy Edition 7 p. 22

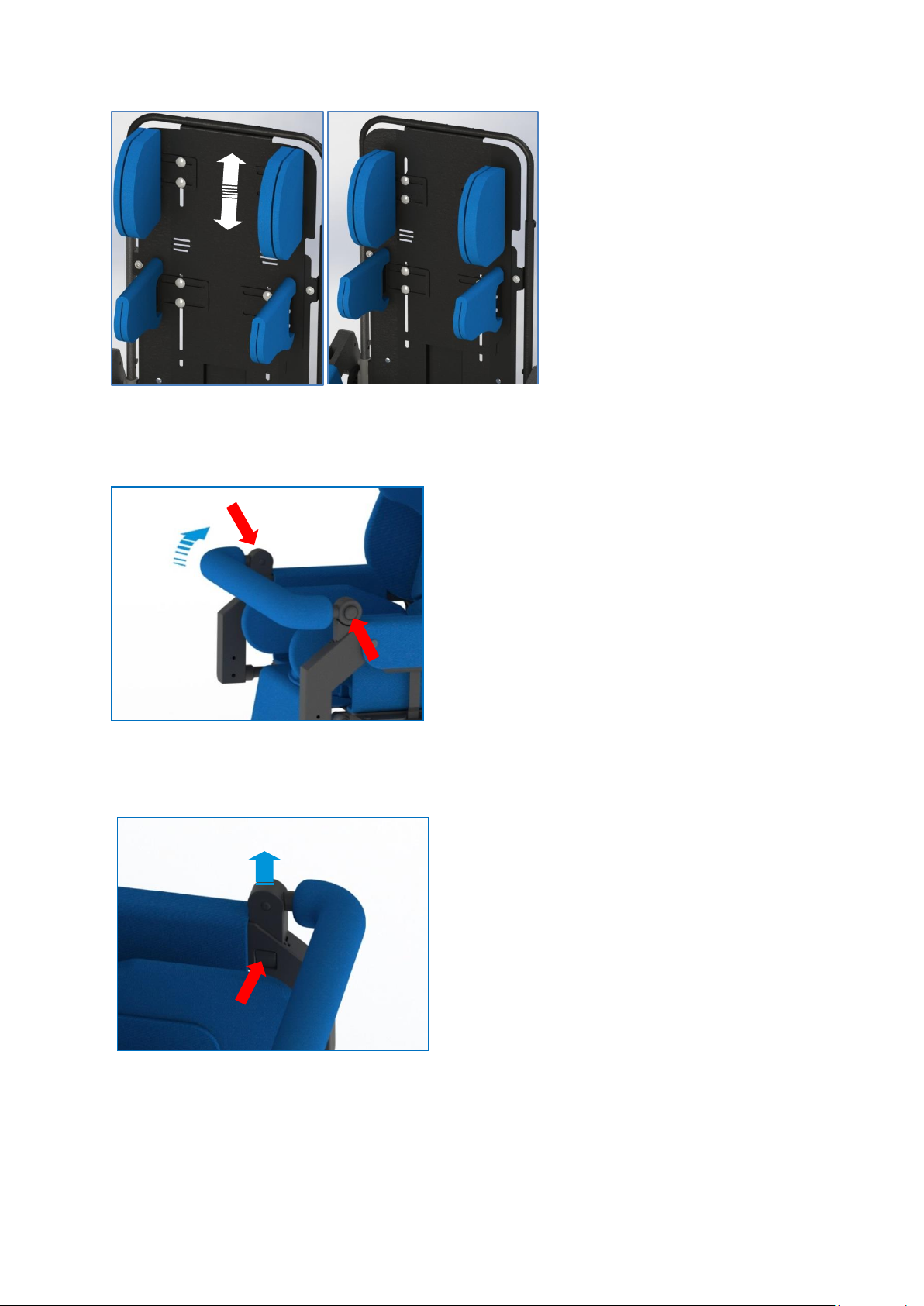

Fig. 29 Head supports height adjustment
8.13 Adjusting and removing the roll bar
Fig. 30 Roll bar adjustment
Press the buttons on both sides simultaneously and set the required roll bar position, Fig.30.
Fig. 31 Removing the roll bar
Press the clip, firmly grasp the bar and pull it out, Fig. 31.
Modi Buggy Edition 7 p. 23
8.14 Regulation, mounting and dismantling the tray table
Fig. 32 Mounting the tray table
To mount the table, insert the table fastening adapters 1, then slide in the table using the tubes into
the adapters. Tighten the knobs 2, to prevent the table from slipping out.
Fig. 33 Table Angular Adjustment
Modi Buggy Edition 7 p. 24
Angular adjustment of the worktop is made by loosening the two screws located above the table
holders below the worktop. After obtaining the desired angle of inclination, tighten the screws.
The adjustment screws are located on the left and right side of the table.
Fig. 34 Dismantling the table
To remove the table, unscrew the knob (2) Fig. 34, then pull out the table. To remove the adapter,
press the button (3), then pull up the adapters on both sides of the seat.
Modi Buggy Edition 7 p. 25

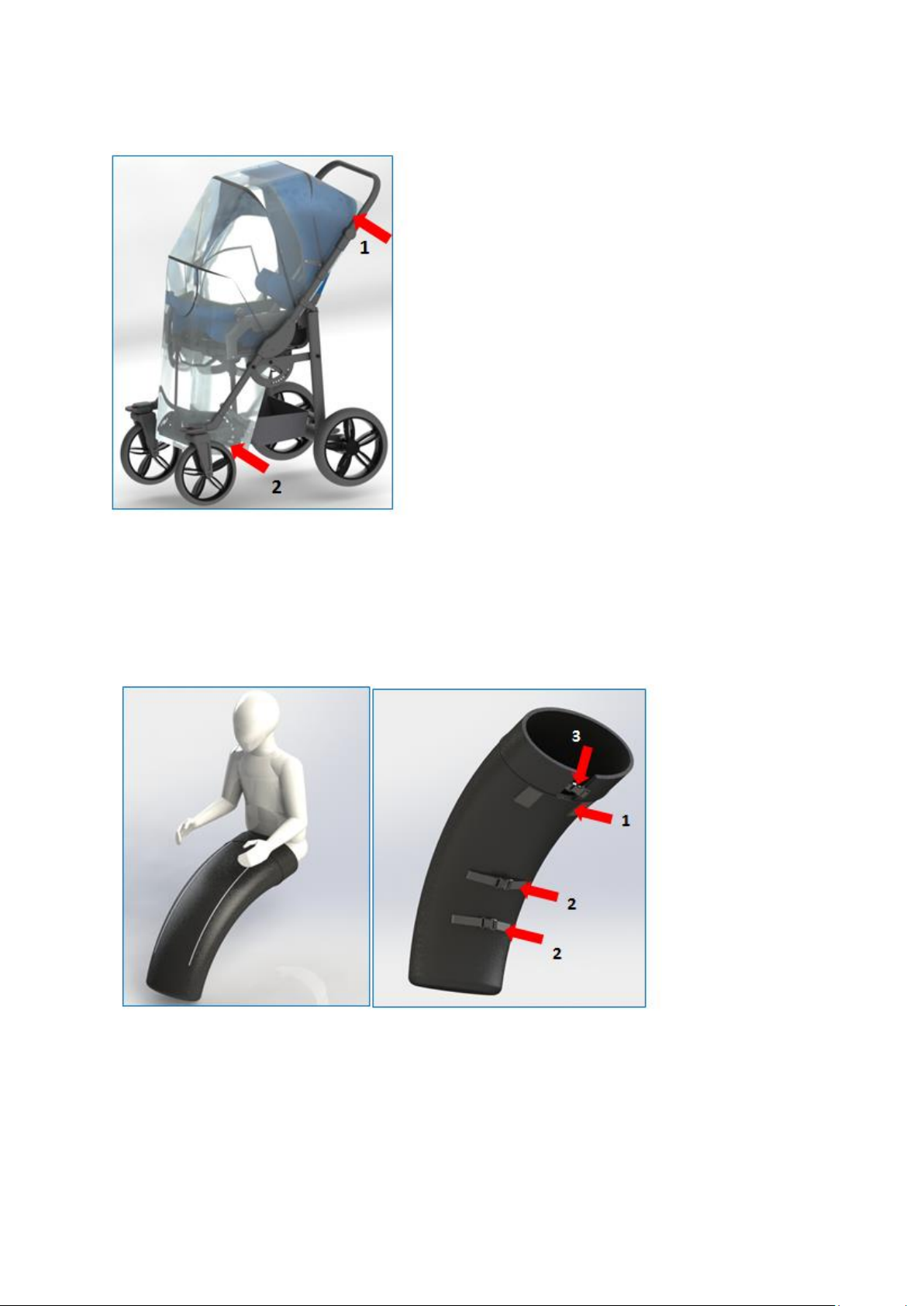

8.15 Mounting the rain cover
Fig. 35 Mounting the rain cover
Fasten the rain covers using the elastic edge by placing it behind the back support (1) and the
footrest (2).
8.16 Mounting the leg cover
Fig. 36 Mounting the leg cover
Push the leg cover under the seat upholstery and fasten using the Velcro (1), fasten the buckle (2)
covering the push chair’s footrest. After placing the baby in the stroller, fasten the buckle (3)
circumscribing the strap behind the back rest.
Modi Buggy Edition 7 p. 26

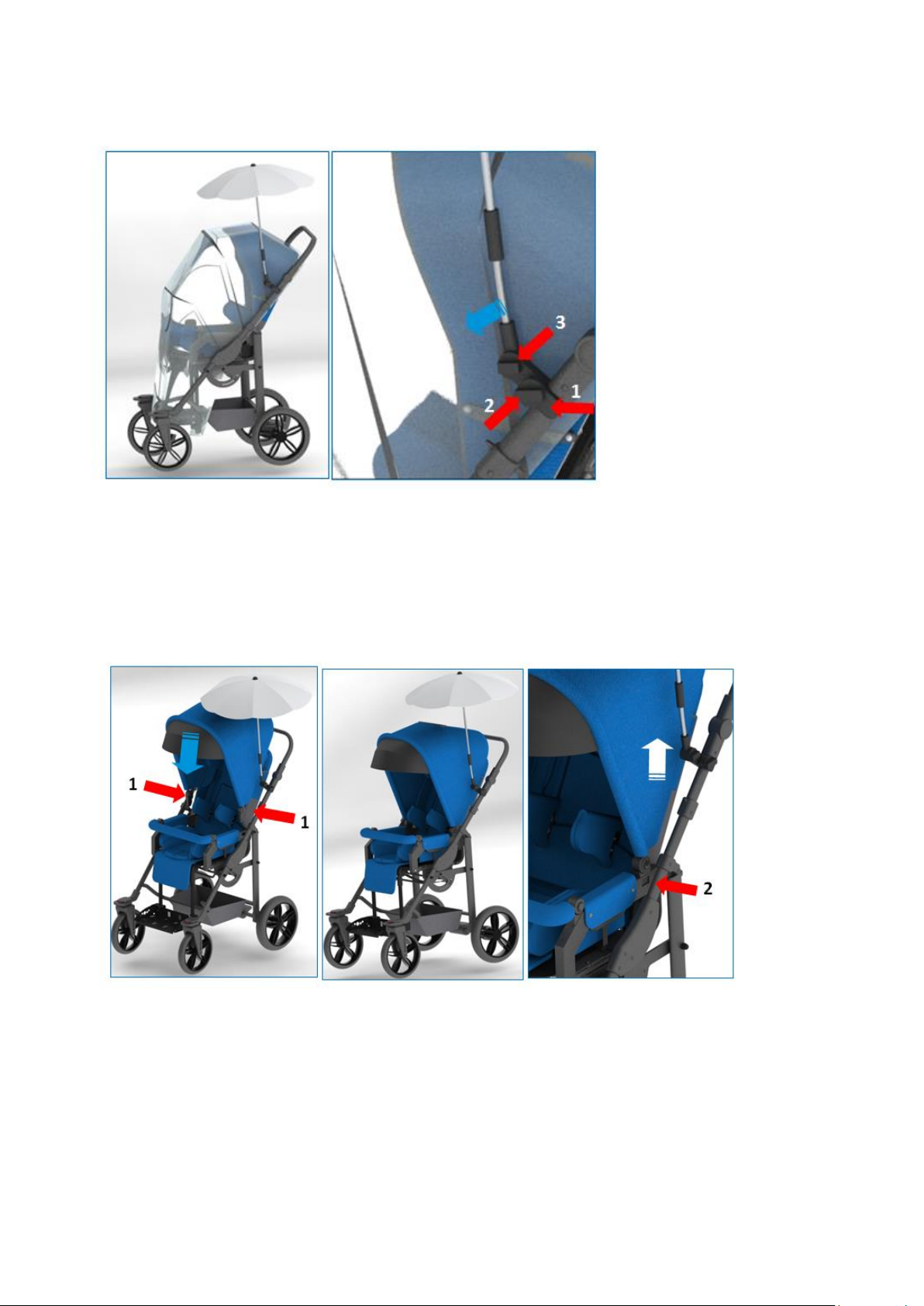

8.17 Mounting the umbrella
Fig. 37 Mounting the Umbrella
Umbrella should be fixed with the clamp (1). Place the clamp on the buggy’s frame and tighten the
knob (2). To change the angle of the umbrella, unscrew the knob (3), adjust the angle of the
umbrella, and then tighten the knob again (3).
8.18 Mounting and dismantling the canopy
Fig. 38 Mounting and dismantling the canopy
Canopy latches (1) should be inserted into the socket boxes on both sides of the seat. In order to
dismantle canopy, press the latch lock (2) on both sides of the seat, and then pull out the canopy
upwards.
Modi Buggy Edition 7 p. 27
8.19 Footrest adjustment
Fig. 39 Footrest angle adjustment
Loosen the bottom screws, set the right angle and re-lock the screws. Fig. 39. It is possible to adjust
the footrest angle in the range: 0⁰÷20⁰.
8.20 Footrest supporting legs adjustment
Fig. 40 Footrest supporting legs angle adjustment
Press the two release buttons at the same time Fig. 40 then adjust the angle of the footrest brackets
in the range: 0÷90⁰.
Modi Buggy Edition 7 p. 28

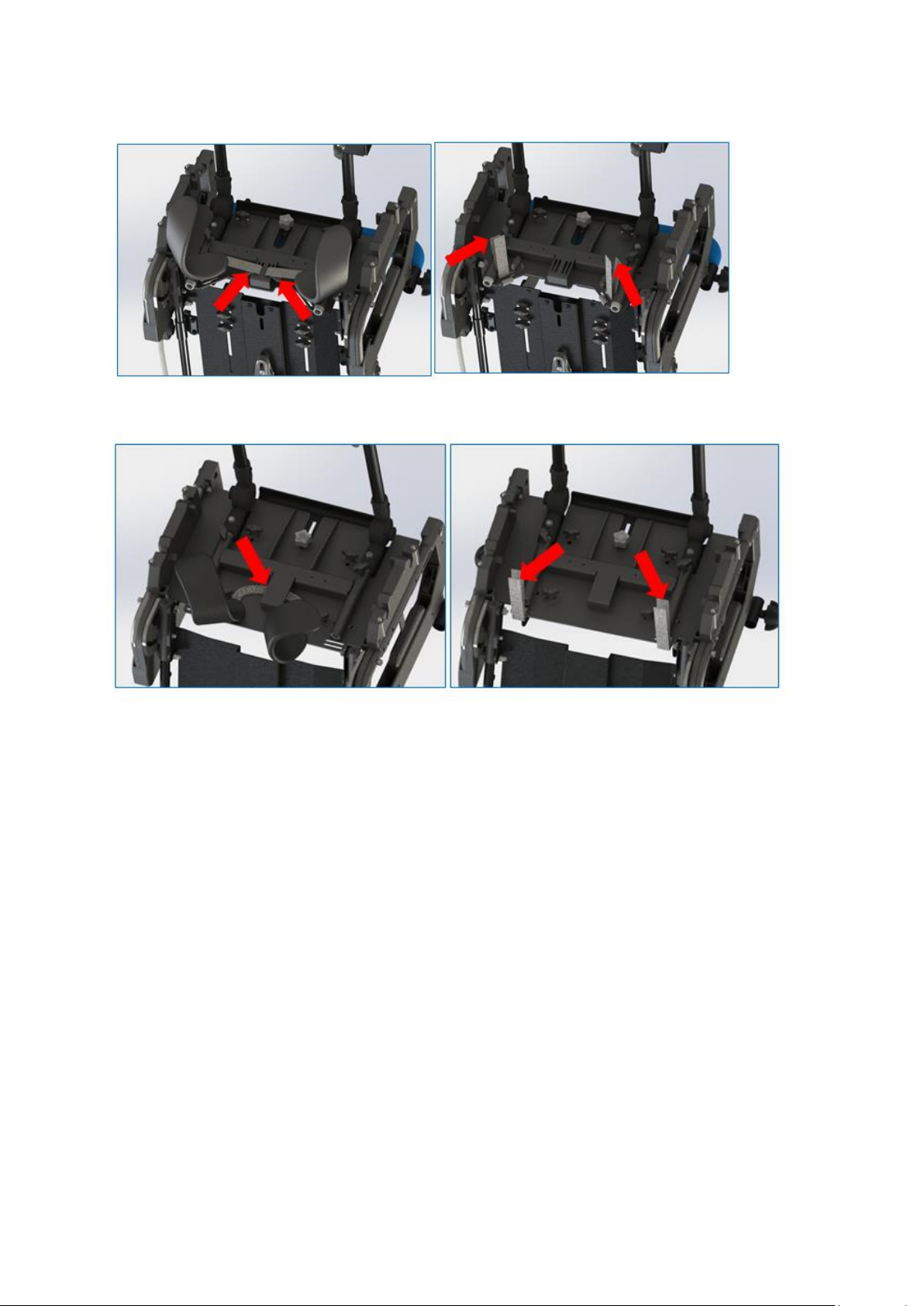

8.21 Abduction belts installation
Fig. 41 Abduction belts installation for the mini size
Fig. 42 Abduction belts installation for the standard size
Depending on seat size, seat belts come in two options. The version with cuts comes with the mini
size, in which one end of the abduction belt should be installed in the slots from the Fig. 41 on the
right. For the standard size abduction belts are stitched together, and because of that they should be
putted underneath the element of seats construction (Fig 42). Another end of the abduction belts
should be installed inside the slots under the seat. The excess of the belts is used to install the vest.
Modi Buggy Edition 7 p. 29

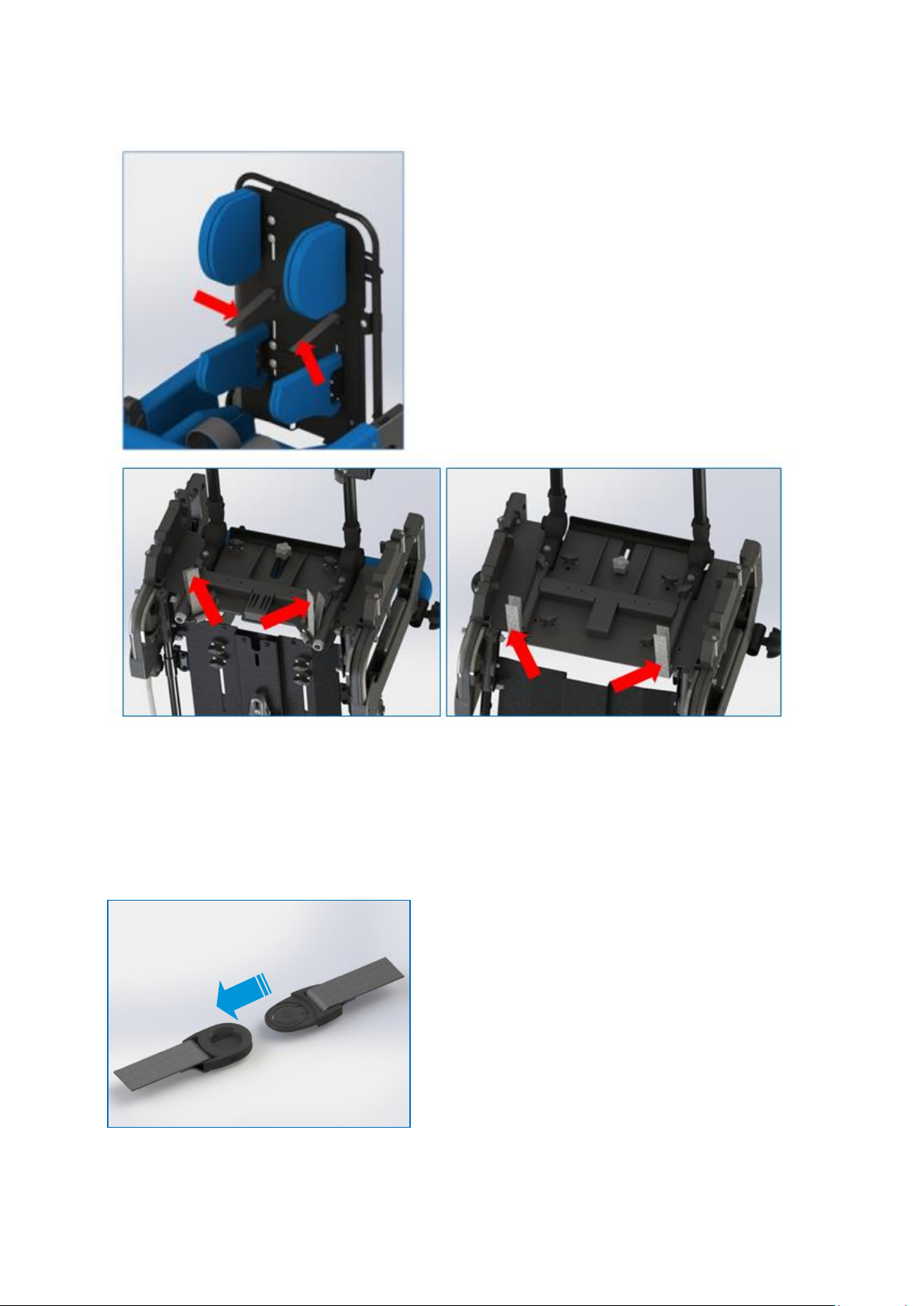

8.22 Vest attachment and adjustment
Rys. 43 Mocowanie pasków kamizelki
The upper straps attaching the vest should be placed on chosen construction element of the backrest
(Fig. 43) at the level close to the one of the child’s shoulders. Bottom straps of the vest should be
putted in the slots under the seat (the belt is common for vest and abduction belts). Next they should
be taken through the slots in the seats upholstery. Clampers should be installed on the edges of the
straps.
Fig. 44 Clips fastening
Modi Buggy Edition 7 p. 30
The vest should be fastened after the child has taken the seat, slide the clips until you hear a click. Fig
44.

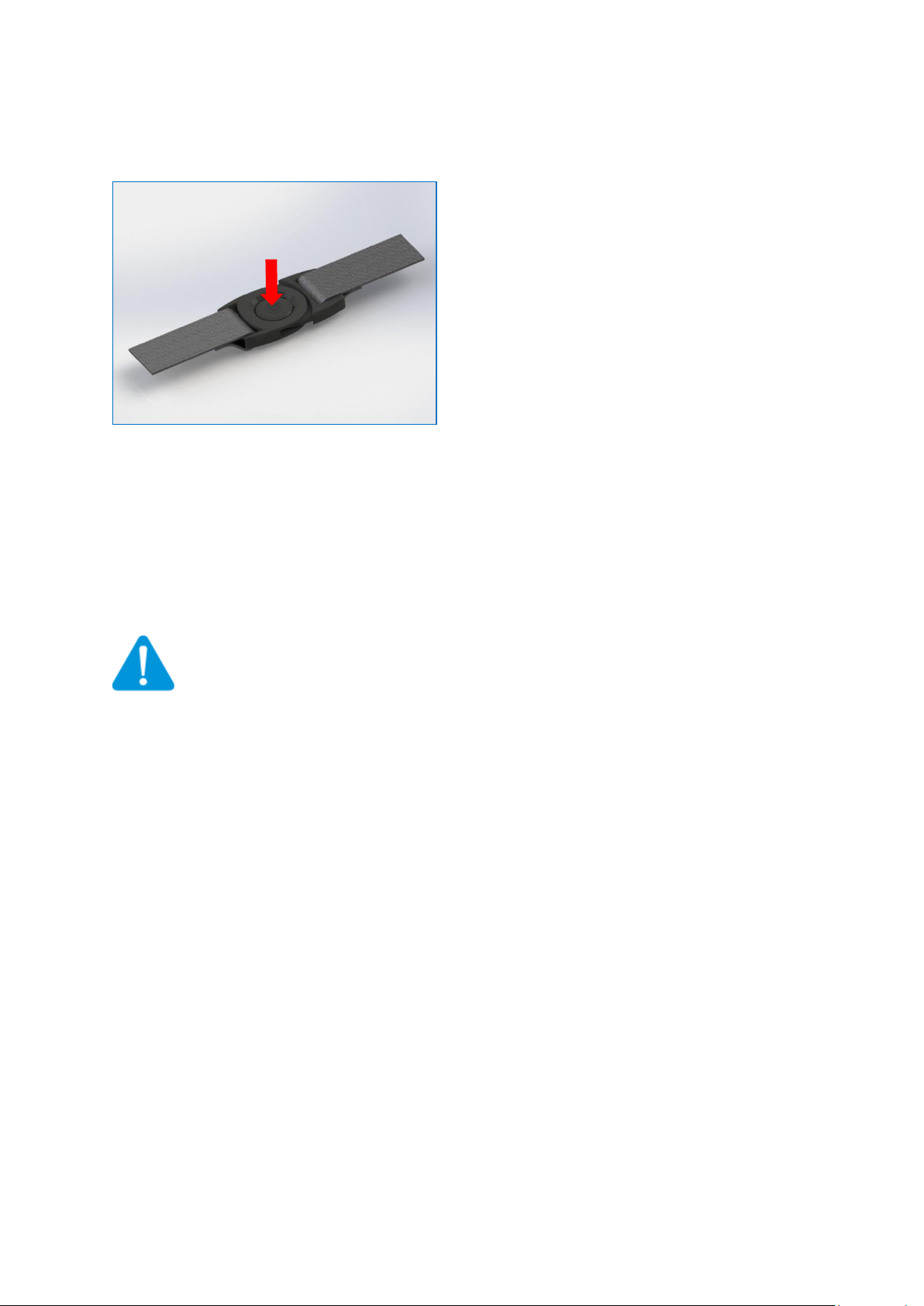

Fig. 45 Clips unfastening
To unfasten the vest, press it right in the middle to unlock the clip. Fig. 45.
You control the vest by adjusting the length of the fastening straps. Proper adjustment of the vest
should provide the right stability of the child's body, but it should not cause any discomfort.
NOTE! ALWAYS MAKE SURE YOU FASTEN THE CLIPS PROPERLY, USING ALL FOUR
CLIPS, BECAUSE OTHERWISE, A LACK OF FASTENING MAY CAUSE THE CHILD TO FALL
OUT OF THE BUGGY.
Modi Buggy Edition 7 p. 31
9. Maintenance and cleaning
Modi Buggy is a mechanical device with a supporting structure made of steel and aluminum,
covered with a varnish coat. Foam-sponge inserts are connected to the structure. Foams are covered
with a dust cover made from textile materials. None of the coatings cause skin irritation. Modi Buggy,
like any other medical device, should be kept in necessary purity and used in accordance with the
manufacturer's instructions.
• Varnish coats and dust covers made from textile materials, should be cleaned with a
cloth dampened with water. It is allowed to use mild detergents or enzymatic
cleaning agents. Clean this if necessary with a vacuum cleaner or a soft brush.
• It is allowed to clean the foam-sponge inserts with a cloth dampened with water and
with mild detergent. After carrying out this action, the insert shall be thoroughly
dried at room temperature.
NOTE! THE MODI BUGGY UPHOLSTERY SHOULD BE COMPLETELY DRY BEFORE BEING
USED AGAIN.
• You should protect the frame regularly, remove dirt and mud regularly.
• Do not use chemicals.
• Do not wash the upholstery in a washing machine.
• You should avoid avoiding direct sunlight and check the seat temperature before
putting the baby inside.
NOTE! MODI BUGGY SHOULD BE SERVICED AT LEAST ONCE A YEAR (EVERY 12
MONTHS) BY A QUALIFIED SERVICE TECHNICIAN. IT IS NECESSARY TO CARRY OUT
PERIODIC INSPECTION OF THE BUGGY – MOVING PARTS, LOCKING MECHANISM,
ADJUSTMENT FUNCTIONS. PERIODIC REVIEW OF THE DEVICE ENSURES A LONG AND
TROUBLE-FREE OPERATION.
Modi Buggy Edition 7 p. 32
10. Warranty/Service
Should you notice any faults or defects, you should stop using the buggy immediately and
contact your dealer or manufacturer. Defective unit must be protected against enlarging the area of
damage. Never attempt to disassemble or repair the product. Do not replace original parts with the
ones coming from a source other than the manufacturer recommends.
If the user decides not to continue using the product it is bound to its disposal in accordance with
the applicable environmental regulations.
The economic lifetime of the product is five years.
The manufacturer provides post – warranty service. Contact details:
LIW Care Technology Sp. z o.o., ul. Golfowa 7, 94-406 Łódź, Poland.
biuro@liwcare.pl
Current contact details are available on: www.liwcare.pl
Warranty terms are specified in the warranty card, which is an integral part of this statement.
The warranty card is available on the last page of this document.

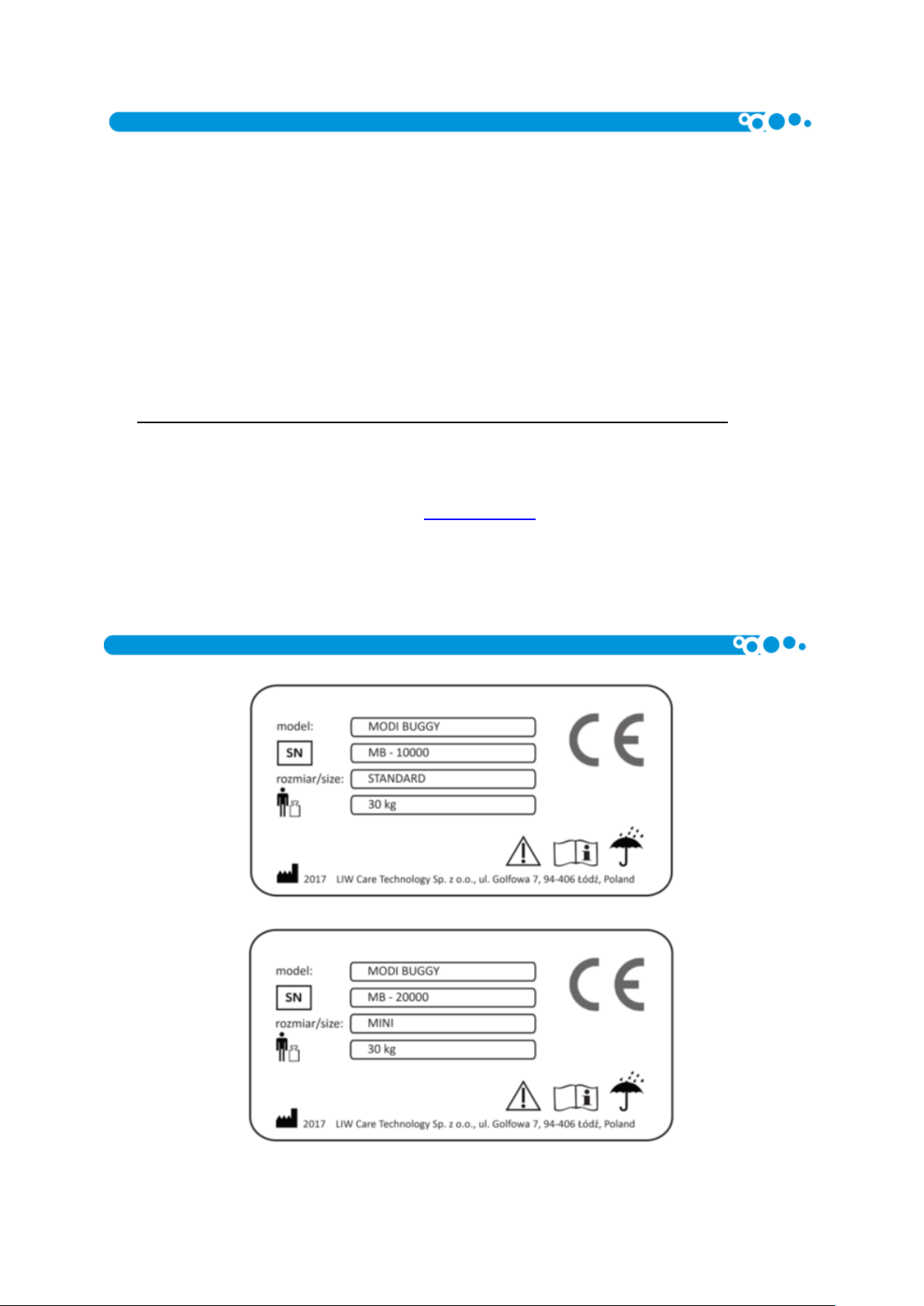

11. Identification plate
Modi Buggy Edition 7 p. 33
12. Symbols meaning
Manufacturer’s name and date of manufacture
Serial Number
User’s permissible weight
Note! Follow product instructions
Avoid contact with water
Unlocking direction
Movement direction
Mark of conformity in accordance with EU Directive 93/42 EEC Annex. VII,
concerning medical devices
13. Compliance with the safety requirements for medical devices
Modi Buggy meets the essential requirements of the MDD 93/42 EEC for medical devices.
Modi Buggy, in accordance with Annex IX of the MDD 93/42 EEC is non-invasive non-active I class
medical device according to rule 1.
The Declaration of Conformity for this product can be found in manufacturer's Sales Department.
Modi Buggy Edition 7 p. 34
ARRANTY CARD
Warranty terms:
1. Manufacturer of medical device - LIW Care Technology Sp. with o.o (ul. Golfowa 7, 94-406 Łódź, Poland) ensures that the company sells an operative
device, free from construction, installation, material defects, etc., and that the device will remain free from such defects during the warranty period. This
warranty does not cover usefulness of the product for the Buyer purposes.
2. LIW Care Technology Sp. z o. o. (the manufacturer) grants a two-year warranty for the equipment, starting from the initial purchase date.
3. The only proof of warranty is this warranty card, issued by the Seller to the Buyer. To transfer warranty entitlements, you need to transfer the
possession of this warranty card.
4. In case of finding any faults or defects during the warranty period - the manufacturer will remedy the defect at his own cost. If parts are replaced, the
removed part shall become the property of the LIW Care Technology Sp. z o. o. and shall not be returned to the warranty user.
5. Under the warranty, the user is obliged to report physical product defect during the warranty period via a form on our we bsite: www.liwcare.pl,
following prior logging to the "customer zone" by post LIW Care Technology Sp. z o. o. or by phone: +48 42 212-35-18
6. Under the warranty, the user is o bliged to deliver the equipment w ith warranty card and along with the original document of pu rchase (VAT invoice or
receipt) at the expense of the manufacturer to his s eat. when there is no receipt, the initial purchase date (the s tart of the warranty period) shall be the
date of manufacture.
7. This warranty does not cover:
• waste elements and destroyed or damaged parts due to improper use ( in part icular, but not exclusively due to improper instructions issued or
under unfavorable conditions), or improper storage of the product,
• damage caused by any alterations or additions to the device made by the user or a third parties,
• damage caused by improper cleaning or maintenance of the product made by the user or a third party,
• damage caused by normal wear and tear or normal aging of the product,
• damage caused by user’s lack of negligence (particularly, but not exclusively, in maintenance and cleaning of the product),
• damage caused by force majeure,
• damage caused by external events (pollutions, mechanical and water damage).
8. The warranty does not include does not include regulation and adjustment during the warranty period, because they do not constitute a product
defect.
9. In order to qualify for the above warranty, you need to deliver the product which is securely enclos ed in packaging to the manufacturer. To do that,
use the original packaging. If the user do not d eliver the product In the original packaging, his replacement packaging must satisfy the following
requirements: solid box with intact walls, separate protection for each component, cushioning material, s trong tape used for wrapping, as well as sender
address or receiver (LIW Care Technology Sp. z o. o). address.
LIW Care Technology Sp. z o. o. shall not be held liable for product damage caused by insufficient packaging.
10. Warranty Repair or replacement will be made as far as possible within 30 days from the p roper delivery of the product by the warranty user to LIW
Care Technology Sp. z o. o
11. After warranty repair, the product will be delivered at the expense of LIW Care Technology Sp. z o. o., to the supplied address. In the event when
a correctly addressed package is not collected, the warranty user is obliged to shall bear all costs related to the product transport and its storage.
12. Quality warranty granted by LIW Care Technology Sp. z o. o. does not affect any legal rights of the Buyer.
Thank you for choosing our product. We wish you success in therapy with our equipment.
NOTE!
KEEP THE WARRANTY CARD IN A SAFE PLACE
LIW Care Technology Sp. z o. o. will require providing this document before accepting the warranty repair.
Product name/Type ……………………….......................Serial number:…………………………………………………………………..
Sold-by date:………………………………………………………… St amp and signature of the Seller: ………………………………………………
No.
Date of repair
request
Procedures
Repair completion
date
Stamp and signature of the
technician
1
2
3
4
Loading...
