3-ABS Series
HVAC
Applications
•• Utilizing a sealed, submersible pump with
collection tank, the 3-ABS is an ideal choice for a
self-contained, high volume, high head
condensate removal pump. An integrated,
unique float switch design assures reliability and
security while providing easy access to the float
for servicing.
Features
•• Includes 1 gallon ABS tank
•• Permanently lubricated motor bearings require no
maintenance during life of pump
•• Oil-filled to maximize heat dissipation
•• Epoxy-coated cast aluminum pump housing
•• Galvanized steel tank cover has
1-1/8" inlet opening
•• Automatic operation:
On level – 4.5" Off Level – 3.5"
•• Easy to remove float housing for servicing
•• Includes removable inlet filter screen
•• 1/2” MNPT pump discharge with brass check
valve and compression fitting for 1/2” OD copper
or rigid plastic tubing
•• Powerful 1/12 hp pump motor
•• Suitable for intermittent water temperature
up to 120 °F
•• Includes 9 ft power cord with molded plug
(115 V version)
Wastewater • Water Systems • HVAC • Industrial • Engineered Products
Construction
•• Motor – 1/12 hp
•• Intake – 1-1/4" diameter
•• Discharge – 1/2" MNPT
•• Pump housing/cover – Epoxy-coated cast aluminum
•• Tank Cover – Galvanized steel
•• Volute – Nylon
•• Impeller – Nylon
•• Shaft Seal – Nitrile
•• Screen – Polyethylene
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"

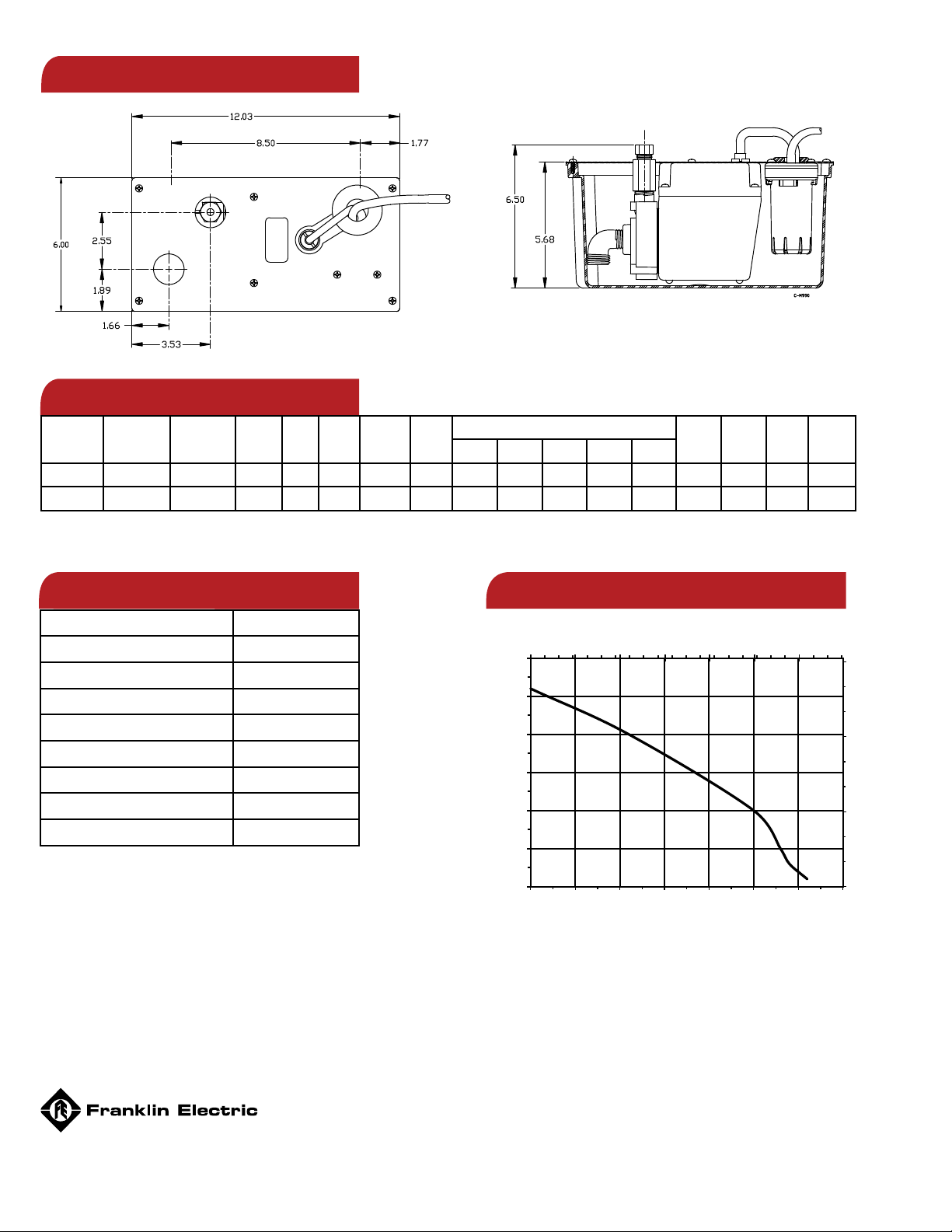

Dimensional Outlines
Specications
Item
No.
551320 3-ABS 1/2" 1/12 115 60 3.5 210 310 290 280 250 110 26' 11.2 9' 12
551330 3-ABS 1/2" 1/12 230 50/60 1.8/1.6 210 310 290 280 250 110 26' 11.2 11' 12
Model
No.
Discharge HP Volts Hertz Amps Watts
Replacement Parts
153502
151410
940003
103376
104435
103601
950061
950284
119007
Tank
Cover
Check Valve
Volute
Impeller
Gasket
Float Replacement
Float Screen
Elbow, Inlet
Performance (GPH @ Head)
1' 3' 5' 10' 20'
Performance Data
Flow - Liters/Hour
0 190 380 570 760 950 1140
30
25
20
15
Head - Feet
10
5
Shut
Off
(ft)
PSI
Power
Cord
(ft)
Weight
(lbs)
9
6
3
Head - Meters
0
0 50 100 150 200 250 300 350
