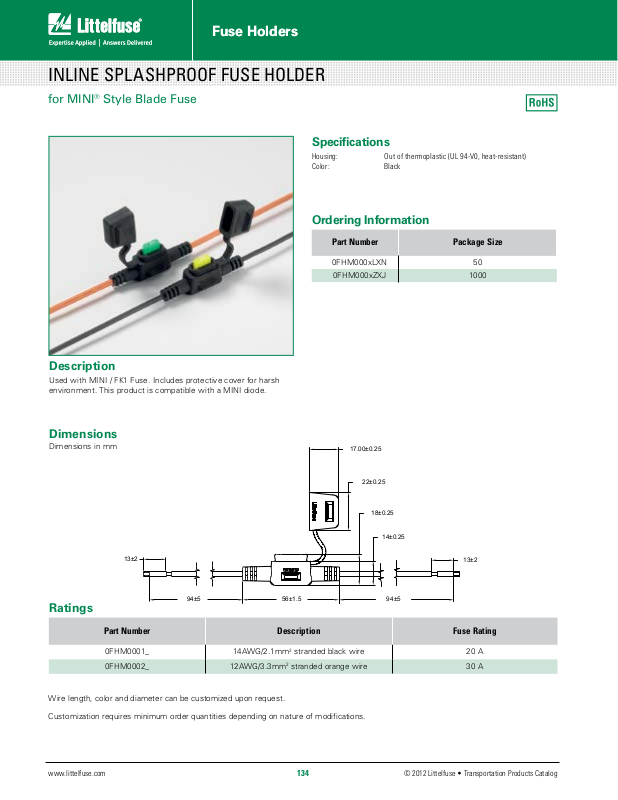

Littelfuse FHM User Manual

Fuse Holders

InlIne SPlASHProof fuSe Holder

for MINI® Style Blade Fuse

Specifications

Housing: Out of thermoplastic (UL 94-V0, heat-resistant) Color: Black

Ordering Information

Part Number Package Size

0FHM000xLXN 50

0FHM000xZXJ 1000

Description

Used with MINI / FK1 Fuse. Includes protective cover for harsh environment. This product is compatible with a MINI diode.

Dimensions

Dimensions in mm

13±2

94±5

Ratings

Part Number Description Fuse Rating

0FHM0001_ 14AWG/2.1mm2 stranded black wire 20 A

0FHM0002_ 12AWG/3.3mm2 stranded orange wire 30 A

56±1.5

17.00±0.25

22±0.25

18±0.25

14±0.25

13±2

94±5

Wire length, color and diameter can be customized upon request.

Customization requires minimum order quantities depending on nature of modifications.
