Fuse Holders

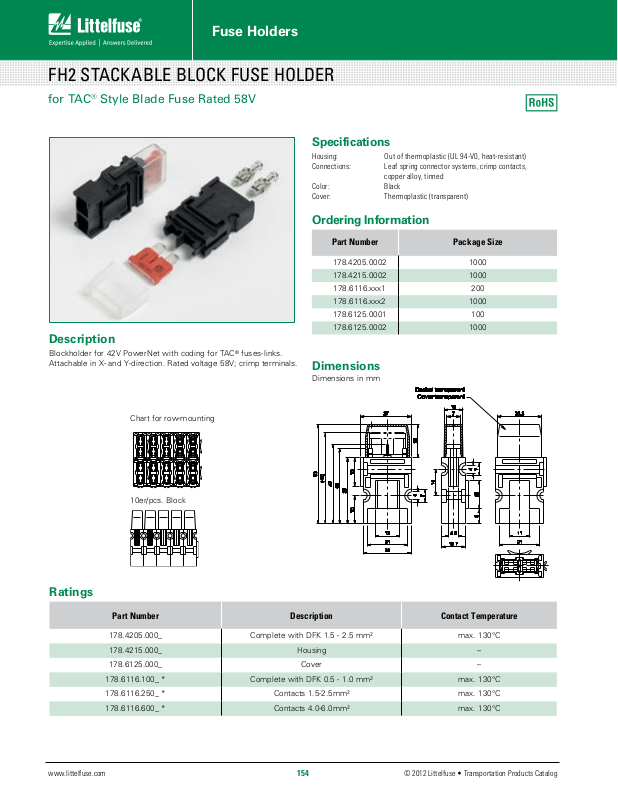

FH2 Stackable block FuSe Holder

for TAC® Style Blade Fuse Rated 58V

Specifications

Housing: Out of thermoplastic (UL 94 -V0, heat-resistant)
Connections: Leaf spring connector systems, crimp contacts,
copper alloy, tinned
Color: Black
Cover: Thermoplastic (transparent)

Ordering Information

Description

Blockholder for 42V PowerNet with coding for TAC® fuses-links.
Attachable in X- and Y-direction. Rated voltage 58V; crimp terminals.

Dimensions

Dimensions in mm

Part Number Package Size

178.4205.0002 1000

178.4215.0002 1000

178.6116.xxx1 200

178.6116.xxx2 1000

178.6125.0001 100

178.6125.0002 1000

Ratings

Chart for row-mounting

10er/pcs. Block

Part Number Description Contact Temperature

178.4205.000_ Complete with DFK 1.5 - 2.5 mm² max. 130°C

178.4215.000_ Housing –

178.6125.000_ Cover –

178.6116.100_ * Complete with DFK 0.5 - 1.0 mm² max. 130°C

178.6116.250_ * Contacts 1.5-2.5mm² max. 130°C

178.6116.600_ * Contacts 4.0-6.0mm² max. 130°C

154
