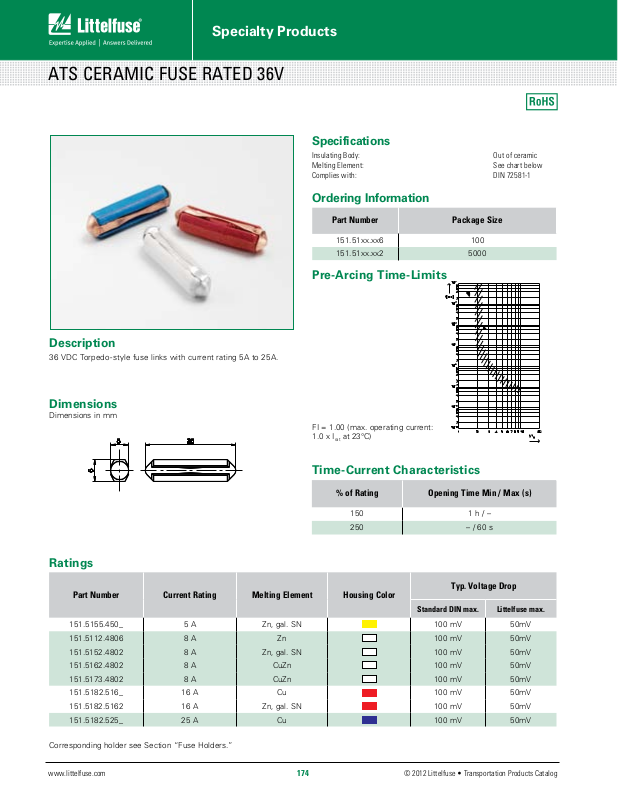

ATS CerAmiC FuSe rATed 36V

Specifications

Insulating Body: Out of ceramic Melting Element: See char t below Complies with: DIN 72 58 1-1

Ordering Information

Part Number Package Size

151.51xx.xx6 100

151.51xx.xx2 5000

Pre-Arcing Time-Limits

Description

36 VDC Torpedo-style fuse links with current rating 5A to 25A.

Dimensions

Dimensions in mm

FI = 1.00 (max. operating current:

1.0 x I

rat

Time-Current Characteristics

% of Rating Opening Time Min / Max (s)

Ratings

Part Number Current Rating Melting Element Housing Color

151.5155.450_ 5 A Zn, gal. SN

151.5112.4806 8 A Zn

151.5152.4802 8 A Zn, gal. SN

151.5162.4802 8 A CuZn

151.5173.4802 8 A CuZn

151.5182.516_ 16 A Cu

151.5182.5162 16 A Zn, gal. SN

151.5182.525_ 25 A Cu

at 23°C)

150 1 h / –

250 – / 60 s

Typ. Voltage Drop

Standard DIN max. Littelfuse max.

100 mV 50mV

Corresponding holder see Section “Fuse Holders.”
