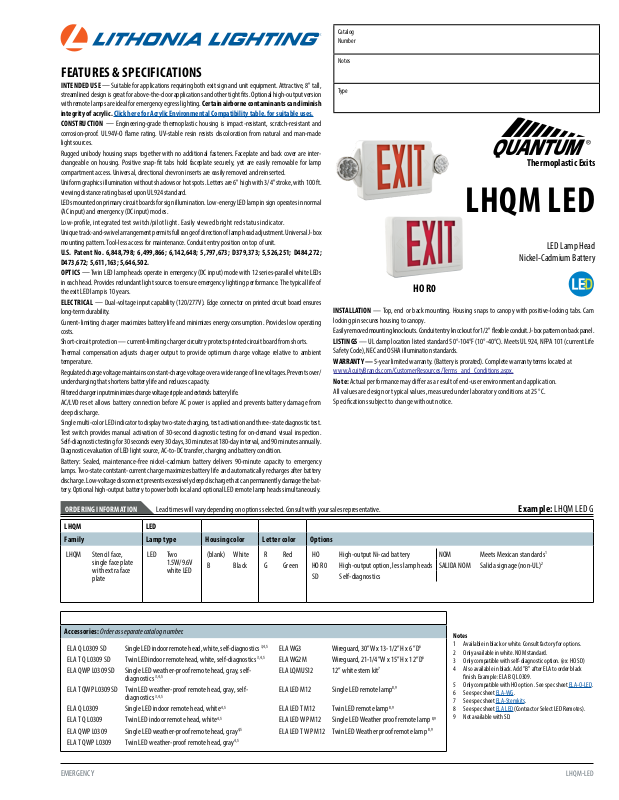

Lithonia Lighting LIH1761 Specifications

Page 1

FEATURES & SPECIFICATIONS

INTENDED USE  Suitable for applications requiring both exit sign and unit equipment. Attractive, 8" tall,

streamlined design is great for above-the-door applications and other tight ts. Optional high-output version with remote lamps are ideal for emergency egress lighting. Certain airborne contaminants can diminish

integrity of acrylic. Click here for Acrylic Environmental Compatibility table, for suitable uses. CONSTRUCTION  Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and

corrosion-proof. UL94V-O ame rating. UV-stable resin resists discoloration from natural and man-made light sources.

Rugged unibody housing snaps together with no additional fasteners. Faceplate and back cover are interchangeable on housing. Positive snap-t tabs hold faceplate securely, yet are easily removable for lamp c

ompartment access. Universal, directional chevron inserts are easily removed and reinserted.

Uniform graphics illumination without shadows or hot spots. Letters are 6" high with 3/4" stroke, with 100 ft. viewing distance rating based upon UL924 standard.

LEDs mounted on primary circuit boards for sign illumination. Low-energy LED lamp in sign operates in normal (AC input) and emergency (DC input) modes.

Low-prole, integrated test switch/pilot light. Easily viewed bright red status indicator. Unique track-and-swivel arrangement permits full range of direction of lamp head adjustment. Universal J-box

mounting pattern. Tool-less access for maintenance. Conduit entry position on top of unit.

U.S. Patent No. 6,848,798; 6,499,866; 6,142,648; 5,797,673; D379,373; 5,526,251; D484,272; D473,672; 5,611,163; 5,646,502.

OPTICS  Twin LED lamp heads operate in emergency (DC input) mode with 12 series-parallel white LEDs

in each head. Provides redundant light sources to ensure emergency lighting performance. The typical life of the exit LED lamp is 10 years.

ELECTRICAL  Dual-voltage input capability (120/277V). Edge connector on printed circuit board ensures long-term durability.

Current-limiting charger maximizes battery life and minimizes energy consumption. Provides low operating costs.

Short-circuit protection — current-limiting charger circuitry protects printed circuit board from shorts. Thermal compensation adjusts charger output to provide optimum charge voltage relative to ambient

temperature. Regulated charge voltage maintains constant-charge voltage over a wide range of line voltages. Prevents over/

undercharging that shortens battery life and reduces capacity. Filtered charger input minimizes charge voltage ripple and extends battery life. AC/LVD reset allows battery connection before AC power is applied and prevents battery damage from

deep discharge. Single multi-color LED indicator to display two-state charging, test activation and three-state diagnostic test.

Test switch provides manual activation of 30-second diagnostic testing for on-demand visual inspection. Self-diagnostic testing for 30 seconds every 30 days, 30 minutes at 180-day interval, and 90 minutes annually. Diagnostic evaluation of LED light source, AC-to-DC transfer, charging and battery condition.

Battery: Sealed, maintenance-free nickel-cadmium battery delivers 90-minute capacity to emergency lamps. Two-state contstant-current charge maximizes battery life and automatically recharges after battery discharge. Low-voltage disconnect prevents excessively deep discharge that can permanently damage the bat tery. Optional high-output battery to power both local and optional LED remote lamp heads simultaneously.

Catalog Number

Notes

Type

Thermoplastic Exits

LHQM LED

LED Lamp Head

Nickel-Cadmium Battery

HO R0

INSTALLATION — Top, end or back mounting. Housing snaps to canopy with positive-locking tabs. Cam

locking pin secures housing to canopy. Easily removed mounting knockouts. Conduit entry knockout for 1/2" exible conduit. J-box pattern on back panel. LISTINGS — UL damp location listed standard 50°-104°F (10°-40°C). Meets UL 924, NFPA 101 (current Life

Safety Code), NEC and OSHA illumination standards. WARRANTY — 5-year limited warranty. (Battery is prorated). Complete warranty terms located at

www.AcuityBrands.com/CustomerResources/Terms_and_Conditions.aspx.

ote: Actu al performa nce may dier as a resu lt of end-user env ironment and appl ication.

All values are design or typical values, measured under laboratory conditions at 25 °C. Speci cations subjec t to change witho ut notice.

ORDERING INFORMATION

Lead times will vary depending on options selected. Consult with your sales representative.

Example: LHQM LED G

LHQM LED

Fami ly Lamp type Housing color Letter color Options

LHQM Stencil fa ce,

single fac e plate with ex tra face plate

LED Two

1.5 W/9.6V white LED

(blank) White B Black

R Red G Green

HO High-output Ni-cad bat tery NOM Meets Mexican standard s HO R0 High-output option, less lamp heads SALIDA NOM Salida signage (non-UL) SD Self-diagnostics

Accessori es: Order as separate catalog numbe r.

ELA Q L0309 SD Single LED indoor remote head, white, self-diagnostics ELA T Q L0309 SD Twin LED indoor remote head, white, self-diagnostics ELA QWP L0309 SD Single LED weather-proof remote head, gray, self-

ELA T QWP L0309 SD Twin LED weather-proof remote head, gray, self-

ELA Q L0309 Single LED indoor remote head, white ELA T Q L0309 Twin LED indoor remote head, white ELA QWP L0309 Single LED weather-proof remote head, gray ELA T QWP L0309 Twin LED weather-proof remote head, gray

diagnostics

3,4,5

4,5

3,4,5

ELA WG3 Wireguard, 30” W x 13-1/2” H x 6” D

3,4,5

ELA WG2M Wireguard, 21-1/4” W x 15” H x 12” D ELA LQMUS12 12” white stem k it

ELA LED M12 Single LED remote lamp

ELA LED T M12 Twin LED remote lamp ELA LED WP M12 Single LED Weather proof remote lamp ELA LED T WP M12 Twin LED Weather pr oof remote lamp

8,9

EMERGENCY LHQMLED

Notes 1 Available in black or white. Consult factory for options. 2 Only available in white. NOM standard. 3 Only compatible with self-diagnostic option. (ex: HO SD) 4 Also available in black. Add "B" after ELA to order black

nish. Example: ELA B Q L0309. 5 Only compatible with HO option . See spec sheet ELA-Q-LED. 6 See spec sheet ELA-WG. 7 See spec sheet ELA-Stemkits. 8 See spec sheet ELA LED (Contractor Select LED Remotes). 9 Not available with SD.

8,9

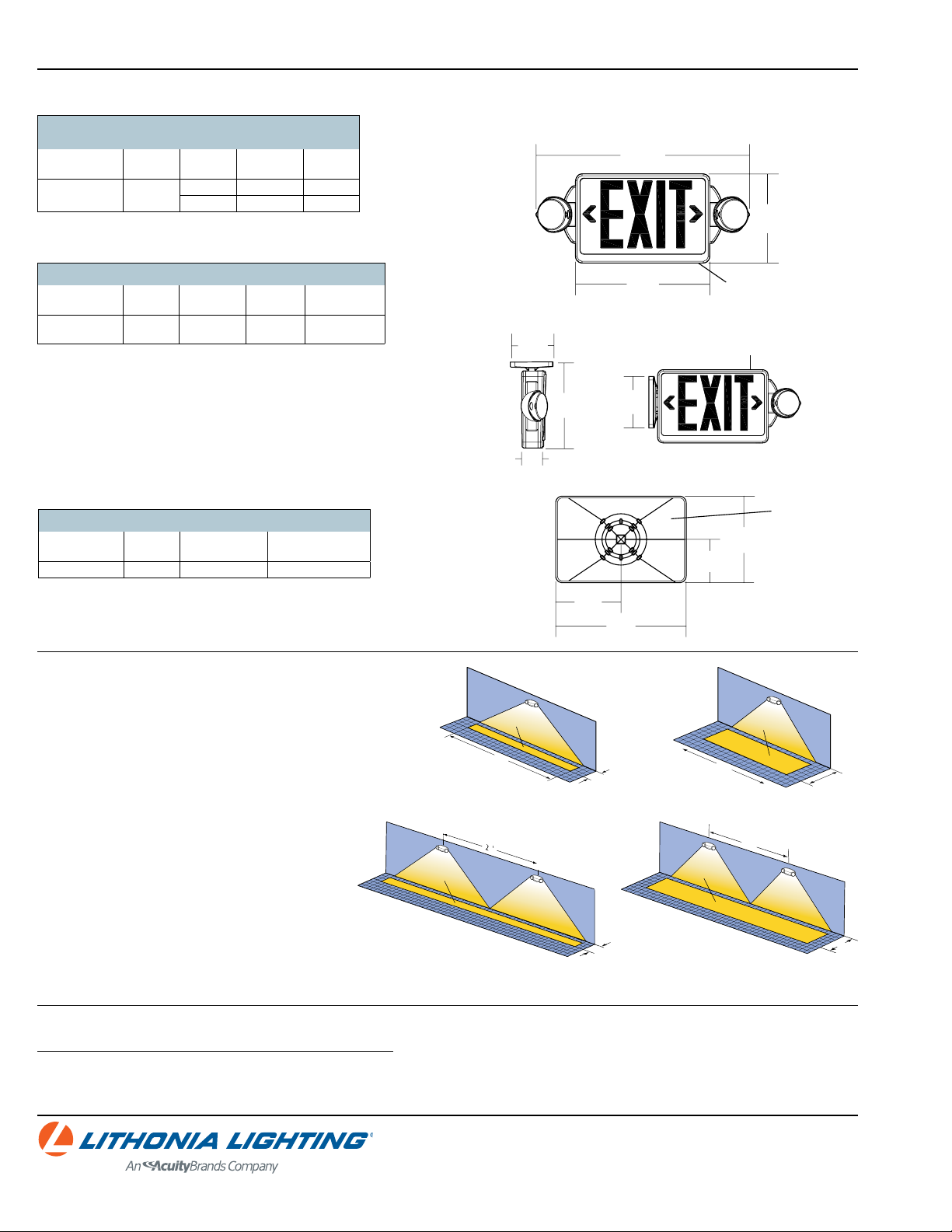

Page 2

LHQM LED QUANTUM® Exit/Unit Combo

19-1/4

st switch/

pilot light

4-3/4

(22.9)

5-5/8

(14.3)

1/2” flexible conduit entry knockout

Universal knockout

24'

1 FC average

18'

1 FC average

25'

20'

1 FC average

SPECIFICATIONS

Electrical Primary Circuit

Typical LED life

Red and gre en LED 10 years

Supply

voltage

120 .05 4.3

277 .03 4.3

Max

amps

Max

watts

BATTERY

Ni-Cad

Voltage

9.6 3 years 7-9 years none

1 Based on continuous operation.

2 At 77°F (25°C).

3 All life safety equipment, including emergency lighting path of egress, must be maintained, serviced and tested

in accordance with all National Fire Protection Association and local codes. Failure to perform the required maintenance, service or testing could jeopardize the safety of occupants and will void all warranties.

4 Optimum ambient temperature range where unit will provide capacity for 90 minutes. Higher and lower

temperatures aect life and capacity. Consult factory for detailed information.

5. Battery life is negatively impacted by many variables including temperature, charging rates, number of cycles and deep discharges due to long periods of time without AC power.

Shelf

life

Typical

Maintenance

life

Remote Output Capacity

Standard

unit

NA NA 3W 6W

Combo

Combo/high-output

bat tery(H O)

Combo/high-output (HO)

Optimum

temperature

50 -104 °F (10-40°C)

and no head s (RO)

MOUNTING

All dimensions are inches (centimeters). Shipping weight: 3.6 lbs. (1.6 kgs.).

Top

(11.1)

2-1/4

(5.7)

Face

(48.9)

(30.5)

Backplate

(20.3)

End

pattern for various standard j-boxes

(20.3)

(10.2)

(15.2)

(30.5)

LAMP PHOTOMETRICS

QUANTUM LED SERIES – SINGLE COVERAGE 3W Total White LEDs Using a single unit at a typical 7.5’ mounting height delivers an average illuminance of 1.0 FC over a distance of 24’ on a 3’ path of egress and 18’ on a 6’ path of egress.

Example of single LHQM LED exit

illuminating a 3' path of egress

Example of single LHQM LED exit

illuminating a 6' path of egress

QUANTUM LED SERIES – MULTIPLE COVERAGE 3W Total White LEDs Using multiple units at a typical 7.5’ mounting height delivers 25’ center-to-center spacing on a 3’ path of egress and 20’ center-to-center spacing on a 6’ path of egress.

Example of multiple LHQM LED exits

illuminating a 3' path of egress

Example of multiple LHQM LED exits

illuminating a 6' path of egress

EXTENDED RUNTIME FOR HIGHOUTPUT EXITS

Product Run time

LHQM LED HO (no remotes) 3.8 hours LHQM LED HO R0 (no remotes) 7.5 hours

LHQMLED
