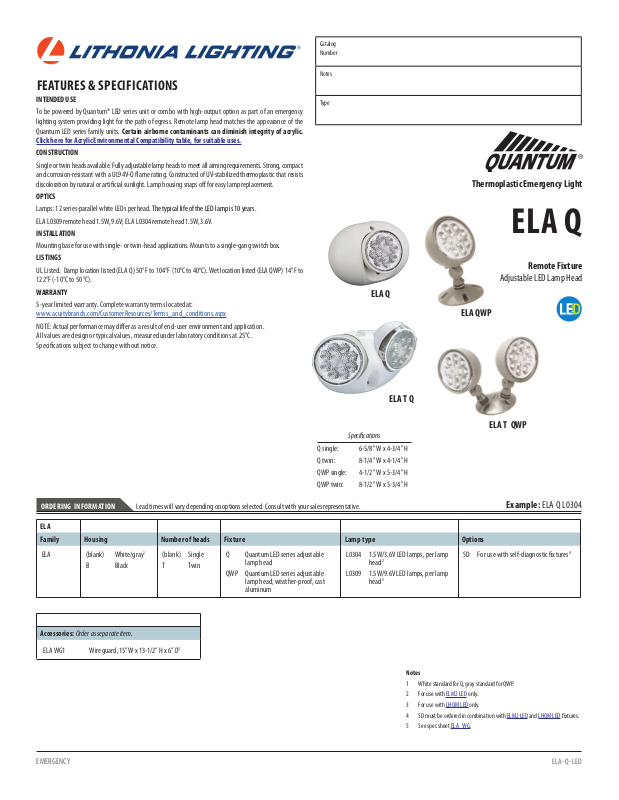

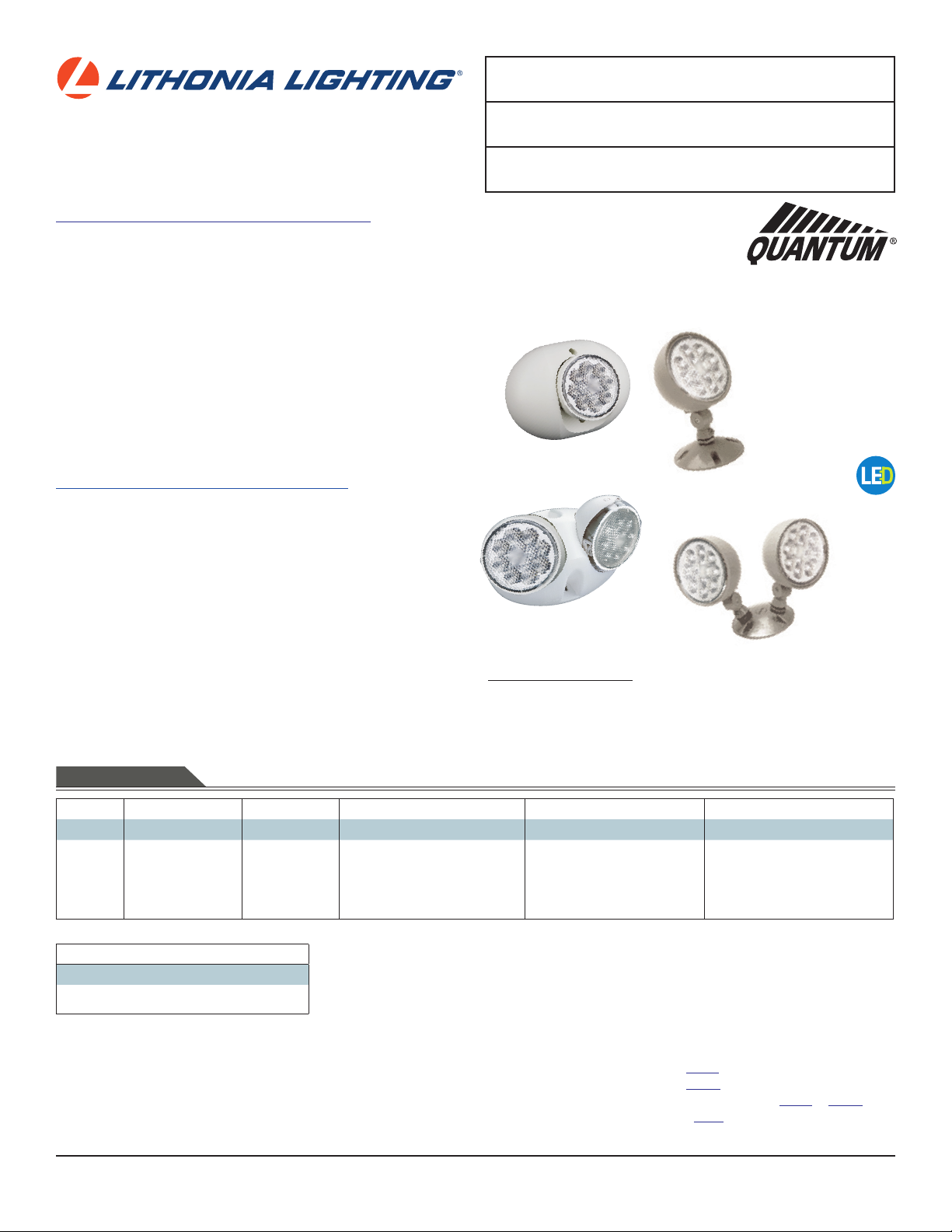

FEATURES & SPECIFICATIONS

INTENDED USE

To be powered by Quantum® LED series unit or combo with high-output option as part of an emergency lighting system providing light for the path of egress. Remote lamp head matches the appearance of the Quantum LED series family units. Certain airborne contaminants can diminish integrity of acrylic.

Click here for Acrylic Environmental Compatibility table, for suitable uses.

CONSTRUCTION

Single or twin heads available. Fully adjustable lamp heads to meet all aiming requirements. Strong, compact and corrosion-resistant with a UL94V-O ﬂame rating. Constructed of UV-stabilized thermoplastic that resists discoloration by natural or artiﬁcial sunlight. Lamp housing snaps oﬀ for easy lamp replacement.

OPTICS

Lamps: 12 series-parallel white LEDs per head. The typical life of the LED lamp is 10 years.

ELA L0309 remote head 1.5W, 9.6V; ELA L0304 remote head 1.5W, 3.6V.

INSTALLATION

Mounting base for use with single- or twin-head applications. Mounts to a single-gang switch box.

LISTINGS

UL Listed. Damp location listed (ELA Q) 50°F to 104°F (10 122°F (-10°C to 50 °C).

WARRANTY

5-year limited warranty. Complete warranty terms located at:

www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx

NOTE: Act ual performan ce may diﬀer as a result o f end-user envir onment and applica tion. All values ar e design or typic al values, measure d under laborator y conditions at 2 5°C. Speciﬁcations subject to change without notice.

C to 400C). Wet location listed (ELA QWP) 14°F to

Catalog Number

Notes

Type

Thermoplastic Emergency Light

ELA Q

Remote Fixture

Adjustable LED Lamp Head

ELA Q

ELA QWP

ELA T Q

Speciﬁcations

Q single: 6-5/8" W x 4-3/4" H

Q twin: 8-1/4" W x 4-1/4" H

QWP single: 4-1/2" W x 5-3/4" H

QWP twin: 8-1/2" W x 5-3/4" H

ORDERING INFORMATION

ELA

Family Housing Number of heads Fixtur e Lamp type Options

ELA (blank) White/gray

B Black

Accessories: Order as separate item.

ELA WG1 Wireguard, 15”W x 13-1/2” H x 6” D

Lead times will vary depending on options selected. Consult with your sales representative.

(blank) Single T Twin

Q Quantum LED series adjustable

lamp head

QWP Quantum LED series adjustable

lamp head, weather-proof, cast aluminum

L0304 1.5W/3.6V LED lamps, per lamp

L0309 1.5W/9.6V LED lamps, per lamp

head

Notes

1 White standard for Q, gray standard for QWP.

2 For use with ELM2 LED only.

3 For use with LHQM LED only.

4 SD must be ordered in combination with ELM2 LED and LHQM LED ﬁxtures.

5 See spec sheet ELA_WG.

SD For us e with self-diag nostic ﬁxtur es

ELA T QWP

Example: ELA Q L0304

EMERGENCY ELAQLED

Page 2

ELA Q LED QUANTUM® Thermoplastic Emergency Light

The following information is provided to assist in planning layouts for emergency lighting systems. The National Electrical Code limits voltage drop to a maximum of 5% of nominal. Thus, circuit runs must be of suﬃcient size to maintain operating voltage when remote ﬁxtures and/or exit signs are connected to the emergency lighting equipment. The table below shows the length of wire run based on system voltage, wire gauge and total wattage on the run.

ELA_ L0304 conﬁgurations (for use with ELM2 LED)

AWG 18 16 14 12 10

DC Resistance 0.0078 0.0049 0.0031 0.0019 0.0012

(ohms/ft)

Watts Length of Run

1.5 26 42 67 106 170

3 13 21 33 53 85

4.5 9 14 22 35 57

6 7 10 17 27 42

7.5 5 8 13 21 34

9 4 7 11 18 28

10.5 4 6 10 15 24

12 3 5 8 13 21

ELA_ L0309 conﬁgurations (for use with LHQM LED)

AWG 18 16 14 12 10

DC Resistance 0.0078 0.0049 0.0031 0.0019 0.0012

(ohms/ft)

Watts Length of Run

1.5 188 298 475 756 1206

3 94 149 238 378 603

4.5 63 99 158 252 402

6 47 75 119 189 301

7.5 38 60 95 151 241

9 31 50 79 126 201

10.5 27 43 68 108 172

12 23 37 59 95 151
