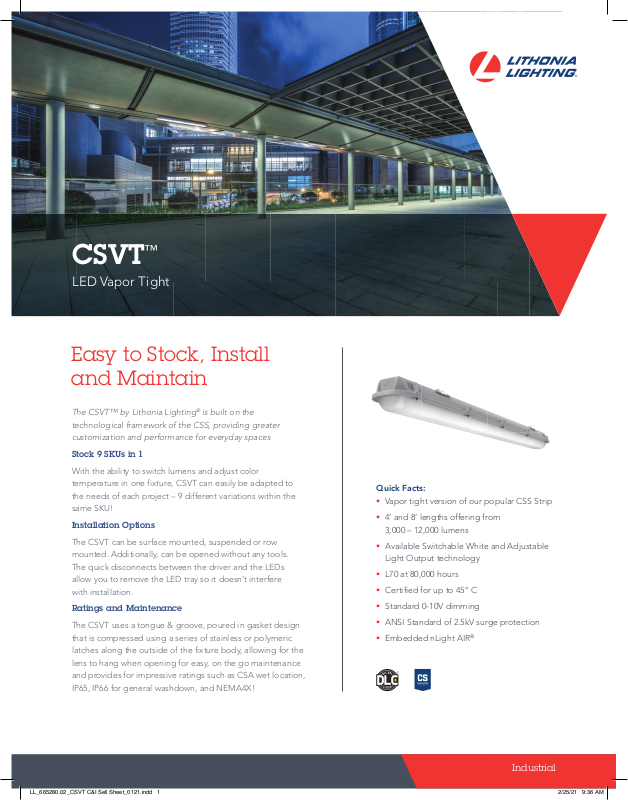

CSVT
LED Vapor Tight
Easy to Stock, Install
and Maintain
The CSVT™ by Lithonia Lighting® is built on the
technological framework of the CSS, providing greater
customization and performance for everyday spaces
Stock 9 SKUs in 1
With the ability to switch lumens and adjust color
temperature in one fixture, CSVT can easily be adapted to
the needs of each project – 9 different variations within the
same SKU!
Installation Options
The CSVT can be surface mounted, suspended or row
mounted. Additionally, can be opened without any tools.
The quick disconnects between the driver and the LEDs
allow you to remove the LED tray so it doesn’t interfere
with installation.
Ratings and Maintenance
The CSVT uses a tongue & groove, poured in gasket design
that is compressed using a series of stainless or polymeric
latches along the outside of the fixture body, allowing for the
lens to hang when opening for easy, on the go maintenance
and provides for impressive ratings such as CSA wet location,
IP65, IP66 for general washdown, and NEMA4X!
Quick Facts:
Vapor tight version of our popular CSS Strip
4’ and 8’ lengths offering from
3,000 – 12,000 lumens
Available Switchable White and Adjustable
Light Output technology
L70 at 80,000 hours
Certified for up to 45° C
Standard 0-10V dimming
ANSI Standard of 2.5kV surge protection
Embedded nLight AIR
®
Industrial
LL_665280.02_CSVT C&I Sell Sheet_0121.indd 1LL_665280.02_CSVT C&I Sell Sheet_0121.indd 1 2/25/21 9:36 AM2/25/21 9:36 AM
Page 2
Switch it up!
Choose the CSVT Switchable option for the ability to switch both lumens and color temperature in one fixture.
Switch and Features
Adjustable Lumens:
(4’) 3,000L to 5,000L
(8’) 6,000L to 10,000L
Great for:
Distributors
Stock 9 different
configurations with 1 SKU!
Increase inventory turns
Fewer orders from the factory
Switchable White:
3500K to 5000K
Contractors
Easier to keep on hand
Get on the job site quicker
Fewer trips to distributor
1 SKU fits all solutions
End User
Customizable to the space
Change look and feel over
time
Great for many applications
Tool Space Garage Workshop
Visit www.lithonia.com for more information
One Lithonia Way | Conyers, Georgia 30012 | 800-705-SERV (7378) | www.acuitybrands.com
