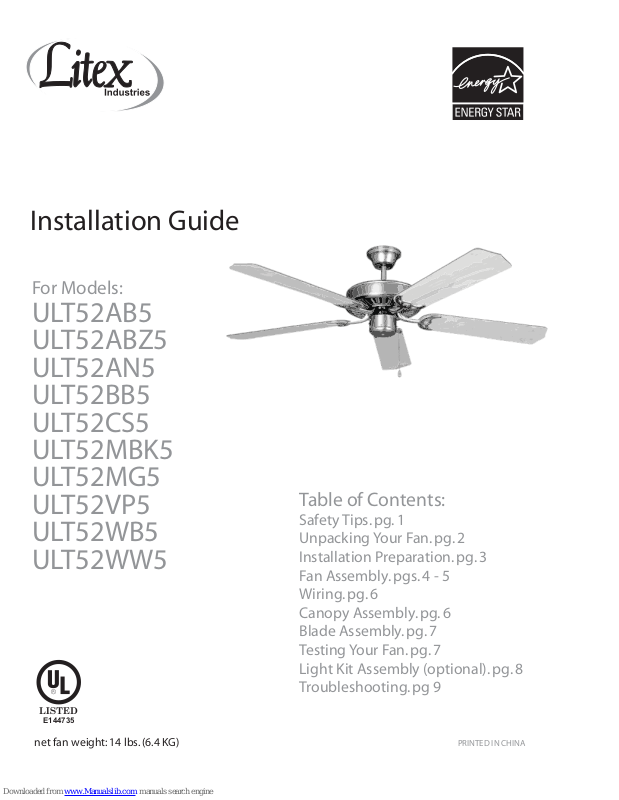

Page 1
Installation Guide
For Models:
ULT52AB5
ULT52ABZ5
ULT52AN5
ULT52BB5
ULT52CS5
ULT52MBK5
ULT52MG5
ULT52VP5
ULT52WB5
ULT52WW5
E144735
net fan weight: 14 lbs. (6.4 KG)
Table of Contents:
Safety Tips. pg. 1
Unpacking Your Fan. pg. 2
Installation Preparation. pg. 3
Fan Assembly. pgs. 4 - 5
Wiring. pg. 6
Canopy Assembly. pg. 6
Blade Assembly. pg. 7
Testing Your Fan. pg. 7
Light Kit Assembly (optional). pg. 8
Troubleshooting. pg 9
PRINTED IN CHINA
Page 2
SAFETY TIPS.
WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box
or circuit panel before you begin the fan installation or before servicing the fan or installing accessories.
1. Read all instructions and safety information carefully before installing your fan and save these
instructions.
2. Make sure all electrical connections comply with Local Codes or Ordinances and the National
Electrical Code. If you are unfamiliar with electrical wiring, please use a qualified electrician.
3. Make sure you have a location selected for your fan that allows clear space for the blades to
rotate, and at least seven (7) feet (2.13 meters) of clearance between the floor and the fan blade
tips. The fan should be mounted at least thirty (30) inches (76 centimeters) from walls or other
upright structures.
4. The outlet box must be securely mounted to the ceiling support joist and they must be capable
of supporting at least 35 pounds (16 kilograms). The box must be supported directly by the
building structure. Use only UL listed outlet boxes marked "FOR FAN SUPPORT."
WARNING: To reduce the risk of fire, electrical shock, or personal injury, mount to the outlet box
marked "Acceptable for Fan Support," and use the mounting screws provided with the outlet box.
Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan
support and may need to be replaced. Consult a qualified electrician if in doubt.
WARNING: To reduce the risk of fire, electrical shock, or personal injury, wire nuts/wire connectors
provided with this fan are designed to accept only one12 gauge house wire and two lead wires from
the fan. If your house wire is larger than 12 gauge or there is more than one house wire to connect to
the two fan lead wires, consult an electrician for the proper size wire nuts/wire connectors to use.
5. Electrical diagrams are for reference only. Light kits that are not packed with the fan must be UL
listed and marked suitable for use with the model fan you are installing. Switches must be UL
general use switches. Refer to the instructions packaged with the light kits and switches for
proper assembly.
6. After installation is complete, check that all connections are absolutely secure.
7. After making electrical connections, spliced conductors should be turned upward and pushed
carefully up into the outlet box. The wires should be spread apart with the grounded
conductor and the equipment-grounding conductor on opposite sides of the outlet box.
WARNING: To reduce the risk of fire or injury, do not use this product in conjunction with any variable
(rheostat) wall control.
8. Do not operate the reverse switch until the fan has come to a complete stop.
9. Do not insert anything between the fan blades while they are rotating.
WARNING: To reduce the risk of personal injury, do not bend the blade brackets during assembly or
after installation. Do not insert objects into the path of the blades.
WARNING: To avoid personal injury or damage to the fan and other items, be cautious when working
around or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly
dampened cloth will be suitable for most cleaning.
NOTE: The important safety precautions and instructions appearing in the manual are not meant to
cover all possible conditions and situations that may occur. It must be understood that common sense
and caution are necessary factors in the installation and operation of this fan.
page 1
Page 3

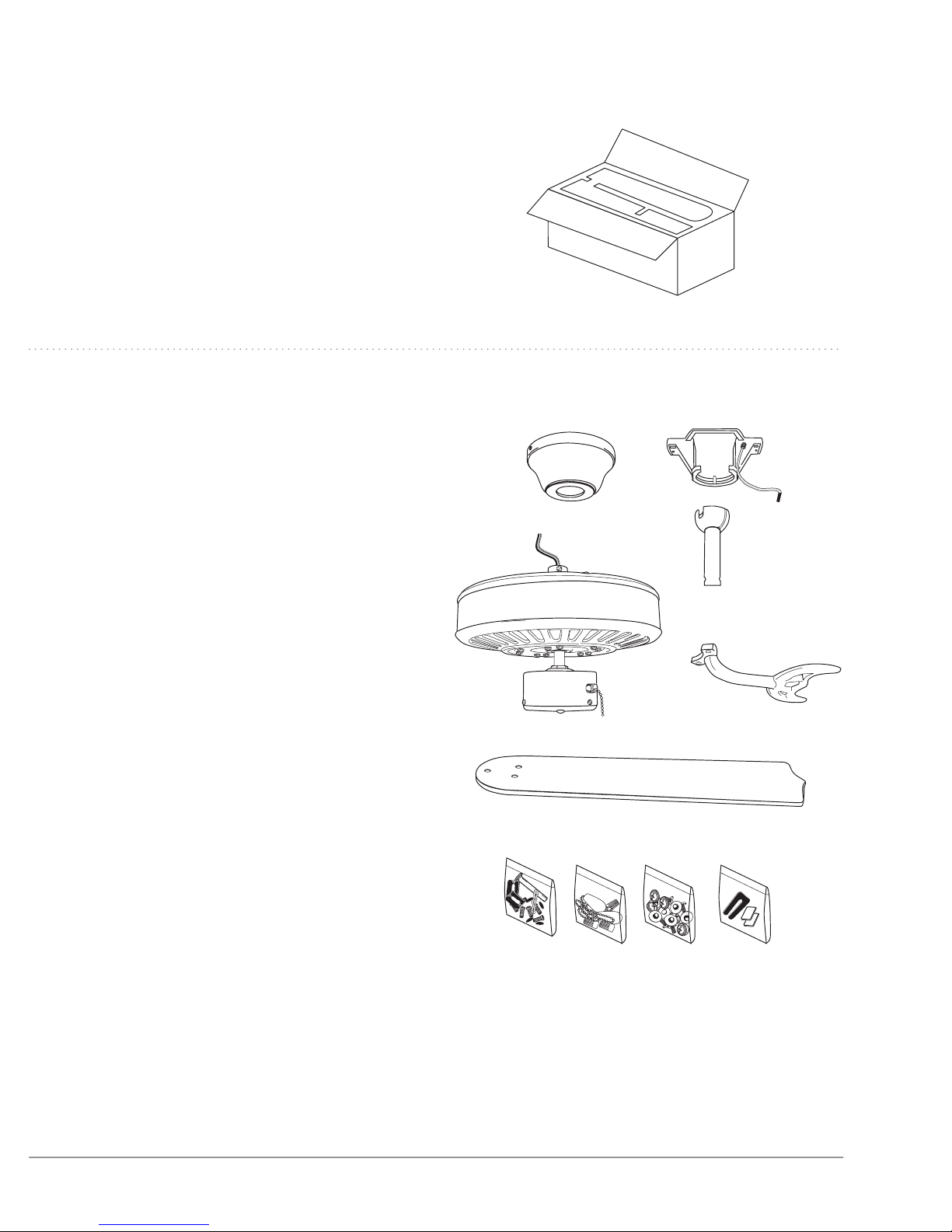

1. Unpacking Your Fan.
Carefully open the packaging. Remove items
from Styrofoam inserts. Remove motor housing
and place on carpet or Styrofoam to avoid
damage to finish. Do not discard fan carton or
Styrofoam inserts should this fan need to be
returned for repairs.
Check against parts inventory that all parts have
been included.
2. Parts Inventory.
a. canopy. 1 piece
b. hanging bracket. 1 piece
c. 4-inch downrod and hanging ball. 1 piece
d. motor housing. 1 piece
e. blade arm. 5 pieces
f. blade. 5 pieces
g. hardware packs
ab
c
d
e
f
g
page 2
Page 4

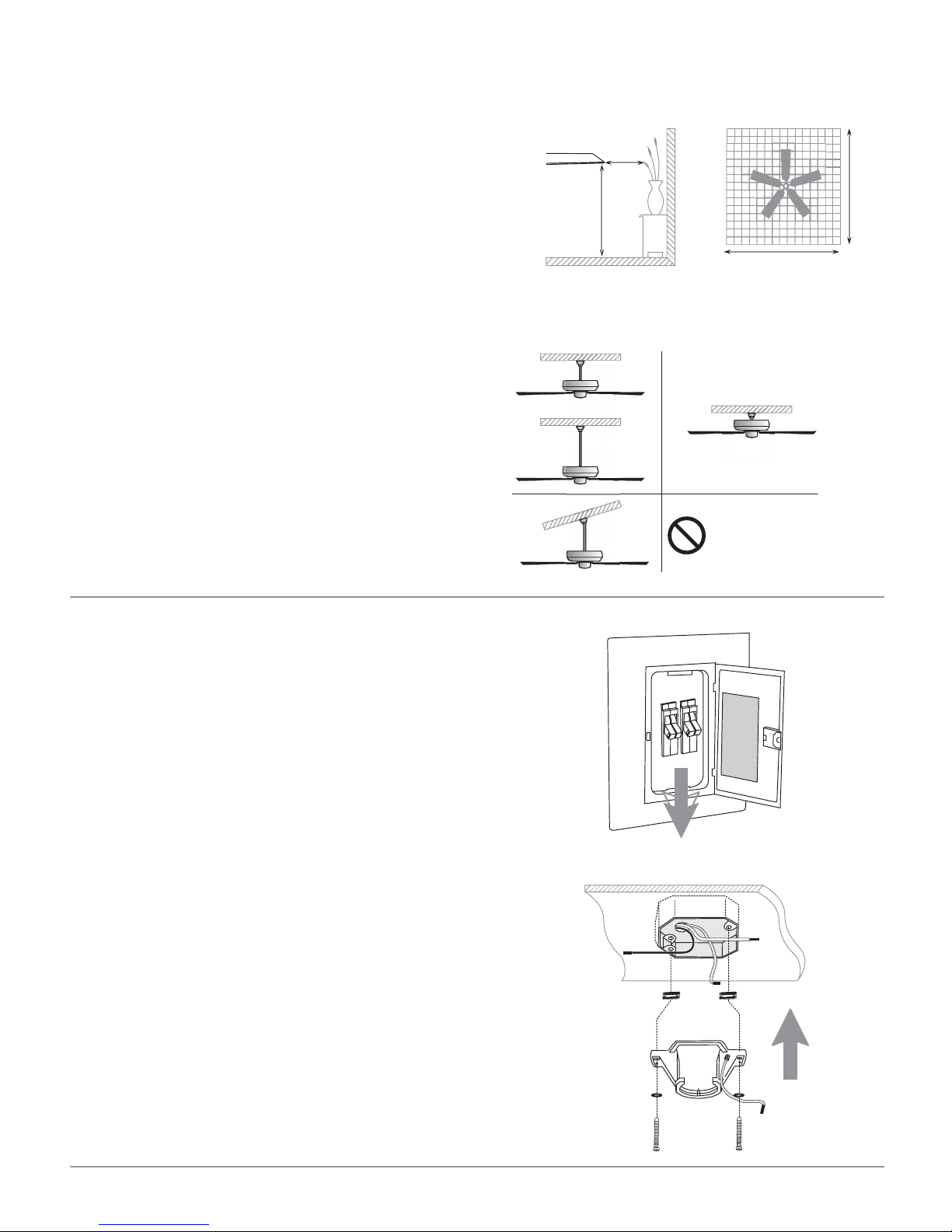

3. Installation Preparation.
To prevent personal injury and damage ensure
that the hanging location allows the blades a
clearance of 84" (213 cm) from the floor and 30"
(76 cm) from any wall or obstruction.
This fan is suitable for room sizes up to 400
square feet (37.2 square meters).
blade edge
84
inches
(213 cm)
30
inches
(76 cm)
12 ft. - 20 ft.
(3.66 m - 6.1 m)
12 ft. - 20 ft.
(3.66 m - 6.1 m)
This fan can be mounted with a downrod
on a normal or vaulted ceiling. The hanging
length can be extended by purchasing a longer
downrod (.5 in./12.7mm diameter). Continue to
Step 5 on page 4 after Hanging Bracket Installation.
Fan can also mount as a flushmount installation
on a normal ceiling only. Continue to Step 6 on
page 5 after Hanging Bracket Installation.
Installation requires these tools:
Phillips screwdriver, flat-head screwdriver,
adjustable pliers or wrench, stepladder, wire
cutters, and rated electrical tape.
4. Hanging Bracket Installation.
Turn off circuit breakers to current fixture from
breaker panel and be sure operating light switch
is turned to the off position.
WARNING: Failure to disconnect power supply
prior to installation may result in serious injury.
downrod
installation
flushmount
installation
Vaulted ceiling
angle is not to
exceed 29 degrees.
ON
ON
OFF
OFF
Remove existing fixture.
WARNING: When using an existing outlet box be
sure the box is securely attached to the building
structure and can support the full weight of the fan.
Ensure it is clearly marked "Suitable for Fan
Support." If not, it must be replaced with an
approved one. Failure to do so can result in serious
injury.
Install hanging bracket to outlet box using
original screws and spring washers provided
with new or original outlet box. If installing on a
vaulted ceiling, face opening of hanging bracket
towards high point of ceiling. Arrange electrical
wiring around the back of the hanging bracket
and away from the bracket opening.
rubber cushions
hanging bracket
spring washers
outlet box screws
page 3
Page 5

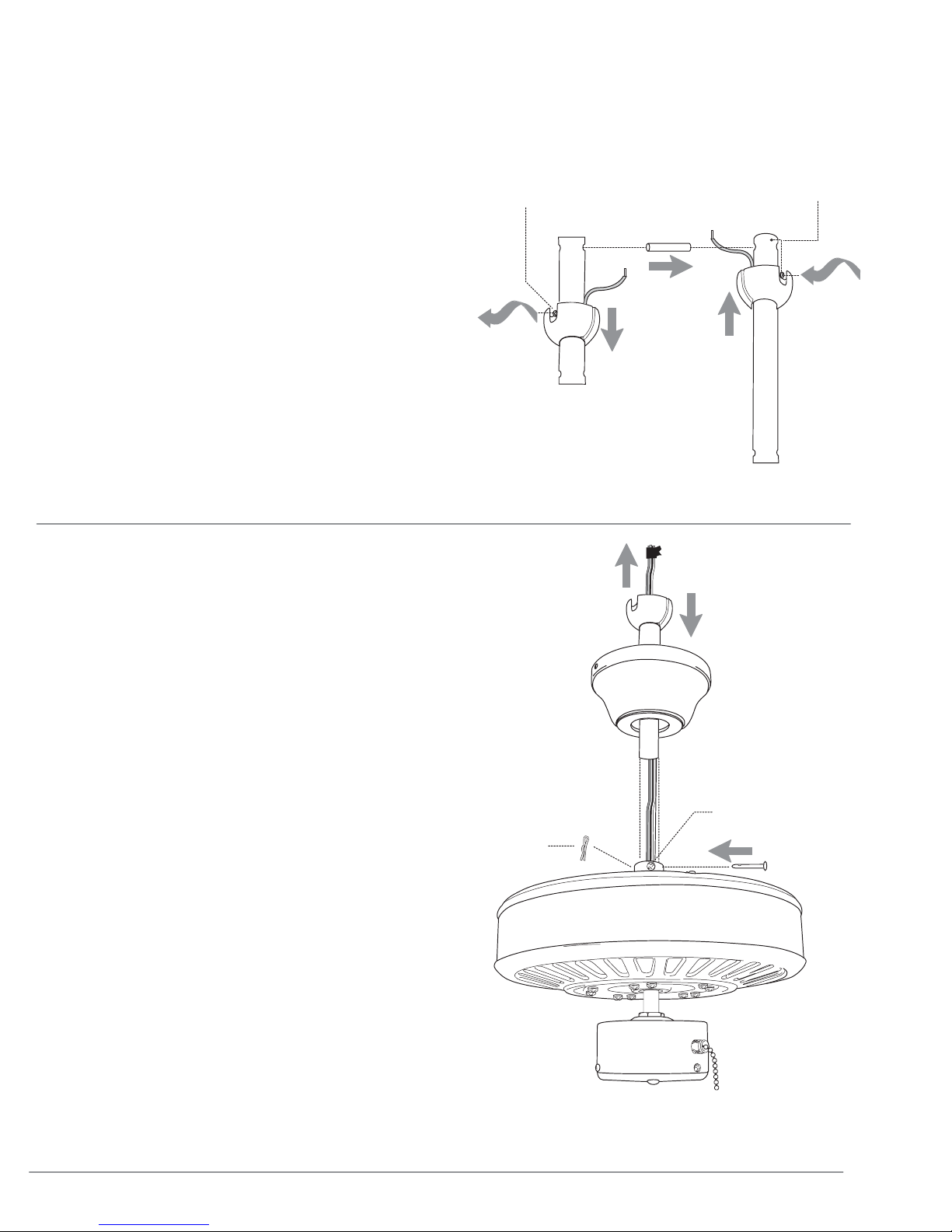

5. Fan Assembly. (downrod).
If you wish to extend the hanging length of your
fan you must purchase a matching downrod of
the desired length.
To remove the hanging ball from the 4-inch
downrod, loosen the set screw on the hanging
ball. Lower ball and remove the stop pin. Slide
ball off the original downrod, A. Slide down the
longer downrod, B (the top of the downrod
should be noted as having a set screw hole; use
this hole when setting the set screw). Insert stop
pin into top of extended downrod and raise
hanging ball. Be sure stop pin aligns with slots on
the inside of the hanging ball. Tighten set screw
securely.
Slide downrod through canopy.
Thread electrical wires through downrod and
pull extra wire slack from the upper end of the
downrod.
Tip: Apply small piece of electrical tape to the
ends of the electrical wires to keep them
together when threading through the downrod.
set screw
electrical wiring
set screw hole
stop pin
hanging ball
A
B
downrod
Loosen yoke set screw and nut. Place downrod
into the motor housing yoke and insert pin and
clip. Tighten yoke set screw and nut securely.
NOTE: The important safety precautions and
instructions appearing in the manual are not
meant to cover all possible conditions and
situations that may occur. It must be understood
that common sense and caution are necessary
factors in the installation and operation of this fan.
page 4
clip
yoke set screw
pin
Page 6

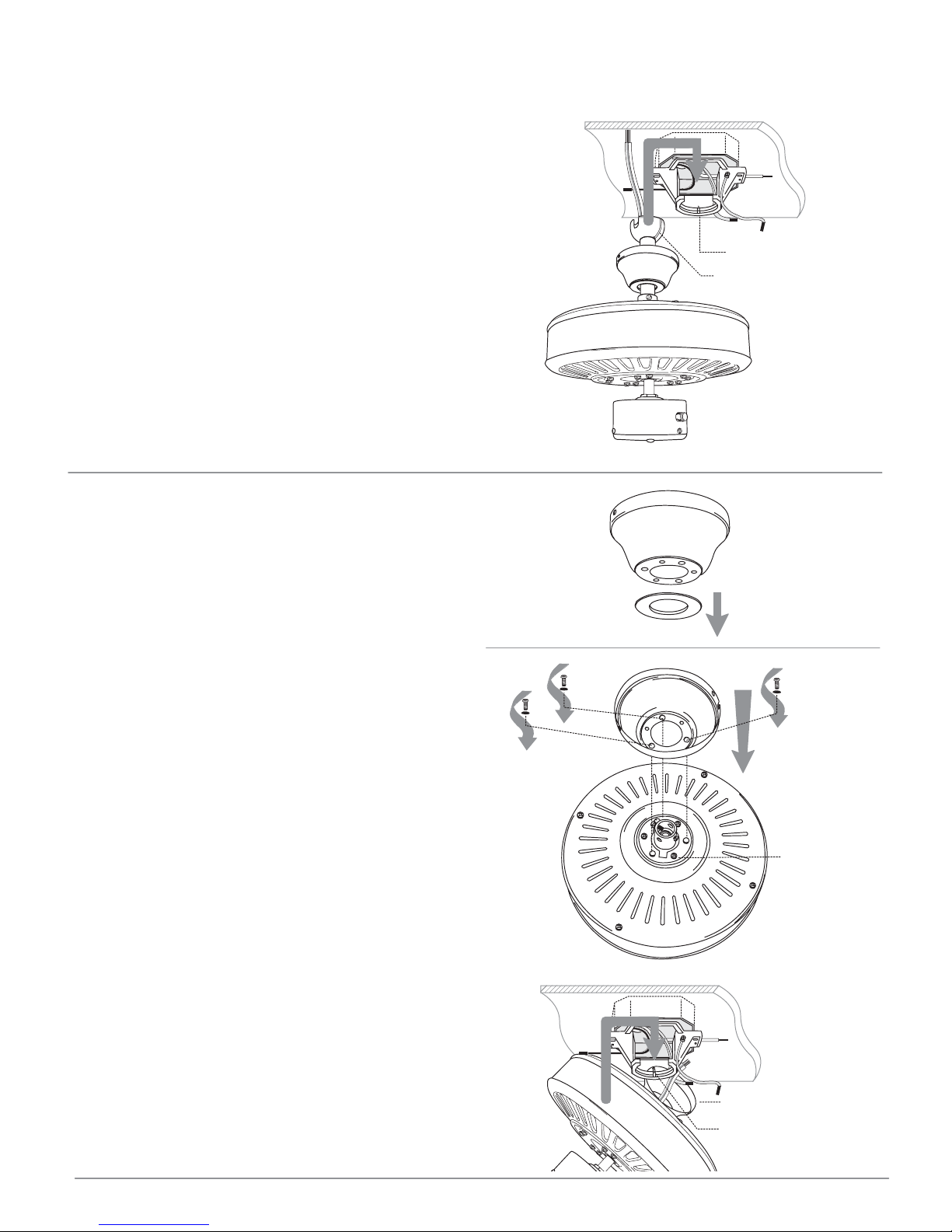

5. Fan Assembly (downrod). (cont.)
With the hanging bracket secured to the junction
box and able to support the fan you are now ready
to hang your fan. Grab the fan firmly with two
hands. Slide downrod through opening in hanging
bracket and let hanging ball rest on the hanging
bracket. Turn the hanging ball slot until it lines up
with the hanging bracket tab
Tip: Seek the help of another person to hold the
stepladder in place and to lift the fan up to you
once you are set on the ladder.
Continue to "Wiring" section for wiring diagram.
6. Fan Assembly. (flushmount).
Remove and discard canopy cover to reveal 6
holes. Notice that 3 holes are larger.
hanging bracket tab
hanging ball slot
canopy
canopy cover
Locate canopy screws and lock washers in
hardware pack or remove from motor yoke if
preinstalled. Place canopy over yoke (larger holes
should align with existing screws) and install 3
screws and 3 lock washers in remaining holes. Be
sure that these screws are fastened tightly.
To prepare the fan for wiring, hang fan onto
hanging bracket by sliding the canopy over the
hanging bracket tab. (Use one of the unslotted
holes on the edge of the canopy.)
Continue to "Wiring" section for wiring diagram.
canopy
motor yoke
screw
motor housing
canopy
hanging bracket tab
motor housing
page 5
Page 7

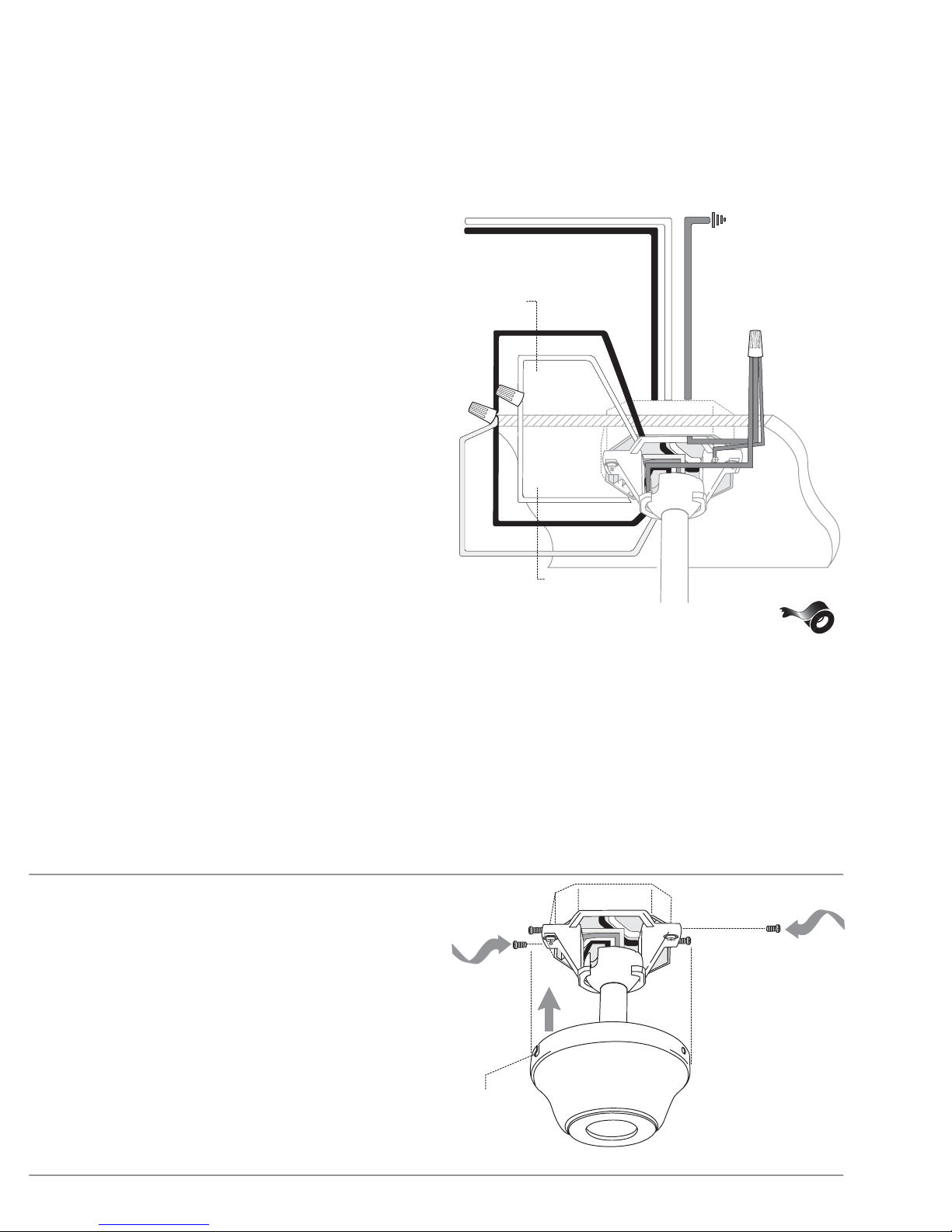

7. Wiring.
Important: Be sure outlet box is properly grounded
or that a ground (GREEN or Bare) wire is present.
Make sure all electrical connections comply with
Local Codes or Ordinances and the National
Electrical Code. If you are unfamiliar with electrical
wiring, please use a qualified electrician.
When fan is secured in place on the hanging
bracket, electrical wiring can be
made (diagram 1).
Connect BLACK and ¹BLUE wire from fan to
BLACK wire from ceiling with wire nut.
Connect WHITE wire from fan to WHITE wire
from ceiling with wire nut.
Connect all GROUND(GREEN) wires together
from fan to BARE/GREEN wire from ceiling with
wire nut.
¹ If you intend to control the fan light (not
included) with a separate light switch, connect
BLUE wire from fan to the BLACK supply from
the independent switch.
from ceiling
diagram 1
white supply wire
black supply wire
black
white
white
black
¹blue
from fan
ground (green
or bare)
ground (green
or bare)
*
* Wrap all wire nuts with electrical tape as an
extra measure for safety.
This fan is remote control adaptable.
8. Canopy Assembly.
Partially insert a screw into the mounting bracket
in 2 of the 4 holes on either side of the hanging
bracket as shown in the diagram--one on the left,
in the hole towards the front, and one on the
right, in the hole towards the back. Raise canopy
to the hanging bracket and line key slot holes up
with loosened screws. Twist to lock. Insert
remaining screws and secure all screws with
Phillips screwdriver.
slotted
hole
hanging bracket
canopy
page 6
Page 8

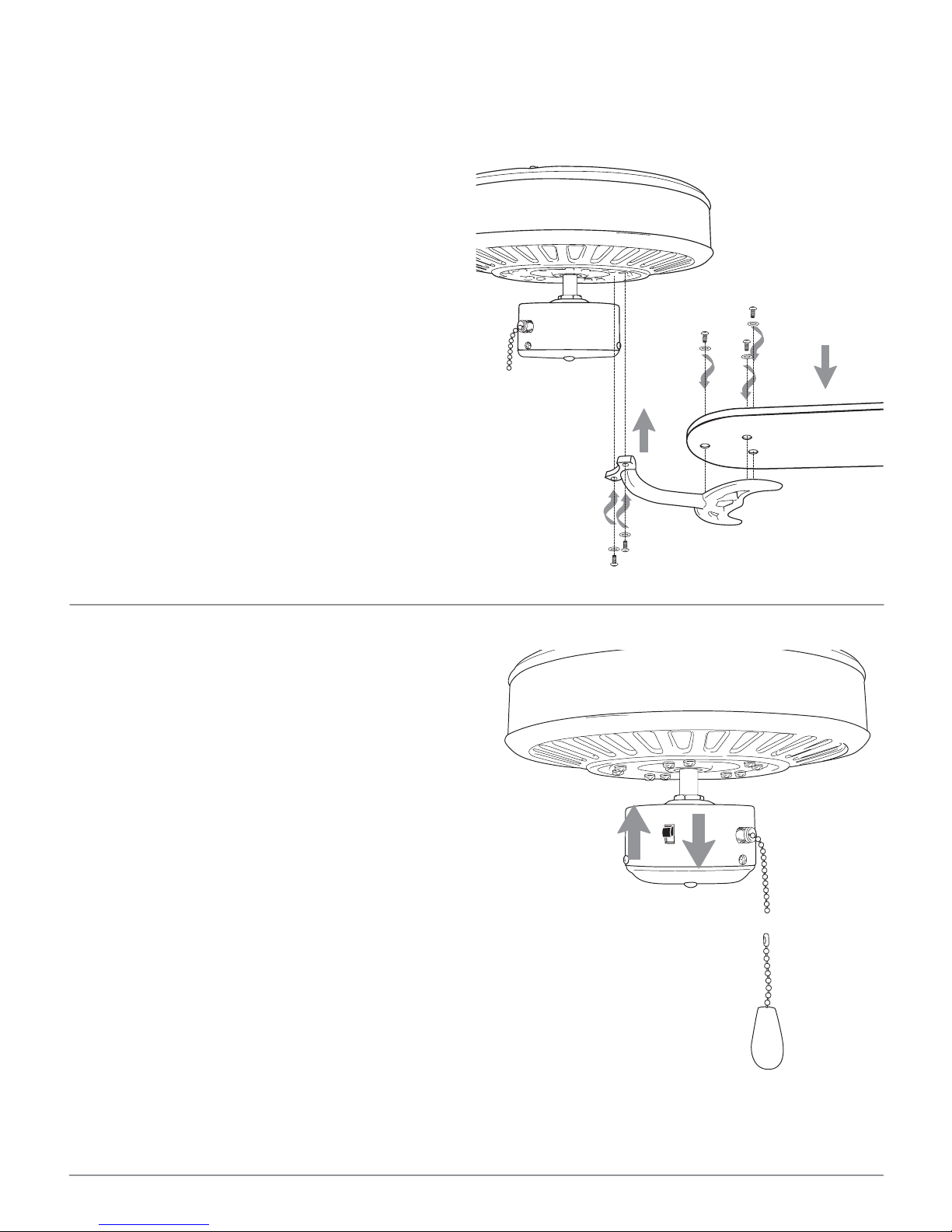

9. Blade Assembly.
Locate 15 blade attachment screws and
washers in hardware pack. Hold blade arm up
to blade and align holes. Insert 3 blade
attachment screws and washers with fingers.
Tighten securely with a Phillips screwdriver.
Repeat procedure for the remaining blades.
motor housing
Remove blade arm screws and lock washers
from fan motor and set aside. Then, if
applicable, remove motor shipping pads from
motor and discard. Align blade arm holes with
motor screw holes and attach blade arm with
screws and lock washers. Before securing
screws permanently, repeat this procedure
with remaining blade arms. Secure all screws.
10. Testing Your Fan.
It is recommended that you test fan before
finalizing installation. Restore power from circuit
box and light switch (if applicable). Test fan
speeds with the pull chain. Start at the OFF
position (no blade movement). First pull will set
the fan to HI. Second pull will set the fan to
MEDIUM. Third pull will set the fan to LOW. Next
pull will again set the fan to OFF setting. If fan
does not function, please refer to
"Troubleshooting" to solve any issues before
contacting Customer Service.
blade
blade arm
reverse switch
pull chain
Turn fan completely off when operating the
reverse switch. Set to recirculate air depending
on the season.
Pull chain supplied or a custom pull chain can be
attached to fan.
page 7
Page 9

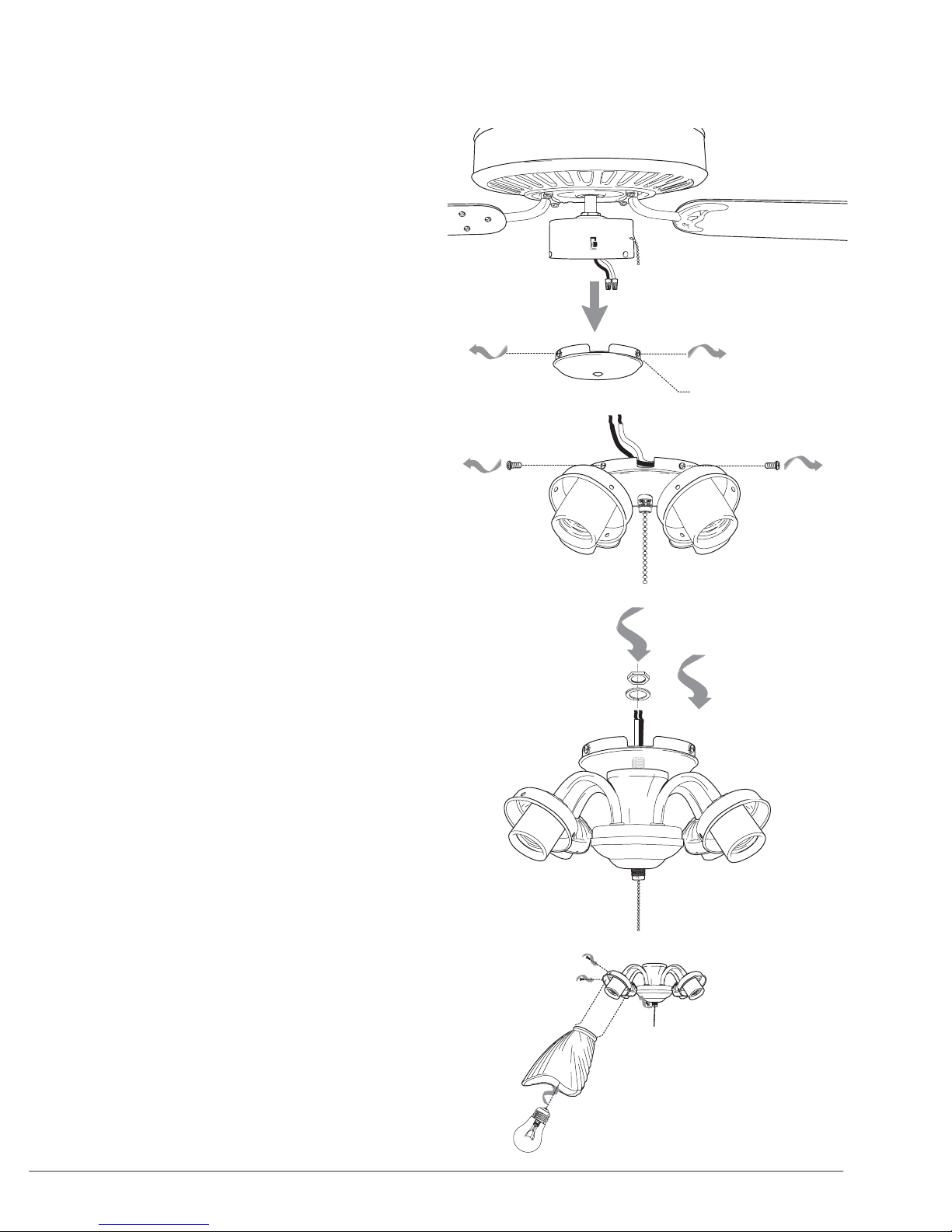

11. Light Kit Assembly (optional).
WARNING: Failure to disconnect power
supply at main panel prior to light kit assembly
may result in serious injury.
If you wish to use your fan with a light kit:
Remove three screws from switch housing.
Remove switch housing plate from switch
housing.
Locate BLUE and WHITE wires in the switch
housing labeled FOR LIGHT. Remove and discard
cardboard label and plastics that hold these two
wires together.
If your light kit is to be mounted directly to switch
housing, remove three screws from light kit. Make
wire connections as described below.
motor housing
switch housing
switch housing plate
If your light kit is to be attached by a threaded
rod, remove the hex nut and washer from light kit.
Punch center cap out of switch housing plate with
a screwdriver. Push wires from light kit through
center hole and screw switch housing plate onto
threaded rod followed by the previously removed
washer and hex nut. Tighten hex nut over washer
for a secure fit. Make wire connections as
described below.
Connect the WHITE wire from the light kit to the
WHITE wire from the switch housing. Connect the
BLACK wire from the light kit to the BLUE wire
from the switch housing. Use wire nuts when
making the connections. Attach light kit to fan by
securely tightening the three screws that were
previously removed.
Attach glass shades to light kit using the provided
hardware. If you are installing a bowl fixture, the
bulbs must be installed first.
Lamp with the light kit's specified bulbs. If you are
installing a halogen bulb, be sure not to handle
glass directly with your fingers as oil from the skin
shortens the life of the bulb.
switch housing
light kit
page 8
Page 10
Troubleshooting.
Problem: Fan fails to operate.
Solutions:
1. Check wall switch to fan.
2. Verify that reverse switch is set completely in
either direction.
3. Be sure fan is wired properly.
Problem: Light kit not lighting.
Solutions:
1. Check wall switch to fan.
2. Check that bulbs are installed correctly.
3. Be sure wires in canopy are wired properly.
Problem: Fan wobbles.
Solution:
1. Use the balancing kit in your hardware pack.
Parts Replacement.
For parts and information please refer to "Parts
Inventory" on page two.
Customer Support:
1.800.527.1292
www.litexfans.com
Warranty.
Litex 30-Year Limited Warranty:
LITEX INDUSTRIES, LTD. warrants this fan to the original
household purchaser for indoor use under the following
provisions:
1-YEAR WARRANTY: LITEX INDUSTRIES, LTD. will replace or
repair any fan which has faulty performance due to a
defect in material or workmanship. Contact Litex Customer
Service at 1-800-527-1292 to arrange for return of fan.
Return fan, shipping prepaid to Litex Industries, Ltd. We will
repair or ship you a replacement fan, and we will pay the
return shipping cost.
5-YEAR WARRANTY: LITEX INDUSTRIES, LTD. will repair or
replace at no charge to the original purchaser any fan
motor that fails to operate satisfactorily when failure
results from normal use.
RETURN FAN MOTOR ONLY, shipping prepaid, to Litex
Industries. We will repair or ship purchaser a replacement
motor and Litex will pay the return shipping cost.
6 TO 30-YEAR WARRANTY: LITEX INDUSTRIES,LTD. will
repair at no charge to the original purchaser if the fan
motor fails to operate satisfactorily when failure results
from normal use. Parts used in the repair will be billed to
the purchaser at prevailing prices at time of repair.
The purchaser shall be responsible for all costs incurred
in the removal, reinstallation and shipping of the product
for repairs.
This warranty does not apply when damage from
mechanical, physical, electrical or water abuse results in
causing the malfunction. Deterioration of finishes or other
parts due to time or exposure to salt air is specifically
exempted under this warranty.
Neither Litex Industries nor the manufacturer will
assume any liability resulting from improper installation or
use of this product. In no case shall the company be liable
for any consequential damages for breach of this, or any
other warranty expressed or implied whatsoever. This
limitation as to consequential damages shall not apply in
states where prohibited.
page 9
Loading...
