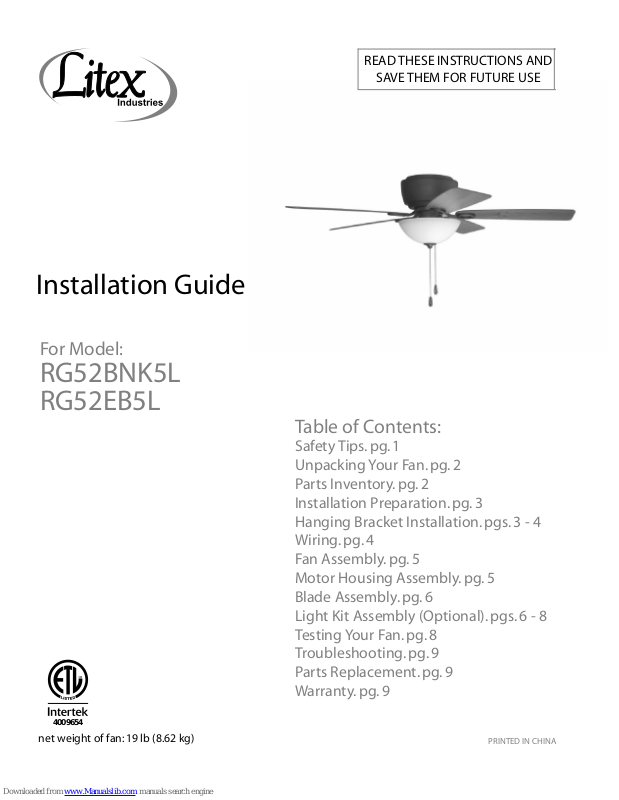

Installation Guide
For Model:
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE
RG52BNK5L
RG52EB5L
Table of Contents:
Safety Tips. pg. 1
Unpacking Your Fan. pg. 2
Parts Inventory. pg. 2
Installation Preparation. pg. 3
Hanging Bracket Installation. pgs. 3 - 4
Wiring. pg. 4
Fan Assembly. pg. 5
Motor Housing Assembly. pg. 5
Blade Assembly. pg. 6
Light Kit Assembly (Optional). pgs. 6 - 8
Testing Your Fan. pg. 8
Troubleshooting. pg. 9
4009654
net weight of fan: 19 lb (8.62 kg)
Parts Replacement. pg. 9
Warranty. pg. 9
PRINTED IN CHINA
Page 2
SAFETY TIPS.
WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit
panel before you begin the fan installation or before servicing the fan or installing accessories.
1. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN
AND SAVE THESE INSTRUCTIONS.
CAUTION: To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
2. Make sure all electrical connections comply with Local Codes or Ordinances, the National Electrical Code,
and ANSI/NFPA 70-199. If you are unfamiliar with electrical wiring or if the house/building wires are
different colors than those referred to in the instructions, please use a qualified electrician.
3. Make sure you have a location selected for your fan that allows clear space for the blades to rotate, and at
least seven (7) feet (2.13 meters) of clearance between the floor and the fan blade tips. The fan should
be mounted at least thirty (30) inches (76 centimeters) from walls or other upright structures.
4. The outlet box and ceiling support joist used must be securely mounted, and capable of supporting at
least 35 pounds (16 kilograms). The outlet box must be supported directly by the building structure.
Use only ETL or UL listed outlet boxes marked "FOR FAN SUPPORT."
WARNING: To reduce the risk of fire, electrical shock, or personal injury, mount to the outlet box marked
"Acceptable for Fan Support of 15.9 kg (35 lb) or less" and use the mounting screws provided with the outlet box.
Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan support and
may need to be replaced. Consult a qualified electrician if in doubt.
WARNING: To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided with this fan
are designed to accept only one 12 gauge house wire and two lead wires from the fan. If your house wire is
larger than 12 gauge or there is more than one house wire to connect to the two fan lead wires, consult an
electrician for the proper size wire connectors to use.
5. Electrical diagrams are for reference only. Light kits that are not packed with the fan must be ETL or UL
listed and marked suitable for use with the model fan you are installing. Switches must be ETL or UL
general use switches. Refer to the instructions packaged with the light kits and switches for proper
assembly.
6. After installation is complete, check that all connections are absolutely secure.
7. After making electrical connections, spliced conductors should be turned upward and pushed carefully up
into the outlet box. The wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on opposite sides of the outlet box.
WARNING: To reduce the risk of electrical shock or fire, do not use this fan with any solid state speed control
device or control fan speed with a full range dimmer switch. [Using a full range dimmer switch to control fan
speed will cause a loud humming noise from fan.]
8. Do not operate the reverse switch until the fan has come to a complete stop.
9. Do not insert anything between the fan blades while they are rotating.
WARNING: To reduce the risk of personal injury, do not bend the blade arms during assembly or after
installation. Do not insert objects into the path of the blades.
WARNING: To avoid personal injury or damage to the fan and other items, be cautious when working around or
cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened
cloth will be suitable for most cleaning.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use of parts OTHER
than those provided with this fan will void the warranty.
NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all
possible conditions and situations that may occur. It must be understood that common sense and caution are
necessary factors in the installation and operation of this fan.
page 1
Page 3
1. Unpacking Your Fan.
Carefully open the packaging. Remove items
from Styrofoam inserts. Remove motor housing
and place on carpet or Styrofoam to avoid
damage to finish. Do not discard fan carton or
Styrofoam inserts should this fan need to be
returned for repairs.
Check against parts inventory that all parts have
been included.

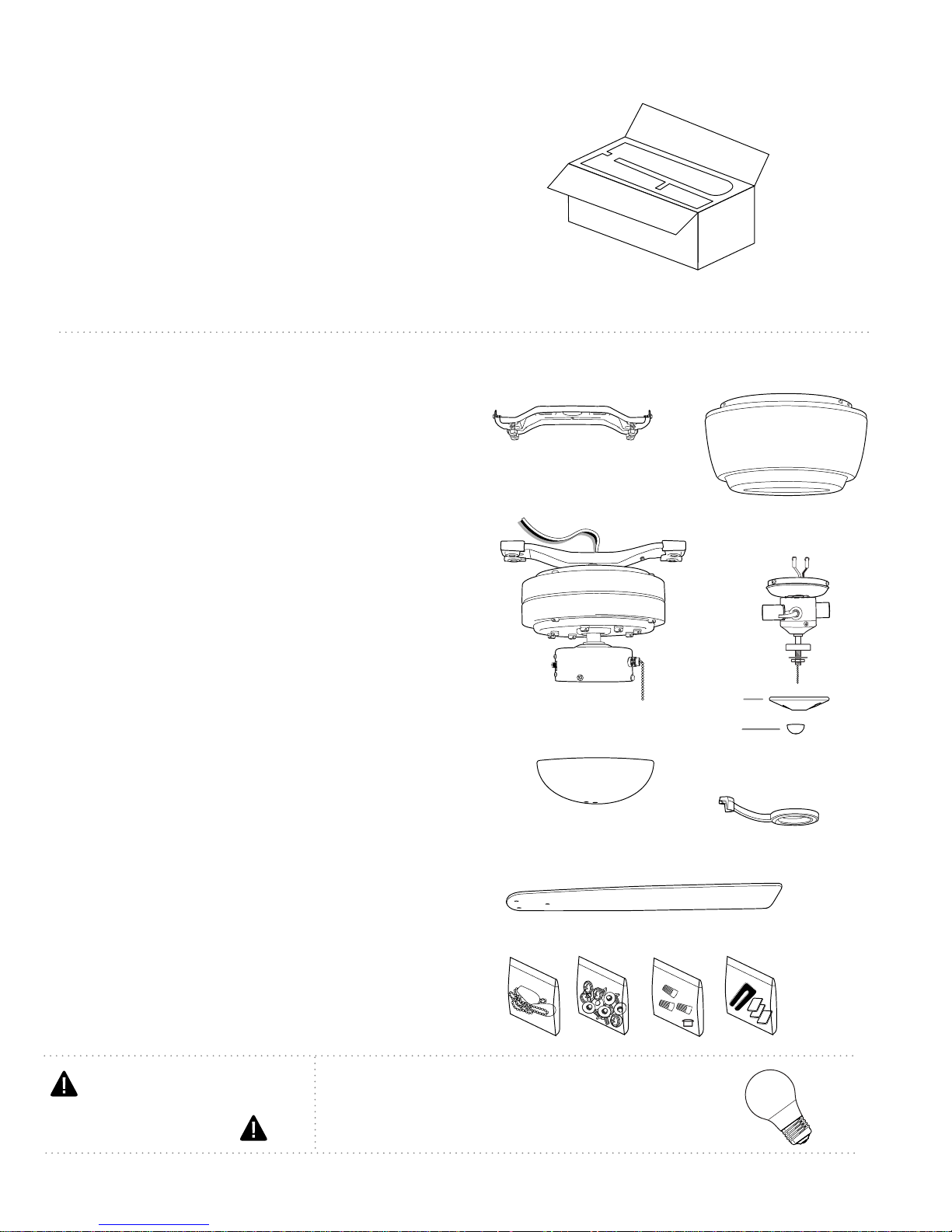

2. Parts Inventory.
a. hanging bracket. 1 piece
b. motor housing. 1 piece
c. motor assembly. 1 piece
d. light kit fitter. 1 piece
e. finial plate (pre-attached to light kit fitter).
1 piece
f. finial (pre-attached to light kit fitter).
1 piece
g. glass shade. 1 piece
h. blade arm. 5 pieces
i. blade. 5 pieces
a
c
g
b
d
e
f
h
j. hardware packs
IMPORTANT REMINDER: You must
use the parts provided with this fan for
proper installation and safety.
i
j
bulbs required:
3 x 6.5 watt medium base LED bulbs
(included)
page 2
Page 4

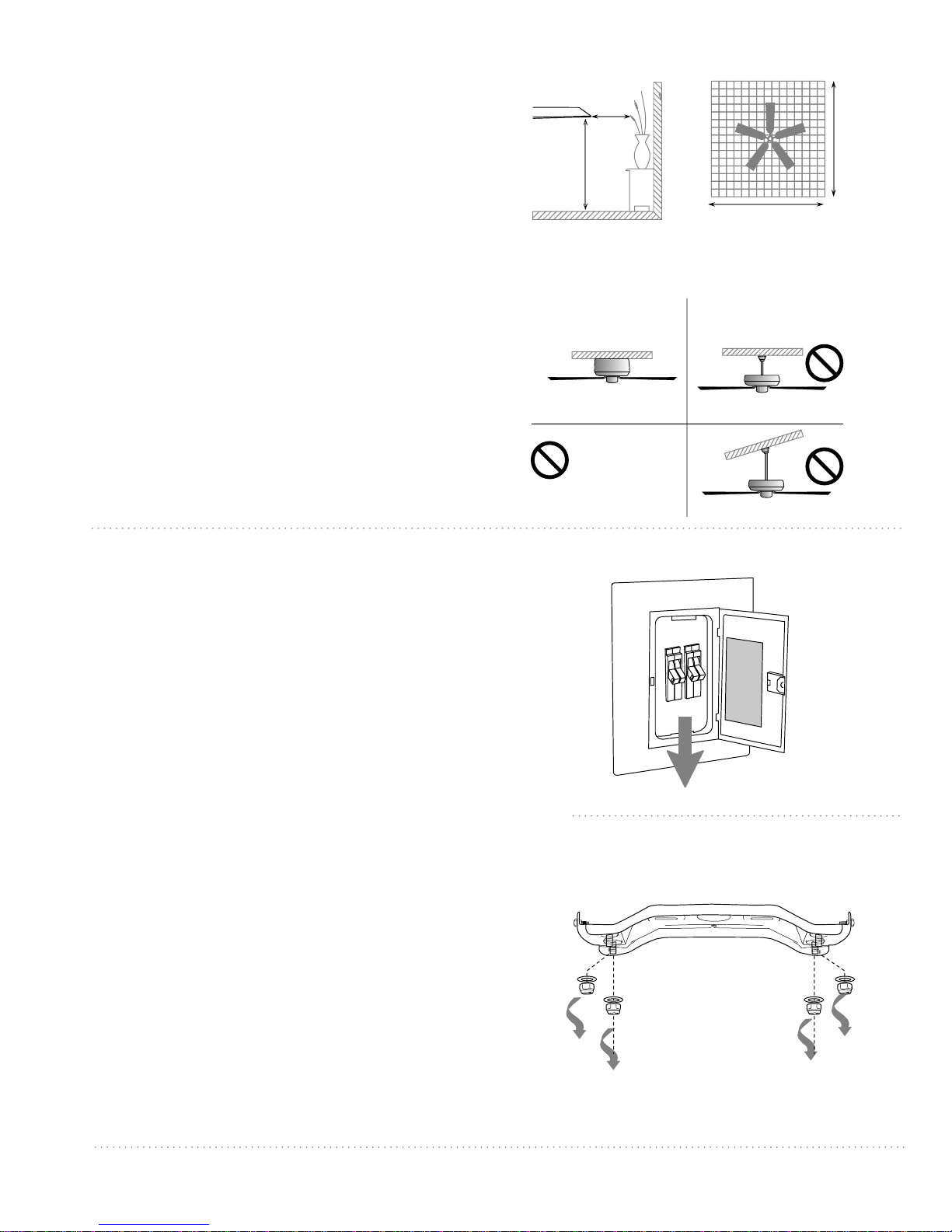

3. Installation Preparation.
blade edge
To prevent personal injury and damage, ensure
that the hanging location allows the blades a
clearance of 7ft. (2.13m) from the floor and 30in.
(76cm) from any wall or obstruction.
This fan is suitable for room sizes up to
400 square feet (37.2 square meters).
This fan can be mounted as a flushmount
on a regular (no-slope) ceiling only. Downrod
installations are not available for this fan.
Installation requires these tools:
Phillips screwdriver, flat-head screwdriver,
adjustable pliers or wrench, stepladder, wire
cutters, and rated electrical tape.
4. Hanging Bracket Installation.
30
inches
7 feet
(76cm)
(2.13m)
flushmount
installation
CANNOT be
installed on
vaulted ceilings
angled or
12ft. - 20ft.
(3.66m - 6.1m)
downrod
installation
12ft. - 20ft.
(3.66m - 6.1m)
Turn off circuit breakers to current fixture from
breaker panel and be sure operating light switch
is turned to the OFF position.
WARNING: Failure to disconnect power supply
prior to installation may result in serious injury.
Remove existing fixture.
WARNING: When using an existing outlet box, be
sure the outlet box is securely attached to the
building structure and can support the full weight
of the fan. Ensure outlet box is clearly marked
"Suitable for Fan Support." If not, it must be
replaced with an approved outlet box. Failure to do
so can result in serious injury.
CAUTION: Be sure outlet box is grounded properly
and that a ground wire (GREEN or bare) is present.
Remove 4 motor mounting nuts and flat
washers from hanging bracket--save for later use.
["Hanging Bracket Installation" continued on
next page.]
hanging
bracket
motor
mounting
nuts and
flat washers
ON
ON
OFF
OFF
page 3
Page 5
4. Hanging Bracket Installation.
(cont.)

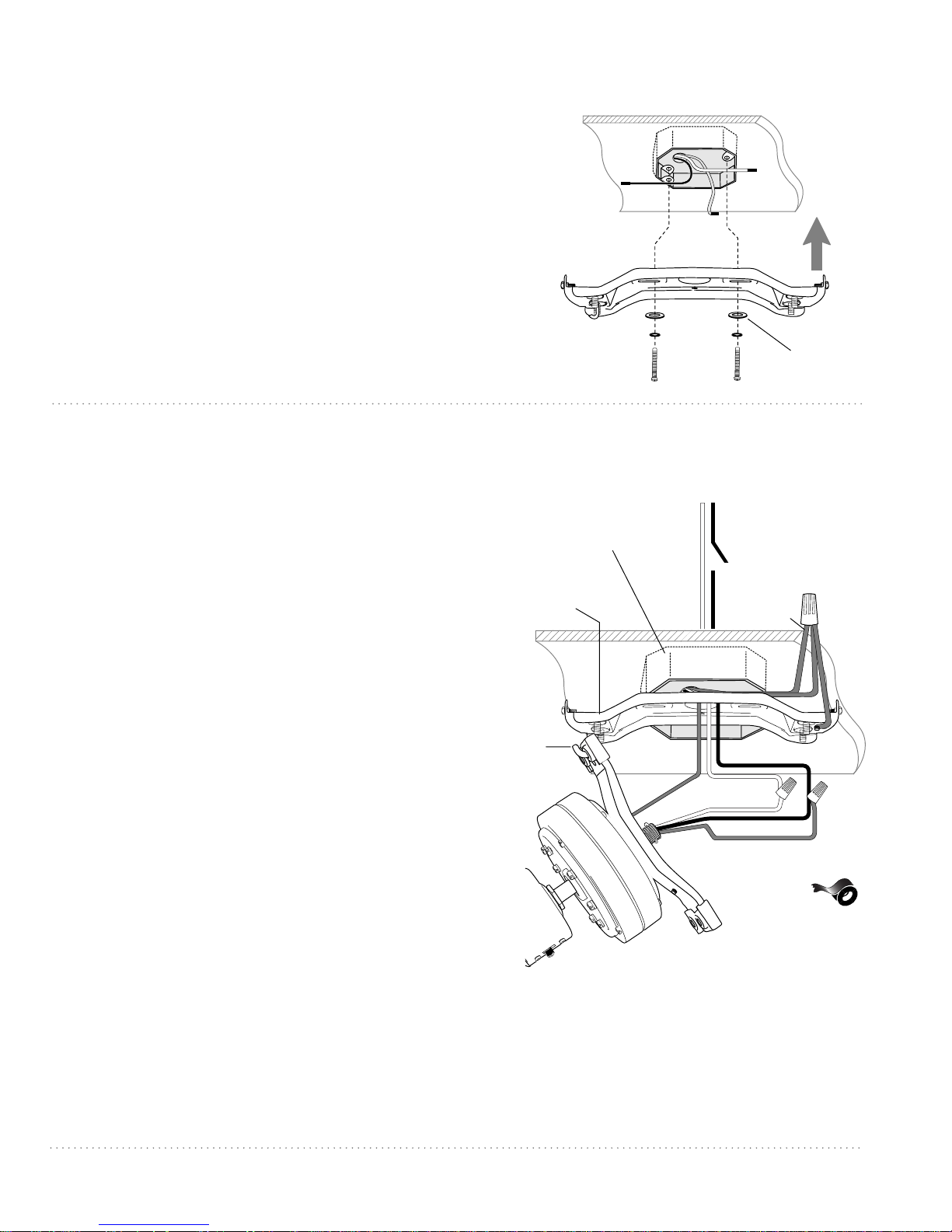

Install hanging bracket to outlet box using
original screws, spring washers and flat washers
provided with new or original outlet box.* Pull
electrical wiring from outlet box through center
hole in the hanging bracket.
*Note: It is very important that you use the proper
hardware when installing the hanging bracket as
this will support the fan.
5. Wiring.
WARNING: Turn off circuit breakers to current
fixture from breaker panel and be sure switch is
turned to the OFF position.
Lift motor assembly to hanging bracket and slide
slot at one end of motor assembly over j-hook on
hanging bracket. This will allow motor assembly to
hang out of the way while wiring.
Tip: Seek the help of another person to hold the
stepladder in place and to lift the fan up to you once
you are set on the ladder.
CAUTION: Be sure outlet box is properly grounded
and that a ground wire (GREEN or Bare) is present.
Make sure all electrical connections comply with Local
Codes or Ordinances and the National Electrical Code.
If you are unfamiliar with electrical wiring or if the
house/building wires are different colors than those
referred to below, please use a qualified electrician.
When fan is secured in place on the hanging
bracket, electrical wiring can be made as follows:
Connect BLACK and BLUE wires from fan to BLACK
wire from ceiling with wire connector provided.
Connect WHITE wire from fan to WHITE wire from
ceiling with wire connector provided.
Connect all GROUND (GREEN) wires together from
fan to BARE/GREEN wire from ceiling with wire
connector provided.
If you intend to control the fan light with a separate
light switch, connect BLUE wire from fan to the
BLACK (or RED) supply from the independent
switch.
* Wrap each wire connector separately with
electrical tape as an extra safety measure.
hanging
bracket
spring washers
outlet box screws
outlet box
hanging
bracket
j-hook
motor assembly
supply circuit
WHITE
GREEN
BLACK
SWITCH
WHITE
WHITE
flat washers
GROUND
(GREEN
OR BARE)
BLACK
BLACK
BLUE
*
GREEN
page 4
Page 6

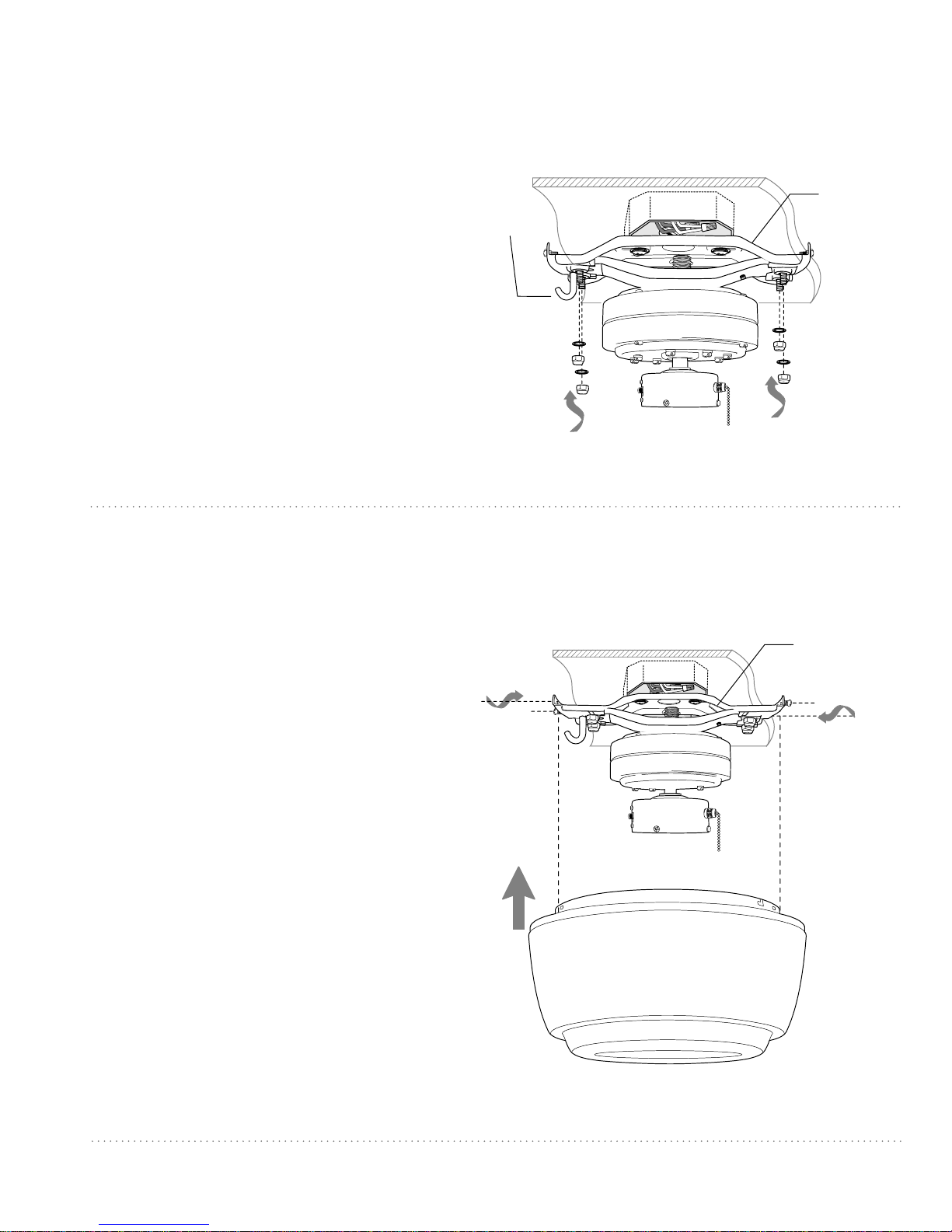

6. Fan Assembly.
Remove motor assembly from j-hook on
hanging bracket. Lift motor assembly to
hanging bracket and carefully push
wiring and wire connectors into outlet
box. Align holes in top of motor assembly
with bolts in hanging bracket and push
up so that bolts come through holes.
Secure motor assembly with flat washers
and motor mounting nuts that were
previously removed, page 3, step 4.
WARNING: It is extremely important to
tighten motor mounting nuts completely
so that fan is mounted securely.
j-hook
motor
mounting
nuts and
flat washers
hanging
bracket
motor
mounting
nuts and flat
washers
motor assembly
7. Motor Housing Assembly.
Temporarily raise motor housing to
hanging bracket to determine which
2 screws in hanging bracket align with
slotted holes on top rim of motor
housing. Lower motor housing and
partially loosen the 2 screws in the
hanging bracket that correspond to
slotted holes in the motor housing.
Remove the other 2 screws from the
hanging bracket.
Now, raise motor housing to hanging
bracket again, allowing slotted holes in
motor housing to align with loosened
screws in hanging bracket. Twist motor
housing to lock. Re-insert the 2 screws
that were previously removed and then
tighten all screws to secure motor
housing.
motor
housing
screws
motor
housing
hanging
bracket
motor
housing
screws
page 5
Page 7

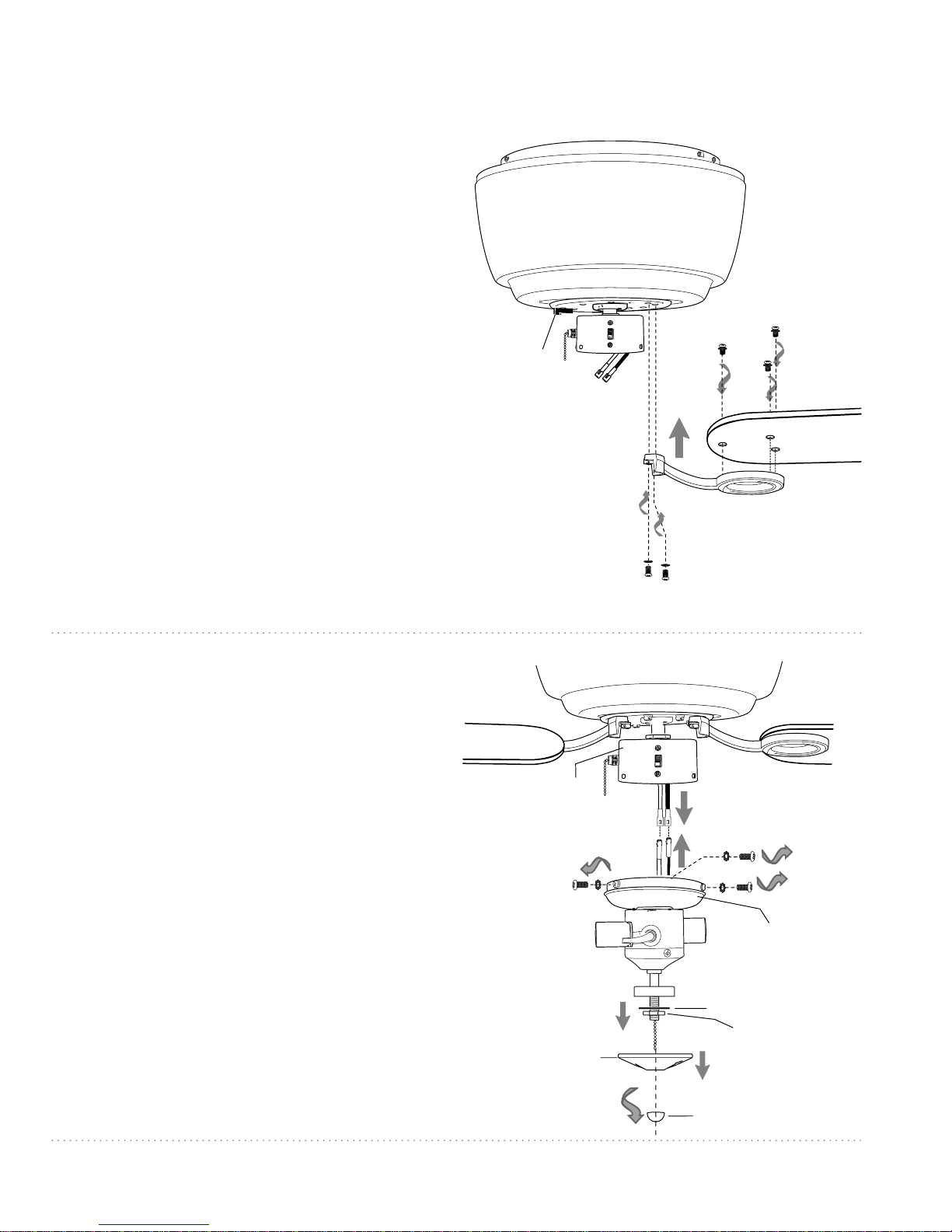

8. Blade Assembly.
WARNING: To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble the
blades. If overtightened, blades may crack and
break.
Locate 15 blade attachment screws/washers in
one of the hardware packs. Hold blade arm up to
blade and align holes. Insert 3 blade attachment
screws/washers with fingers first and then tighten
screws securely with a Phillips screwdriver. Repeat
procedure for the remaining blades.
Remove blade arm screws and lock washers from
underside of motor. If plastic motor locks are
installed with blade arm screws, discard plastic
motor locks (save blade arm screws and lock
washers to secure blade arms). Align blade arm
holes with motor screw holes and attach blade
arm with lock washers and blade arm screws.
Before securing screws permanently, repeat this
procedure with remaining blade arms. Secure all
screws.
NOTE: Tighten blade arm screws twice a year.
motor
housing
blade attachment
screws/washers
plastic
motor lock
blade
blade arm
lock washers
blade arm screws

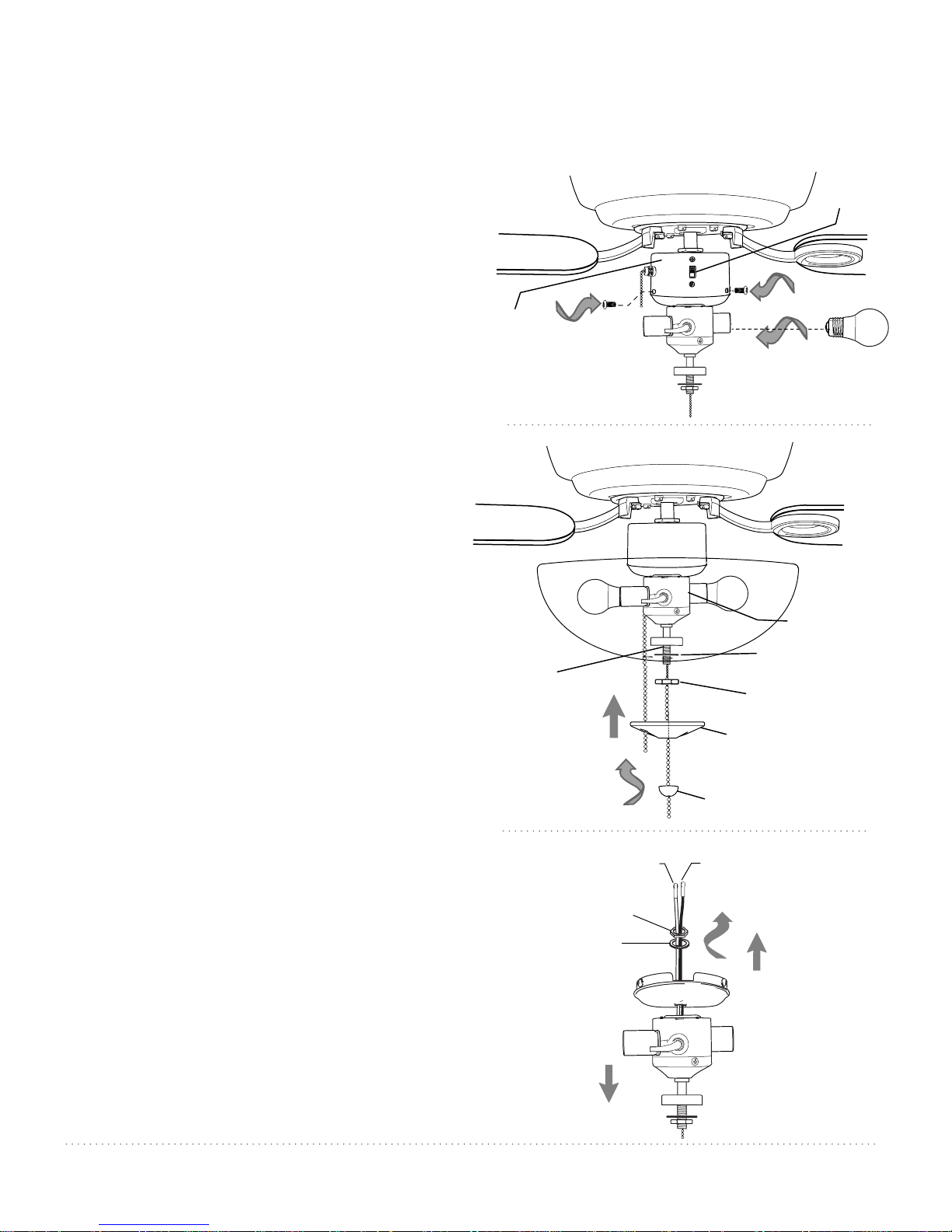

9. Light Kit Assembly (Optional).
Remove 3 screws and star washers from switch
housing cap at top of light kit fitter--save for
later use.
If you wish to use your fan WITH the light kit,
remove finial, finial plate, hex nut and rubber
washer from bottom of light kit fitter--save for
later use.
Locate BLUE (or BLACK) and WHITE wires in
switch housing labeled FOR LIGHT KIT
CONNECTION. Remove and discard plastic that
holds these 2 wires together.
Connect WHITE wire from switch housing to
WHITE wire from light kit fitter. Connect BLUE
(or BLACK) wire from switch housing to BLACK
wire from light kit fitter. Make sure that molex
connections are secure.
["Light Kit Assembly" continued on next
page.]
switch housing
molex connections
light kit fitter
finial plate
motor
housing
switch housing
cap
rubber washer
hex nut
finial
page 6
Page 8
9. Light Kit Assembly (Optional). (cont.)
To attach light kit fitter to motor assembly,
align holes in switch housing cap with holes
in switch housing and re-insert 3 screws
previously removed. (Note: Make sure to align
gap on edge of switch housing cap with
reverse switch on switch housing for a correct
fit.) Secure all screws with a Phillips
screwdriver.
Install 3 medium base 6.5 watt LED bulbs
(included).
IMPORTANT: When you need to replace
bulbs, please allow bulbs and glass shade to
cool down before touching them.
Place rubber washer (that was previously
removed) inside glass shade over center
hole. Raise glass shade in order to guide
pull chains through corresponding holes in
glass shade. (Be sure pull chain for fan
operation will not rub against bulbs during
fan operation.) Align hole in center of glass
shade with threaded rod on light kit fitter
and push up gently until threaded rod
comes through hole. Replace hex nut on
threaded rod. Tighten hex nut but DO NOT
OVERTIGHTEN hex nut as glass may crack or
break.
switch
housing
glass shade
threaded
rod
motor housing
light kit fitter
reverse
switch
bulb
motor
housing
light kit fitter
rubber washer
hex nut
Align hole in center of finial plate with
threaded rod, allowing pull chains to come
through corresponding holes in finial plate,
and push up. Thread center pull chain
through hole in finial. Screw finial onto
threaded rod to secure glass shade to light kit
fitter. Do NOT overtighten finial as glass may
crack or break.
If you wish to use your fan WITHOUT the light
kit, remove hex nut and lock washer from
threaded rod at top of light kit fitter. Unscrew
switch housing cap to remove it from the light
kit fitter. Then, gently feed BLACK and WHITE
wires from light kit fitter (one at a time)
through hole in middle of switch housing cap.
["Light Kit Assembly" continued on next
page.]
page 7
WHITE
hex nut
lock washer
light kit
fitter
finial plate
finial
BLACK
switch housing
cap
Page 9

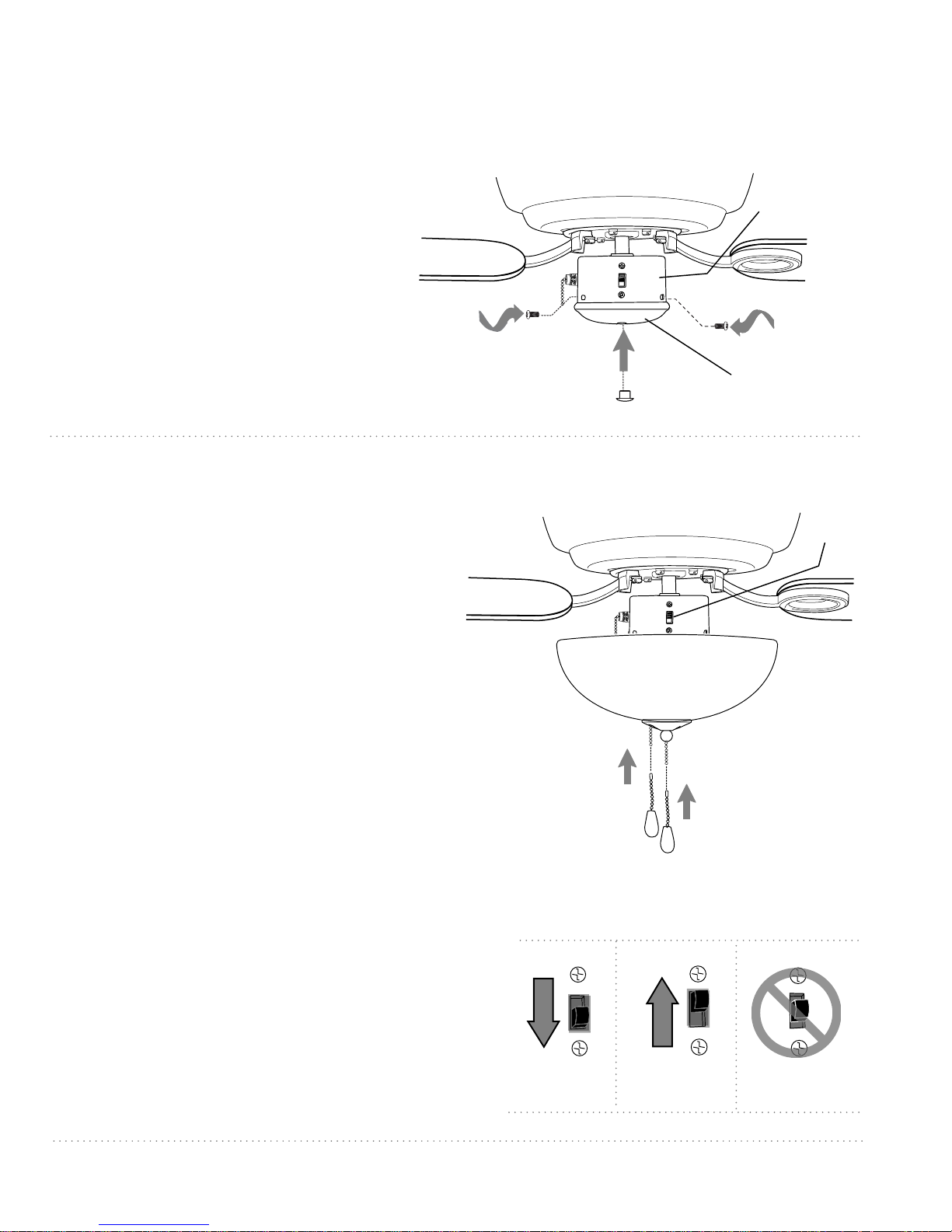

9. Light Kit Assembly (Optional). (cont).
Locate cap in one of the hardware packs
and place cap firmly into hole in middle
of switch housing cap.
Align holes in switch housing cap with
holes in switch housing. Secure switch
housing cap with 3 screws and star
washers that were removed at the
beginning of Section 9, page 6. Tighten
all 3 screws securely.
10. Testing Your Fan.
It is recommended that you test fan before
finalizing installation. Restore power from circuit
box and light switch (if applicable). Test fan
speeds with the pull chain on switch housing.
Start at the OFF position (no blade movement).
First pull will set the fan to HI. Second pull will
set the fan to MEDIUM. Third pull will set the fan
to LOW. Fourth pull will again set the fan to OFF
setting. If applicable, test light with pull chain in
the middle. (diagram 1) If fan and/or light
do/does not function, please refer to
"Troubleshooting" section to solve any issues
before contacting Customer Service.
motor housing
cap
motor housing
switch
housing
switch
housing
cap
reverse
switch
Turn fan completely off before moving the
reverse switch. Set reverse switch to recirculate
air depending on the season:
- DOWN position in summer (diagram 2)
- UP position in winter (diagram 3)
A ceiling fan will allow you to raise your
thermostat setting in summer and lower your
thermostat setting in winter without feeling a
difference in your comfort.
IMPORTANT: Reverse switch must be set either
completely UP or completely DOWN for fan to
function. If the reverse switch is set in the middle
position (diagram 4), fan will not operate.
Attach pull chain extension(s) supplied or
custom pull chain extension(s) (sold separately)
to end(s) of the pull chain(s).
page 8
fan pull
chain extension
diagram 1
diagram 2
light pull chain
extension
diagram 3
diagram 4
Page 10
Troubleshooting.
Problem: Fan fails to operate.
Solutions:
1. Check wall switch to fan.
2. Verify that reverse switch is set completely in
either direction.
3. Check to be sure fan is wired properly.
Problem: Light kit (optional) not lighting.
Solutions:
1. Check wall switch to fan.
2. Check that bulbs are installed correctly.
3. Verify that wires in outlet box are wired
properly.
4. Verify that molex connections in switch
housing are connected properly.
Problem: Fan operates but light fails (if
applicable).
Solutions:
1. Check that bulbs are installed correctly.
2. Verify that wires in outlet box are wired
properly.
3. Verify that molex connections in switch
housing are connected properly.
4. Replace defective bulbs with same type of bulb.
Problem: Fan wobbles.
Solutions:
1. Use the balancing kit provided in one of the
hardware packs. If no blade balancing kit is
provided, please call Customer Support,
at 1-800-527-1292, to request one.
2. Carefully loosen motor housing and verify that
hanging bracket is secure.
3. Check to be sure motor housing is turned
completely and that motor housing screws are
secure.
Warranty.
LITEX 30-YEAR LIMITED WARRANTY:
LITEX INDUSTRIES, LTD. warrants this fan to the original
household purchaser for indoor use under the following
provisions:
1-YEAR WARRANTY: LITEX INDUSTRIES, LTD. will replace or
repair any fan which has faulty performance due to a
defect in material or workmanship. Contact Litex Customer
Service at 1-800-527-1292 to arrange for return of fan.
Return fan, shipping prepaid, to Litex Industries, Ltd. We will
repair or ship you a replacement fan, and we will pay the
return shipping cost.
5-YEAR WARRANTY: LITEX INDUSTRIES, LTD. will repair or
replace, at no charge to the original purchaser, any fan
motor that fails to operate satisfactorily when failure
results from normal use.
RETURN FAN MOTOR ONLY, shipping prepaid, to Litex
Industries. We will repair or ship purchaser a replacement
motor and Litex will pay the return shipping cost.
6-YEAR to 30-YEAR LIMITED WARRANTY: LITEX INDUSTRIES,
LTD. will repair the fan, at no charge to the original
purchaser for labor only, if the fan motor fails to operate
satisfactorily when failure results from normal use. Parts
used in the repair will be billed to the purchaser at
prevailing prices at time of repair.
The purchaser shall be responsible for all costs incurred
in the removal, reinstallation and shipping of the product
for repairs.
This warranty does not apply when damage from
mechanical, physical, electrical or water abuse results in
causing the malfunction. Deterioration of finishes or other
parts due to time or exposure to salt air is specifically
exempted under this warranty.
Neither Litex Industries nor the manufacturer will
assume any liability resulting from improper installation or
use of this product. In no case shall the company be liable
for any consequential damages for breach of this, or any
other warranty expressed or implied whatsoever. This
limitation as to consequential damages shall not apply in
states where prohibited.
Parts Replacement.
For parts and information, please refer to
"Parts Inventory" on page 2.
Litex Customer Support:
1-800-527-1292
PWLI1801
page 9
Loading...
