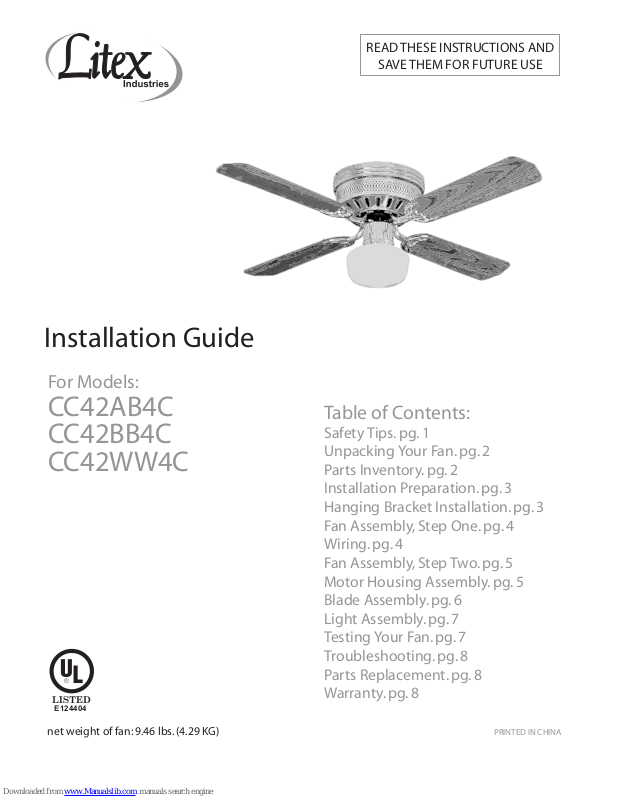

Page 1
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE
Installation Guide
For Models:
CC42AB4C
CC42BB4C
CC42WW4C
Table of Contents:
Safety Tips. pg. 1
Unpacking Your Fan. pg. 2
Parts Inventory. pg. 2
Installation Preparation. pg. 3
Hanging Bracket Installation. pg. 3
Fan Assembly, Step One. pg. 4
Wiring. pg. 4
Fan Assembly, Step Two. pg. 5
Motor Housing Assembly. pg. 5
Blade Assembly. pg. 6
Light Assembly. pg. 7
E124404
net weight of fan: 9.46 lbs. (4.29 KG)
Testing Your Fan. pg. 7
Troubleshooting. pg. 8
Parts Replacement. pg. 8
Warranty. pg. 8
PRINTED IN CHINA
Page 2
SAFETY TIPS.
WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box
or circuit panel before you begin the fan installation or before servicing the fan or installing accessories.
1. Read all instructions and safety information carefully before installing your fan and save these
instructions.
2. Make sure all electrical connections comply with Local Codes or Ordinances and the National
Electrical Code. If you are unfamiliar with electrical wiring or if the house/building wires are
different colors than those referred to in the instructions, please use a qualified electrician.
3. Make sure you have a location selected for your fan that allows clear space for the blades to
rotate, and at least seven (7) feet (2.13 meters) of clearance between the floor and the fan blade
tips. The fan should be mounted at least thirty (30) inches (76 centimeters) from walls or other
upright structures.
4. The outlet box and ceiling support joist used must be securely mounted, and capable of
supporting at least 35 pounds (16 kilograms). The box must be supported directly by the
building structure. Use only UL listed outlet boxes marked "FOR FAN SUPPORT."
WARNING: To reduce the risk of fire, electrical shock, or personal injury, mount to the outlet box
marked "Acceptable for Fan Support," and use the mounting screws provided with the outlet box.
Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan
support and may need to be replaced. Consult a qualified electrician if in doubt.
WARNING: To reduce the risk of fire, electrical shock, or personal injury, wire nuts/wire connectors
provided with this fan are designed to accept only one 12 gauge house wire and two lead wires from
the fan. If your house wire is larger than 12 gauge or there is more than one house wire to connect to
the two fan lead wires, consult an electrician for the proper size wire nuts/wire connectors to use.
5. Electrical diagrams are for reference only. Light kits that are not packed with the fan must be UL
listed and marked suitable for use with the model fan you are installing. Switches must be UL
general use switches. Refer to the instructions packaged with the light kits and switches for
proper assembly.
6. After installation is complete, check that all connections are absolutely secure.
7. After making electrical connections, spliced conductors should be turned upward and pushed
carefully up into the outlet box. The wires should be spread apart with the grounded
conductor and the equipment-grounding conductor on opposite sides of the outlet box.
WARNING: To reduce the risk of electrical shock and fire, do not use this fan with any variable (rheostat)
wall control.
8. Do not operate the reverse switch until the fan has come to a complete stop.
9. Do not insert anything between the fan blades while they are rotating.
WARNING: To reduce the risk of personal injury, do not bend the blade arms during assembly or after
installation. Do not insert objects into the path of the blades.
WARNING: To avoid personal injury or damage to the fan and other items, be cautious when working
around or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly
dampened cloth will be suitable for most cleaning.
NOTE: The important safety precautions and instructions appearing in the manual are not meant to
cover all possible conditions and situations that may occur. It must be understood that common sense
and caution are necessary factors in the installation and operation of this fan.
page 1
Page 3

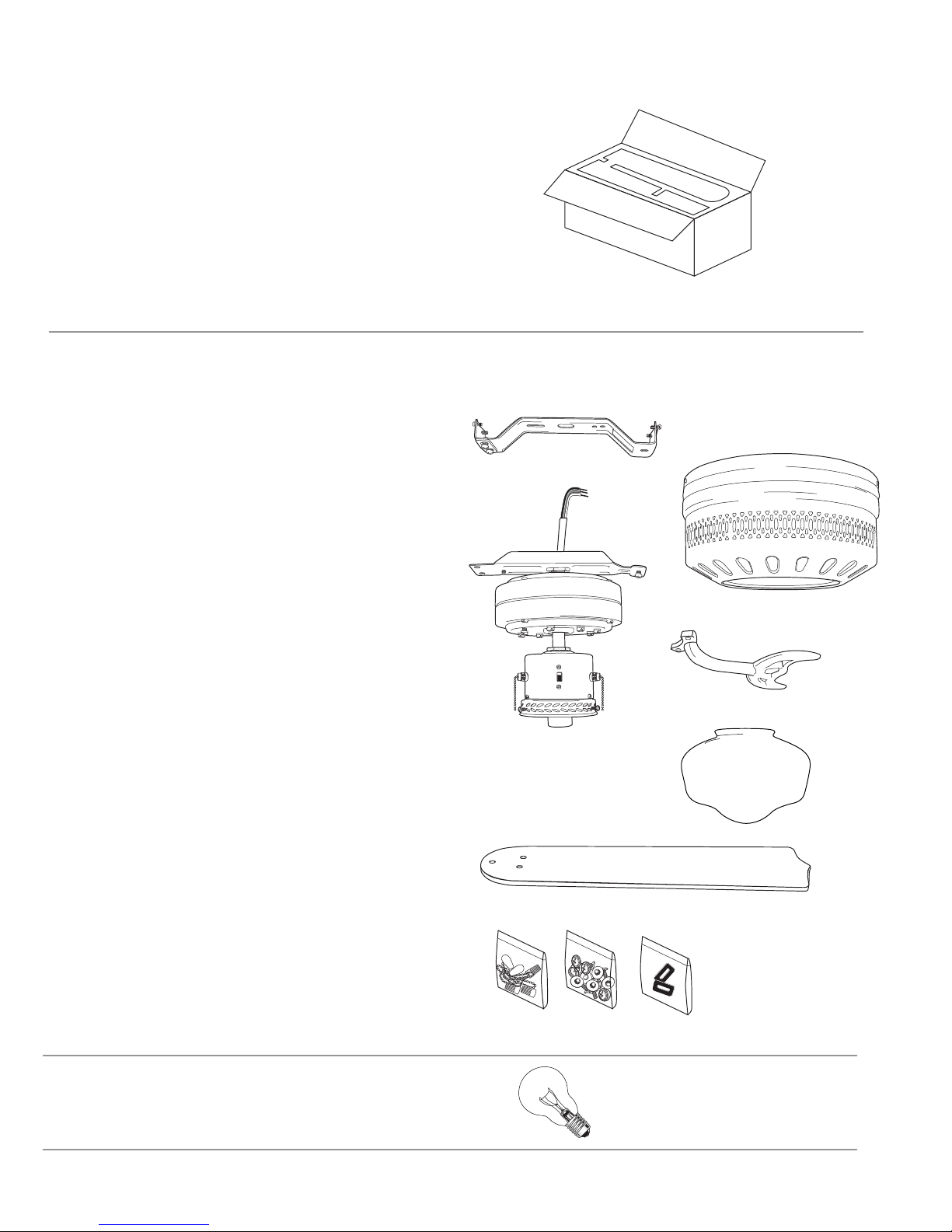

1. Unpacking Your Fan.
Carefully open the packaging. Remove items
from Styrofoam inserts. Remove motor housing
and place on carpet or Styrofoam to avoid
damage to finish. Do not discard fan carton or
Styrofoam inserts should this fan need to be
returned for repairs.
Check against parts inventory that all parts have
been included.
2. Parts Inventory.
a. hanging bracket. 1 piece
b. motor housing. 1 piece
c. motor assembly. 1 piece
d. blade arm. 4 pieces
a
b
c
e. glass shade. 1 piece
f. blade. 4 pieces
g. hardware packs
d
e
f
g
1 x 60 watt max. candelabra base bulb (sold
separately); size A15C recommended
required bulb:
A15C
page 2
Page 4

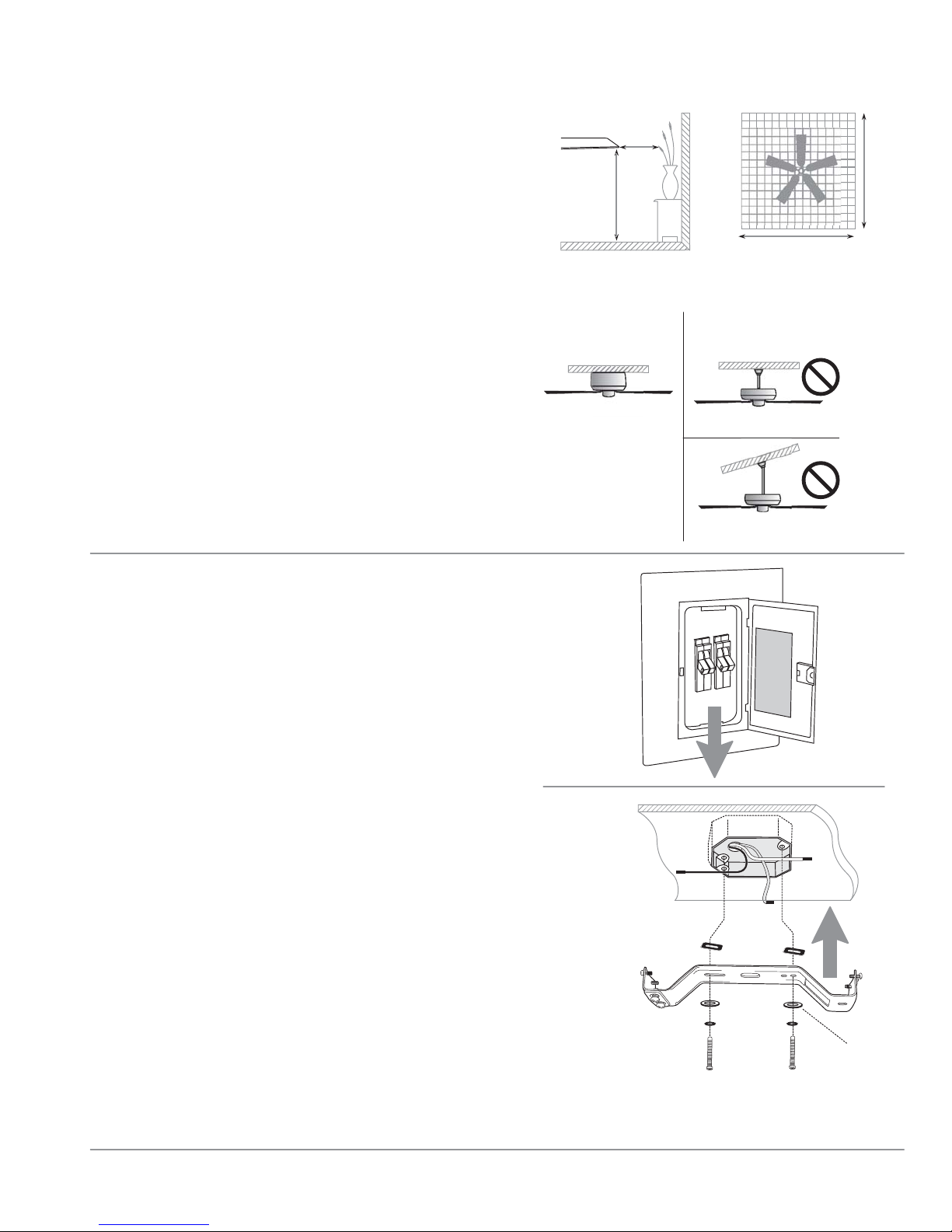

3. Installation Preparation.
blade edge
To prevent personal injury and damage, ensure
that the hanging location allows the blades a
clearance of 7ft. (2.13m) from the floor and 30in.
(76cm) from any wall or obstruction.
This fan is suitable for room sizes up to 144
square feet (13.4 square meters).
This fan can be mounted as a flushmount only
on a regular ceiling. Downrod installations are
not available for this fan.
Installation requires these tools:
Phillips screwdriver, flat-head screwdriver,
adjustable pliers or wrench, stepladder, wire
cutters, and rated electrical tape.
4. Hanging Bracket Installation.
30
inches
7 feet
(2.13m)
(76cm)
flushmount
installation
10ft. - 12ft.
(3m - 3.6m)
downrod
installation
10ft. - 12ft.
(3m - 3.6m)
Turn off circuit breakers to current fixture from
breaker panel and be sure operating light switch is
turned to the OFF position.
WARNING: Failure to disconnect power supply prior to
installation may result in serious injury.
Remove existing fixture.
WARNING: When using an existing outlet box, be sure
the box is securely attached to the building structure
and can support the full weight of the fan. Ensure it is
clearly marked "Suitable for Fan Support." If not, it must
be replaced with an approved outlet box. Failure to do
so can result in serious injury.
Install hanging bracket to outlet box using original
screws, spring washers and flat washers (size 8 or M5)
provided with new or original outlet box.* Install
rubber cushions (located in a hardware pack)
between outlet box and hanging bracket to reduce
vibration of metal to metal surfaces.
Arrange
electrical wiring through the center hole of the
hanging bracket.
rubber cushions
hanging
bracket
spring washers
outlet box screws
ON
ON
OFF
OFF
flat washers
*Note: It is very important that you use the proper hardware when installing the hanging bracket as this
will support the fan. Please make certain that you purchase any hardware that is missing in order to
install the hanging bracket properly.
page 3
Page 5

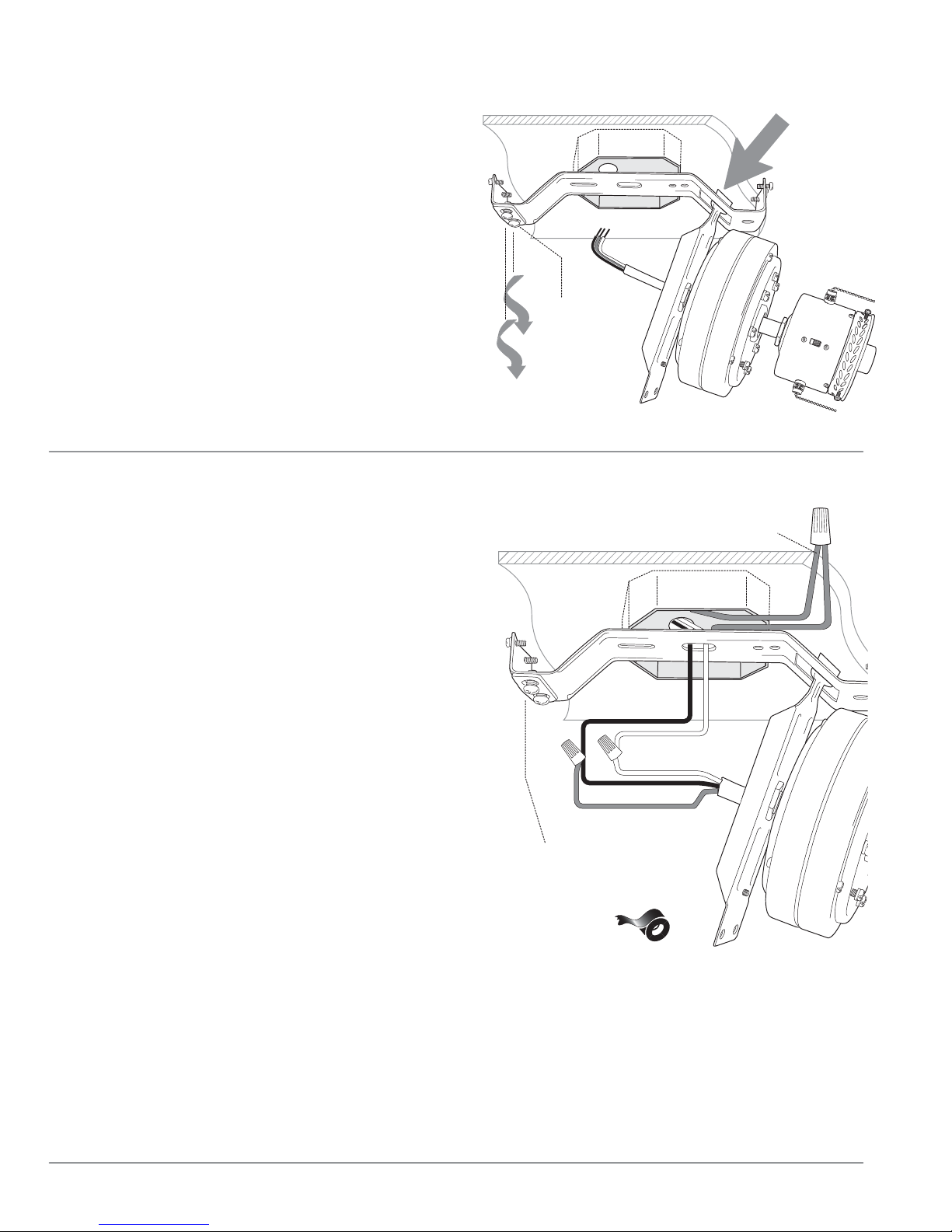

5. Fan Assembly, Step One.
hook
end
Remove single motor mounting screw from hook
end of motor assembly. Remove 2 motor
mounting screws from hanging bracket.
Lift motor assembly to hanging bracket and slide
hook end (with single screw hole) into square
opening on hanging bracket (see diagram at
right). This will allow the motor assembly to hang
out of the way while wiring.
Tip: Seek the help of another person to hold the
stepladder in place and to lift the fan up to you
once you are set on the ladder.
Continue to "Wiring" section for wiring diagram.
6. Wiring.
**See instructions above (Section 5) in order to
temporarily hang fan on hanging bracket during
wiring.
Important: Be sure outlet box is properly grounded or
that a ground (GREEN or Bare) wire is present.
hanging
bracket
motor
mounting
screws
motor assembly
GROUND (GREEN OR BARE)
GREEN
Make sure all electrical connections comply with Local
Codes or Ordinances and the National Electrical Code.
If you are unfamiliar with electrical wiring or if the
house/building wires are different colors than those
referred to below, please use a qualified electrician.
When fan is secured in place on the hanging
bracket, electrical wiring can be made (diagram 1)
as follows:
Connect BLACK and ¹BLUE wire from fan to BLACK
wire from ceiling with wire nut provided.
Connect WHITE wire from fan to WHITE wire from
ceiling with wire nut provided.
Connect all GROUND (GREEN) wires together from
fan to BARE/GREEN wire from ceiling with wire nut
provided.
¹ If you intend to control the fan light with a
separate light switch, connect BLUE wire from fan
to the BLACK supply from the independent switch.
* Wrap each wire nut separately with electrical tape
as an extra safety measure.
BLACK
WHITE
WHITE
BLACK
BLUE
hanging
bracket
*
motor assembly
diagram 1
page 4
Page 6

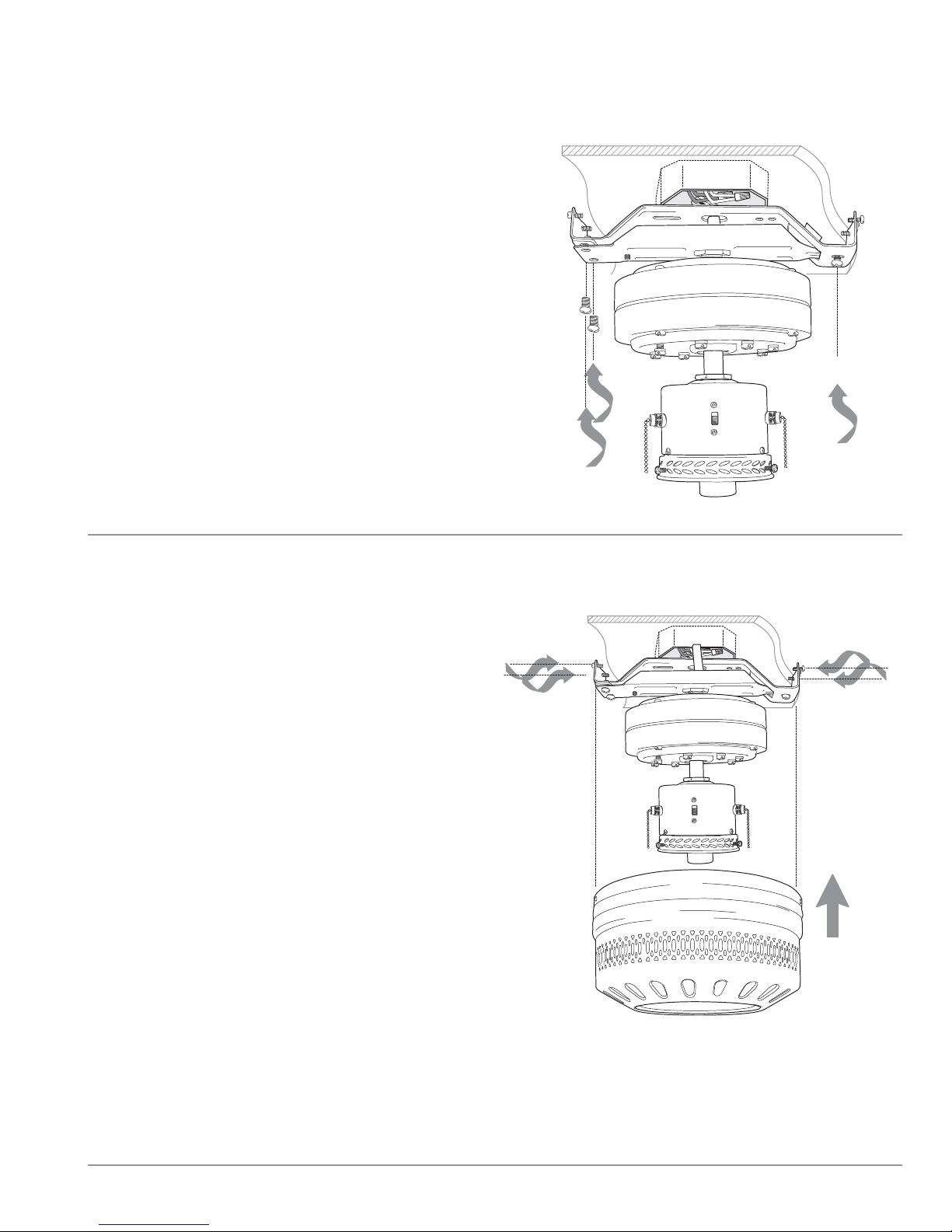

7. Fan Assembly, Step Two.
Carefully push wiring and wire nuts into outlet
box. Leave hook end of motor assembly in
square opening of hanging bracket and lift the
other end of motor assembly toward hanging
bracket. Align motor assembly screw holes with
hanging bracket screw holes and, using motor
mounting screws, secure motor assembly with
Phillips screwdriver.
motor
mounting
screws
motor
mounting
screw
8. Motor Housing Assembly.
Hold motor housing up to hanging bracket to
determine which 2 screws align with slotted
holes on top rim of motor housing. Put motor
housing down and partially loosen the 2
screws in the hanging bracket that correspond
to slotted holes in motor housing. Remove the
other 2 screws from the hanging bracket.
Lift motor housing to hanging bracket again,
allowing slotted holes in motor housing to
align with loosened screws in hanging bracket.
Twist motor housing to lock. Re-install the 2
screws that were removed and then tighten all
screws to secure motor housing.
motor
housing
screws
motor
housing
screws
motor
housing
page 5
Page 7

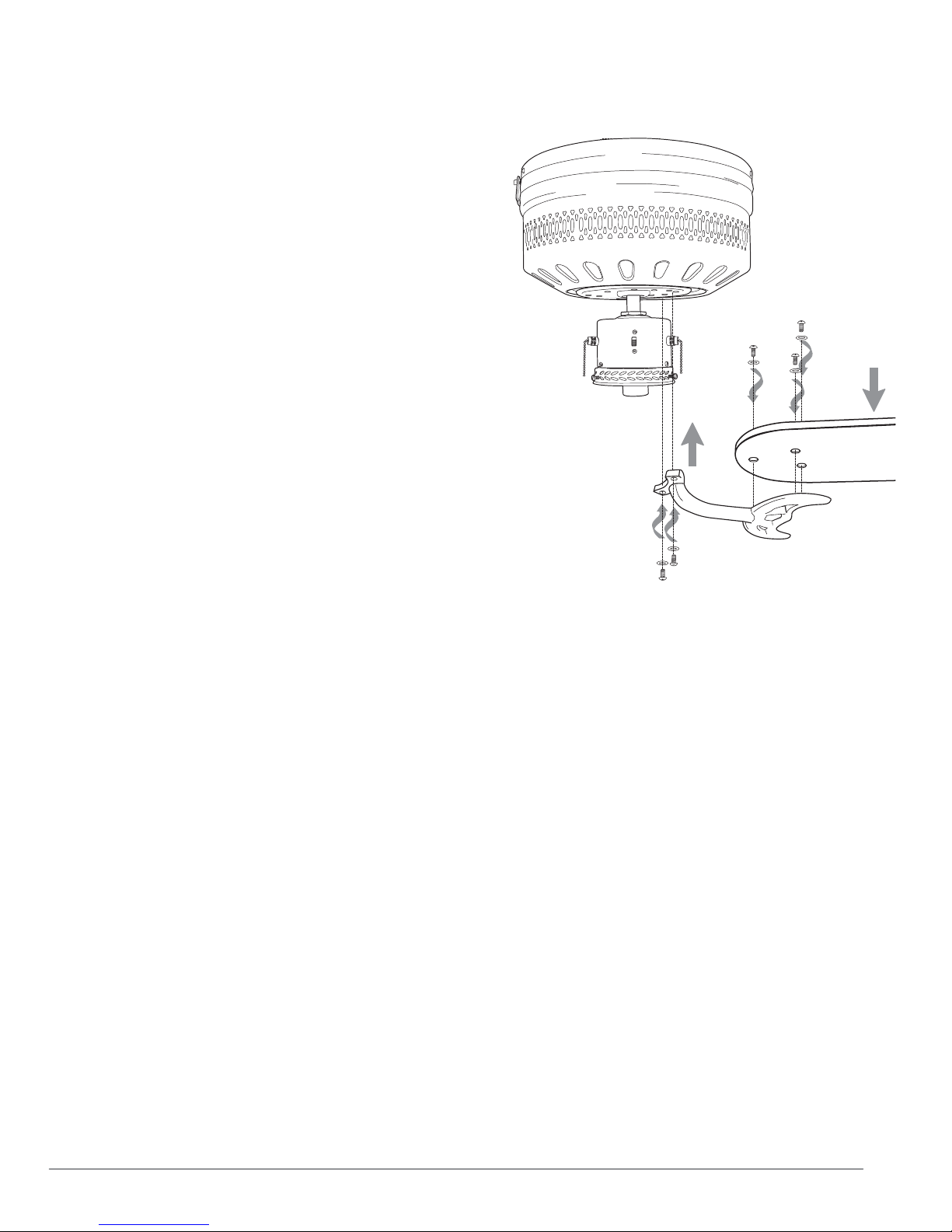

9. Blade Assembly.
Time Saver: Washers for blade screws can be set
on each blade screw prior to installing blades.
Locate 12 blade attachment screws and washers
in hardware pack. Hold blade arm up to blade
and align holes. Insert 3 blade attachment screws
(along with washers) with fingers first and then
tighten screws securely with a Phillips
screwdriver. Repeat for the remaining blades.
Remove blade arm screws and lock washers from
fan motor and set aside. Then, if applicable,
remove styrofoam inserts and motor shipping
pads and discard. Align blade arm holes with
motor screw holes and attach blade arm with
lock washers and blade arm screws. Before
securing screws permanently, repeat procedure
with remaining blade arms. Secure all screws.
lock washers
motor housing
blade attachment
screws and washers
blade
blade arm
blade arm screws
page 6
Page 8

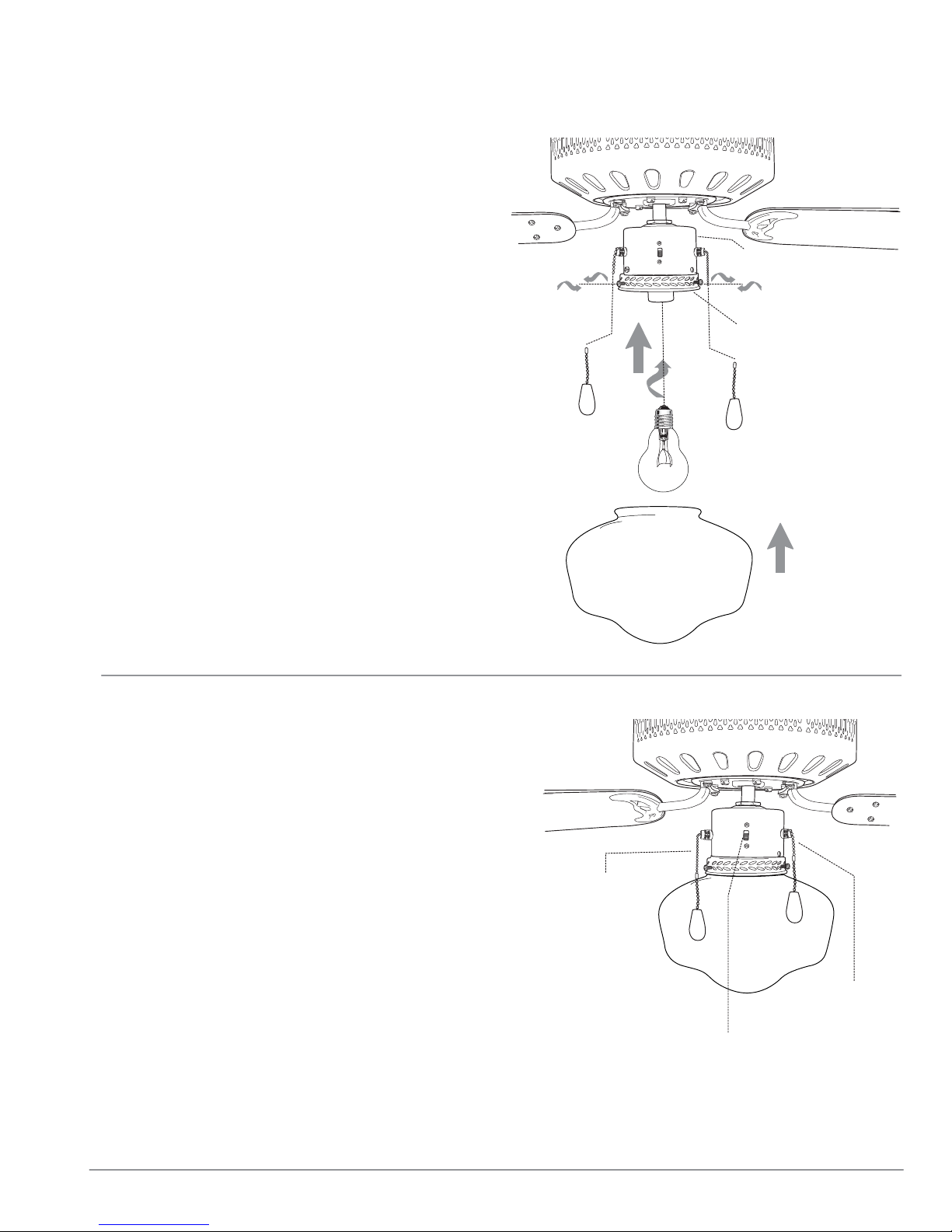

10. Light Assembly.
Install 1 candelabra base 60 watt max. bulb
(sold separately)--size A15C recommended.
Remove 3 thumb screws from light kit plate.
Use these thumb screws to attach glass shade
to light kit plate. Do not overtighten thumb
screws as glass may crack or break.
Note: Do NOT remove the rubber ring on lip
of glass shade as this will help hold the glass
shade in place.
Important: When replacing bulb, please allow
bulb and glass shade to cool down before
touching them.
Pull chain extensions supplied or custom pull
chain extensions (sold separately) can be
attached to the pull chains.
switch housing
thumb screw
thumb screw
light kit plate
pull chain
extension
pull chain
extension
bulb, size A15C
glass shade
11. Testing Your Fan.
It is recommended that you test fan before
finalizing installation. Restore power from circuit
box and wall switch (if applicable). Test fan
speeds with the pull chain to the left of the
reverse switch. Start at the OFF position (no
blade movement). First pull will set the fan to HI.
Second pull will set the fan to MEDIUM. Third
pull will set the fan to LOW. Fourth pull will re-set
the fan to OFF setting. Test light kit with the pull
chain to the right of the reverse switch. If fan
and/or light do (does) not function, please refer
to "Troubleshooting" section to solve any issues
before contacting Customer Service.
Turn fan completely off when moving the
reverse switch. Set reverse switch to recirculate
air depending on the season.
fan
pull chain
light
pull chain
reverse
switch
page 7
Page 9
Troubleshooting.
Problem: Fan fails to operate.
Solutions:
1. Check wall switch to fan.
2. Verify that reverse switch is set completely in
either direction.
3. Check to be sure fan is wired properly.
Problem: Light kit not lighting.
Solutions:
1. Check wall switch to fan.
2. Check that bulb is installed correctly.
3. Check to be sure wires in outlet box are wired
properly.
Problem: Fan operates but light fails.
Solutions:
1. Check that bulb is installed correctly.
2. Check to be sure wires in outlet box are wired
properly.
3. Replace defective bulb with same type of bulb.
Parts Replacement.
For parts and information please refer to
"Parts Inventory" on page 2.
Litex Customer Support:
1-800-527-1292
www.litexfans.com
Warranty.
LITEX 15-YEAR LIMITED WARRANTY:
LITEX INDUSTRIES, LTD. warrants this fan to the original
household purchaser for indoor use under the following
provisions:
1-YEAR WARRANTY: LITEX INDUSTRIES, LTD. will replace or
repair any fan which has faulty performance due to a
defect in material or workmanship. Contact Litex Customer
Service at 1-800-527-1292 to arrange for return of fan.
Return fan, shipping prepaid, to Litex Industries, Ltd. We will
repair or ship you a replacement fan, and we will pay the
return shipping cost.
5-YEAR WARRANTY: LITEX INDUSTRIES, LTD. will repair or
replace, at no charge to the original purchaser, any fan
motor that fails to operate satisfactorily when failure
results from normal use.
RETURN FAN MOTOR ONLY, shipping prepaid, to Litex
Industries. We will repair or ship purchaser a replacement
motor and Litex will pay the return shipping cost.
6 to 15-YEAR WARRANTY: LITEX INDUSTRIES, LTD. will repair
the fan, at no charge to the original purchaser for labor
only, if the fan motor fails to operate satisfactorily when
failure results from normal use. Parts used in the repair will
be billed to the purchaser at prevailing prices at time of
repair.
The purchaser shall be responsible for all costs incurred
in the removal, reinstallation and shipping of the product
for repairs.
This warranty does not apply when damage from
mechanical, physical, electrical or water abuse results in
causing the malfunction. Deterioration of finishes or other
parts due to time or exposure to salt air is specifically
exempted under this warranty.
Neither Litex Industries nor the manufacturer will
assume any liability resulting from improper installation or
use of this product. In no case shall the company be liable
for any consequential damages for breach of this, or any
other warranty expressed or implied whatsoever. This
limitation as to consequential damages shall not apply in
states where prohibited.
page 8
Loading...
