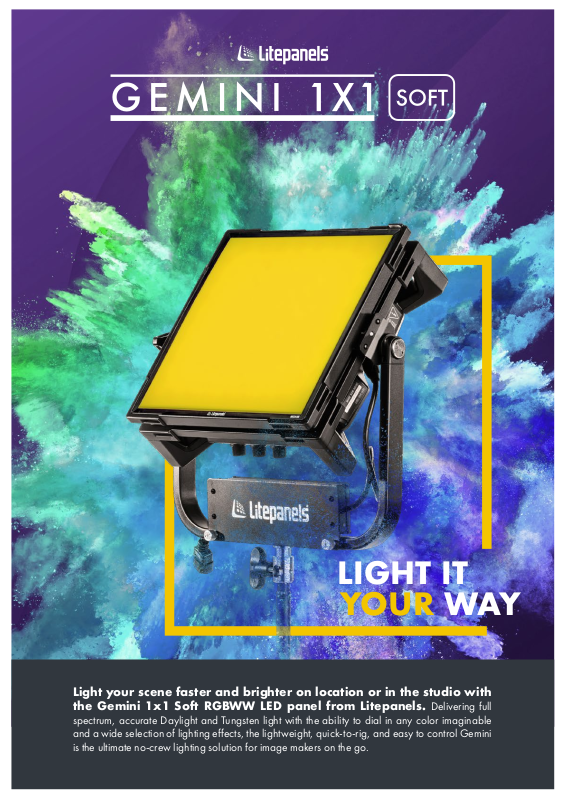

Page 1
LIGHT IT
YOUR WAY
Light your scene faster and brighter on location or in the studio with
the Gemini 1x1 Soft RGBWW LED panel from Litepanels. Delivering full
spectrum, accurate Daylight and Tungsten light with the ability to dial in any color imaginable
and a wide selection of lighting effects, the lightweight, quick-to-rig, and easy to control Gemini
is the ultimate no-crew lighting solution for image makers on the go.
Page 2
Perfect light instantly available
Every color at your fingertips.
Total control of light with four lighting modes; CCT Mode
for true Daylight and Tungsten with fine tuning; HSI Mode
to create any color in the 360° color wheel; Gel Mode to
quickly dial up many popular gels, and Effects Mode for a
dazzling array of creative lighting effects at your fingertips.
Easily switch between
battery and AC
The industry’s most agile light on the go.
A Lightweight design for rapid rigging with fewer cables and
full-intensity mobile power from XLR, V-Mount or Gold Mount
batteries - drawing just 200W - makes Gemini 1x1 Soft the
perfect location light.
Instantly accessible and easy to rig
No parts to assemble, Gemini is ready
to start work immediately.
Ready to go straight out of the box with no assembly required.
Easy to reach, on-board controls and remote-control options
via DMX, wireless DMX or Bluetooth for easy integration into
your existing lighting set up.
GEMINI SPECS
Voltage Range: 100-240VAC, 13-28VDC
Power Consumption: 200W (nominal)
LED Technology: RGBWW
Color Temperature: 2700-10000K
Lighting Intensity: 3.2k @ 10ft / 3m = 557 LUX,
5.6k @ 10ft / 3m = 614 LUX
CRI / TLCI: Daylight: 97, Tungsten: 94
Beam and Field Angle: 95° / 157°
Control: Built-in WIFI, DMX (5 PIN & RJ45), Optional
Wireless DMX, Bluetooth, SmartLite Director App
Color Controls: Kelvin Temperature, plus/minus
green, Hue, Saturation, Intensity, Gel Presets
945-1101
Gemini 1x1 Soft Panel-EU
945-1301
Gemini 1x1 Soft Panel-US
9 45 - 1111
Gemini 1x1 Soft Panel-EU
w/Pole Op Yoke
945-1311
Gemini 1x1 Soft Panel-US
w/Pole Op Yoke
Serious Stability
Flicker Free Light with no color shift.
Flicker-free light at any frame rate or shutter angle and at
any intensity level perfect for creating slow motion shots
with Ultra-smooth dimming from 100 to 0.1%.
Low End Dimming: From 0.1%
Battery Powered: Optional plates available, runs
at 90% output on single 14.4V battery, or 100% on
26V or dual 14.4V batteries
Cooling: Fan, at 50% output when disabled. Fan
delayed start option
Mount: 1-1/8” (28mm) pin, Standard Yoke,
stackable as 2 & 4 units
Fixture Dimensions:
12.6 x 12.6 x 4.6” / 320 x 320 x 119mm
Weight: 11.7lbs / 5.31kg
945-1201
Gemini 1x1 Soft Panel-UK
945-1401
Gemini 1x1 Soft Panel-Bare
Ends Power Cable
945-1211
Gemini 1x1 Soft Panel-UK
w/Pole Op Yoke
945-1411
Gemini 1x1 Soft Panel-w/Pole
Op Yoke, Bare Ends Power Cable
OPTIONAL ACCESSORIES
• Diffusers - Light, Med, Heavy
• Intensifier
• Honeycomb
• 4-Way Barndoors
• Stacking Kit (2x, 4x)
• Fixture Cover
• Hard Case
PHOTOMETRICS Beam Angle 95° / Field Angle 157°
DAY LI GH T Footcandles LUX
3.3 ft / 1m 513 5526
10ft / 3 m 57 614
16ft / 5 m 21 221
33f t / 10m 5 55.3
49f t / 15m 2 24.6
TUNGSTEN Footcandles LUX
3.3 ft / 1m 466 5 012
10ft / 3 m 52 5 57
16ft / 5 m 19 201
33f t / 10m 5 50 .1
49f t / 15m 2 22. 3
• Soft Carry Case
• Snapbag
• Snapgrid
®
®
• Pole Operated Yoke
• Gold Mount Battery Plate
• V Mount Battery Plate
• Array Kits
