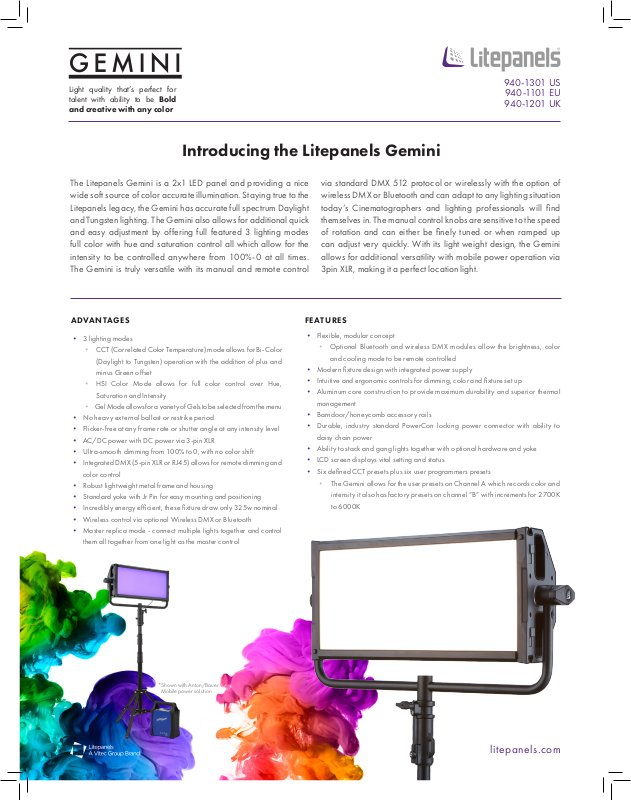

Page 1
Light quality that’s perfect for
talent with ability to be Bold
and creative with any color
940-1301 US
940-1101 EU
940-1201 UK
Introducing the Litepanels Gemini
The Litepanels Gemini is a 2x1 LED panel and providing a nice
wide soft source of color accurate illumination. Staying true to the
Litepanels legacy, the Gemini has accurate full spectrum Daylight
and Tungsten lighting. The Gemini also allows for additional quick
and easy adjustment by offering full featured 3 lighting modes
full color with hue and saturation control all which allow for the
intensity to be controlled anywhere from 100%-0 at all times.
The Gemini is truly versatile with its manual and remote control
ADVANTAGES
• 3 lighting modes
• CCT (Correlated Color Temperature) mode allows for Bi-Color
(Daylight to Tungsten) operation with the addition of plus and
minus Green offset
• HSI Color Mode allows for full color control over Hue,
Saturation and Intensity
• Gel Mode allows f or a variety of G els to be selec ted from the menu
• No heavy external ballast or restrike period
• Flicker-free at any frame rate or shutter angle at any intensity level
• AC/DC power with DC power via 3-pin XLR
• Ultra-smooth dimming from 100% to 0, with no color shift
• Integrated DMX (5-pin XLR or R J45) allows for remote dimming and
color control
• Robust lightweight metal frame and housing
• Standard yoke with Jr Pin for easy mounting and positioning
• Incredibly energy efficient, these fixture draw only 325w nominal
• Wireless control via optional Wireless DMX or Bluetooth
• Master replica mode - connect multiple lights together and control
them all together from one light as the master control
FE ATURE S
• Flexible, modular concept
• Optional Bluetooth and wireless DMX modules allow the brightness, color
• Modern fixture design with integrated power supply
• Intuitive and ergonomic controls for dimming, color and fixture set up
• Aluminum core construction to provide maximum durability and superior thermal
• Barndoor/honeycomb accessory rails
• Durable, industry standard PowerCon locking power connector with ability to
• Ability to stack and gang lights together with optional hardware and yoke
• LCD screen displays vital setting and status
• Six defined CCT presets plus six user programmers presets
• The Gemini allows for the user presets on Channel A which records color and
via standard DMX 512 protocol or wirelessly with the option of
wireless DMX or Bluetooth and can adapt to any lighting situation
today’s Cinematographers and lighting professionals will find
themselves in. The manual control knobs are sensitive to the speed
of rotation and can either be finely tuned or when ramped up
can adjust very quickly. With its light weight design, the Gemini
allows for additional versatility with mobile power operation via
3pin XLR, making it a perfect location light.
and cooling mode to be remote controlled
management
daisy chain power
intensity it also has factor y presets on channel “B” with increments for 2700K
to 6000K
*Shown with Anton/Bauer
Mobile power solution
litepanels.com
Page 2
GEMINI SPECS
Size: 25 x 6.5 x 12.5” / 63.5 x 16.5 x 31.8 cm
Weight: 22.2 lbs / 10.1 kg
Power Requirements: 28V DC / 100-240VAC
Maximum Power Draw: 325w nominal 350w Max
Power Supply: 28V DC Internal power supply
CRI/TLCI: 97 Daylight 99 Tungsten
Includes: Fixture, Yoke, Internal Power Supply, PowerCon Power Cord
GEMINI ACCESSORIES
• 4-way Bardoors (900-3603)
• 60° Honeycomb Grid (900-3602)
• Snap Bag Softbox (900-0035)
• direct fit 40° Snapgrid (900-0036)
• 40° SnapGrid for snapbag soft box (900-0038)
• Pole operated yoke (900-3616)
• 3-pin XLR Battery Cable (410-0095)
PHOTOMETRICS Beam Angle 93° / Field Angle 157°
DAY LI GH T Footcandles LUX
3.2 f t / 1 m 949 9713
5 ft / 1.5 m 389 43 17
10 ft / 3 m 97 1079
15 ft / 4.6 m 43 459
19.6 ft / 6 m 25 270
TUNGSTEN Footcandles LUX
3.2 f t / 1 m 796 8155
5 ft / 1.5 m 326 3624
10 ft / 3 m 82 906
15 ft / 4.6 m 36 385
19.6 ft / 6 m 21 227
Gemini 2x1 Sof t Panel (5600K) : CCT=D5614 (-0.7)
TLCI-2 012 : 97 (D5 614)
Gemini 2x1 Sof t Panel (3200K): C CT=P3239 (-0.1)
TLCI-2 012 : 99 (P323 9)
• PowerCon bare ends cord (411-0059)
• Wireless DMX dongle (900-3601)
• Bluetooth Dongle (MLLBTDONGLE)
• Road case (900-3615)
• Fixture Cover (900-3614)
• Stacking Kits
• Dual (900-3604)
• Quad (900-3605)
The Litepanels Difference
Full spectrum quality soft light, with visually accurate color temperature
The wid est variet y of LED fixtur es available, with fl exible AC or DC power opti ons
Smoot h dimming from 100% to 0, wi th no noticea ble color shi ft
Flicker-free p erforman ce at any frame ra te or shutte r angle
Controlled current and thermal management for long LED life
Efficient power management delivers low power consumption and enhanced reliability
Engineered and designed in Los Angeles, CA
Litepanels, a Vitec Group brand, was founded in 2001 by five professional gaffers
and engineers who saw the future and pioneered LED (light emitting diode) lighting for
motion pictures, television, and the audio-visual industry. Their Emmy® award-winning
technology has now been used on thousands of productions worldwide and is trusted
by the world’s leading broadcast organizations. Litepanels continues to expand its suite
of flicker-free, color accurate, fully-dimmable soft lights that talent and lighting directors
admire. These environmentally friendly fixtures can pay for themselves with power
savings and long life, setting a new standard in professional lighting.
