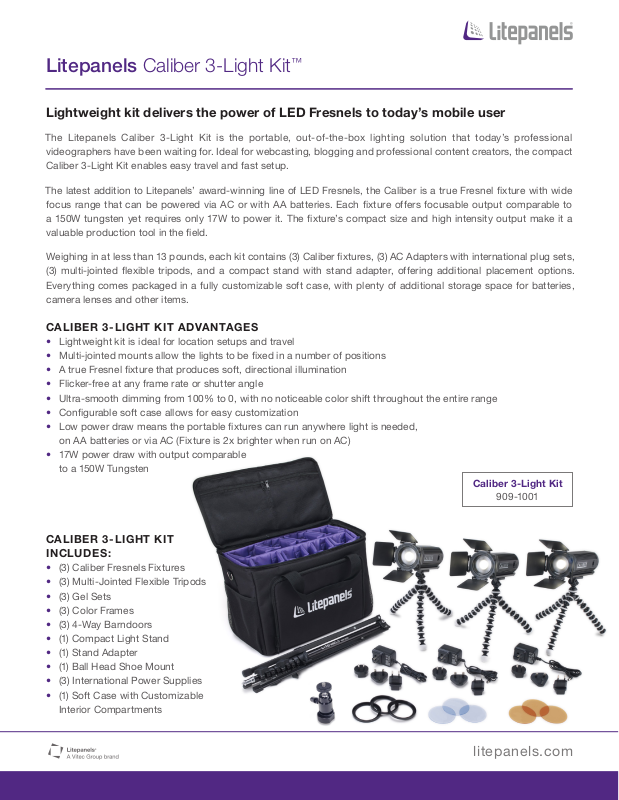

Litepanels Caliber 3-Light Kit
™
Lightweight kit delivers the power of LED Fresnels to today’s mobile user
The Litepanels Caliber 3-Light Kit is the portable, out-of-the-box lighting solution that today’s professional
videographers have been waiting for. Ideal for webcasting, blogging and professional content creators, the compact
Caliber 3-Light Kit enables easy travel and fast setup.
The latest addition to Litepanels’ award-winning line of LED Fresnels, the Caliber is a true Fresnel xture with wide
focus range that can be powered via AC or with AA batteries. Each xture offers focusable output comparable to
a 150W tungsten yet requires only 17W to power it. The xture’s compact size and high intensity output make it a
valuable production tool in the eld.
Weighing in at less than 13 pounds, each kit contains (3) Caliber xtures, (3) AC Adapters with international plug sets,
(3) multi-jointed exible tripods, and a compact stand with stand adapter, offering additional placement options.
Everything comes packaged in a fully customizable soft case, with plenty of additional storage space for batteries,
camera lenses and other items.
CALIBER 3-LIGHT KIT ADVANTAGES
• Lightweight kit is ideal for location setups and travel
• Multi-jointed mounts allow the lights to be xed in a number of positions
• A true Fresnel xture that produces soft, directional illumination
• Flicker-free at any frame rate or shutter angle
• Ultra-smooth dimming from 100% to 0, with no noticeable color shift throughout the entire range
• Congurable soft case allows for easy customization
• Low power draw means the portable xtures can run anywhere light is needed,
on AA batteries or via AC (Fixture is 2x brighter when run on AC)
• 17W power draw with output comparable
to a 150W Tungsten
Caliber 3-Light Kit
909 -1001
CALIBER 3-LIGHT KIT
INCLUDES:
• (3) Caliber Fresnels Fixtures
• (3) Multi-Jointed Flexible Tripods
• (3) Gel Sets
• (3) Color Frames
• (3) 4-Way Barndoors
• (1) Compact Light Stand
• (1) Stand Adapter
• (1) Ball Head Shoe Mount
• (3) International Power Supplies
• (1) Soft Case with Customizable
Interior Compartments
litepanels.com
Page 2
Litepanels Caliber 3-Light Kit
™
CALIBER 3-LIGHT KIT
SPECIFICATIONS
Case Dimensions
16.5x10.5x12 (42x26.7x30.5CM)
Kit Weight Just under 13 lbs / 6kg
CALIBER SPECIFICATIONS
Color Temperature Daylight
Beam Angle 15°-73°
Fresnel Lens 2” / 5cm
Size Flood 9.6x3x3” / 24.4x7.6x7.6cm
Spot 8.8x2.7x3x3” / 22.4x7.6x7.6cm
Weight 1.3 lbs / .59kg
Maximum Power Draw 17W
Power Requirement 6 -12VDC
Power Supply AC/DC 120-240VAC
DC Power via six (6) AA batteries
CALIBER PHOTOMETRICS DATA
Measured using the AC adapter. Unit is 1/2 as bright when using
AA batteries.
SPOT
BEAM ANGLE
15°
FLOOD
BEAM ANGLE
73°
Distance
Beam
Diameter
Footcandles
[Lux]
Field
Diameter
Beam
Diameter
Footcandles
[Lux]
Field
Diameter
6 ft
[1.8m]
1.6 ft
[0.5m]
195 fc
[2097 lx]
2.6 ft
[.8m]
9.0 ft
[2.7m]
21 fc
[225 lx]
12.5 ft
[3.8m]
9 ft
[2.7m]
2.4 ft
[0.7m]
87 fc
[932 lx]
4.0 ft
[1.2m]
13.3 ft
[4.1m]
9 fc
[100 lx]
18.7 ft
[5.7m]
12 ft
[3.7m]
3.2 ft
[1.0m]
49 fc
[524 lx]
5.3 ft
[1.6m]
17.8 ft
[5.4m]
5 fc
[56 lx]
25 ft
[7.6m]
The Litepanels Difference
Full spectrum quality soft light, with visually accurate color temperature
The widest variety of LED xtures available, with exible AC or DC power options
Smooth dimming from 100% to 0, with no noticeable color shift
Flicker-free performance at any frame rate or shutter angle
Controlled current and thermal management for long LED life
Efcient power management delivers low power consumption and enhanced reliability
Engineered and designed in Los Angeles, CA
Litepanels, a Vitec Group brand, was founded in 2001 by ve
professional gaffers and engineers who saw the future and pioneered
LED (light emitting diode) lighting for motion pictures, television, and
the audio-visual industr y. Their Emmy® award-winning technology has
now been used on thousands of productions worldwide and is trusted
Printed in the USA . Specications subj ect to cha nge with out noti ce.
by the world’s leading broadcast organizations. Litepanels continues
to expand its suite of icker-free, color accurate, fully-dimmable soft
lights that talent and lighting directors admire. These environmentally
friendly xtures can pay for themselves with power savings and long
life, setting a new standard in professional lighting.
