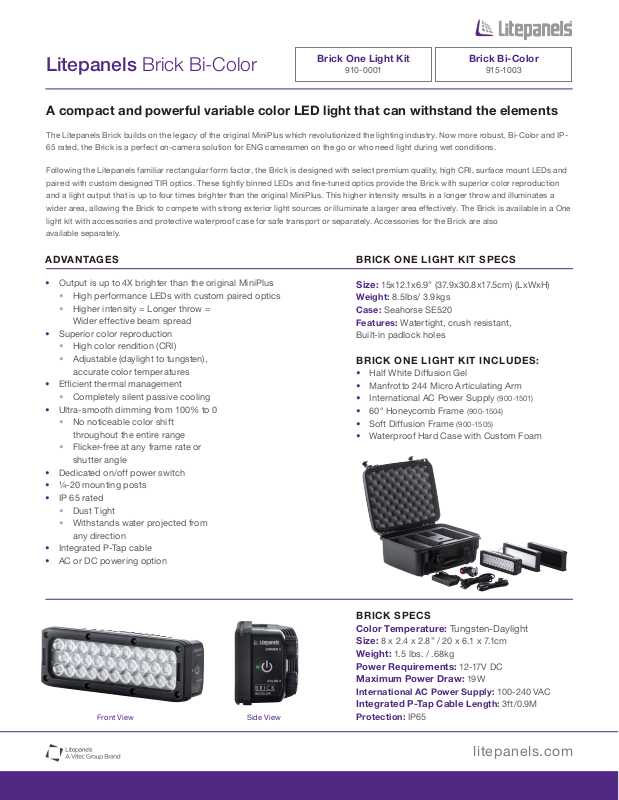

Page 1
Litepanels Brick Bi-Color
Brick One Light Kit
910-0001
Brick Bi-Color
915 -1003
A compact and powerful variable color LED light that can withstand the elements
The Litepanels Brick builds on the legacy of the original MiniPlus which revolutionized the lighting industr y. Now more robust, Bi-Color and IP-
65 rated, the Brick is a perfect on-camera solution for ENG cameramen on the go or who need light during wet conditions.
Following the Litepanels familiar rectangular form factor, the Brick is designed with select premium quality, high CRI, surface mount LEDs and
paired with custom designed TIR optics. These tightly binned LEDs and ne-tuned optics provide the Brick with superior color reproduction
and a light output that is up to four times brighter than the original MiniPlus. This higher intensity results in a longer throw and illuminates a
wider area, allowing the Brick to compete with strong exterior light sources or illuminate a larger area effectively. The Brick is available in a One
light kit with accessories and protective waterproof case for safe transport or separately. Accessories for the Brick are also
available separately.
ADVANTAGES
• Output is up to 4X brighter than the original MiniPlus
• High performance LEDs with custom paired optics
• Higher intensity = Longer throw =
Wider effective beam spread
• Superior color reproduction
• High color rendition (CRI)
• Adjustable (daylight to tungsten),
accurate color temperatures
• Efcient thermal management
• Completely silent passive cooling
• Ultra-smooth dimming from 100% to 0
• No noticeable color shift
throughout the entire range
• Flicker-free at any frame rate or
shutter angle
• Dedicated on/off power switch
• ¼-20 mounting posts
• IP 65 rated
• Dust Tight
• Withstands water projected from
any direction
• Integrated P-Tap cable
• AC or DC powering option
BRICK ONE LIGHT KIT SPECS
Size: 15x12.1x6.9” (37.9x30.8x17.5cm) (LxWxH)
Weight: 8.5lbs/ 3.9kgs
Case: Seahorse SE520
Features: Watertight, crush resistant,
Built-in padlock holes
BRICK ONE LIGHT KIT INCLUDES:
• Half White Diffusion Gel
• Manfrotto 244 Micro Articulating Arm
• International AC Power Supply (90 0 -1501)
• 60° Honeycomb Frame (9 0 0 -15 0 4)
• Soft Diffusion Frame (900-1505)
• Waterproof Hard Case with Custom Foam
Front View Side View
BRICK SPECS
Color Temperature: Tungsten-Daylight
Size: 8 x 2.4 x 2.8” / 20 x 6.1 x 7.1cm
Weight: 1.5 lbs. / .68kg
Power Requirements: 12-17 V D C
Maximum Power Draw: 19W
International AC Power Supply: 100-240 VAC
Integrated P-Tap Cable Length: 3ft/0.9M
Protection: IP65
litepanels.com
Page 2
Litepanels Brick Bi-Color
OPTIONAL ACCESSORIES
• Anton/Bauer QRG-LG (8 375 - 0176 )
• PowerTap Extension (8075 -0010)
PHOTOMETRICS
DAY LI G HT Footcandles LUX
5 ft / 1.5 m 98 1060
10 ft / 3 m 24 255
15 ft / 4.6 m 11 115
(8 375 - 0176 ) (8075-0 010)
TUNGSTEN Footcandles LUX
5 ft / 1.5 m 81 870
10 ft / 3 m 19 200
15 ft / 4.6 m 9 100
The Litepanels Difference
Full spectrum quality soft light, with visually accurate color temperature
The widest variety of LED xtures available, with exible AC or DC power options
Smooth dimming from 100% to 0, with no noticeable color shift
Flicker-free performance at any frame rate or shutter angle
Controlled current and thermal management for long LED life
Efcient power management delivers low power consumption and enhanced reliability
Engineered and designed in Los Angeles, CA
Litepa nels, a V itec Gro up bran d, was founded in 20 01 by ve prof essio nal gaf fers
and engineers who saw the future and pioneered LED (light emitting diode) lighting
for motion pictu res, tel evisio n, and the a udio-v isual i ndustr y. Their E mmy® award-
winnin g techno logy ha s now been used on th ousan ds of pro ductio ns worldwide an d
is trusted by the world’s leading broadcast organizations. Litepanels continues to
Printed in the USA . Spec icati ons subject to ch ange without notice.
expand i ts suite of icker-fre e, colo r accurate, fully-dimm able sof t lights that ta lent
and ligh ting dir ector s admire. These e nvironmentally frie ndly x tures c an pay
for them selves w ith power savings and long l ife, set ting a new s tanda rd in
professional lighting.
litepanels_brick_0815
