LITE ON TECHNOLOGY WB101N User Manual

User Manual
FCC Statement:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Notice: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
Modular information form OEM Information to Be Supplied to the End User by the OEM or Integrator. The following regulatory and safety notices must be published in documentation supplied to the end user of the product or system incorporating an adapter in compliance with local regulations. Host system must be labeled with " Contains transmitter module FCC ID: PPQ-WB101N , FCC ID displayed on label.
The antenna(s) used for this transmitter must not be co-located of operating in conjunction with any other antenna or transmitter. This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. Ln order to avoid the possibility of exceeding the Fcc radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8inches) during normal operation.
Product Features LiteON BLE Module WB101N adopts nRF52810 Central Processing Unit as a
high performance and low energyBluetooth Low Energy transmitting/receiving module system.
Being assembled with extremely compact size, total dimension is
14.3*14.3mm*2.1mm so as to perfectly support low energy Bluetooth 4.0 protocol, Bluetooth 4.2 Secure Connection and also part of Bluetooth 5.0 protocol to apply to all kinds of IoT and other wireless application.
User MCU could link to module system through serial port(UART)to achieve the data mutual interaction between module and mobile smart device.

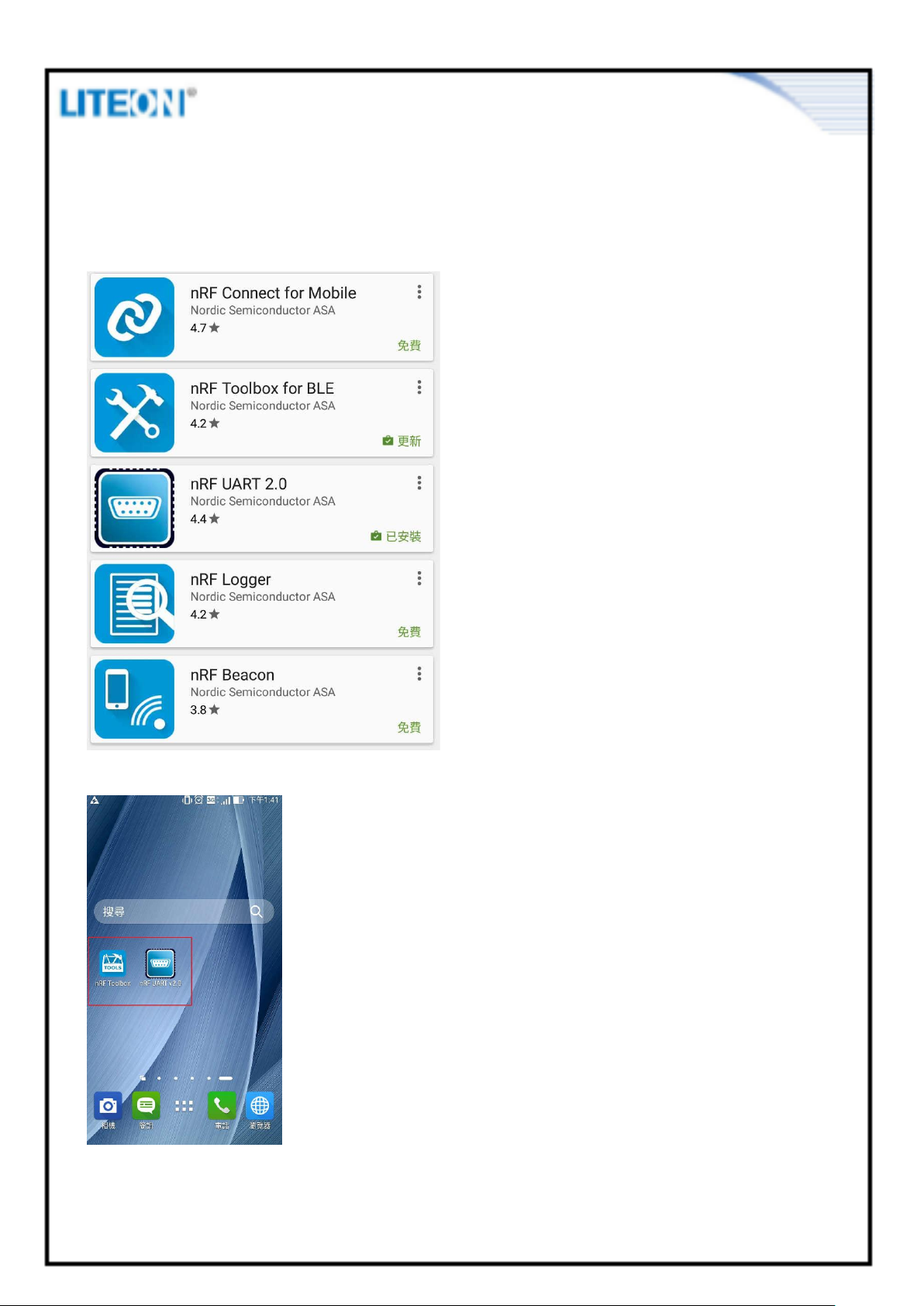

Upon receiving data from serial port of users MCU, the module system will transmit to mobile smart device automatically; also the device could send data
to module through application, and the data will be passed to user MCU from module.
*Module supports specific serial AT commands to configure communication parameters, such as serial port transmission rate as well as Bluetooth connection interval, and also support data preservation when facing power outage *Transparent transmission (through bridging) enables user to operate conveniently. Even for user without Bluetooth development experience could easily operate.
*User interface adopts standardized UARTTTLinterface which allows mutual information transmission with simple operation.

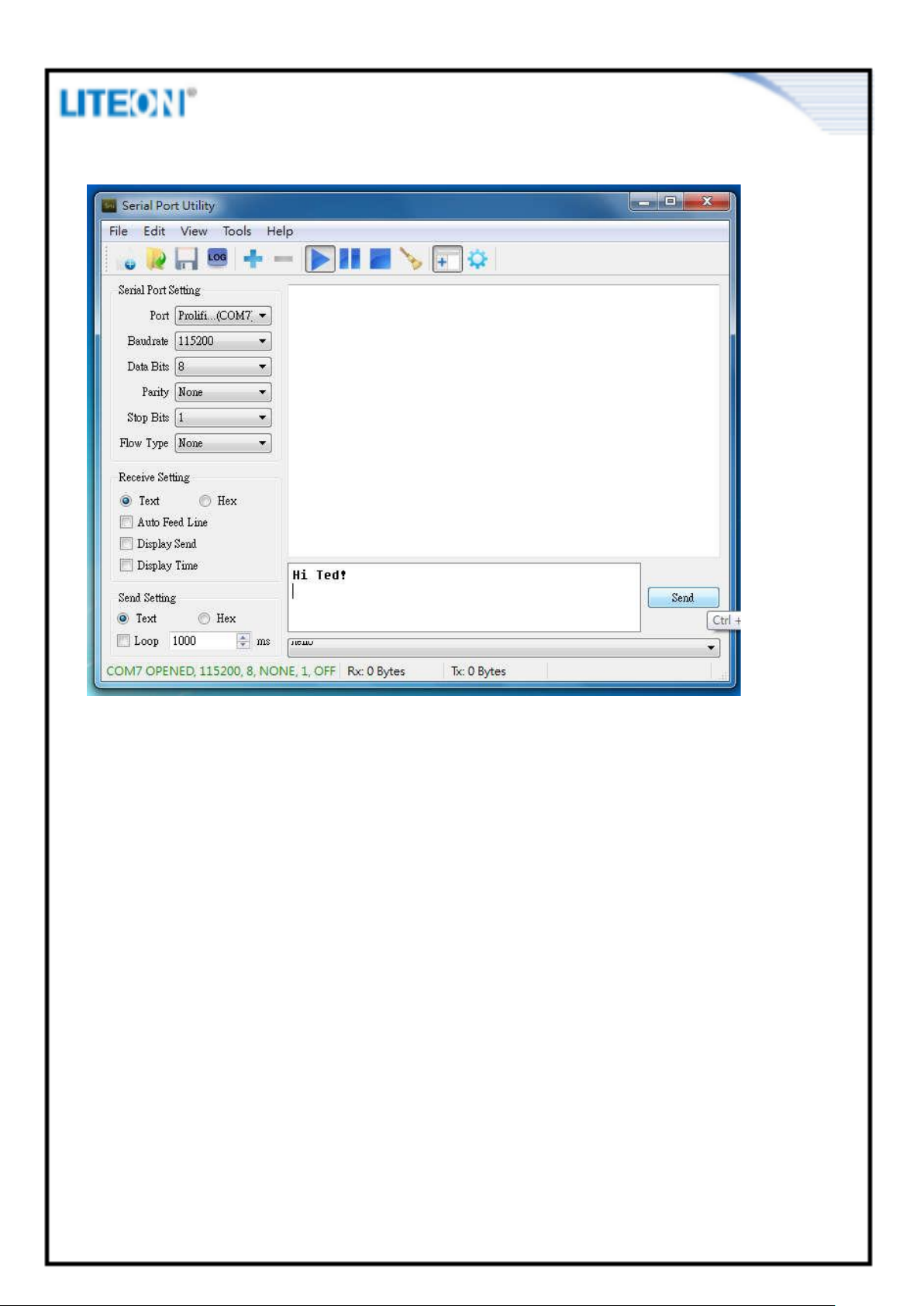

*Support serial port AT command. User could modify the transmission rate (default rate as 115200bps) and name of module serial port.
MAC Address and other basic information Low energy application could be controlled by hardware serial port Able to decide packet length of any serial port freely and without limit Bluetooth forecast data is compatible with ibeacon mode.
Transmission distance1030 Meter, class II
Transmission rateUp to 6Kbyte/s
Supply voltage1.83.6V3.3V typical
Module dimension14.3*14.3mm
Operation temperature-40°C 85°C Note: *The lowest operation temperature for low voltage mode could be
-25°C .*
Product Specifications
MAIN CHIPSET
Nordic nRF52810
FUNCTIONAL SPECIFICATIONS
2.4 GHz transceiver
-96 dBm sensitivity in Bluetooth® low energy mode
Supported data rates: 1 Mbps Bluetooth® low energy mode
-20 to +4 dBm TX power, configurable in 4 dB steps
On-chip balun (single-ended RF)
4.6 mA peak current in TX (0 dBm)
4.6 mA peak current in RX
RSSI (1 dB resolution)
ARM® Cortex®-M4 32-bit processor, 64 MHz
144 EEMBC CoreMark® score running from flash memory
34.4 μA/MHz running from flash memory
32.8 μA/MHz running from RAM
Serial wire debug (SWD)
Flexible power management
1.7 V-3.6 V supply voltage range
Fully automatic LDO and DC/DC regulator system
Fast wake-up using 64 MHz internal oscillator
0.3 μA at 3 V in System OFF mode, no RAM retention
0.5 μA at 3 V in System OFF mode with full 24 kB RAM retention
1.5 μA at 3 V in System ON mode, with full 24 kB RAM retention, wake on RTC
