Locix
Locix Outdoor HD Camera
Model No.: L-WC-01-40-IP65, L-WC-01-110-IP65
User’s Manual
Confidential and Proprietary of LiteON
- 1 -
1. PRODUCT HISTORY
1.1. PURPOSE
This document contains the product specification of Dragonfly camera.
Date Release Author Description
2017/12/04 0.1 Tommy Lin • Primary Release
2017/12/11 0.2 Matt Davidson • Edits
2017/12/21 0.3 Tommy Lin • 4 pcs battery change to 2 pcs design
Confidential and Proprietary of LiteON
- 2 -
2. INTRODUCTION
THE LOCIX BATTERY POWERED SENSOR/CAMERA PROVIDES FULL HD 720P WIDE VIEW
ANGLE AND OVER 3 YEARS BATTERY LIFE (@ 1 IMAGE PER H OU R) AND SUPPORT 10
METERS MOTION DETECTION AND CLEAR NIGHT VISION. THIS CAMERA ALSO PROVIDES
EASY INSTALLATION INCLUDING WALL MOUNT AND HUB CONNECTTED AUTOMA TICALL Y.
The main feature as following:
1. Sub-1G : The camera has good wireless performance and reliable connection with hub.
2. Night Vision: The camera supports 10 meters visible distance in the 0 lux envir onment.
3. Battery Life: The camera powered by 2pcs AA non-rechargeable battery
4. Installation: The camera supports automatic connection with hub and wall mount.
5. Water/Dust Proof: The camera supports IP65.
Confidential and Proprietary of LiteON
- 3 -
3. SPECIFICATION

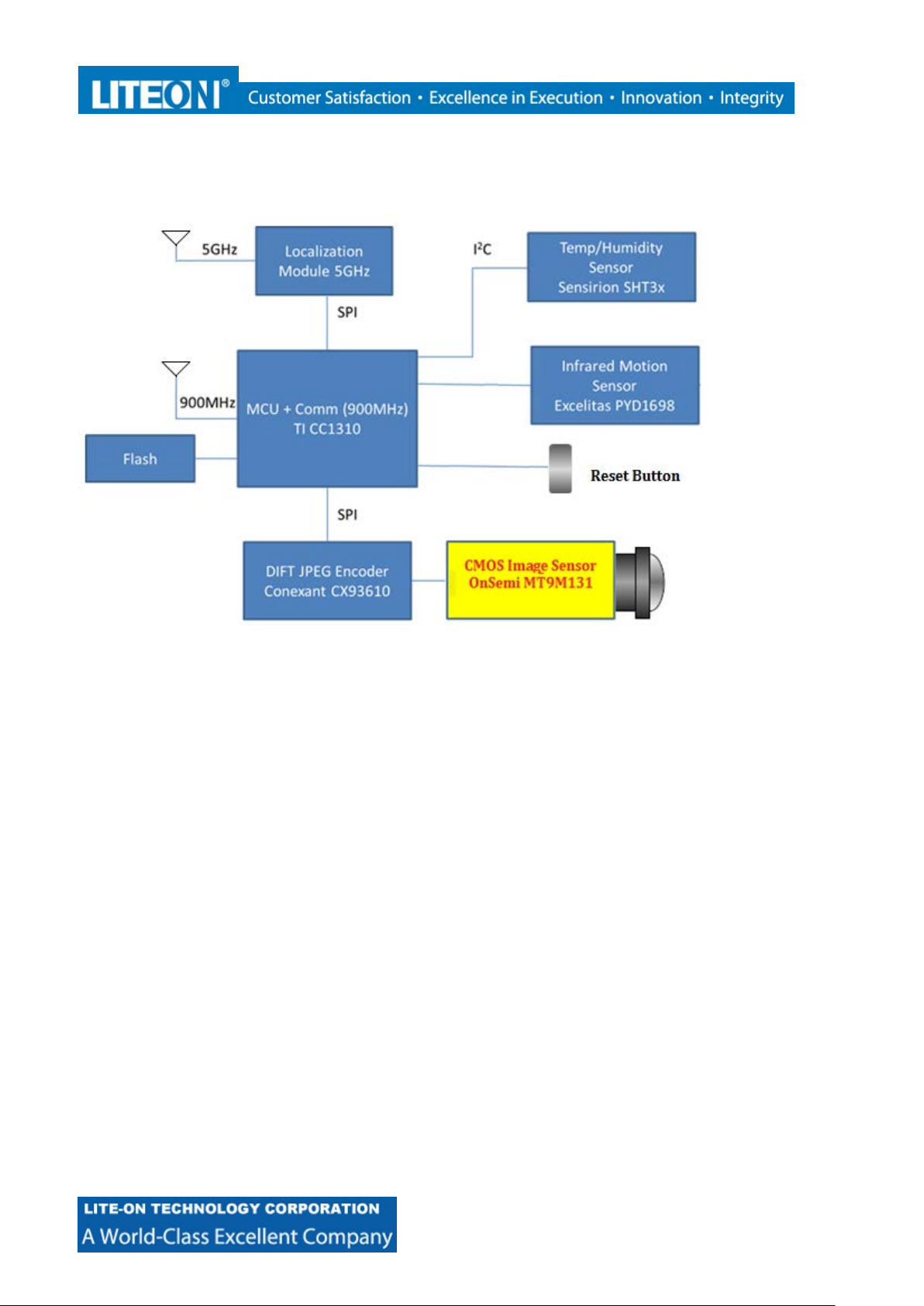

3.1. HARDWARE BLOCK DIAGRAM
(Localization module optional)
Confidential and Proprietary of LiteON
- 4 -
3.2. SYSTEM AND HARDWARE SPECIFICATION
System
H.1 Processor
H.2 ROM
H.3 Power supply
H.4 Power Consumption
H.5 Environment
H.6 Image Sensor
H.7 Sensor Size
H.8 Image Max Resolution
H.9 F/No
H.10 Focus Length
H.11
H.12 Focus Depth
H.13 View Angle
• Ti CC1310
• 128 M bit
• AA 2pcs
• Max. 3W
• Operation: Temp: -20℃ ~ 60℃ Hum idity: 0% ~ 85% non-condensing
• Storage: Temp: -25℃ ~ 70 ℃ Hum idity: 5 % ~ 95% non-condensing
Optical
• Onsemi MT9M131
• 1/3” 1.3M pixel CMOS Sensor
• 1280 X 1024
• F2.3
• 2.3mm
• 0.5 lux@IR_LED Off (minimum)
• 0 lux@IR_LED On
• 1.5m~Infinity
Horizontal 113°
(Image Raw Data)
H.14 Processor
H.15 CPU
H.16 Clock Speed
H.17 Codec Processor
H.18 Compression
H.19 Resolution Output
H.20 Chipset Model
H.21 Host Interface
H.22 RF
H.23 Output Power
Vertical 87°
Diagonal 140°
SOC
• Ti CC1310
• ARM Cortex M3
• Up to 48Mhz
Image Processing
• Conexant CX93610
• JPEG/MJPEG
• 1280 x 1024 Cropping to 1080 x 720
Wireless Interface
• Ti CC1310
• Internal Bu ilt -in
• Sub 1GHz
• Up to +13dbm
H.24 Distance
- 5 -
• 30 meters (Between Camera to Hub)
Confidential and Proprietary of LiteON
Antenna specification
H.25 Antenna
H.26 Day/Night
H.27 Light Sensor
H.28 PIR
H.29 Temperature /
Humidity
• Sub-1GHz
- Type : Dipole
- Efficiency : 40% max
- Operating Frequency : 902~928 MHz
• Localization Modul e
- Type : PIFA
- Efficiency : 40% max
- Operating Frequency : 5150~5850 MHz
Sensor
• Built-in ICR
• CG5151TA
• PYD 1698
• Up to 10 Meters
• SHT31-DIS
LED and Button
H.30 Indicator
H.31 IR
H.32 Reset Button
H.33 Regulatory
H.34 Waterproof Level
• No
• 6pcs
• 850nm
• Up to 10 Meters
• Reboot Camera
• FCC part 15 Class A , CE Class A , CB, TELEC, UL/ cUL
• IP65
Certification
Confidential and Proprietary of LiteON
- 6 -

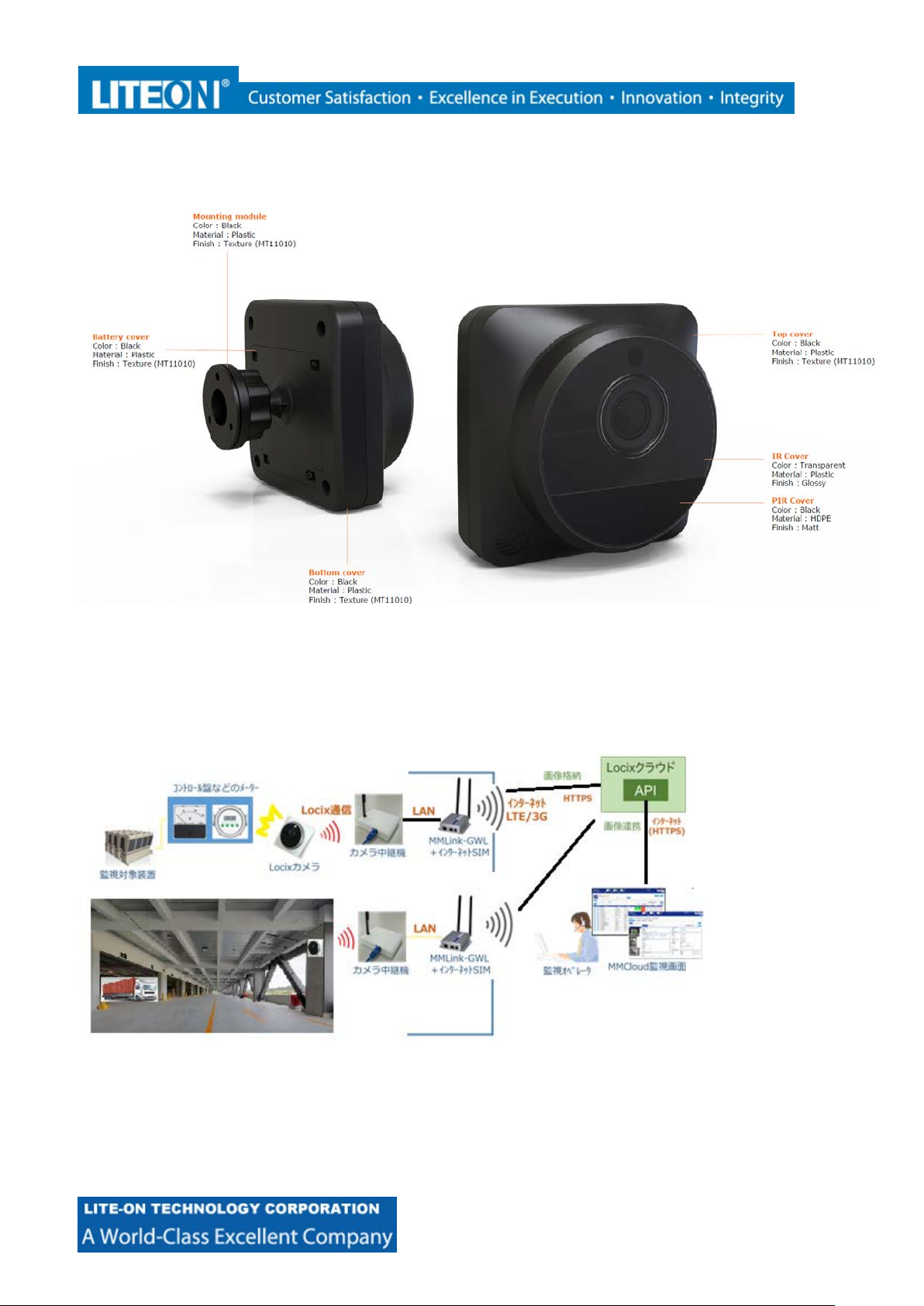

4. ID AND MECHANICAL DESIGN
4.1. OUTLOOK
5. USER SCENARIO
Dragonfly camera can install in the data center or air conditioning room or truck berth to monitor.
Confidential and Proprietary of LiteON
- 7 -
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Cla ss B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that int erfer ence wi ll not occur in a parti cular i nstalla tion. If this equipment does caus e
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures :
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with any other
antenna or transmitter.
IMPORTANT NOTE:
Federal Communication Commission (FCC) Radiation Expos ure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End user must follow the specific operating instructions for satisfying RF exposure
compliance.
