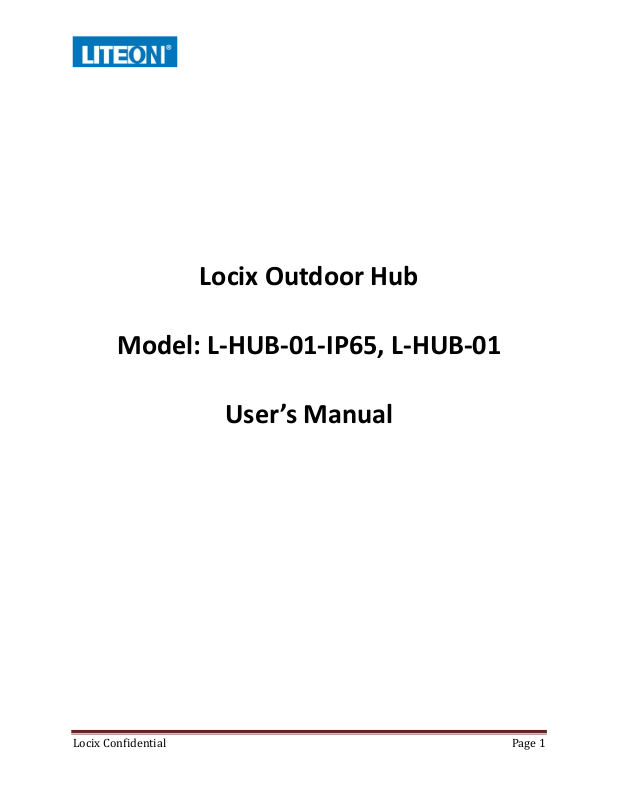

Locix Outdoor Hub
Model: L-HUB-01-IP65, L-HUB-01
User’s Manual
Locix Confidential Page 1
Table of Contents
1 Introduction ............................................................................................................................. 3
2 System Architecture ................................................................................................................ 3
2.1 System Block Diagram ................................................................................................... 3
2.2 Main Board ..................................................................................................................... 3
2.2.1 TI CC1310 .............................................................................................................. 3
2.2.2 i.MX6 Processor ..................................................................................................... 4
2.2.3 Wi-Fi ....................................................................................................................... 4
2.2.4 Ethernet ................................................................................................................... 4
2.2.5 Bluetooth ................................................................................................................. 4
2.2.6 SD Card ................................................................................................................... 4
2.2.7 Connectors .............................................................................................................. 4
2.3 Power .............................................................................................................................. 5
2.4 Antenna ........................................................................................................................... 5
3 Software .................................................................................................................................. 6
3.1 Hub/Network Features .................................................................................................... 6
3.1.1 Node Support: ......................................................................................................... 6
3.1.2 Interfaces ................................................................................................................. 6
3.1.3 Media Request ........................................................................................................ 7
3.1.4 Node Management .................................................................................................. 7
4 Environmental ......................................................................................................................... 7
5 Regulatory ............................................................................................................................... 7
6 Safety ...................................................................................................................................... 7
Locix Confidential Page 2
1 Introduction
The Locix Hub is d evice designed to manage the Locix sub-GHz wireless network and connect
devices on the sub-GHz network to a cloud platform. The hub is designed to communicate to
other Locix devi ces over a ran ge 50m (line of sight) with Sub-1Ghz technology, and connect to
an internet connection over Ethernet or Wi-Fi.
2 System Architecture
2.1 System Block Diagram
2.2 Main Board
2.2.1 TI CC1310
CC1310 performs the control, monitoring and management of the sub-GHz wireless network.
The 900MHz wireless communication is designed to communicate with Locix sensor nodes.
The CC1310 device combines a flexible, very low power RF transceiver with a powerful 48MHz Cortex-M3 microcontroller in a platform supporting multiple physical layers and RF
standards. A dedicated R adio Controller (Cortex-M3) handles low-level RF protocol commands
that are stored in ROM or RAM, thus ensuring ultralow power and flexibility. The low-power
consumption of the CC1310 device does not come at the expense of RF performance; the
CC1310 device has excellent sensitivity and robustness (selectivity and blocking) performance.
Locix Confidential Page 3
