USER MANUAL
Version: X01
IC3 Network Board
Part Number: EZ-0762-0A32
User Manual
Version Histories:
Doc. Version Description of changes Date Edit
X01 Initially version
2018/04
Jerry Hsueh
User Manual
Table Content
Version Histories ............................................................................................................................. 2
SCOPE ........................................................................................................................................... 4
1. Function Descriptions ............................................................................................................... 4
2. Comunication Function ............................................................................................................. 5
3. Demension ............................................................................................................................... 5
4. Installation ................................................................................................................................ 6
Federal Communication Commission Interference Statement ........................................................ 8
User Manual
SCOPE
The purpose of this document is to define the functional requirements for the LITEON Intelligent Charger 3
EVSE product. The primary objectives regarding the LITEON IC3 product are as follows:
1. Provide a cost-effective and scalable commercial product family which contain s product s that are able
to either operate in a stand-alone manner or communicate with the Network.
2. Provide a product that can be remotely and locally controlled, configured, and monitored.
The Network Board build-in a Linux OS. It provides Wi-Fi, LTE, UART, RS232, I2C and Ethernet
communication interface.
Project Difference:
Feature
Wi-Fi V V V
LTE V(For AT&T) V(For Verizon) NA
Project Name
EZ-0762-0A31 EZ-0762-0A32 EZ-0762-0A33
1. Function Descriptions
Item Function Note
2-1 USB 2.0 high speed (Device) Cellular, 4G/ LTE Function
2-2 Ethernet 10/100Mbps LAN
2-3 UART
2-4 I2C
2-5 SDIO SD Card Access Function
2-6 Wi-Fi WLAN
1. UART 0 (RS232)Æ Safety Board
2. UART 2 (RS232) Æ Console Port
OLED Display Function
RTC Function
User Manual
2. Communication Function
Item Specification
Local Area Network (LAN) 10/100BaseT Ethernet LAN
Wireless Local Area Network (WLAN/Wi-Fi) 802.11 b/g/n
Cellular ELS31-V support B4,B13

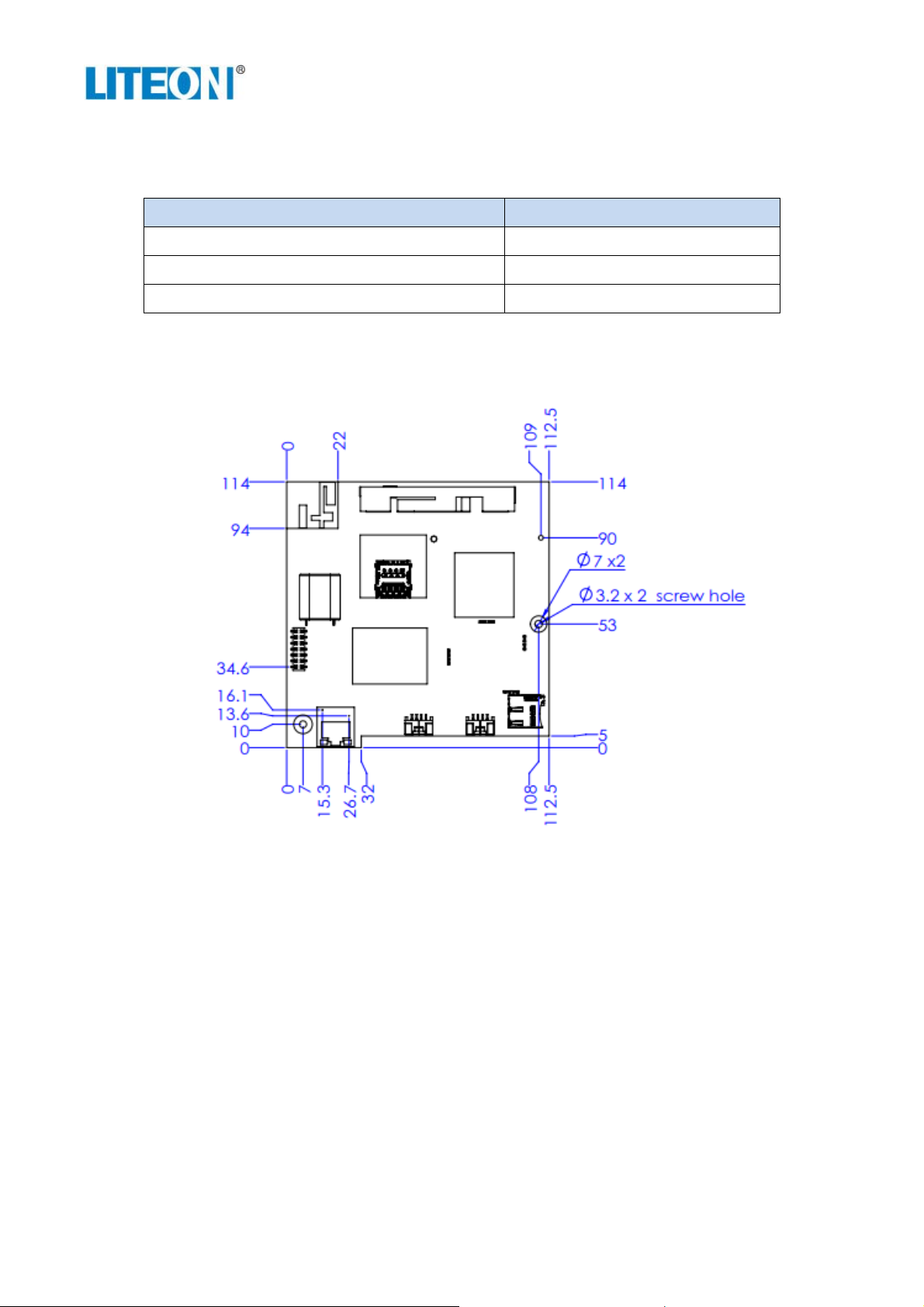

3. Dimension
4. Installation
5-1 Insert SD card and SIM card
Dimension of network board
User Manual
Position of SD card and SIM card.
5
-2 Insert pin header into the connector
The connector is on the
connect main module.
back side of the network board. Use pin header insert into the connector to
-3 Fix Network Board with M3 screws
5
Use M3 screws x2 to fix the network board. T 5.2 lb-in (6 kgf.cm).
Position
of the connector.
=
User Manual
Position of two screw holes.
5-4 Connector on PCBA board
Position of connectors.
User Manual
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
User Manual
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and
users, and
2) The transmitter module may not be co-located with any other transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not be required. However,
the OEM integrator is still responsible for testing their end-product for any additional
compliance requirements required with this module installed
IMPORTANT NOTE: In the event that these conditions can not be met
(for example
certain laptop configurations or co-location with another transmitter), then the FCC
authorization is no longer considered valid and the FCC ID can not
be used on the final
product. In these circumstances, the OEM integrator will be responsible for re-evaluating the
end product (including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be
installed such that 20 cm may be maintained between the antenna and users. The final end
product must be labeled in a visible area with the following: “Contains FCC ID: PPQIC3V”.
The grantee's FCC ID can be used only when all FCC compliance requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding
how to install or remove this RF module in the user’s manual of the end product which
integrates this module.
The end user manual shall include all required regulatory information/warning as show in
this manual.
